Component Solution Services Verity SM07E User manual

A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
www.verityrvs.com
Please read this manual completely before operating the SYSTEM
© 2018 Verity Rear Vision Systems
Just View It!®
7 INCH DIGITAL
MONITOR SYSTEM
Part # SM07E

Think Safety
First
Read our manual before operating
or installing.
Most likely, your system came preinstalled, so the installation
section would be for reference.
Thank you for your purchase of our Verity Rear Vision
Systems®. When installed and used properly, your SM07E is
designed to deliver you years of trouble-free operation. This
manual contains important information required to properly
install and operate the unit. Verity Rear Vision Systems are
designed for quick installation by trained professionals in
proper installation environments. Our designs are based on
decades of working with vehicle manufacturers.
Verity Rear Vision Systems products are intended to be
installed as a supplement and our observation systems and/or
products are not intended for use as substitutes for rear-view
mirror devices, or for any other standard motor vehicle
equipment which may be required to be installed on vehicles
by law. Verity Rear Vision Systems products promote
improving the vehicle operator’s field of view. Our products
are no substitute for proper defensive driving techniques,
observance of traffic laws and motor vehicle safety
regulations.
Installation Location
It is unlawful in most locals for any person to drive a motor
vehicle equipped with a television viewer/screen located at
any point forward of the back of the driver’s seat (or in any
location that is visible, directly or indirectly), to the driver while
operating the vehicle. Our systems are designed to be used
primarily as a rear observation device.
DO NOT OPEN ANY COMPONENT. There are no
serviceable parts inside any of the components of the Verity
Rear Vision products. Opening the product will break the
tamper indicators and void the warranty. Contact our tech
support if a problem should arise 574-807-6002. For faster
response, fill out a service ticket found on our website tech
support section. www.verityrvs.com

WARNING
Do not place heavy objects on cables or cover
them with carpet or mats.
Do not place cables where they can be
crushed in any manner.
Our systems are designed as a driving aid.
Watching videos, broadcasts, DVDs and/or any
images other than intended driving assistance
cameras is prohibited.
CAUTION
To avoid damage to the electronic circuit, stop
using this product while doing welding work to
the vehicle and/or trailers.
Never immerse any component in water, and
do not employ spray cleaners. When cleaning,
use a damp lint-free cloth only.
Connect this unit only to other compatible
devices.
Although our products have built-in surge and
cross polarity protection, make sure all cables
are connected properly; improper cable
connections may damage the camera and the
monitor.
Cables should not be allowed to touch hot or
rotating parts, such as the engine, ventilator,
etc.
Do not locate the monitor near heat generating
vents or devices.
Turn off power to the monitor when connecting
the camera.
Monitors are not designed to be waterproof. (Our
SM07F waterproof monitor is the exception.)
Exposure to water, such as rain, may damage the
unit.

SYSTEM FEATURES
MONITOR SPECIFICATIONS
Screen Size: 7" Digital screen
Video Inputs: 3 A/V
Brightness: 450
Contrast: 400:1
Removable sunshade
View angle: L/R 60°/60° U/D 40°/60°
Operating Temperature: -20 C~70 C
Storage Temperature: -30C~ +80C
Operating Voltage: DC12V ~ DC32V
Reverse polarity protection
Resolution: 800(H) * 480(V) RGB
OSD MENU Function: Reversing image delay
time 0~15s; Mirror/ Normal image; Multi-
language; guidelines
1 / 3” COLOR SENSOR SPECIFICATIONS
CCD Camera, 2.9mm lens
Waterproof IP 68
6 IR Night vision
System: NTSC
Pixel: 628 X 582 RGB
View Arrange: 120°
TV line: 420

SYSTEM COMPONENTS
I/F Remote
65 foot
Camera Cable
13-pin to Monitor Cable
Manual
7-Inch HD Digital
Panel
C001E Camera

SYSTEM COMPONENTS
This monitor can be mounted on the dash and can be
mounted on both horizontal and vertical surfaces.
Make sure the view is suitable to the driver to observe
the images. Take care not to block any necessary
viewing area when mounting. Before mounting the
system, permanently hook up all connections to
ensure proper operation.
Mounting Monitor
1. After determining the monitor location, position
the monitor support bracket, mark the bolt hole
location, and then drill the holes. Be careful not to
drill into any other surface that may be hidden.
2. Attach monitor bracket. Mount the monitor to
the support bracket with supplied 4 angle adjustment
screws.
3. Connect one end of the power cable (wire) to the
proper connections. Connect the other end of the
power cable (plug) to the monitor; connect the monitor
and the camera with the 13-pin system connecting
cable.
Camera Connection
Thru-wall Gasket to Seal
Thru Vehicle Exterior
Secondary Waterproof Sleeve
Slides Over Aviation Connection
Waterproof Aviation
Connectors

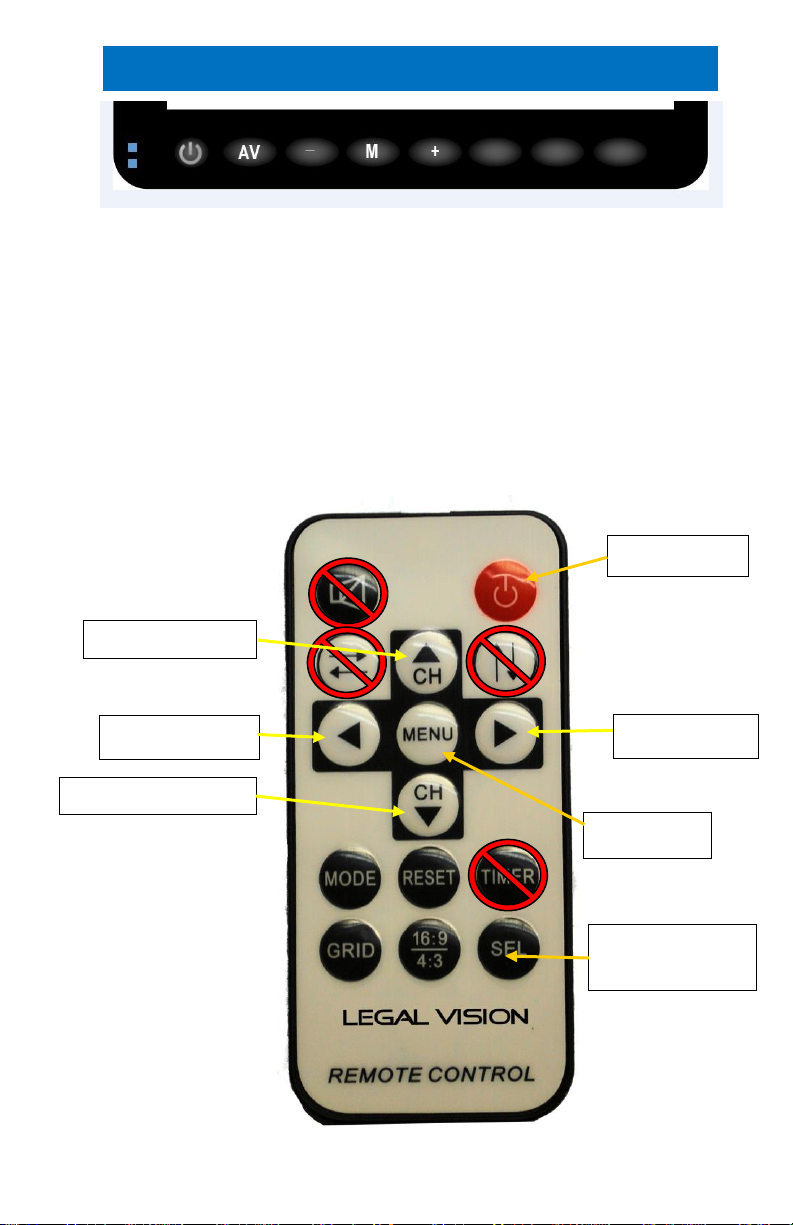

MONITOR / UNVERSAL REMOTE OPERATIONS
POWER: Manual turns on monitor. Monitor will also power up
on command if a trigger wire is connected
AV:Switches between cameras
- : decreases a selected menu item
MENU: Activates operational menu (press repeatedly to move
down the options)
+ : increases selected menu item
MENU
SCROLL UP
POWER
SWITCH
CAMERA
INCREASE
DECREASE
SCROLL DOWN

CONNECTION OPERATIONS
13-Pin female
Verity Rear Vision Systems Wire Connection Key
4-pin camera connectors & trigger wires
Camera 1 rear (Brown trigger wire)
Camera 2 (Green trigger wire)
Camera 3 (Blue trigger wire)
Red wire to key-on hot (+) 10-32v. DC (fused)
Black wire to GND. (-)
Brown wire to positive Back-up light
BE SURE TO ALIGN 13 PIN CONNECTION If force
is applied to this connection when not aligned, it may
damage plug pins and void the warranty.
Female on Both
Ends
CAM 1
CAM 2
13-Pin male

MENU OPERATIONS
Press Menu: Press the (+) key to advance to the next
menu screens. Menu Screens are PICTURE, VOLUME,
OPTION, SYSTEM.
Screen 1: Depress menu repeatly to scroll down
options.
Use the (-) and (+) buttons on monitor to increase or
decrease values. Brightness, Contrast, and Color,
displayed on screen. Brightness, Contrast, and Color
have a value of 1-100 that come factory-set at 50, the mid-
range. Reset will restore the factory settings.
2 Menu Screen: VOLUME (Due to no audio on camera
this funtion has been disengaged.)
BRIGHT 50
CONTRAST 50
COLOR 50
RESET

3 PICTURE: Picture refers to picture delay. This
determines how long a camera stays on past the trigger
wire being deactivated (powered). This allows for using
the turn signal flasher wire as a trigger.
4 SYSTEM: LANGAUGE The default language is
English. There are 7 options: English, Chinese, French,
Deutsch, Italian, Spanish, and Portuguese. Source
selects the default camera. Guide lines will turn off/on
guide lines for a channel with a trigger wire connected.
5 PRESET: Sleep delays the camera function. Should
always stay set to ZERO. AV1, AV2, AV3 allows for
turning off unused channels.
CAMERA1 00S
CAMERA2 00S
CAMERA3 00S
LANG ENGLISH
SOURCE AV2
GUIDE LINES OFF
SYSTEMS:
SLEEP 0
AV1 ON
AV2 ON
AV3 ON
PRESET:

Verity Rear Vision Systems
A division of
COMPONENT SOLUTION SERVICES (CSS)
LIMITED ONE (1) YEAR WARRANTY
1. CSS products’ warranties are not transferable. The warranties
apply to the retail consumer for one (1) year and covers against
defects in material and workmanship.
2. Defective components will be replaced or repaired, based on a
CSS evaluation of the component. In-bound shipping charges, based
on the CSS rate allocated in the RMA (returned merchandise
agreement), will be covered once the component has been deemed
defective at the CSS warranty facility. The pre-assigned in-bound
freight will be supplied upon return of product. All repaired/replaced
warranty parts shall be for the remaining duration of the original
warranty time period.
3. CSS takes pride in our products and will aid in the processing of
your components:
a) All warranty claimants must have consulted our technical support
department for trouble shooting and the acquiring of an RMA.
Contact can be made via email at [e-mail] or call 574-
807-6002.
b) When the warranty claim is made, the consumer must establish the
warranty start dates by presenting documentation regarding the date
of retail purchase (e.g., bill of sale). c) Service performed by non-
authorized service personnel may void all warranty claims.
d) CSS will make no payments for system removal / system re-
installing, mileage allowance, or transportation expenses.
The limited warranty does not cover damage resulting from misuse,
accident, modification or alteration to hardware or software,
tampering, unsuitable physical or operating environment beyond
product specifications, improper maintenance, or failure caused by a
product for which CSS is not responsible. There is no warranty for
any product with removed or altered identification labels. CSS DOES
NOT PROVIDE ANY OTHER WARRANTIES OF ANY KIND,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SOME JURISDICTIONS DO NOT ALLOW
THE LIMITATION OF IMPLIED WARRANTIES, SO THIS
LIMITATION MAY NOT APPLY TO YOU.
4. This warranty gives you specific legal rights, and you may also
have other rights that vary from state to state.

Technical Support
A service ticket can be filled out on line to supply the
quickest service. The service ticket can be easly found on
our web site www.verityrvs.com or use the code to the
right. Please have the serial number of the system which
is found on the back of the monitor
when contacting the service
department. We take great pride in
delivering the most dependable product
in the industry. Each item was 100%
QC tested and then we randomly
recheck another up to 10% before it
leaves our hands to you. We have a
.034% issue rate with this product.
Email Tech Support: [email protected]
Phone Tech Support: 574-807-6002
Note: if you are a fire/rescue customer in need of tech
support after hours or on weekends, leave a message and
a technician will return your call as soon as one becomes
available.
a division of
Component Solution
Services
56600 Twin Branch Drive
Mishawaka, IN 46545
574-807-6002
Toll Free 844-875-4799
We at Verity Rear Vision Systems would like to
personally thank you for purchasing our
product. Our company strives to supply the
best products at a fair price. We care that you
enjoy a safe driving experience.
© 2018 Verity Rear Vision Systems
