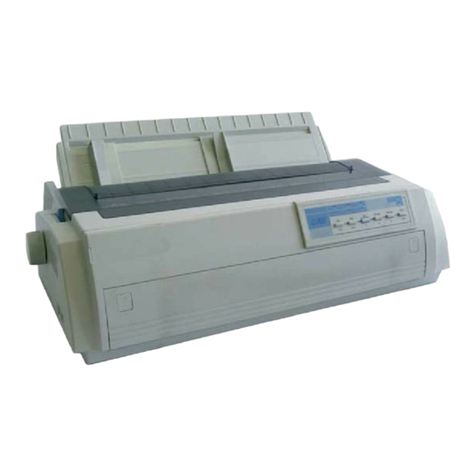

Compuprint 3056 Operating and maintenance manual

Compuprint 30X6
Programmer Manual

Contents
Commands................................................................................................................................................3
1．Index for ESC/PK ................................................3
2．Command interpretation for ESC/PK .............4
3．Other Command Sets........................................16
AR Command Set ..................................................16
OKI Command Set ................................................17
Interfaces ................................................................................................................................................19
1. The Parallel Interface..........................................19
Signals Description.................................................19
Operating Phases ...................................................20
Parallel Interface Signals ......................................20
Interface Timing.....................................................23
2. The Serial Interface .............................................23
Serial Interface Signals..........................................24
3. USB interface ........................................................24
4. Network interface.................................................25

C
Co om mm ma an nd ds s
1
1． ．I In nd de ex x f fo or r E ES SC C/ /P PK K
NO Command Function
1 ESC ( C Set page length in defined unit
2 ESC ( U Set unit
3 ESC C Set page length in lines
4 ESC C NUL Set page length in inches
5 ESC N Set bottom margin
6 ESC O Cancel bottom margin
7 ESC Q Set right margin
8 ESC l Set left margin
9 CR CR Carriage return
10 LF Line feed
11 FF Form feed
12 ESC J Advance print position vertically
13 HT Tab horizontally
14 VT Tab vertically
15 BS Backspace
16 ESC 0 Select 1/8-inch line spacing
17 ESC 2 Select 1/6-inch line spacing
18 ESC 3 Set n/180-inch line spacing
19 ESC + Set n/360-inch line spacing
20 ESC A Set n/60-inch line spacing
21 ESC D Set horizontal tabs
22 ESC B Set vertical tabs
23 ESC t Select character table
24 ESC R Select an international character set
25 ESC % Select user-defined set
26 ESC x Select LQ or draft
27 ESC M Select 12-cpi
28 ESC g Select 15-cpi
29 ESC SP Set character space
30 ESC 4 Select italic font
31 ESC 5 Cancel italic font
32 ESC G Select double-strike printing
33 ESC H Cancel double-strike printing
34 ESC q Select character style
35 SO Select double-width printing (one line)
36 ESC SO Select double-width printing (one line)

37 DC4 Cancel double-width printing (one line)
38 ESC W Turn double-width printing on/off
39 ESC w Turn double-height printing on/off
40 ESC U Turn unidirectional mode on/off
41 ESC * Select bit image
42 ESC @ Initialize printer
43 CAN Cancel line
44 DEL Delete last character in buffer
45 ESC - Turn underline on/off
46 ESC E Select bold font
47 ESC F Cancel bold font
48 ESC P Select 10-cpi
49 ESC p Turn proportional mode on/off
2
2． ．C Co om mm ma an nd d i in nt te er rp pr re et ta at ti io on n f fo or r E ES SC C/ /P PK K
ESC ( C Set page length in defined unit
Format
ASCII ESC ( C nL nH mL mH
Hex 1B 28 43 nL nH mL mH
Decimal 27 40 67 nL nH mL mH
Parameter range
nL = 2, nH = 0
0 < ((mH  256) + mL) (defined unit) 22
Function
Sets the page length in the specified number of units—previously defined with the ESC( U command—according to
the following formula: (page length) = ((mH 256) + mL) (defined unit)
ESC ( U Set unit
Format
ASCII ESC ( U nL nH m
Hex 1B 28 55 nL nH m
Decimal 27 40 85 nL nH m
Parameter range
nL = 1, nH = 0
m = 10, 20, 30, 40, 50, 60
Function
Sets the unit to m/3600 inch. The printer uses this unit when moving the print position,
ESC C Set page length in lines
Format

ASCII ESC C n
Hex 1B 43 n
Decimal 27 67 n
Parameter range
1 n 127
0 < n (current line spacing) 22 inches
Function
Sets the page length to n lines in the current line spacing
ESC C NUL Set page length in inches
Format
ASCII ESC C NUL n
Hex 1B 43 00 n
Decimal 27 67 0 n
Parameter range
1 n 22
Function
Sets the page length to n inches
ESC N Set bottom margin
Format
ASCII ESC N n
Hex 1B 4E n
Decimal 27 78 n
Parameter range
0 < n 127
0 < (current line spacing) n < (page length)
Function
Sets the bottom margin on continuous paper to n lines (in the current line spacing) from the
top-of-form position on the next page.
ESC O Cancel bottom margin
Format
ASCII ESC O
Hex 1B 4F
Decimal 27 79
Function
Cancels the top and bottom margin settings
ESC Q Set right margin
Format
ASCII ESC Q n
Hex 1B 51 n
Decimal 27 81 n

Parameter range
1 n 255
(left margin) < (current pitch) n (printable area width)
Function
Sets the right margin to n columns in the current character pitch, as measured from the leftmost
printable column
ESC l Set left margin
Format
ASCII ESC l n
Hex 1B 6C n
Decimal 27 108 n
Parameter range
1 n 255
0 (left margin) <(right margin)
Function
Sets the left margin to n columns in the current character pitch, as measured from the leftmost printable column
CR Carriage return
Format
ASCII CR
Hex 0D
Decimal 13
Function
Moves the print position to the left-margin position
LF Line feed
Format
ASCII LF
Hex 0A
Decimal 10
Function
Advances the vertical print position one line (in the currently set line spacing)
FF Form feed
Format
ASCII FF
Hex 0C
Decimal 12
Function
Advances the vertical print position on continuous paper to the top-margin position of the next page
ESC J Advance print position vertically
Format

ASCII ESC J n
Hex 1B 4A n
Decimal 27 74 n
Parameter range
0 n 255
Function
Advances the vertical print position n/180 inch
HT Tab horizontally
Format
ASCII HT
Hex 09
Decimal 9
Function
Moves the horizontal print position to the next tab to the right of the current print position
VT Tab vertically
Format
ASCII VT
Hex 0B
Decimal 11
Function
Moves the vertical print position to the next vertical tab below the current print position
Moves the horizontal print position to the left-margin position
BS Backspace
Format
ASCII BS
Hex 08
Decimal 8
Function
Moves the print position to the left a distance equal to one character in the current character
pitch plus any additional character space.
ESC 0 Select 1/8-inch line spacing
Format
ASCII ESC 0
Hex 1B 30
Decimal 27 48
Function
Sets the line spacing to 1/8 inch
ESC 2 Select 1/6-inch line spacing
Format

ASCII ESC 2
Hex 1B 32
Decimal 27 50
Function
Sets the line spacing to 1/6 inch
ESC 3 Set n/180-inch line spacing
Format
ASCII ESC 3 n
Hex 1B 33 n
Decimal 27 51 n
Parameter range
0 n 255
Function
Sets the line spacing to n/180 inch
ESC + Set n/360-inch line spacing
Format
ASCII ESC + n
Hex 1B 2B n
Decimal 27 43 n
Parameter range
0 n 255
Function
Sets the line spacing to n/360 inch
ESC A Set n/60-inch line spacing
Format
ASCII ESC A n
Hex 1B 41 n
Decimal 27 65 n
Parameter range
0 n 85
Function
Sets the line spacing to n/60 inch
ESC D Set horizontal tabs
Format
ASCII ESC D n1 n2 . . . nk NUL
Hex 1B 44 n1 n2 . . . nk 00
Decimal 27 68 n1 n2 . . . nk 0
Parameter range
0 k 32
1 n 255

nk > n(k-1)
Function
Sets horizontal tab positions (in the current character pitch) at the columns specified by n1 to nk, as measured from the
left-margin position
ESC B Set vertical tabs
Format
ASCII ESC B n1 n2 . . . nk NUL
Hex 1B 42 n1 n2 . . . nk 00
Decimal 27 66 n1 n2 . . . nk 0
Parameter range
0 k 16
1 n 255
nk > n(k-1)
Function
Sets vertical tab positions (in the current line spacing) at the lines specified by n1 to nk, as
measured from the top-margin position
ESC t Select character table
Format
ASCII ESC t n
Hex 1B 74 n
Decimal 27 116 n
Parameter range
0 n 3
Function
Selects the character table to be used for printing from among the four character tables
described below:
n = 0Character table 0
1 Character table 1
2 Character table 2
3 Character table 3
Default
table 0 Italic
table 1 PC437
table 2 User-defined characters
table 3 PC437
ESC R Select an international character set
Format
ASCII ESC R n
Hex 1B 52 n
Decimal 27 82 n
Parameter range

0 n 13
Function
Selects the set of characters printed for specific character codes, as listed below:
n = 0 USA
1 France
2 Germany
3 United Kingdom
4 Denmark I
5 Sweden
6 Italy
7 Spain I
8 Japan (English)
9 Norway
10 Denmark II
11 Spain II
12 Latin America
ESC % Select user-defined set
Format
ASCII ESC % n
Hex 1B 25 n
Decimal 27 37 n
Parameter range
n = 0, 1
Function
Switches between normal and user-defined characters, as follows:
n = 0 Normal (ROM) characters
1 User-defined (RAM) characters
ESC x Select LQ or draft
Format
ASCII ESC x n
Hex 1B 78 n
Decimal 27 120 n
Parameter range
n = 0, 1
Function
Selects either LQ or draft printing according to the following values:
n = 0 Draft printing
1 Letter-quality printing
ESC M Select 12-cpi
Format
ASCII ESC M

Hex 1B 4D
Decimal 27 77
Function
Selects 12-cpi character pitch
ESC g Select 15-cpi
Format
ASCII ESC g
Hex 1B 67
Decimal 27 103
Function
Selects 15-cpi character printing
ESC SP Set character space
Format
ASCII ESC SP n
Hex 1B 20 n
Decimal 27 32 n
Parameter range
0 n 127
Function
Increases the space between characters by n/180 inch in LQ mode and n/120 inch in draft mode
ESC 4 Select italic font
Format
ASCII ESC 4
Hex 1B 34
Decimal 27 52
Function
Sets the style attribute of the font to italic
ESC 5 Cancel italic font
Format
ASCII ESC 5
Hex 1B 35
Decimal 27 53
Function
Sets the style attribute of the font to normal (cancels the italic style attribute previously
selected with the ESC 4 command)
ESC G Select double-strike printing
Format
ASCII ESC G
Hex 1B 47

Decimal 27 71
Function
Prints each dot twice, with the second slightly below the first, creating bolder characters
ESC H Cancel double-strike printing
Format
ASCII ESC H
Hex 1B 48
Decimal 27 72
Function
Cancels double-strike printing selected with the ESC G command
ESC q Select character style
Format
ASCII ESC q n
Hex 1B 71 n
Decimal 27 113 n
Parameter range
0 n 3
Function
Turns on/off outline and shadow printing, according to the parameters below:
n = 0 Turn off outline/shadow printing
1 Turn on outline printing
2 Turn on shadow printing
3 Turn on outline and shadow printing
SO Select double-width printing (one line)
Format
ASCII SO
Hex 0E
Decimal 14
Function
Doubles the width of all characters, spaces, and character spacing (set with the ESC SP
command) following this command on the same line.
ESC SO Select double-width printing (one line)
Format
ASCII ESC SO
Hex 1B 0E
Decimal 27 14
Function
Doubles the width of all characters, spaces, and character spacing (set with the ESC SP
command) following this command on the same line.

DC4 Cancel double-width printing (one line)
Format
ASCII DC4
Hex 14
Decimal 20
Parameter range
No parameters
Function
Cancels double-width printing selected by the SO or ESC SO commands
ESC W Turn double-width printing on/off
Format
ASCII ESC W n
Hex 1B 57 n
Decimal 27 87 n
Parameter range
n = 0, 1
Function
Turns on/off double-width printing of all characters, spaces, and character spacing (set
with the ESC SP command) following this command as follows:
n = 1 Turns on double-width
0 Turns off double-width
ESC w Turn double-height printing on/off
Format
ASCII ESC w n
Hex 1B 77 n
Decimal 27 119 n
Parameter range
n = 0, 1
Function
Turns on/off double-height printing of all characters, as measured from the current baseline:
n = 1 Turns on double-width
0 Turns off double-width
ESC U Turn unidirectional mode on/off
Format
ASCII ESC U n
Hex 1B 55 n
Decimal 27 85 n
Parameter range
n = 0, 1
Function
Selects bidirectional or unidirectional printing, according to the parameters below:

n = 0 Bidirectional printing
1 Unidirectional printing
ESC * Select bit image
Format
ASCII ESC * m nL nH d1 . . . dk
Hex 1B 2A m nL nH d1 . . . dk
Decimal 27 42 m nL nH d1 . . . dk
Parameter range
0 nL 255
0 nH 31
m = 0, 1, 2, 3, 6, 32, 33, 38, 39, 40
Function
Prints dot-graphics in 8, 24,depending on the following parameters:
ESC @ Initialize printer
Format
ASCII ESC @
Hex 1B 40
Decimal 27 64
Function
Resets the printer to its default settings
CAN Cancel line
Format
ASCII CAN
Hex 18
Decimal 24
Function
Clears all printable characters and bit-image graphics on the current line
DEL Delete last character in buffer
Format
ASCII DEL
Hex 7F
Decimal 127
Function
Deletes the last printable character in the print buffer’s current line
ESC - Turn underline on/off
Format
ASCII ESC - n
Hex 1B 2D n
Decimal 27 45 n

Parameter range
n = 0, 1
Function
Turns on/off printing of a line below all characters and spaces following this command:
n = 1 Turns underline on
0 Turns underline off
ESC E Select bold font
Format
ASCII ESC E
Hex 1B 45
Decimal 27 69
Function
Sets the weight attribute of the font to bold
ESC F Cancel bold font
Format
ASCII ESC F
Hex 1B 46
Decimal 27 70
Function
Sets the weight attribute of the font to normal (cancels the bold weight previously set with
the ESC E command)
ESC P Select 10-cpi
Format
ASCII ESC P
Hex 1B 50
Decimal 27 80
Function
Selects 10-cpi character pitch
ESC p Turn proportional mode on/off
Format
ASCII ESC p n
Hex 1B 70 n
Decimal 27 112 n
Parameter range
n = 0, 1
Function
Selects either proportional or fixed character spacing according to the following values:
n = 0 Returns to current fixed character pitch
1 Selects proportional spacing

3
3． ．O Ot th he er r C Co om mm ma an nd d S Se et ts s
A
AR R C Co om mm ma an nd d S Se et t
NO Command Function
1 CR Carriage return
2 ESC J n Advance print position vertically
3 LF Line feed
4 ESC 0 Select 1/8-inch line spacing
5 ESC + n Set n/360-inch line spacing
6 ESC 2 Select 1/6-inch line spacing
7 ESC 3 n Set n/180-inch line spacing
8 ESC A n Set n/60-inch line spacing
9 ESC B n1 n2 …n k
NUL
Set vertical tabs
10 ESC C NUL n Set page length in inches
11 ESC C n Set page length in lines
12 ESC D n1 n2 … n
k NUL
Set horizontal tabs
13 ESC l n Set left margin
14 ESC N n Set bottom margin
15 ESC O Cancel bottom margin
16 ESC Q n Set right margin
17 ESC SP n Set character space
18 FF Form feed
19 HT Tab horizontally
20 VT Tab vertically
21 DC4 Cancel double-width printing (one line)
22 ESC - n Turn underline on/off
23 ESC 4 Select italic font
24 ESC 5 Cancel italic font
25 ESC E Select bold font
26 ESC F Cancel bold font
27 ESC G Select double-strike printing
28 ESC g Select 15-cpi
29 ESC H Cancel double-strike printing
30 ESC M Select 12-cpi
31 ESC P Select 10-cpi
32 ESC p n Turn proportional mode on/off
33 ESC SO Select double-width printing (one line)
34 ESC W n Turn double-width printing on/off
35 ESC w n Turn double-height printing on/off
36 ESC x n Select LQ or draft

37 SO Select double-width printing (one line)
38 ESC R n Select an international character set
39 ESC t n Select character table
40 ESC % n Select/deselect user-defined set
41 ESC * m nL nH Select bit image
42 CAN Cancel line
43 DEL Delete last character in buffer
44 BS Backspace
45 ESC @ Initialize printer
46 ESC U n Turn unidirectional mode on/off
47 ESC X n1 n2 Set the left/right margin
48 ESC f Set forward feeding
49 ESC v Set reverse feeding
O
OK KI I C Co om mm ma an nd d S Se et t
NO Command Function
1 DC1 Set on-line status
2 DC3 Set off-line status
3 CAN Clear the buffer
4 ESC k Set SHIFT JIS mode
5 ESC l Cancel SHIFT JIS mode
6 LF Line feed
7 ESC 6 Set the 1/6 inch line spacing
8 ESC 8 Set the 1/8 inch line spacing
9 ESC ％9 n1 n2 Set the n/120 inch line spacing
10 ESC ％5 n Forward paper by n/120 inch
11 ESC F n1 n2 Set the page length
12 FF Form feed
13 ESC G n1 n2 Set the perforation
14 DC4 Set vertical tab
15 VT Tab vertically
16 CR Carriage return
17 ESC ％4 n1 n2 Move the print head leftward
18 BS Backspace
19 ESC ％6 n1 n2 Set the carriage return position
20 ESC ％3 n1 n2 Move the print head rightward
21 ESC ( n1 n2 Set left margin

22 ESC ) n1 n2 Set right margin
23 ESC L Set horizontal tab
24 HT Tab horizontally
25 ESC N Set Pica HS ANK character mode
26 ESC H Set Pica HD ANK character mode
27 ESC B Set Elite HS ANK character mode
28 ESC E Set Elite HD ANK character mode
29 ESC % 1 n1 n2 Figure data transfer
30 ESC % 2 n1 n2 Horizontal double extended figure data transfer
31 ESC D Set high speed printing
32 ESC I Set high density printing
33 ESC X Set underline printing mode
34 ESC Y Cancel the underline printing mode
35 ESC U Set double extended printing mode
36 ESC R Cancel the horizontal extended mode for ANK character
37 ESC < Cancel horizontal compress printing mode
38 ESC > Cancel horizontal compress printing mode
39 ESC [ Set vertical extended printing mode
40 ESC ] Cancel vertical extended printing mode
41 ESC i Set bold printing mode
42 ESC j Cancel bold printing mode
43 ESC % U Set unidirectional printing mode
44 ESC % B Set bi-directional printing mode
45 ESC m Set repeat printing mode
46 ESC n Cancel repeat printing mode

I
In nt te er rf fa ac ce es s
This appendix provides technical information for the parallel and serial interfaces
1
1. . T Th he e P Pa ar ra al ll le el l I In nt te er rf fa ac ce e
The parallel interface of this printer fully supports the Centronics protocol plus the specific features
requested by the EPSON and IBM printer connection in monodirectional mode and the Compatibility
and Nibbles modes in bidirectional mode, plus the negotiation phases and the device identifier (as IEEE
P1284).
The parallel interface is available on a specific 36 contact connector type AMPHENOL
57-40360-12-D56 or equivalent connector for 1284 Type B.
•Drive Capability
Up to 15 feet (5 m) on AWG26 min. wire size of twisted conductors on TTL receiver. The max.
reachable distance is conditioned by the host drive capability and by the noise level along the
interface cable path.
•Printer Connector Type
36 pins, 1284 Type B
•Cable Connector
25 pin, 1284 A Type
S
Si ig gn na al ls s D De es sc cr ri ip pt ti io on n
According to the IEEE - P1284 Standard, the pins assume different meanings and are identified by
different names depending on the actual handshaking mode as follows:
•Compatibility mode (Centronics)
This is the lower level mode provides an asynchronous, byte-wide forward (host-to-peripheral)
channel with data and status lines used according to their original definitions. The interfaces power
up in the compatibility Mode Idle phase.
•Nibble Mode
This mode provides an asynchronous, reverse (peripheral-to-host) channel, under control of the
host. In this mode, peripheral device to host data bytes are sent as two sequential, four-bit nibbles
using the four peripheral-to-host status lines. These two modes cannot be active simultaneously.
•Byte Mode
This mode provides an asynchronous, byte-wide reverse (peripheral-to host) channel based on
eight data lines of the interface for data and the control/status lines for handshaking. Byte mode is
under host control and it cannot be simultaneously active with compatibility mode.

O
Op pe er ra at ti in ng g P Ph ha as se es s
The link protocol is mainly based on the following three phases:
•Negotiation Phase
This phase is activated always by the host, only when in compatibility mode, and defines:
- whether a bidirectional link protocol can be established.
- the handshaking mode as well as the communications mode to be used.
- the device identification, if supported.
•Communication Phase
This phase is based on well defined handshaking rules which depend upon the selected link mode.
•Termination Phase
This phase is initiated by the host and returns the interface to the compatibility mode.
P
Pa ar ra al ll le el l I In nt te er rf fa ac ce e S Si ig gn na al ls s
Description of the signals in monodirectional link:
Signal Name Pin N° Source Description
STROBE 1 HOST Clock signal which controls data transmission with its falling edge.
ACK 10 PRINTER Negative pulsed signal indicating that the printer has received data and
is ready to accept the next set of data. Also sent when the printer is
switched from off-line to on-line and at the end of the initialization
time. The BUSY line is always active.
DATA BIT 1
DATA BIT 2
DATA BIT 3
DATA BIT 4
DATA BIT 5
DATA BIT 6
DATA BIT 7
2
3
4
5
6
7
8
PRINTER /
HOST
Data 8 is the most significant bit. These are the data lines used by host
to transfer control code or ASCII codes.
DATA BIT 8 9
BUSY 11 PRINTER When high, this signal indicates that the printer cannot accept data
or control codes. This signal goes high during data processing, in
test and program modes, during initialization, when the buffer is
full, and when a paper jam, paper end or paper size error occurs, in
case of a power-on reset, the reception of a STROBE signal, while
the register was not yet read, or when the INIT line is still active.
