Comtrend Corporation WAP-60AX User manual

WAP-60AX
Wireless Access Point AX4200
User Manual
Version V3.0, October 18, 2021

1
Preface
This manual provides information related to the installation and operation of this
device. The individual reading this manual is presumed to have a basic
understanding of telecommunications terminology and concepts.
If you find the product to be inoperable or malfunctioning, please contact
technical support for immediate service by email at
INT-sup[email protected]
For product update, new product release, manual revision, or software upgrades,
please visit our website at http://www.comtrend.com
Important Safety Instructions
With reference to unpacking, installation, use, and maintenance of your
electronic device, the following basic guidelines are recommended:
• Do not use or install this product near water, to avoid fire or shock hazard.
For example, near a bathtub, kitchen sink or laundry tub, or near a
swimming pool. Also, do not expose the equipment to rain or damp areas
(e.g. a wet basement).
• Do not connect the power supply cord on elevated surfaces. Allow it to lie
freely. There should be no obstructions in its path and no heavy items
should be placed on the cord. In addition, do not walk on, step on, or
mistreat the cord.
• Use only the power cord and adapter that are shipped with this device.
• Never install telephone wiring during stormy weather conditions.
CAUTION:
nChanges or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to
operate the equipment.
nDo not stack equipment or place equipment in tight spaces, in drawers,
or on carpets. Be sure that your equipment is surrounded by at least 2
inches of air space.
nIf you experience trouble with this equipment, disconnect it from the
network until the problem has been corrected or until you are sure
that equipment is not malfunctioning.

2
WARNING
nDisconnect the power line from the device before servicing
nFor indoor use only
nDo NOT open the casing
nDo NOT use near water
nKeep away from the fire
nFor use in ventilated environment / space
nDébranchez l'alimentation électrique avant l'entretien
nCet appareil est conçu pour l'usage intérieur seulement
nN'ouvrez pas le boîtier
nN'utilisez pas cet appareil près de l'eau
nN'approchez pas du feu
nVeuillez utiliser dans un environnement aéré
Power Specifications ( Alimentation ) :
Input : 12Vdc, 3.0A or 2.0A
Output : USB3.0, 900mA
User Information
Any changes or modifications not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
Aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la
nature. Tout changement ou modification peuvent annuler le droit d’utilisation
de l’appareil par l’utilisateur.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
To re duce potential radi o interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated power

3
(e.i.r.p.) is not more than that permitted for successful communication.
This device complies with Part 15 of the FCC Rules and Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne
et son gain doivent être choisies de façon que la puissance isotrope
rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une
communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence
norme(s).
Son fonctionnement est soumis aux deux conditions suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement du dispositif.
Radiation Exposure
FCC
1. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 23 cm between the radiator and your body.
ISED
This device complies with the ISED radiation exposure limit set forth for an
uncontrolled environment. This device should be installed and operated with
minimum distance 23 cm between the radiator & your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or
transmitter.
“This product meets the applicable Innovation, Science and Economic
development Canada technical specifications”.
The device for operation in the band 5150–5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems.
This product meets the applicable Industry Canada technical specifications.
Cet équipement est conforme avec l'exposition aux radiations ISED définies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé
à une distance minimum de 23 cm entre le radiateur et votre corps. Cet
émetteur ne doit pas être co-localisées ou opérant en conjonction avec une
autre antenne ou transmetteur.

4
«Ce produit est conforme aux spécifications techniques applicables d'Innovation,
Sciences et Développement économique Canada».
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant
les mêmes canaux.
Le présent matériel est conforme aux specifications techniques applicables
d’Industrie Canada.
Certification
●FCC / IC standard
Part 15B / ICES-003
Part 15C / RSS-247( 2.4GHz )
Part 15E / RSS-247( 5GHz )
UL 62368-1 / CSA 62368-1
Copyright
Copyright©2021 Comtrend Corporation. All rights reserved. The information
contained herein is proprietary to Comtrend Corporation. No part of this
document may be translated, transcribed, reproduced, in any form, or by any
means without prior written consent of Comtrend Corporation.
NOTE: This document is subject to change without notice.
Open Source Software Notice
Comtrend’s products use open source software to fulfill their function.
Licenses for the open source software are granted under the GNU General Public
License in various versions. For further information on the GNU General Public
License see http://www.gnu.org/licenses/
You are allowed to modify all open source code (except for proprietary programs)
and to conduct reverse engineering for the purpose of debugging such
modifications; to the extent such programs are linked to libraries licensed under
the GNU Lesser General Public License. You are not allowed to distribute
information resulting from such reverse engineering or to distribute the
modified proprietary programs.
The rights owners of the open source software require you to refer to the
following disclaimer which shall apply with regard to those rights owners:

5
Warranty Disclaimer
THE OPEN SOURCE SOFTWARE IN THIS PRODUCT IS DISTRIBUTED IN THE
HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY WARRANTY, WITHOUT
EVEN THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. SEE THE APPLICABLE LICENSES FOR MORE DETAILS.
Comtrend's products will strictly follow the market's standard requirements. It
is not permitted to modify any Wi-Fi parameters, including the Wi-Fi power
setting.
Obtain Source Code
If you wish to download the open source code please see:
https://www.comtrend.com/gplcddl.html
If you do not see the required source code on our website link and wish to be
provided with the entire source code for that product, we will provide it to you
and any third party with the source code of the software licensed under an open
source software license. Please send us a written request by email or mail to one
of the following addresses:
Email: Comtrend support team - [e-mail]
Postal: Comtrend Corporation
3F-1, 10 Lane 609,
Chongxin Rd., Section 5,
Sanchong Dist,
New Taipei City 24159,
Taiwan
Tel : [phone]
In detail name the product and firmware version for which you request the
source code and indicate means to contact you and send you the source code.
PLEASE NOTE WE WILL CHARGE THE COSTS OF A DATA CARRIER AND THE
POSTAL CHARGES TO SEND THE DATA CARRIER TO YOU.THE AMOUNT WILL
VARY ACCORDING TO YOUR LOCATION AND THE COMTREND SUPPORT TEAM
WILL NOTIFY THE EXACT COSTS WHEN REVIEWING THE REQUEST.
THIS OFFER IS VALID FOR THREE YEARS FROM THE MOMENT WE DISTRIBUTED
THE PRODUCT. FOR MORE INFORMATION AND THE OPEN SOURCE LIST (&
RESPECTIVE LICENCES) FOR INDIVIDUAL PRODUCTS PLEASE SEE:
https://www.comtrend.com/gplcddl.html
Protect Our Environment
This symbol indicates that when the equipment has reached the end
of its useful life, it must be taken to a recycling centre and processed
separate from domestic waste.
The cardboard box, the plastic contained in the packaging, and the parts that
make up this router can be recycled in accordance with regionally established
regulations. Never dispose of this electronic equipment along with your
household waste; you may be subject to penalties or sanctions under the law.
Instead, please be responsible and ask for disposal instructions from your local
government.

6
Ta bl e o f C o n t en ts
CHAPTER 1 INTRODUCTION .................................................................................................... 7
CHAPTER 2 INSTALLATION ...................................................................................................... 8
2.1 HARDWARE SETUP .................................................................................................................... 8
2.1.1 Back Panel ........................................................................................................................ 9
2.1.2 Bottom Panel .................................................................................................................. 11

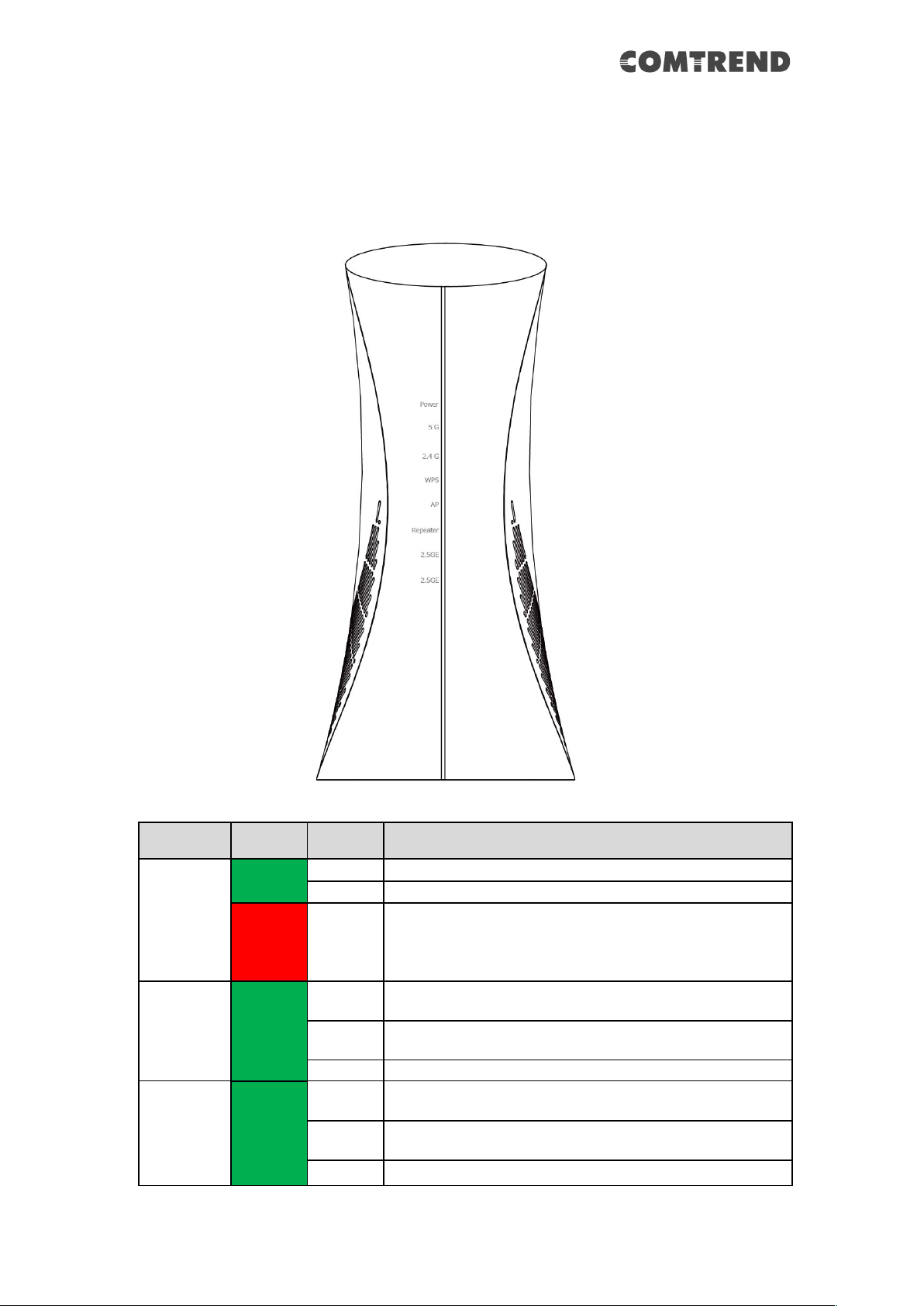

2.1.3 Front Panel ..................................................................................................................... 12
CHAPTER 3 WEB USER INTERFACE ..................................................................................... 14
3.1 DEFAULT SETTINGS ................................................................................................................. 14
3.2 IP CONFIGURATION ................................................................................................................. 15
3.3 LOGIN PROCEDURE ................................................................................................................. 16
CHAPTER 4 ACCESS POINT MODE ....................................................................................... 18
4.1 STAT U S (AP) ........................................................................................................................... 18
4.2 WIRELESS (AP) ....................................................................................................................... 19
4.3 RADIO (AP) ............................................................................................................................ 22
4.4 SYSTEM (AP) .......................................................................................................................... 24
4.5 LOGOUT (AP) ......................................................................................................................... 25
CHAPTER 5 REPEATER MODE ............................................................................................... 26
5.1 STATUS (REPEATER) ................................................................................................................ 26
5.2 WIRELESS (REPEATER) ........................................................................................................... 27
5.3 RADIO (REPEATER) ................................................................................................................. 32
5.4 SYSTEM (REPEATER) ............................................................................................................... 34
5.5 LOGOUT (REPEATER) .............................................................................................................. 35
APPENDIX A - PIN ASSIGNMENTS ......................................................................................... 36
APPENDIX B – SPECIFICATIONS ........................................................................................... 37

7
Chapter 1 Introduction
The WAP-60AX is a high performance dual band (IEEE 802.11ax) WiFi 6 access
point. The Wi-Fi interface operates 802.11ax 4T4R at 2.4GHz which is backward
compatible with 802.11n/g/b and also supports high performance 802.11ax,
5T5R at 5GHz which is backward compatible with 802.11ac/n/a. There is also a
2.5G Ethernet port that can provide high-speed connectivity with local devices.
Compatible with WPS 2.0, it provides an easy paring method in order to link
Personal Computers, Smart phones, Tablets, etc. by just pushing a button.

8
Chapter 2 Installation
2.1 Hardware Setup
Non-stackable
This device is not stackable – do not place units on top of each other, otherwise
damage could occur.
Follow the instructions below to complete the hardware setup.

9
2.1.1 Back Panel
The figure below shows the back panel of the device.
WPS Button
Press the WPS button to trigger the WPS function to connect with a wireless
client within 2 minutes.
AP/Repeater Switch
Push the switch to the up position for AP (Access Point) mode.
Push the switch to the down position for Repeater mode.
The device will reboot and restore to default when switch is pushed to
alternative position after 3 seconds.

10
2.5G ETH Port
One Ethernet port supports a link speed up to 2.5G and 1G connection with an
RJ-45 cable, or 10/100BASE-T RJ-45 cable for standard network usage. This
port is auto-sensing MDI/X; so either straight-through or crossover cable can be
used.
Power ON
Press the power button to the OFF position (OUT). Connect the power adapter to
the power port. Attach the power adapter to a wall outlet or other AC source.
Press the power button to the ON position (IN). If the Power LED displays as
expected then the device is ready for setup (see section – LED Indicators).
Caution 1: If the device fails to power up, or it malfunctions, first verify that the
power cords are connected securely and then power it on again. If
the problem persists, contact technical support.
Caution 2: Before servicing or disassembling this equipment, disconnect all
power cords and telephone lines from their outlets.

11
2.1.2 Bottom Panel
Reset Button
Restore the default parameters of the device by pressing the Reset button for 10
seconds. After the device has rebooted successfully, the front panel should
display as expected (see section 2.1.3 Front Panel for details).

12
2.1.3 Front Panel
The front panel LED indicators are shown below and explained in the following
table.
This information can be used to check the status of the device and its
connections.
LED
Color
Mode
Description
POWER
GREEN
On
The device is powered up
Off
The device is powered down
RED
On
POST (Power On Self Test) failure (not bootable) or
Device malfunction A malfunction is any error of
internal sequence or state that will prevent the
device from normal operation.
5G WiFi
GREEN
On
(5GHz) Wi-Fi enabled in AP mode
(5GHz) Wi-Fi connected with AP in Repeater mode
Off
(5GHz) Wi-Fi disabled in AP mode
(5GHz) No connection in Repeater mode
Blink
(5GHz) Wi-Fi is transmitting/receiving
2.4G WiFi
GREEN
On
(2.4GHz) Wi-Fi enabled in AP mode
(2.4GHz) Wi-Fi connected with AP in Repeater mode
Off
(2.4GHz) Wi-Fi disabled in AP mode
(2.4GHz) No connection in Repeater mode
Blink
(2.4GHz) Wi-Fi is transmitting/receiving

13
WPS
GREEN
On
(2.4GHz+5GHz) WPS connection successful
Off
No WPS association process ongoing
Blink
(2.4GHz+5GHz)WPS connection in progress
AP
GREEN
On
Working in AP mode
Off
Not in AP mode
REPEATER
GREEN
On
Working in Repeater mode
Off
Not in Repeater mode
2.5GE
GREEN
On
2.5 Giga Ethernet connected
Off
2.5 Giga Ethernet not connected
Blink
2.5 Giga Ethernet is transmitting/receiving

14
Chapter 3 Web User Interface
This section describes how to access the device via the web user interface (WUI)
using an Internet browser such as Internet Explorer (version 5.0 and later).
3.1 Default Settings
The factory default settings of this device are summarized below.
• LAN IP address: 192.168.1.251 (Access Point)
• LAN IP address: 192.168.1.252 (Repeater)
• LAN subnet mask: 255.255.255.0
• Administrative access (username: root, password: 12345)
• WLAN access: enabled
Technical Note
During power on, the device initializes all settings to default values. It will then
read the configuration profile from the permanent storage section of flash
memory. The default attributes are overwritten when identical attributes with
different values are configured. The configuration profile in permanent storage
can be created via the web user interface or telnet user interface, or other
management protocols. The factory default configuration can be restored
either by pushing the reset button for more than ten seconds until the power
indicates LED blinking or by clicking the Restore Default Configuration option in
the Restore Settings screen.

15
3.2 IP Configuration
STATIC IP MODE
In static IP mode, you assign IP settings to your PC manually.
Follow these steps to configure your PC IP address to use subnet 192.168.1.x.
NOTE: The following procedure assumes you are running Windows.
However, the general steps involved are similar for most operating
systems (OS). Check your OS support documentation for further
details.
STEP 1: From the Network Connections window, open Local Area Connection
(You may also access this screen by double-clicking the Local Area
Connection icon on your taskbar). Click the Properties button.
STEP 2: Select Internet Protocol (TCP/IP) and click the Properties button.
STEP 3: Change the IP address to the 192.168.1.x (1<x<250) subnet with
subnet mask of 255.255.255.0. The screen should now display as
shown below.
STEP 4: Click OK to submit these settings.

16
3.3 Login Procedure
Perform the following steps to login to the web user interface.
NOTE: The default settings can be found in section 3.1 Default Settings.
STEP 1: Start the Internet browser and enter the default IP address for the
device in the Web address field. For example, if the default IP address
is 192.168.1.251, type http://192.168.1.251.
NOTE: For local administration (i.e. LAN access), the PC running the browser
must be attached to the Ethernet, and not necessarily to the device.
For remote access (i.e. WAN), use the IP address shown on the
Device Information screen and login with remote username and
password.
STEP 2: A dialog box will appear, such as the one below. Enter the default
username and password, as defined in section 3.1 Default Settings.
Click OK to continue.

17

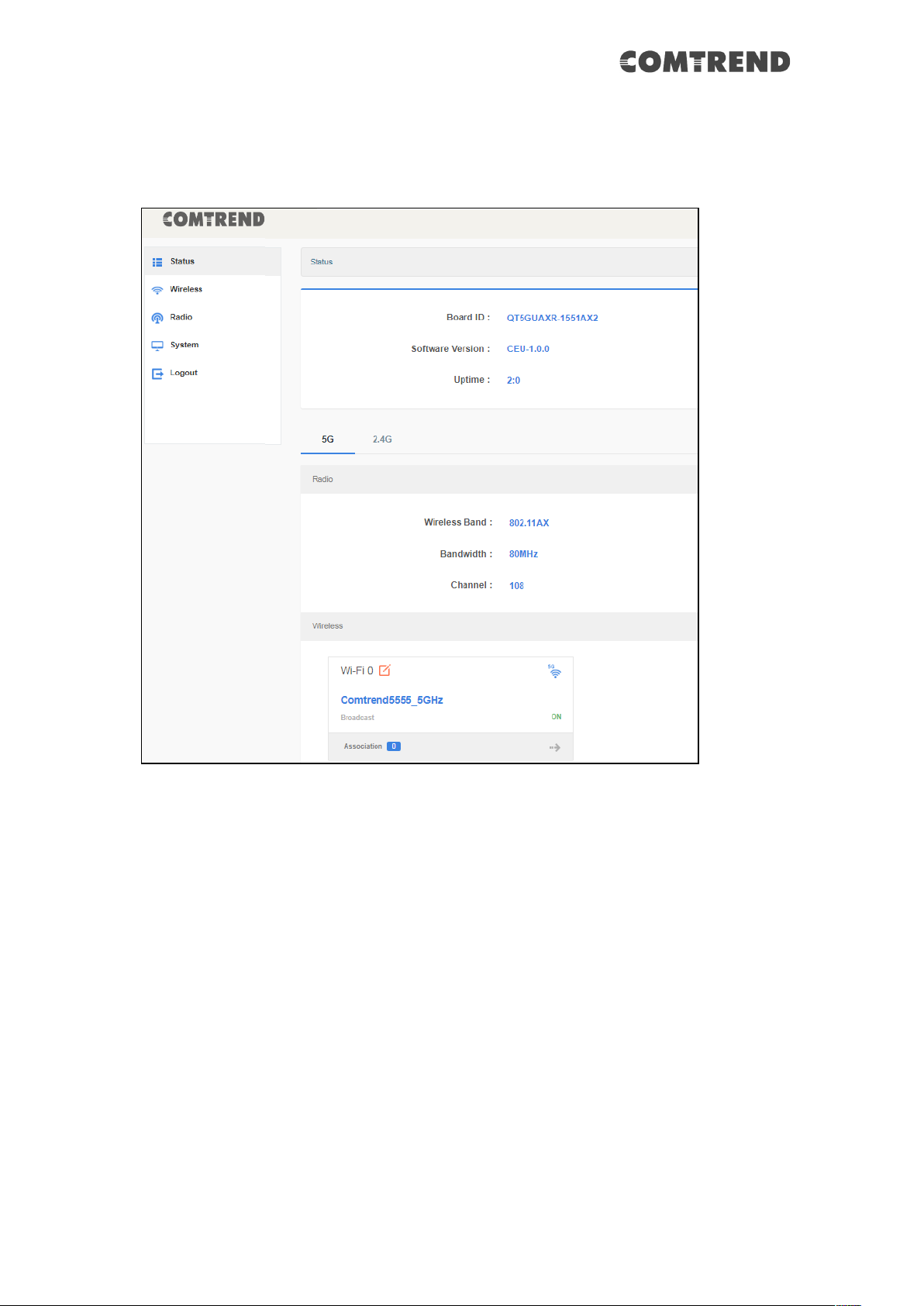

STEP 3: After successfully logging in for the first time, you will reach this
screen.

18
Chapter 4 Access Point Mode
The web user interface window is divided into two frames, the main menu (on
the left) and the display screen (on the right). The main menu has several
options and selecting each of these options opens a submenu with more
selections.

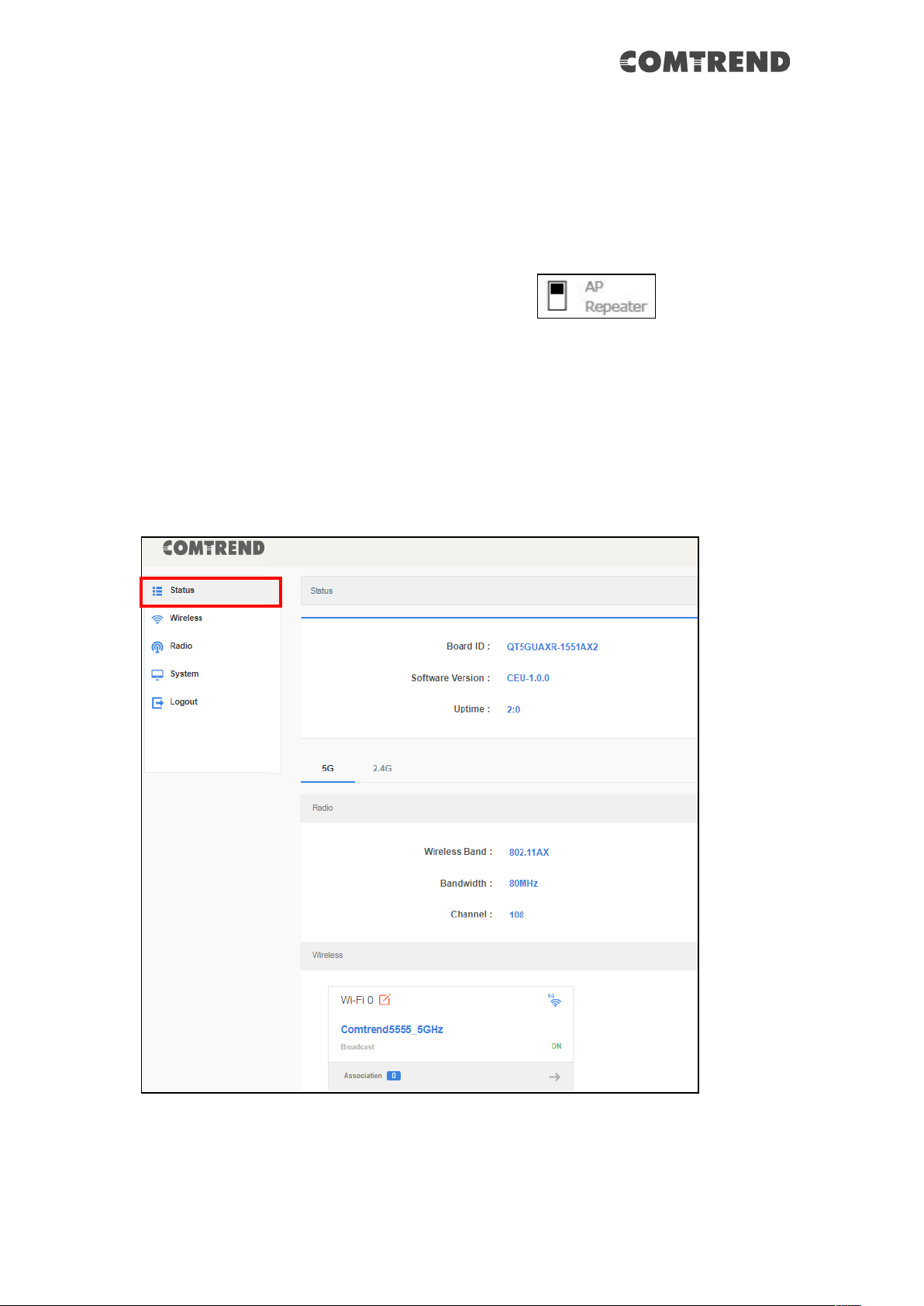

Make sure that you are in Access Point (AP) mode.
See Chapter 3 for login details.
4.1 Status (AP)
The Status page is the first selection on the main menu so it will be discussed
first. Subsequent chapters will introduce the other main menu options in
sequence.
This screen shows Software Version, 5G/2.4G Radio and wireless information.

19
4.2 Wireless (AP)
Click the wireless tab to access the wireless page.
5G
Click the button to save your settings.
Item
Description
SSID
Sets the Service Set Identifier (also known as the
network name) of this network
Broadcast
Check the checkbox to enable
Priority
Select the priority (0-3) from the drop-down menu
Encryption
Select the encryption method from the drop-down
menu
