Introduction
Connect Tech’s Rosie is a small form factor, rugged embedded system based on the NVIDIA® Jetson™ TX2,
TX2i, or TX1. Housed in a compact enclosure with optional mounting brackets, Rosie features revolutionary
NVIDIA Maxwell™ architecture with 256 CUDA cores delivering over 1 TeraFLOP of performance with a
64-bit ARM A57 CPU.
Rosie’s rugged system also provides USB, HDMI, 2x Gigabit Ethernet, WiFi, and Bluetooth capabilities.
Rosie is designed to MIL-STD 810G, DO-160G, and IP68.
Product Features and Specifications
Feature
Rosie Embedded System
Processor
NVIDIA Jetson TX2, TX2i or TX1, 1 TFLOP/s 256-Core
Memory
TX2/TX2i: 8GB LPDDR4; TX1: 4GB LPDDR4
Storage
TX2/TX2i: 32GB eMMC; TX1: 16GB eMMC
Display
1x HDMI Type A Link
Ethernet
2x Gigabit Ethernet (10/100/1000) Links
USB
2x USB 2.0 Links
WiFi
IEEE 802.11 ac
Bluetooth
Bluetooth 4.0 (24 Mbps)
Serial
1x RS-232
Power Operation
Auto Power On in Event of Power Failure
External Power On/Off Control Button
Power Requirement
+9.0V to +36.0V DC Input Range
Operating Temperature
-20oC to +80oC with Minimum Airflow of 125 CFM for Standalone
Operation
Dimensions
Without Mounting Bracket: 163.6mm x 108.0mm x 96.3mm
(6.438” x 4.250” x 3.790”)
With Mounting Bracket: 163.6mm x 146.1mm x 99.4mm
(6.438” x 5.750” x 3.915”)
Weight
1.43kg (3.15lbs)
Design Rating
IP68
DO-160G
MIL-810G
Accessories
Cable Kit
Warranty and Support
1 Year Warranty and Free Support

Rosie Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00463
Revision: 0.09
Page 7 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2018/07/31
Product Overview
Connector Locations

Rosie Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00463
Revision: 0.09
Page 8 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2018/07/31
Connector Summary
Designator
Connector
Description
GbE 1
Gigabit Ethernet Port 1
Gigabit Ethernet (10/100/1000) Port 1 RJ-45 Connector
GbE 2
Gigabit Ethernet Port 2
Gigabit Ethernet (10/100/1000) Port 2 RJ-45 Connector
USB 1
USB 2.0 Port 1
USB 2.0 Port 1 Type A Connector
USB 2
USB 2.0 Port 2
USB 2.0 Port 2 Type A Connector
HDMI
HDMI
HDMI Type A Connector
ANT 1
Antenna 1
NVIDIA Jetson TX2/TX2i/TX1 J8 U.FL

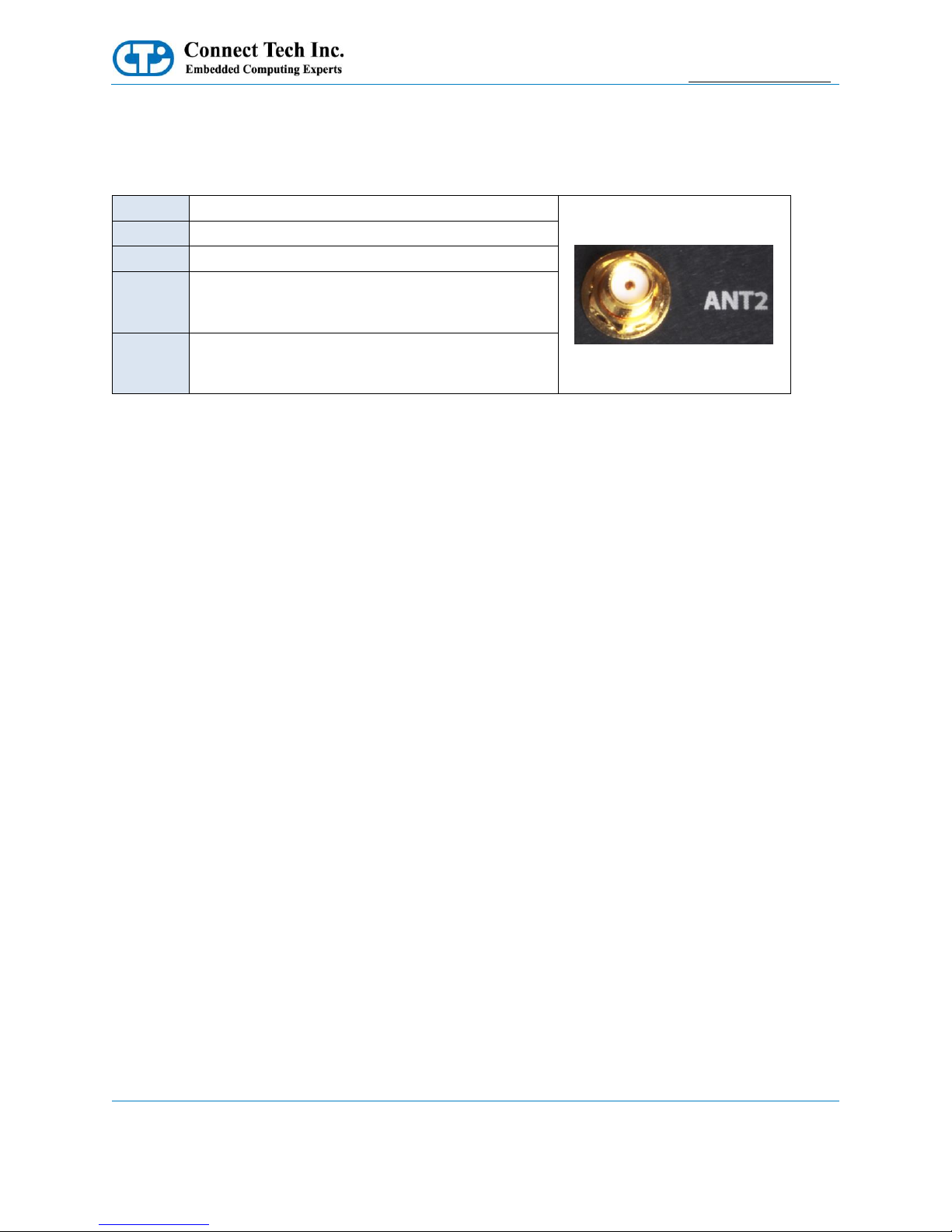

ANT 2
Antenna 2
NVIDIA Jetson TX2/TX2i/TX1 J9 U.FL
PWR
Power Input
Power Input Connector
CONSOLE
Console Port
Console Connector
Switch Summary
Designator
Function
Description

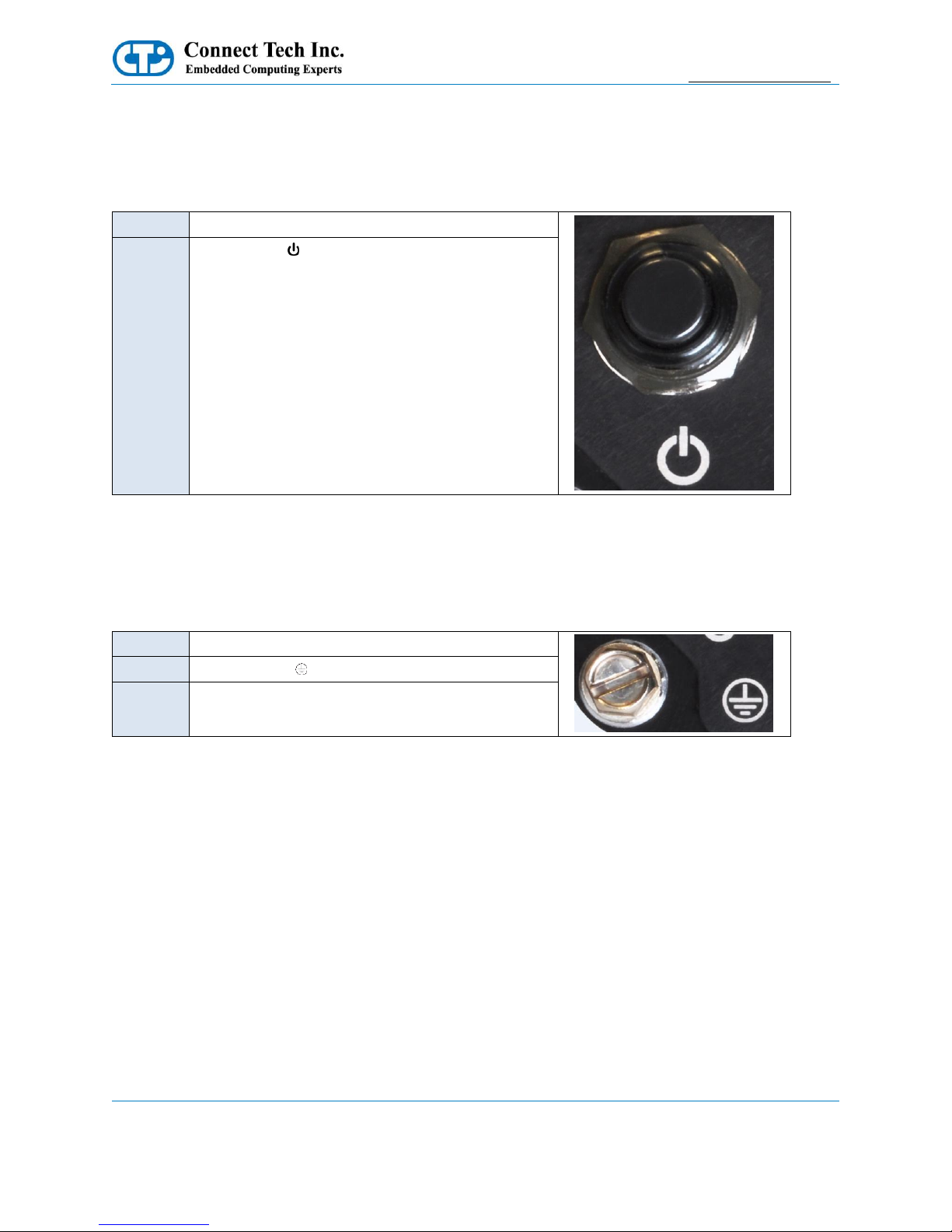

Power Button
Power ON/OFF
Rosie System Power ON/OFF Button

Rosie Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00463
Revision: 0.09
Page 9 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2018/07/31
Detailed Feature Description
The Rosie Embedded System is a Ruggedized NVIDIA Jetson TX2/TX2i/TX1 System. Designed to IP68, DO-
160G, and MIL-810G, the Rosie comes with the standard NVIDIA Jetson TX2/TX2i/TX1 Ubuntu Jetpack
Image.
Power Input
The Rosie Embedded System accepts a single power input to power the entire System. An input range of
+9.0V to +36.0V DC is required. In addition, both reverse polarity protection, and surge protection has been
designed into the Rosie Embedded System.
Function
Power
Location
PWR
Type
Samtec ACR-12 IP68 Sealed Circular Receptacle
System
Connector
P/N
ACR-12-01-G-00.25-T-BC-P-1
Manufacturer: Samtec
Mating
Connector
P/N
ACP-12-01-G-2.00-S-BC-P-1
Manufacturer: Samtec
Pinout
Pin
Description
1
GND
2
PWR
3
GND
4
PWR
Power Input Range: +9.0V to +36.0V
Ingress
Protection
To meet IP68, the appropriate locking cable or sealing
cap must be used. Please refer to the Ingress Protection
section for details.

Rosie Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00463
Revision: 0.09
Page 10 of 19
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2018/07/31

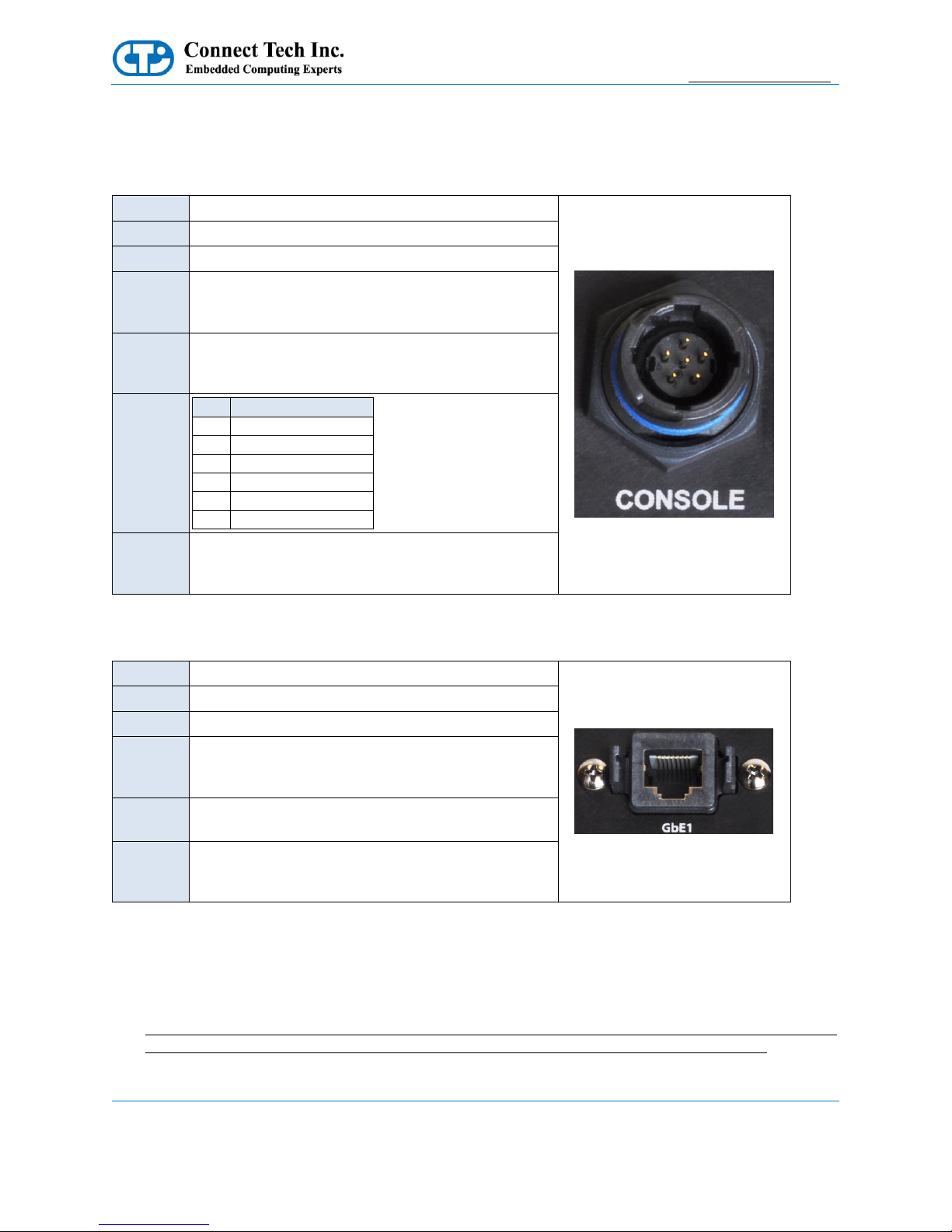

Console
The Rosie Embedded System has a console port to allow for remote or headless use of the System. With an
RS-232 Link, the Console port allows for additional debug of the Rosie Embedded System.
Function
Console
Location
CONSOLE
Type
Samtec ACR-12 IP68 Sealed Circular Receptacle
System
Connector
P/N
ACR-12-03-G-00.25-T-BC-P-3
Manufacturer: Samtec
Mating
Connector
P/N
ACP-12-03-G-2.00-S-BC-P-3
Manufacturer: Samtec
Pinout
Pin
Description
1
RX/RX+
2
TX/TX+
3
GND
4
TX-
5
RX-
6
+3.3V
Ingress
Protection
To meet IP68, the appropriate locking cable or sealing
cap must be used. Please refer to the Ingress Protection
section for details.
10/100/1000 Ethernet (GBE)
Function
Gigabit Ethernet Connector
Location
GbE1, GbE2
Type
Samtec RPBE IP68 Sealed Rectangular Receptacle
System
Connector
P/N
RPBE
Manufacturer: Samtec
Mating
Connector
Industry Standard Gigabit Ethernet
Ingress
Protection
To meet IP68, the appropriate locking cable or sealing
cap must be used. Please refer to the Ingress Protection
section for details.
Software Support for the Intel 82574
Additional drivers may be required to properly operate the GBE Port 1 of the System.
These drivers can be downloaded directly from Intel’s website from the link below:
http://downloadcenter.intel.com/SearchResult.aspx?lang=eng&ProductFamily=Ethernet+Components&Produc
tLine=Ethernet+Controllers&ProductProduct=Intel%C2%AE+82574+Gigabit+Ethernet+Controller
