Consort WMH3E Use and maintenance manual

Installation & Control Guide for Chelsea Wall Mounted Fan
Heater with Electronic Controls and Open Window Detec-
All electrical appliances produced for the Company are guaranteed for one year
against faulty material or workmanship. This applies only if the appliance has been used
for purposes in accordance with the instructions provided and has not been connected
to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or
repaired by any person not authorised by us. This guarantee is offered to you as an extra
benefit and does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing.
In the interest of progress the Company reserve the right to vary specifications from time
to time without notice.
QUALITY SPACE HEATERS
Model
WMH3E
58000387 Iss 02

58000387 Iss 02
2
Overview
Please read this guide carefully and retain
for future use and maintenance.
This appliance has been designed and
manufactured to the highest international
standards, however, care must be taken
for optimal results and safety. This
appliance also meets the requirements of
EU Directive 2004/106/EC for EMC and
2009/125/EC Directive.
Safety & Care
The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for their
safety. Children should be supervised to
ensure that they do not play with the
appliance.
Warning
 Do NOT site the appliance into a corner.
 Do NOT handle the appliance with wet
hands.
 Do NOT use the appliance in workshops
or rooms where excessive dust is
generated or present.
 Ensure that nothing is pushed into any
aperture of this appliance.
 Do NOT touch outlet grille when the
appliance is in use.
 Do NOT cover or restrict any aperture of
the appliance when in use.
 Do NOT use the appliance if damaged.
 Do NOT leave the appliance
unattended where young children are
present.
Thermally Operated Cut-Out
The appliance is fitted with a thermally
operated cut-out (TOC). This is a safety
device, which switches the heater off if, for
any reason, the appliance overheats. The
TOC can only be re-set after the
appliance has cooled down. In order to re
-set the TOC, proceed as follows:
 Switch off appliance at mains and
leave for approximately 5 minutes.
Switch appliance back on and the
TOC will re-set.
 Ensure that the appliance is functioning
correctly. If the TOC control operates
again, the appliance should be checked
by a competent electrician.
The heater carries a ‘Do Not Cover’ label to warn
the user that if the appliance is covered, there is a
risk of overheating.
Cleaning
Always disconnect the heater from the mains
before cleaning. The heater should not require
any maintenance, but it is strongly advised that it
is kept clean. An occasional wipe over with a soft
cloth is all that should be necessary.
 Do NOT use metal or furniture polish on any part
of the heater.
 Do NOT touch the heater with wet hands or in
any way bring water into contact with it.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a
hazard.
If Your Heater Does Not Work
 Check that power is available to the heater.
The LED light should be illuminated
 Check that the thermal cut-out has not
operated. Follow the reset instructions given
under the section headed ‘Thermal Operated
Cut-out’.
 Check that the fuse in the spur unit has not
blown. This can be done by replacing the fuse
with another suitable fuse.
Should neither of the above remedies work, then
telephone the helpline number shown in these
instructions (UK ONLY). Do not attempt to repair
the heater.
Connection to the Main Supply
Electrical installation should be carried out by a
competent installer, preferably registered with
NICEIC (National Inspection Council for Electrical
Installation Contracting) in accordance with the
17 edition of the IEE Wiring Regulations, (BS.7671),
and any relevant Local Authority Bye-Laws. The
Heat-Zone can be connected in a number of
ways depending on the form of control required.
Whichever method is used, it should be
permanently connected to the electricity supply
via a double pole switch having 3mm gap on
each pole. A switched Fused Connection unit to
BS.1363. Part 4 is a recommended mains supply
connection accessory to ensure compliance with
safety requirements applicable to fixed-wiring
installation.
Note: When switched on for the first time the
appliance may emit a slight smell. This is purely
the evaporation of a fluid used in the
manufacturing process.
WARNING: This appliance must be earthed.

When the appliance is connected to the mains
supply and the wall socket is switched ‘ON’, the
display will turn on, showing that the power is
available to the unit. Before you can use the WMH3E,
it has to be activated by pressing any control button.
The LCD backlight will turn on. To operate any control
button, press within 2 seconds of activation.
Mode
Temp
ProgTime
SET TIME
PRESS AND HOLD
FOR 5 SECONDS
SET PROGRAMME
PRESS AND HOLD
FOR 5 SECONDS
TEMPERATURE SET
WHEN DISPLAY SHOWS
ROOM TEMPERATURE,
PRESS TO ADJUST
MODE SELECTION
BOOST, MANUAL,
SETBACK AND
PROGRAM
-Press and hold the TIME button for 5 seconds.
Minutes are flashing - use TEMP and MODE
buttons to set minutes.
-Press TIME button
Hours are flashing - use TEMP and MODE
buttons to set hours.
-Press TIME button
Day is flashing - use TEMP and MODE
buttons to set Day.
Once you are happy with the settings, press ‘Time’ to
return to main screen.
1. Basic Operation
2. Time and day setting
3. Selecting operating mode
WMH3E has 4 operating modes:
BOOST, MANUAL, SET BACK, PROGRAM.
Each mode can be selected by pressing the MODE
button to cycle through the options. The cycle
sequence will always start with BOOST mode followed
by MANUAL, SET BACK and PROGRAM.
5. MAN - Manual Mode
In manual mode, the heater maintains the set
temperature.
1. Use TEMP and MODE to set the temperature.
To amend the set temperature when in Manual
mode, simply activate the display by pressing any
button. Press TEMP, then use TEMP and MODE to
change the temperature. Once the temperature is
set, leave the display to return to the main screen and
the settings will be saved.
4. BOOST - 15 minutes
The boost feature increases the room temperature for 15
minutes.
1. Use TEMP and MODE to set the temperature.
To amend the set temperature when in Boost mode,
simply activate the display by pressing any button. Press
TEMP, then use TEMP and MODE to change the
temperature. Once the temperature is set, you can
leave the display to return to the main screen and the
settings will be saved. After 15 minutes, the WMH3E will
return to previous operating mode.
In this mode, the WMH3E will follow the week’s time /
temperature programme.
You can temporarily override the temperature in PROG
mode by simply activating the display and using the
TEMP and MODE buttons to set the new temperature.
The new set temperature will be then maintained until
the next program step.
7. PROG - Automatic time mode
6. SETB - Reduction in programmed temperature
Setback mode can be used for frost protection, situations
where a minimum room temperature must be
maintained, or to disable the heating completely.
To amend the set temperature when in Setback mode,
simply activate the display by pressing any button. Press
TEMP, then use TEMP and MODE to change the
temperature. Once the temperature is set, leave the
display to return to the main screen and the settings will
be saved. When the room temperature drops below the
set temperature the heating will be active.
To disable heating lower the temperature to below 4ºc
and she screen will show ‘- - -’ The heating is now disable.
3
58000387 Iss 02

8. Set 7-day programme
06:00
10
20
08:00
19ºC
4ºC
ºC
12:00
22ºC
14:00 16:00
16ºC
22ºC
10ºC
22:00
PROGRAM 1 PROGRAM 2 PROGRAM 3 PROGRAM 4 PROGRAM 5 PROGRAM 6
An example of one day programme on WMH3E
TIME SETTING PROGRAMME SETTING
-SET MINUTES
-SET DAY
-SET HOURS
-SELECT DAY TO SET
-SET MINUTES FOR PROGRAM
-SELECT PROGRAM TO SET
-SET TEMPERATURE FOR PROGRAM

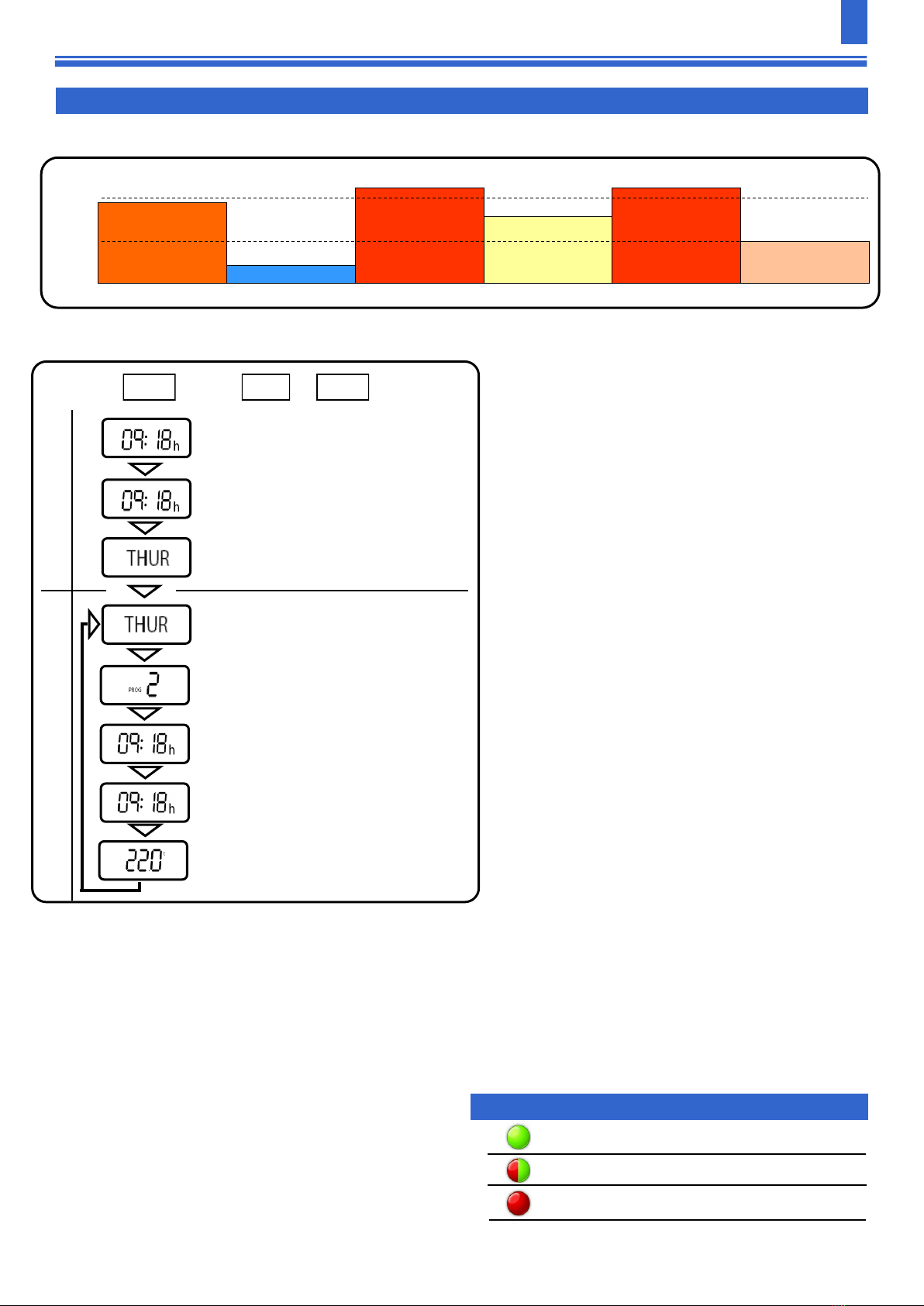

Logic diagram for setting programme on WMH3E
PROG MODETEMP
1. Press and hold PROG for 5 seconds to enter the
time setting.
2. The day will be flashing.
3. Use TEMP and MODE to navigate day, press
PROG to select day.
4. PROG 1 will be flashing. Use TEMP and MODE to
navigate programme, use PROG to select
programme.
5. The minutes will be flashing.
6. To set minutes, use TEMP and MODE to change
minutes, press PROG to set the minutes.
7. The hour will be flashing
8. To set hour, use TEMP and MODE to change
hour, press PROG to set the hour.
9. The temperature will be flashing.
10. To set temperature, use TEMP and MODE to
change temperature, press PROG to set
temperature.
To add another programme repeat steps 2-10.
The WMH3E has a 7-day timer with up to 6
programming steps available for each day. In the
programming you can set a start time and a
temperature for each programme.
Set programme inactive.
If you do not require the use of all 6 programmes they
can be set as inactive. When in programming mode
select the programme you want to make inactive and
press the TEMP button. If the programme is inactive the
display will show “- -:- -”. To activate the programme
again press the TEMP button.
12. Status light on the heater
STAND-BY No heat output
Reduced heat output
Full power heat output
5
Copy day function.
If you require the same set of programmes throughout
the week it is possible to copy all the programmes
from one day to another.
To do this, when in programming mode press and
hold the TIME button and this will bring you to the
copy day mode. To select which day you wish to
copy press the PROG button and this will cycle
through numbers 1-7 on the screen, this relates to
which day you would like to copy. 1=MON, 2=TUE,
3=WED etc.
To select which day you would like to copy the pro-
grammes to, use the TEMP & MODE to navigate to the
day. Once both are selected, press the time button
to copy the day.
58000387 Iss 02

Ensuring you don’t waste energy on heating the outside
world, the heater is equipped with optional open /
closed window detection. The heater recognises sudden
drops in temperature when a window or a door is
opened and turns the heating off to save energy. When
the window is closed, the heater will automatically
detect a temperature rise, and switch itself back on.
Once enabled in the setup menu, the open window
detection is fully automatic and does not require any
human intervention to be activated.
Setting-up Open Window Detection
The system has been factory set to default time and
temperature values. If necessary, all values can be
adjusted. When the heating is on, open window
detection sensor will automatically switch the heater off
when it detects a fall in temperature of 2°C in less than
10 minutes (this temperature can be changed in menu 7
and time in menu 6). If a temperature rise of 2°C in less
than 30 seconds is detected, the heater will switch itself
back on (this temperature can be changed in menu 9
and time in menu 8).
13. Open Window Detection
5
58000387 Iss 01
1. Press and hold TEMP and MODE together for 5
seconds.
2. The display will enter the setup menu.
3. Use TEMP and MODE to change a value.
4. Use TIME to scroll between the settings.
01 - temperature calibration
The temperature reading has been factory calibrated
but if for any reason it needs adjusting (better accuracy
required, to suit different position in the room etc.), the
reading can be recalibrated in 0.5 degrees steps.
02 - change between degrees Celsius or Fahrenheit
03 - set minimum temperature
(3.5 deg = frost protection)
When this is set, the heater will operate in any mode
should the room temperature fall below the set
temperature.
04 - set maximum temperature
When this is set, the maximum temperature in any mode
cannot exceed the limit.
05 - open window detection 0 = off, 1 = on
06 - 600 - open window detection time 600 seconds
07 - 2 - temperature drop of 2°C in the detection time
08 - 30 - closed window detection time of 30 seconds
09 - 2 - temperature rise of 2°C in the detection time
14. Setup menu
15. Mounting
1. Remove the front cover (2 screws on the side and
2 screws on the bottom).
2. Mark top 2 screw fixing positions ‘A’ in
accordance with the dimension shown on the
diagram. The unit must be screwed to the wall
with 3 screws through the holes provided in the
case. Drill 2 holes in the wall to suit No 10 wood
screws (round Head) and insert wall plugs. At the
top 2 screw positions ‘A’ screws can now be
screwed in until the heads are approximately 5mm
from the wall. The unit can now be hung on these
two screws and the position of the third bottom
fixing marked on the wall. Remove the unit from
the wall and drill a third fixing hole in the position
marked and insert a wall plug. The unit can now
be hung on the wall and the third screw screwed
in. Before tightening all three screws ensure the
unit is horizontal.
3. Refit front cover. Ensure grille bars internal/
external are spaced equally.
OPTIMUM MOUNTING HEIGHT IS 400mm FROM THE FLOOR.
NOTE:
- MINIMUM CLEARANCE FROM THE FLOOR IS 200mm.
- IF THE HEATER IS MOUNTED AT HIGH LEVEL, THE MINIMUM
DISTANCE FROM THE CEILING IS 1000mm.
- THE HEATER MUST NOT BE LOCATED IMMEDIATELY BELOW
A FIXED SOCKET OUTLET.
9. Advance mode
Press PROG from PROG mode to bring forward the next
programme. To clear advance mode, press PROG.
Press and hold TIME and TEMP together for 5 seconds. The
display will show symbol. Repeat the step to unlock.
10. Heat symbol on the display
Every time there is a demand for heat, the display will
show the heat icon.
-reduced heat output when the room temperature is
close to the set temperature.
- full heat output
11 Keys locking
58000387 Iss 02

6
15. Mounting
58000387 Iss 02

CUSTOMER HELPLINE
Should you need any advice on the use of your new Consort product please contact
our Helpline:
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: [phone] Fax: [phone]
Email: [e-mail]
Web: www.consortepl.com
Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm
BS EN ISO 9001 Registered Company No FM12671
7
58000387 Iss 02
