Consort CSL2SC Use and maintenance manual

Installation & Control Guide for
2kW Convector Heaters for SL Wireless Controllers
All electrical appliances produced for the Company are guaranteed for one year
against faulty material or workmanship. This applies only if the appliance has been
used for purposes in accordance with the instructions provided and has not been
connected to an unsuitable electricity supply, or subject to misuse, neglect,
damage or modified or repaired by any person not authorised by us. This guarantee
is offered to you as an extra benefit and does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time
of printing. In the interest of progress the Company reserve the right to vary
specifications from time to time without notice.
QUALITY SPACE HEATERS
Models
CSL2SC & CSL2SR
62001222 Iss 01

62001222 Iss 01
Overview
Please read this guide carefully and retain for future
use and maintenance.
This appliance has been designed and
manufactured to the highest international
standards, however, care must be taken for optimal
results and safety. This appliance also meets the
requirements of EU Directive 2004/106/EC for EMC
and 2009/125/EC Directive.
Safety & Care
The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
Warning
Do NOT site the appliance into a corner.
Do NOT handle the appliance with wet hands.
Do NOT use the appliance in workshops or rooms
where excessive dust is generated or present.
Ensure that nothing is pushed into any aperture
of this appliance.
Do NOT touch outlet grille when the appliance is
in use.
Do NOT cover or restrict any aperture of the
appliance when in use.
Do NOT use the appliance if damaged.
Do NOT leave the appliance unattended where
young children are present.
If used in a bathroom, the heater is to be
installed so that the switches and other controls
cannot be touched by a person in the bath or
shower.
Thermally Operated Cut-Out
The appliance is fitted with a thermally operated cut
-out (TOC). This is a safety device, which switches
the heater off if, for any reason, the appliance
overheats. The TOC can only be re-set after the
appliance has cooled down. In order to re-set the
TOC, proceed as follows:
Switch off appliance and leave for
approximately 5 minutes.
Switch appliance back on and TOC
will re-set.
Ensure that the appliance is functioning
correctly. If the TOC control operates again, the
appliance should be checked by a competent
electrician.
The heater carries a ‘Do Not Cover’ label to warn the user
that if the appliance is covered, there is a risk of
overheating.
Cleaning
Always disconnect the heater from the mains before
cleaning. The heater should not require any maintenance,
but it is strongly advised that it is kept clean. An
occasional wipe over with a soft cloth is all that should be
necessary.
Do NOT use metal or furniture polish on any part of the
heater.
Do NOT touch the heater with wet hands or in any way
bring water into contact with it.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
If Your Heater Does Not Work
Check that power is available to the heater. The LED
light should be illuminated
Check that the thermal cut-out has not operated.
Follow the reset instructions given under the section
headed ‘Thermal Operated Cut-out’.
Check that the fuse in the spur unit has not blown. This
can be done by replacing the fuse with another
suitable fuse.
Should neither of the above remedies work, then
telephone the helpline number shown in these instructions
(UK ONLY). Do not attempt to repair the heater.
Connection to the Main Supply
Electrical installation should be carried out by a
competent installer, preferably registered with NICEIC
(National Inspection Council for Electrical Installation
Contracting) in accordance with the 17 edition of the IEE
Wiring Regulations, (BS.7671), and any relevant Local
Authority Bye-Laws. This heater is fitted with a 3-core mains
supply cable and should be permanently connected to
the electricity supply via a double pole switch having 3mm
gap on each pole. A switched Fused Connection unit to
BS.1363. Part 4 is a recommended mains supply
connection accessory to ensure compliance with safety
requirements applicable to fixed-wiring installation.
Note: When switched on for the first time the appliance
may emit a slight smell. This is purely the evaporation of a
fluid used in the manufacturing process.
WARNING: This appliance must be earthed.
2

62001222 Iss 01
3
Operation
This heater can only be used when connected to a SL
Wireless Controller. Each SL controller can control any
number of heaters providing they are in the RF range.
The heater has an indicator light positioned on the
fascia panel. The light may be:
Green -when no heat is needed
Red -when the heater is on full power

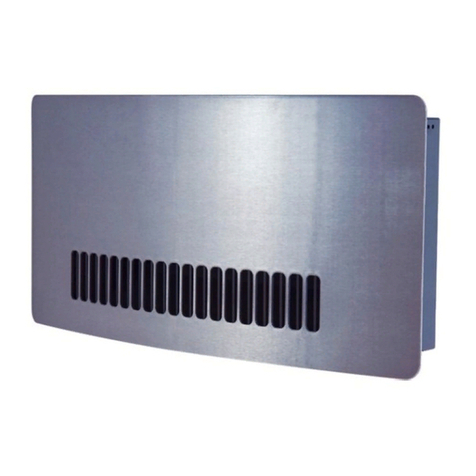

CSL2SC CSL2SR
Wall Mounting
The heater must not be located immediately below a
fixed socket outlet.
The Wall Mounting brackets are packed separately in
the carton. Fit the top mounting brackets to the wall
at the height and centres shown in the diagram.
Withdraw the two feet-securing screws from the base
of the heater and use these screws to secure the
right-angled brackets to the base of the rear panel of
the heater in the correct holes. These are the holes in
the two protruding lugs.
Mount your appliance onto the top brackets via the
two slots in the rear panel. Secure the bottom
brackets to the wall as shown.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: ALWAYS RETAIN YOUR USER INSTRUCTIONS
FOR FUTURE REFERENCE
SLPB SLTI
SLVT
Please refer to the SL user and operating instructions for
full operational details.
SL wireless controllers

62001222 Iss 01
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: [phone] Fax: [phone]
Email: [email protected] Web: www.consortepl.com
Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm
BS EN ISO 9001 Registered Company No FM12671
4
CUSTOMER HELPLINE
Should you need any advice on the use of your new Consort product, or should
you require service or repair, please contact our Helpline:
