KIBES –
Multiplex system for buses
and special vehicles

2
3
In modern vehicles increasing requirements
regarding efficiency, comfort and functionality
effect the development. The KIBES Hardware
and Software package from Continental can
meet these challenges.
With less wirings, connectors, relays and fuses
the vehicle will be more reliable. Especially the
costs for wiring up the vehicle, expenses for
documentation service and maintenance are
very often not visible. In any case the KIBES
system from Continental will help to optimise
the OEM application.
With the KIBES Software tool engineers can
program the application program and react
flexible to changes which come up during the
development phase as well as during the life-
time of the vehicle.

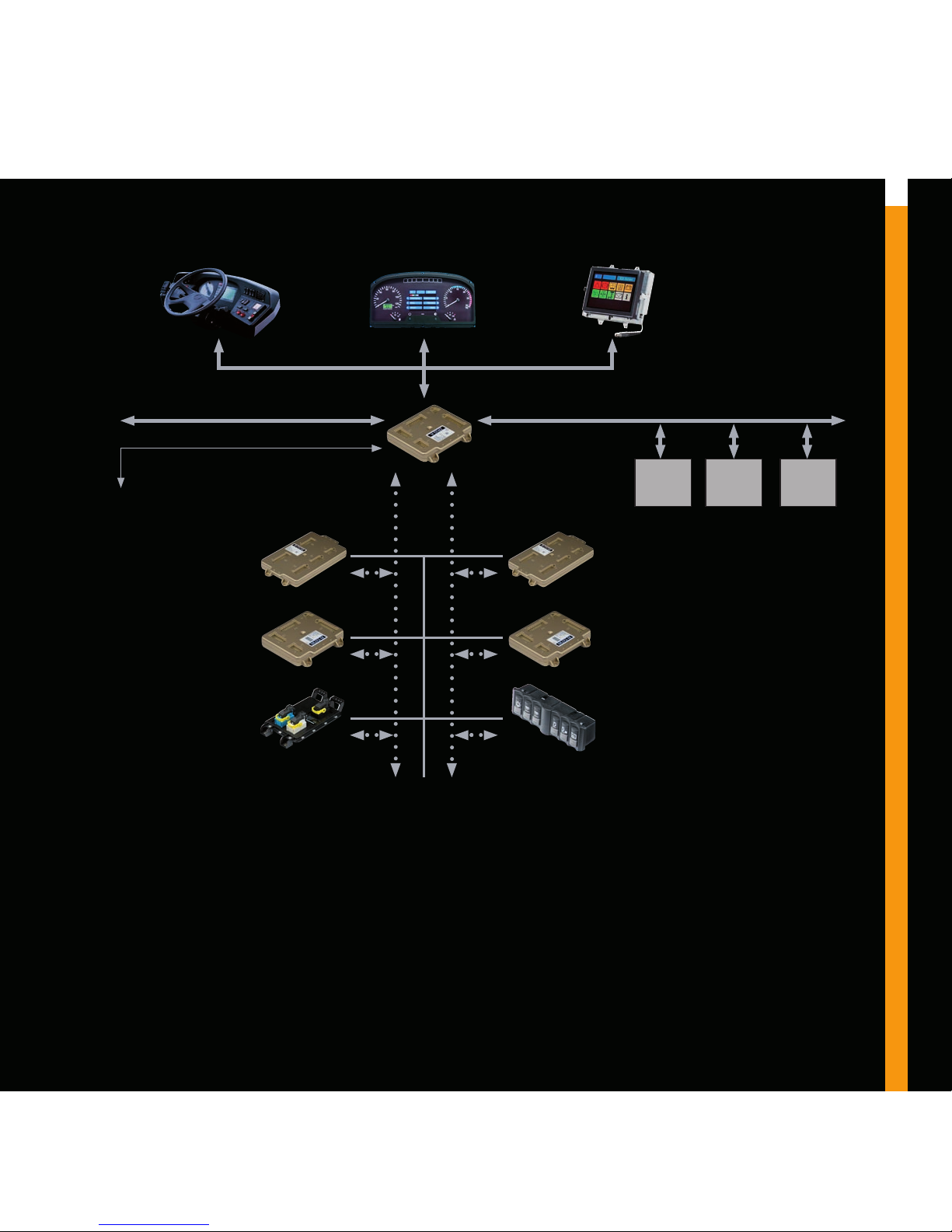

Overview
MUX2-B
MUX2-M
MUX3-P
Diagnostic and
Programming
(K-LINE / KWP2000)
Battery
Power
Central Computer
ZR32-A
Powertrain CAN (SAE J1939)
MUX2-B
MUX2-M
SMUX2000
Multiplex CAN 1 Multiplex CAN 2
Body CAN
Instrumentation CAN
DMUX32-C / DMUX32-M
VDV Driver Workplace MOKI
ABSEDC Gear-
box

4
5
ZR32-A / MUX2-M
Central Computer
ZR32-A
Generic central computer for general purpose
Complex gateway functionality
Central gateway for EOL programming
and diagnosis
Model Based Application programming tool
KIBES-32 (PLC according to IEC 61131-3)
Specifications
Dimensions (mm) 162 x 165 x 30
Nominal voltage 12 V and 24 V
Supply voltage 8 V to 32 V
Operating
temperature
-30 °C to +70 °C
Protection degree IP 40
Features
Processor 2 x 32 Bit RISC
Internal flash 2 x 512 kbyte
External flash 2 Mbyte
External SRAM /
External EEProm
256 kbyte / 32 kbyte
Powertrain CAN SAE J1939; Generic CAN
Objects (15 rx / 10 tx)
Instrumentation CAN DMUX32-C/M, MOKI, DWP,
SMUX2000, MTCO, DTCO
Multiplex CAN1
Multiplex CAN2
MUX2-B, MUX2-M,
SMUX2000 (max. 2 x 8
nodes), MUX3-P
Body CAN e.g. door control MTS,
Pronova; Generic CAN
Objects (10 rx / 5 tx)
IBIS Interface
(VDV 300; 1984/1992)
Yes
RS232
(Modem interface)
Interface only (prepared for
optional Remote Diagnostic)
SAE J1587/J1708 Rx only
Digital Output
(100 mA Low Side)
7 + 2
Digital Input 7 (alternative to 7 Outputs)
Wake Up signals 3
EOL programming K-Line interface (KWP2000)
Diagnostic Service K-Line interface
(KWP2000; ASAM)
Multiplex Node
MUX2-M
Generic multiplex node for general purpose
Built in diagnostic & protection capabilities
Multiple input & output capabilities
Designed for cabin installation
Client operation mode
Specifications
Dimensions (mm) 162 x 165 x 30
Nominal voltage 12 V and 24 V
Supply voltage 8 V to 32 V
Operating
temperature
-30 °C to +70 °C
Protection degree IP 40
Features
CAN ISO 11898
INPUT
digital
analog (parametric)
12
2
OUTPUT High Side
12 A
10 A
6 A
5 A
3 A
1.5 A
1 A
–
–
–
–
14
–
–
Output Low Side
3 A
1 A
2
–
Max. current at
same time
25 A
No. of Power supply
groups (15 A)
2

6
7

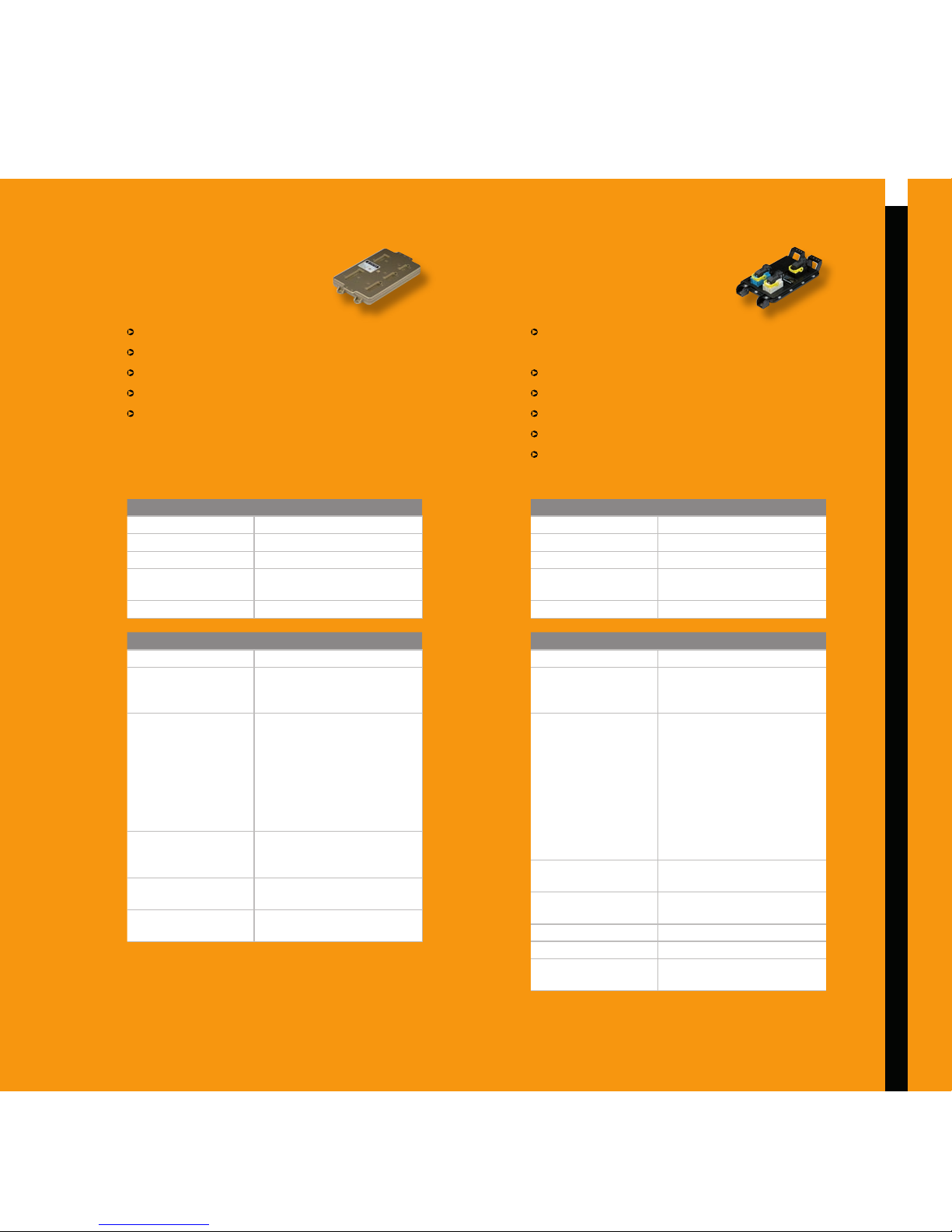

Multiplex Node
MUX2-B
Generic multiplex node for general purpose
Built in diagnostic & protection capabilities
Multiple input & output capabilities
Designed for cabin installation
Client operation mode
Specifications
Dimensions (mm) 228 x 155 x 30
Nominal voltage 12 V and 24 V
Supply voltage 8 V to 32 V
Operating
temperature
-30 °C to +70 °C
Protection degree IP 40
Features
CAN ISO 11898
INPUT
digital
analog (parametric)
24
6
OUTPUT High Side
12 A
10 A
6 A
5 A
3 A
1.5 A
1 A
–
2
–
4
10
–
8 (3 A at 10 % duty each)
Output Low Side
3 A
1 A
–
8
Max. current at
same time
30 A
No. of Power supply
groups (15 A)
5
Intelligent Multiplex
Node MUX3-P
Programmable multiplex node for chassis
installation
Built in diagnostic & protection capabilities
Water-proofed, robust housing
High output current capability
Master or client operation mode
Model Based Application programming tool
KIBES-32 (PLC according to IEC 61131-3)
Specifications
Dimensions (mm) 299 x 172 x 57,5
Nominal voltage 12 V
Supply voltage 9 V to 16 V
Operating
temperature
-40 °C to +85 °C
Protection degree IP 67 / IP6K9K
Features
CAN SAE J1939
INPUT
digital
analog (parametric)
3
17
OUTPUT High Side
15.6 A
10 A
9.3 A
7.8 A
6 A
3 A
2.8 A
2 A
1 A
2
1
2
4
2 (PWM)
1
2
2
9
Output Low Side
0.2 A 1
No. of Power supply
groups (15 A)
8
Wake Up signals 1
EOL programming K-Line interface (KWP2000)
Diagnostic Service K-Line interface
(KWP2000; ASAM)
MUX2-B / MUX3-P

8
9
Display Multiplex
Node DMUX32
Generic graphic display unit for
general purpose
Video signals input (only DMUX32-C)
Inputs & outputs to connect switches
and indicator LED‘s
Application programming via CAVTAN
software
Specifications DMUX32-C DMUX32-M
Dimensions (mm) 173.13 x
158.5 x 68.7
173.1 x
158.5 x 68.7
Nominal voltage 24 V
Supply voltage 21.5 to 30 V
Standby current
consumption
5 mA
Operating
temperature
-20 °C to
+50 °C
-20 °C to
+70 °C
Storage
temperature
-40 °C to
+80 °C
-40 °C to
+80 °C
Protection degree IP 20
Features DMUX32-C DMUX32-M
CAN
I_CAN
MC_CAN
Res_CAN
ISO 11898
ISO 11519
ISO 11898 (optional)
Video input for
cameras
PAL / NTSC –
Display resolution
(pixel)
320 x 234 160 x 128
Visibility (mm) 101 x 74 95 x 76
Technology Color TFT Monochrome
FSTN
Illumination CCFL LED
Dimming yes yes
Heating yes no
MOKI (Modular
instrument cluster)
Generic modular instrument cluster for
general purpose
Connects directly to KIBES multiplex
system via CAN
Mid-line MOKI-ML with integrated DMUX32-M
High-line MOKI-HL with integrated DMUX32-C
Specifications
Dimensions (mm) 220.15 x 414 x 88.8
Nominal voltage 24V
Supply voltage 21.5 to 30V
Operating
temperature (LCD)
-20 °C to +70 °C
Protection degree IP43 front side mounted
IP20 rear side mounted
Features
CAN ISO 11898
Hardware and
equipment
up to 8 stepper motors
E-Speedo (ET)
Tachometer (RPM)
7 segment LCD for distance /
time in the electronic speed-
ometer area
optional:
two-line / segment display
1 warning sign each for TCO
and RPM in the scale range
Small gauges 2
Operating telltale Negative print Standard 8,
max. 10
Operation hotkey Standard key function:
TCO and Dimming,
max. 6 hot keys
Display module DMUX colour or DMUX
monochrome
Status telltale module LED
Analog inputs 4 Analog inputs 7 mA
1 Analog input 25 mA
Status inputs max. 24 diagnosticable
inputs
Pulse inputs 2 equal Pulse inputs,
Speedo and RPM
DMUX32-C / DMUX32-M / MOKI

10
11

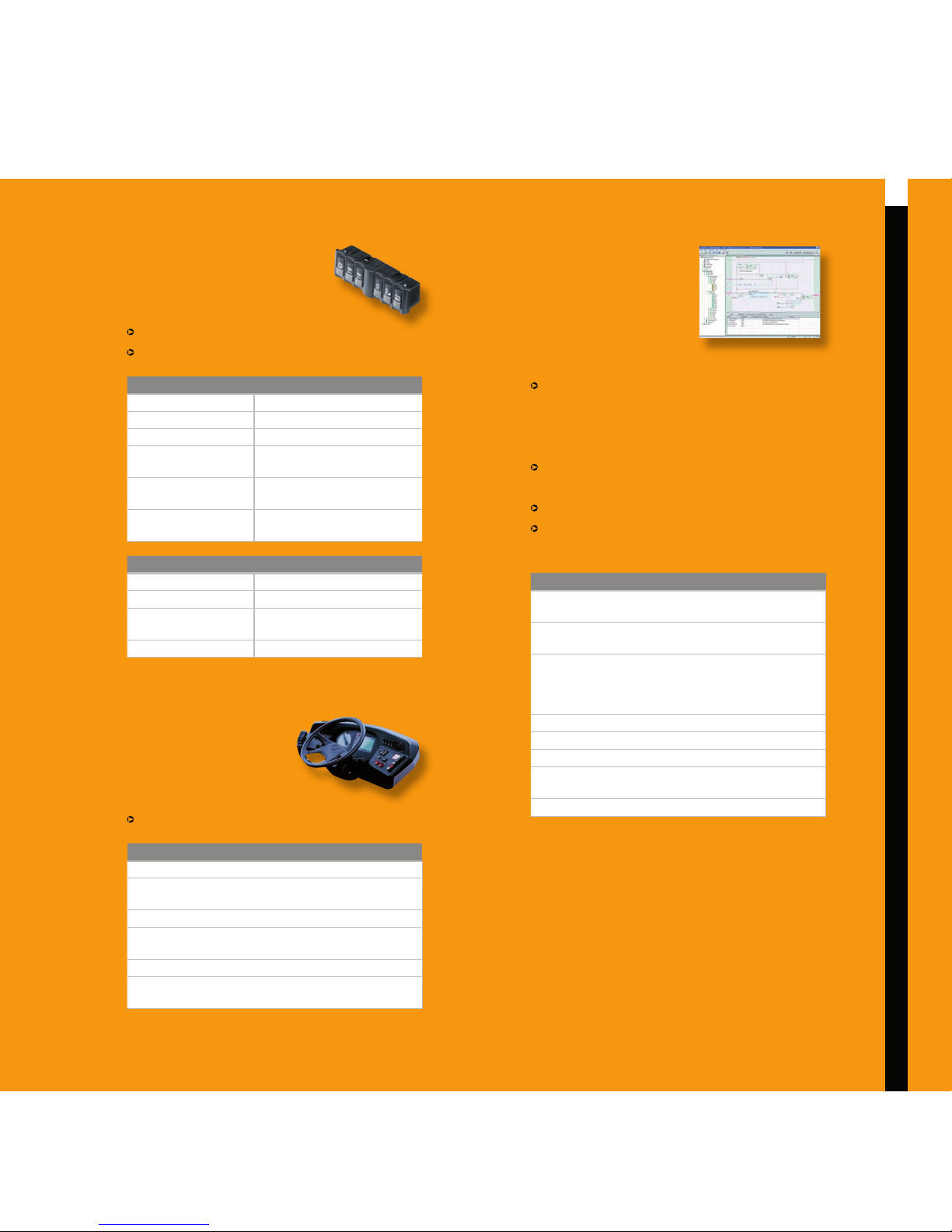

Multiplex Switch
SMUX2000
High flexibility
Reduces cable harness within dash
Specifications
Dimensions (mm) 155 x 45 x 50
Nominal voltage 12 V and 24 V
Supply voltage 10.8 V to 32 V
Stand-by current
consumption
2.5 mA / 24 V
Operating
temperature
-20 °C to +50 °C
Protection degree IP54 front side
IP20 rear side incl. connector
Features
CAN ISO 11898
Interface to client max. 2 clients per master
Switches master
Switches client
6 switches
6 switches
Dimming (PWM) Function & night illumination
VDV Driver
Workplace
Driver workplace for city and intercity buses
Features
Driver workplace for city and intercity buses
Compliant to VDV recommendation 234 and
ISO 16121
Adjustable steering column
Ergonomic solution for drivers with height of
158 to 200 cm
Reduction of wiring work
Standardized platform – Avoidance of cost-
intensive specific development
KIBES-32
Software
The KIBES-32 software
tool is required
To develop the PLC application program and
support the programming languages ladder
logic, function block diagram, sequential
function chart, structured text
To test the PLC application program offline
and online
To download the PLC application program
Runtime version with limited functionality for
service and EOL programming
Features
SW package to develop the PLC application
program for the Central computer ZR32-A
Object-oriented programming system according
to IEC 61131-3
Supporting the IEC-languages FBD (Function
Block Diagram), SFC (Sequential Function Chart),
ST (Structured Text) and LLP Ladder logic pro-
gramming
Offline simulation and online test fully graphical
Version and revision management
Automated program generation (patch generator)
C-code generator inclusive adjustable standard
kernel
Free design of documentation
SMUX2000 / VDV / KIBES-32
