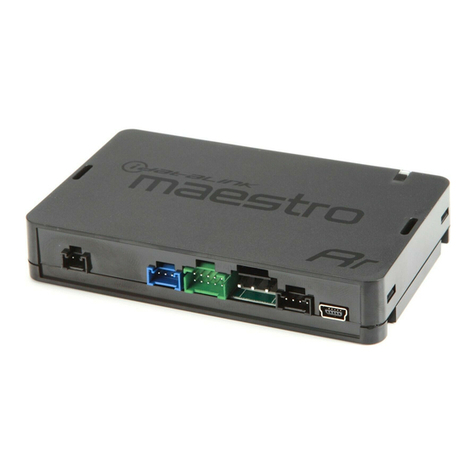

iDataLink Maestro User manual

The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2011
Rev. Date: April 10, 2012
Doc. No.: ##----=##
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU WWW.IDATALINK/(TBD)
PLEASE VISIT WWW.IDATALINK.COM/SUPPORT FOR COMPLETE PRODUCT DETAILS
MAESTRO INSTALL GUIDE
Procedures for vehicles not currently covered
NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please review
the Installation Guide carefully before beginning any work.

P. 1/8
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
¨
MAKE
MODEL
YEAR
TRIM / PACKAGE
VIN
SWI - 1
A
SIGNAL WIRE COLOR RESISTANCE (at idle)
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
B
FEED WIRE COLOR
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
C
STEERING WHEEL BUTTON NAME RESISTANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SWI - 2
VEHICLE INFORMATION
NOTES
A
SIGNAL WIRE COLOR RESISTANCE (at idle)
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
B
FEED WIRE COLOR
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
C
STEERING WHEEL BUTTON NAME RESISTANCE
1
2
3
4
5
6
7
8
SWI - 3
A
SIGNAL WIRE COLOR RESISTANCE (at idle)
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
B
FEED WIRE COLOR
LOCATED AT STEERING WHEEL
LOCATED BEHIND RADIO
C
STEERING WHEEL BUTTON NAME RESISTANCE
1
2
3
4
5
6
7
8
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Form
Maestro Install Guide / Vehicles not currently covered
Maestro SW module can support 2 SWI wires.
Maestro RR module supports 3 SWI wires.

RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88
P. 2/8
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Flat blade screwdriver
Zip ties Electrical tapeRazor knife
Multi-meter
Soldering iron and solder
Philips screwdriver Torx screwdriver Allen Key
Panel popper tool
Socket, ratchet & extension
Cutters
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012
Required Tools
Maestro Install Guide / Vehicles not currently covered

OFF
ACCACC ON
START
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
DC
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
12.00
V
12V
Ω
COM
V
DC
12V
Ω
COM
V
DC
Ω
COM
V
DC
321
123456789
321
123456789
321
123456789
321
123456789
OFF
ACC ON
START
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
12.00 V
DC
P. 3/8
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Pull out the radio.
Do not disconnect harnesses!
Turn key to ACC position
Turn the radio ON.
Set volume to medium.
Turn the parking lights OFF.
Turn the parking lights ON.
Set the dashboard illumination dimmer to a
medium lighting intensity.
Set DMM (Digital Multimeter) to DC volts.
Connect red probe at input terminal for
voltage and resistance.
Connect black probe at common (return)
terminal.
Apply RED DMM probe tip to 12V(+).
Apply BLACK DMM probe tip to Ground(-).
Continue to apply RED DMM probe tip to
12V(+).
Remove RED DMM probe tip from 12V(+).
Apply BLACK DMM probe tip to a first wire
of the radio.
Turn key to OFF position and remove key
from ignition switch.
When DMM displays an approximative
reading of 12V(+), apply a BROWN SWI F
label on the wire. (Voltage must be stable
and not fluctuate to the sound of music.)
Remove the BROWN SWI F label from all
wires that read approximately 12V(+).
Disconnect the radio harnesses.
Apply BLACK probe tip to each wire with a
BROWN SWI F label.
Look for wires that read approximately
12V(+).
DMM should display approximately 12V(+).
If DMM does not test 12V(+), repair the test
equipment before proceeding.
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012
Radio Wiring (Identifying/Gathering information)
Repeat steps 09 and 10 until all radio wires
have been tested.
Maestro Install Guide / Vehicles not currently covered

Ω
COM
V
DC
321
1 2 3 4 5 6 7 8 9
321
123456789
321
123456789
321
123456789
321
1 2 3 4 5 6 7 8 9
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
DC
Ω
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
00.00
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
DC
Ω
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
00.00
Ω
!
A
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
A
C
B
P. 4/8
19
20
23
24
21
22
25
26
27
28
29
30
31
32
33
34
35
36
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Press and hold for 3 seconds each steering
wheel button, 1 at a time.
When releasing button, look for a change of
resistance on the DMM.
Apply BLACK DMM probe tip to a first wire
with a BROWN SWI F label.
Set DMM to OHMS.
To get an accurate reading: use auto-range
or set the scale at 20k and if reading is less
than 2k, scale down to 2k.
Make sure that DMM is set to OHMS.
Measure resistance value between feed
wire and signal wire.
Record resistance at idle value in section A.
Ensure the probes are connected as shown:
Red probe at input terminal for voltage and
resistance, black probe at common (return)
terminal.
Repeat steps 21 through 27 until all
steering wheel buttons are linked to a
signal and a feed wire.
When DMM displays a change of resistance
apply a PINK SWI label on the wire.
Apply RED DMM probe tip to a first wire of
the radio.
Record in section A the color and location of
the signal wire.
(Wire with a PINK SWI label.)
Record in section B the color and location of
the feed wire.
(Wire with a BROWN SWI F label.)
Record in section C the names of steering
wheel buttons linked to the signal wire.
(Buttons that provided a change of
resistance when pressed and released).
Apply RED DMM probe tip to first signal wire
(PINK label).
Apply BLACK DMM probe tip to linked feed
wire (BROWN label).
One at a time, press and hold each steering
wheel button linked to that signal wire.
Apply RED DMM probe tip to first signal wire
(PINK label).
Apply BLACK DMM probe tip to linked feed
wire (BROWN label).
Radio Wiring (Identifying/Gathering information)
If not all steering wheel buttons are linked,
further testing is required (step 40).
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012Maestro Install Guide / Vehicles not currently covered
Repeat steps 31 through 33 for each signal
wire.

C
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
P. 5/8
37
38
41
42
39
40
For each button, measure resistance value.
(Wait for a stable reading.)
For each button, record resistance value in
section C.
If some steering wheel buttons are still not
linked to a signal wire, complete External
module wiring (Identifying/Gathering
Information) section.
Go to:
www.idatalink/(link to be determined)
Fill the fields with the informations
collected and follow the instructions.
(to be determined)
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Radio Wiring (Identifying/Gathering information)
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012Maestro Install Guide / Vehicles not currently covered
Repeat steps 35 through 38 for each signal
wire.

321
123456789
321
123456789
321
123456789
321
123456789
321
123456789
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
+
-
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
DC
Ω
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
00.00
Ω
Ω
COM
V
DC
01
02
03
04
05
06
P. 6/8
07
08
09
10
11
12
13
14
15
18
16
17
321
123456789
A
C
B
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
Disconnect the module. Press and hold for 3 seconds each steering
wheel button linked to the wire, 1 at a time.
When releasing button, look for a change of
resistance on the DMM.
Apply BLACK DMM probe tip to a first wire
with a PINK SWI label.
Apply RED DMM probe tip to a first wire with
a PINK SWI label.
When DMM displays a change of resistance
apply a BROWN SWI F label on the wire.
Apply RED DMM probe tip to a first wire of
the radio.
If there is a change of resistance: Go to
step 30.
If there is NO change of resistance: Go to
next step.
Press and hold for 3 seconds, each
steering wheel button that is not already
linked, 1 at a time.
When releasing button, look for a change
of resistance on the DMM.
Press and hold for 3 seconds, each
steering wheel button linked to the wire, 1
at a time.
When releasing button, look for a change
of resistance on the DMM.
Locate external module (ex. Bluetooth or
navigation module).
Set DMM to OHMS.
Apply BLACK DMM probe tip to Ground(-).
Apply RED DMM probe tip to a first wire of
the external module connector.
External module Wiring (Identifying/Gathering information)
Repeat steps 04 through 08 until each
steering wheel button is linked to a signal
wire.
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012Maestro Install Guide / Vehicles not currently covered
When DMM displays a change of resistance
apply a PINK SWI label on the wire.
Record in section A the color and location of
the signal wire.
(Wire with a PINK SWI label.)
Record in section B the color and location of
the feed wire.
(Wire with a BROWN SWI F label.)
Record in section C the names of steering
wheel buttons linked to the signal wire.
(Buttons that provided a change of
resistance when pressed and released).

321
123456789
321
123456789
321
123456789
321
123456789
A
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
C
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
19
20
23
24
21
22
25
26
27
28
29
30
31
32
33
34
35
36
P. 7/8
A
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
Ω
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MIN MAX
400
mA
10A COM
FUSED
V
!600V CAT IV
1000V CAT III
88.88 Ω
DC
PROGRAMMINGEXTRAS PREPARATIONINSTALLATION
External module Wiring (Identifying/Gathering information)
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012
Maestro Install Guide / Vehicles not currently covered
Repeat steps 30 through 32 for every
signal wire (with a PINK SWI tag.)
Repeat steps 14 through 18 for every
signal wire (with a PINK SWI tag.)
Apply RED DMM probe tip to first signal
wire (PINK label).
Apply BLACK DMM probe tip to Ground(-).
Measure resistance value between ground
and signal wire.
Record resistance at idle value in section
A.
One at a time, press and hold each
steering wheel button linked to that signal
wire.
Apply RED DMM probe tip to first signal
wire (PINK label).
Apply BLACK DMM probe tip to Ground(-).
Go to step 35 in Radio wiring
(Identifying/Gathering Information)
section.
For each button, measure resistance value.
(Wait for a stable reading.)
Measure resistance value between feed
wire and signal wire.
Record resistance at idle value in section A.
For each button, measure resistance value.
(Wait for a stable reading.)
For each button, record resistance value in
section C.
Apply RED DMM probe tip to first signal wire
(PINK label).
Apply BLACK DMM probe tip to linked feed
wire (BROWN label).
One at a time, press and hold each steering
wheel button linked to that signal wire.
Apply RED DMM probe tip to first signal wire
(PINK label).
Apply BLACK DMM probe tip to linked feed
wire (BROWN label).
Repeat steps 20 through 22 for each signal
wire.
Repeat steps 24 through 27 for each signal
wire.

C
P. 8/8
37
38
39
PROGRAMMATIONEXTRAS PREPARATIONINSTALLATION
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2012Maestro Install Guide / Vehicles not currently covered
Go to step 41 in Radio wire testing
procedure section.
For each button, record resistance value in
section C.
Repeat steps 34 through 37 for each signal
wire.
External module Wiring (Identifying/Gathering information)
