Installation Instructions
Model
Aristocrat
™
Vanity Flair
Contractors Wardrobe®
DESIGNERS • MANUFACTURERS • TOLL FREE: (800) CW-DOORS • [phone] • www.cwdoor.com
26121 Avenue Hall • Valencia, CA 91355 • [phone] • FAX: [phone]
Aristocrat Vanity Flair Instr. 2/2/09 5:17 PM Page 1

Illustrated Parts Breakdown (IPB)
Model Aristocrat™Vanity Flair
2Aristocrat™Vanity Flair - 0209
NO. QTY PART # PART DESCRIPTION
#1 3 Mirrored Glass Panels
#2 2 C1000 Magnetic Oak Catch
#3 2 S0240 Strike Washer
#4 2 S0087 #6 x 1/2″Screws
#5 2 B1010 Masonite
#6 4 H6010 Pivot Hinges
#7 24 S0055 #8 x 1/2″Truss Screws
#8 2 A6000MF Brackets
#9 8 S0084 #6 x 3/8″Screws
#10 2 S0180 Anchors
#11 8 S0095 #8 x 1-1/2″PH SMS Screws
67
67
67
67
8
9
9
9
9
11
11
11
11
5
1
2
43
1
1
Aristocrat Vanity Flair Instr. 2/2/09 5:17 PM Page 2

Congratulations on purchasing your new CW®Aristocrat™
Vanity Flair. Now that you have opened the package, we
want you to verify that you have all the necessary hard-
ware supplied with your vanity.

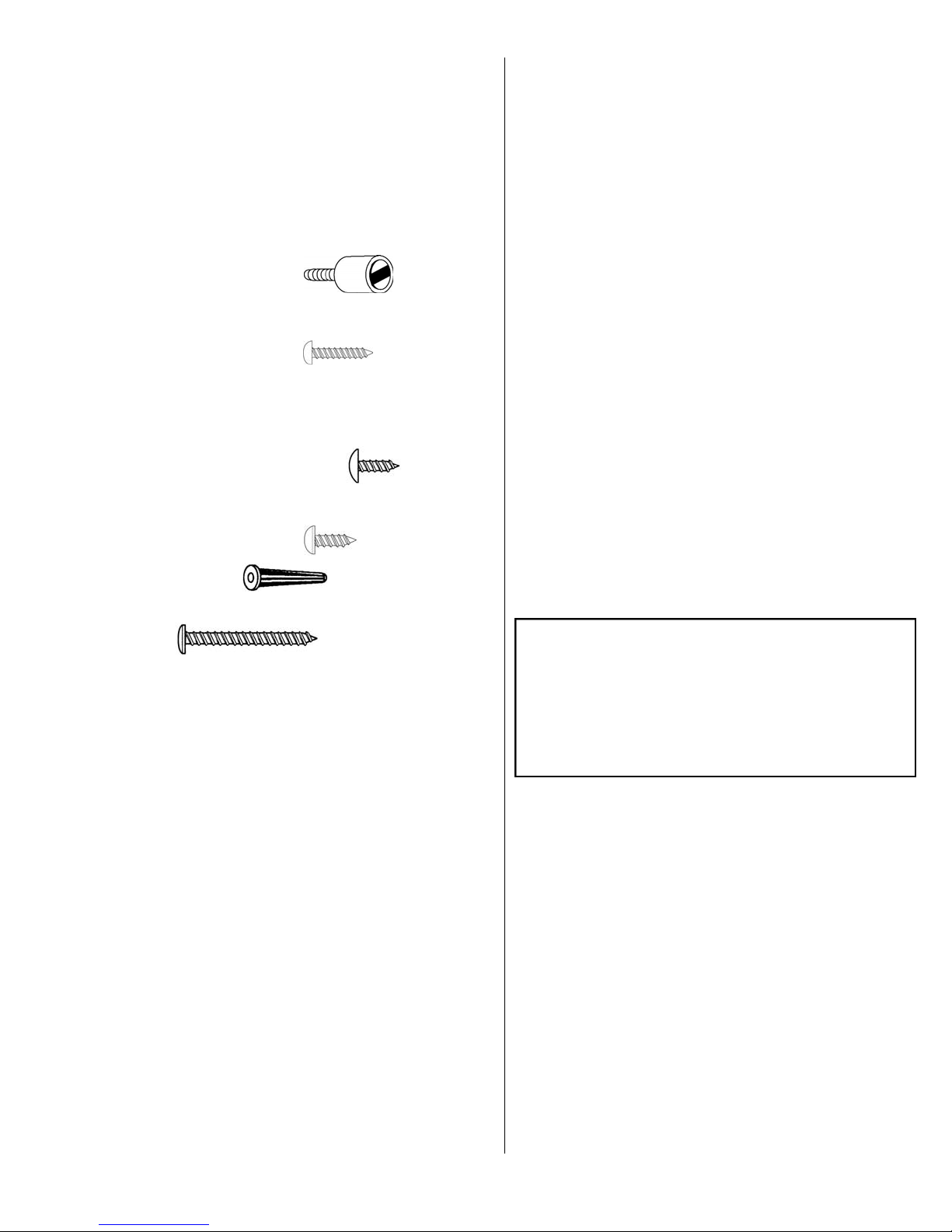

PARTS CHECK LIST:
NO. QTY DESCRIPTION
(#1) 3 Mirrored Glass Panels
(#2) 2 Magnetic Oak Catch
Installed in Panel
(#3) 2 Strike Washer
(#4) 2 #6 x 1/2″Screws
(#5) 2 Masonite
(#6) 4 Pivot Hinges
(#7) 24 #8 x 1/2″Truss Screws
(#8) 2 Brackets
(#9) 8 #6 x 3/8″Screws
(#10) 2 Anchors
(#11) 8 #8 x 1-1/2″PH SMS Screws
If you find that any parts are damaged or missing, refer to
the parts list and IPB Drawing and contact
Contractors Wardrobe®’s Customer Service Department
at [phone].
TOOL CHECK LIST
You will need:
• Phillips Screwdriver
• Tape Measure
• Hammer
• Pencil
• 3/8″Drill Motor and 3/16″and 1/8″Drill Bits
• Square or Level
Aristocrat™Vanity Flair - 0209
STEP 2 Mounting the Vanity Flair
Place the Mirrored Glass Panels (#1) against
the wall where you want to install it. Open the
left wing and mark the wall through all the holes
in the Bracket (#8). Next, open the right wing
and mark the wall through all the holes in the
Bracket (#8). Next, move the Mirrored Glass
Panels (#1) out of the way. Carefully drill a 1/8″
hole in the wall where you marked the holes
through the Bracket (#8). If you did not drill into
a wooden stud, you will need to use wall
anchors. After you drill all of the holes and
install the anchors, if necessary, move the
Mirrored Glass Panels (#1) back into place.
Next, insert the #8 x 1-1/2″PH SMS Screws
(#11) through the holes in each Bracket (#8).
STEP 3 Installing the Strike Washer
Place #6 x 1/2″Screw (#4) inside the Strike
Washer (#3) and place onto Magnetic Oak
Catch (#2). Close door with screw facing wall.
This will mark where your #6 x 1/2″Screw (#4)
and Strike Washer (#3) will go. Open wing and
remove from Magnetic Oak Catch (#2). Install
#6 x 1/2″Screw (#4) and Strike Washer (#3)
where your mark is on the wall. Repeat this step
for the second wing. Your Aristocrat™Vanity
Flair is complete.
INSTALLING THE ARISTOCRAT ™VANITY FLAIR
STEP 1 Measure for Center of Opening
Place Mirrored Glass Panels (#1) onto back
splash. Using Tape Measure, measure left and
right sides to find center of opening (You may
need a second person to help hold the Mirrored
Glass Panels (#1) in place, while measuring the
opening to find the center).
Thank you for purchasing a CW®Wardrobe Door. This
is only part of a large line of wardrobe doors and high
quality bath enclosure products. If you like this product,
please contact Contractors Wardrobe®for more
information about our many beautiful bath enclosures
available in a vast array of colors and finishes to suit
your designing needs.
