Convair CTH05 User manual

OWNER’S MANUAL
Convair Ceramic Tower Fan Heater
CTH05
(English) (CTH05)

CERAMIC TOWER FAN HEATER - CTH05
|1
SAFETY
General Safety
Please read these instructions before using the
heater and keep for future reference.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction in
using the appliance by a person responsible
for their safety.
Children should be supervised to ensure that
they do not play with the appliance. Do not
poke anything through the ventilating slits.
Always use the heater in an upright position.
Stand it on a firm, solid, horizontal base (not on
thick pile carpets).
WARNING: In order to avoid
overheating, do not cover the
heater.
Leave nothing hanging above or in front of
the heater (e.g. clothes, curtains, bedding,
fabrics). Be sure that the back panel vent
slots on the heater are uncovered otherwise it
will overheat. Clean these openings at regular
intervals to prevent airflow reduction (refer
Maintenance section).
The heater surfaces are hot when in use. To
avoid burns, keep bare skin away from the
top ventilation outlets. Leave plenty of room
around the heater.
Do not use this heater outdoors, or on wet
surfaces. Do not use the heater near flamable
areas or substances.
Electrical Safety
Connect the heater to a single 230 Vac, 10A
socket only. Do not plug into double adaptors
or multi-outlet power boards.
Make sure that the heater never comes into
contact with water. Never position the heater
under a power outlet.
Never turn the heater on if the power supply
cord is damaged or if the heater’s casing
is obviously damaged. If the power supply
cord is damaged it must be replaced by the
manufacturer, a service agent or similarly
qualified persons in order to avoid a hazard.
Do not pull the heater along by the power cord
or place the cord near the heater’s surfaces.
Always uncoil the power cord completely
before use. Use of extension cords is not
recommended.
Do not use this heater in the immediate
surroundings of a bath, a shower or a
swimming pool. If the heater is to be used in
a bathroom, ensure that switches and other
controls cannot be touched by a person in the
bath or shower.
Do not use this heater with a programmer,
timer, separate remote-control system or
any other device that switches the heater on
automatically, since a fire risk exists if the
heater is covered or positioned incorrectly.
Always turn the heater off and unplug from the
power socket when not in use.
Safety Device
To avoid overheating problems the inbuilt
safety device will interrupt electricity in the
event of the heater overheating.
If this should happen:
• Check that the heater is positioned
correctly, not close to any furnishings.
• See that there is no dust or other obstacles
blocking the vent slots.
• Clean the vent slots if necessary.
The heater is also equipped with a ‘tip-over’
switch, which will turn off power to the heater
elements if it should fall over.

OWNER’S MANUAL |2

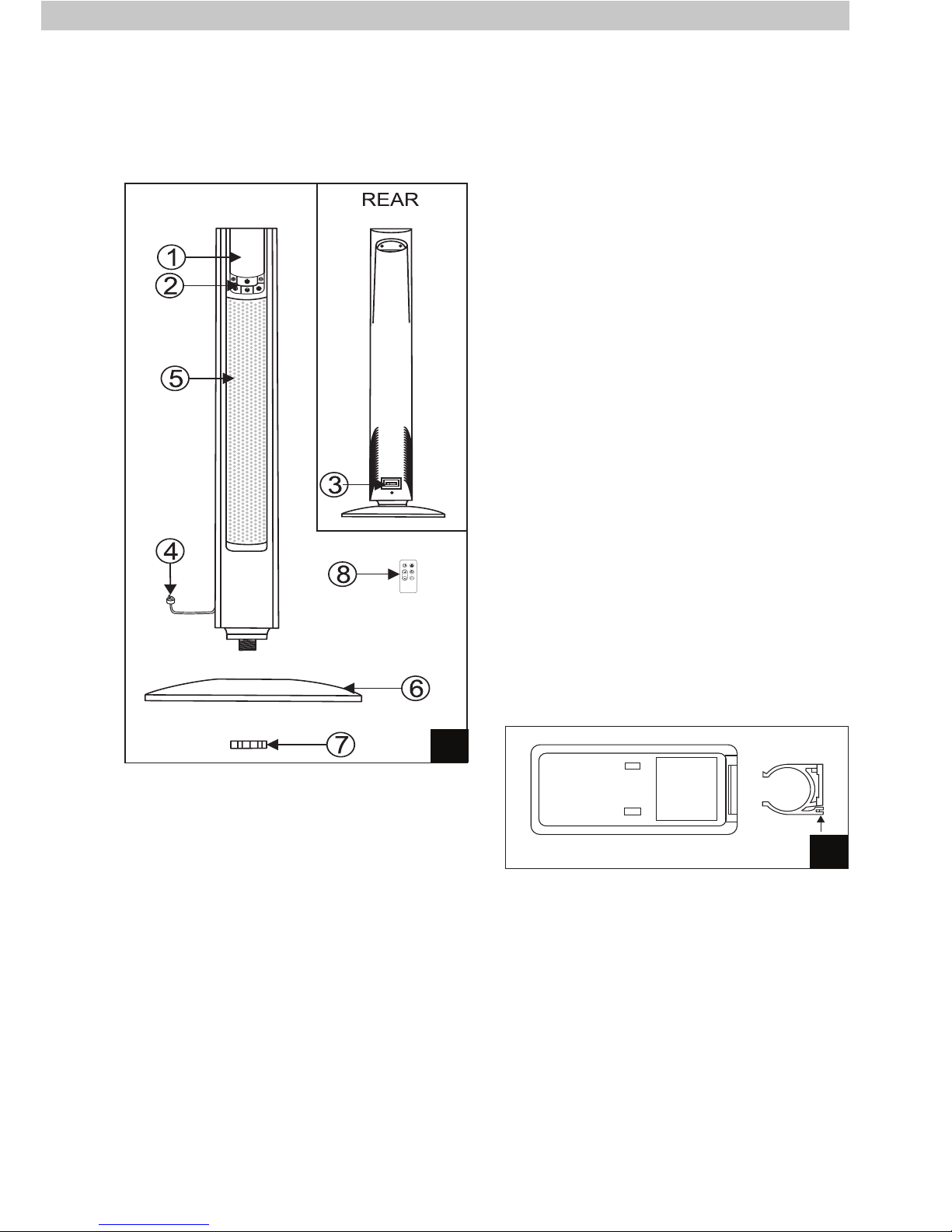

ASSEMBLY
1. Display panel
2. Control panel
3. Power switch
4. Power supply cord
5. Front Panel
6. Base
7. Locking nut
8. Remote control
ASSEMBLY
COMPONENTS LIST
Unpack the heater components and check that
you have all of the components.
Turn the heater upside down and remove the
plastic locking nut. Assemble the Base onto the
heater and lock into position with the Locking
nut.
Note: Ensure the nut is tight to avoid shaking
of the heater.
1
REMOTE
When the heater power is on, the remote
control can be used to operate the heater from
up to 4m away.
If there are two or more heaters within this
distance all will be operated by the same
remote control.
Replacing the battery
Release battery slide by pressing on the tab
as shown in Fig. 2.
Remove the battery and replace with an
equivalent CR2032 type battery.
Note: Your remote control will be supplied with
a battery.
2

CERAMIC TOWER FAN HEATER - CTH05
|3
OPERATION
1. Press Power switch on the back of the
heater, to begin use. The heater will make a
‘beep’ and enter into standby mode.
2. Press the ON/OFF button turn ON the
heater.
SET. Press once to enter into timer
setting mode, and twice to enter into
temperature setting mode.
UP. Press to increase temperature/
timer setting.
DOWN. Press to decrease
temperature / timer setting.
BUTTON LIST CONT.
OPERATION
1. Press the SET button once to enter into
timer setting mode. The temperature / timer
setting light will flash on the display panel.
2. Press the UP and DOWN buttons to set the
time before the heater automatically enters
standby mode. Pressing UP and DOWN
will increase and decrease the time by 1 hr
increments. Timer range is 1-12hrs.
3. If there is no operation of the buttons after
4 seconds the timer will be set. The display
will now cycle between the current room
temperature and the timer countdown.
4. Reset the timer by re-entering the timer
setting mode and using UP and DOWN to
set a desired time.
5. To cancel the timer setting, set the timer to
zero hours
TIMER SETTING MODE
ON/OFF. Press to switch between
standby and ON modes
POWER. Press to shift between low
(1100W) and high (2000W) heating
power
OSCILLATION. Press to make the
heater rotate from side to side. Heater
has an 80° oscillation angle.
BUTTON LIST
CONTROL
4
DISPLAY
1. ON/OFF indicator light
2. Power setting.
3. Temperature / timer setting
4. Oscillation mode indicator light
5. Timer indicator light
3
Controls and operation for both remote control
and control panel are identical.

OWNER’S MANUAL |
The heater has a temperature sensor.
When the room temperature reaches the set
temperature, the heater will automatically
switch to standby mode. Once the room
temperature has cooled by 2°C the heater
will automatically turn ON. The heater will not
judge the temperature within 10s of the heater
turning on.
To set a desired temperature:
1. Press the SET button twice to enter into
temperature setting mode. The temperature/
timer setting light will flash on the display
panel.
2. Press UP and DOWN to set the desired
temperature. Pressing the UP and DOWN
buttons will increase and decrease the
temperature by 1°C increments. Temperature
set range is 15°C to 35°C.
3. Press the SET button to quit the temperature
setting mode or wait 4 seconds. The room
temperature will be displayed.
4. Reset the temperature by re-entering the
temperature setting mode and using the UP
TEMPERATURE SETTING MODE Make sure that the device is switched off
before cleaning.
Wipe the surface of the heater by using a clean
damp cloth.
Do not use chemical liquids when cleaning
the heater.
Do not submerge the heater in water.
Make sure that the heater has cooled down
completely before storing. Storing in its original
packaging is highly recommended.
CLEANING AND STORINGOPERATION CONT.
4
Waste electrical products must not be disposed of with household waste.
This product should be taken to your local recycling centre for safe treatment.

CERAMIC TOWER FAN HEATER - CTH05
|
In this warranty:
We or us means Seeley International Pty Ltd. ABN 23 054 687 035, and our contact details are set
out at the end of this warranty;
You means you, the original end-user purchaser of the Goods;
Supplier means the authorised distributor or retailer of the Goods that sold you the Goods in
Australia; and
Goods means the product, unit, appliance or equipment which was accompanied by this warranty
and purchased in Australia.
Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods
fail to be of acceptable quality and the failure does not amount to a major failure.
In addition to any rights and remedies that You may have under the Australian Consumer Law or
any other law, subject to the terms of this warranty, We provide the following warranty:
1. If, during the first 24 months from the date of first retail purchase (Warranty Period), the Goods
upon examination prove defective by reason of improper workmanship or material, We will
replace the Goods or any part thereof without charge. We may substitute with any similar Goods
(including a panel heater, or a portable heating product of a different size or shape), even if it is
not on our current price/equipment list. Alternatively, we may arrange a refund of the purchase
price you paid.
2. We are under no obligation to replace the Goods under clause 1 if the Goods have not been
used only for personal, domestic or household purposes and have not been installed/mounted
(if relevant), operated, and maintained in accordance with the instructions in the Owner’s Manual.
The addition of any third party device or the removal or the alteration of any of our components
will void this warranty. In addition, the warranty granted under clause 1 does not apply to:
• Adjustments necessary due to misuse of the appliance,
• Normal user maintenance,
• Setting of controls,
• Transit damage, or
• Damage caused by user misuse, tampering, or failure to observe the care and special provisions
in the instructions.
3. The warranty granted under clause 1 is limited to replacement only. As far as the law permits,
We will not be liable for any consequential loss suffered through, or resulting from, the non
operation, or ineffective operation of the Goods. The warranty granted under clause 1 does not
cover damage to the Goods or other loss resulting from acts of God.
4. No other person, firm or corporation is authorised by us to offer or give on our behalf any other or
greater warranty than that given under this warranty. The benefits conferred by this warranty are
in favour of You and any person deriving title to the Goods through or under such person and are
intended to be separate from and additional to all other rights and remedies that they may have
in law in respect of the Goods.
5. We are not responsible in any way for any failure and/or inadequate performance of the Goods
which arises from or is connected to the use in the Goods of non-genuine spare parts. We
strongly recommend that only spare parts supplied or approved by us are used in the Goods.
WARRANTY
5

OWNER’S MANUAL |
6. In order to claim under the warranty granted under clause 1 You must within the Warranty Period
return the Goods to the Supplier at the place of purchase together with the proof of purchase.
7. Alternatively, you may claim under the warranty granted under clause 1 by within the Warranty
Period returning the Goods to us at the address below together with: (i) a covering letter which
states your name and address, daytime telephone number, and model and serial number of the
goods, (ii) the legible and unmodified proof of purchase, which clearly indicates the name and
address of the original retailer, the date and place of purchase, and the product name or other
product serial number, and (iii) a copy of the completed Warranty Information below.
8. This warranty does not cover the cost of claiming under the warranty, it is your responsibility to
cover all forwarding and freight costs incurred in returning the Goods to the Supplier at the place
of purchase or us.
9. This warranty is only valid and enforceable in Australia.
Our liability under this warranty is limited to the extent permitted by law. That is, to the extent that
it is fair and reasonable, if the Goods are not of a kind ordinarily acquired for personal, domestic or
household use or consumption, your remedies associated with any failure or defect of the Product
will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods; or
(d) the payment of the cost of having the Goods repaired and subject to the terms and conditions
included in this warranty.
For technical assistance before returning the product please contact:
1300 650 399
Please retain your receipt as proof of purchase. Every request for warranty
must be accompanied by proof of purchase.
Complete the following for your records:
Serial Number
Product Convair Ceramic Tower Fan Heater
Model: CTH05
Purchased from
Date purchased
You can also register your warranty with us on our website.
Service Department
Seeley International Pty Ltd
112 O’Sullivan Beach Road
Lonsdale, South Australia 5160
Technical assistance in Australia: 1300 650 399
Website: www.seeleyinternational.com
6
WARRANTY CONT.

seeleyinternational.com
Warranty Service
Australia 1-300-650-399
seeleyinternational.com
It is the policy of Seeley International to introduce continual product improvement.
Accordingly, specifications are subject to change without notice.
Please consult with your dealer to confirm the specifications of the model selected.
AU 131200158601-A
