Cooke & Lewis CLGH3ASS User manual

CLGH3ASS
CLGH3ASS - Version: 01
GB IE Built-in Gas Hob - Barcode: 5052931268382
WARNING: Read the instructions before using the appliance.
CLGH3ASS-C&L-A5-GB-IM-08.indd 1 10/18/13 11:30 AM

[02] x 1
[03] x 2
[01] x 1 [04] x 1
[05] x 2
[06] x 1
[07] x 3
CLGH3ASS Built-in Gas Hob
1 : 1
[08] x 4
[09] x 3 (4 x 25 mm)
[10] x 1
CLGH3ASS-C&L-A5-GB-IM-08.indd 2 10/18/13 11:30 AM

3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 04
Before you start 04
Safety 05
In more detail… 09
Operation 09
Care and maintenance 12
Troubleshooting 13
Recycling and disposal 13
Technical and legal information 14
Guarantee 20
CE Declaration of conformity 22
Appendix...
23
Installation
GB
IE
CLGH3ASS-C&L-A5-GB-IM-08.indd 3 10/18/13 11:30 AM

4
Getting started...
GB
IE
CLGH3ASS Built-in Gas Hob
Your product
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0844 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and its safety warnings.
class of device: Class 3
You will need
Your product
Before you start
Installation guide
located at the end of
the guidebook
CLGH3ASS-C&L-A5-GB-IM-08.indd 4 10/18/13 11:30 AM

5
Getting started...
CLGH3ASS Built-in Gas Hob GB
IE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
• All installation work must be carried
out by a competent person or qualied
electrician.
• This appliance must be installed correctly
by a suitably qualied person, strictly
following the manufacturer’s instructions.
This appliance complies with all current
European safety legislation, however, the
Manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during
use. Young children should be kept away.
Care should be taken to avoid touching the
appliance.
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies
and small children.
CLGH3ASS-C&L-A5-GB-IM-08.indd 5 10/18/13 11:30 AM

6
Getting started...
GB
IE
CLGH3ASS Built-in Gas Hob
Safety
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for isolating the appliance must be
incorporated in the xed wiring in accordance
with the current wiring regulations. An all-
pole disconnection switch having a contact
separation of at least 3 mm in all poles should
be connected in xed wiring.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid
a hazard.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
CLGH3ASS-C&L-A5-GB-IM-08.indd 6 10/18/13 11:30 AM

7
Getting started...
CLGH3ASS Built-in Gas Hob GB
IE
Safety
Do not allow the electric cables to touch the
hot parts of the appliance.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Please dispose of the packing material carefully.
Do not use ammable sprays in close vicinity
to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning and
maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
When a cooking zone has been on for a long
time, the surface remains hot for some time
afterwards so do not touch the metal surface.
Do not store detergents or ammable
materials beneath the hob.
Do not leave hot oils or fats unattended as
they may catch light.
CLGH3ASS-C&L-A5-GB-IM-08.indd 7 10/18/13 11:30 AM

8
Getting started...
GB
IE
CLGH3ASS Built-in Gas Hob
Safety
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning! Unattended cooking on a hob with fat
or oil can be dangerous and may result in re.
Never try to extinguish a re with water, but
switch off the appliance and then cover ame
e.g. with a lid or a re blanket.
Warning! Risk of re! Do not store items on
the cooking surfaces.
Prior to installation, ensure that the local
distribution conditions (nature of the gas
and gas pressure) and the adjustment of the
appliance are compatible.
The adjustment conditions for this appliance
are stated on the label (or data plate).
This appliance is not connected to a
combustion products evacuation device. It
shall be installed and connected in accordance
with current installation regulations. Particular
attention shall be given to the relevant
requirements regarding ventilation.
CAUTION: This appliance is for cooking
purposes only. It must not be used for other
purposes, for example room heating.
The use of inappropriate hob guards can
cause accidents.
CLGH3ASS-C&L-A5-GB-IM-08.indd 8 10/18/13 11:30 AM

9
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob Operation
Product functions
• 4 x burners: Four zones of cooking.
• Flame safety device (FSD): Stops the gas supply to the gas hob when the
ame goes out.
• Auto ignition.
• LPG conversion kit supplied.
Control elements
In more
1
2
4
A B C D
E F
EB
D
F
A C
Reference Description Qty
A Left pan support 1
B Semi-rapid burner 1
C Right pan support 1
D Semi-rapid burner 1
E Rapid burner 1
F Auxiliary burner 1
Note: This diagram may be slightly different from the layout of the appliance.
Remark: There are plastic protective part under the base of the pan support.
There is no need to remove the plastic parts during use.
CLGH3ASS-C&L-A5-GB-IM-08.indd 9 10/18/13 11:30 AM

10
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE
Operation
Operation
Use of the burners
Caution
• If there is no electric current you can light the burners with piezo
electric spark gas ignitor.
• The burners can only be lit with safety thermocouples when the
knob is on MAXIMUM.
• If ignition is failed for the rst time, then we should wait for 5 mins
before we try again.
On the right bottom side of each knob on the control panel there is a diagram to
indicate the burner to which the knob refers to. The burners can be switched on in
several ways, according to the type of appliance and its individual features.
Manual “ON” switch (this is always possible even if the
electric current is off):
• Turn the knob corresponding to the selected burner
in a counter-clockwise direction so that the knob is
at MAXIMUM (this corresponds to a large ame).
• Use a piezo electric spark gas ignitor.
Automatic electric “ON” switch for burners with safety
device (thermocouples):
• Turn the knob corresponding to the selected burner
in a counter-clockwise direction so that the knob is
at MAXIMUM.
• Once the burner is lit, keep the knob pressed in for
about 10 seconds in order to allow the ame to heat
up the thermocouple. If the burner goes out when
the knob is let go, repeat the operation.
CLGH3ASS-C&L-A5-GB-IM-08.indd 10 10/18/13 11:30 AM

11
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob Operation
Operation
Note
• The use of a gas cooking appliance produces heat and humidity
in the place where it is installed.
• Therefore, you need to ensure the place is well ventilated,
keeping the natural ventilation openings clear and using a
mechanical ventilation device/ ue or electric fan.
• Intensive or prolonged use of the appliance may require
additional ventilation, such as opening a nearby window or
increased ventilation efciency obtained by increasing the power
of the mechanical ventilators, where applicable.
• This appliance is only for at bottomed pans.
Advice for the best use of the burner:
• When boiling point is reached, turn the knob to MINIMUM.
• Always use pans with a lid.
Burner Recommended pan diameters (cm)
Auxiliary 12-14
Semi-rapid 14-26
Rapid 18-26
CLGH3ASS-C&L-A5-GB-IM-08.indd 11 10/18/13 11:30 AM

12
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE
Care and maintenance
Care and maintenance
OFF
FUSE
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
Caution
• Use soapy water and a cloth for cleaning. Never use abrasive
powders.
• Avoid banging pots and pans down on the hob.
• Do not leave any empty pan on the heating zone.
• The appliance should be cleaned after use.
• Wipe the inner and outer surface of the appliance and its accessories with
wet cloth.
• Any liquid overowing from the pan must always be removed with a cloth.
• The surface of the hob may be easily cleaned as follows:
Cleaning of enamel parts:
To maintain the features of the enamel parts, wash frequently with soapy water.
Never use abrasive powders. Avoid leaving acid or alkaline substances on the
enamel parts (vinegar, lemon juice, salt, tomato juice, etc.) and washing the
enamel parts while they are still warm.
Cleaning of stainless steel parts:
Wash these parts with soapy water and then dry them with a soft cloth.
The shine is maintained by regularly cleaning them with special products normally
commercially available. Never use abrasive powders.
Cleaning of burner ame dividers:
Given that they are not xed, the ame dividers can be cleaned by simply
removing them and washing them with soapy water. After drying them well and
checking that the holes are not blocked, put them back into their correct position.
Replacement of parts
OFF
FUSE
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
CLGH3ASS-C&L-A5-GB-IM-08.indd 12 10/18/13 11:30 AM

13
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob
Troubleshooting
The following circumstances may not be a problem. Do not contact the customer
services until the problem has been conrmed.
If your appliance is still not functioning properly after making the above checks,
please contact customer services.
1. Check that the mains supply has not been switched off.
2. Check that the fuse in the spur has not blown.
3. Ensure that the burner components are not excessively soiled as this can
lead to ignition problems.
Do not take the appliance apart yourself, as you may damage the hob.
Before calling After Sales Service, please do the following:
1. Check that the appliance is correctly connected.
2. Read the failure text above. If you are still unable to solve the problem,
switch off the appliance, do not try to take it apart and call customer
services.
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Troubleshooting
Recycling and disposal
CLGH3ASS-C&L-A5-GB-IM-08.indd 13 10/18/13 11:30 AM

14
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE

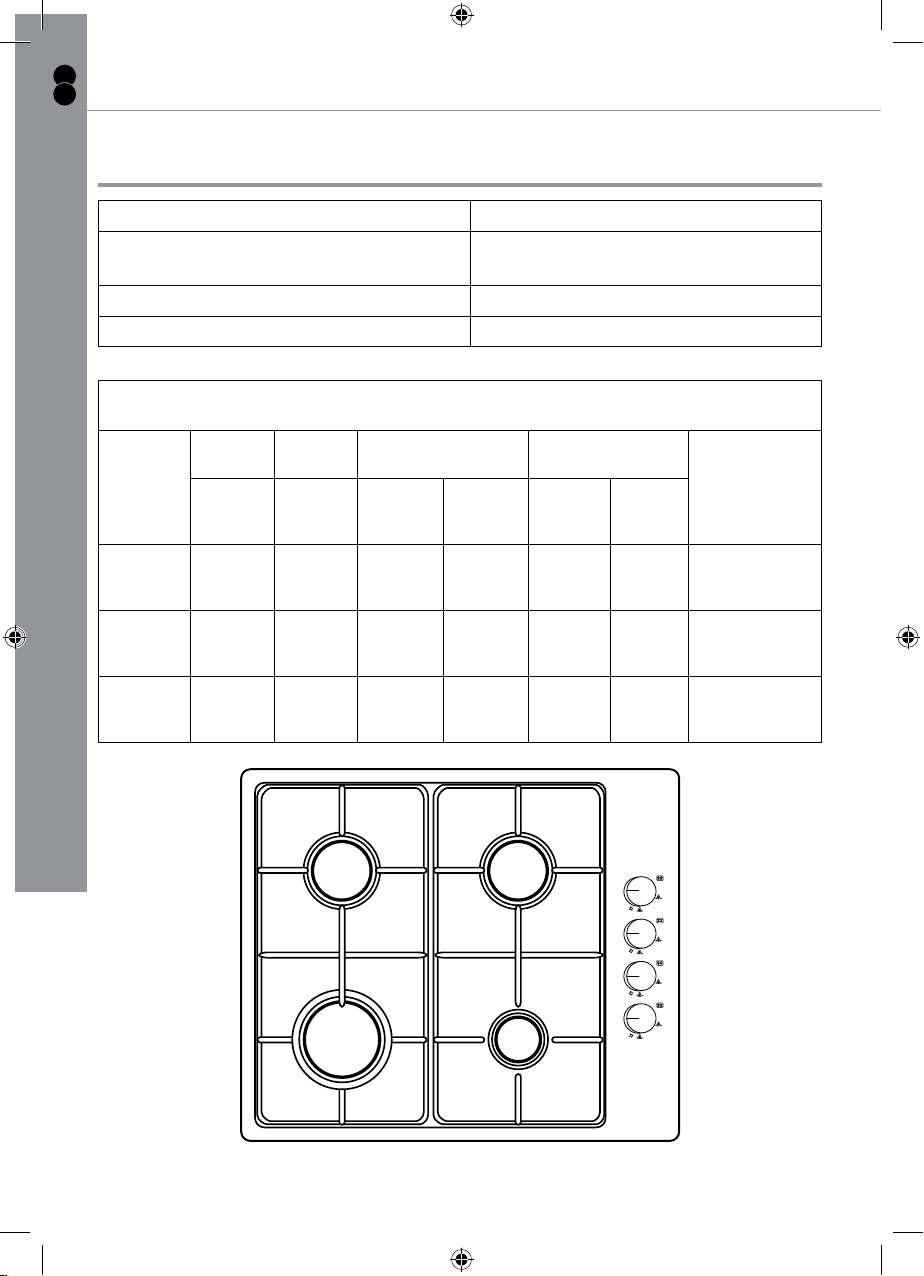

Technical and legal information
Technical specications
Supply voltage 220-240V~, 50/60Hz
Gas pressure G20Type/20mabr/7.5kw,
G30Type/28-30mbar/7.5kw
External dimensions (W x H x D) 580 x 90 x 500 mm
Net weight 7.3kg
USER CHARACTERISTICS
BURNER
TYPE
MAX
OUTPUT
MIN
OUTPUT
G20
20mbar
G30
28-30mbar
Cooking zone
Kw Kw
Nozzle
size
(mm)
Cons
M³/h
Nozzle
size
(mm)
Cons
g/h
Small
Auxiliary
burner
1.00 0.35 0.72 0.095 0.50 73 F
Medium
Semi-rapid
Burner
1.75 0.65 0.97 0.167 0.65 127 B and D
Large
rapid
burner
3.0 1.0 1.15 0.286 0.85 218 E
B D
E F
CLGH3ASS-C&L-A5-GB-IM-08.indd 14 10/18/13 11:30 AM

15
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob
Wiring
All installation work must be carried out by a competent
person or qualied electrician.
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the cooker hob.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 13 AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
Technical and legal information
CLGH3ASS-C&L-A5-GB-IM-08.indd 15 10/18/13 11:30 AM

16
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE
Technical and legal information
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E.
Regulations and local electricity company regulations. For your own safety a
qualied electrician or contractor who is on the roll of the National Inspection
Council for Electrical Installation Contracting (NICEIC) should undertake the
electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to
the voltage on the rating plate inside the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and must be connected to
the electricity supply via a double pole switch having a 3mm minimum contact gap
on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 13 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
Green/Yellow = - Earth
The connection point must be placed in a position adjacent to the appliance so as
to be readily accessible for an engineer in the event of a breakdown.
Technical and legal information
CLGH3ASS-C&L-A5-GB-IM-08.indd 16 10/18/13 11:30 AM

17
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob
Installation guidelines
Gas supply requirements
The appliance installation must be carried out in accordance with relevant local
regulations.
The installation must be carried out by an authorised gas appliance installer and
tested to local regulations.
We are not legally able to offer advice advice on the installation of gas appliances
to un-authorised personnel.
Ventilation
All rooms require a window or equivalent (e.g. a door) which can be opened.
Some rooms require a permanent vent or extractor in addition to a window (see
below).
This unit must not be used in a room which is less than 5m³. The following table
details the requirements based on the kitchen volume (L x W x H) in m³.
The above requirements also allow use of a gas oven and grill but if there are
any other fuel burning appliances in the same room, consult the relevant British
Standard (BS5440) or Gas Safe manual.
Room Volume (m³) Air vent required (cm³)
5 100
6 to 10 50
6 to 11 No permanent vent required if adoor
opens to the outside
11 or more None required
The above requirements also allow use of a gas oven and grill but if there are
any other fuel burning appliances in the same room, consult the relevant British
Standard (BS440) or Gas Safe document.
What you should do if you smell gas?
Switch off the gas supply
Open doors and windows
UK: Call Transco 0800 111 999
ROI: Call Irish Gas Board
Technical and legal information
CLGH3ASS-C&L-A5-GB-IM-08.indd 17 10/18/13 11:30 AM

18
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE
Gas connection
Caution
The gas connection must be installed in compliance with applicable
regulations in the country of installation.
The preferred method of connection is by rigid copper pipe or by exible hose,
depending on local regulations. The hob is supplied with a G½” elbow that can
be used or discarded depending on approved method of connection and best
engineering practice.
Changing the nozzles
Caution
The hob installation and burner changes must be carried out by a
competent person, e.g. a gas safe registered tter.
Note
The LPG nozzles are provided in a separate bag marked “LPG” and
if they are changed and the natural gas jets retained then the label
should be changed to “NATURAL”.
[08] x 4
x1 [08]
Lift up the burners and unscrew the nozzle using an dedicated tool and replace
the nozzles with those designed for LPG gas supply.
Technical and legal information
CLGH3ASS-C&L-A5-GB-IM-08.indd 18 10/18/13 11:30 AM

19
In more detail...
GB
IE
CLGH3ASS Built-in Gas Hob
Gas connection
Regulation of burners
Caution
The regulation described can only be carried out with burners that use
methane gas and city gas (where available), whereas the screw must
be fully tightened in a clockwise direction on burners using liquid gas.
Regulation of the “MINIMUM” position on the burners.
To regulate the minimum position on the burners, follow the procedure below:
1. Turn on the burner and turn the knob to its MINIMUM position (small ame).
2. Remove the knob from the tap set for standard pressure. The knob is found
on the bar of the tap itself.
3. Place the tap bar on the work top, use a small screwdriver that ts the (gold)
screws located at the lower part of the tap and turn the xing screw to the
right or left until the ame of the burner is regulated in the most suitable
manner to MINIMUM.
4. Make sure that the ame does not go out when changing the position quickly
from MAXIMUM to MINIMUM position.
5. The minimum ame height is 15mm.
Caution
End User should not adjust "Minimun" position on the burner by
themselves. It can only be adjusted be qualied technician according
to relative standard.
Technical and legal information
CLGH3ASS-C&L-A5-GB-IM-08.indd 19 10/18/13 11:30 AM

20
In more detail...
CLGH3ASS Built-in Gas Hob
GB
IE
Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Extended parts only warranty
As testimony to our commitment to you as a valued customer of Cooke & Lewis,
we will offer you an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the appliance fails and it is
considered uneconomical to repair our Customer Service Department will offer
you the opportunity to purchase the same or equivalent model at a discounted
price.
All parts supplied free of charge under the extended warranty must be tted by
our approved engineers and will be subject to a call out charge to t the part.
CLGH3ASS-C&L-A5-GB-IM-08.indd 20 10/18/13 11:30 AM
