Cooke & Lewis CLGOGUIT5 User manual

CLGOGUIT5 3663602842217
V10617

Checking instructions
Things to check before you start
5To avoid the risks that are always present when you use a gas appliance it is important that this
appliance is installed correctly and that you read the safety instructions carefully to avoid misuse
and hazards.
5Please keep this instruction booklet for future reference and pass it on to any future owners. After
unpacking the appliance please check that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on UK 0800 324 7818 or Eire 1800 932 230.
5Check the package and make sure you have all of the parts listed.
5Decide on the appropriate location for your product.
5

leave it behind when you move house, make sure you also pass on this manual so that the new
owner can become familiar with the appliance and its safety warnings.
Safety
These instructions are for your safety. Please read through them thoroughly prior to
installation and retain them for future reference.
5WARNING: The connection of the hob to the gas network or gas cylinder must be made by means


5
must emphasise that this compliance does not prevent the surfaces of the appliance from heating
up during use and remaining hot during its operation.
5
5Care should be taken to avoid touching the appliance when it is hot.
5
small children.
5This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
5Children shall not play with the appliance.
5Cleaning and user maintenance shall not be made by children unless they are older than 8 years
and supervised.
5Keep the appliance and its cord out of reach of children less than 8 years.
5
current wiring regulations. An omnipolar circuit breaker having a contact separation of at least

5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

5
power cable.
5Do not allow the electric cables to touch the hot parts of the appliance.

5Do not install the appliance outdoors, in any damp place or in an area which may be prone to
water leaks such as under or near a sink unit. In the event of a water leak allow the machine to
dry naturally.
5Please dispose of the packing material carefully.
5
5
maintenance sections for this appliance carefully.
5A steam cleaner is not to be used.
5The appliance is not intended to be operated by means of external timer or separated
remote-control system.
5The appliance is for domestic use only.
5When a cooking zone has been on for a long time, the surface remains hot for some time
afterwards so do not touch the metal surface.
5
5Do not leave hot oils or fats unattended as they may catch light.
5
incorrect installation of this appliance.
5WARNING! 
5

5 Do not store items on the cooking surfaces.
5Prior to installation, ensure that the local distribution conditions (nature of the gas and gas
pressure) and the adjustment of the appliance are compatible.
5The adjustment conditions for this appliance are stated on the label (or data plate).
5This appliance is not connected to a combustion products evacuation device.
5It shall be installed and connected in accordance with current installation regulations.
Particular attention shall be given to the relevant requirements regarding ventilation.
5CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes,
for example room heating.
5Don’t put cooking vessels on the hotplate that overlap its edges.
5CAUTION: In the case of hotplate glass breakage:
• shut immediately off all burners and any electrical heating element and isolate the appliance
from the power supply.
• do not touch the appliance surface.
• do not use the appliance.
5CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and
products of combustion in the room in which it is installed.
5Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural
ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
5
5
5This appliance shall be installed in accordance with the regulations in force and only used in a well
ventilated space.
5

5CAUTION:
a hob guard as this can cause accidents.
Gas connection
WARNING: The connection of the hob to the gas network or gas cylinder must be made by means







before use.
CAUTION: The gas connection must be installed in compliance with applicable regulations in the
country of installation.
Gas supply requirements
The appliance installation must be carried out in accordance with relevant local regulations.
The installation must be carried out by an authorised gas appliance installer and tested to
local regulations.
We are not legally able to offer advice on the installation of gas appliances to
un-authorised personnel.
Ventilation
This appliance must not be connected to a combustion products evacuation device. It shall be
connected and installed in accordance with local installation regulations paying particular attention to
the relevant requirements regarding ventilation.
What to do if you smell gas?
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use phones in the building.
Immediately call your gas supplier from a different property.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
THIS HOB MUST BE INSTALLED BY A QUALIFIED GAS TECHNICIAN!

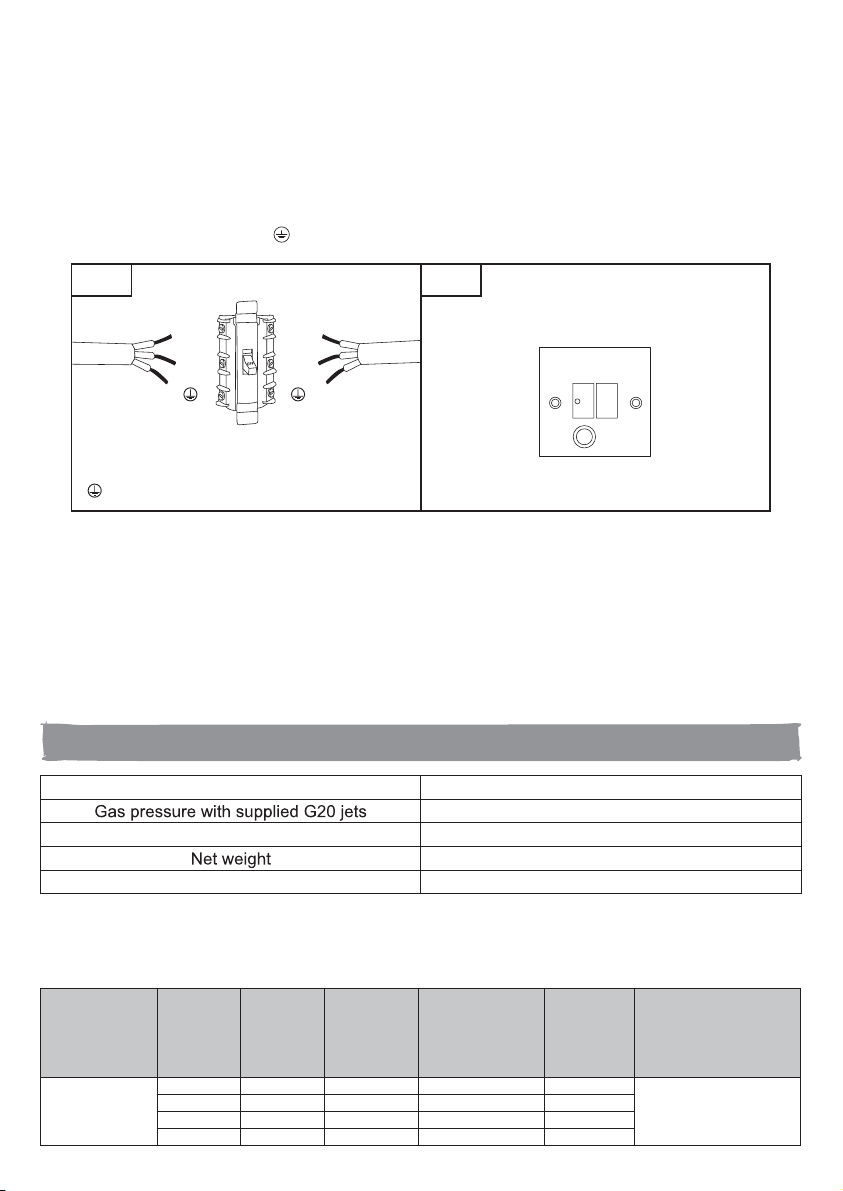

Electrical connection

ensure that the mains voltage corresponds to the voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit breaker with a
minimum opening of 3 mm between the contacts.
The installer must ensure that the correct electrical connection has been made and that it complies
with the wiring diagram.

The cable must not be bent or compressed.


WARNING: This is a Class I appliance and MUST be earthed.
This appliance is supplied with a 3 core mains cable coloured as follows:



USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
EUR UK
(Blue)
(Brown)
(Green/Yellow)
N
L
N
L
N
L
FUSE ON
To avoid the risks that are always present when you use an electrical appliance it is important that
this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse
and hazards. Please keep this instruction booklet for future reference and pass it on to any future
owners. After unpacking the appliance please check that it is not damaged. If in doubt, do not use the
appliance but contact Customer Services.
The manufacturer declines all liability for damage caused to persons and objects due to incorrect
or improper installation of the appliance. Any permanent electrical installation must comply with the

contractor must undertake the electrical installation.
Technical data
Supply voltage 220-240V AC~50Hz
20 mbar
External dimensions (W x H x D) 750x523x95mm
16,4 kg
Destination UK & Ireland

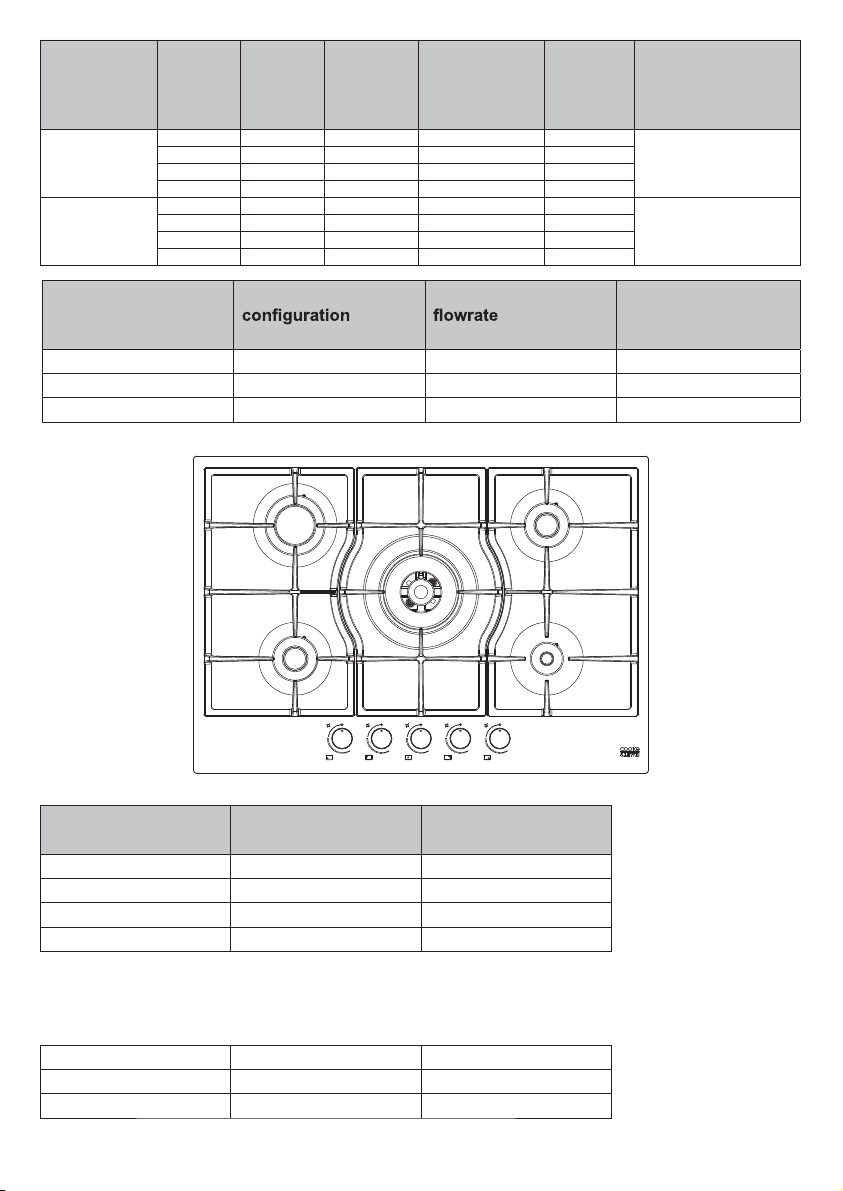

Injector Table
Gas Category UK & IR
II2H3+ (G20 20 mbar, G30 28-30 mbar, G31 37 mbar)
Type of
gas used
Type of
burner
Injector
marking
Rated
thermal

kW
Rated
consumption
Reduced
heat
capacity
kW
Gas pressure
rating (mbar)



Auxiliary 0.72mm 0.95  0.28
20
 0.97mm 1.75  0.45
 1.15mm 2.90  0.75
Triple Crown 1.50mm 3.80  1.35

Type of
gas used
Type of
burner
Injector
marking
Rated
thermal

kW
Rated
consumption
Reduced
heat
capacity
kW
Gas pressure
rating (mbar)




Auxiliary 0.50mm 0.90  0.25
28-30
 0.65mm 1.65  0.40
 0.85mm 2.90  0.80
Triple Crown 1.01mm 4.00  1.40


(Propane)

Auxiliary 0.50mm 0.90  0.25
37
 0.65mm 1.65  0.40
 0.85mm 2.90  0.80
Triple Crown 1.01mm 4.00  1.40
Type of gas used Model
5 BURNERS
Rated thermal
(kW)
Total rated
consumption
G20 20 mbar 1AUX – 2SR – 1R – 1TC 11.15 1063 lt/h
G30 28-30 mbar 1AUX – 2SR – 1R – 1TC 11.10 807 g/h
G31 37 mbar 1AUX – 2SR – 1R – 1TC 11.10 793 g/h
Burner Minimum Pan
Diameter (cm)
Maximum Pan
Diameter (cm)
Auxiliary  
  
  
Triple Crown  


 
Type of hob 
 5


(EE gas burner)
Auxiliary not applicable
 62.0%
 62.0%
 62.0%
Triple Crown 57.0%

(EE gas burner) 60.75%

Troubleshooting
Problem
If your appliance has stopped working, please check the following before contacting
customer services.
1. Check that the gas or electricity supply has not been switched off.
2.Check that the fuse in the connection unit has not blown.
3. Ensure that the burner components are not excessively soiled as this can lead to
ignition problems.
• Do not take the appliance apart yourself, as you may damage the hob.
Commercial Guarantee

techniques that allow us to create ranges of products incorporating design and durability. That’s why



may only make a claim under this guarantee upon presentation of your sales receipt or purchase
invoice. Please keep your proof of purchase in a safe place.

Hob if it is found to be defective due to faulty materials or workmanship within 24 months from the date
of purchase or delivery subject to the exclusions set out below and provided it was used for the purpose
for which it is intended and subject to installation, cleaning, care and maintenance in accordance with
the information contained in the user manual. This guarantee does not cover defects and damage




as defective.













Should any person other than an engineer approved by our authorised agent modify or attempt to

to the country of purchase or delivery and is not transferable to any other countries. This guarantee

This guarantee is in addition to and does not affect your statutory rights relating to faulty goods as
a consumer.





  
  
