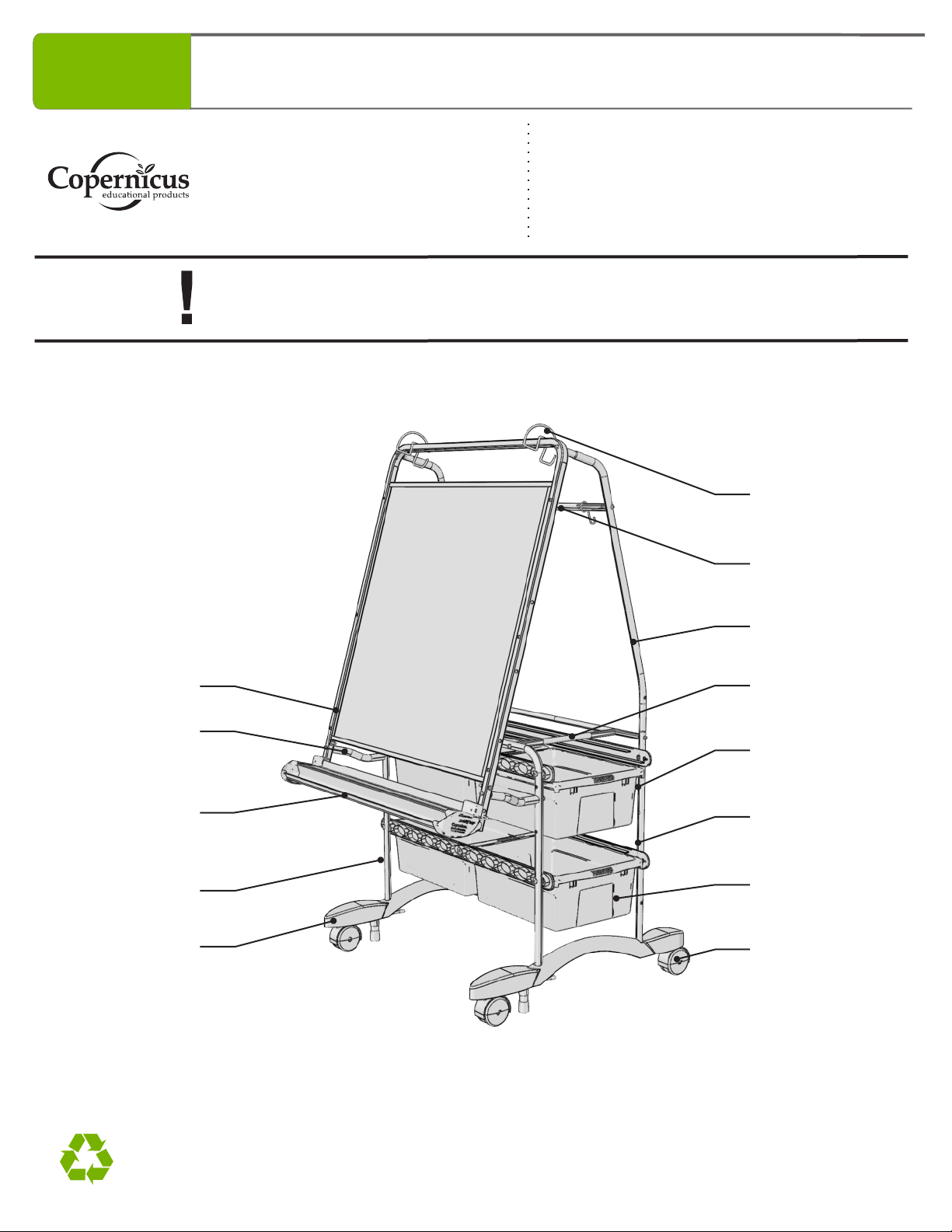

Copernicus Regal User manual

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
Chart Loop Hook (2)
Front Frame (1)
Safety Cap Premium
Bookledge (1)
Base (2) Caster (4)
Upper Frame (2)
Lower Frame (2)
Open Tub (4)
Tub Channel (4)
Center Frame (1)
Stretcher (2)
Front Frame Support (2)
1 Left, 1 Right
Spacer (2)
™
Regal Reading/Writing Center
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Assembly Guide
RC107_2017_A
Check out our other products online at
www.copernicused.com
RC107
Please Recycle

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Jim Phillips
Chief Cook and Bottle Washer
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Dear Educator,
™
Thank you for purchasing one of our products. I hope that the Regal Reading and Writing Center is useful in
your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[e-mail].
Enjoy using your new product and happy teaching.
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
™
Regal Reading/Writing Center
RC107
Assembly Guide
RC107_2017_A
Check out our other products online at
www.copernicused.com
Life
Warranty
Time
Tub
10
Warranty
Year
Frame

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
Base
x2
™

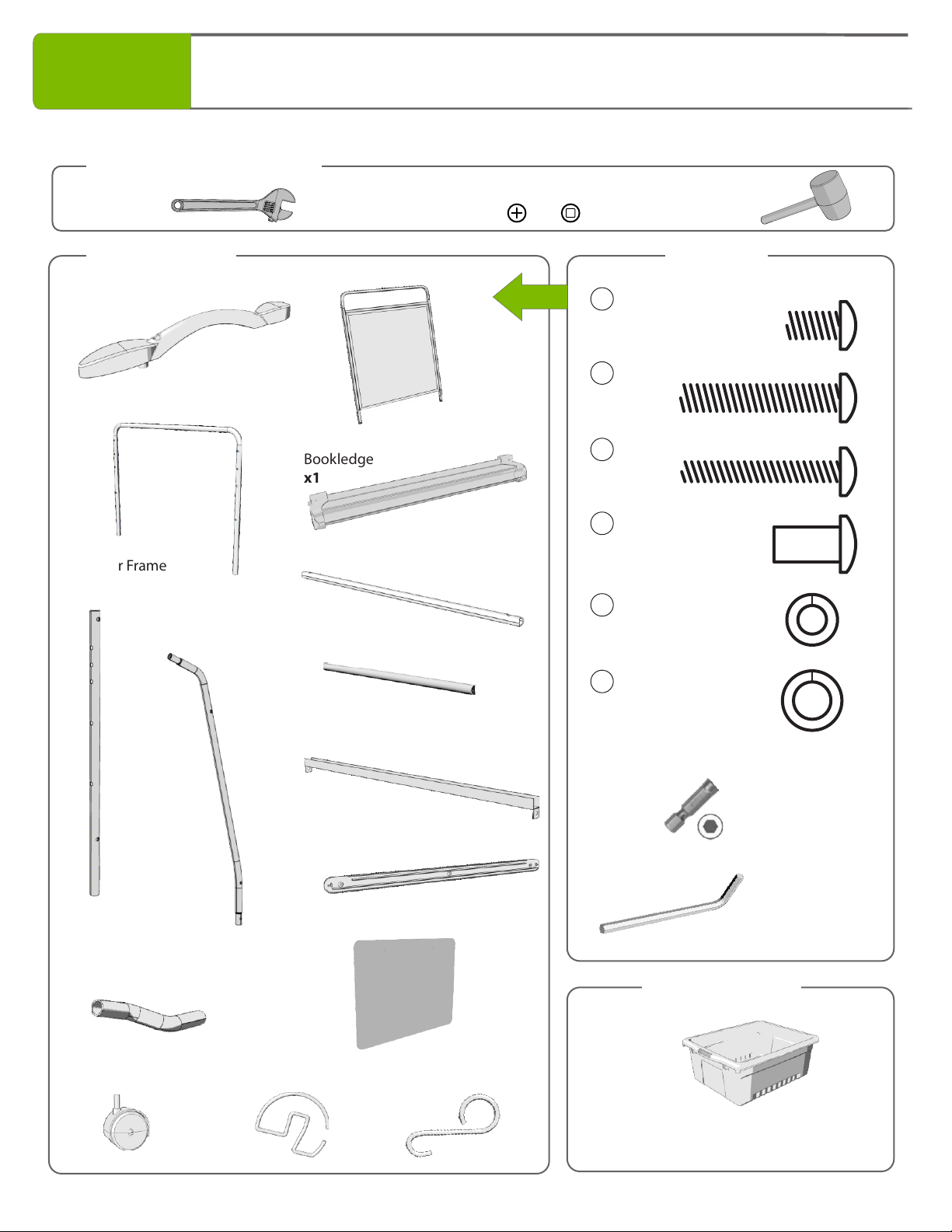

Regal Reading/Writing Center - Parts
3” Caster
x4
Center Frame
1x
Lower Frame
1 Left, 1 Right
x2 Upper Frame
1 Left, 1 Right
x2
Stretcher
x2
Front Frame Support
1 Left, 1 Right
x2
Front Frame
x1
Tub Channel
x4
Chart Loop Hook
x2
Contents - Box 1
In Box 1
Whiteboard Channel
x1
Contents - Box 2
Removable Rear Whiteboard
x1
Rear Whiteboard Hook
x2
Spacer
No Thru Holes
x2
Safety Cap Premium
Bookledge
x1
Open Tub
x4
Allen Key
(Not to Scale)
x2
Hex Socket Driver
(Not to Scale)
x1
A
M5 x 35mm
x2
B
C
M6 Lock Washer
x18
D
M8 Lock Washer
x10
E
M6 Barrel Nut
x10
F
M6 x 35mm
x16
M6 x 15mm
x10
RC107
Before beginning, you should have:
Additional tools required:
Adjustable
Wrench OR 10mm
Wrench
Screwdriver
OR
+
Hardware
Actual Size
Rubber Mallet
x1
+
(Optional)

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
?
?
?
2-Person Task 3-Person Task
Tips for Assembly
Customer Service - FAQ’s
For missing parts and other issues regarding this product:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at inf[email protected]
Need Tech Support?
Have a Question?
Email our Tech Support Service
www.copernicused.com
Check out some of our
other great products!

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
Note - Left & Right
stickers on the frames
!
1
Caster
x4
You will need: (Not to Scale)
Actual Size:
2
Center Frame
x1
Rear Frame Lower
x2
You will need: (Not to Scale)
Actual Size:

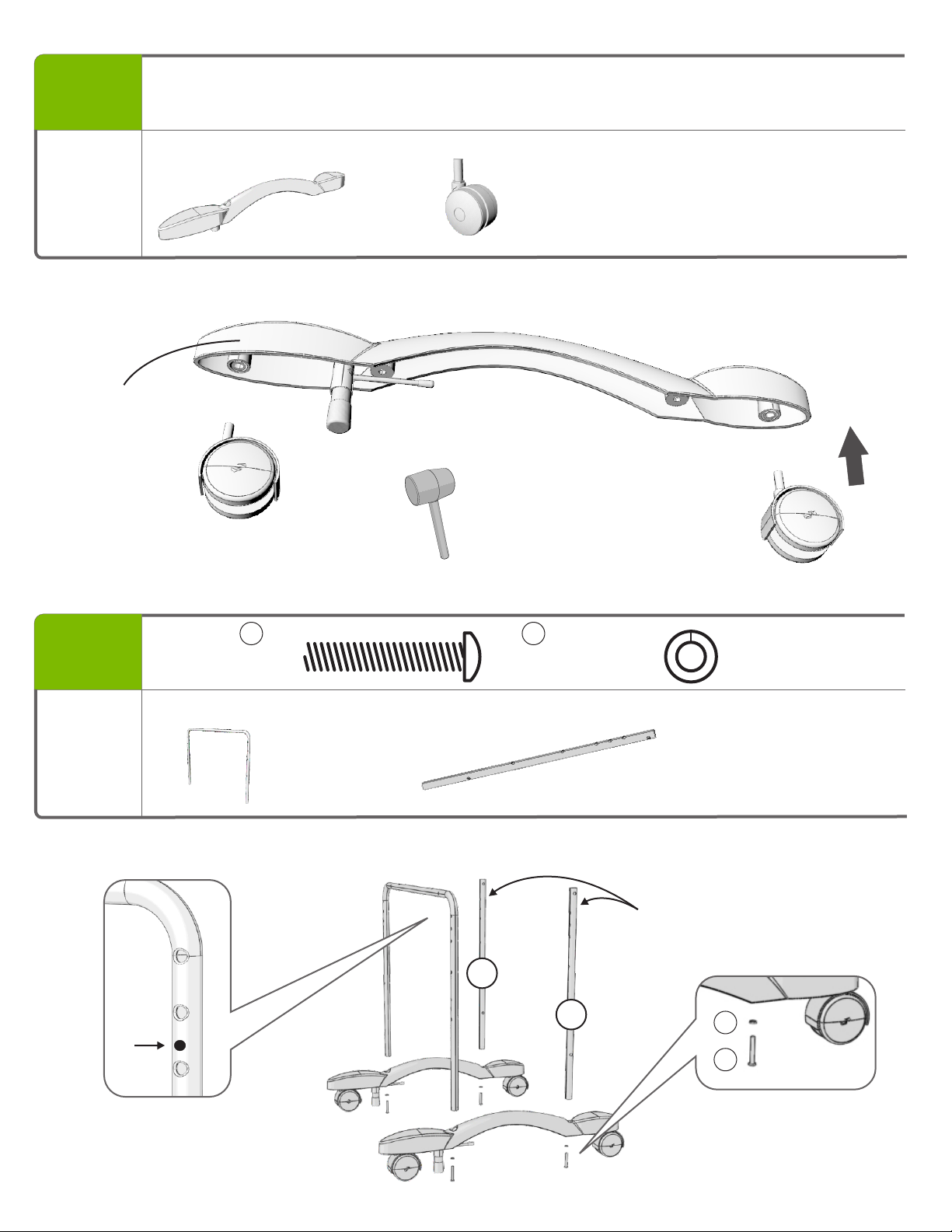

Install Casters
Front
Press Casters firmly into the Base:
ŸCasters will click into place
ŸIf necessary, tap the caster in
using a rubber mallet.
You should begin the installation with the brakes in the UP Position
Tighten bolts
!
Install Center Frame & Rear Frame Lower
R
L
Black sticker & indents
always face outward
!
B
Base
x2
E
B E
M6 x 35mm
x4
M6 Lock Washer
x4

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
3
You will need: (Not to Scale)
Actual Size:

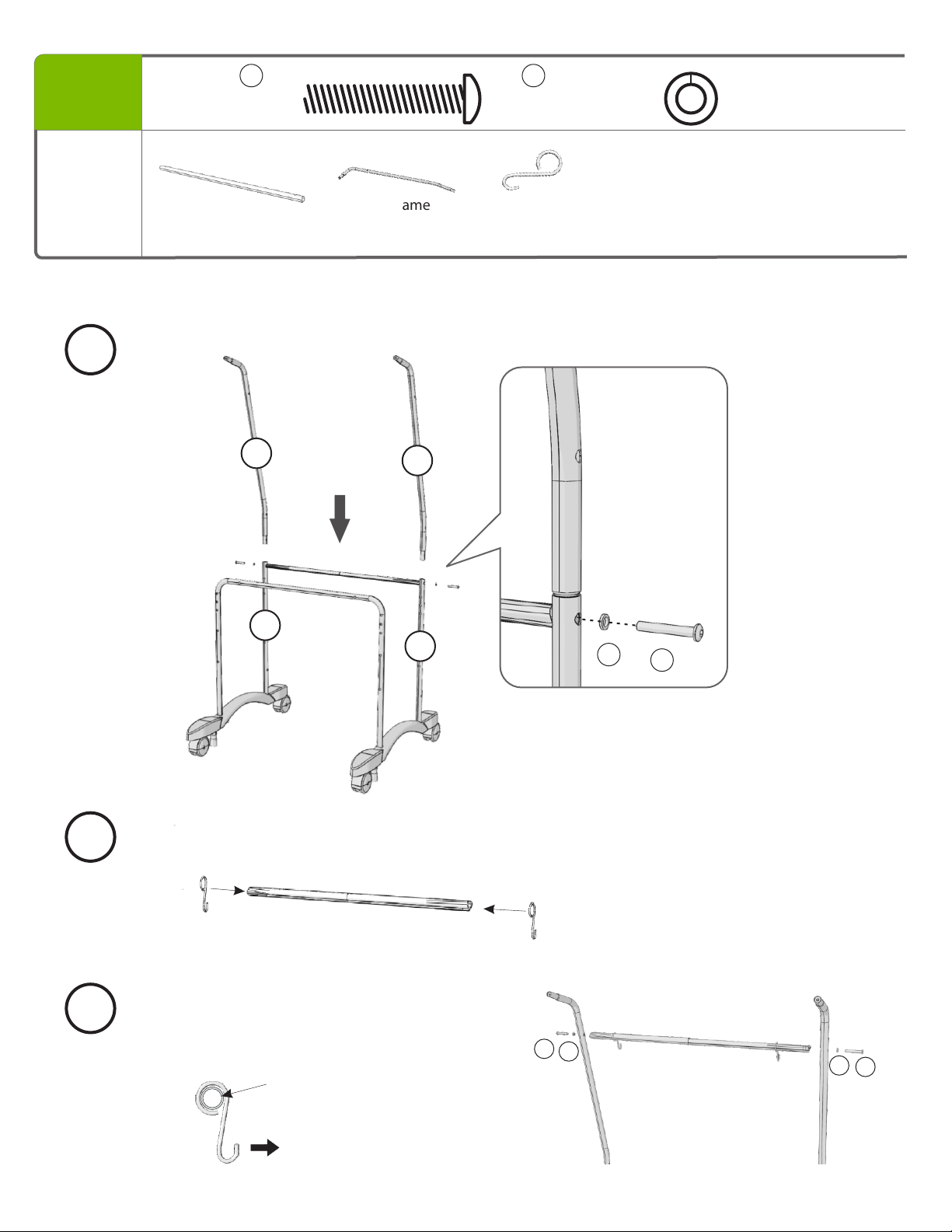

Build Rear Frame
L
R
R
L
Stretcher
x2
Rear Whiteboard
Hook
x2
Upper Frame
1 Left, 1 Right
x2
1
2
B E
B
E
!Note - Before securing the stretcher, install hooks directly onto stretcher through the loop end.
Back of unit
Stretcher
B
E
E
B
3Note - When installing the stretcher on the
upper frame, ensure hooks face back of
unit!
!
M6 x 35mm
x4
M6 Lock Washer
x4

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.

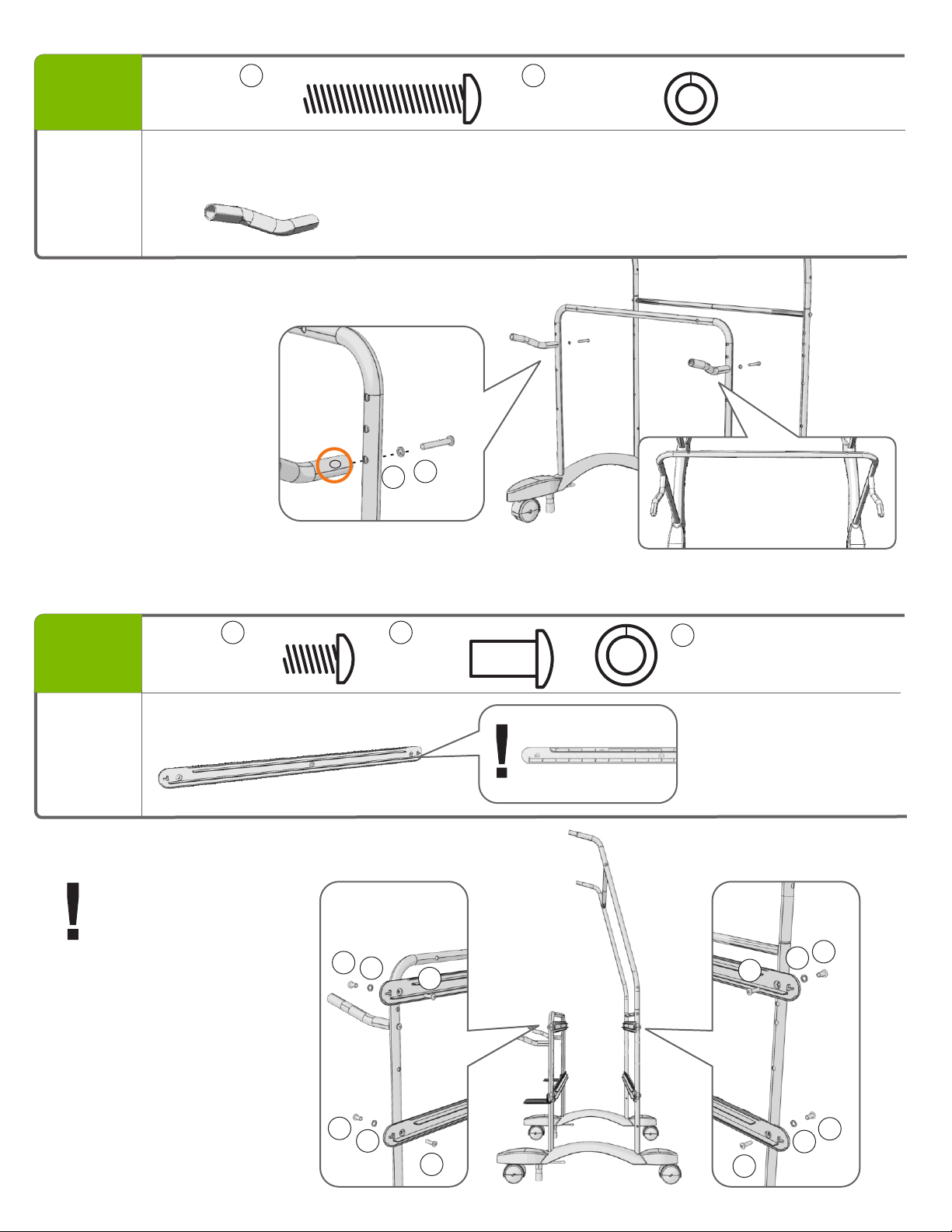

4
Front Frame Support
1 Left, 1 Right
x2
You will need: (Not to Scale)
Actual Size:
Install Front Frame Supports
Note left and right labels
to ensure correct assembly
5
You will need: (Not to Scale)
Actual Size:
Install Tub Channels
!
R
Front Frame Supports
angle outward
A
Top
Bottom
A
AA
A
A
E
D
D
D
D
D
F
F
F
F
F
B
Tub Channels
x4
B E
M6 x 35mm
x2
M6 Lock Washer
x2
M6 x 15mm
x8
M6 Barrel Nut
x8
M8 Lock Washer
x8
Note:
Fasten both ends of
each Tub Channel

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.

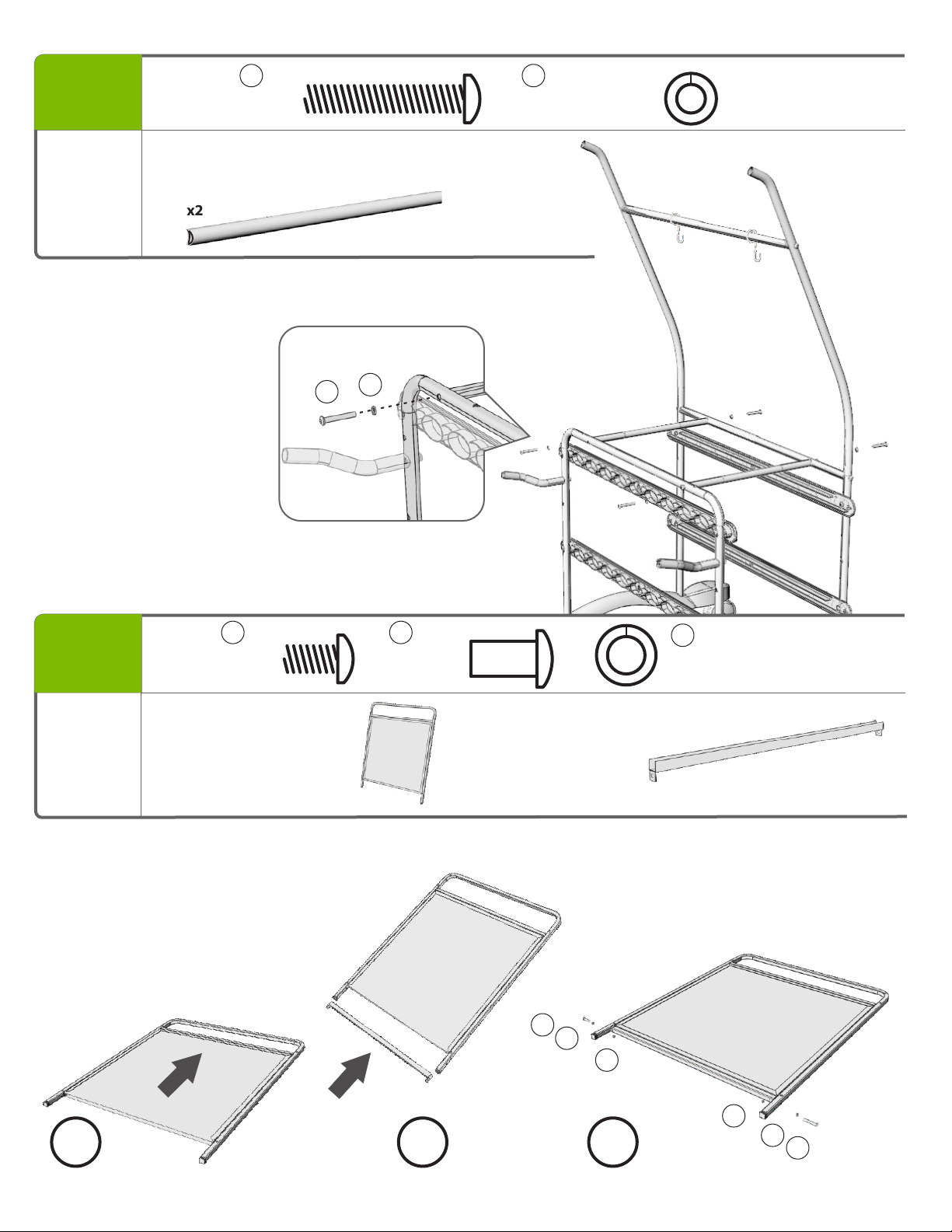

6
Spacer
No Thru Holes
x2
You will need: (Not to Scale)
Actual Size:
Install Spacers
Front Frame Assembly
x1
You will need: (Not to Scale)
Actual Size:
Build Front Frame Assembly
Tighten bolts
32
1
1. Slide whiteboard as far up as it will go.
2. Slide whiteboard channel up to bottom
of whiteboard.
3. Fasten the whiteboard channel in
place.
Tighten bolts
B
Whiteboard Channel
x1
A
A
E
D
D
F
B E
M6 x 35mm
x4
M6 Lock Washer
x4
A
ADF
M6 x 15mm
x2
M6 Barrel Nut
x2
M8 Lock Washer
x2
7
F

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
8
Front Frame Assembly
x1
You will need: (Not to Scale)
Actual Size:

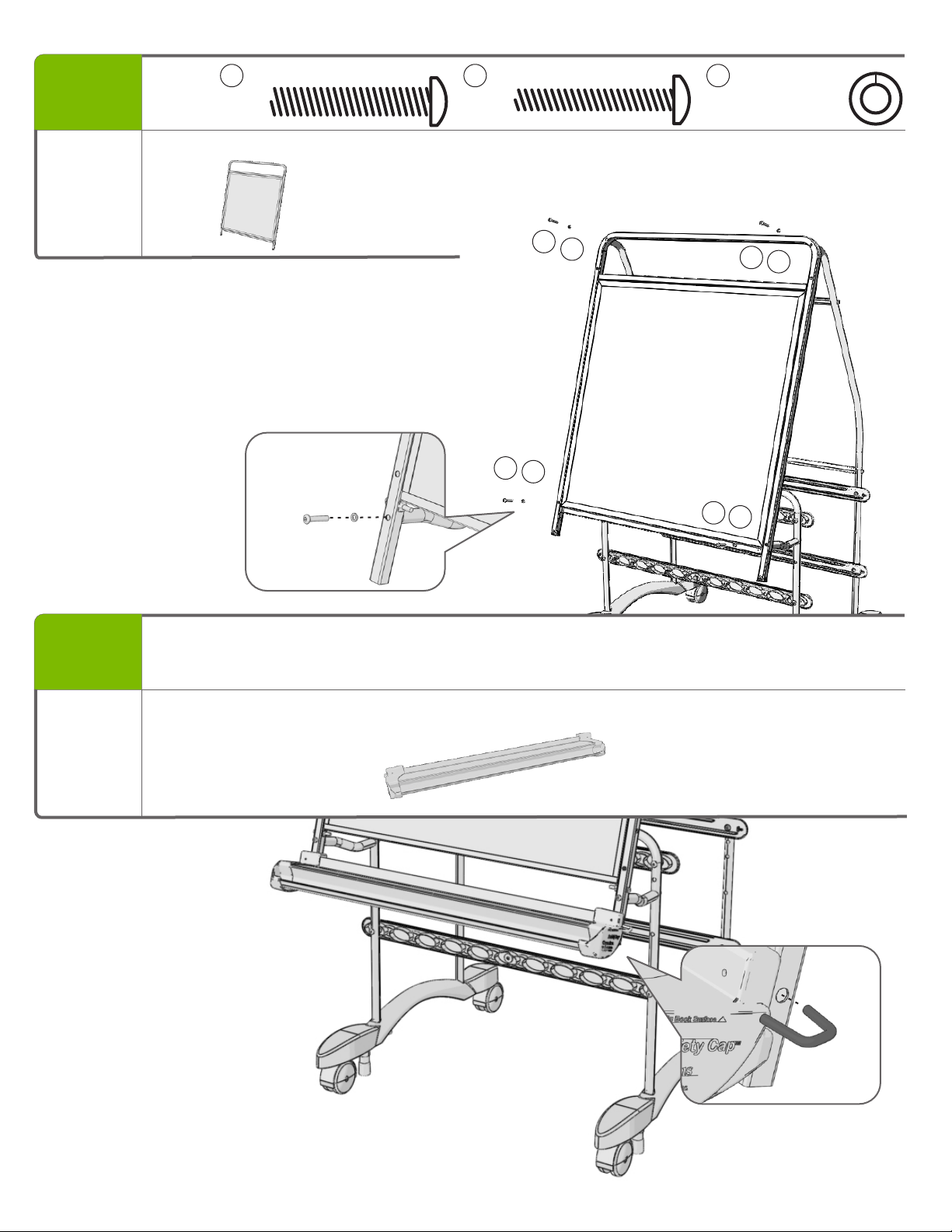

Attach Whiteboard
9
Install Book Ledge
You will need: (Not to Scale)
Peel off
protective film
Note - the spring tension is
designed to discourage
children from unhooking
the book ledge
!
1. Put brakes in the LOCKED / DOWN position
to help hold unit steady.
2. It is easiest to fasten the top first and then
the bottom.
Tighten bolts
Safety Cap Premium Bookledge
x1
Use bottom
hole
B
B
E
E
E
CC
E
B E
M6 x 35mm
x2
M6 Lock Washer
x4
CM5 x 35mm
x2

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
10

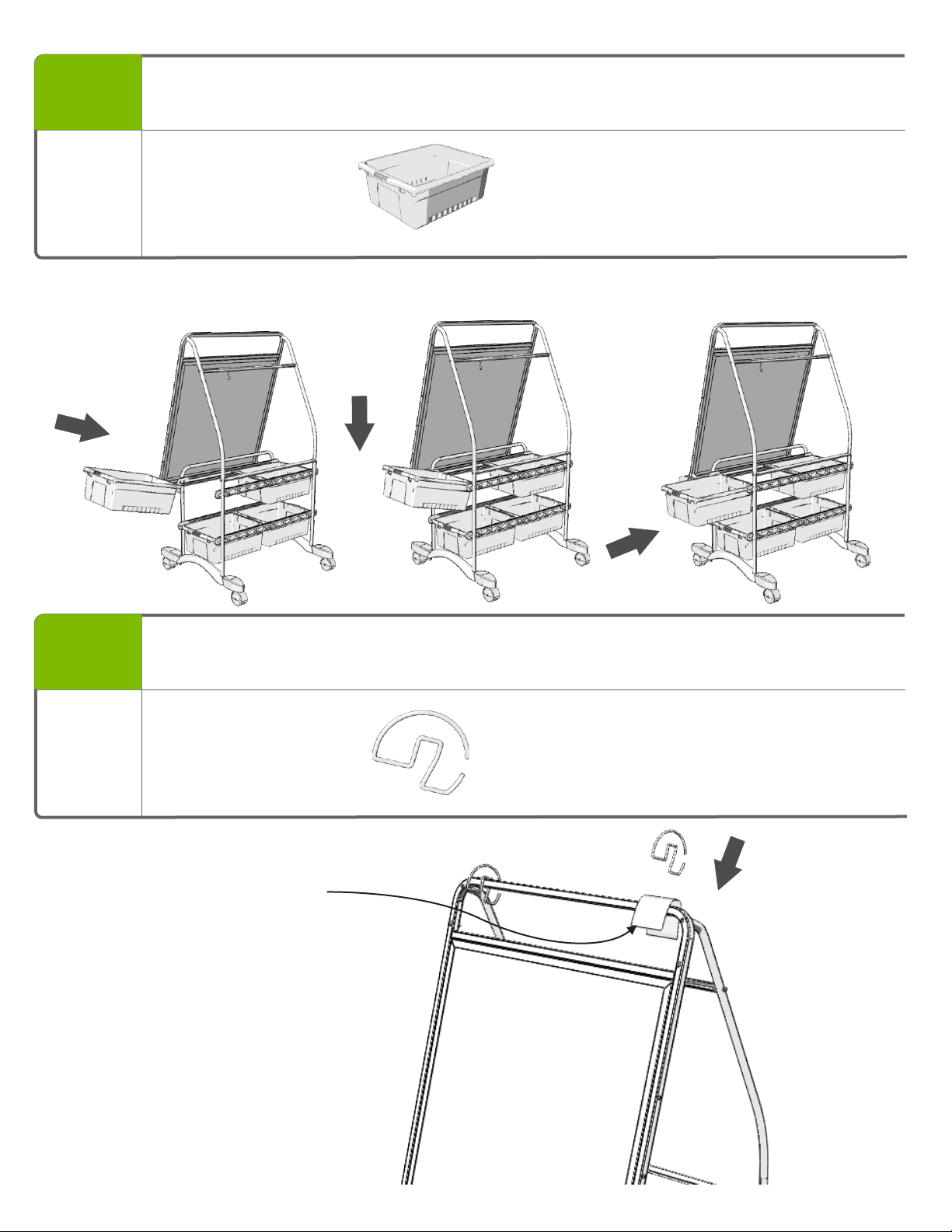

Place Tubs into Unit
Open Tub
x4
You will need: (Not to Scale)
11
Attach Chart Paper Hooks
Chart Paper Hooks
x2
You will need: (Not to Scale)
Place an empty hardware
bag over the frame to avoid
scratching the paint.
!

RC107 - Version A - Released June 6, 2017 - Copernicus Educational Products Inc.
12
You will need: (Not to Scale) Rear Whiteboard
x1
Congratulations! Now you can go and enjoy your
™
Regal Reading and Writing Center

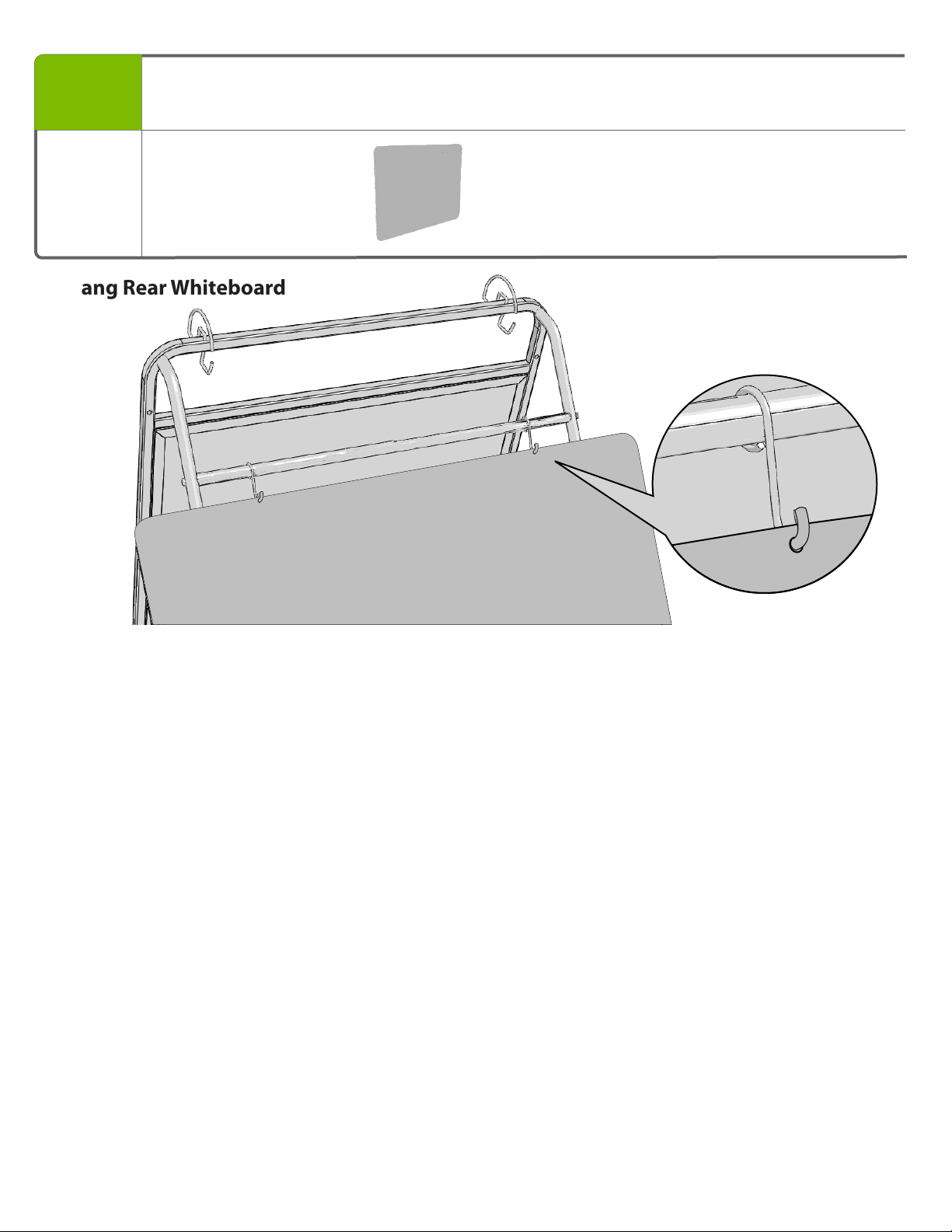

Hang Rear Whiteboard
