Corally Kronos XTR XP 6S Setup guide

QUICK START
USER GUIDE
Download the latest version of the manual as
well as other languages from www.corally.com.
C-00273 Manual : 2021-11-30
ENGLISH

INTRODUCTION
READ FIRST
Thank you for purchasing a Team Corally car. This manual describes the instructions for using the model and the electronic compo-
nents. You will also nd some tips on how to maintain your RC model so that you can enjoy it for years to come. You have purchased
one of the most efcient models available on the market that has been designed by a team of professionals. You will also benet from
the best after-sales support. All Team Corally models guarantee a high quality of manufacture and performance that guarantees you a
high satisfaction of use and services provided by the Team Corally. Always take the time to read the instructions carefully in order to
follow all the procedures to use your RC model safely for you and for other people and property in the area. This will allow you to take
full advantage of all the performance of your RC model.
Please also check the website www. corally.com/Downloads/ to check if you have the latest version of this instruction manual. (Version: see
bottom cover of this manual)
If you have any questions about the model and its components, you can send a message to [e-mail]
We also recommend that you get help from an experienced model maker or your dealer.
You will nd all the references of the spare parts on the website www.corally.com
TERM OF USE
The user is responsible for the use of your model. The user assumes all risks associated with the use of the model. This model is not
intended for use by children under 14 years of age without the supervision of a responsible adult who is familiar with the dangers of
using a RC model. Team Corally / JSP Group Intl bvba, its manufacturers, distributors and resellers cannot control the use and load
of the model and therefore cannot be held responsible for any damage to property and damage caused to persons resulting from the
use of this product. You must accept these conditions and consider yourself fully responsible for the use of this product. If not, do not
use this product.
Due to the continuous development of our products, the exact specications of the kit may vary. If you have a problem with your new
kit, please contact the store where you purchased it, indicating the part number(s).
Team Corally / JSP Group Intl bvba reserves the right to change any specication without notice. All rights reserved.
This owner’s manual is designed for use with your vehicle and contains the instructions you will need to operate and maintain your
vehicle.
- We know you want to start driving immediately after unpacking, but it is very important that you take the time to read this manual
carefully, even if you are an experienced R/C driver.
- Read carefully and follow all instructions in this manual. Failure to comply with the instructions will be considered as abuse and/or
negligence which may result in the cancellation of the warranty.
- Your vehicle is designed to operate on uneven terrain. However, dust, sand, water and carpet bres can get into your car’s work-
spaces and can damage your vehicle if they are not removed quickly. We do not guarantee any warranty on your vehicle against
damage caused by external elements such as sand, dirt or water. Users are responsible for the maintenance and safe operation of
this vehicle.
- This product is not a toy. It is not suitable for users under 14 years of age, unless they are supervised by adults.
- Never attempt to disassemble electronic components. These have been carefully calibrated at the factory.
- Only improve your car with parts made for your car. If you upgrade performance, replace the entire system (such as the motor, in-
verter, battery, etc.) so that all components are properly adapted. Any malfunction resulting from a custom modication will void your
warranty.
- Before driving your vehicle, please read this manual in its entirety and examine your vehicle and radio control system for any defects.
- For better performance, some adjustments may be necessary.
- This vehicle requires a battery (included in the car or in the packaging). Make sure the vehicle’s battery is sufciently charged before
driving, otherwise you may lose control of the vehicle.
- The radio transmitter requires 4 AA batteries (not included)
- Always remove or disconnect the battery from the vehicle to the inverter when not in use.
- Please drive your car in a spacious place. Never drive your car on the street or in trafc. Public places are subject to specic legisla-
tion by country, city, municipality, please comply with the legislation for the use of RC models in your region.
- This product is fully assembled in the factory. We accept no liability for damage and/or accidents resulting from custom modica-
tions and/or malfunctions.
SAFETY PRECAUTIONS
For your safety, always use wear gloves and goggles when assembling and maintaining your model.
Always take all necessary precautions when handling products (silicone oil, grease, thread lock, cyanolyte glue, fuel) for the operation
of the model. (Refer to the manufacturer’s instructions)
For your safety, to keep the warranty and obtain the best performance, always use original CORALLY genuine parts.
Contains: LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0)
WARNING: This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive
harm.
CAUTION: CANCER HAZARD
Contains lead, a listed carcinogen. Lead is harmful if ingested. Wash thoroughly after using.
DO NOT use product while eating, drinking or smoking.
2

USE PRECAUTIONS
Failure to operate your model in a safe and responsible manner may result in injury to yourself, others or damage to property around
you.
• Do not use your model on public roads or in areas where you may encounter pedestrians or riders.
• Do not operate in a congested area or in crowds.
• Do not operate in areas where loud noises can disturb others, such as hospitals and residential areas.
• Do not operate your model with obstructed line of sight, at night or near water.
• Your model is radio controlled, it is subject to possible radio interference. Radio interference can cause
loss of control of your model. Be careful.
• Take care not to injure yourself while using tools to adjust or upgrade your model.
• Since the model contains small parts, keep out of reach of children while assembling and/or disassem-
bling your model.
• If your model becomes stuck against an object, release the throttle and retrieve it by hand
• Do not continue to apply the throttle when your model is stuck. This may damage the motor and/or ESC/
Receiver unit.
• Turn OFF your model and don’t use it if it runs erratically. Please do not use your model again until the
problem has been solved.
• Keep the wheels of the model off the ground when checking the operation of the radio equipment.
• When learning to operate your model, go to an area that has no obstacles that can damage your model.
• Before and after each use, check all the screws on the model.
• To maintain the best performance, check that all moving parts move freely.
Take all necessary precautions before, during and after using your model. You are responsible for the safe assembly, mainte-
nance and use of your model.
In case of any questions, contact your local reseller or contact Team Corally support for assistance.
LIPO BATTERY SAFETY PRECAUTIONS
• Follow and respect the manufacturer’s instructions for use
• It is important to check that your ESC is set to LIPO if you are using a LIPO battery. Failure to comply with this instruction will result
in increased battery discharge and may cause re and damage to persons and property.
• When charging or storing LiPo batteries always use LiPo Safety Bag (Flame retardant).
• Always respect the maximum rate and voltage specied by the battery manufacturer.
• Charge the LIPO battery outdoors or in a ventilated area away from ammable objects and surfaces.
• NEVER leave your LiPo battery unattended while charging.
• If the battery swells during charging, stop charging immediately and disconnect the battery from the charger. Leave the battery
outside for a few hours and observe. Then recycle the battery according to the instructions of your country/region. Never dispose of
a LIPO battery with domestic waste.
• Before recycling your defective battery, it must be neutralized. Take a plastic container, ll it with water and add a lot of salt until the
water becomes opaque. Place the LIPO battery in the water and leave for 24 hours. Check with a voltmeter that the voltage is 0.0V.
Then recycle the battery according to local regulations.
• Never charge a damaged or inated battery.
• Never discharge the battery cells below 3.2V.
• Always use the appropriate balancer/charger when charging your LiPo battery pack.
• When the battery is empty, check the temperature of the battery before charging it.
If the battery is very hot, wait until it cools before charging it.
• Never charge a very hot battery as this may cause an explosion or re.
• When the battery is empty, recharge it immediately. Do not store an empty battery, the battery will continue to discharge, it will fall
below the minimum voltage and become unusable.
3

If material defects or manufacturing faults should arise in a product distributed or manufactured by Team Corally / JSP
Group Intl bvba, and purchased by a consumer, we Team Corally / JSP Group Intl bvba acknowledge the obligation to
correct those faults or defects within the limitations described below. This manufacturers warranty is in addition to, and
does not affect, the legal or contractual rights of the consumer which arise from the purchase of such products. Team
Corally / JSP Group Intl bvba guarantees the consumer that its products are free from material, manufacturing, and
construction faults, as determined by the general state of knowledge and technology valid at the time of manufacturing.
The fault responsible for causing the damage must be proven to have been present in the product at this time. Claims
for compensation arising from consequential damage or product liability will not be considered valid unless they fall
under peremptory provisions of the law. If material defects or manufacturing faults should arise in a product distributed
or manufactured by Team Corally / JSP Group Intl bvba in the European community (EC) and purchased by a consumer,
then Team Corally / JSP Group Intl bvba undertakes to correct those defects within the limitations described below. This
manufacturer’s declaration does not affect the consumer’s legal or contractual rights regarding defects arising from the
purchase contract between the consumer and the dealer or reseller. Extend of the Warranty
If a claim is made under warranty, we take at our discretion to repair or replace the defective goods. We will not consider
supplementary claims, especially for reimbursement of costs relating to the defect (e;g. installation / removal costs) and
compensation for consequent damages unless they are allowed by statute. This does not affect claims on legal regula-
tions, especially according to the product liability law.
Provisions of the Warranty
The purchaser is required to make the warranty claim in writing, and must enclose original proof of purchase (e.g.
invoice, receipt, delivery note) and the appropriate warranty card. He must send the defective goods to our local rep-
resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and
cost.
The purchaser should state the material defect or manufacturing fault, or symptoms of the fault, as accurate as possible,
so that we can check if our warranty obligation is applicable. The goods are transported from the consumer to us, and
from us to the consumer, entirely at the risk and cost of the consumer.
Invalidation of the Warranty
The consumer cannot make a claim under warranty when the fault is affecting the use of the product arising from natural
wear, competition use, or improper use (including installation) or external forces. The consumer’s adherence to the
building and operating instructions relevant to the model, including the installation, operation, use of, and maintenance
of, model-related components cannot be supervised by Team Corally / JSP Group Intl bvba. Therefore Team Corally /
JSP Group Intl bvba is in no way liable for loss, damage, or costs resulting from improper use, or behaviour in any way
connected to the above described provisions. Unless otherwise required by law, Team Corally / JSP Group Intl bvba is
in no way whatever liable to provide compensation for damages arising from the improper use of the model (including
personal injury, death, damage to buildings, loss of turnover, loss of business, or interruption of business, or any other
direct, or indirectly caused, consequential damage).
Duration of Validity
The claim period is 24 months from the date of purchase of the product by the consumer from a dealer in the European
Community (EC) counted from the date of purchase. The claim period is 12 months from the date of purchase of the
product by the consumer from a dealer outside the European Community (EC) counted from the date of purchase. If
a defect arises after the end of the claim period, or if evidence or documents required according to this declaration in
order to make the claim valid are not presented until after this period, then the consumer forfeits any rights or claims
from this declaration. The guarantee period is not prolonged by the granting of any claims within the framework of this
warranty, especially in the case of repair or replacement. The guarantee period also does not restart in such cases.
Warranty Expiration
If we do not acknowledge the validity of a claim based on this declaration within the claim period, all claims based on
this declaration will expire after six months from the time of registering the claim; however this cannot occur prior to the
end of the claim period.
For any support, contact us at support.corally.com
WARRANTY ( All models )
4

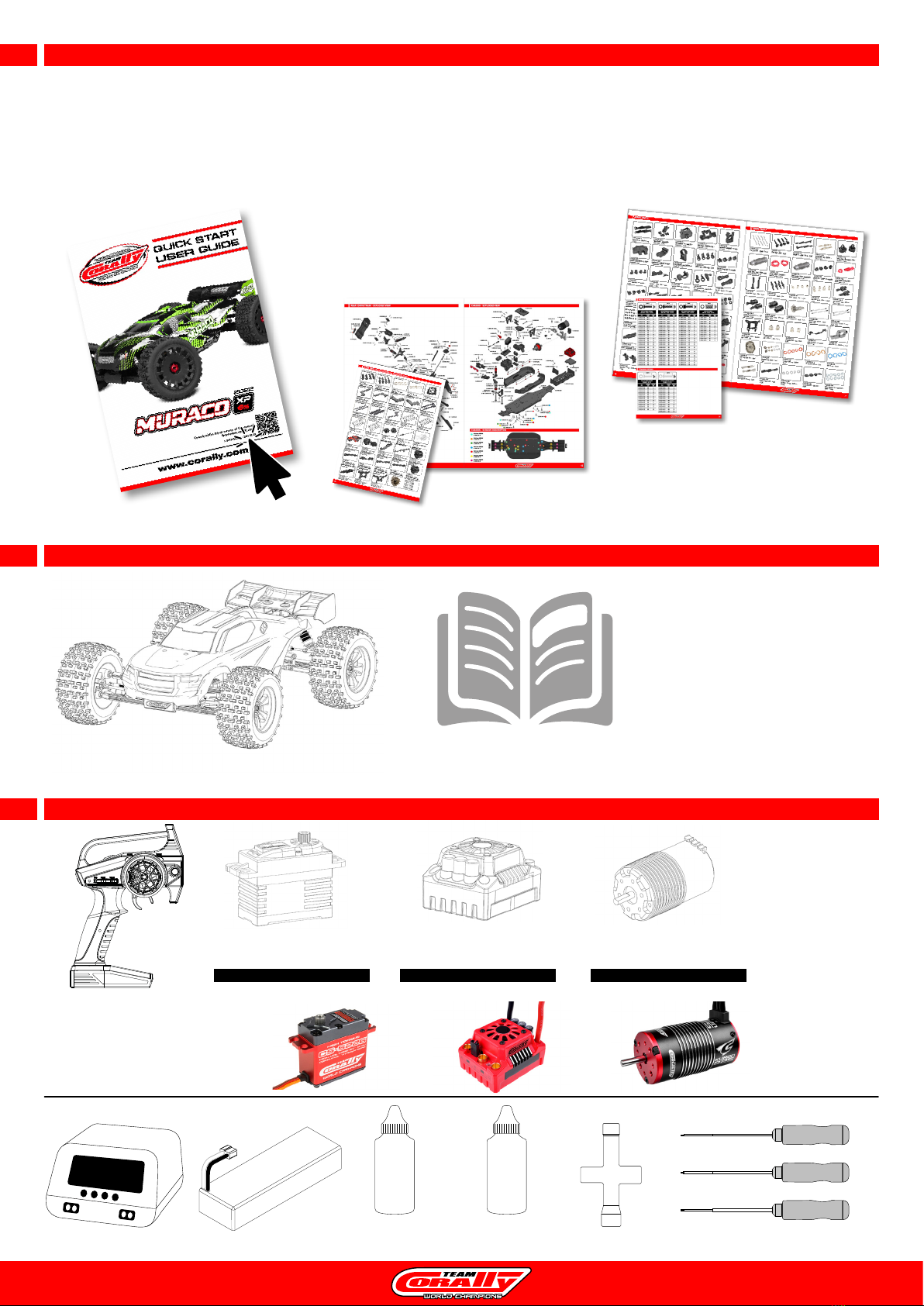

KIT CONTENT (Depends on the selected model)
REQUIRED FOR OPERATION (Not included)
User Guide
Pre-assembled model without electronics
www.corally.com/Downloads/
Silicone Oil
(Shocks - Differentials)
- Check the corally.com website download section and make sure you have the latest version of this manual
(see date on the cover of the manual)
- Vistez le site web corally.com section téléchargement et controlez que vous avez la dernière version de ce manuel (voir date sur la couverture du manuel)
- Überprüfen Sie die Website corally.com im Download-Bereich und stellen Sie sicher, dass Sie die neueste Version dieses Handbuchs haben
(siehe Datum auf dem Umschlag des Handbuchs).
- Kijk op de corally.com website in de download sectie en zorg ervoor dat u de laatste versie van deze handleiding heeft (zie datum op de omslag van de handleiding)
DOWNLOAD - TELECHARGER - DOWNLOAD - DOWNLOAD
5
Electronic Speed
Controller “ESC”
Brushless MotorSteering Servo
2-Channel Remote Control
System
Recommended #C-52001
CS-5226 Servo
25.6Kg - 0.07 sec
Titanium Gears
Waterproof
Recommended #C-54011
TOROX 185 BLS Controller
2-6S - 150A
Sensorless
Waterproof
Recommended #C-54055
KURON 825 BLS Motor
4-POLE - 2050 KV
Sensorless
Hex Drivers 1.5 - 2.0 - 2.5 - 3.0Cross WrenchLiPo Battery 4-6S
Silicone Oil
(Shocks - Differentials)
Charger

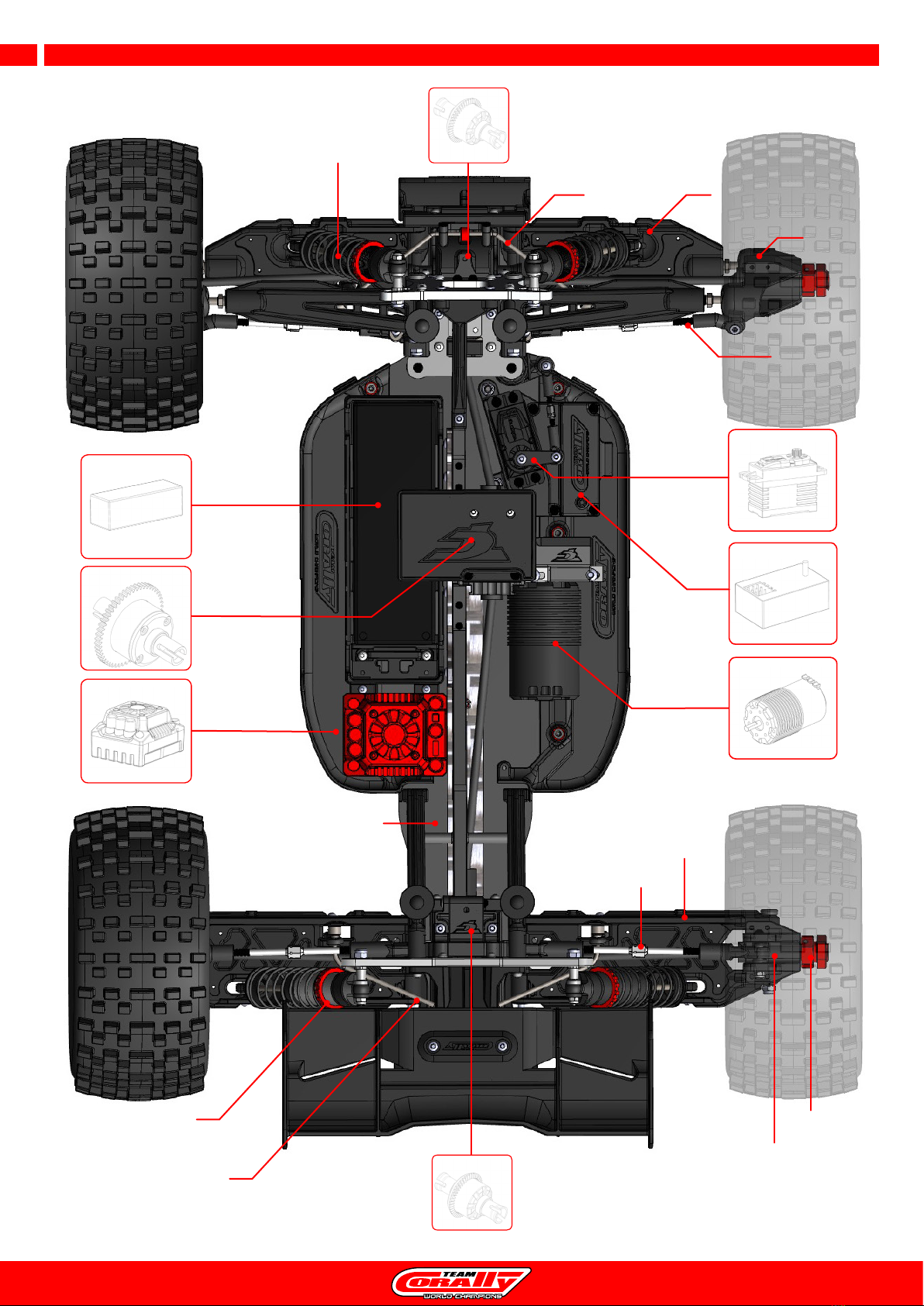

CAR COMPONENTS
6
Not Included
Battery not Included
Not Included
Not Included
Steering Servo
Brushless Motor
Front Differential
Rear Differential
Receiver Box
Steering Link
Steering Block
Suspension ArmAnti-Roll Bar
Rear Suspension Arm
Rear Upright
Turnbuckle
Wheel Axle
Rear Shock Absorber
Anti-Roll Bar
Electronics not included in kit
Front Shock Absorber
Controller (ESC)
Centre Differential
Battery compartment
Power Switch
Not Included

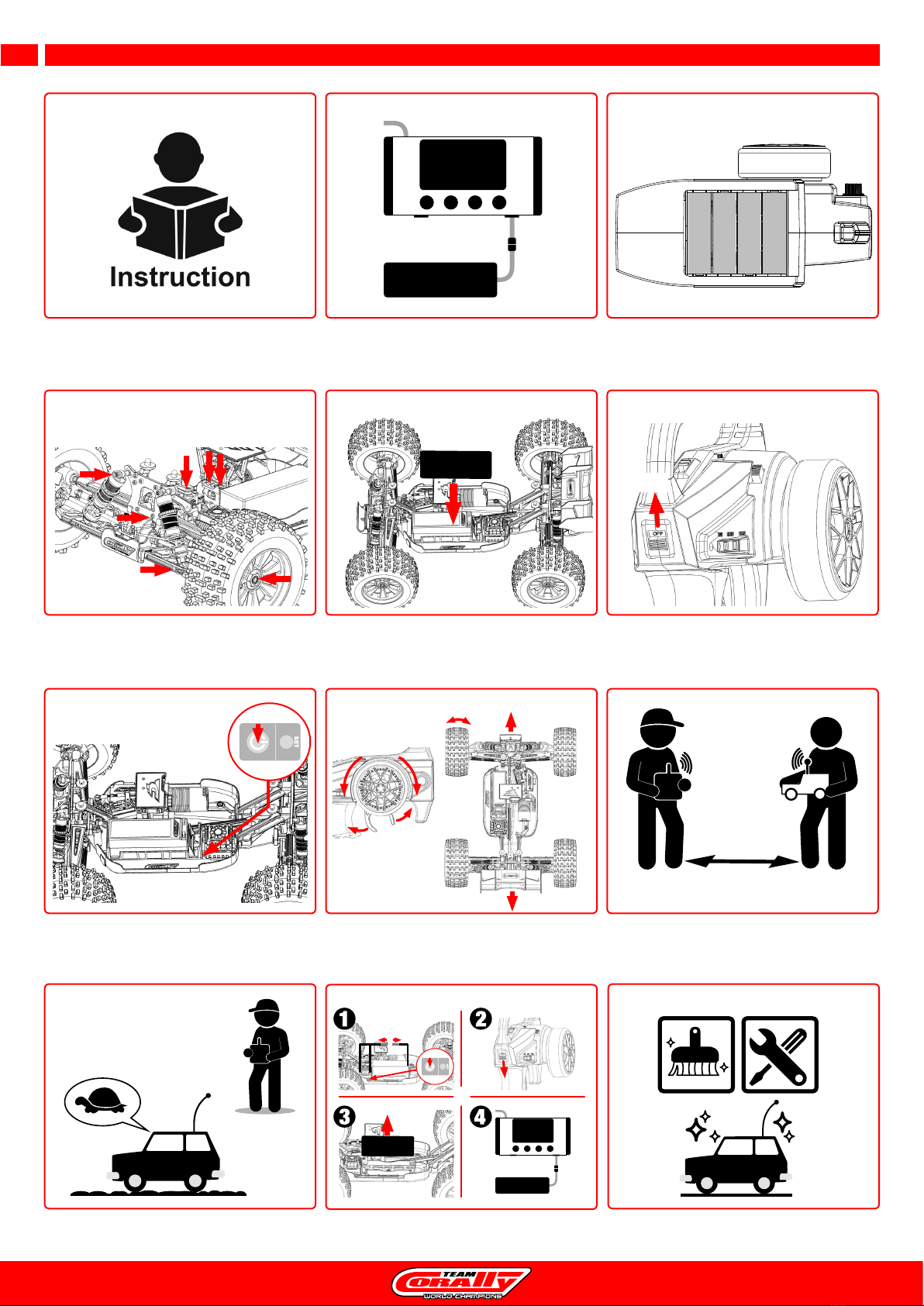

QUICK START GUIDE ( General for all models)
7
OFF
1.5V - AA BATTERY
INSTALL 4x AA BATTERY
TURN ON THE TRANSMITTER (Always First)
READ THE INSTRUCTIONS
MAKE SURE THAT ALL SCREWS AND NUTS ARE
TIGHTENED PROPERLY.
CHARGE THE BATTERY
CHARGE THE BATTERY
WHEN FINISHING
CHECK THE RADIO SYSTEM RANGE
Move away from the max. distance you will drive the vehicle.
Check that the vehicle responds properly to the controls.
If not, reduce the distance or change the driving location.
DRIVE SLOWLY TO BEGIN
1.5V - AA BATTERY 1.5V - AA BATTERY 1.5V - AA BATTERY
CHARGER
BATTERY
BATTERY
ON
OFF
CLEAN AND MAINTAIN YOUR VEHICLE
CHARGER
BATTERY
INSTALL THE BATTERY
BATTERY
CHECK THE FUNCTIONSCONNECT THE BATTERY TO THE ESC
SWITCH ON THE ESC
ON

INSTALL ELECTRONICS
8
SERVO INSTALLATION
ESC INSTALLATION
1
2
Recommended Servo :
Digital Servo - CS-5226 - High Voltage
#C-52001
Recommended ESC :
Speed Controller - TOROX 185 -
Brushless - 2-6S
#C-54011
17mm

INSTALL ELECTRONICS
9
PAPER STRIP 1x8cm
MOTOR INSTALLATION
SLIDE
3
Apply some Corally Screw Fix - Blue
# C-13094
IMPORTANT : To adjust the space between the
pinion and the spur gear, refer to “Gear Mesh
Adjustment” section.
Connect the motor to the controller as described in
the controller manual.
If the gear mesh is not correct, you wear out the spur gear prematurely, the transmission will make noise, give unnecessary load on the
motor (higher consumption, heating of the transmission).
1. Loosen the screws.
2. Insert the paper strip.
3. Push the motor against the spur gear.
4. Turn the spur gear to run the paper through the
teeth.
Stop when the paper is in the middle.
Make sure that the motor pinion is against the
spur gear..
5. Maintain and tighten the fixing screws.
GEAR MESH ADJUSTMENT

INSTALL ELECTRONICS
10

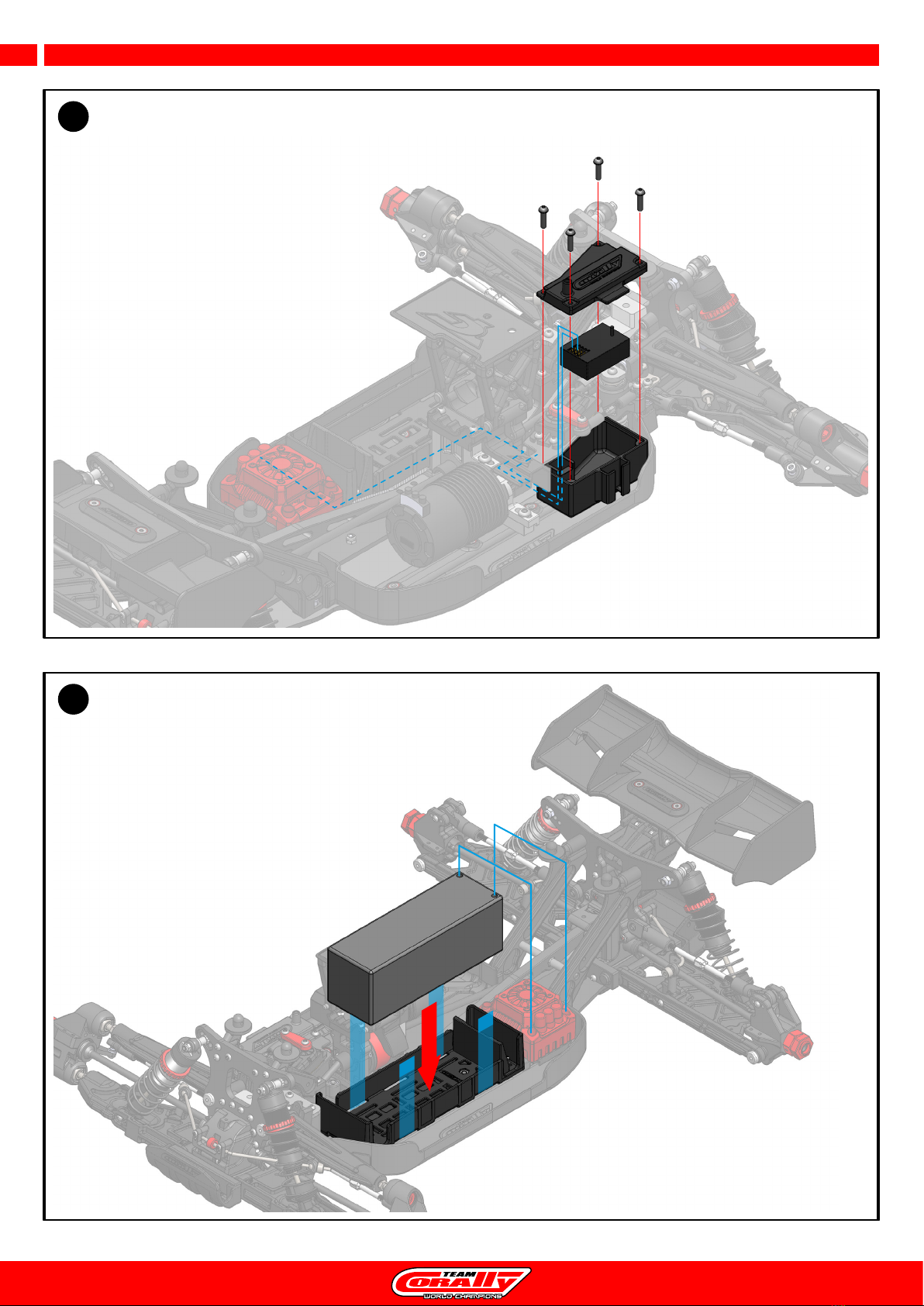

RECEIVER INSTALLATION
4
Connect the servo cable to channel 1 of the receiver.
Connect the ESC cable to channel 2 of the receiver.
Recommended :
4S - 6S LiPo battery
- Install the battery.
- Connect the battery to the controller.
- Secure the battery with the battery straps
INSTALLING THE BATTERY
5

CAR SETTINGS
FRONT TOE
FRONT CAMBER
FRONT CASTER
REAR CAMBER
11
0mm
0mm
90°
+ +
- -
+
+
-
-
1mm
1mm
OR
Adjust the angle by screwing the TURNBUCKLE.
TOE-OUT TOE-OUT
Adjust the angle by screwing the TURNBUCKLE.
Adjust the angle by screwing
the PIVOT BALL.
To change the Caster Angle, move the Upper Suspension Arm
forward or backward using the 1mm CASTER CLIP size.

CAR SETTINGS

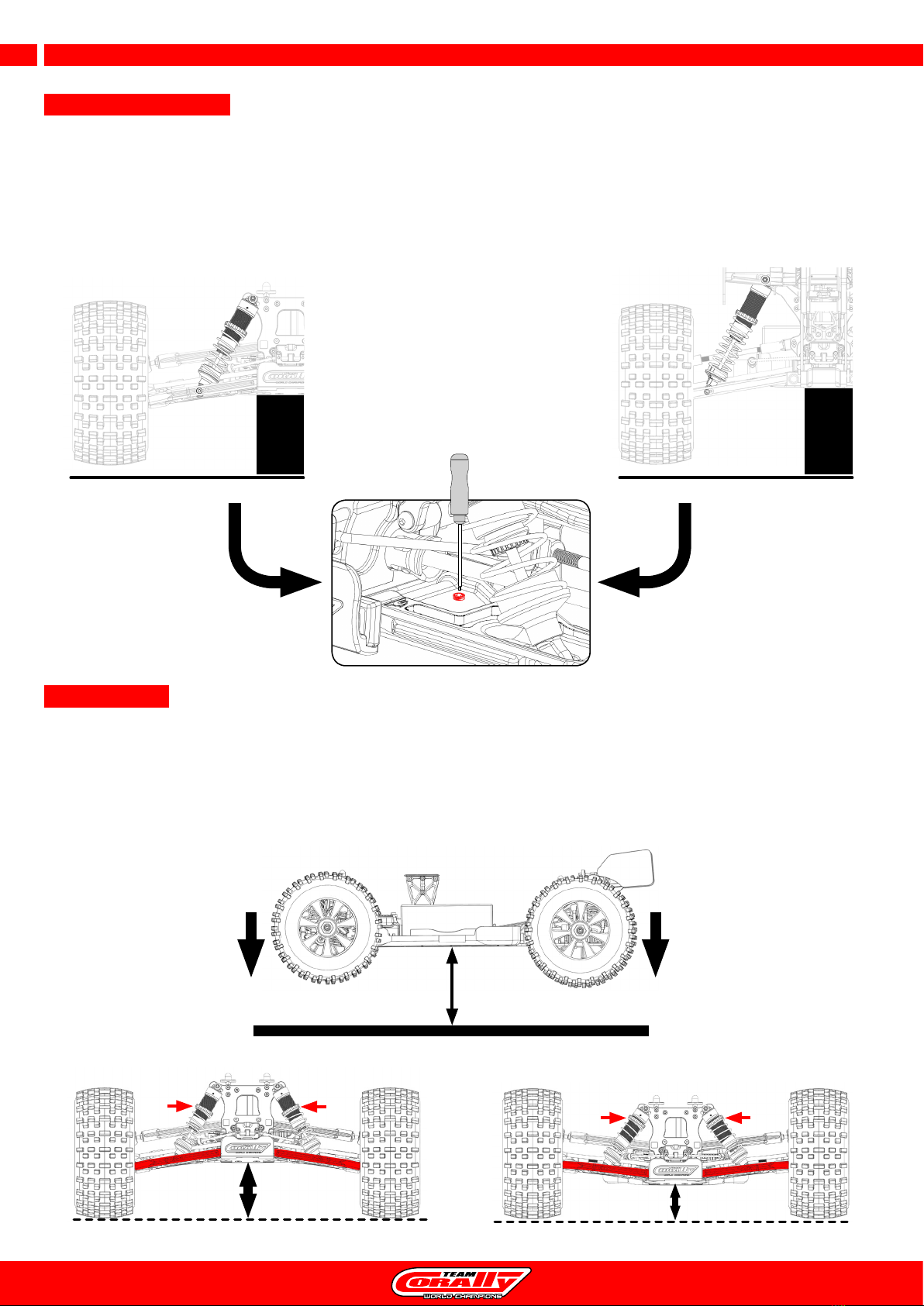

SUSPENSION TRAVEL
RIDE HEIGHT
12
• Place the chassis on a block in order to release the suspension to the maximum.
• Measure the distance between the 2 fixing points of the shock absorber.
• If necessary adjust the FR & RE suspension travel by screwing the set screw on the FR & RE lower suspension arm.
FOR BUMPY GROUND FOR FLAT GROUND / ROAD
FRONT REAR
• Lift the car by ±30cm and drop the car on the floor.
• The front and rear suspension arms should be ± parallel to the ground. (Neutral setup)
• Adjust the tension of the shock absorber spring according to the type of terrain.
It is important to properly adjust the travel of the suspension arm to prevent the shock absorber from reaching the end of its travel
and damaging it.
To achieve the correct ground clearance setting, follow the instructions below.
Release the
suspension Release the suspension
30cm

A
V
A
I
L
A
B
L
E
O
N
w
w
w
.
c
o
r
a
l
l
y
.
c
o
m
CAR SETTINGS
13
FACTORY PRO TOOL
Factory Pro Tool - Hardened Tip - Alu Grip - Hex
TEAM CORALLY - GREASE
Lithium Grease - Blue Grease - Ball Diff Grease -
Copper Grease
TEAM CORALLY - PINIONS
Discover our range of Precision CNC-Cut MOD-1.0
Pinions for motors with a ø 5.0mm motor shaft
PINION CADDY M1.0
Team Corally - Pinion Caddy M1.0 - 9 Pinions - ø5mm
TEAM PIT GEAR
A range of quality equipment for the transport and
protection of your equipment.
ELECTRONIC
A range of high quality electronic equipment
for the best performance.
TEAM CORALLY - SHOCK PLIERS
Team Corally - Shock Pliers
TEAM CORALLY - SILICONE OILS
SPORT RACING - LIPO
Shock Oils 60ml - 150ml - CST or WT - 100 >1000 CPS
Diff Oils 60ml - 2000 >2 000 000 CPS
Team Corally - Sport Racing 50C - 4S or 6S - XT-90 -
Hard Case
DISCOVER THE HIGH QUALITY TEAM CORALLY PRODUCTS
Discover all these products and more on the website www.corally.com
Découvrez tous ces produits et bien plus encore sur le site web www.corally.com
Entdecken Sie all diese Produkte und mehr auf der Website www.corally.com
Ontdek al deze producten en meer op de website www.corally.com

This manual is an edition of Corally, a division of JSP GROUP INTL nv, Geelseweg 80, B-2250 Olen, Belgium. This manual is protected by a copyright and nothing from this edition may be
reproduced or used without any prior written authorisation. Whilst every effort has been made to ensure the accuracy of the information in this manual, errors creep in and Corally can accept
no responsibility for failures, wrong specifications, accuracy of colours, losses or damages caused. Corally denies any responsibility claims or damages caused by use of our products.
Corally is not responsible for product / parts / specifications / Colour changes or availability of these products.
