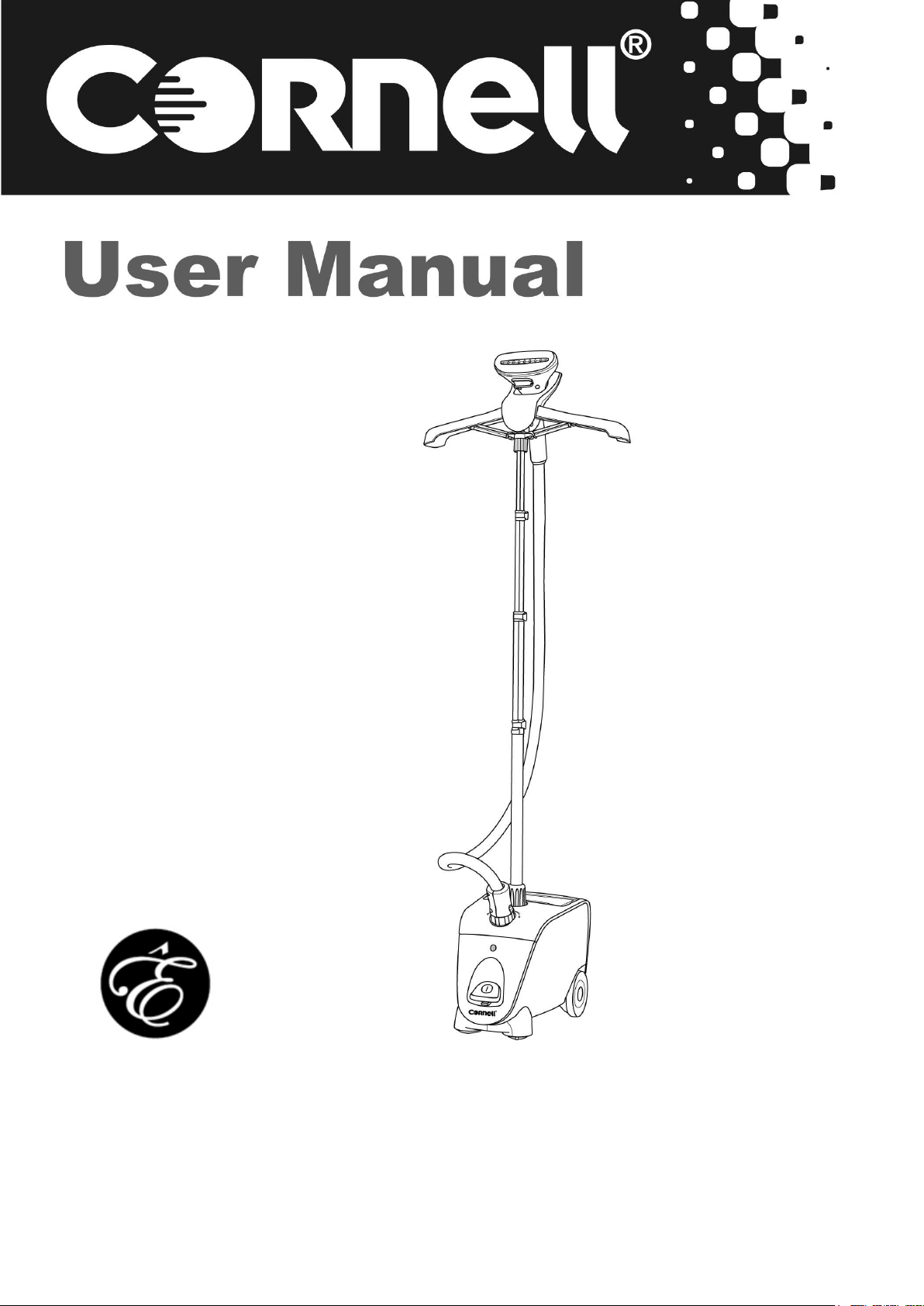

Cornell CGS-EL238H User manual

Garment
Steamer CGS-EL238H

1. Thank you for your purchase of this appliance. Read all instructions carefully.
Keep this user manual for future reference.
2. Always switch off and unplug the appliance from the electrical outlet BEFORE cleaning
and also when not in use.
3. Never immerse the appliance, power cord or plug into water or other liquids. Please refer
to the section on “Care and Cleaning”.
4. This product must not be left unattended while it is connected to the mains supply.
5. If it is a detachable power cord, always connect the power cord to the appliance
first BEFORE plugging it into the electrical outlet. To disconnect the appliance, switch off
the power on the electrical outlet before removing the power plug.
6. Close supervision is necessary when operating the appliance near children. Ensure that
the power cord does not hang over the work surface.
7. Do not operate the appliance with a damaged power cord set or plug.Any repairs
should always be carried out by an authorized service centre.
8. During usage, it is forbidden to remove the steam pipe.
9. To avoid damaging the heating element, do not turn ON the power supply before filling the
water tank.
10.Do not use the appliance for any purposes other than its intended use. This appliance
is intended for household use only.
11.Do not use the appliance in the outdoors or in a damp area.
12.Do not place heavy items on the power cord, allow it to be pinched between objects,
or modify it.
13.Do not place the appliance on or near a hot gas or electric burner, or near easily
flammable materials.
14.This appliance should not be used by people who are physically or mentally
impaired (including children) unless proper guidance is provided during operation.
GENERAL SAFETY PRECAUTIONS

1）On/off button 6) Power cord compartment
2）Steam tube fixation 7) Water tank handle
3）Bracket pole set 8) Water tank
4）Rear wheel 9) Body
5）Power cord 10) Direction wheel
ACCESSORIES
PARTS IDENTIFICATION

Assembling The Garment Steamer
Insert the tube to vertical fixing base, then rotate it clockwise to set up it.
Unclose the fastener to extract the tub to the desired height.
Model
CGS-EL238H
Rated Voltage
220-240V~
Rated Wattage
1450-1750W
Frequency
50/60Hz
SPECIFICATIONS
OPERATING INSTRUCTIONS

Once reaches the desired height then press the fastener.
Insert the steam knob into base and ensure it is properly lock to the base.
Hang the steam head to the hook on the top of the pole.
Once all the setup is done then plug In the appliance to the main supply.
Note: Always ensure the water is filled before plugging in the appliance.

How to refill the water tank
1) Before unplug the appliance power cord, turn the ON/OFF switch to the “OFF” position.
2) Remove the water fill tank from the appliance and turn it upside down then unscrew the
valve cap.
3) Fill in the water tank. Fill the water to the full marking level then place the valve cap and
screwed it tightly.
4) Place the water fill tank on the water reservoir. You should hear water flowing into the water
reservoir for a short time.
NOTE: To get a longer lifetime of the steamer, it is recommend to using distilled
or de-mineralized water. This is to avoid the chlorine to be added to the
heating element of the appliance.
CAUTION: Do not let the steamer operate with an empty water tank, it can
damage the appliance.
Trouble Shooting
Problem
Cause
Solution
A noise originates by
the pipe and the
produced steam is
weak.
-The pipe is twisted below
level to iron.
-Raise the steam pipe
(residual water in top
returns into the
reservoir).
Steam spray head is
leaked
-The head is broken
-Ironing in vertical way.
-Replace the spray
head.
-Move the steam head
spray from top to down
when ironing.
Hooking connection of
steam pipe is leaked.
-The cushion can be
damaged when it is old
-The junction interface
loosens by itself.
-Replace the cushion.
-Rotate the junction of
steam pipe tightly.
Water spilled out
water tank
-Water tank is broken or
has a hole
-Replace the water tank
Steam is weak
-The power source is
lower.
-The steam pipe is twisted.
-Add a stabilizer of
power source.
-Place the pipe in
straight position.
No steam but the
indicator is lighted
-The heating element is
spoiled.
-The internal electric
component is broken.
-Call a specialized
technician to do an
examination

1. Always disconnect the appliance from the power supply before cleaning.
2. Always allow your appliance to cool completely before cleaning (at least 30minutes).
3. While the letting the appliance to cool down, attach the steamer hose straight to hook of top
pole. This is to allow the access vaporised water to flow down to the reservoir.
4. Remove the hose and the telescopic pole and place it aside before cleaning.
5. Carry the unit to a sink or tub.
6. Remove and drain the water in the tank. Rinse the water tank with fresh water and drain it
completely.
7. Drain the remaining water in the reservoir as well. Wipe the appliance with dry cloth and
leave it to dry completely before storing the appliance.
CARE AND CLEANING
