Corriveau BL3003C Datasheet

3-Seaters Gasual Swing with Gushions
Assembly lnstructions
BL3003C- tl Btt

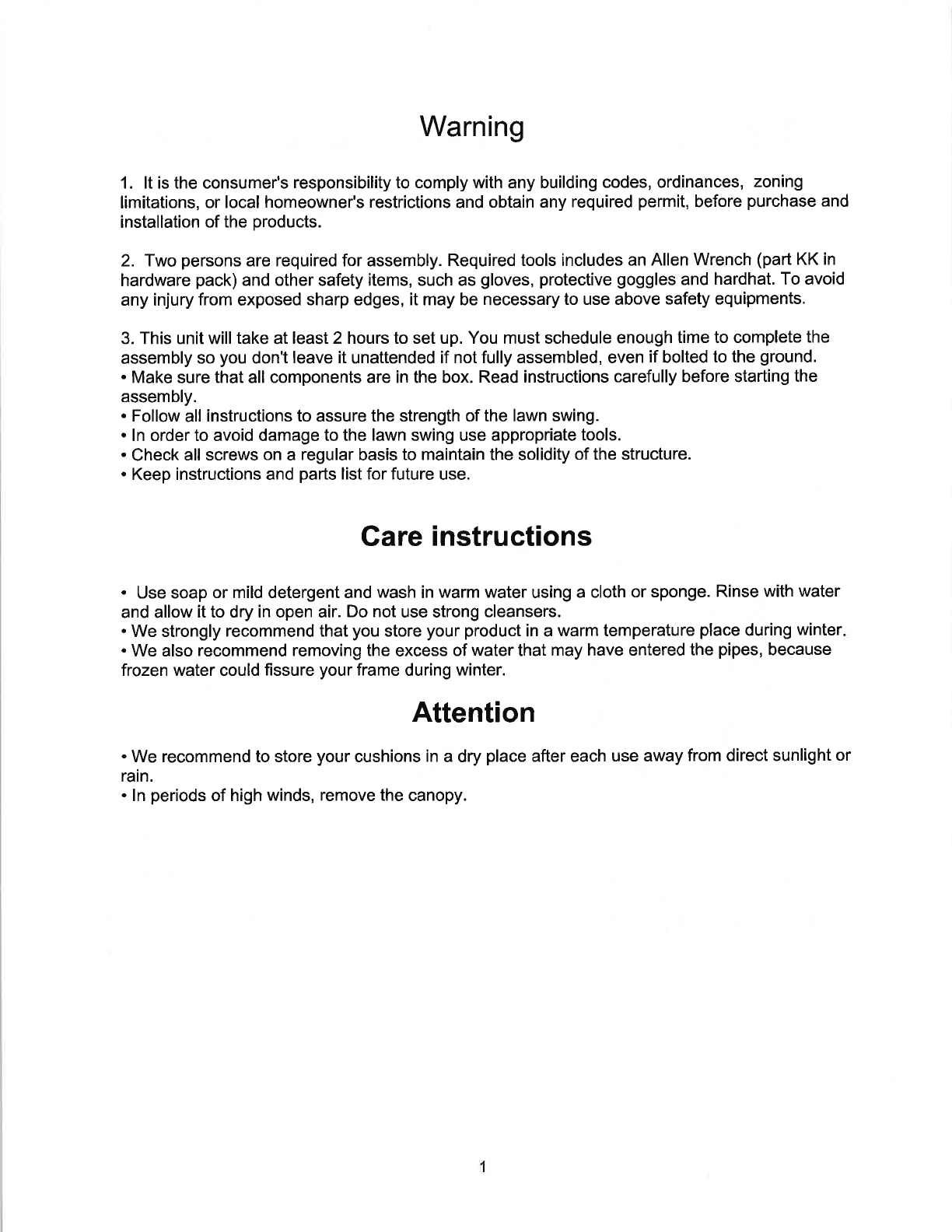

Warning
1. lt is the consumer's responsibility to comply with any building codes, ordinances, zoning
limitations, or local homeowner's restrictions and obtain any required permit, before purchase and
installation of the products.
2. Two persons are required for assembly. Required tools includes an Allen Wrench (part KK in
hardware pack) and other safety items, such as gloves, protective goggles and hardhat. To avoid
any injury from exposed sharp edges, it may be necessary to use above safety equipments.
3. This unit will take at least 2 hours to set up. You must schedule enough time to complete the
assembly so you don't leave it unattended if not fully assembled, even if bolted to the ground.
. Make sure that all components are in the box. Read instructions carefully before starting the
assembly.
. Follow all instructions to assure the strength of the lawn swing.
. ln order to avoid damage to the lawn swing use appropriate tools.
. Check all screws on a regular basis to maintain the solidity of the structure.
. Keep instructions and parts list for future use.
Gare instructions
. Use soap or mild detergent and wash in warm water using a cloth or sponge. Rinse with water
and allow it to dry in open air. Do not use strong cleansers.
. We strongly recommend that you store your product in a warm temperature place during winter
. We also recommend removing the excess of water that may have entered the pipes, because
frozen water could fissure your frame during winter.
Attention
. We recommend to store your cushions in a dry place after each use away from direct sunlight or
rain.
. ln periods of high winds, remove the canopy.

oP
4
M
M
N
Dl-
PALú'
$r JD
JK
c
B
F
E
E
S
2
F

PARTS LIST:
No. Description Qtv Drawing
ATop Frame Bar 1
BRear Leg 2
cLeft Front Leg 1
DRight Front Leg 1
ELeg Support 2
FLeg Crossbar 2
GRear Crossbar 1
HSeat 1
IBack 1
JArm 2
KShort Bar 2
LHook 2
MCanopy Slide Bar 2
NCanopy Edge Left Bar 1
oCanopy Edge Right Bar 1
PKnob 2
oCanopy 1
3

No. Description Qtv. Drawing
RCushion 3
SPillow 2
Hardware K¡t:
Item Description Qtv Drawing
AA M6X3SLBolt
M6X55LBolt
4ùt
BB 6
CC M6X90LBolt 12
DD MSX35LBolt 2
EE MSX90LBolt 4
FF M6 Nut 18 @
GG M8 Nut 4@
HH Hitch Pin 2
Plastic Washer 14
JJ Metal Washer 42
KK Allen Wrench 1U
LL M6 Open-end Wrench 1
MM 1
M8 Open-end Wrench
4

x1
A
B
c
D
2
X
x1
x1
1
A
oI¡IIII
I
I
I
I
I
I
I
I
ì
I
Q;
(?) -
A
o
@-
JJ
c
q
,
,
I
,
I
I
I
I
ItIII
:(û -ø_
,'FF ¡-¡
D
B
JJ
-@-
@
J
@
JJ
cc
\0cc
qt
4
,
i@-
;FF
I
I
J
B"@#
FF"
o@
JJ
c
Step 1
1. Join Rear Leg (B) into Top Frame Bar (A) as figure (1) shown. lnsert four M6 X 90 L Bolts (CC) through
Metal Washers (JJ), Left Front Leg (C), Rear Leg (B) and MetalWashers (JJ), and tighten with M6 Nuts
(FF) as figure (2) shown.
2. Repeat on the opposite side for Right Front Leg (D).
5

x2
2
x
E
F
G
x1
D
B
@Ø
E
òJJ tr
%-
AA
F
J
,o'tJJ
.FF D
E
o
ØbJJ
-%
AA
Step 2:
1. lnsert MO X 90 L Bolt (CC) through Metal Washer (JJ), Rear Leg (B), Rear Crossbar (G) and Metal
Washer (JJ), and secure with MG Nut (FF) as figure (1)shown, hold in position. Then insert M6 X 90 L Bolt
(CC) through Metal Washer (JJ), Leg Crossbar (F), Rear Leg (B), Rear Crossbar (G) and Metal Washer
(JJ), and secure with M6 Nut (FF) as figure (1) shown. Do not tighten the bolts yet.
2. lnsert M6 X 55 L Bolt (BB) through Metal Washer (JJ), Leg Crossbar (F), Front Leg (D), Leg Support
(E) and Metal Washer (JJ), and secure with M6 Nut (FF) as figure (2) shown. Do not tighten the bolts yet.
3. lnsert M6 X 35 L Bolts (AA) through Metal Washers (JJ) and Leg Support (E), then secure with Rear
Crossbar (G) as figure (3) shown.Do not tighten the bolts yet.
4. Repeat above procedures on the opposite side. When all is set in place, please tighten all bolts now.
6

Hx1
x1
c
FF
o
Ho
Step 3:
lnsert M6 X 55 L Bolt (BB) through Metal Washer (JJ), Seat (H), Plastic Washer (ll), Back (l), Plastic
Washer (ll), Seat (H) and Metal Washer (JJ), secure with M6 Nut (FF) as figure shown. Make sure two
Plastic Washers (ll) are in between Back (l) and Seat (H) once installed. Repeat for the opposite side.
Notes: Please check above fig. carefully and make sure all the parts in right position. For the sake of
safety, you may need 2 people for this step.
7

J
K
x2 2
X
HH
x2
tØ
J
<t-
JI
I
I
II
II
I
I
,
HI
I
Ø
K
K
K
Ø
\
Step 4: '--@gc I
g
I
JJ
ó¡¡
J
K
H
EE
JJ
J
H
eeg-
1. Secure Arm (J) on the Seat (H) by using MB X 90 L Bolts (EE), Metal washers (JJ) and M8 Nut (GG) as
figure (1) shown. Repeat on the opposite side.
Notes: For the sake of safety, you may need 2 people for this step.
2. lnsert M6 X 55 L Bolts (BB) through Plastic Washers (ll), Short Bar (K), Plastic Washers (ll) and secure
with Back (l), and tighten with MetalWashers (JJ) and M6 Nuts (FF). Then insert Hitch Pin (HH) through
Short Bar (K) and Arm (J), Secure loop at the end of Hitch Pin (HH) as figure (2) shown.Repeat on the
opposite side.
Notes: Please check above fig. carefully and make sure all the parts in right position.
I
___<_

x2
L
t
I
I
I
III
At,
tI
bL
A
Step 5:
Hang the hooks (L) through top holes of Arm (J) on Top Frame Bar (A) as figure shown
Notes: You may need 2 people for this step.
I

x2
x1
M
N
x1
o
o
M
NM
M
I
I
,
IIN
o
M
Step 6:
lnsert Canopy Slide Bars (M) into the Canopy Edge Left and Right Bars (N & O) as figure shown
10

2
x
P
il
DD
CIw I
,
co
D
o
Step 7:
Secure Canopy Bar Assembly on the Left Front Leg (C) by using M8 X 35 L Bolt (DD) and Plastic
Washer (ll) align the hole in position as figure (1) shown. Then screw the Knob (P) through Canopy
Edge Left Bar (N) and Plastic washer (ll), secure on Left Front Leg (C).
Repeat the procedure on the opposite side.
Note : You can change tilt of the Canopy assembly by adjusting the Knobs (P). Then securely tighten
For the sake of safety, you may need 2 people for this step.
11

x1
o
@o
M
N
-o
Step 8:
Place the Canopy (Q) on the Canopy assembly, secure with hooks and loop straps.
12

X3 x
Step 9:
Make sure legs and ground are perpendicular with each other once the unit is assembled. Tighten all
bolts evenly, Place the Cushion (R) and Pillow (S) on the seat. Enjoy your leisure time with Casual
Swing.
2
