Cosen SH-3026L User manual

COSEN SAWS







SH-3026L
Semi‐AutomaticHorizontalBandsaw

(Non‐CEModel)
InstructionManual







ThePinnacleofCuttingPerformance
CosenMechatronicsCo.,Ltd.




NOTE:
Readthisinstructionmanualcarefullytofamiliarizeyourselfwiththeinstallation,operation
andmaintenanceofyourCOSENbandsawmachine.
Operatethemachinefollowingtheproceduresdescribedinthemanualtopreventpersonal
injuriesormachinedamage.
Keepthismanualhandyandrefertoitwheneveryouareuncertainofhowtoperformanyof
theprocedures.
Fortechnicalsupportorpartspurchase,pleasecontactyournearestCOSENrepresentativeor
ourservicecenter:
ForUS,Mexico,andCanada:
email:[email protected].
phone:+1‐704‐943‐1030
tollfree:+1‐877‐SAWING1
fax:+1‐704‐943‐1031

ForTaiwanandothercountries:
email:[email protected]
phone:+886‐3‐5332143
fax:+886‐3‐5348324
ForEurope:
email:
[email protected]
phone:+31‐77‐7600280
fax:+31‐77‐7600288
ForChina:
email:[email protected]
phone:+86‐152‐50127815



InstructionManual: SH‐3026L
Semi‐AutomaticHorizontalBandsaw
Ver.22016/7/4

©2013byCOSENMECHATRONICSCO.,LTD.
NopartofthispublicationmaybephotocopiedorotherwisereproducedwithoutthepriorwrittenpermissionofCOSEN.


PrintedinTaiwan

FROMTHEMANUFACTURER

ThankyouforyourpurchaseofCOSEN’sbandsawmachineandyourtrustinthe
COSENbrand.

Weareexcitedtohaveyouasourvaluedcustomerandlookforwardasmuchasyou
dototheacceleratedproductivity,long‐lastingenduranceandsuperb
cost‐effectivenessthismachineisabouttobringtoyou.

Toensureyouarefullyutilizingourmachineandbeingadvantagedineverypossible
way,pleasedotakeyourtimeandreadthroughthisinstructionmanual.

Anycommentorsuggestioninmakingourservicebetter,pleasedonothesitateto
letusknow.Thankyouagain!


Safety rules
Makesureyourworkareaisclearedofuninvitedpeopleandobstacleseverytimebeforeyoustart
operatingthemachine.
Neverwearglovesorlooseclothingwhenoperatingthemachine.Itmayleadtoseriousinjuryifthey
arecaughtintherunningmachine.Wraporcoverlonghair.
Useawater‐solublecuttingfluidonthismachine.Oil‐basedcuttingfluidsmayemitsmokeorcatch
fire,dependingonhowtheyareused.
Nevercutcarbonoranyothermaterialthatmayproduceanddisperseexplosivedust.Itispossible
thatsparksfrommotorsandothermachinepartswilligniteandexplodetheair‐bornedust.
Makesureanyuseoffireisprohibitedintheshopandinstallafireextinguisherorotherfirecontrol
devicenearthemachinewhencuttingtitanium,magnesium,oranyothermaterialthatproduces
flammablechips.Neverleavethemachineunattendedwhencuttingflammablematerials.
Neveradjustthewirebrushorremovechipswhilethesawbladeisstillrunning.Itisextremely
dangerousifhandsorclothingarecaughtbytherunningblade.
Nevertouchtherunningsawbladewithglovesornot.Itisdangerousifyourhands,clothingor
glovesarecaughtbytherunningblade.
Stopthesawbladebeforeyoucleanthemachine.Itisdangerousifhandsorclothingarecaughtby
therunningblade.
Neverstartthesawbladeunlesstheworkpiecehasbeenclampedfirmly.Iftheworkpieceisnot
securelyclamped,itwillbeforcedoutoftheviseduringcutting.
Takepreventivemeasureswhencuttingthinorshortpiecesfromtheworktokeepthemfrom
falling.Itisdangerousifthecutpiecesfall.
Userollertablesatthefrontandrearsidesofthemachinewhencuttinglongwork.Itisdangerousif
theworkpiecefallsoffthemachine.
Neversteporstandontherollertable.Yourfootmaysliportripontherollersandyouwillfall.
Turnofftheshopcircuitbreakerswitchbeforeperformingmaintenanceonthemachine.
Postasignindicatingthemachineisundermaintenance.


i
T
able of Contents

Section1–SafetyInformation1‐1
SafetyInstructions……………………………………………………………………………………………………… 1‐1
SafeguardDevices………………………………………………………………………………………………………. 1‐3
EmergencyStop…………………………………………………………………………………………………………. 1‐4
Illustration:EmergencyStop……………………………………………………………………………………… 1‐5

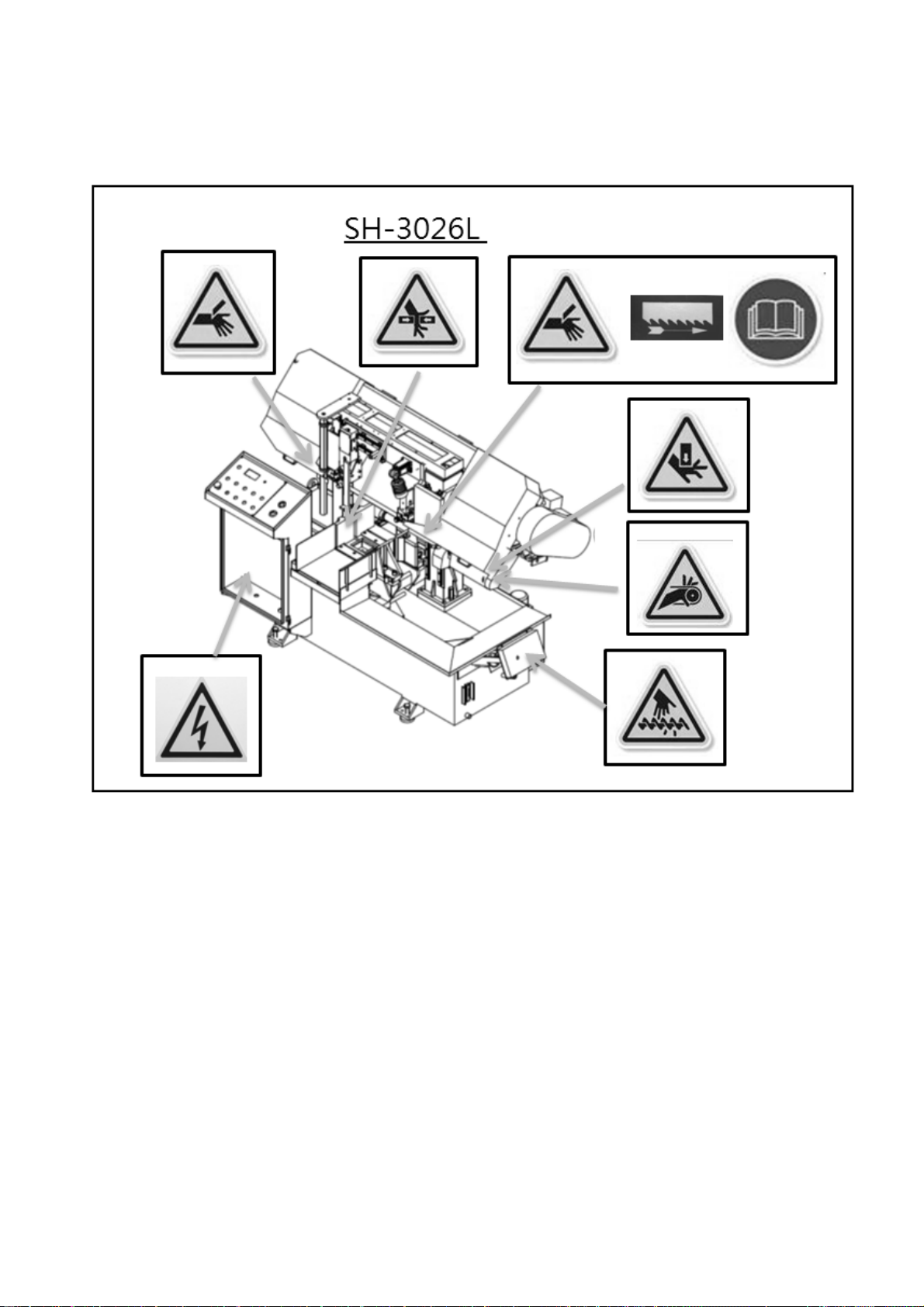

SafetyLabels………………………………………………………………………………………………………………. 1‐6
Illustration:SafetyLabels………………………………………………………………………………………..… 1‐7
HearingProtection……………………………………………………………………………………………………… 1‐8
CECompliance……………………………………………………………………………………………………………. 1‐8
RiskAssessment…………………………………………………………………………………………………………. 1‐8
Section2–GeneralInformation2‐1
Specifications……………………………………..………………………………………………………………………. 2‐2
MachinePartsIdentification………………………………………………………………………………………. 2‐3

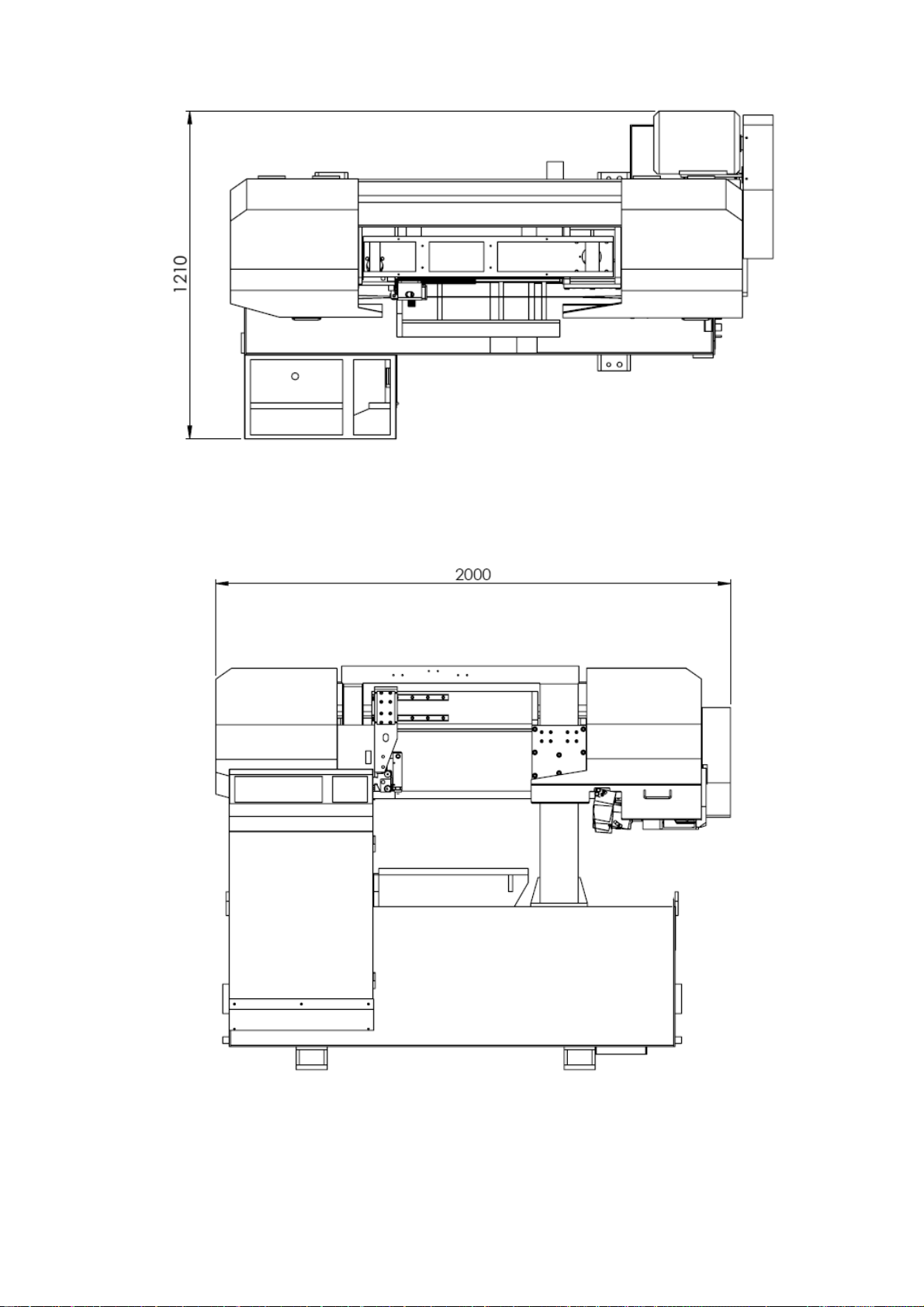

FloorPlan…………………………………………………………………………………………………..………………. 2‐4
Section3–Moving&Installation3‐1
Location&Environment………………………………..…………………………………………………………… 3‐1
Unpacking&Inspecting……..………………………………………………………………………………………. 3‐2
Lifting…………………………………………..………………………………………………………………….…………. 3‐3
Illustration:LiftingPoints…………………………………………………………………….……………….…… 3‐5
RemovingShippingBracket…………………………..……………………………………………….…………… 3‐6
Cleaning…………………………………………..…………………………………………………………….…………… 3‐6
Installing…………………………...………………………………………………………………………….……………. 3‐6
SupplyingHydraulicOil…………………………………………………………………….……………. 3‐6
SupplyingCoolant………..………………………………………………………………….…………….. 3‐7
ConnectingElectricPower……………………………………………………………….…………….. 3‐7
Leveling…………………………………………………………………….…………………………………… 3‐8
AnchoringtheMachine…………………………………………………………………….…………… 3‐9
InstallingRollerTable(Optional)………………………………………………….…………………. 3‐9
InstallingFireControlDevice………………………………………………….……………………… 3‐9
Relocating………………………...…………………………………………………………………….…………………. 3‐9
Section4–OperatingInstruction4‐1
SafetyPrecautions…………………..…………………..……………………………………….……………………. 4‐2
BeforeOperating…………………………..……………………………………………………………………………. 4‐3
ControlPanel……..……………………………………..………………………………………….……………………. 4‐4
ControlPanel………………….………………………………………………………………………..……. 4‐4

ii
T
able of Contents
ControlButtons……………………………………………………………………………………….…….. 4‐5
BladeDescendPressure&Speed………..…………………………………………………….…… 4‐6
StandardAccessories………….………………………..……………………………………………….…………… 4‐7
OptionalAccessories…….…….………………………..…………………………………………….……………… 4‐10
Unrolling&InstallingtheBlade…………………………………………………………………….……………. 4‐10
AdjustingWireBrush………..……………………………………………………………………….………………. 4‐12
AdjustingCoolantFlow………..………..…………………………………………………………………..…….… 4‐13
AdjustingBladeSpeed………..………..………………………………………………………………………….… 4‐13
Breaking‐IntheBlade………..………..…………………………………………………………………..……….… 4‐13
Test‐RunningtheMachine………..………………..…..…………………………………………………………. 4‐14
CuttingOperation………..………..……………………………………………..……………………………………. 4‐14
TerminatingaCuttingOperation………..………..…………………………………….………………………. 4‐15
Section5–ElectricalSystem5‐1
ElectricalCircuitDiagrams……….…………………..…………………………………………………………….. 5‐1
Section6–HydraulicSystem6‐1
HydraulicDiagrams……….…………………..……………………………………………………………….………. 6‐1
Section7–BandsawCutting:APracticalGuide7‐1
Introduction……………………….…….…………………..……………………………………………………………. 7‐1
SawBladeSelection………………….…………………..…………………………………………………………… 7‐1
SomeSawingPractices…………….…………………..………………………………………….………………… 7‐4
SawPitchSelection……………………………………………………………………….……………….. 7‐4
MaterialSizeandSawPitch………………………………………………….….……………………. 7‐4
Section8–Maintenance&Service8‐1
Introduction……………………….…….…………………..……………………………………………………………. 8‐1
BasicMaintenance………………….…………………..…………………………………………….………………. 8‐1
MaintenanceSchedule…………….…………………..……………………………………………………………. 8‐1
BeforeBeginningaDay’sWork………………………………………………………………………. 8‐1
AfterEndingaDay’sWork…………………………………………………….……………………….. 8‐1
AfterEndingaDay’sWork…………………………………………………….……………………….. 8‐1
EveryMonth………………………………………………………………………….………………………. 8‐2
EveryThreeMonths………………..…………………………………………….………………………. 8‐2
EverySixMonths……………….………………………………………………….………………………. 8‐2
StorageConditions…………………………....………..…………………………………………………………….. 8‐2
TerminatingtheUseofMachine……..…………..…………………………………………………………….. 8‐3
OilRecommendationforMaintenance………………………………………………………………………. 8‐3

iii
T
able of Contents
Section9–Troubleshooting9‐1
Introduction……………………….…….…………………..……………………………………………………………. 9‐1
Precautions………………….…………………..……………………………………………………………………..... 9‐1
GeneralTroubles&Solutions………………………..……………………………………………………………. 9‐2
MinorTroubles&Solutions………………………..………………………………………………..……………. 9‐3
MotorTroubles&Solutions………………………..…………………………………………………..…………. 9‐3
BladeTroubles&Solutions………………………..……………………………………………………………….. 9‐4
SawingProblems&Solutions………………………..…………………………………………………………… 9‐5
Re‐AdjustingtheRollerTable………………………..……………………………………………………………. 9‐6
Section10–Parts10‐1
SparePartsRecommendations…………………..………………………………………………………………. 10‐1
PartsList…………………..………………………………………………………………………………………………. 10‐2
Section11–Warranty11‐1
Warranty…………………..……………………………………………………………………………………………….. 11‐1




1‐1
Section1
SAFETY
INFORMATION

SAFETYINSTRUCTIONS
SAFEGUARDDEVICES
EMERGENCYSTOP
SAFETYLABELS
HEARINGPROTECTION
CECOMPLIANCE
RISKASSESSMENT


Safetyisacombinationofawell‐designedmachine,operator’sknowledgeaboutthemachineand
alertnessatalltimes.COSEN’sbandmachinehasincorporatedmanysafetymeasuresduringthe
designprocessandusedprotectivedevicestopreventpersonalinjuriesandpotentialrisks.Warning
labelsalsoserveasaremindertotheoperator.

Throughoutthismanual,youwillalsoseevarioussafety‐relatedsymbolsindicatingimportant
informationthatyoushouldtakenoteofpriortouseofthemachineorpartofitsfunctions.These
importantsafetyinstructionsdonotcoverallpossiblesituationsthatmightoccur.Itisyour
responsibilitytotakecautionandfollowproceduresstatedinthismanualwheninstalling,
maintainingandoperatingyourmachine.Cosenwillnotbeliablefordamagesresultingfrom
improperuse.


SAFETYINSTRUCTIONS
Whattheiconsandsignsinthisusermanualmean:

ThisiconmarksDANGER;hazardsorunsafepracticesthatmayresultinsevere
personalinjuryordeath.

ThisiconmarksWARNING;hazardsorunsafepracticesthatmayresultin
personalinjuryordamagetothemachine.

ThisiconmarksCAUTION;informationthatshouldbereadbeforeusetoprevent
damagetothemachine.
Supplementaryinformationtotheproceduresdescribedinthismanual.
Callyourlocalagentorourservicecenterforhelp.

1‐2


Thismanualhasimportantsafety
information.Readthroughitcarefully
beforeoperatingthismachinetoprevent
personalinjuryormachinedamage.Learn
theoperation,limitationandthespecific
potentialhazardspeculiartothisband
saw.

Donotoperatethismachineunlessitis
completelyassembled.

Makesurethepowerswitchisoffbefore
plugginginpowercord.

Disconnectthepowercordbeforemaking
adjustment,maintenanceorblade
changes.

Keepallguardsandshieldsinplacebefore
installingorstartingupthemachine.

Wearproperapparelduringoperation
andwhenservicingthemachine.
Keepunauthorizedpersonnelaway.

Donotreachoverorstandonanypartof
themachine.

Neverholdthematerialbyhandfor
cutting.Alwaysusetheviseandmake
surethematerialisclampedsecurely
beforecutting.

Itisdangeroustooperatethemachine
whenthefloorisslippery.Keepthefloor
cleananddry.Checkforice,moisture,or
greasebeforeentering.

Donotusethemachinetocutexplosive
materialorhighpressurevesselsasitwill
generategreatamountofheatduringthe
sawingprocessandmayignitean
explosion.

Keeptheworkenvironmentsafe.Donot
usebandsawinadamporwetlocation.

Neveroperatewhileundertheinfluence
ofdrugs,alcoholormedication.

Allusersmustreaditbeforeperformingany
activityonthemachine,suchasreplacing
thesawbandordoingregularmaintenance.
Somepersonalprotectiveequipmentis
requiredforthesafeuseofthemachine,e.g.
protectiongoggles.
Keepbladeprotectioncoverandwheel
coversinplaceandinworkingorder.
Userecommendedaccessories.Improper
accessoriesmaybehazardous.
Keepyourworkareawellilluminatedat
minimum500lumen.
Keepyourworkareaclean.Clutteredand
slipperyfloorsinviteaccidents.
Removeadjustingkeys,wrenchesorany
loosepartsoritemsfromthemachine
beforeturningonpower.
Checkfordamagedparts.Beforecontinuing
usingthemachine,thedamagedpartshould
becheckedandreplaced.
Movingpartsshouldbekeptinproper
alignmentandconnectionwiththemachine.
Checkforbreakage,mountingandanyother
conditionsthatmayaffectitsoperation.Any
damagedpartorguardshouldbeproperly
repairedorreplaced.
Whenaworkpieceistoolongorheavy,
makesureitissupportedwitharollertable
(recommended).
Alwaysremembertoswitchoffthemachine
whentheworkiscompleted.
Useasharpsawbladeandkeepthemachine
initsbestandsafestperformanceby
followingaperiodicalmaintenanceschedule.
Donotforcethebandsawbeyondits
intendeduse.Itissafertooperatewiththe
cuttingrateforwhichitwasdesigned.


1‐3
SAFEGUARDDEVICES
Thesafeguarddevicesincorporatedinthismachineincludethefollowingtwomainparts:
1. Protectioncovers&guards
2. Safety‐relatedswitches

ProtectionCovers&Guards
1. Idlewheelhousingcover
2. Drivewheelhousingcover
3. Gearreducercover
4. Wirebrushbeltcover
5. Bladeguardcover(left&right)

Theprotectiondevicesshouldalwaysbemountedonthemachinewheneverthemachineis
running.
Donotremoveanyofthesesafeguarddevicesunderanycircumstancesexceptwhenservicing
themachine.Evenskilledservicetechniciansshouldstilltakecautionswhenperformingrepairs
orserviceonthemachinewithanyoftheseprotectorsremoved.Itistheresponsibilityofthe
usertomakesurealltheseelementsarenotlostanddamaged.
Takenoteofthefollowingmainmovingpartsonthemachinepriortoandduringmachine
operation:
Sawbowassembly
Driveandidlewheels
Bladeguidearm
Sawbladeguiderollers
Quickapproachdevice
Wirebrush
Chipconveyor(optional)
Workpiececlampingvises
Shuttlevisesandworkbedrollers
Topclamps(optional)
Gearreducer









1‐4
SafetyRelatedSwitches
Toprotecttheoperator,thefollowingsafetyrelatedswitchesonthemachineareactuatedwhenthe
machineisinoperation.

WheelmotiondetectorThisisaproximitysensorusedtodetectthemotion
ofthedrivewheel.Oncethesawbladeisbrokenor
assoonasitstartsslipping,thesensorwilldetect
andstopthedrivewheelandthemachine.
PowerswitchLocatedonthecoverofelectricalcabinet,thepower
switchcontrolsthemainpowerofthemachine.Up
toyourcompany’sinternalrules,thispowerswitch
canbelockedwithapadlockoraluggagelockto
protecttheoperatorandthemachine.
EmergencystopbuttonLocatedonthecontrolpanel,thebuttonwhen
pressedwillstopthemachinecompletely.
ViseclampswitchThisswitchassuresfirmclampingoftheworkpiece.If
theworkpieceisnotclampedproperly,thesaw
bladeisnotallowedtorun.
Wheelcoverinterlockswitches
(CEmodelonly)
Locatedonthetwowheelhousings,theseswitches
areusedtoassurethatthemachinewillstop
wheneverthewheelcoversareopen.Thisdeviceis
toprotectusersfrombeingcutbytherunningsaw
blades.

Amongallthesesafetyswitches,someofthemareusedtoprotecttheusersandsomeofthemare
usedtopreventdamagetosawblades,theworkpieceandthemachineitself,etc.Wehavetaken
everyprecautiontopreventinjuryordamageandtoprovidesafeandeconomicaloperationofthe
machine.


EMERGENCYSTOP
Designedtobeeasilyaccessible,theemergencystopbuttonislocatedontheleftbottomcorneron
thecontrolpanelandismadeinredcolorandrubbermaterial.ForCEmodels,supplementary
emergencystopbuttonmaybeavailableatotherarea(s)ofthemachinedependingonmachinetype.
PleaserefertoIllustration:EmergencyStop.
Whenyoupressthebutton,themachinewillimmediatelycometoafullstoptoavoidinjuryor
damagewhenanaccidentoccurs.Thebuttonwillbelockedwhenyoupressit.Tounlockit,pullit
upward.
Youshouldpressitimmediatelywithoutanyhesitationwhenobserving:
Anemergencysituationthatwouldcauseanyinjuryordamage
Anabnormalsituationorproblemsuchasfire,smoke,abnormalnoiseandetc.

1‐5
Illustration:EmergencyStop








EmergencyStopButton

1‐6
SAFETYLABELS
Pleasereadthroughandunderstandthesesafetylabelsbeforeoperatingthemachine.Referto
Illustration:SafetyLabels.

LabelMeaningLabelMeaning

ImpactHazard

WEARSAFETYSHOES.Do
notapproachdroppingarea
duringoperation.
ReadOperator’sManual

Thismanualhasimportantsafety
information.Readthroughit
carefullybeforeoperatingthis
machinetopreventpersonalinjury
ormachinedamage.

KeepUnauthorized
PersonnelAway



Donotstep.

Donotstandonthemachineoron
theaccessories!

DANGER:RunningBlade

Bladerunsthroughthis
area.Keepyourhandsaway
fromarunningbladeto
avoidsevereinjury.The
arrowindicatesdirectionof
theblade.

CuttingHazard

KEEPCOVERCLOSED/KEEPHAND
OFFwhilethebladeisrunning.
Turnpoweroffbeforeopening
cover.Failuretofollowthewarning
canresultinsevereinjury.

HazardousVoltage

TURNPOWEROFFbefore
servicing.Failureto
followingthewarningcan
resultinsevereinjury.

BurnHazard/HotSurface

HandCrush/Forcefrom
Above

Crushhazardbyvise

LooseHandHazard

KEEPHANDOFF.Donot
touchchipconveyor.Failure
tofollowthewarningcan
resultinsevereinjury.

PinchPoint/HandEntanglement




1‐7
Illustration:SafetyLabels





1‐8
HEARINGPROTECTION
Alwaysuseearprotection!
Whenyourmachineisrunning,noisegeneratedbythemachinemaycomefromthefollowing:
Sawbladeduringcuttingormaterialfeedmechanism
Wirebrushunit
Chipconveyorunit
Speedreducer
Hydraulicmotor/pump
Belttransmissionsvariablespeedmotors
Blademotor
Coolantpump
Drivewheel
Partsnotassembledtightlycausingmechanicalvibration

Ourproductspassnoisetestinglessthan78dBA.Noiselevelvaryaccordingtoworkingconditions
andwerecommendearplugsorotherhearingprotectionatalltime.Ifyourmachineproducesan
undesirablenoisewhileitisrunning,youshould:
1. Makesureallmaintenancetaskshavebeenperformedfollowingtheprescribedmaintenance
schedule(RefertoSection8).
2. Ifmaintenancedoesnotseemtosolvetheproblem,followthetroubleshootingprocedures
underSection9.


CECOMPLIANCE
Cosen’sCEmodelisdesignedtosatisfyregulationsoftheCouncilDirectiveontheapproximationof
thelawsoftheMemberStatesrelatingtomachinery(2006/42/EC)‐AnnexIEssentialhealthand
safetyrequirementsrelatingtothedesignandconstructionofmachinery.


RISKASSESSMENT
Riskassessmentgenerallytakesaccountofintendeduseandforeseeablemisuse,includingprocess
controlandmaintenancerequirements.Wemadeeveryefforttoavoidanypersonalinjuryor
equipmentdamageduringthemachinedesignstage.However,theoperator(orotherpeople)still
needstotakeprecautionswhenhandlinganypartofthemachinethatisunfamiliarandanywhereon
themachinethathaspotentialhazards(e.g.theelectricalcontrolbox).




2‐1
Section2
GENERAL
INFORMATION

SPECIFICATION
MACHINEPARTSIDENTIFICATION
FLOORPLAN


ThisbandsawmachineisdesignedbyCosen’sR&Dengineerstoprovideyouthefollowingfeatures
andadvantages:
Safety
Thismachineisdesignedtofullyprotecttheoperatorfromitsmovingpartsduringcutting
operation.
Themachineandeachcompomenthaspassedstricttesting(CouncilDirectiveonthe
approximationofthelawsoftheMemberStatesrelatingtoMachinery).
Themachinewillshutoffautomaticallywhenthesawbladeisbroken,protectingboththe
operatorandthemachine.
Convenience&High‐Performance
Themachineisdesignedinthewaythattheoperationandadjustmentcanbeeasily
performed.
Themachinewillstopautomaticallywhenoutofstock.
Dualvalvesystemisdesignedtoachieveoptimalcuttingperformancewiththesimple
settingoffeedrateandperspectivecuttingpressurefordifferentmaterial.
Durability
Theintendedlife‐spanofthemachineiscountedbasedonregulardailyoperation.Itis
calculatedwiththelifeexpectancyof10yearsundernormaloperatingconditionandexact
attentiontothemaintenanceschedule.
8hours×5days×52weeks×10years＝20,800hours



2‐2
SPECIFICATION
ModelSH‐3026L 
Semi‐AutomaticHorizontalBandsaw
Capacity
Round 260 mm(10.2 in)
Square260 mm(10.2 in)
Rectangular(HxW)260 x300mm(10.2 x11.8 in)
BundleCutting W:190~300mm (7.5 ~11.8in)
H:70~140mm(2.8~5.5in)
SawBlade
Speed15~80m/min(49~262
f
pm)
Size4,100 x34x1.1mm(161 x1.3x0.04 in)
TensionHydraulicwithautomaticbladebreakagedetection
GuideInterchangeabletungstencarbide
CleaningSteelwirebrushwithflexibledriveshaftdrivenbymainmotor
Motor
Output
SawBlade5HP(3.75kW)
Hydraulic1HP(0.75kW)
CoolantPump1/8HP(0.1kW)
Tank
Capacity
Hydraulic25 L(6.6 gal)
Coolant40 L(10.57 gal)
WorkbedHeight790 mm(31.1 in)
NetWeight  1,130 kg(2,500lb)
FloorSpace(WxDxH)2,000x1,210 x1,565 mm(78 x47 x61 in)
Operating
Environment
Temperature5~40
˚
C(41~104
˚
F)
Humidity30%~95% (withoutcondensation)


2‐3
MACHINEPARTSIDENTIFICATION





















Drivewheel
Guidearm
Idlewheel
Electrical
compartment
Wirebrush
Control
panel
Pulleycover

2‐4
FLOORPLAN

Machinetopview

Machinefrontview
