COVANA Evolution User manual

INSTALLATION MANUAL TABLE OF CONTENTS 1
Revision 3
2019/02/18
C.A. 213631

2 TABLE OF CONTENTS USER MANUAL
TABLE OF CONTENTS
TABLE OF CONTENTS.............................................................................................................................................2
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW COVANA COVER..................................................3
SAFETY......................................................................................................................................................................4
Safety information...................................................................................................................................................4
Avoiding the risk of electrocution............................................................................................................................5
LABELING .................................................................................................................................................................7
GLOSSARY..............................................................................................................................................................10
QUICK START-UP INSTRUCTIONS.......................................................................................................................12
Manual lifting procedure .......................................................................................................................................13
USING THE ESCAPE HATCH.................................................................................................................................14
WINTERIZING THE EVOLUTION COVER..............................................................................................................15
PERIODIC MAINTENANCE TABLE........................................................................................................................16
TECHNICAL SPECIFICATIONS..............................................................................................................................17

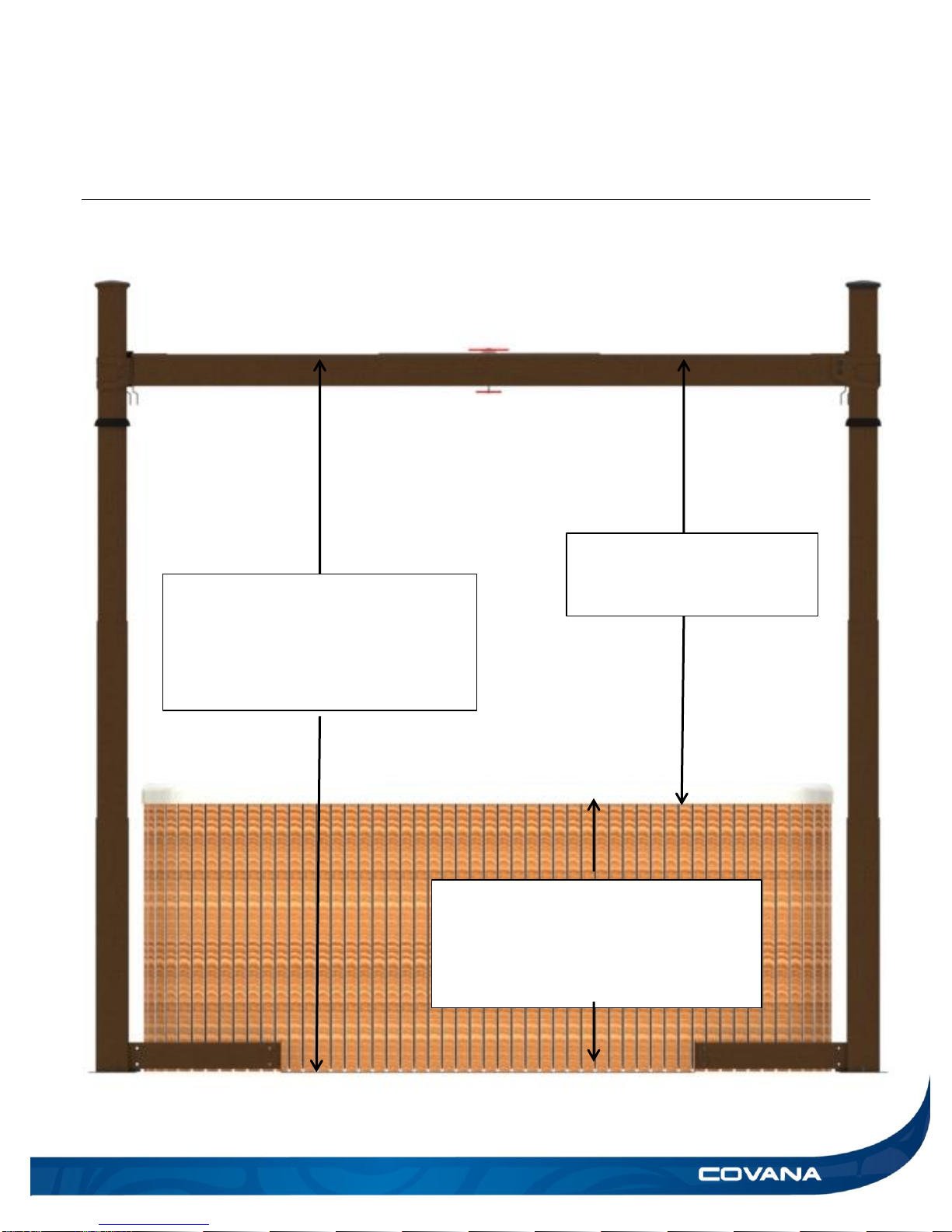

Side elevation dimensions....................................................................................................................................17

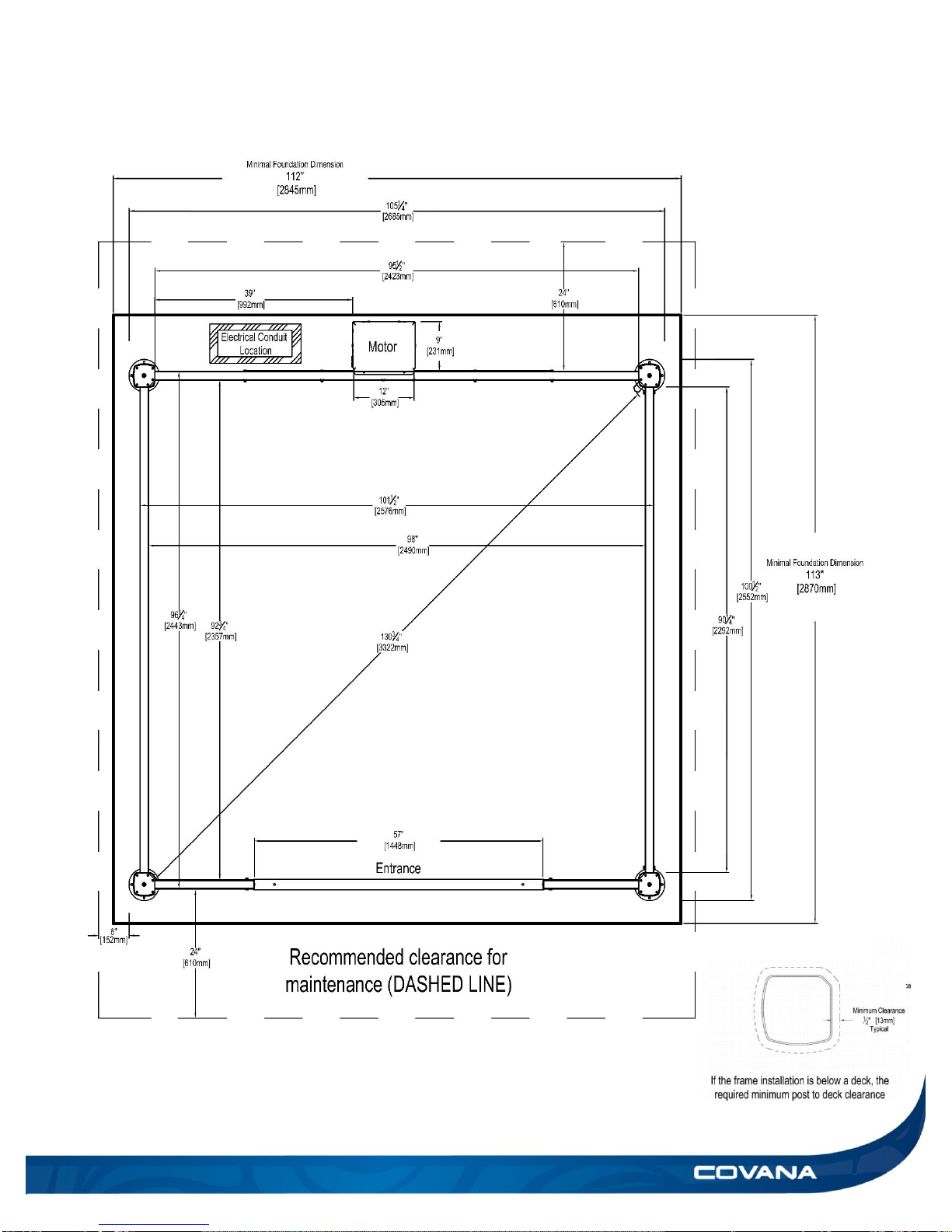

Frame dimensions and foot print..........................................................................................................................18
Electrical specifications.........................................................................................................................................20
Operating limitations.............................................................................................................................................20
General specifications ..........................................................................................................................................20
TROUBLESHOOTING.............................................................................................................................................21
WARRANTY....................................................................................................................... Erreur ! Signet non défini.
APPENDIX ...............................................................................................................................................................26
Washing the Evolution cover................................................................................................................................27
Post greasing procedure.......................................................................................................................................28
Chain lubrification procedure................................................................................................................................30

USER MANUAL CONGRATULATIONS 3
CONGRATULATIONS ON THE PURCHASE
OF YOUR NEW COVANA COVER
On behalf of Covana, we thank you for choosing our product. Pride, attention to detail and excellent engineering
have resulted in the Covana cover you have chosen. With proper care and attention, your Covana cover will last
many years and offer great performance.
Although our products are constructed to last, we strongly recommend that you register your Covana at the time of
purchase to ensure an adequate follow-up process.
In fact, registering your Covana allows us to quickly reach you in the unlikely event a safety notice was ever to be
issued. Your product and safety are a top priority for us at Covana.
You will receive prompt warranty service in the rare event of a technical issue if you have registered your product
by filling out the registration form. Keep in mind the warranty service can only be provided with your bill of sale as
proof of purchase and the work must be provided by a certified technician. If you were to ever experience an
unfortunate occurrence, your product registration will allow us to access necessary information in a timely manner.
Start to experience the benefits of registering your Covana at www.covana.com/warranty.html.
Please take a few minutes to read all the instructions before you use your new Covana cover. This user manual will
help you understand the fundamentals of your cover so you will get the most from your Covana cover for many
years.
For service and advice, do not hesitate to call your Covana local authorized dealer.

4 SAFETY USER MANUAL
SAFETY
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE SAFETY INSTRUCTIONS AND
REVIEW THEM REGULARLY.
READ AND FOLLOW ALL INSTRUCTIONS
Safety information
The Covana cover was designed, tested and certified
to be installed over a swim spa and under important
installation instructions issued by Covana. Any other
type of usage will void the warranty and product
certification.
The extra load maximum weight provided in the
specification section of this manual is a provision for
environmental outcomes, such as a small amount of
leftover snow or damp leaves that temporarily
accumulate on the cover and evenly distributed on the
surface of the cover.
The Covana cover was not designed to support any
additional load or people walking or standing on its lid.
Failure to observe this instruction will void the cover’s
warranty and nullify its certification.
The power safety cover meets ASTM F1346-91
requirements.
DANGER
To reduce the risk of injury, do not allow
children to use this product unless they are
supervised at all times.
Failure to follow all the instructions may result
in injury or even death.
Do not allow people to climb or walk on the
cover at anytime.
Do not allow children to have access to the
Covana cover without supervision.
Inspect the cover periodically. It should raise
smoothly and evenly. Contact your Covana
dealer if any unusual sound is heard during
use.
Never operate the Covana cover until all
people and objects are out of the spa.
WARNING
Be sure to keep the key switch and the key
out of the reach of children.
Do not put any type of fabric or plastic sheet,
such as a tarpaulin, on the Covana cover.
This could overheat the cover and result in
the deformation or delamination of the cover.
Inspect the cover periodically. It should raise
smoothly and evenly. Contact your Covana
dealer if any unusual mechanical sound is
heard during use.
Never use any type of pressure washer or
buffer to clean any surface of the Covana
cover. This could result in premature wear or
damage.
DO
Remove the control key after operating the
Covana cover. Store the key in a secure
location when not in use. Users must bring
the control key in the swim spa with them to
prevent the unauthorized operation of the
cover.
Never leave the key in the key switch.
Check the cover frequently for signs of
deterioration.
Have any repairs, adjustments or mechanical
work performed by your certified Covana
dealer as soon as possible when you notice
a malfunction.
Close the cover when it is not in use or if the
swim spa is not being monitored.
Covana cover should only be operated by an
adult.
Covana cover is not to be used by persons
(including children) with reduced physical, sensory
or mental capacities, or lack of experience and
knowledge, unless they have been given
supervision or instruction.

USER MANUAL SAFETY 5
DO NOT
Operate the unit before all mechanical and
electrical connections have been made.
Step on or stack anything on the Covana
operator cover.
Operate the Covana cover while somebody is
in the hot tub.
Climb, walk or stand on the Covana cover at
any time.
Leave the Covana cover open for more than
12 hours. This could cause the cover to warp
overtime.
Converge or directly reflect sunlight on the
cover. This could cause permanent damage.
Wash the cover with harsh chemicals or
cleaners.
Use a pressure washer to clean any
component of the Covana cover. This could
result in premature wear or damage.
Use an extension cord to connect the Covana
cover to its power source. The cord may not
be properly grounded and the connection is a
shock hazard. An extension cord may cause
a voltage drop, which would cause the motor
to overheat.
CAUTION
Be sure to follow all instructions in this
manual and use only accessories and tools
approved by Covana.
Do not roll the Covana cover onto its side or
slide it on its side. This will damage the siding.
After removing a part, always place it in a safe
place on a clean and level surface to ensure
proper functionality.
All four jacks of the Covana cover must be
properly anchored to the foundation using the
anchoring holes located at the foot of each
jack. The optional non-permanent mounting
plates can be used when anchoring is not
possible, but under strict condition. See Non-
permanent mounting plates installation
section on Installation Manual for further
details.
This product mainly contains steel, plastic,
fiberglass, foam, copper (Cu) and die-cast
aluminum (Al). The gearbox contains oil and
other materials. Please recycle them
properly.
Avoiding the risk of electrocution
ELECTRICAL DANGER
Failure to comply with these instructions may
result in death by electrocution or serious
injury. Disconnect or turn off and secure all
power supplies before starting any
intervention on the Covana cover.
Always have a licensed electrical contractor
perform any electrical maintenance or repairs
on the Covana cover. The wiring must comply
with all applicable local electrical codes and
regulations.
The Covana operator must be connected to a
circuit that is protected by a dedicated ground
fault circuit interrupter (GFCI) that complies
with all applicable local electrical codes and
regulations.
Install the Covana cover in such a way that
drainage directs water away from the
electrical and base mechanical components.
Do not connect any auxiliary components to
the electrical system of the Covana cover
unless they have been approved by Covana.
Replace electrical components with original
components provided or approved by
Covana. Ask your dealer for replacement
parts.
To reduce the risk of electrical shock, replace
a damaged cord immediately. Failure to do so
may result in death or serious personal injury
due to electrocution.
Do not bury the power cords. A buried power
cord may result in death, or serious personal
injury due to electrocution if direct burial-type
cable is not used, or if improper digging
occurs.
WARNING REGARDING DRUG OR
ALCOHOL USE
The use of drugs or alcohol while operating
the Covana cover is strictly prohibited. The
impairment of judgment, vision or hearing
might affect the safety of other people or
result in death.

6 SAFETY USER MANUAL

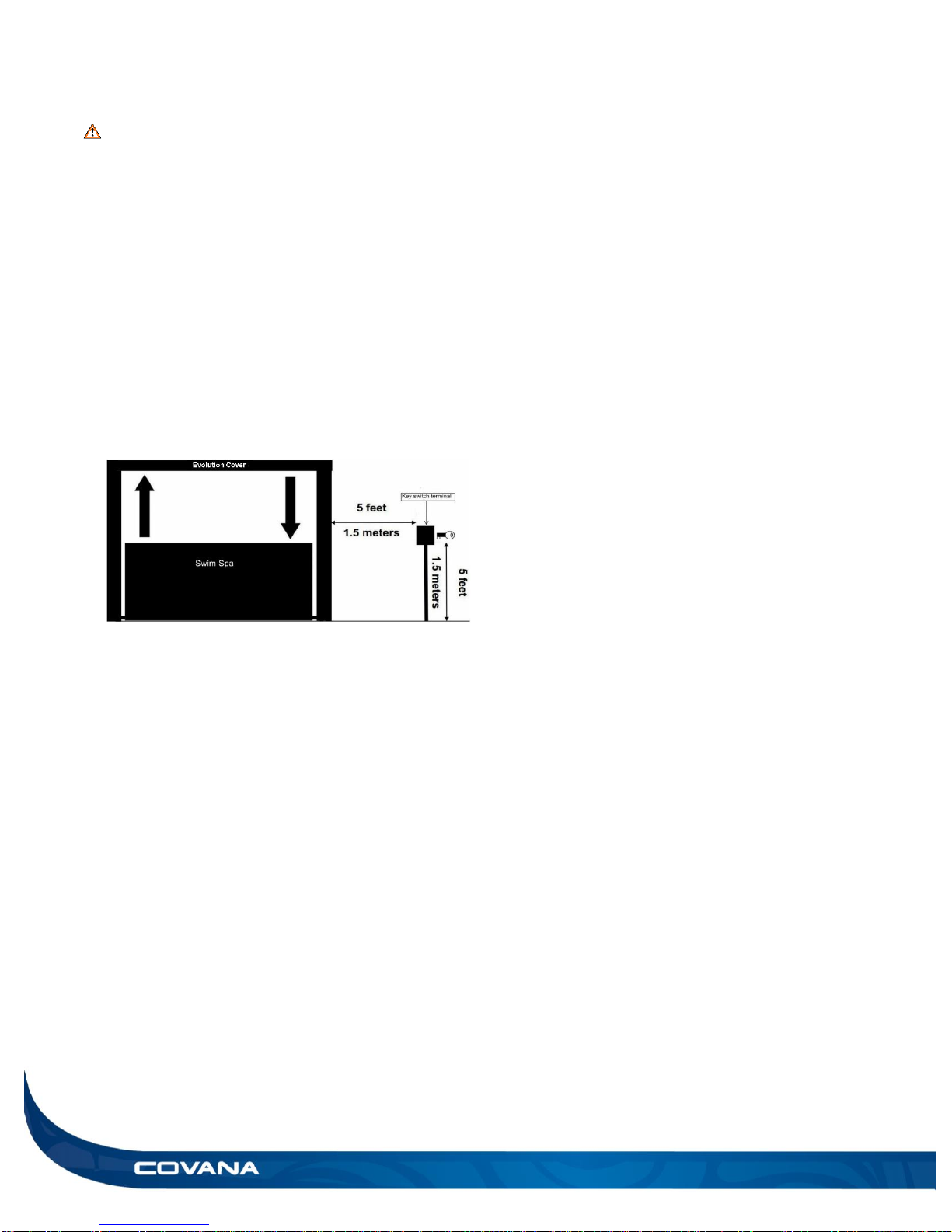

Figure 1
WARNING REGARDING
MODIFICATIONS TO THE COVANA
COVER
Any modifications to the Covana cover, such
as mechanical, electrical or aesthetic
modifications, may cause the cover to
operate in an unwanted or dangerous way.
Furthermore, these modifications are not
permitted and might void the warranty and
certification.
The Covana cover has been designed, tested
and certified for the only purpose of covering
and securing a spa. Any installation that
differs partly or entirely from this purpose
will void the warranty and certification.

USER MANUAL LABELING 7
LABELING
WARNING
Removing any labels from the Covana cover will void product certification. All labels should always remain visible.
It is the owners’ responsibility to ensure these labels are always visible and should never be removed.
Risk of electrocution warning, located on the
operator unit.
Specification label, located on the operator.
(European model)
Note: This label provides the serial number.
Key operating diagram, located on the key
switch.
Specification label, located on the operator unit.
(North American model)
Note: This label provides the serial number.

8 LABELING USER MANUAL
Key switch warning, located on the key switch.
Electrical information, located on the key switch cable.
Do not step symbol, located on top of the operator unit.

USER MANUAL LABELING 9

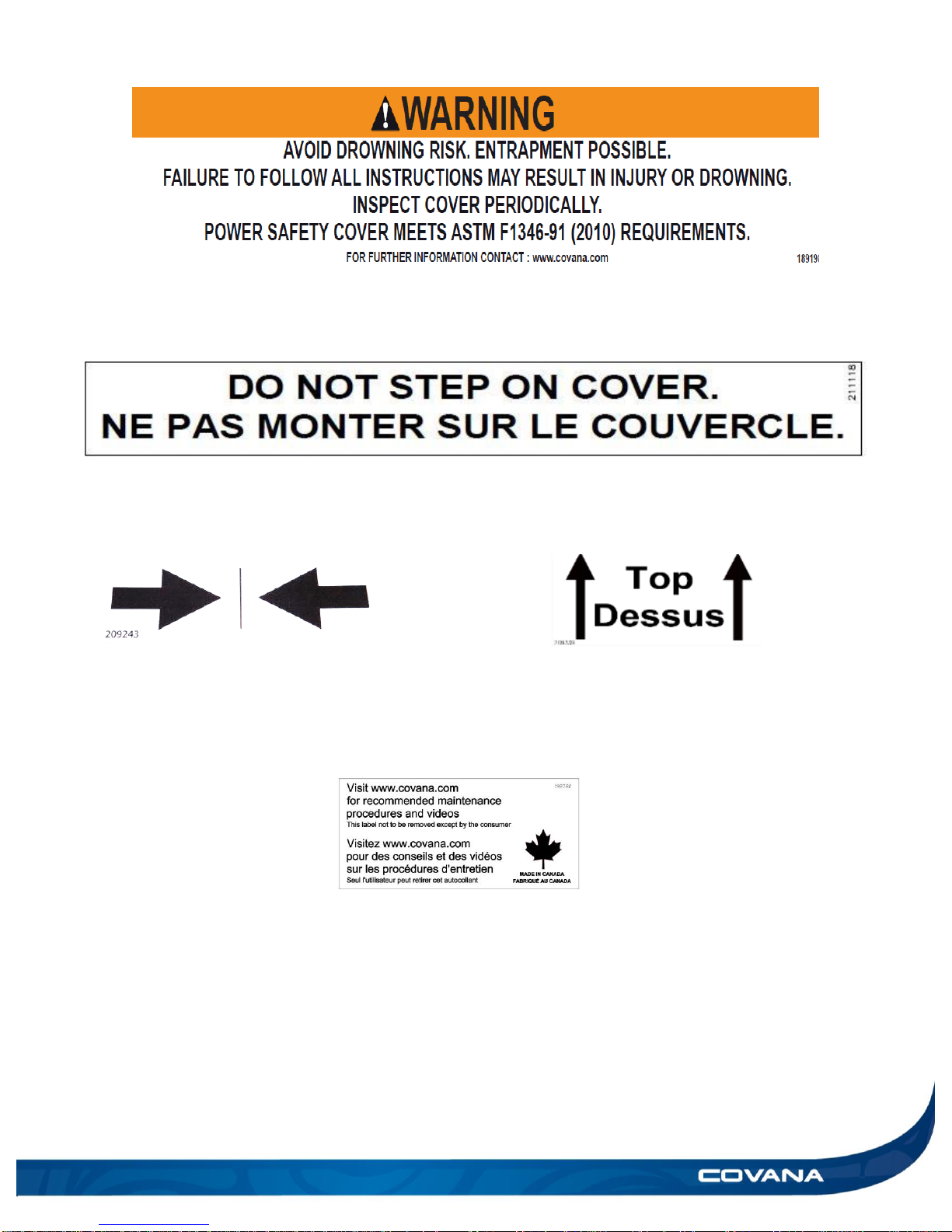

Do not step on cover label, located of end C-Channels of the Covana cover
Drowning risk warning, found on the inside of the Covana cover.
Centre label, located on 94 9/16in (240 cm) C-Channel
(remove after installation)
Top label, located on I-Beams and Escape hatch opening
(Hidden when assembled)
Maintenance information, located
on one of the C-Channels.

10 GLOSSARY USER MANUAL
GLOSSARY

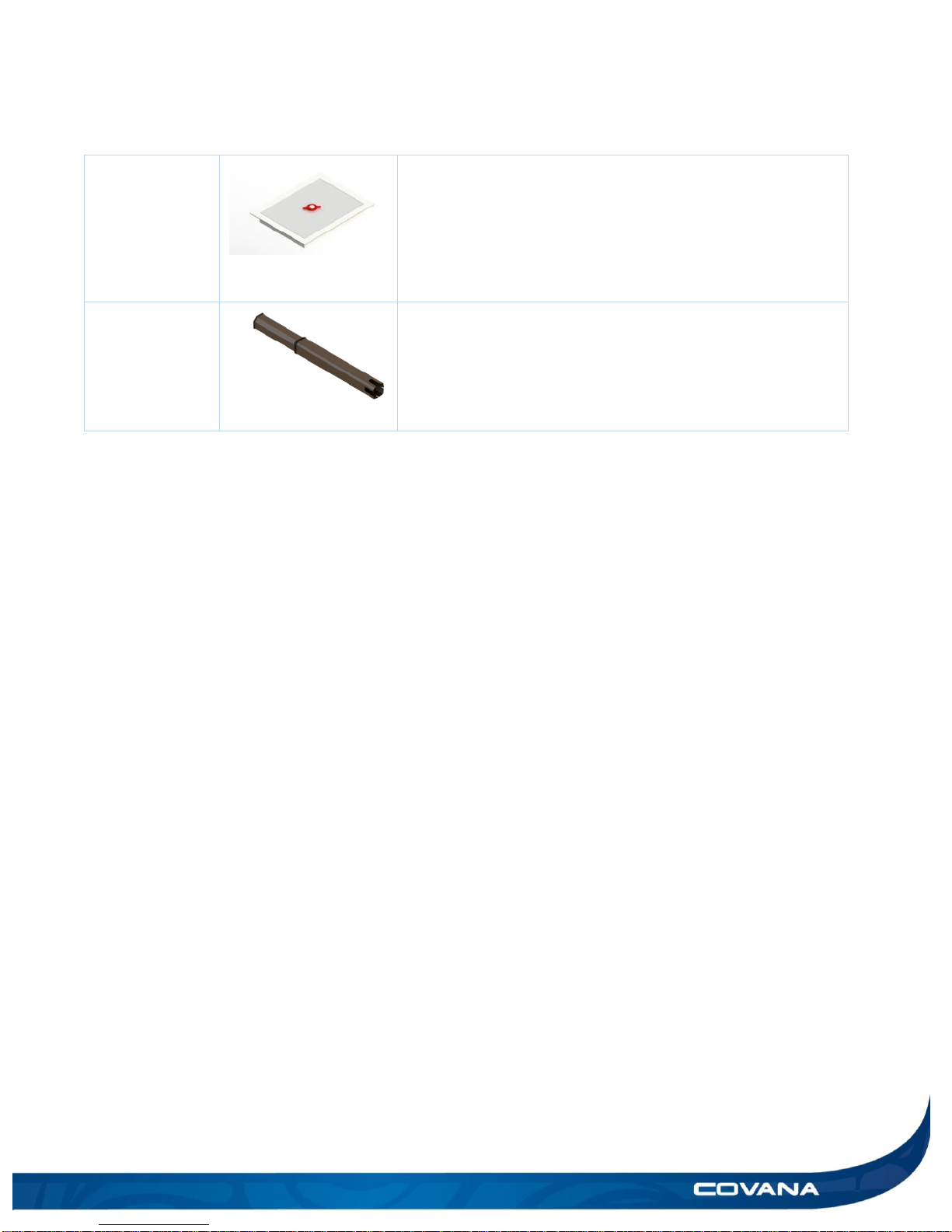

Part
Figure
Function
All-weather seal
The all-weather seal will help to protect sleeves from damage
due to weather.
Corner bracket
The corner bracket is the piece that links the cover to the
sleeves.
Operator
The operator powers and controls the lifting mechanism of the
Covana cover.
Contour seal
The contour seal ensures uniform contact between the cover
and the hot tub.
Front frame cut-
out
The front frame cut-out gets installed under the front step of your
hot tub. It links the two non-motor-side jacks.
Key switch
The key switch is used to operate the Covana cover.
Figure 6
Figure 7
Figure 2
Figure 3
Figure 4
Figure 5

USER MANUAL GLOSSARY 11
Escape hatch
The escape hatch is a removable panel part of the cover.
Sleeve
The sleeve is an aluminum case for the lifting mechanism.
Figure 8
Figure 9

12 QUICK START-UP INSTRUCTIONS USER MANUAL
QUICK START-UP
INSTRUCTIONS
Ensure your Covana cover has been properly
installed by a certified Covana installer, this includes
the location of the cover (Location considerations
section of installation manual), the foundation of the
cover (Foundation preparation section of installation
manual)as well as the electrical installation of the
cover (Electrical hook-up section of installation
manual).
Please read carefully the Safety section of this
manual before operating the Covana cover.
1) Ensure all debris and snow are removed from the
top of the Covana cover before operating.
2) Ensure there is nobody in the spa or near the spa,
when raising or lowing the cover.
3) Ensure there is no obstruction over or around the
Covana cover.
4) The key must be held in the proper position until
fully opened or closed.
5) The Covana cover will automatically stop in both
the fully opened and fully closed position.
6) Turn the key clockwise to raise the cover.
7) Turn the key counterclockwise to lower the cover.
8) The key will automatically return to center/off
position when released.
9) Remove key when finished operating the Covana
cover. Store key in a secure place.
WARNING
Users must bring the control key in the hot tub
with them to prevent any unauthorized
operation of the cover
10) Place the rubber cap back on key switch after
each use.
Important: Keep the cover fully closed when it is not
used.

USER MANUAL MANUAL LIFTING PROCEDURE 13
Manual lifting procedure
ELECTRICAL WARNING
Disconnect or turn off and secure all power
supplies before starting any intervention on
the Covana cover.
1) Disconnect or turn off and secure the power
supply.
2) Remove the four screws at the bottom of the
operator cover and take the cover off. (Figure
10)
3) Use ½ in. (13 mm) hexagonal socket wrench to
raise or lower the Covana cover by turning the
operator’s input shaft. (Figure 11)
4) Slowly turn the shaft. Stop immediately if higher
tension is felt.
WARNING
Never use a power tool, as this will damage
the unit.
5) Turn the input shaft clockwise to lower the roof
and counter clockwise to raise the roof.
WARNING
Do not exceed the limits of the mechanism.
Failure to respect this guideline could cause
mechanical failure.
6) Reinstall the operator cover with the four
screws. (Figure 10Erreur ! Source du renvoi i
ntrouvable.)
7) Reconnect and turn on the power supply.
Figure 11
Figure 10

14 USING THE ESCAPE HATCH USER MANUAL
Figure 12
USING THE
ESCAPE HATCH
From below
1) Turn the red handle by a quarter turn in either
direction to retract the arms. (Figure 13)
2) Push straight up on the escape hatch and place
to the side.
3) Escape via the hole and call for assistance, if
required.
From above
1) Do not at any point put your weight on the escape
hatch as it may hinder the person trapped below.
2) Use the Covana key inside the slot located in the
white centre part of the handle. (Figure 12)
3) Turn the handle until the key falls down.
4) Continue to turn handle one quarter turn in either
direction.
5) Lift the escape hatch straight up by gripping its
sides and place it to the side. (Figure 14)
6) Assist the person trapped below in by helping
them out of the swim spa via the hole.
Figure 14
Figure 13

USER MANUAL WINTERIZING THE EVOLUTION COVER 15
WINTERIZING THE EVOLUTION COVER
If you plan on winterizing your hot tub during the cold season, Covana recommends winterizing the Covana
cover as well. This process prevents any potential aesthetic damage done to your Covana cover during
winter as well as minimizing the risk of freezing water damage to the tub. Ensure to follow these
instructions:
WARNING
These instructions are relevant for anyone who plans to stop using the hot tub for a long period of time
or especially if the temperature goes below 32°F (0°C).
0) Clean the Covana cover completely to remove any dust, greasy residue or any other foreign contaminants
from all surfaces.
1) Prepare the hot tub for closure by following the spa manufacturer's winterization instructions.
2) Completely close the Covana cover on the spa. Ensure the seal touches the whole perimeter of hot tub.
3) Ensure escape hatch is properly seated on the cover and is closed.
4) Remove the power from the Covana cover.
a. This can be done by either shutting off and securing the circuit breaker powering the Covana
cover;
5) Put a tarp or water-tight protection sheet over the Covana cover. Ensure not to infringe any of the hot tub
manufacturers’ guidelines during this step.
- For AC operated model: Also, put a tarp or water-tight protection sheet over the operator unit.
WARNING
Putting any type of fabric or plastic like a tarpaulin during hot weather could damage the Covana cover.
Only use such protection for the winterization procedure and during cold season.
Remove any type of cover or plastic tarpaulin as soon as seasonal temperature are higher than freezing
temperature (32°F or 0°C).
6) For areas with a large seasonal snowfall, remove excessive snow accumulation regularly or after a heavy
snowfall to avoid damage to the Covana cover structure. Do not let the snow accumulate for more than 12 in.
(30cm) on the Covana Cover.

16 PERIODIC MAINTENANCE TABLE USER MANUAL
PERIODIC MAINTENANCE TABLE
Your Covana Cover has been designed to provide years of trouble-free enjoyment. As with any appliance, problems
may occasionally occur that require the expertise of a certified Covana service technician. Before calling for service,
please refer to the Troubleshooting section. Always retain your original sales receipt for future reference.
Tasks
Frequency
Each Use
Weekly
3 months
Yearly
As needed
Perform a visual inspection
(debris, snow, ice, etc.)
x
Check that the sleeves are
correctly positioned. (Middle
sleeves are not out of place)
x
Verify all-weather seal are
correctly positioned (in
contact with the outer sleeves
when the cover is closed)
x
Listen for out of ordinary
sounds during operation.
x
Verify the seal around the
Covana cover. (no vapour
leakage)
x
Verify the lifting mechanism
by raising and lowering the
Covana cover.
x
Verify the anchoring of the
Covana cover.
x
Test the GFCI.
x
Verify the chain tension near
the operator and the chain
tensioner. *
x
Lubricate the chain on the
operator side and posts. *
x
Grease the jack assemblies. *
x
Wash the cover with a mild
detergent (i.e. dishwashing
detergent) and water. Rinse
well using only water.
x
*Contact your local dealer
Please call your Covana dealer for any mechanical, electrical or aesthetic maintenance.

USER MANUAL TECHNICAL SPECIFICATIONS 17
TECHNICAL SPECIFICATIONS
Side elevation dimensions
The maximum raised height depends on
the height of the hot tub. Add the hot tub
height to distance the Covana cover
travels to determine the maximum height.
Example :
Hot tub height + Covana travel
(52 in. or 132 cm) = Total height
The maximum distance the
Covana cover travels is 52 in.
(132 cm).
The hot tub must fit within these height
specifications:
Min: 34 in. (86 cm)
Max: 48 in. (122 cm)
Figure 15

18 TECHNICAL SPECIFICATIONS USER MANUAL
Table 1: Dimensions in accordance to cover length
Frame dimensions and foot print
Cover length
(A)
(B)
(C)
(D)
(E)
(F)
8’
118’’ (2997 mm)
105¾’’ (2685 mm)
95¼'' (2422 mm)
101½'' (2576 mm)
98'' (2490 mm)
131¼'' (3334 mm)
9’
130½’’ (3315 mm)
118¼’’ (3004 mm)
107½’’ (2731 mm)
114’’ (2896 mm)
110½’’ (2807 mm)
140½'' (3569 mm)
10’
142½’’ (3620 mm)
130¼’’ (3308 mm)
119½’’ (3035 mm)
126’’ (3200 mm)
122½’’ (3112 mm)
150'' (3810 mm)
11’
154½’’ (3924 mm)
142¼’’ (3613 mm)
131½’’ (3340 mm)
138’’ (3505 mm)
134½’’ (3416 mm)
159¾'' (4058 mm)
Figure 16
**NOT TO SCALE**
Standard model
(A)
(B)
(C)
(D)
(E)
(F)

USER MANUAL TECHNICAL SPECIFICATIONS 19
Figure 17
**NOT TO SCALE**
Long side (LS) model (8 feet only)

20 TECHNICAL SPECIFICATIONS USER MANUAL
Electrical specifications
The cover requires a dedicated single-phase 115 VAC (North America) or 220 VAC (Europe) hard-wired
power supply.
The cover must be installed in accordance with and comply with all applicable local codes and regulations.
All wiring and connections should be performed by a qualified electrician.
Wires and conduits should be sized according to local codes and regulations.
North American requirements:
Voltage
115 V, 60 Hz (1 hot, 1 neutral, 1 ground)
GFCI
15 A single-pole GFCI (not included)
Current draw
Max 12 A
European requirements:
Voltage
220 V, 50 Hz (1 hot, 1 neutral, 1 ground)
GFCI
10 A single-pole GFCI (not included)
Current draw
Max 6 A
WARNING
Covana does not allow any modifications of the electrical system. Covana reserves the right to void the
warranty if any modifications were done without the specific approval from Covana.
Operating limitations
WARNING
The Covana cover should never be used if the following conditions are reached.
Maximum wind
Gusts of 30 mph (50 km/h) while in the raised position
and 45 mph (70 km/h) when completely lowered on the
hot tub.
Maximum weight on the cover (evenly distributed)
200 lb. (90 kg)
General specifications
Lifting speed
2.5 in./s (6 cm/s)
Total weight
Up to 600 lb. (272 kg)
Length key switch cable
25 ft. (7.6 m)
