Covid THB-200 User manual
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 1
Table or Contents
Introduction .................................................................. 2
Features .................................................................... 2
Package ..................................................................... 2
Specifications ................................................................. 3
Operation Controls & Functions ..................................................... 4
Descriptions .................................................................5-6
Preparing RS232 Cable .........................................................7-8
Application Example ............................................................ 9
Warranty ................................................................... 10
Safety Information ............................................................. 10
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 2
Introduction
This HDBaseT transmitter can extend HDMI over a single CAT5e/6/6A cable. This product offers Bi-direc-
tional IR, RS-232 and Bi-directional PoC making any professional A/V set-up more efficient and easy to use.
Uncompressed video and audio can be transmitted up to 230ft/70m. This design of HDBaseT™ technology
allows for full usage of HDMI and controls over CAT5e/6/6A cable. This unit can be paired with any Covid
HDBase-T receiver product.
HDBase-T Slim-Line Transmitter - THB-200
Features
•HDMI 1.4b, HDCP 2.2 and 1.4
•Video resolutions up to 4K2K@30Hz
•Audio up to 7.1 channels of High Definition audio pass through (LPCM, Dolby TrueHD, and DTS-HD
Master Audio).
•10bits HDR (High Dynamic Range) pass through
•Supports HDMI High Bit Rate (HBR) audio pass through
•POC (Power Over Cable) functionality is supported, either TX or RX is powered by a 24V@1A power
supply. POC Power consumption is less than 10W.
See the description 1
•Transfer Bidirectional RS-232 control signal together with the HDMI signal.
See the description 2
•Transmission distance: Over CAT6 cable
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
Package Contents
•HDMI Extender Transmitter - 1PC
•24V1A DC Power Supply - 1PC
• Wideband IR Emitter - 1PCS
• Wideband IR Receiver - 1PCS
•Mounting Brackets - 2PCS
•3pin Screw Terminal Plug - 1PCS
•Operation Manual - 1PC
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 3
HDBase-T Slim-Line Transmitter - THB-200
Technical
HDMI Compliance HDMI 1.4b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 297MHz [10.2Gbps]
Video Resolutions up to,4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats
(Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-
HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model - +/- 8kV (air-gap discharge) & +/-4kV (contact discharge)
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 65mm [W] x 115mm [D] x 17mm [H]
Weight 200g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 6W (Max)
Operation Temperature 32 - 104 °F / 0 - 40 °C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Technical Specifications
Connections
Inputs 1x HDMI Type A [19-pin female]
1xDC Power In
1x RS232 [Screw Terminal]
1x IR Receiver
Outputs 1x IR Emitter
1x HDBaseT In [RJ45]
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 4
Operation Controls and Functions
Transmitter
1. POWER: This LED illuminates when the device is connected with power supply.
2. DC 24V: Plug the 24V DC power supply into the unit.
3. HD BaseT OUT: Standard HD BaseT signal output port. Connect HD BaseT receiver with a category cable
following the standard of direct interconnection method.
4. HDMI IN: HDMI input port. This slot is where you connect the HDMI source.
5. IR IN: Channel 2 IR Receiver. Connect with Wideband IR Rx.
6. IR OUT: Channel 1 IR Transmitter. Connect with Wideband IR Tx.
7. RS232: Phoenix jack provide Serial port control signal from receiver or to receiver.
8. Connection Signal Indicator Lamp
*Illuminate: The Transmitter and Receiver are in good connections status.
*Flashing: The Transmitter and Receiver are in poor connections status.
*Dark: The Transmitter and Receiver are not connected.
9. Data Signal Indicator Lamp
*Illuminate: The HDMI signal with HDCP.
*Flashing: The HDMI signal without HDCP.
*Off: No HDMI signal.
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Description 1
POC (Power Over Cable) Application Example
Description 2
Bidirectional Infrared Control Application Example
Page 5
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 6

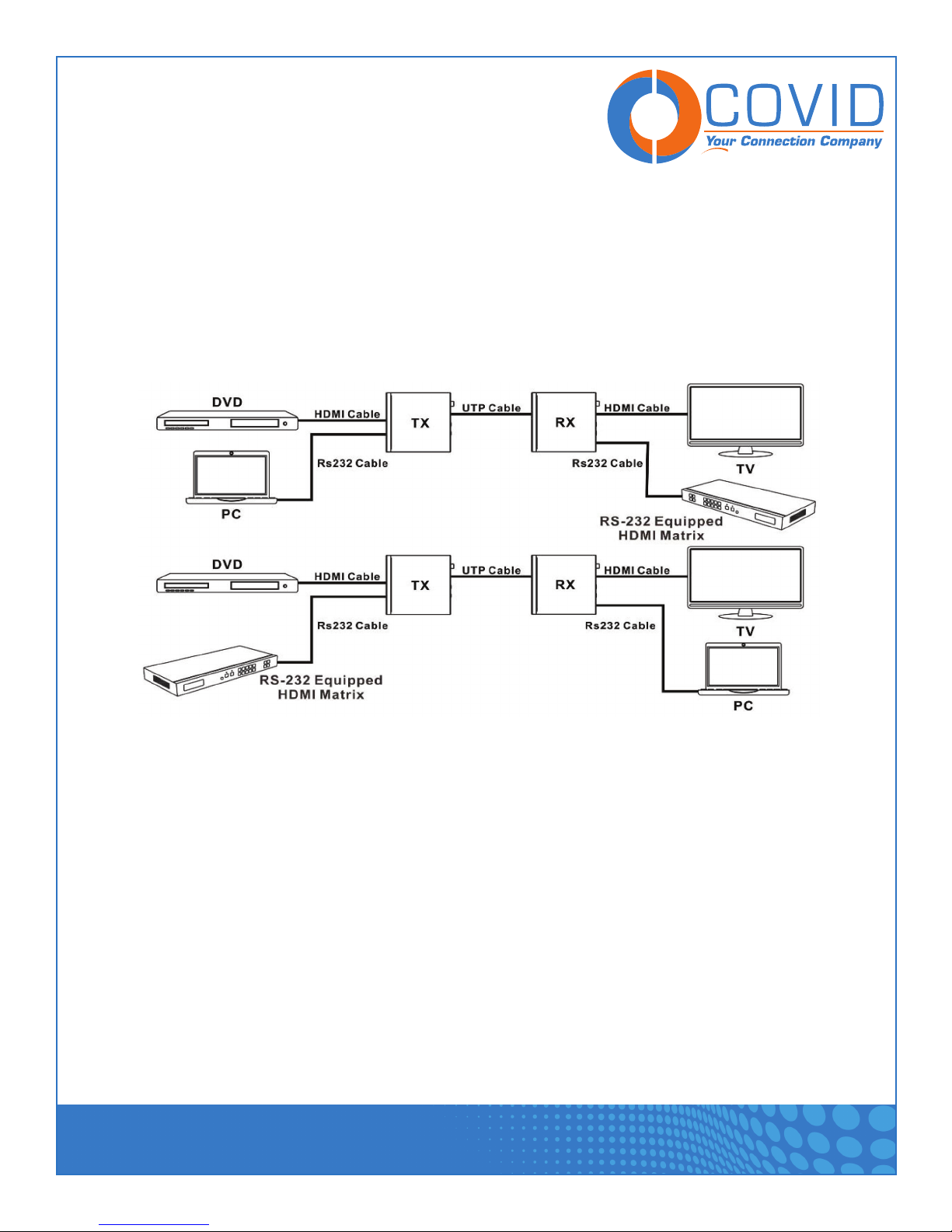

Description 3
Bidirectional RS232 Control Application Example
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 7
If the cable is terminated on both sides, start by cutting off the end that will be used for connecting to the
unit. Then, strip the outer jacket of the cable back by about 1 inch like what is shown in Step 1 below. Once
the outer jacket is removed, you can optionally add heat shrink around the conductors and over the exposed
drain wire like in the picture of step 2. Next, strip the ends of the conductors back about 3/16” in order to
make good contact inside of the captive screw connector. The final step is to attach the captive screw connec-
tor to the end of the cable matching the conductors on the other side of the cable to what is shown in step 3,
use the connectors shown in the following figure as a reference if using DB9 male or female. Test the conduc-
tors with a multimeter to confirm termination.
Preparing RS232 Cable
What you will need:
• A two-conductor cable with ground terminated with DB9 connectors or not
• Wire strippers
• Screwdriver (flat head)
• 3.5mm captive screw connector with 3 positions (included with plate)
• Heat gun and heat shrink (optional)
• Multimeter (optional)
Depending on your setup, you will need an RS232 cable with terminal block on one end to connect to the unit
and either another terminal block or DB9 on the other side. The focus of this section will be on terminating
the terminal block side with the proper pinout because that is what is connected to the unit. The other end
of the cable is dependent on what the unit is connecting too, but all the information in this section will help to
get the proper pinout in any case. As a tip, if connecting to a computer without a serial port, a USB to serial
port converter can be used to communicate with RS232.
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
NOTE:
When using the device for pass-through, keep in mind that the side (either Tx or RX) that is connected to the
device that the commands are getting sent to will require that the Tx and Rx pins get swapped around (serial
null modem wiring). This means pin 2 of the DB9 connector will connect to the Rx pin of the HDBaseT device
and pin 3 of the DB9 connector will connect to the Tx pin of the HDBaseT device.
HDBase-T Slim-Line Transmitter - THB-200
Page 8
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL

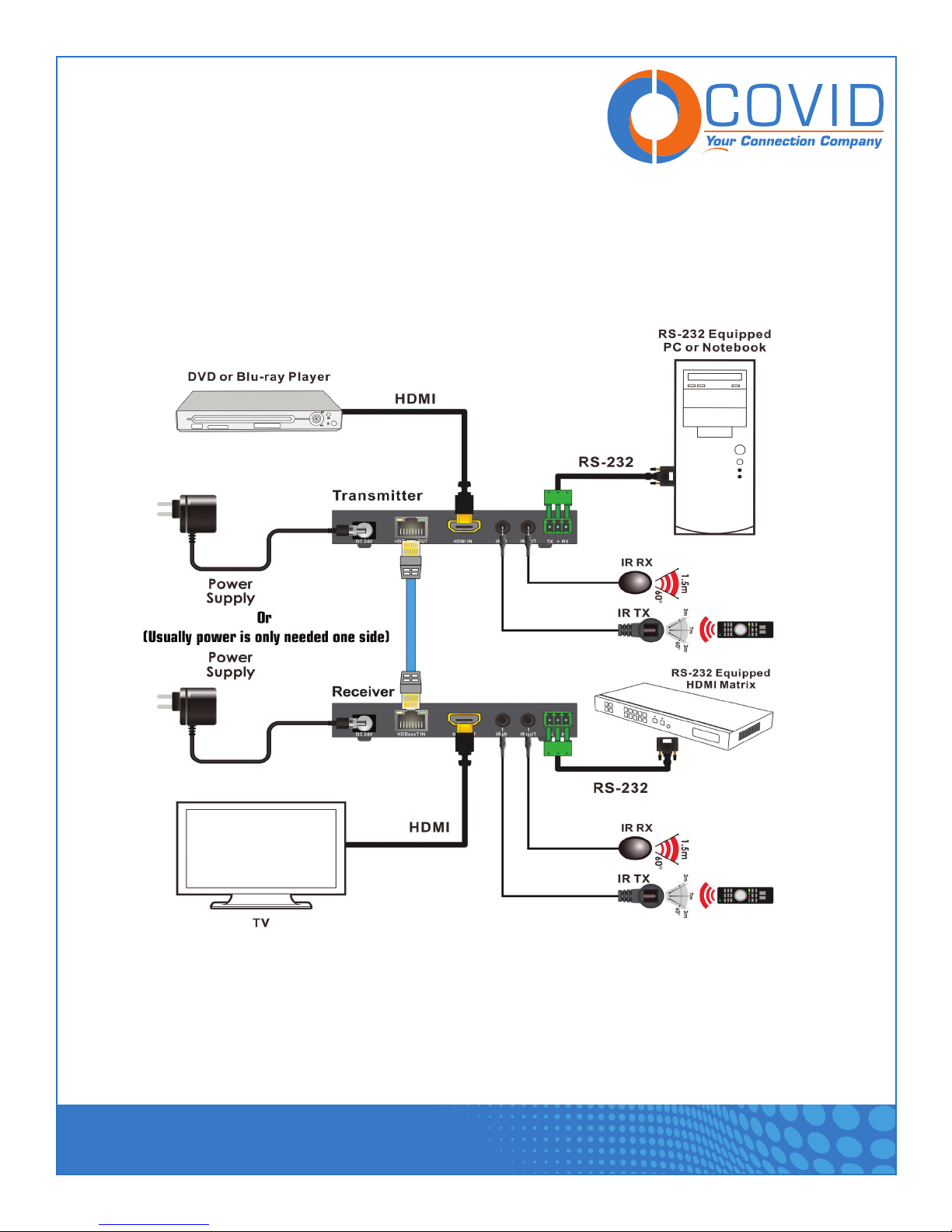

Application Example
Page 9
HDBase-T Slim-Line Transmitter - THB-200
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
Page 10
To reduce the risk of electric shock, do not expose this product to rain or moisture.
Do not modify the wall plug. Doing so will void the warranty and safety features.
If the wall plug does not fit into your local power socket, hire an electrician to replace your
obsolete socket.
This equipment should be installed near the socket outlet and the device should be easily
accessible in the case it requires disconnection.
Safety Information
!
!
!
!
Warranty
Parts and labor warranty time is three year and from the date of original shipment. This warranty shall be
void if a serial number has been removed from the product.
Upon determination of a legitimate defect covered by this warranty and at COVID’s sole discretion, user
should bear the transport cost during the warranty.
If product is out of warranty then repair charge is required. Out of warranty repairs will only be made after
cost has been approved by Customers and proper financial arrangements are made. Customer must cover
round trip shipment expenses.
