Introduction
The THBW-210 combines the high bandwidth of HDMI 2.0 with the far transmission distances of HDBaseT, in
a customizable wall plate design. Utilizing a special HDMI-to-HDbaseT conversion processor, the THBW-210
is capable of transmitting up to 40 meters, 4K60 signals - far exceeding the 10.2Gbs limitation of standard
HDBaseT hardware. In addition, the THBW-210 features RS232 pass-through and Power over Cable (POC) to
match performance with convenience.
Features
• HDMI 2.0b: 18Gbps and HDCP 2.2 compliant
• Up to 4K2K@60Hz(4:4:4)
• Up to 7.1 channels HD audio
• HDBaseT™ over a single CAT 6/6a cable up to 230ft/70m distance
• Two-way IR and RS-232
• PWR/LINK/HDCP indicators
• POC (Power Over Cable) function is supported, either TX or RX is powered by 24V1A power supply, and the
other does not need a separate supply. POC Power consumption is less than 10W.
• Transfer Bidirectional Infrared control signal together with the HDMI signal.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.
Package Contents
• THBW-210 - 1PC
• User Manual - 1PC
• Phoenix connector (2 holes) - 1PC
• Phoenix connector (3 holes) - 2PC
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 3
Technical Specifications
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 1.4 and HDCP 2.2
Video Bandwidth 18 Gbps
Video Resolution up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and
1080P 3D@60Hz
Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection Human body model—±8kV (Air-gap discharge) &±4kV
(Contact discharge)
Connectors
Transmitter Inputs: 1x HDMI Type A [19-pin female]
1x IR INPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Outputs: 1x HDBaseT Out [RJ45]
1x IR OUTPUT [Phoenix jack]
1x 5v OUTPUT [Phoenix jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 103.5mm [W] x 46mm [D] x 30mm [H]
Weight 163g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 9W (Max)
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 4
Operation Controls and Functions
Front panel
Number Name Function Description
1 HDMI IN Connect to HDMI source devices.
2 ACTIVE Green LED input signal indicator.
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 5

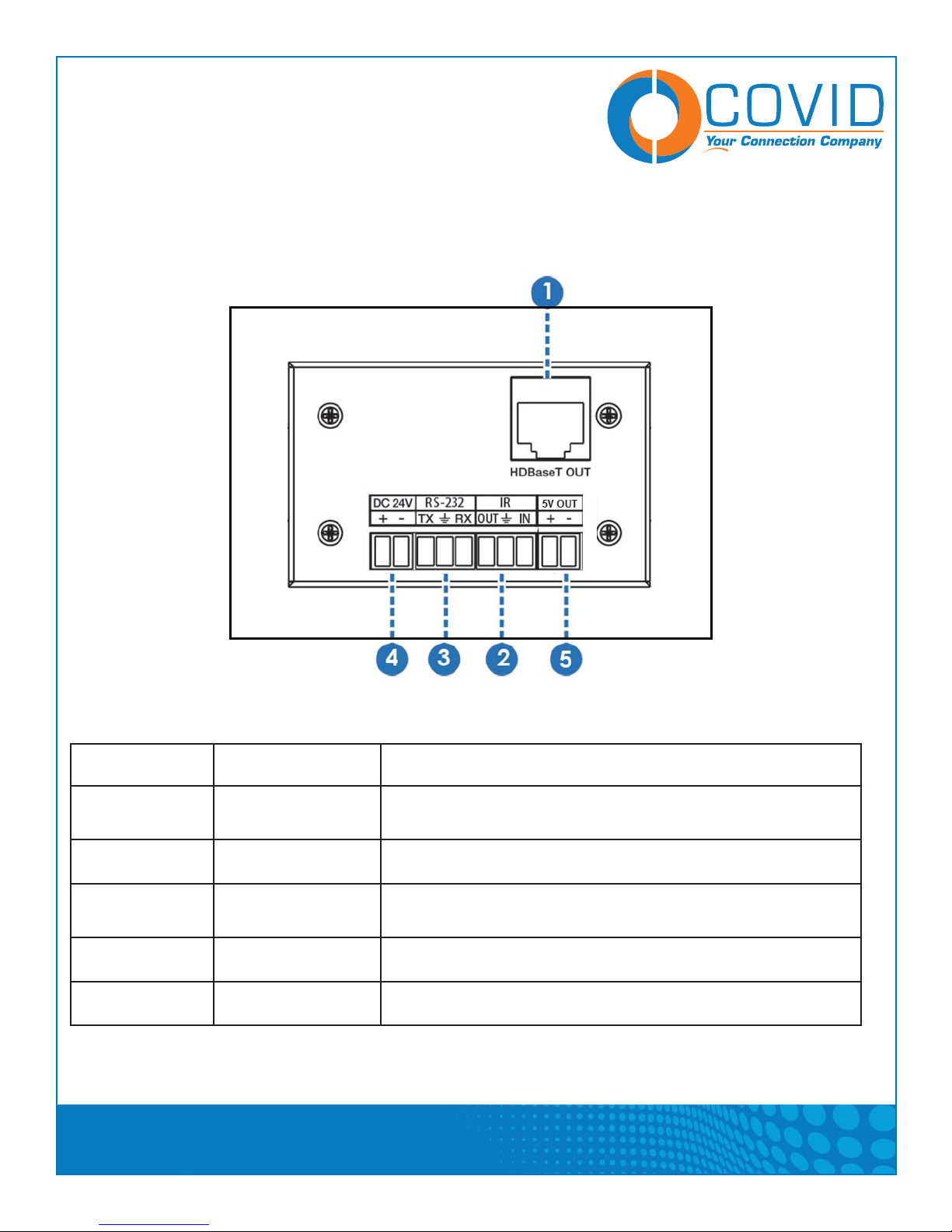

Rear Panel
Number Name Function Description
1 HDBaseT OUT HDBaseT output port. Connect to HDBaseT receiver with a
category cable.
2 IR IN/OUT Use the phoenix jack to connect IR input or output.
3 RS-232 Use the phoenix jack to connect PC or control system to
transmit RS-232 commands.
4 DC 24V Use the phoenix jack to connect power supply.
5 5V OUT 5 Volt power for use with IR
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 6
Description 1
POC (Power over Cable) Application Example
Description 2
Bidirectional Infrared Control Application Example
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 7

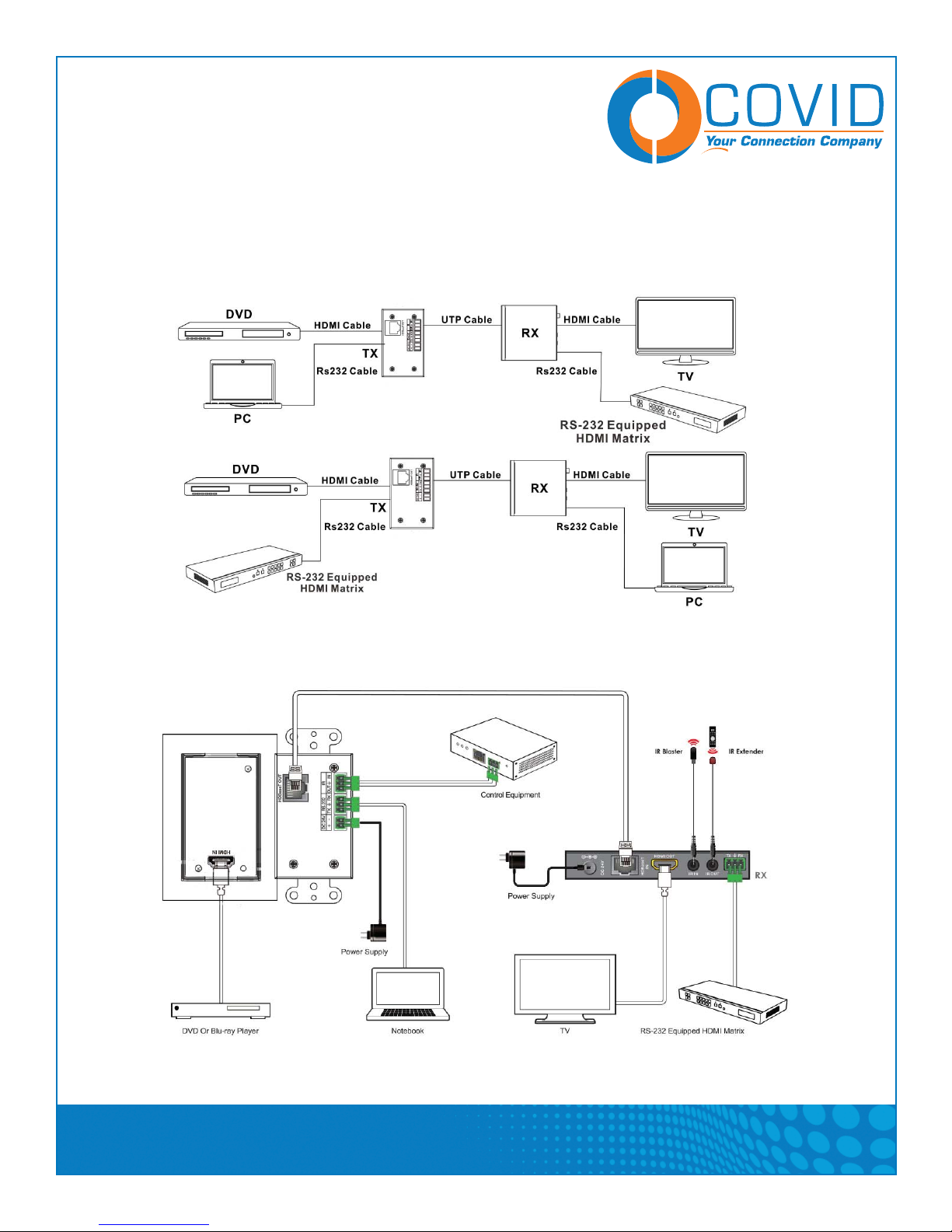

Description 3
Bidirectional RS-232 Control Application Example
Application Example
1723 W. 4th Street Tempe Arizona 85281
USER MANUAL
4K HDBase-T 1-Gang Wall Plate Transmitter - THBW-210
Page 8
To reduce the risk of electric shock, do not expose this product to rain or moisture.
Do not modify the wall plug. Doing so will void the warranty and safety features.
If the wall plug does not fit into your local power socket, hire an electrician to replace your
obsolete socket.
This equipment should be installed near the socket outlet and the device should be easily
accessible in the case it requires disconnection.
Safety Information
!
Warranty
Warranty time is two year and from the date of original shipment.
This warranty shall be void if a serial number has been removed from the product.
Upon determination of a legitimate defect covered by this warranty, user should bear the transport cost
during the warranty.
If product is out of warranty then repair charge is required. Minimum repair charge: 10% of the retail price
plus the cost of failed components. We will repair the failed product after repair cost has been approved by
Customers and proper financial arrangements are made.
Customer must cover round trip shipment expenses.
