Coway BA13-AR Technical specifications

Product Descriptions
Coway BA13B
RHS Description
This elegant and modern design has soft lines and subtle curves that will enrich your bathroom whilst
delivering uncompromising hygienic power and efficiency. The technologically advanced design of
this Coway BA13B offers an energy efficient instant heating system providing warm, cleansing water.
The BA13B has 3 additional features on top of the amazing features of the BA13A. The wide spray
function, deodoriser and silver ionisation. These additional features add more luxury to an already
amazing product.
This bidet comes with a durable and compact remote control that was designed to fit comfortably in
your hand and can also be mounted magnetically to a wall holder. An additional accessory that can
be purchased for use with the BA13B is the 3 Way Control, this product may assist individuals with
extreme mobility difficulties or visual impairments.
The BA13B has a SWL of 150kg.
Product Description
Coway is the number one Bidet manufacturer in South Korea with a long history and experience in
toilet hygiene and water purification. Coway is an environmentally conscious and sustainable
company that prides themselves on producing the highest quality of products. They have won many
awards for their exquisite product designs and environmentally friendly manufacturing processes.
A luxurious, sleek and versatile bidet suited for the entire family. It is the ultimate personal health and
hygiene solution. The BA13B provides you with the utmost high-tech bathroom cleansing experience.
From its self sterilising, stainless steel twin spray nozzles to its automatic deodoriser, the BA13B is
loaded with all the features to meet your cleansing and comfort needs. This bidet was carefully
designed to be functional, durable, comfortable and energy efficient.
The BA13B’s additional features include the wide spray option, which enables the width of the spray
pattern to be changed from narrow to medium or wide, similar to a garden hose. The Deodoriser
removes bad odours by sucking the air out from the bowl through a charcoal block neutralising any
smells and the silver ionisation enables the bidet to generate its own colloidal silver that disinfects the
bidet every time it is in use.
The remote is a handheld device designed to reduce the risk of injury that may occur when turning to
reach for toilet paper. It allows the user to adjust the nozzle position, temperature of the seat, water
and drier, the water pressure, the width of the spray. It also allows the user to turn on the silver
ionisation and deodoriser.
NOTE: This bidet can fit on either a fully concealed toilet that has no access to the seat bolts
or a toilet that does have access to seat bolts
NOTE: When looking at the bidet/ toilet, the 1.5m power lead comes from the RHS and the
water pipe comes from the LHS - THIS CANNOT BE CHANGED

Product Descriptions
Features
Features
Description
Additional Features
Remote Control
All functions are managed from an easy to use, intuitive remote control which
can be hand held or mounted on the wall.
Mini Side Control
Puts some functions in a mini pad on the side of the seat - Power, Rear
Cleansing & Nozzle Cleansing
Massage/Move
Moves the nozzle forward and backward in a rhythmic action for a more
thorough cleansing and stimulating wash.
Enema
A pencil thin stream of soft aerated water is ideal for constipation. Use while
trying to pass a bowel movement for the best results.
Deodoriser
Removes bad odours by sucking the air out from the bowl through a charcoal
block neutralising any smells. Activated by the seat sensor being activated.
Narrow, Medium &
Wide Spray
This wide button changes the width of the spray pattern from a narrow to
medium or wide spray, similar to your garden hose.
Silver Ionisation
This bidet generates its own colloidal silver that disinfects the bidet every time
you use it.
Standard Features
Heated Dryer
Blows warm air to gently dry you after a wash and offers 4 temperature
settings.
Heated Seat
When sitting on the seat it will warm up to the desired temperature and offers
4 different temperature options (no heat + 3 heat settings).
Heated Water
Cleanses with warm water and offers 4 temperature settings (no heat + 3 heat
settings) and 3 water pressure settings.
Rear Cleansing
This function is for washing the bottom area only.
Feminine Cleanse
This feature is exclusively for women, to use for their vaginal area.
Instantaneous Heat
The water heats up when the wash button is selected by the user. The water
heats inside of the nozzle before being released.
Nozzles
This bidet comes with Twin Stainless Steel Nozzles - The Rear/Enema &
Feminine wash nozzles (RFE) are separated to enhance hygiene and reduce
the risk of cross contamination.
Nozzle Position
Adjust
The nozzle is adjustable to 5 different positions and should be adjusted to the
correct position for washing.
Self Cleansing
Nozzles
Before and after each use of the nozzle, they automatically clean themselves
to avoid cross contamination. There is also an additional manual button if they
require additional cleaning.
Seat Sensor
The moisture activated seat sensor is incorporated in the design to ensure
that the bidet or automatic flushing functions can not be activated unless the

Product Descriptions
seat is occupied. The seat sensor is located between 3 & 5 o’clock on the
toilet seat.
Soft Close Seat & Lid
Hydraulic dampers installed at the hinges allow the seat and lid to close softly.
Antibacterial Plastic
The Bidet is made with antibacterial plastic to ensure the highest degree of
hygiene & cleanliness.
Power Saving
The Bidet senses when it is not occupied and will automatically go into “power
save mode”. This function can be turned off and on.
Water Saving
An average wash uses about a tea cup or two of water.
Quick Release
This bidet has a quick release base plate on the bottom of the bidet to enable
this bidet to be fitted to toilets that have access to seat bolts and toilets that
are fully concealed. With the press of 1 or 2 buttons you can slide the bidet
toward the front of the toilet for easy removal.
Requirements
You must ensure that you have a tap on the wall, a powerpoint within 1.5 metres of the toilet & a
plumber to complete your installation.
This bidet has a quick release base plate on the bottom of the bidet to enable this bidet to be fitted to
toilets that have access to seat bolts and toilets that are fully concealed.
NOTE: You will need to know if your tap is located on the LHS, RHS or in your cistern when
looking at your toilet. You will also need to know if you have access to the seat bolts. This
knowledge is required as extra accessories for installation may need to be purchased.
NOTE: If being installed on a fully concealed toilet - Top Fixing Bolts must be purchased
separately.
Additional products that may be required:
- If TAP is on RHS - 1m of ¼” White Pipe and 1x Elbow Kit is required
- If TAP is in the Cistern - ½” Internal Fitting Kit and 1x Elbow Kit is required
- If installed on a bottom fixing toilet with arms/rails & 80mm spacer - Extension Brackets are
required
‐If installed on a top fixing toilet - Top Fixing Bolts are required
‐If installed on a top fixing toilet with a 50mm spacer - Extra Long Top Fixing Bolts are required
‐If installed on a top fixing toilet with Arms/Rails - Top Fixing Bolts are required
‐If installed on a top fixing toilet with a 50mm Spacer and Arms/Rails - Extra Long Top Fixing
Bolts are required
‐If installed on a top fixing toilet with an 80mm Spacer - Extra Long Top Fixing Bolts &
Stabilisers are required
‐If installed on a top fixing toilet with an 80mm Spacer & Arms/Rails - Extra Long Top Fixing
Bolts, Stabilisers and Extension Brackets are required

Product Descriptions
Sizing
Measurements required in order for a bidet to fit onto your toilet
BA13A/B Regular Seat
A = 480mm or above
B = Between 130 –200mm
C = 310mm or above
D = 400mm or above
BA13A/B Elongated Seat
A = 510mm or above
B = Between 130 –200mm
C = 340mm or above
D = 430mm or above

Product Descriptions
Measurements of bidet seat
Remote

Product Descriptions

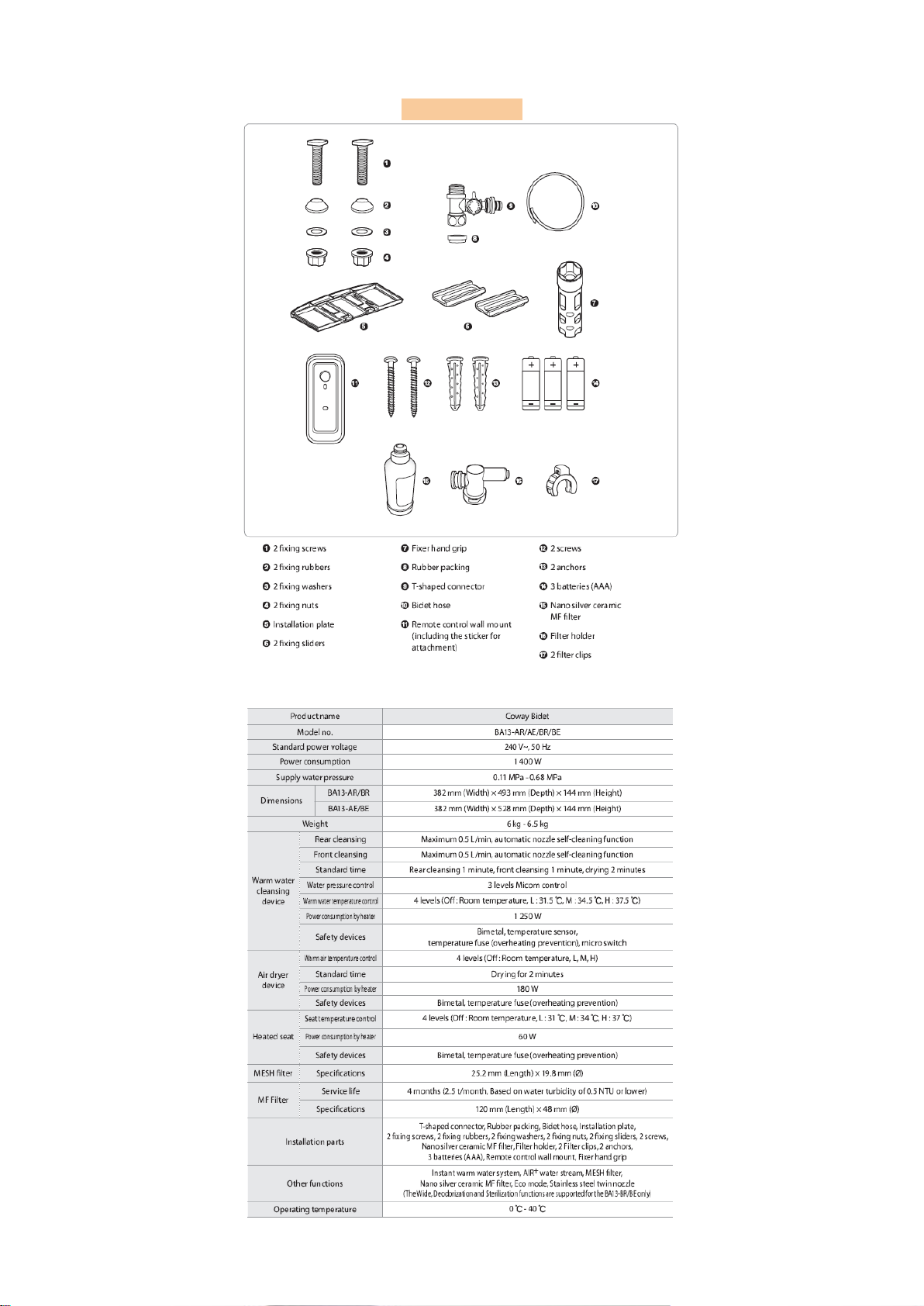

Box Contents
Specifications

Product Descriptions
Installation
A licensed plumber must install this retro-fit bidet in accordance with the Plumbing Code of Australia
(PCA) and WMTS 051:2016 Bidet Douche Seats.
Warranty
2 year Limited Warranty
(1 Year Standard Manufacturer’s Warranty + 1 Year Complimentary Parts & Labour Warranty)
Extended Warranty Available for Purchase
All products must be installed by a licensed plumber in accordance with WMTS 051:2016 Bidet
Douche Seat.
