Craftex CX401 User manual

CX401
1-HP TWO STAGE CYCLONE
DUST COLLECTOR
User Manual

2
TABLE OF CONTENTS
General Safety Instructions................................................3
Specific Safety Instructions................................................4
Features.............................................................................5
Physical Features...............................................................6
Setup..................................................................................7
Unpacking..........................................................................7
Proper Grounding...............................................................8
Assembly............................................................................9
Test Run.............................................................................12
Maintenance.......................................................................12
Emptying the Drum ............................................................13
Cleaning the Canister.........................................................13

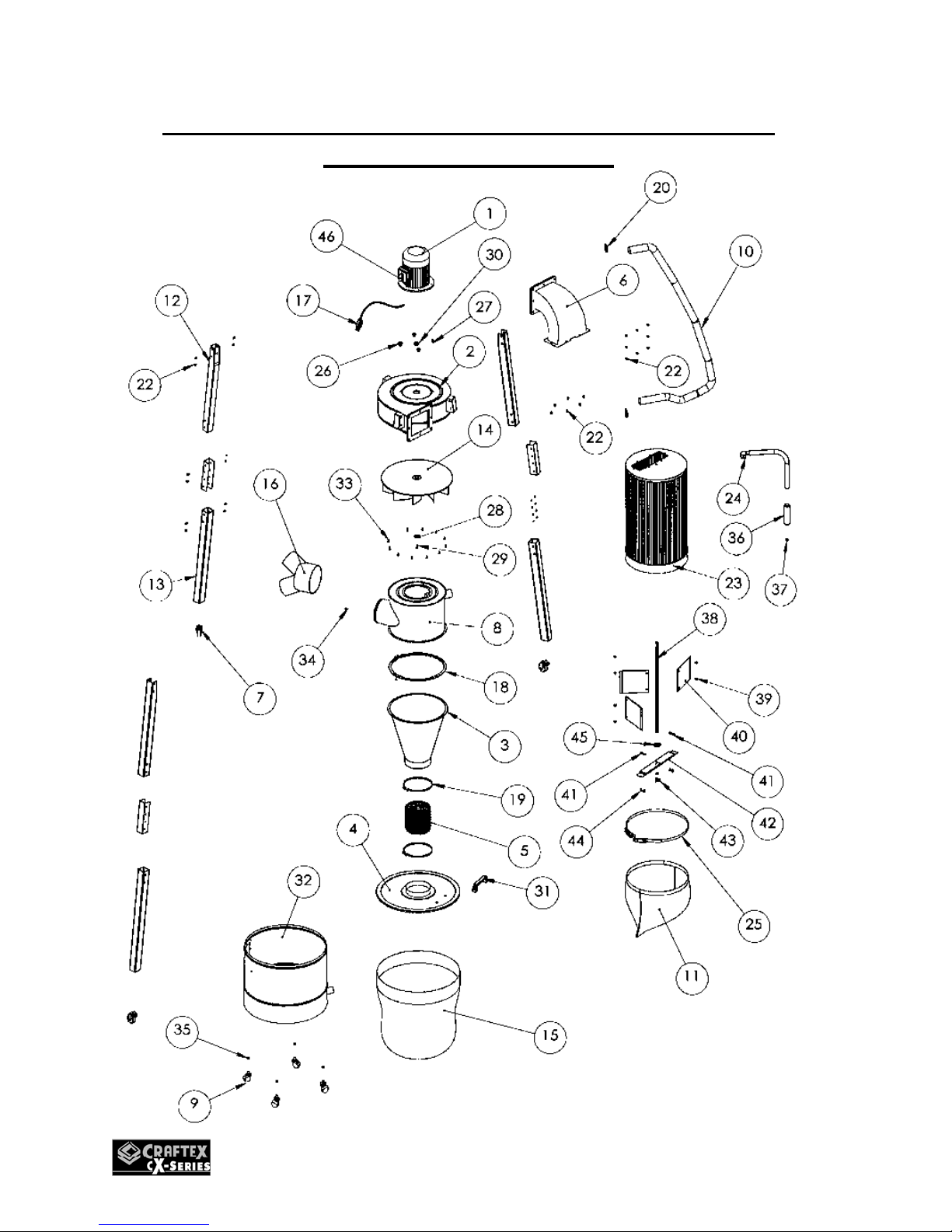

Parts Breakdown................................................................14
Parts List............................................................................15
Warranty.............................................................................16

3
GENERAL SAFETY INSTRUCTIONS
Extreme caution should be used when operating all power tools. Know your power
tool, be familiar with its operation, read through the owner’s manual and practice
safe usage procedures at all times.
ALWAYS read and understand the
user manual before operating the
machine.
CONNECT your machine ONLY to the
matched and specific power source.
ALWAYS wear safety glasses
respirators, hearing protection and
safety shoes, when operating your
machine.
DO NOT wear loose clothing or
jewelry when operating your machine.
A SAFE ENVIRONMENT is
important. Keep the area free of dust,
dirt and other debris in the immediate
vicinity of your machine.
BE ALERT! DO NOT use prescription
or other drugs that may affect your
ability or judgment to safely use your
machine.
DISCONNECT the power source when
changing drill bits, hollow chisels,
router bits, shaper heads, blades,
knives or making other adjustments or
repairs.
NEVER leave a tool unattended while
it is in operation.
NEVER reach over the table when the
tool is in operation.
ALWAYS keep blades, knives and bits
sharpened and properly aligned.
ALL OPERATIONS MUST BE
performed with the guards in place to
ensure safety.
ALWAYS use push sticks and feather
boards to safely feed your work
through the machine.
ALWAYS make sure that any tools
used for adjustments or installation is
removed before operating the
machine.
ALWAYS keep the bystanders safely
away while the machine is in
operation.

4
CX401 is designed to collect wood saw
dust. Do not use it to collect the metal
particles.
CONNECT THE DUST COLLECTOR
only to the matched power outlet
mentioned in this user manual.
DO NOT vacuum or use this dust
collection system near flammable or
combustible liquids, gases, gasoline,
lighter fluid cleaners, oil-based paints,
natural gas, hydrogen or explosive dusts
like coal dust, magnesium dust, grain
dust or gun powder.
DO NOT vacuum anything that is
burning or smoking, such as cigarettes,
matches or hot ashes.
DO NOT use the dust collector with a
damaged power cord, plug or any other
damaged part. If your dust collection
system is not working as it should, has
missing parts, has been dropped,
damaged, left outdoors, or dropped into
water, take it to a service center.
ALL PARTS must be installed and
secured properly before operating the
dust collection system.
DO NOT use the dust collection system
without filter/dust bag and or chip bag.
MAKE SURE before servicing or
making any adjustments, the power
switch is in the “OFF” position and the
cord is un-plugged from the power
source to avoid any injury from
accidental starting.
ALWAYS turn off the controls before
unplugging the cord from the power
source.
DO NOT unplug the power cord by
pulling it on. Grasp the plug and remove
it properly.
NEVER LEAVE the dust collector
unattended while it is running. Unplug
the cord from the power outlet when not
in use.
DO NOT BLOCK the ventilation
openings while operating the dust
collector.
MAINTAIN AND SERVICE your dust
collection system regularly as instructed
in the user manual.
MAKE SURE you have read and
understood all the safety instructions in
this user manual and you are familiar
with dust collection system, before
operating the CX401. If you fail to do so,
serious injury could occur.
CX401 – 1-Hp Two Stage Cyclone Dust Collector
SAFETY INSTRUCTIONS
WARNING
The safety instructions given above can not be complete because the environment in
every shop is different. Always consider safety first as it applies to your individual
working conditions.

5
MODEL CX401 – 1-HP TWO STAGE CYCLONE DUST COLLECTOR
As part of the growing line of Craftex woodworking equipment, we are proud to offer CX401 -
1-HP Cyclone Dust Collector. The Craftex name guarantees Craft Excellence. By following the
instructions and procedures laid out in this owner’s manual, you will receive years of excellent
service and satisfaction. The CX401 is a professional tool and like all power tools, proper care
and safety procedures should be adhered to.
Motor..............................................1-HP TEFC, 110/220V, Single Phase, 110V Pre-wired
Amps ..............................................15-AMPS
Motor Speed...................................3450-RPM
Air Suction Capacity.......................763-CFM
Canister Filtration ...........................1-Micron
Canister Filter Surface Area ...........3.8M Squared
Drum Size.......................................24 Gallon
Static Pressure...............................10” in Water
Impeller Size...................................13” Die Cast Fin Style
Inlet Size.........................................6” Main Inlet with Dual 4" Attachment
Noise Level.....................................80 dB
Length & Width...............................51” x 43”
Height.............................................63.5”
Approximate Weight.......................90 Kg
CX401–1-HP Cyclone
Dust Collector
FEATURES

6
CX401 – 1-Hp Two Stage Cyclone Dust Collector

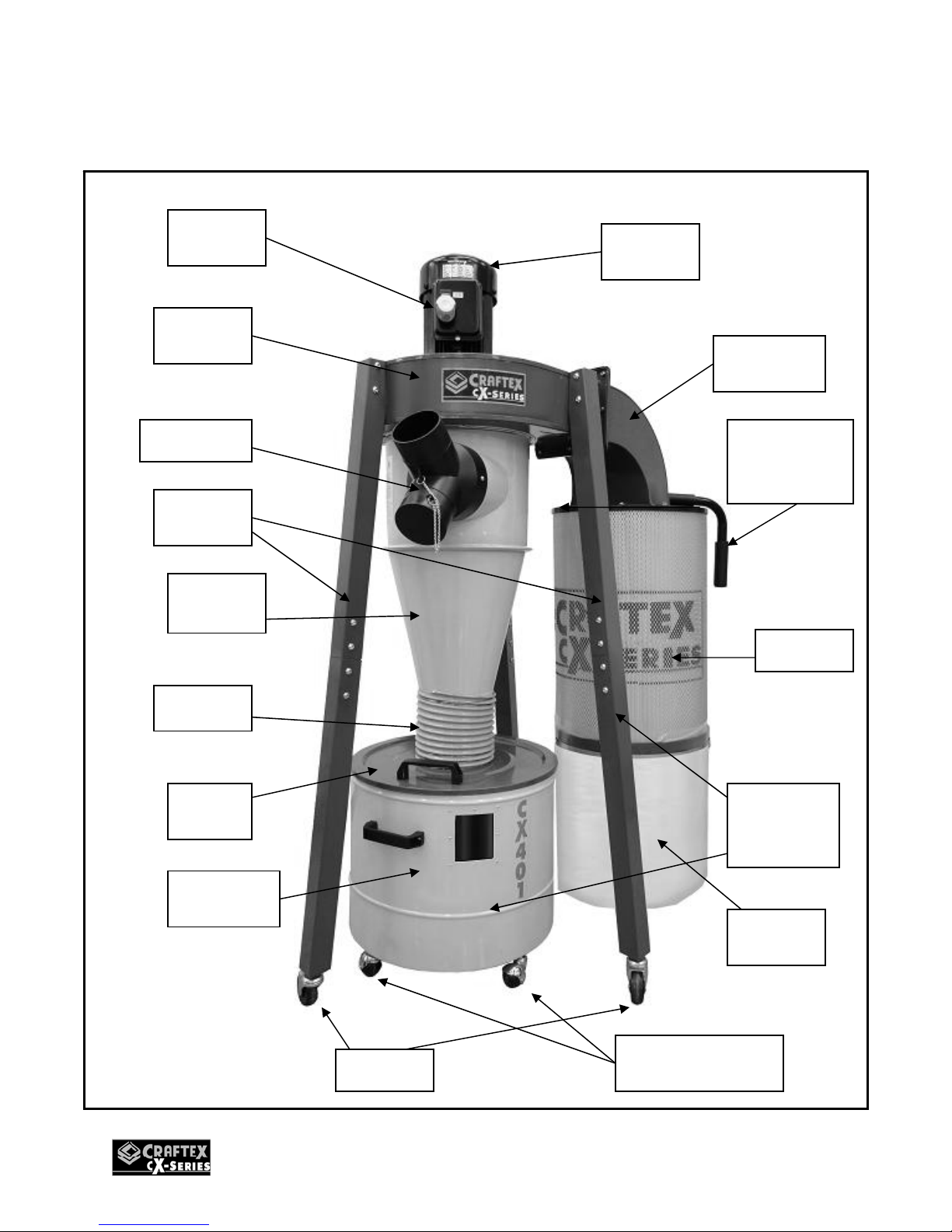

Physical Features
1-Hp
Motor
Steel Duct
Arm
Canister
Plastic
Bag
Castors
Drum
Lid
Cyclone
Funnel
Steel
Legs
Collection
Drum
7” Hose
Collection Drum
Castors
Canister
Cleaning
Handle
4” Y-Inlet
Main
Housing
Powder
Coated
Paint
On/Off
Switch

7
SETUP
Before starting setting up your machine,
you need to read and understand this user
manual completely.
UNPACKING
The machine is properly packaged in a
carton for safe transportation. When
unpacking, carefully inspect the crate and
ensure that nothing has been damaged
during transit. Open the crate and check
that the machine is in good condition.
The hardware (screws, washers & etc)
might be shipped in a plastic bag. After the
machine has been un-packed, check that
all loose parts and hardware are present.
List of Contents
A. Main Housing.................................... 1
B. Collector Body................................... 1
C. Cyclone Funnel ................................. 1
D. Drum Lid............................................ 1
E. Collection Drum................................. 1
F. Steel Duct Arm.................................. 1
G. Y-Inlet ............................................... 1
H. Gasket .............................................. 1
I. Hose 1-1/2”....................................... 2
J. Steel Clamp ...................................... 1
K. Hose 7”............................................. 2
L. Plastic Bags...................................... 2
M. Hose Clamp 7”.................................. 2
N. Castors for Drum............................... 4
O. Canister ............................................ 1
P. Canister Cleaning Handle................. 1
Q. Plastic Bag Clamp............................. 1
R. Upper Legs....................................... 3
S. Connectors ....................................... 3
T. Lower Legs....................................... 3
U. Hose Clamp 1-1/2”............................ 2
V. Castors for the Legs.......................... 3
W. Hardware................................One Bag
Figure-1 Inventory
WARNING
CX401 is a heavy machine. Do not over-
exert yourself. For safe moving method
use fork truck or get the help of an
assistant or a friend.

8
PROPER GROUNDING
Grounding provides a path of least
resistance for electric current to reduce the
risk of electric shock.
CX401 is equipped with a 110 single phase
motor which features a 3-conductor cord
and a 3-prong grounding plug to fit a
grounded type receptacle. Make sure the
cord is plugged into a properly installed and
grounded power outlet.
To prevent electrical hazards, have a
qualified electrician ensure that the line is
properly wired.
This tool is for use on a normal 110-volt
circuit and is factory-equipped with a
specific electric cord and plug to permit
connection to a proper electric circuit. Make
sure that the tool is connected to an outlet
having the same configuration as the plug.
If an adaptor plug is used, it must be
attached to the metal screw of the
receptacle.

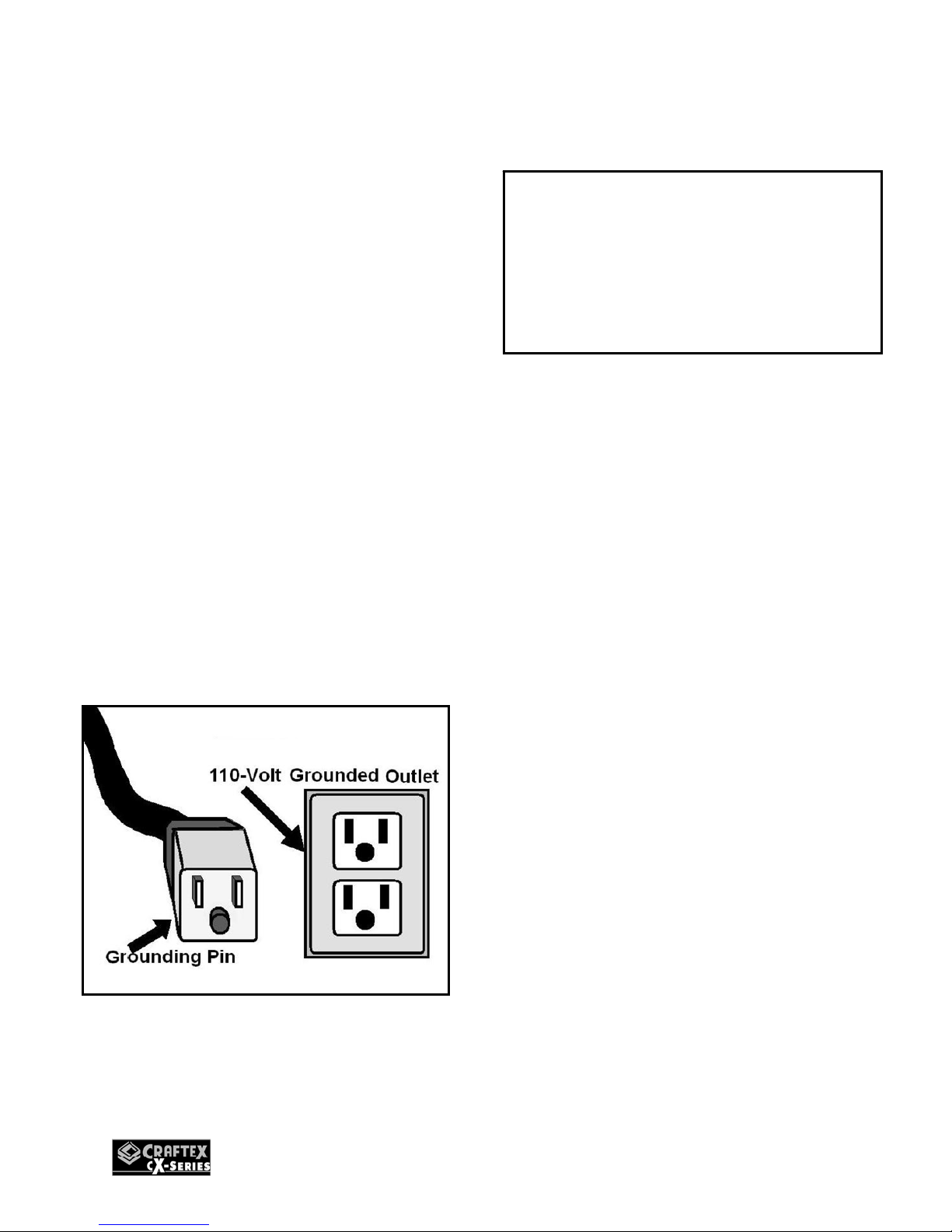

Figure-2 110-Volts Outlet for CX401
It is strongly recommended not to use
extension cords with your CX401. Always
try to position your machine close to the
power source so that you do not need to
use extension cords.
In case if you really find it necessary to use
an extension cord, make sure the extension
cord does not exceed 50-feet in length and
the cord is 14-gauge to prevent motor
damage.
Your CX401 is equipped with a cord having
3-prongs which fits a 3 prong grounding
receptacle as shown in figure-3. Do not
remove the grounding prong to fit it into a 2-
pronged outlet. Always check with a
qualified electrician if you are in doubt.
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician if you are in doubt as to
whether the outlet is properly grounded.

9
ASSEMBLY
Attach the upper support leg to the lower
support leg using the connecting board,
screws and washers provided. See figure-3
Figure-3 Assembling the leg
Put the main housing upside down on the
floor and attach the support leg to the main
housing, securing it with the help of screws
and washers provided. Install the wheels at
the bottom of each support leg as shown in
figure-4.
Figure-4 Installing the legs
Now, turn the main housing and the support
legs up right. Place the collector body on
the floor and place the gasket provided on
the collector rim as shown in figure-5.
Figure- 5 Putting the gasket on the collector
rim
Attach the collector body to the main
housing and secure it using the screws and
washers provided. See figure-6
Figure- 6 Installing the collector

10
Attach the cyclone funnel to the collector
assembly with the gasket in between using
screws provided. Secure it with the help of
the steel clamp provided. See figure-7
Figure-7 Attaching the cyclone funnel
Attach the castors to the bottom part of the
collection drum. Put the larger plastic bag
provided, inside the drum and put the lid on
the drum. Place the steel drum under the
cyclone funnel. See figure-8.
Figure-8 Putting the steel drum under the
cyclone funnel
Take the 7” hose and attach one end of it to
the bottom part of the cyclone funnel and
the other end to the drum lid. Secure both
ends with the help of two 7” hose clamps.
See figure-9.
Figure-9 Attaching the hose
Install the Y-inlet to the collector body with
the help of screws and washers provided.
See figure-10.
Figure-10 Installing the Y-inlet

11
Install the steel duct arm to the collector
body using screws and washers. Take the
canister filter and attach it to the elbow tube
using screws and washers. See figure-11.
Figure-11 Installing the steel duct arm
Attach the canister cleaning handle on to
the top part of the canister by tightening the
bolt against the flat side of the shaft.
Install the canister filter to the steel duct
arm with the help of screws and washers
provided. See figure-12.
Figure-12 Installing the canister filter
Attach the remaining smaller plastic bag to
the bottom of the canister filter using the
belt clamp provided. See figure-13.
Figure-13 Installing the plastic bag
Attach the long hose to one end to the main
housing and the other end to the collection
drum. Secure it with the help of hose
clamps provided. See figure-14.
Figure-14 Attaching the hose
This hose provides negative pressure
ensuring the drum and bag are secured
while the machine is on.

12
TEST RUN
Once you have assembled your machine
completely, it is then time for a test run to
make sure that the machine works properly
and is ready for operation.
During the test run if there is any unusual
noise coming from the machine or the
machine vibrates strangely, stop the
machine immediately and disconnect from
the power source and investigate if you can
find out the problem with your machine.
If you find any part of the machine that is
not assembled properly, read the assembly
section of manual and re-assemble that
part according to the instructions provided.
MAINTENANCE
During the life time of your machine, you
will need to practice some regular
maintenance to keep your cyclone dust
collector in peak performance condition.
The following should be checked daily, after
use:
Loose mounting parts and screws
Damaged wires
Plastic bag leak
Suction Leaks
Any condition that can make the
operation unsafe
Read the
manual
Before starting the dust collector, make
sure that you have read and understood
the manual and you are familiar with the
functions and safety features on this
machine. Failure to do so may cause
serious personal injury.
WARNING
Always turn off the machine and
disconnect the cord from the power
source, before performing maintenance.
Failure to do so may result in serious
personal injury.

13
EMPTYING THE DRUM
You should empty the collection when it is
approximately 3/4 full. If the drum is full and
you continue to use the Cyclone, you may
have larger dust particles enter the filter
and damage the canister.
During your first few uses of the machine,
continue to check the drum and to see how
quickly it fills up. This will give a good idea
about maintenance in the future. Machines
such as table saws and sanders produce
fine dust and will fill the drum slower than
machines such as planers and jointers
which produce curly shavings.
Figure-15 Collection drum
CLENING THE CANISTER
FILTER
The canister on your CX401 is equipped
with a handle to clean the built-up dust from
the canister filter pleats.
To clean the filter, rotate the handle back
and fort in each direction. The built up dust
from the inner walls of the canister filter falls
into the plastic bag.
Figure-16 Canister filter cleaning handle

14
CX401-1HP Two Stage Cyclone Dust Collector
PARTS BREAKDOWN

15
CX401-1HP Two Stage Cyclone Dust Collector
PARTS LIST

16
WARRANTY
Craftex warrants every product to be free from defects in materials and agrees to correct such defects where
applicable. This warranty covers three years for parts and 90 days for labour (unless specified otherwise), to the
original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from
misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of
maintenance.
Proof of purchase is necessary.
All warranty claims are subject to inspection of such products or part thereof and Craftex reserves the right to
inspect any returned item before a refund or replacement may be issued.
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches
etceteras.
Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or
for incidental contingent, special or consequential damages arising from the use of our products.
RETURNS, REPAIRS AND REPLACEMENTS
To return, repair, or replace a Craftex product, you must visit the appropriate Busy Bee Tools showroom or call 1-
800-461-BUSY. Craftex is a brand of equipment that is exclusive to Busy Bee Tools.
For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879), and
have your credit card and part number handy.
All returned merchandise will be subject to a minimum charge of 15% for re-stocking and handling with the
following qualifications.
Returns must be pre-authorized by us in writing.
We do not accept collect shipments.
Items returned for warranty purposes must be insured and shipped pre-paid to the nearest warehouse
Returns must be accompanied with a copy of your original invoice as proof of purchase. Returns must be in
an un-used condition and shipped in their original packaging a letter explaining your reason for the return.
Incurred shipping and handling charges are not refundable.
Busy Bee will repair or replace the item at our discretion and subject to our inspection.
Repaired or replaced items will be returned to you pre-paid by our choice of carriers.
Busy Bee reserves the right to refuse reimbursement or repairs or replacement if a third party without our
prior authorization has carried out repairs to the item.
Repairs made by Busy Bee are warranted for 30 days on parts and labour.
Any unforeseen repair charges will be reported to you for acceptance prior to making the repairs.
The Busy Bee Parts & Service Departments are fully equipped to do repairs on all products purchased from us
with the exception of some products that require the return to their authorized repair depots. A Busy Bee
representative will provide you with the necessary information to have this done.
For faster service it is advisable to contact the nearest Busy Bee location for parts availability prior to
bringing your product in for repairs.
CRAFTEX LIMITED 3 YEARS WARRANTY
