Craftex CX404 User manual

CX404
1-HP DUST COLLECTOR
User Manual

2
TABLE OF CONTENTS
General Safety Instructions.............................................................3
CX404 Specific Safety Instructions.................................................4
Features..........................................................................................5
Physical Features ...........................................................................6
Unpacking.......................................................................................7
Setup ..............................................................................................7
Proper Grounding ...........................................................................8
Assembly........................................................................................9
Test Run ........................................................................................11
Operation........................................................................................11
Maintenance...................................................................................12
Bag Cleaning ..................................................................................12
Cleaning the Canister .....................................................................12
Lubrication......................................................................................12

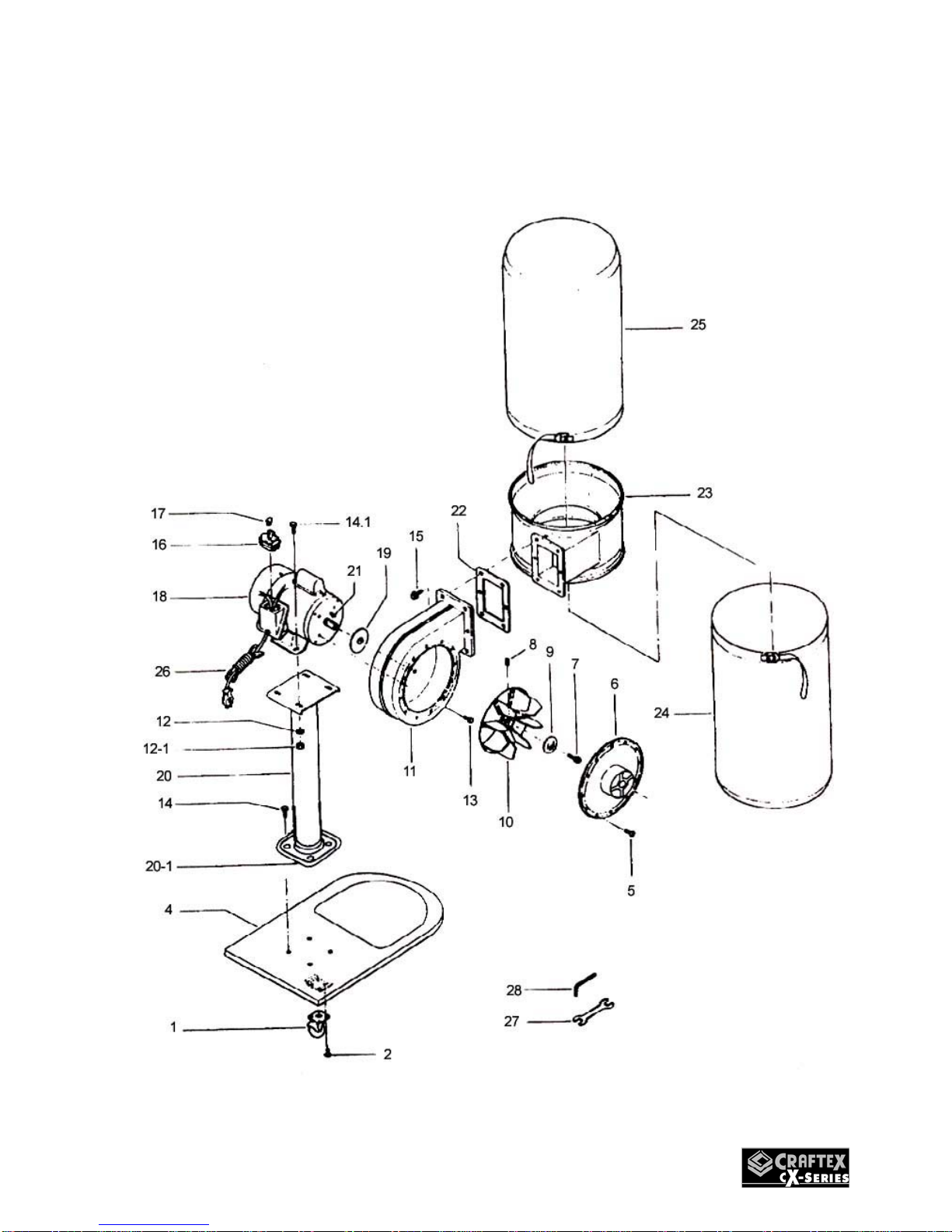

Parts Breakdown ............................................................................13
Parts List.........................................................................................14
Warranty.........................................................................................15

3
GENERAL SAFETY INSTRUCTIONS
Extreme caution should be used when operating all power tools. Know your power
tool, be familiar with its operation, read through the owner’s manual and practice
safe usage procedures at all times.
CONNECT your machine only to the
matched and specific power source.
ALWAYS wear safety glasses
respirators, hearing protection and
safety shoes, when operating your
machine.
DO NOT wear loose clothing or
jewelry when operating your machine.
GROUND ALL TOOLS if tool is
equipped with three-prong plug, it
should be plugged into a three-hole
electrical receptacle. If an adapter is
used to accommodate a two-prong
receptacle, the adapter plug must be
attached to a known ground. Never
remove the third prong.
A SAFE ENVIRONMENT is
important. Keep the area free of dust,
dirt and other debris in the immediate
vicinity of your machine.
KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should
be kept a safe distance from work
area.
NEVER leave a tool unattended while
the machine is in operation.
DON’T OVERREACH. Keep proper
footing and balance at all times.
DISCONNECT the machine from the
power source when changing drill bits,
hollow chisels, router bits, shaper
heads, blades, knives, or making other
adjustments or repairs.
SECURE WORK. Use clamps or a vise
to hold work when practical. It’s safer
than using your hand and frees both
hands to operate tool.
BE ALERT! DO NOT use prescription
or other drugs that may affect your
ability or judgment to safely use your
machine.
MAINTAIN TOOLS IN TOP
CONDITION. Always keep the blades
sharp and aligned. Follow instructions
given in the user manual for lubricating
and changing accessories.
DISCONNECT TOOLS before servicing
and when changing accessories such as
blades, bits, cutters, etc.
ALWAYS keep all safety guards in
place and ensure their proper function.
The dust generated by certain woods
and wood products can be injurious to
your health. ALWAYS operate
machinery in well ventilated areas use
wood dust collection systems whenever
possible.

4
Read and understand the instruction manual before operating the dust collector.
Basic precautions listed below should always be followed when using your dust
collector to reduce the risk of injury, electrical shock or fire.
The CX404 is designed to collect
sawdust only.
NEVER attempt to use this dust
collector to vacuum water or any other
liquids.
NEVER try to use this dust collector to
collect large wood pieces.
NEVER attempt to use this dust
collector to collect metal materials
such as screws, nails or other metal
parts.
ALWAYS wear respiratory and safety
glasses when emptying dust from the
collection bags.
NEVER operate the dust collector with
all blast gates closed.
ALWAYS disconnect the dust collector
from its power source when changing
or emptying the bags.
ALWAYS be sure that the collection
and filter bags are securely fastened to
collector body.
DO NOT place your hand or tools
nears the open inlet while operation.
Serious personal injury or damage to
the machine can happen.
ALWAYS connect dust collector to the
matched power source.
CX404 – 1 HP DUST COLLECTOR
SPECIFIC SAFETY INSTRUCTIONS
IMPORTANT
The safety instructions given above can not be complete because the environment in
every shop is different. Always consider safety first as it applies to your individual
working conditions.

5
MODEL CX404 – 1 HP DUST COLLECTOR
As part of the growing line of Craftex CX-Series woodworking equipment, we are proud to
offer the CX404 a 1-HP Dust Collector. By following the instructions and procedures laid
out in this owner’s manual, you will receive years of excellent service and satisfaction.
The CX404 is a professional tool and like all power tools, proper care and safety
procedures should be adhered to.
Motor......................................1 HP, 110 Volt, 7 Amps
Safety.....................................Power Switch with Removable Key
Balanced Steel Impeller..........Yes
Impeller Size ..........................10”
Lower Bags.............................Easy-On Bags
Lower Bag Volume.................2.67 Cubic Feet
Upper Bags.............................One-Micron Upper Filtration Bag
Static Pressure.......................6”
Air Suction Capacity...............825 CFM
Intakes....................................One 4”
Weight ....................................28 Kg
Warranty.................................3 Years
Mobile Base for Ease of Movement
Maybe Installed Without Casters for Stationary Use
CX404
FEATURES

CX404 - 1 HP DUST COLLECTOR
PHYSICAL FEATURES
1 Micron
Filtration
Bag
Collector
Body
Outlet
Connector
Impeller
Assembly
Support
Casters Base
Easy-On
Collection Bag
Collector Ring
Support Rod

7
UNPACKING
The machine is properly packaged in a
carton for safe transportation. When
unpacking, carefully inspect the carton and
ensure that nothing has been damaged
during transit.
While doing the inventory if you can not find
any part, check if the part is already
installed on the machine.
Figure-1 Inventory
CONTENTS QTY
A. Motor & Impeller Assembly ...............1
B. Collector Ring....................................1
C. Base..................................................1
D. Impeller Support................................1
E. Top Bag.............................................1
F. Bottom Bag .......................................1
G. Gasket...............................................1
H. Clamps for Upper and Lower Bags...2
I. Easy-On Bottom Bags.......................5
J. Casters..............................................4
K. Hardware Bag...................................1
SETUP
Before setting up your machine you need to
read and understand this user manual
completely.
The CX404 features four casters installed to
its base unit for easy mobility. If you want to
use the CX404 as a stationary tool, do not
install the casters and find an ideal spot
where your dust collector will most likely be
positioned.
Consider your complete work environment
before placing your machine in the ideal
spot.

8
PROPER GROUNDING
Grounding provides a path of least
resistance for electric current to reduce the
risk of electric shock.
CX404 is for use on a normal 110 volt
circuit. Make sure that the machine is
connected to an outlet having the same
configuration as the plug. If an adaptor plug
is used, it must be attached to the metal
screw of the receptacle. To prevent
electrical hazards, have a qualified
electrician ensure that the line is properly
wired.
The dust collector should be wired with a
plug having 3 prongs to fit a 3 prong
grounded receptacle as shown in figure-2.
Do not remove the grounding prong to fit it
into a 2 pronged outlet.
Figure-2 110-Volts outlet for CX404
It is strongly recommended not to use
extension cords with your CX404. Always
try to position your machine close to the
power source so that you do not need to
use extension cords.
In case if you really find it necessary to use
an extension cord, make sure the extension
cord does not exceed 50-feet in length and
the cord is 14-gauge to prevent motor
damage.
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician if you are in doubt as to
whether the outlet is properly grounded.

9
ASSEMBLY
Follow the instructions below to assemble
your CX404.
Place the base unit upside down and install
the swivel casters to the base unit using
screws and washers provided. See figure-3.
Figure-3 Installing the casters
Place the base unit upright and attach the
impeller support to the base by aligning the
four holes on the impeller support with the
four holes on the base unit. Secure it using
screws and washers provided as shown in
figure-4.
Figure-4 Securing the impeller support to
the base unit
Place the motor and impeller assembly on
the impeller support making sure that the
square flange on the impeller is facing the
rounded end of the base unit. Secure the
motor and impeller assembly using nuts,
washers and bolts provided. See figure-5.
Figure-5 Installing the motor and impeller
assembly
Place the gasket on the impeller flange in
figure-6.
Figure-6 Placing the gasket
Attach the collector ring to the motor
impeller assembly as shown in figure-7 and
secure it using six hex bolts provided.

10
Figure-7 Installing the collector ring
Install the collector ring support rod with
one end collector ring and the other end to
the base unit using screws provided. See
figure-8.
Figure-8 Installing the collector ring support
rod
Attach the upper 1-micron bag to the dust
collector with the bag clamp provided. See
figure-9.
Figure-9 Installing the upper bag
Your dust collector should come with a
regular bottom bag as well as a set of Easy-
On bags.
Insert the belt clamp through the easy-on
bottom bag and attach the bottom bag to
the dust collector as shown in figure-10.
Figure-10 Installing the bottom bag

11
TEST RUN
Once you have assembled your dust
collector, it is then time for a test run to
make sure that the machine works properly
and is ready to use.
Remove all the tools used for assembling
the machine components. Walk around the
machine, ensure all nuts, bolts, and screws
are tightened and the machine is properly
assembled. Connect the cord to the power
source and turn the machine ON.
During the test run if there is any unusual
noise coming from the machine or the
machine vibrates excessively, turn OFF the
power switch immediately and disconnect
the cord from the power source. Investigate
if you can find out the problem with your
machine.
OPERATION
Operating the CX404 dust collector is very
simple and straightforward.
Make sure the dust collector is properly
assembled and worked during the test run.
Move the CX404 close to the machine and
use a proper sized hose connecting the
hose with its one end to the machine and
the other end to the dust collector.
Make sure the connections are secured
using hose clamps and connect the ducting
ground and the dust collector is ready for
operation.
FORMULAS
Velocity (FPM) = Volume (CFM) / Cross
Sectional Area (ft.2)
Volume (CFM) = Velocity (FPM) x Cross
Sectional Area (ft.2)
Cross Sectional Area (ft.2)= Volume
(CFM) / Velocity (FPM)
Circle Area = 3.142 x Radius2
Diameter = 2 x Radius
WARNING
Do not make any adjustments while the
machine is running. Turn off the
machine and un-plug from the power
source before making any adjustments.
WARNING
Before starting the machine, make sure
that you have read and understood the
user manual and you are familiar with the
safety features of the machine. Failure to
do so may cause serious personal injury.
WARNING
Do not use the CX404 for any other
operation other than collecting sawdust.
Failure to do so could result in
malfunction of the machine and may
void the warranty.

12
MAINTENANCE
Maintenance on this machine is fairly simple.
Each time you use your dust collector, make
sure to properly clean the bags and take a
quick inventory of your machines
performance. Check the dust collector
regularly for loose bolts, screws, ensure the
dust collection bag has no tears, and ensure
all wires are in good condition.
BAG CLEANING
Empty the collection bag on a regular basis.
The machine will run more efficiently if the
collecting bag is emptied regularly.
TO EMPTY THE COLLECTION
BAG:
Make sure the switch in the OFF position
and the cord is disconnected from the
power source.
Make sure you are wearing a respirator or
dust mask while emptying the collection
bag. The tiny dust particles in the air can be
inhaled easily and is very injurious to
health.
Since the CX404 is comes with Easy-On
collection bag, you do not have to remove
the clamp from the collection bag. Simply
Un-clamp the bag and empty it.
Re-install the bag and clamp it.
CLEANING THE CANISTER
(If using a canister)
The canister has a cleaning handle which
allows for easy cleaning of the canister by
simply rotating the handle. After each use,
rotate the handle at least one full turn. The
fins inside the canister will knock most of
the dust into the lower collection bag.
Make sure not to clean the canister using
water or compressed air which can damage
the filtration pleats of the filter. Always use
the cleaning handle.
LUBRICATION
CX404 comes equipped with shielded
bearings which are permanently lubricated.
So, there is not need to lubricate them.
WARNING
Do not make any adjustments while the
machine is running. Turn off the
machine and un-plug from the power
source before making any adjustments.

13
CX404 DUST COLLECTOR
PARTS BREAKDOWN

14
REF# DESCRIPTION SIZE QTY
1 Caster 4
2 Pan Head Screw 3/16” x 5/16” 16
4 Base Plate 1
5 Pan Head Screw 3/16” x 3/8” 12
6 Inlet Cover 1
7 Hex Screw M6 x 20 1
8 Set Screw 5/16” x 5/16” 1
9 Washer 1
10 Turbo Fan 1
11 Collector Body 1
12 Washer 5/16” 4
12-1 Nut 5/16” 4
13 Hex Screw 1/4" x 1/2" 4
14 Hex Screw 5/16” x 1/2" 4
14-1 Hex Screw 5/16” x 3/4" 4
15 Hex Screw 1/4" x 1/2" 6
16 Switch 1
17 Switch Key 1
18 Motor 1
19 Gasket 1
20 Column 1
20-1 Column Flange 1
21 Key 5mm x 5mm x 30mm 1
22 Packing 1
23 Collector Ring 1
24 Easy-On Collection Bag 1
25 Filter Bag 1
26 Power Cord 1
27 Open End Wrench 10mm x 12mm 1
28 Hex Wrench 5mm 1
CX404 DUST COLLECTOR
PARTS LIST

15
WARRANTY
Craftex warrants every product to be free from defects in materials and agrees to correct such defects where
applicable. This warranty covers three years for parts and 90 days for labour (unless specified otherwise), to the
original purchaser from the date of purchase but does not apply to malfunctions arising directly or indirectly from
misuse, abuse, improper installation or assembly, negligence, accidents, repairs or alterations or lack of
maintenance.
Proof of purchase is necessary.
All warranty claims are subject to inspection of such products or part thereof and Craftex reserves the right to
inspect any returned item before a refund or replacement may be issued.
This warranty shall not apply to consumable products such as blades, bits, belts, cutters, chisels, punches
etceteras.
Craftex shall in no event be liable for injuries, accidental or otherwise, death to persons or damage to property or
for incidental contingent, special or consequential damages arising from the use of our products.
RETURNS, REPAIRS AND REPLACEMENTS
To return, repair, or replace a Craftex product, you must visit the appropriate Busy Bee Tools showroom or call 1-
800-461-BUSY. Craftex is a brand of equipment that is exclusive to Busy Bee Tools.
For replacement parts directly from Busy Bee Tools, for this machine, please call 1-800-461-BUSY (2879), and
have your credit card and part number handy.
All returned merchandise will be subject to a minimum charge of 15% for re-stocking and handling with the
following qualifications.
Returns must be pre-authorized by us in writing.
We do not accept collect shipments.
Items returned for warranty purposes must be insured and shipped pre-paid to the nearest warehouse
Returns must be accompanied with a copy of your original invoice as proof of purchase. Returns must be in
an un-used condition and shipped in their original packaging a letter explaining your reason for the return.
Incurred shipping and handling charges are not refundable.
Busy Bee will repair or replace the item at our discretion and subject to our inspection.
Repaired or replaced items will be returned to you pre-paid by our choice of carriers.
Busy Bee reserves the right to refuse reimbursement or repairs or replacement if a third party without our
prior authorization has carried out repairs to the item.
Repairs made by Busy Bee are warranted for 30 days on parts and labour.
Any unforeseen repair charges will be reported to you for acceptance prior to making the repairs.
The Busy Bee Parts & Service Departments are fully equipped to do repairs on all products purchased from us
with the exception of some products that require the return to their authorized repair depots. A Busy Bee
representative will provide you with the necessary information to have this done.
For faster service it is advisable to contact the nearest Busy Bee location for parts availability prior to bringing your
product in for repairs.
CRAFTEX 3 YEAR LIMITED WARRANTY
