Craftsman 320.16495 User manual

Operator's Manual
®
MOBILE BASE
Model No. 320.16495
_WARNING: To reduce the risk of injury,
the user must read and understand the
Operator's Manual before using this product.
_WARNING: To reduce the risk of injury,
the user must always read and follow all
instructions in the bench top tool
operating manual before mounting
the tool to this stand.
• WARRANTY
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• ESPANOL
Sears Brands Management Corporation, Hoffrnan Estates,
IL 60179 U.S.A.
www, craftsman,com

Warranty Page 2
Safety Symbols Pages 4-5
Safety Instructions Page 6
Description Page 7
Assembly Pages 8-9
Operation Pages 10-13
Maintenance Page 14

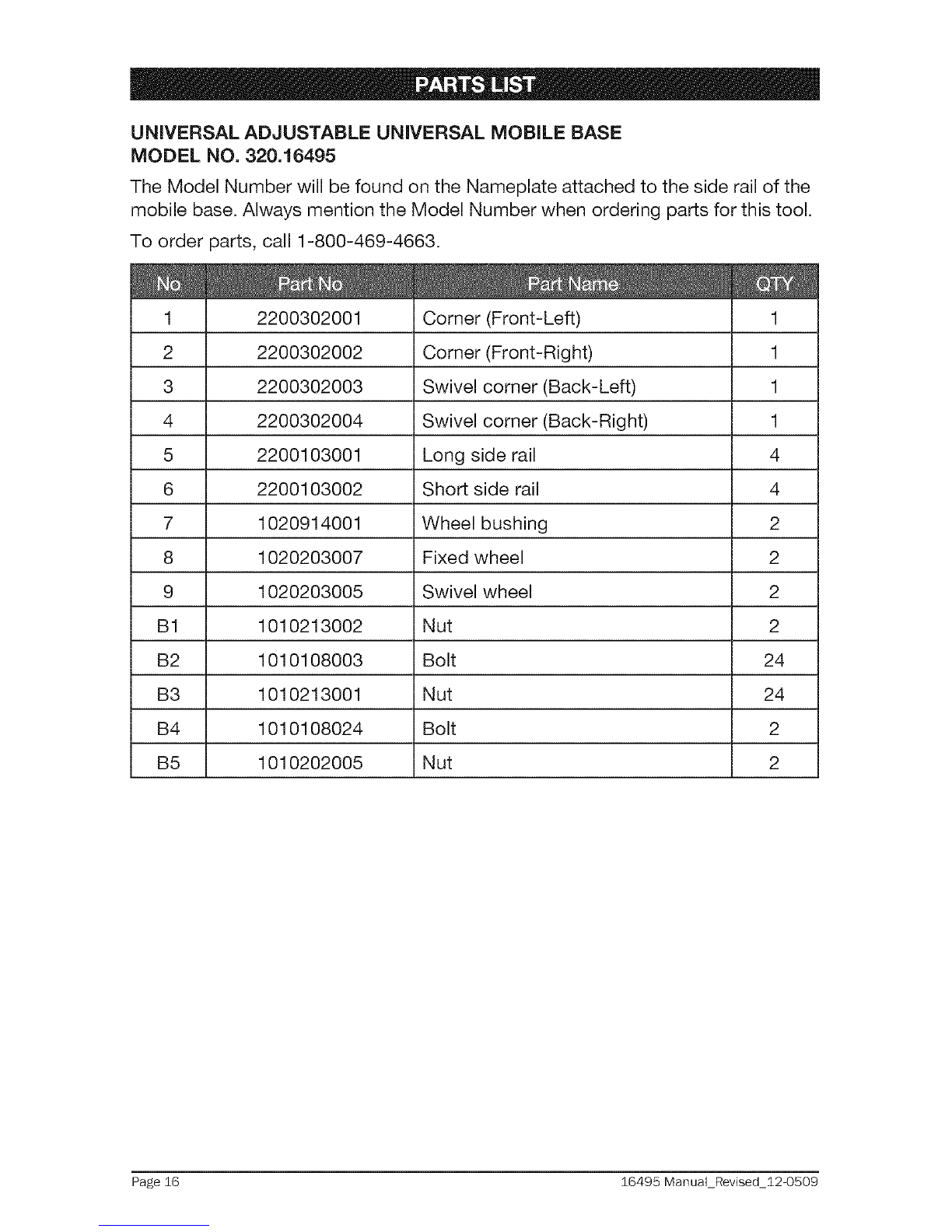

Parts List Pages 15-16
CRAFTSMAN ONE YEAR FULL WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted
against any defects in material or workmanship. With proof of purchase,
defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web
site: www.craftsman.com
This warranty is void if this product is ever used while providing commercial
services or if rented to another person.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
This mobile base has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product making it easy to maintain and operate.
SAVE THESE iNSTRUCTiONS!
READ ALL iNSTRUCTiONS!
Page 2 16495 ManuaLRevised_12 0509

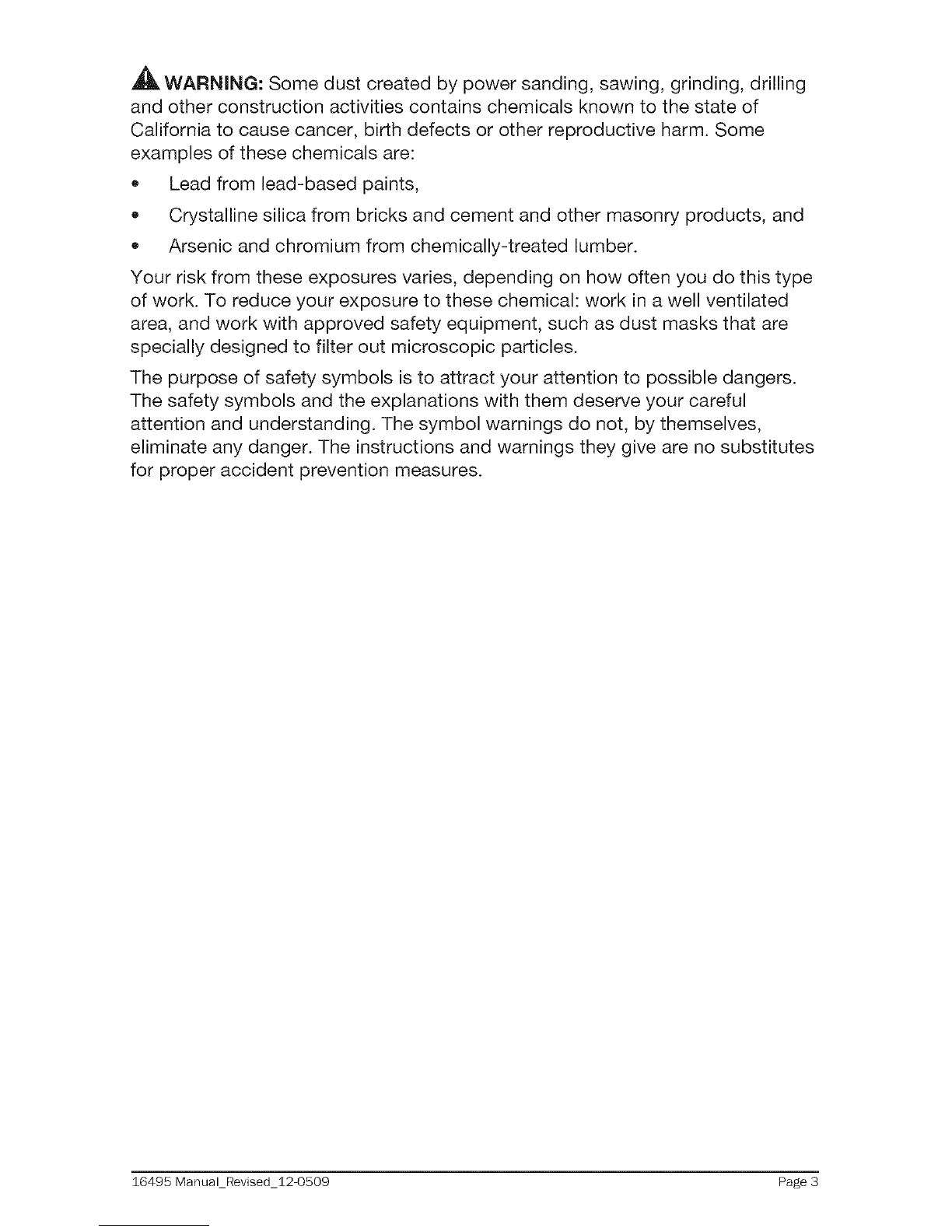

_,WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of
California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints,
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemical: work in a well ventilated
area, and work with approved safety equipment, such as dust masks that are
specially designed to filter out microscopic particles.
The purpose of safety symbols is to attract your attention to possible dangers.
The safety symbols and the explanations with them deserve your careful
attention and understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they give are no substitutes
for proper accident prevention measures.
16495 Manual_Revised_12 0509 Page 3

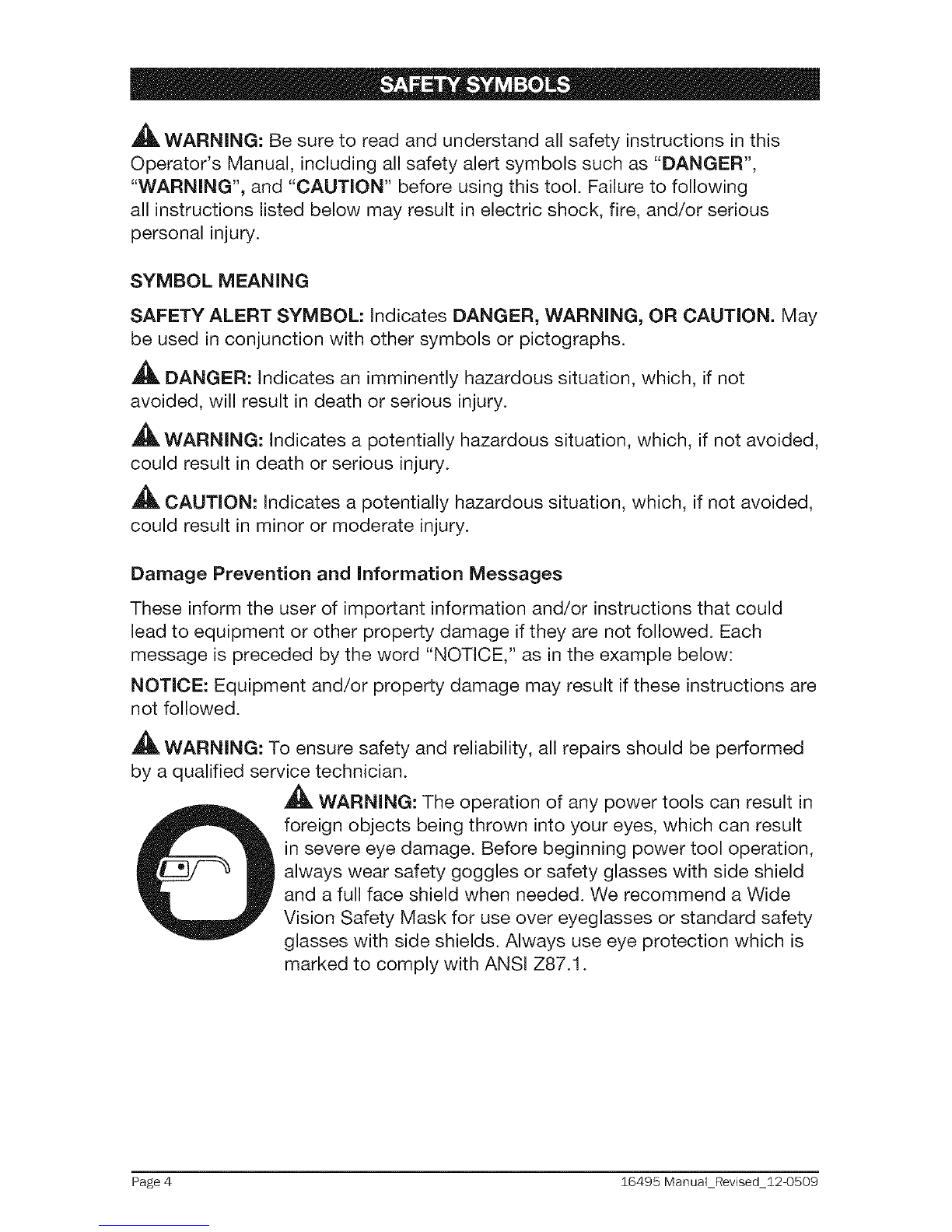

,_ WARNING: Be sure to read and understand all safety instructions in this
Operator's Manual, including all safety alert symbols such as "DANGER",
"WARNING", and "CAUTION" before using this tool. Failure to following
all instructions listed below may result in electric shock, fire, and/or serious
personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May
be used in conjunction with other symbols or pictographs.
DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
_, WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
_, CAUTION: Indicates a potentially hazardous situation, which, if not avoided,
could result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could
lead to equipment or other property damage if they are not followed. Each
message is preceded by the word "NOTICE," as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are
not followed.
_WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician.
_IL WARNING: The operation of any power tools can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
Page 4 16495 Manual_Revised_12 0509

SAVE THESE iNSTRUCTiONS
Some of the following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
===== Direct Current Type or a characteristic of current
n O No Load Speed Rotational speed, at no load
] Class II Construction Double=insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp
locations.
_! To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
O Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
shield when operating this product.
_1_ Alert Precautions that involve
Safety your safety.
Failure to keep your hands away from the
No=Hands Symbol blade will result in serious personal injury.
No=Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
Failure to keep your hands away from the
No=Hands Symbol blade will result in serious personal injury.
No=Hands Symbol Failure to keep your hands away from the
blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,
avoid contact with any hot surface.
16495 Manual_Revised_12 0509 Page 5

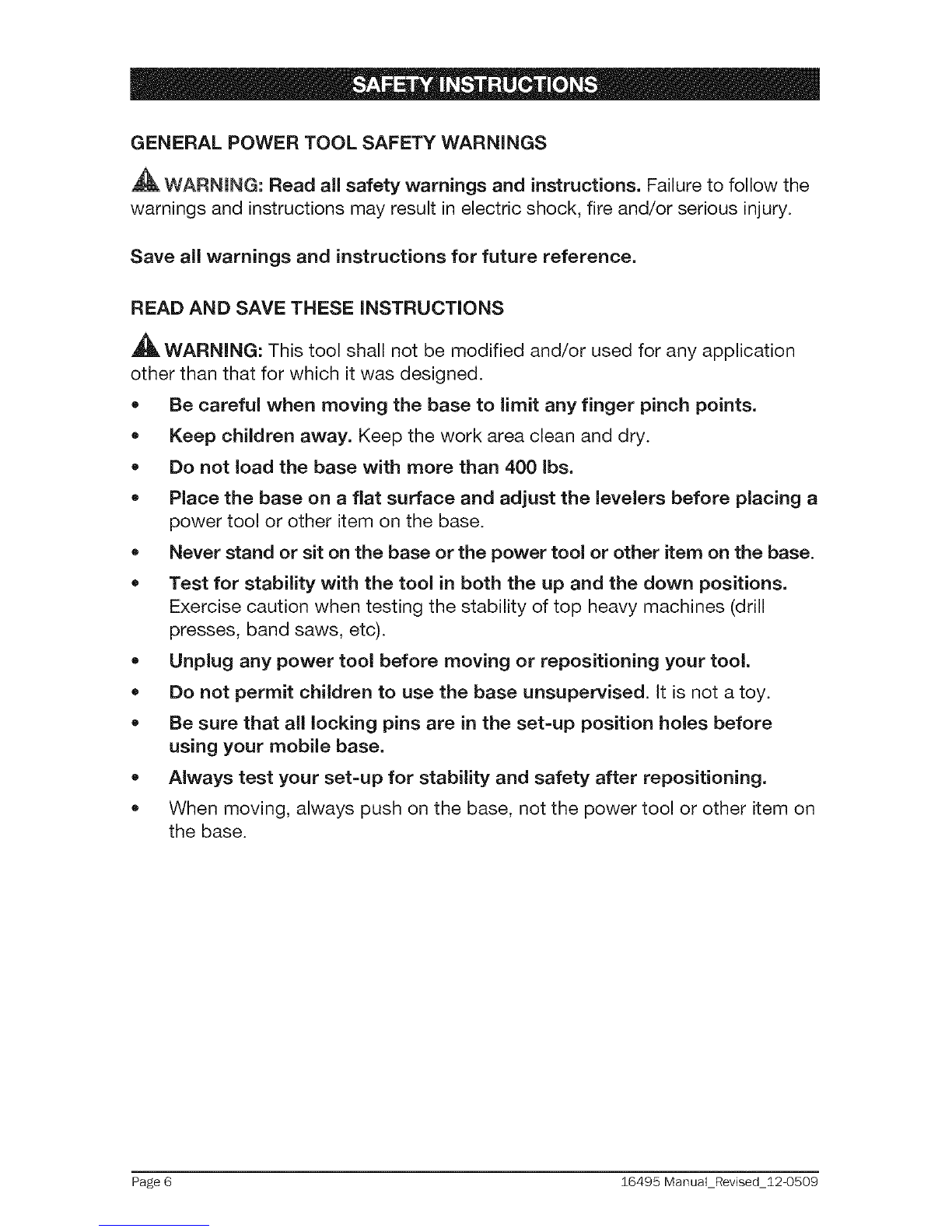

GENERAL POWER TOOL SAFETY WARNINGS
,_ WARNmNG: Read all safety warnings and instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
READ AND SAVE THESE INSTRUCTIONS
,_ WARNING: This tool shall not be modified and/or used for any application
other than that for which it was designed.
• Be careful when moving the base to limit any finger pinch points.
• Keep children away. Keep the work area clean and dry.
= Do not load the base with more than 400 ibs.
= Place the base on a fiat surface and adjust the levelers before placing a
power tool or other item on the base.
= Never stand or sit on the base or the power tool or other item on the base.
= Test for stability with the tool in both the up and the down positions.
Exercise caution when testing the stability of top heavy machines (drill
presses, band saws, etc).
• Unplug any power tool before moving or repositioning your tool.
= Do not permit children to use the base unsupervised. It is not a toy.
= Be sure that all locking pins are in the set=up position holes before
using your mobile base.
= Always test your set=up for stability and safety after repositioning.
= When moving, always push on the base, not the power tool or other item on
the base.
Page 6 16495 ManuaLRevised_12 0509

KNOW YOUR ADJUSTABLE MOBILE BASE (Fig. 1)
Fig. 1
Side rail
Corner
Corner
fixed wheel Swivel wheel
with lock
PRODUCT SPECIFICATIONS
Weight 13.6 Ibs
Maximum square 34"x 34"
Minimum square 12" x12"
Maximum rectangle 18" x 50"
Maximum Load Capacity 400 Ibs
16495 Manual_Revised_12 0509 Page 7

,_IL WARNING: If any parts are broken or missing, do not attempt to operate the
mobile base until the broken or missing part is replaced. Failure to do so could
result in possibly serious injury.
_, WARNING: Do not attempt to modify this base or create accessories not
recommended for use with this base. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious injury.
UNPACKING
This product has been shipped disassembled.
* Carefully remove all the parts and accessories from the carton. Make sure
that all items listed in the packing list are included.
* Inspect the mobile base carefully to make sure no breakage or damage
occurred during shipping.
* Do not discard the packing material until you have carefully inspected and
satisfactorily operated the base.
* If any parts are damaged or missing, please return the base to the place
of purchase.
PACKAGE CONTENTS AND HARDWARES
Item Description
B
C
Corner
Swivel corner
Long side rail
Quantity
2
Page 8 16495 Manual_Revised_12 0509

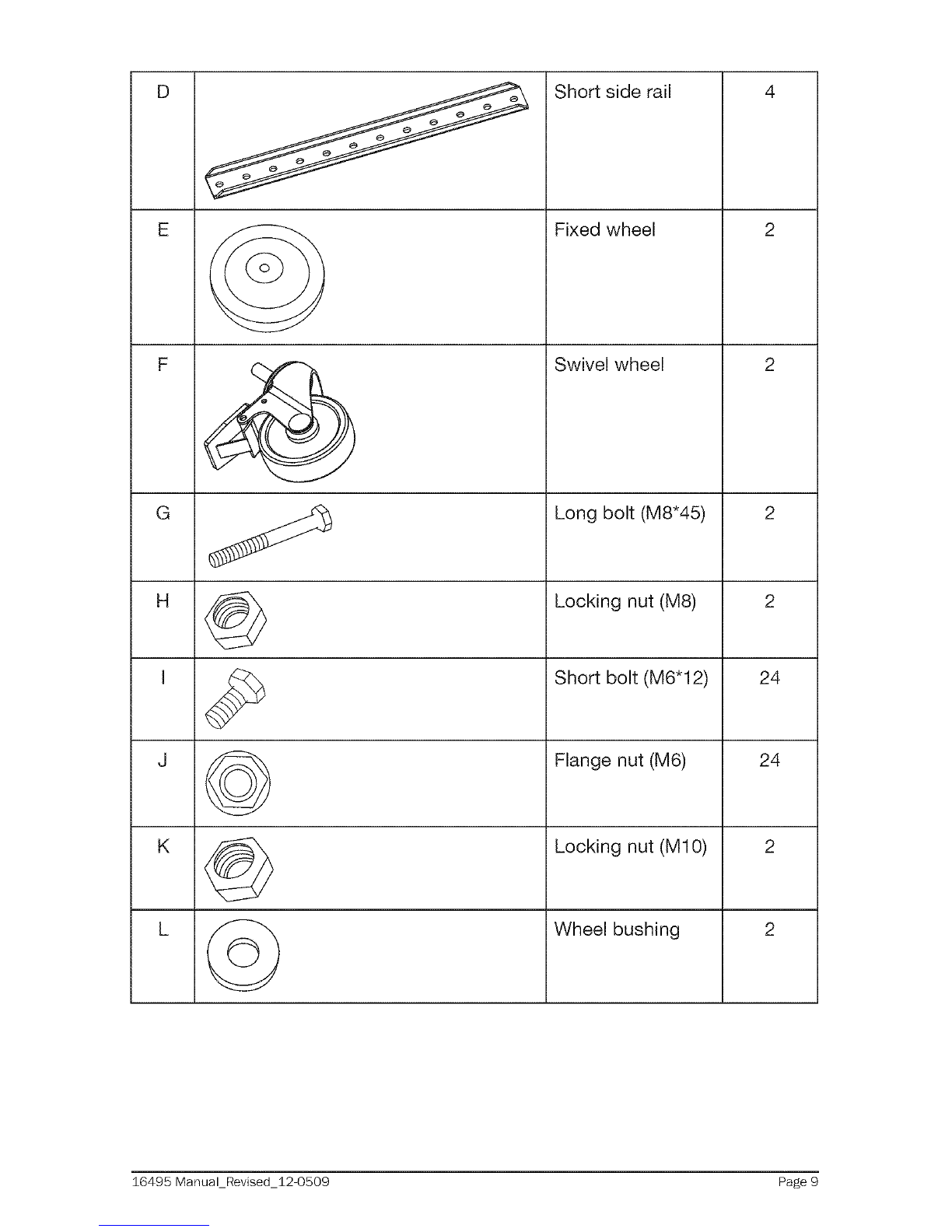

H©
Short side rail
Fixed wheel
Swivel wheel
Long bolt (M8"45)
Locking nut (M8)
Short bolt (M6"12)
Flange nut (M6)
Locking nut (MIO)
Wheel bushing
24
24
16495 Manual_Revised_12 0509 Page 9

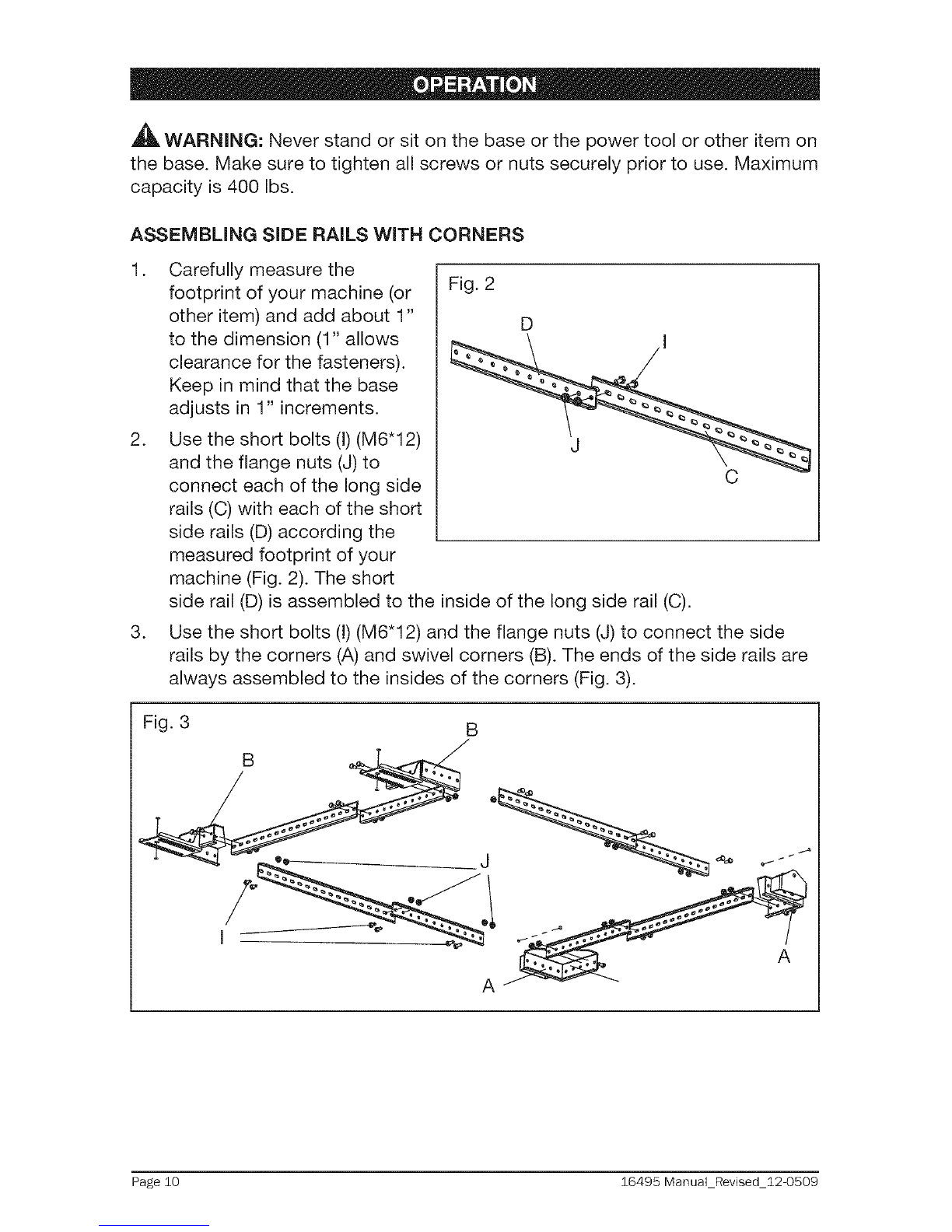

,_ WARNING: Never stand or sit on the base or the power tool or other item on
the base. Make sure to tighten all screws or nuts securely prior to use. Maximum
capacity is 400 Ibs.
ASSEMBLING SiDE RAILS WiTH CORNERS
1.
2.
3.
Carefully measure the
footprint of your machine (or Fig. 2
other item) and add about 1"
to the dimension (1" allows
clearance for the fasteners).
Keep in mind that the base
adjusts in 1" increments.
Use the short bolts (I) (M6"12)
and the flange nuts (J) to
connect each of the long side
rails (C) with each of the short
side rails (D) according the
measured footprint of your
machine (Fig. 2). The short
side rail (D) is assembled to the inside of the long side rail (C).
D
C
Use the short bolts (I) (M6"12) and the flange nuts (J) to connect the side
rails by the corners (A) and swivel corners (B). The ends of the side rails are
always assembled to the insides of the corners (Fig. 3).
A
A
Page 10 16495 ManuaLRevised_12 0509

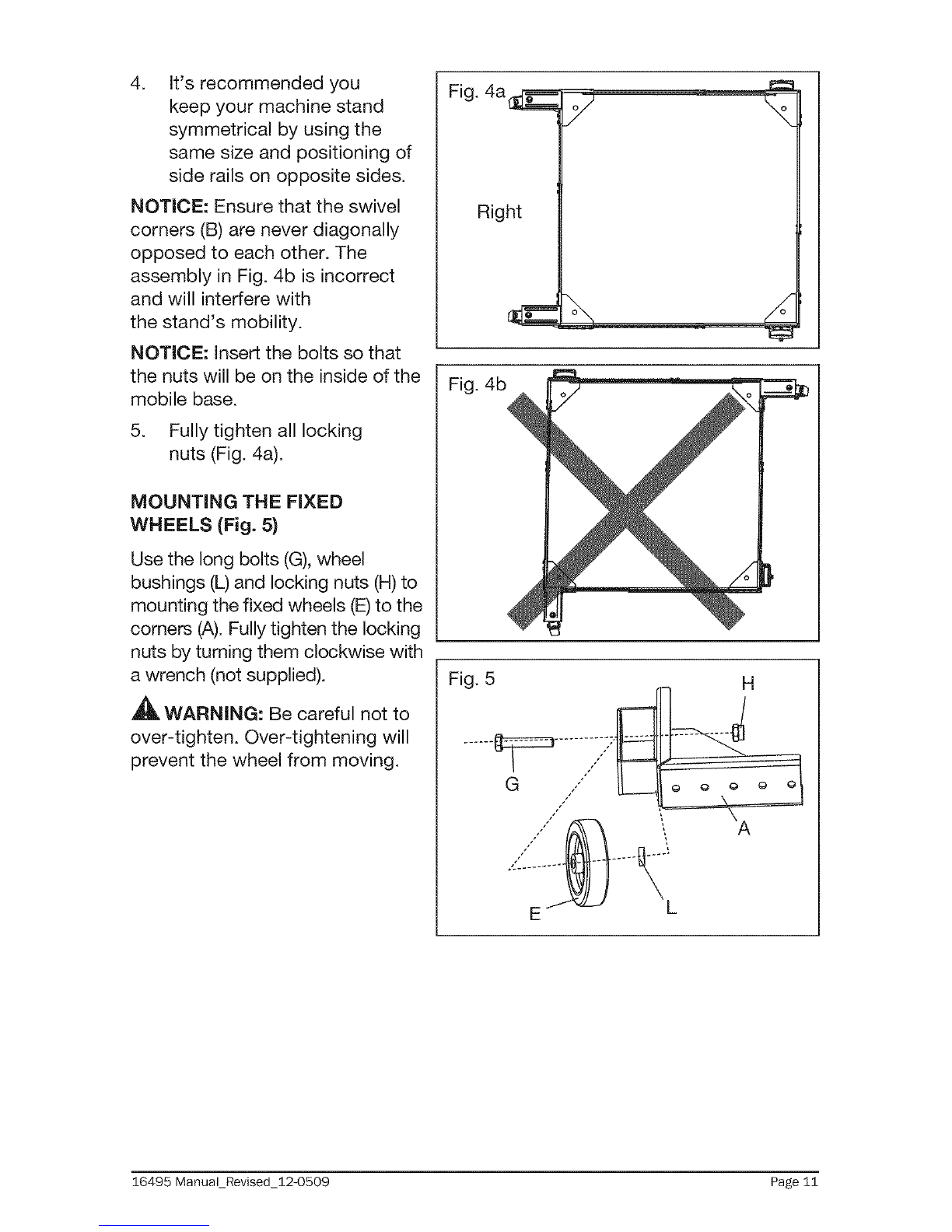

4. It's recommended you
keep your machine stand
symmetrical by using the
same size and positioning of
side rails on opposite sides.
NOTICE: Ensure that the swivel
corners (B) are never diagonally
opposed to each other. The
assembly in Fig. 4b is incorrect
and will interfere with
the stand's mobility.
NOTICE: Insert the bolts so that
the nuts will be on the inside of the
mobile base.
5. Fully tighten all locking
nuts (Fig. 4a).
MOUNTING THE FIXED
WHEELS (Fig. 5)
Use the long bolts (G), wheel
bushings (L) and locking nuts (H) to
mounting the fixed wheels (E)to the
corners (A). Fully tighten the locking
nuts by turning them clockwise with
a wrench (not supplied).
_, WARNING: Be careful not to
over-tighten. Over-tightening will
prevent the wheel from moving.
/
Fig.
Fig. 5 H
A
E L
16495 Manual_Revised_12-0509 Page 11

MOUNTING THE SWIVEL
WHEELS (Fig. 6)
NOTICE: Carefully review the
assembly tips below to help you
determine the best postion for the
swivel wheels (F).As these are
examples only, you must determine
what best suits your particular item's
requirements for stability.
When attaching the swivel wheels
(F) to the swivel corners(B), please
use the following procedure:
1. Lock the wheel by firmly
pressing the black
locking lever.
2. While holding the wheel (F) in
one hand, tighten the locking
nut (K) clockwise with a
wrench (available separately).
WARNING: Make sure that
the swivel wheel is fully tightened.
A loose swivel wheel could cause
personal injury.
Fig. 6 K Plate B
*_F
Black Iockin( lever
Fig. 7
Assembly Tips
Be sure to follow all safety and
assembly instructions. Keep in
mind the actual operation of your
power tool or other item and the
effect it has on overall stability.
= A long, narrow base, such as
a jointer, would benefit from
this arrangement shown
in Fig. 7.
= A short narrow base, such as
that found on a drill press or
band saw, may benefit from the arrangement shown
in Fig. 8.
Page 12 16495 ManuaLRevised_12 0509

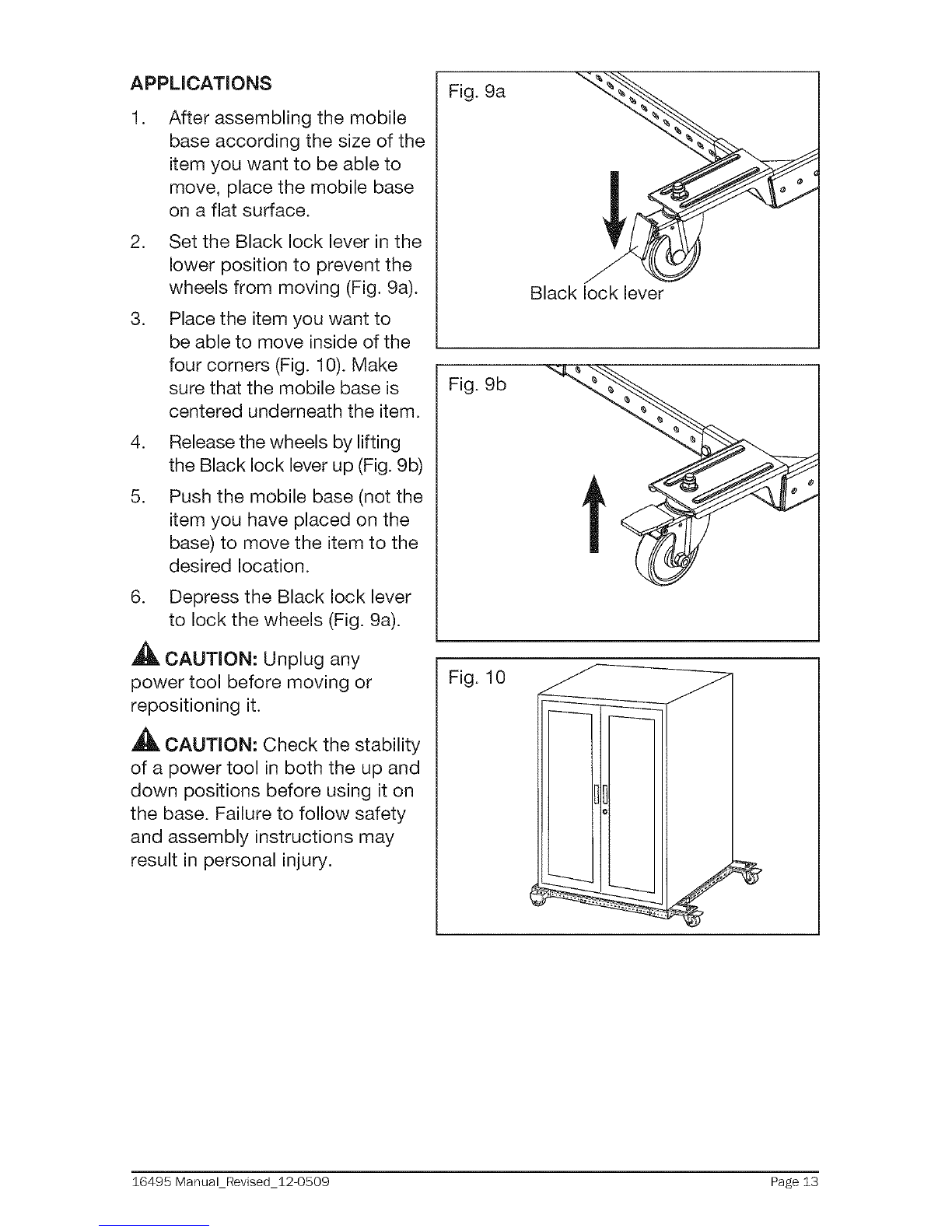

APPLiCATiONS
1.
2.
3.
4.
5.
After assembling the mobile
base according the size of the
item you want to be able to
move, place the mobile base
on a flat surface.
Set the Black lock lever in the
lower position to prevent the
wheels from moving (Fig. 9a).
Place the item you want to
be able to move inside of the
four corners (Fig. 10). Make
sure that the mobile base is
centered underneath the item.
Release the wheels by lifting
the Black lock lever up (Fig. 9b)
Push the mobile base (not the
item you have placed on the
base) to move the item to the
desired location.
6. Depress the Black lock lever
to lock the wheels (Fig. 9a).
_, CAUTION: Unplug any
power tool before moving or
repositioning it.
CAUTION: Check the stability
of a power tool in both the up and
down positions before using it on
the base. Failure to follow safety
and assembly instructions may
result in personal injury.
Fig. 9a
Fig. 9b
Fig. 10
Black lock lever
16495 Manual_Revised_12 0509 Page 13

WARNING: When servicing, use only identical replacement parts. Use of any
other parts may create a hazard or cause product damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: When servicing, use only identical replacement parts. Use of any
other parts may create a hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified service technician.
,_ WARNING: Keep the mobile base dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake fluids, gasoline,
petroleum based products or any strong solvent to clean the base. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
Page 14 16495 Manual_Revised_12 0509

t,u
tu
=,a
O
.,d
W
g_
ww
o ._
-o_
Z
@ --_
z_5
7g_
E
c4
i
,,r--
CL
0
0
}--
B2
2 8 7 6
9

UNIVERSAL ADJUSTABLE UNIVERSAL MOBILE BASE
MODEL NO. 320.16495
The Model Number will be found on the Nameplate attached to the side rail of the
mobile base. Always mention the Model Number when ordering parts for this tool.
To order parts, call 1-800-469-4663.
1 2200302001 Corner (Front-Left) 1
2 2200302002 Corner (Front-Right) 1
3 2200302003 Swivel corner (Back-Left) 1
4 2200302004 Swivel corner (Back-Right) 1
5 2200103001 Long side rail 4
6 2200103002 Short side rail 4
7 1020914001 Wheel bushing 2
8 1020203007 Fixed wheel 2
9 1020203005 Swivel wheel 2
B1 1010213002 Nut 2
B2 1010108003 Bolt 24
B3 1010213001 Nut 24
B4 1010108024 Bolt 2
B5 1010202005 Nut 2
Page 16 16495 ManuaLRevised_12 0509

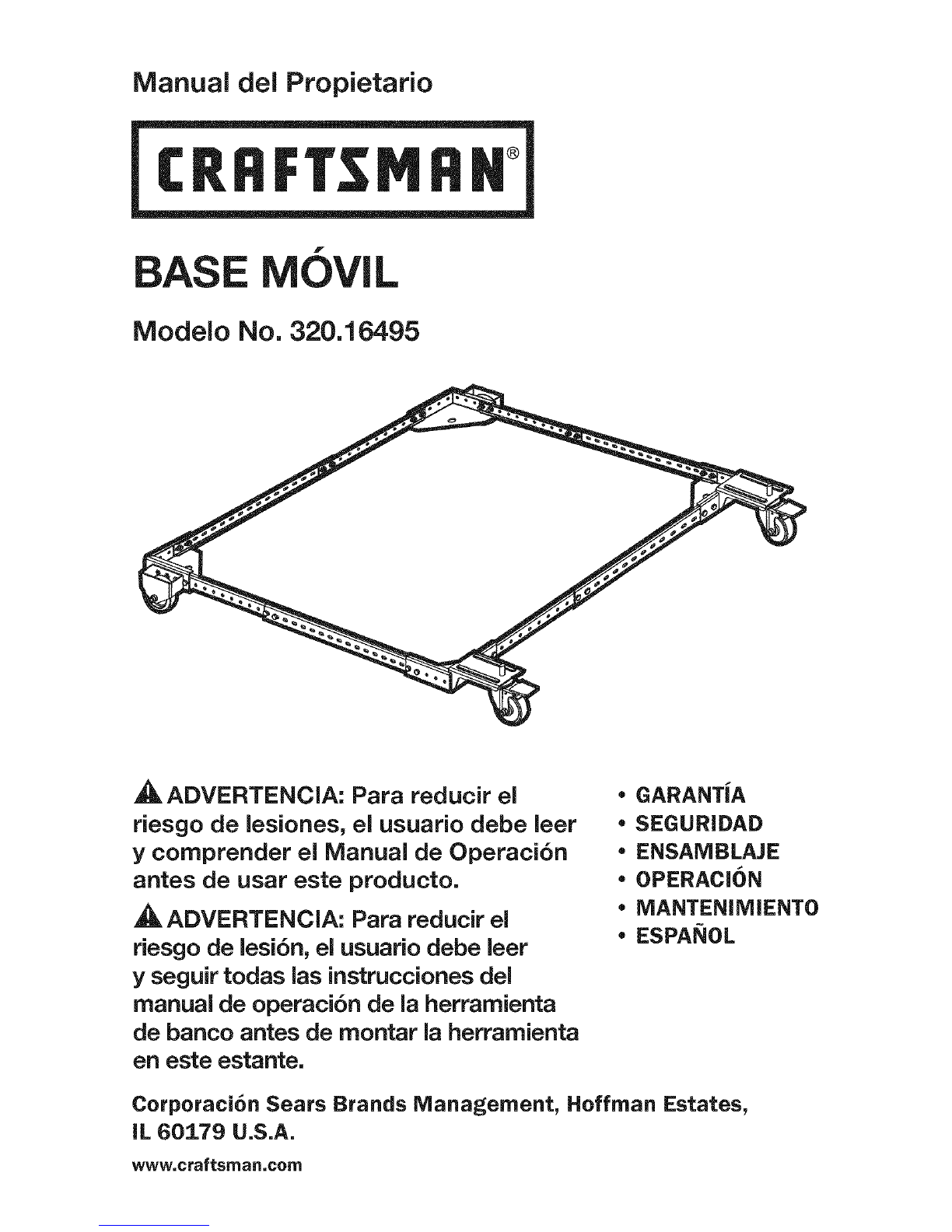

Manual del Propietario
®
BASE MOVIL
Modelo No. 320.16495
ADVERTENCIA: Para reducir el
riesgo de lesiones, el usuario debe leer
y comprender el Manual de Operaci6n
antes de usar este producto.
_ADVERTENCIA: Para reducir el
riesgo de lesi6n, el usuario debe leer
y seguir todas las instrucciones del
manual de operaci6n de la herramienta
de banco antes de montar la herramienta
en este estante.
,, GARANTiA
•SEGURIDAD
•ENSAMBLAJE
•OPERATION
• MANTENliVllENTO
• ESPANOL
Corporaci0n Sears Brands Management, Hoffrnan Estates,
IL 60179 U.S.A.
www, craftsman,com

Garantia P&gina 2
Simbolos de Seguridad Paginas 4-5
Instrucciones de Seguridad Pagina 6
Descripcion Pagina 7
Ensamblaje Paginas 8-9
Operacion Paginas 10-13
Mantenimiento Pagina 14
Lista de Partes Paginas 15-16
GARANTiA TOTAL DE UN A_lO CRAFTSMAN
POR UN ANO despues de la fecha de compra, este producto est& garantizado
pot cualquier defecto de materiales o fabricacion. Si cuenta con la prueba de
compra, el producto defectuoso sera reemplazado sin costo alguno.
Para detalles sobre la cobertura de garantia para obtener una
devoluci6n gratuita, visite la p_gina web: www.craftsrnan.corn
Esta garantia se anular&, si el producto ha sido usado mientras se proveia
servicios comerciales o si se ha rentado a otra persona.
Esta garantia le otorga derechos legales especificos. Puede que usted
tenga otros derechos que varien de un Estado a otro.
Corporacion Sears Brands Management, Hoffman Estates, IL 60179 U.S.A.
Esta base movil tiene muchas funciones disefiadas para obtener un uso mas
placentero. AI disefiar este producto, se le ha otorgado maxima prioridad a la
seguridad, el rendimiento y la confiabilidad, haciendolo facil de mantener y operar.
iGUARDE ESTAS INSTRUCCIONES!
!LEA TODAS LAS INSTRUCCIONES!
P_gina 18 16495 ManuaLRevisado_12 0509

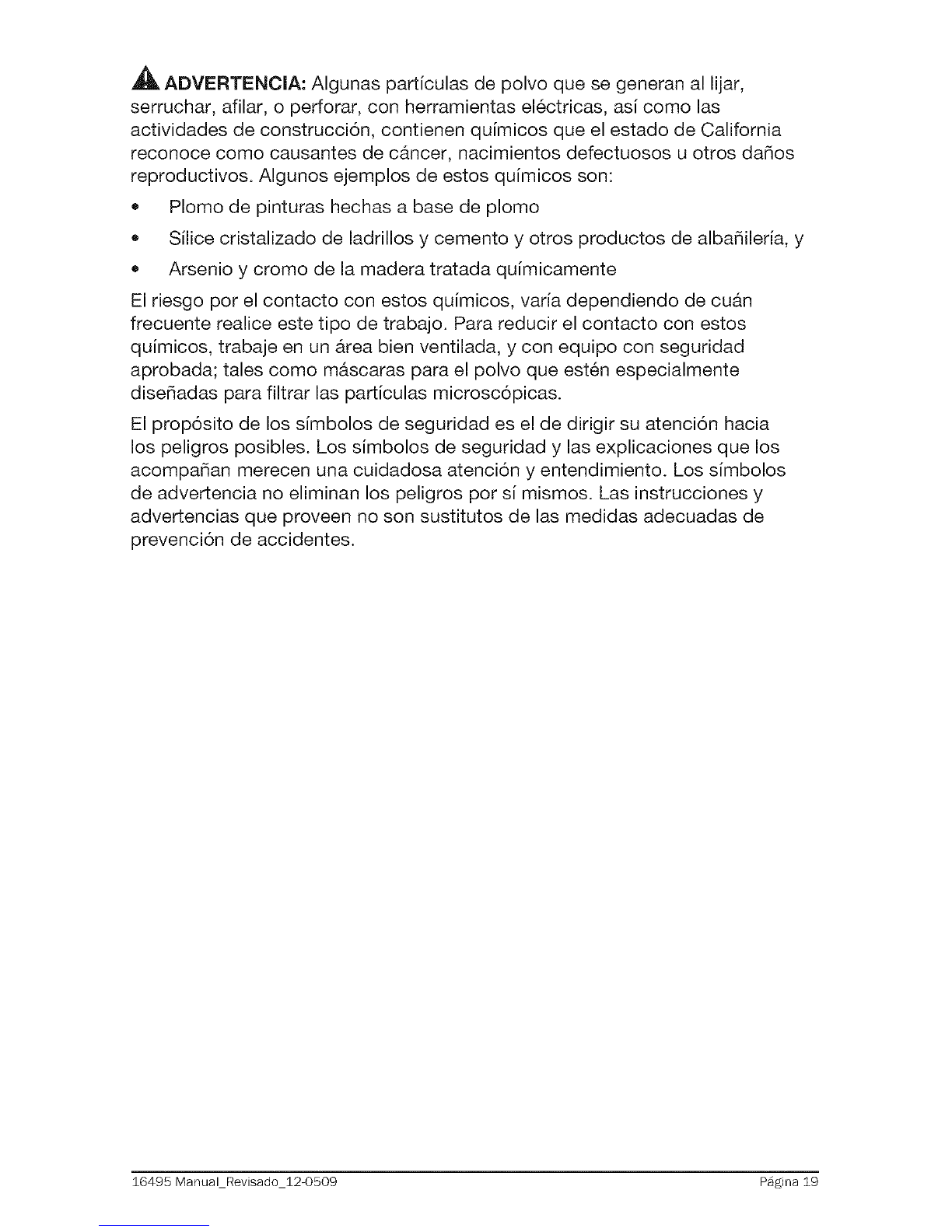

,_ ADVERTENClA: Algunas particulas de polvo que se generan al lijar,
serruchar, afilar, o perforar, con herramientas electricas, asi como las
actividades de construccion, contienen quimicos que el estado de California
reconoce como causantes de cancer, nacimientos defectuosos u otros daSos
reproductivos. Algunos ejemplos de estos quimicos son:
• Plomo de pinturas hechas a base de plomo
Silice cristalizado de ladrillos y cemento y otros productos de albaSileria, y
Arsenio y cromo de la madera tratada quimicamente
El riesgo por el contacto con estos quimicos, varia dependiendo de cuan
frecuente realice este tipo de trabajo. Para reducir el contacto con estos
quimicos, trabaje en un Area bien ventilada, y con equipo con seguridad
aprobada; tales como mascaras para el polvo que esten especialmente
dise_adas para filtrar las particulas microscopicas.
El proposito de los simbolos de seguridad es el de dirigir su atencion hacia
los peligros posibles. Los simbolos de seguridad y las explicaciones que los
acompaSan merecen una cuidadosa atencion y entendimiento. Los simbolos
de advertencia no eliminan los peligros pot si mismos. Las instrucciones y
advertencias que proveen no son sustitutos de las medidas adecuadas de
prevencion de accidentes.
16495 Manual_Revisado_12-0509 P_gina 19

_, ADVERTENClA: AsegOrese de leer y comprender todas las instrucciones
de seguridad en este manual de operaci6n, incluyendo todos los simbolos
de seguridad de alerta tales como "PELIGRO", "ADVERTENClA", y
"PREOAUClON" antes de usar esta herramienta. El no seguir todas las
instrucciones que se indican a continuacion, puede ocasionar descarga
electrica, incendio, y/o grave lesion personal.
SIGNIFICADO DE LOS SiMBOLOS
SiMBOLO DE SEGURIDAD DE ALERT.&: indioa PELIGRO, ADVERTENCIA, o
PRECAUCION; pueden ser usados junto con otros simbolos o pictogramas.
,_ PELIGRO: indica una situacion peligrosa que de no ser evitada, producira la
muerte o lesion grave.
_1_ ADVERTENClA: indica una situacion peligrosa que de no ser evitada, podria
producir la muerte o lesion grave.
_1_ PRECAUClON: indica una situacion peligrosa que de no ser evitada podria
producir lesiones menores o moderadas.
Prevenci6n de daSo ymensajes informativos
Le informan al usuario de informacion importante y/o instrucciones que podrian
producir daSo al equipo u otra propiedad si no se cumplen. Cada mensaje esta
precedido por la palabra "NOTA", como se muestra en el ejemplo aqui abajo:
NOTA: DaSo al equipo u/o otra propiedad puede producirse si no se cumplen
estas instrucciones.
,_ ADVERTENClA: para asegurarse la seguridad y la confiabilidad, todas las
reparaciones deben realizarse pot un tecnico de servicio calificado.
ADVERTENClA: La operacion de cualquier herramienta
electrica puede causar el lanzamiento de objetos extraSos
dentro de sus ojos, Io cual puede ocasionar una lesion severa
del ojo. Antes de iniciar la operacion de la herramienta
electrica, siempre use anteojos o gafas protectoras con
proteccion lateral y una mascara protectora para la cara
cuando sea necesario. Le recomendamos una MAscara de
Seguridad de Vision Amplia para usarse sobre sus lentes o
gafas de seguridad estandar con proteccion lateral. Siempre
use proteccion a los ojos con la etiqueta de cumplimiento de
ANSI Z87.1.
P_gina 20 :$6495 Manual_Revisado_12 0509
