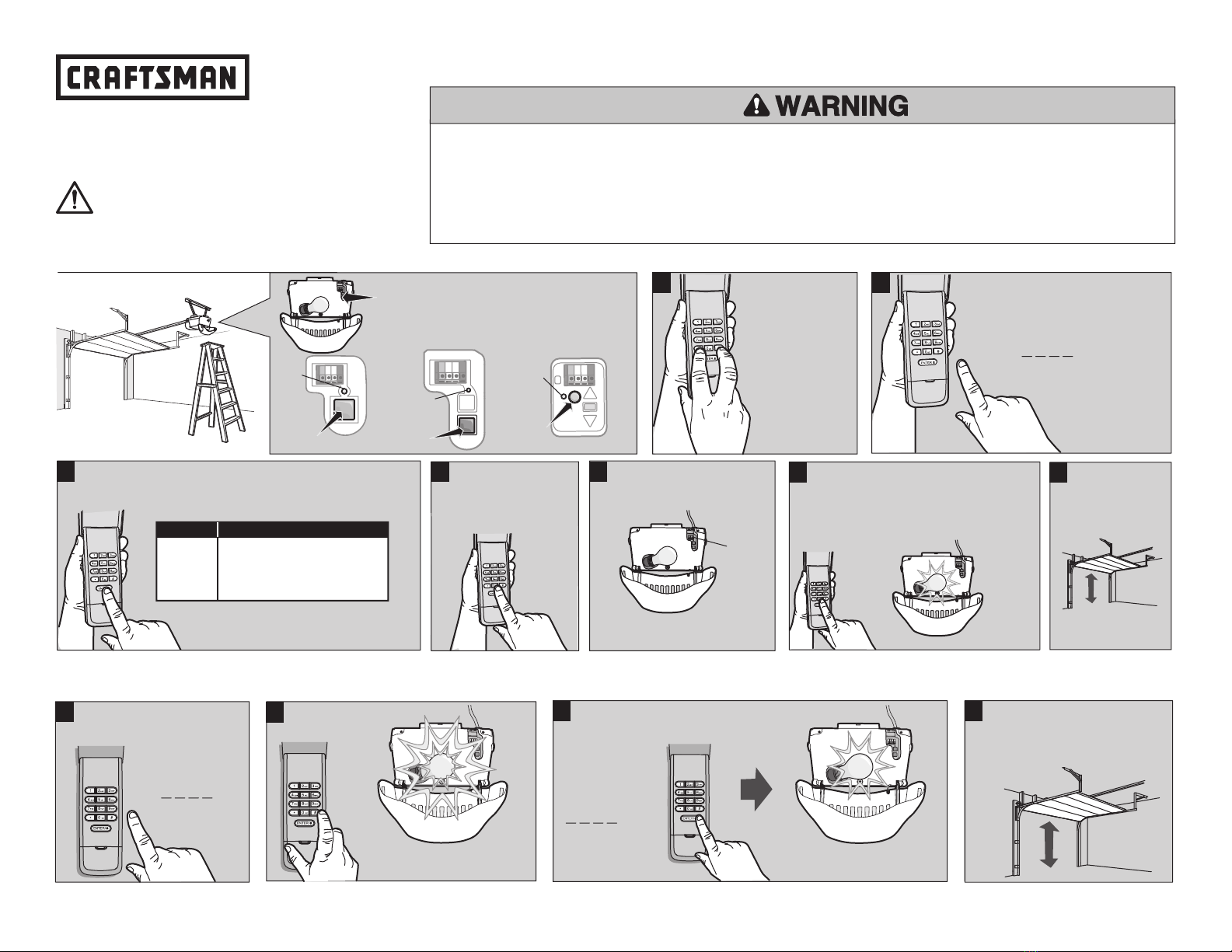

Enter a 4-digit personal identification
number (PIN) of your choice:
Then press the # button.
2
? ? ? ?
4
The garage door
opener will activate.
7To test, enter your
PIN, then press
the ENTER button.
Press and hold
the and #
buttons until the
lights on the
keypad stop
blinking.
1
*
3Press and release the Enter button on the keypad a number of
times that corresponds with the garage door opener type:
# of Presses Garage Door Opener Type
1
2
3
4
Security+ 2.0®(Yellow Learn Button)
Security+®(Purple Learn Button)
Security+®(Red/Orange Learn Button)
Billion Code (Green Learn Button)
Learn
Button
5Press and release the Learn
button on the garage door
opener.
Within 30 seconds...
The Learn LED will light.
Enter your 4-digit PIN, then press and
release the ENTER button until the garage
door opener lights flash or two clicks are
heard.
6
Click
Click
Locate the Learn button on the garage door
opener.
NOTE: Your garage door opener may
look different.
Learn
LED
Learn
LED
OR OR
Learn
LED
Green or
Red/Orange Purple Yellow
PROGRAM INITIAL PIN
CHANGE AN EXISTING PIN*
1
? ? ? ?
Press the programmed PIN
that you want to change.
...the light bulb blinks twice.
2Press and hold the
# button until...
3
+
? ? ? ?
new PIN
Enter the new 4-digit PIN of your choice,
then press the ENTER button.
4To test, press the new PIN,
then the ENTER button.
The garage door opener
will activate.
The light bulb will blink once.
PREPARE
Once the garage door
opener type is selected,
press the 0 button.
REFER TO GARAGE DOOR OPENER MANUAL FOR DETAILED INSTALLATION, ADJUSTMENTS, AND SAFETY INFORMATION.
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:
• Install keypad within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and away from ALL moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.
* For garage door openers that have a green Learn button or an external receiver repeat "Program Initial PIN" to change the existing PIN.
To program the keypad to more than one garage door opener, repeat the steps above using a new PIN for each additional garage door opener.
®
WIRELESS KEYPAD •MODEL CMXZDCG440
Compatible with garage door openers manufactured after January 1, 1993.
Make sure the garage door opener has a working light bulb because it is a
programming indicator.
Install the battery and program the keypad prior to installation.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.

...the light bulb blinks 3 times.
1Press any programmed PIN, then press and hold
the *button until...
+
? ? ? ?
PIN
2
+
? ? ? ?
Temporary PIN
Enter the temporary 4-digit PIN of your
choice, then press the ENTER button.
The light bulb will blink
4 times.
Then press
the button.
3
+
Press the number
of hours the
temporary PIN
will work (up to 255).
3
OR Then press
the # button.
+
Press the number
of openings the
temporary PIN
will work (up to 255).
1 blink 1 blink
To test, press the temporary
PIN, then press the ENTER
button. The garage door opener
will activate. If the temporary
PIN was set for a number of
openings, the test will use up
one opening.
To clear the temporary PIN, repeat steps 1-3 above, setting the number of hours or openings to 0 in step 3.
*
Replace the battery when the keypad
becomes dim or does not light after a button
is pressed.
Dispose of old battery properly.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
To prevent possible SERIOUS INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

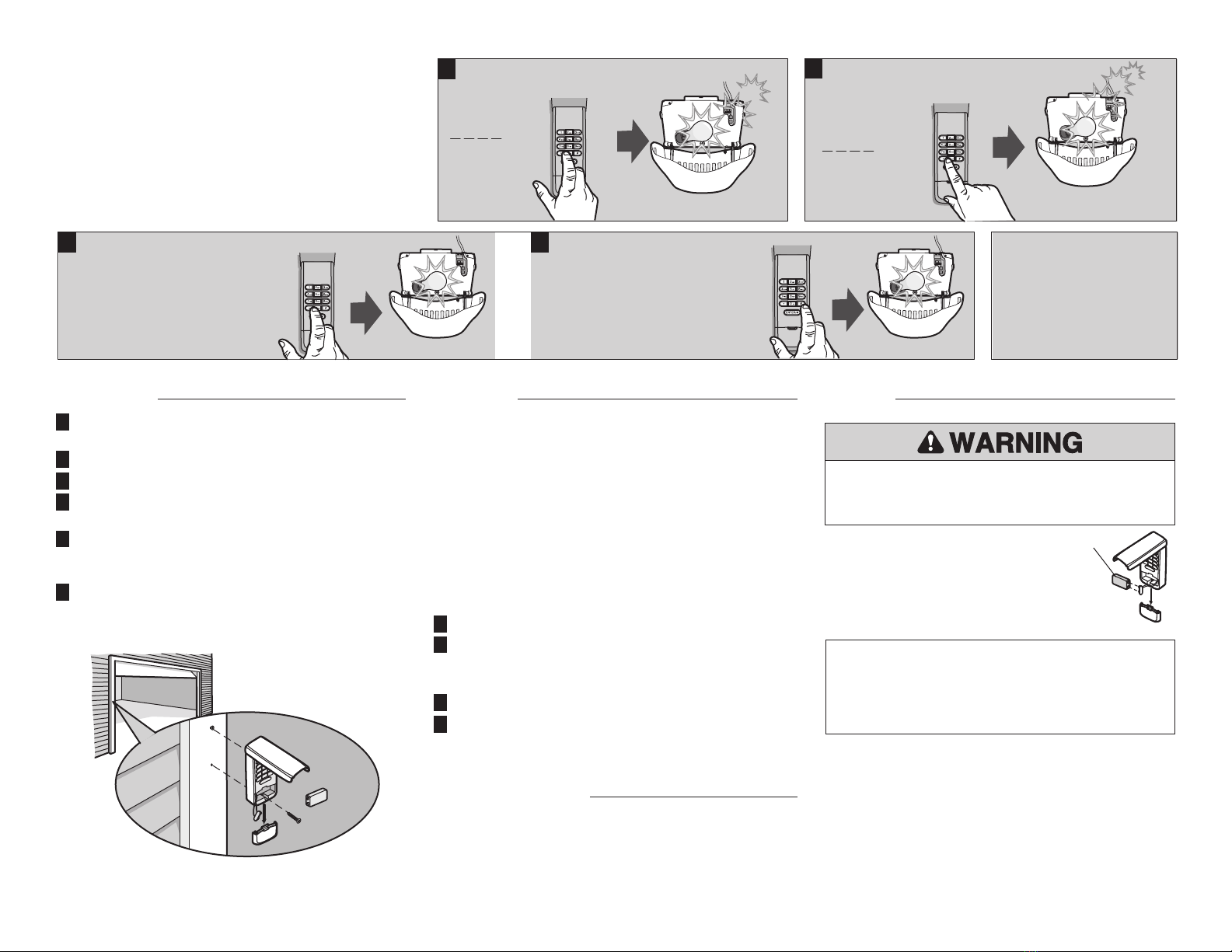

PROGRAM A TEMPORARY PIN
OPERATION
The garage door opener activates when the PIN and ENTER button are
pressed. The keypad will blink for 15 seconds, during that time the
ENTER button can be used to stop, start or reverse the door.
If the wrong number is accidentally pressed, press the correct PIN then
the ENTER button. The keypad will transmit only the last four digits that
were pressed before the ENTER button.
ONE BUTTON CLOSE: The keypad has a feature that allows the door to be
closed using the ENTER button instead of a PIN.
NOTE: This feature is not available on garage door openers manufactured
prior to 2006 or an external receiver.
To deactivate the one button close feature:
1Press and hold the 1 and 9 buttons for 10 seconds.
2The keypad will blink four times when the one button close feature is
deactivated.
To activate the one button close feature:
1Press and hold the 1 and 9 buttons for 10 seconds.
2The keypad will blink twice when the one button close feature is
activated.
REPLACEMENT PARTS
9V Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A25
Keypad cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D621
Battery cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 41D541
NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of
this receiver and/or transmitter are prohibited, except for changing the code setting or
replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and (2)this
device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This feature is not available on garage door openers that have a
green Learn button or an external receiver.
A temporary 4-digit PIN can be programmed to allow access to
visitors. Each programmed PIN can program one temporary PIN. The
temporary PIN can be set for a number of hours or a number of door
openings. The temporary PIN cannot be the same as any previously
programmed PIN.
BATTERYINSTALLATION
1Select a location to mount the keypad at a minimum height of 5
feet (1.5 m) out of the reach of children.
2Remove battery cover and battery.
3Mark the top mounting hole and drill 1/8 inch (3.2 mm) pilot hole.
4Install the top screw, allowing 1/8 inch (3.2 mm) to protrude
above the surface. Position the keypad over the top screw.
5Mark the bottom hole and drill 1/8 inch (3.2 mm) pilot hole. Install
the bottom screw. Do not overtighten to avoid cracking the plastic
housing.
6Reinstall battery and replace cover.
9V Battery
Call: 888-331-4569
www.craftsman.com
NUMBER OF HOURS NUMBER OF OPENINGS
