Owner's Manual
ICRAFI'SMAN+I
38" LAWNSWEEPER
Model No. 486.24207
CAUTION:
Before using this product, read
this manual and follow all Safety
Rules and
Operating Instructions.
IMPORTANT - READ THIS FIRST!!!
For Missing Parts or Assembly Questions
Please Call 217-728-8388
Mon.-Fri. 7 am - 5 pm CST.
FAX [phone] or e-mail [email protected]
Missing parts will be sent UPS in 24 hours directly to your home.
•Safety
•Assembly
•Operation
•Maintenance
• Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 48785 (REV. 2/03)

SAFETY RULES ......................................................... 2
FULL SIZE HARDWARE CHART ............................... 3
CARTON CONTENTS ................................................ 4
ASSEMBLY ................................................................. 4
OPERATION ............................................................. 11
MAINTENANCE ........................................................ 12
STORAGE ................................................................ 12
SERVICE AND ADJUSTMENTS .............................. 13
TROUBLESHOOTING .............................................. 13
REPAIR PARTS ILLUSTRATION ........................... 14
REPAIR PARTS LIST ............................................... 15
PARTS ORDERING/SERVICE ................... Back Page
LIMITED ONE YEAR WARRANTY ON
For one year from the date of purchase, when this lawnsweeper is maintained and lubricated according to the operating
and maintenance instructions in the owner's manual, Sears will repair any defect in material or workmanship free of
charge. If this lawnsweeper is used for commercial or rental purposes, this warranty applies for only 90 days from the date
of purchase.
This warranty does not cover repairs necessary because of operator negligence orabuse, including the failure to maintain
the equipment according to instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT
IN THE UNITED STATES.
This warranty applies only while this product is in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment. Exercise caution at all times, when using power equipment.
• Read the vehicle and sweeper owners manuals and
know how to operate your vehicle and sweeper
before using this sweeper attachment. Always
instruct other users before they operate the sweeper.
• Do not permit children to operate sweeper.
• Do not permit anyone to ride on sweeper.
• Never attach the hopper rope to any part of your
body or clothing! Never hold onto the rope while
towing the sweeper! Attach the rope to the towing
vehicle to keep it away from wheels and rotating
parts.
• Operate the sweeper at reduced speed on rough
terrain, near ditches and on hillsides to prevent loss
of control.
• Vehicle braking and stability may be affected with the
attachment of this sweeper. Do not fill sweeper to
maximum capacity without checking the capability of
the towing vehicle to safely pull and stop with the
sweeper attached. Stay off of steep slopes.
• Stop and inspect vehicle and sweeper for damage
after striking an object. Repair any damage before
continuing operation.
• Keep sweeper away from fire. Excessive heat can
damage the brushes and hopper bag and could
cause the bag and its contents to burn.
• Before storing the sweeper, always empty the hopper
bag to avoid spontaneous combustion.
• Follow maintenance and lubrication instructions as
outlined in the maintenance section of this manual.
I,_, Look for this symbol to point out important safety precautions. It mean--Attention!!
Become alert!! Your safety is involved.
486.24207
The model number and serial numbers will be found on a
decal attached to the housing.
You should record both the serial number and the date of
purchase and keep in a safe place for future reference.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF PURCHASE:
2

J
/
/
/
/
/
J
J
J
J
\
\\ _Y
K
SHOWN FULL SIZE
R
J°1
S
J
GT
J
©
_W
NOT SHOWN FULL SIZE
REF. QTY. DESCRIPTION
2
2
2
4
5
2
6
6
4
2
2
2
8
2
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Hex Bolt, 5/16 x 2-1/2" Lg.
Hex Bolt, 5/16 x 2" Lg.
Curved Head Bolt, 5/16" x 1-5/8"
Carriage Bolt, 5/16" x 1-1/2"
Carriage Bolt, 5/16 x 3/4" Lg.
Hex Bolt, 5/16" x 3/4"
Hex Lock Nut, 5/16"
Hex Nut (Plain), 5/16"
Hex Nut (SEMS), 5/16"
Palnut, 3/8"
Flat Washer, 5/16" (Small)
Flat Washer, 5/16" Std. Wrt.
Lock Washer, 5/16"
Bowed Washer
Lock Washer (Tooth), 5/16"
REF.
P
Q
R
S
T
U
V
W
X
Y
Z
AA
BB
CC
DD
QTY.
1
8
2
2
2
2
1
2
2
1
1
1
4
3
1
DESCRIPTION
Hair Cotter Pin, 1/8"
Hair Cotter Pin, 3/32"
Clevis Pin, 1/4" x 1-1/8"
Clevis Pin, 1/4" x 1-3/4"
Clevis Pin, 3/8" x 3"
Clevis Pin, 3/8" x 1/2"
Spacer Bushing,
Hitch Spacer, 3/4"
Vinyl Cap
Grip
Knob, Plastic
Hitch Pin
Hopper Clamp
Plastic Plug
Angle Bracket
3

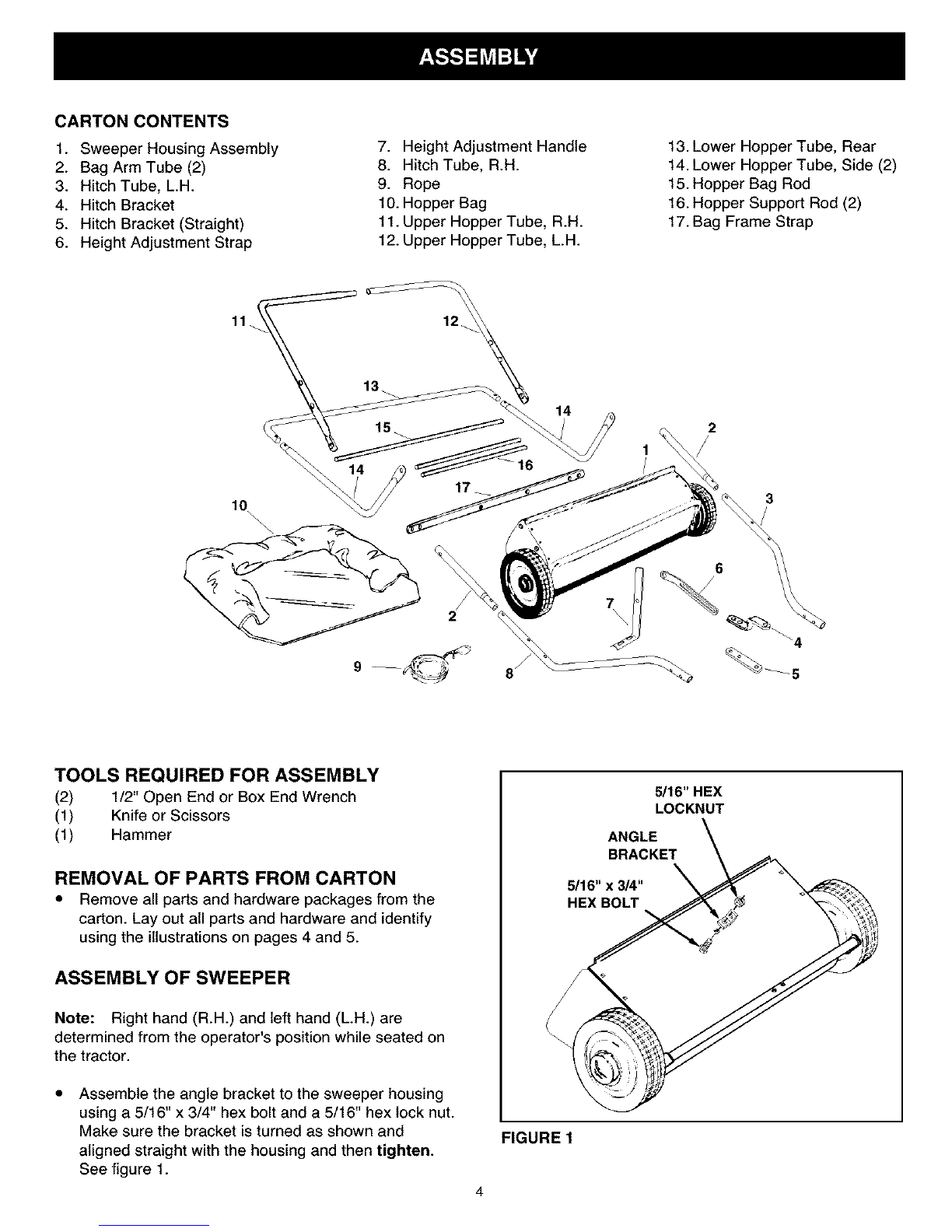

CARTON CONTENTS
1. Sweeper Housing Assembly
2. Bag Arm Tube (2)
3. Hitch Tube, L.H.
4. Hitch Bracket
5. Hitch Bracket (Straight)
6. Height Adjustment Strap
7. Height Adjustment Handle
8. Hitch Tube, R.H.
9. Rope
10. Hopper Bag
11. Upper Hopper Tube, R.H.
12. Upper Hopper Tube, L.H.
13. Lower Hopper Tube, Rear
14. Lower Hopper Tube, Side (2)
15. Hopper Bag Rod
16. Hopper Support Rod (2)
17. Bag Frame Strap
14 2
1
10 \\
8
3
6
TOOLS REQUIRED FOR ASSEMBLY
(2) 1/2" Open End or Box End Wrench
(1) Knife or Scissors
(1) Hammer
REMOVAL OF PARTS FROM CARTON
• Remove all parts and hardware packages from the
carton. Lay out all parts and hardware and identify
using the illustrations on pages 4 and 5.
ASSEMBLY OF SWEEPER
Note: Right hand (R.H.) and left hand (L.H.) are
determined from the operator's position while seated on
the tractor.
Assemble the angle bracket to the sweeper housing
using a 5/16" x 3/4" hex bolt and a 5/16" hex lock nut.
Make sure the bracket is turned as shown and
aligned straight with the housing and then tighten.
See figure 1.
5/16" HEX
LOCKNUT
ANGLE
BRACKET
5/16"x3_"
HEXBOLT
FIGURE 1
4

Assemble the R.H. hitch tube to the sweeper housing
using two 5/16" x 1-1/2" carriage bolts, 5/1 6" lock
washers and 5/16" hex nuts. Do not tighten yet.
Repeat for the L.H. hitch tube. See figure 2.
5116"LOCK
WASHER 5116"HEX NUT
5116"x 1-112" "_J
//
CARRIAGE BOLT) /
//
FIGURE 2
Fasten the hitch tubes together using two 5/16"
x 2-1/2" hex bolts, 5/16" small flat washers, 5/16"
lock washers and 5/16" hex lock nuts. Do not
tighten yet. See figure 3.
If your tractor hitch has 10" to 13" ground clearance
refer to figure 4. If your tractor hitch has 8" to 10"
ground clearance refer to figure 5.
• Assemble the hitch brackets to the hitch tubes
using two 5/1 6" x 2" hex bolts and 5/1 6" hex lock
nuts. The bolts should straddle the front hitch tube
bolt. Do not tighten yet. See figure 4 or 5.
• At this time tighten the four bolts fastening the hitch
tubes to the sweeper housing. Next, tighten the two
bolts fastening the ends of the hitch tubes together.
Finally, tighten the two bolts fastening the hitch
brackets to the hitch tubes.
• Assemble the hitch pin, two 3/4" spacers and the 1/8"
hair cotter pin to the hitch brackets. See figure 4 or 5.
5/16" x 2"
HEX BOLT
HITCH PIN
)'_" HITCH BRACKET
,,
', ,, _:::==..--3/4" SPACER
_HITCHBRACKET
,T
,_,_ _,, (STRAIGHT)
5/16" HEX 1/8" HAIR
LOCK NUT COTTER PiN
FIGURE 4
5/16" HEX
LOCKNUT
/5/16" LOCK
_"'_ WASHER
5/16" x 2-1/2"
HEX BOLT 5/16" SMALL FLAT
WASHER
FIGURE 3
5/16" x2"
HEX BOLT
HITCH BRACKET
5/16" HEX
LOCK NUT
#_:==.- 3/4" SPACER
_-- HITCH BRACKET
1/8" HAIR
COTTER PIN
FIGURE 5
5

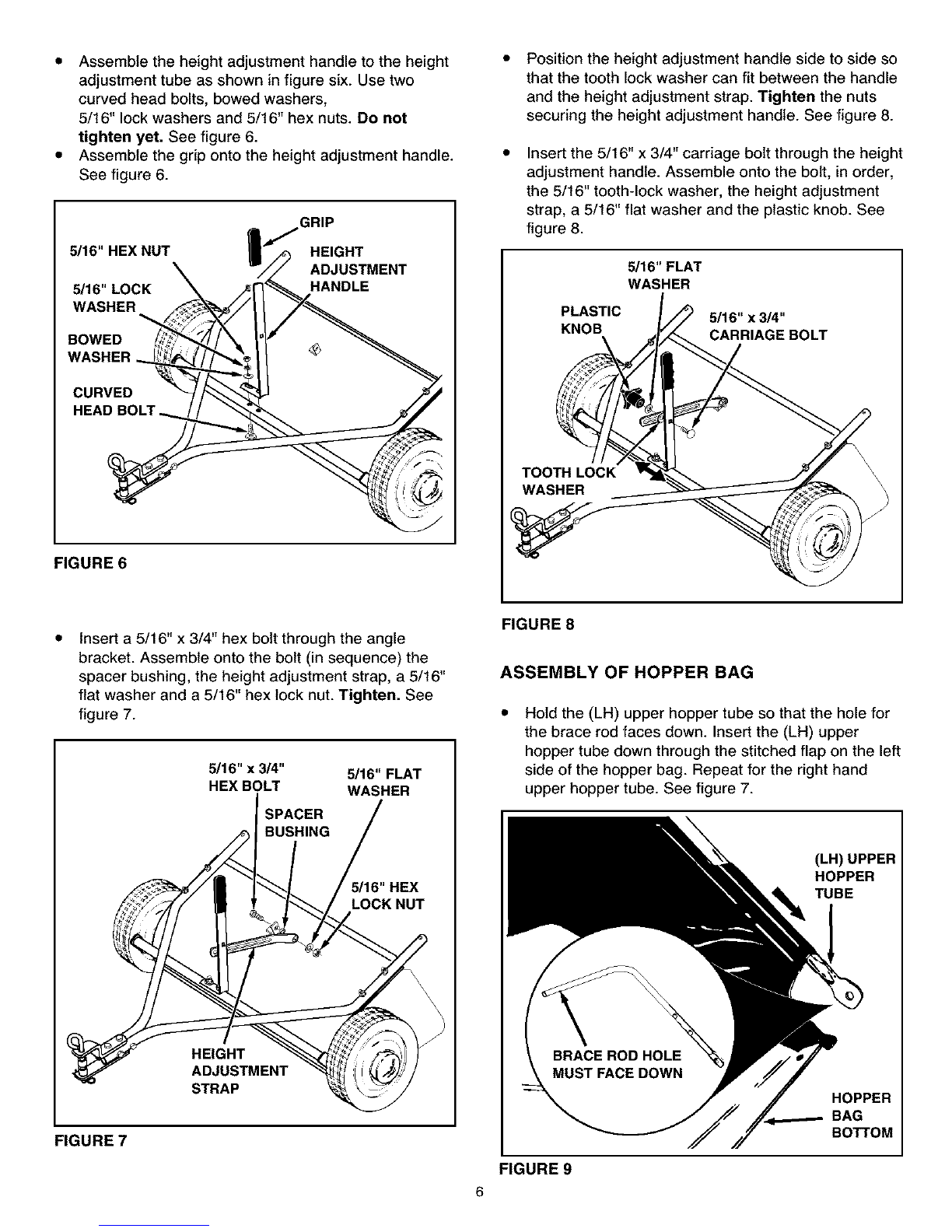

• Assembletheheightadjustmenthandletotheheight
adjustmenttubeasshowninfiguresix.Usetwo
curvedheadbolts,bowedwashers,
5/16"lockwashersand5/16"hexnuts.Donot
tighten yet. See figure 6.
• Assemble the grip onto the height adjustment handle.
See figure 6.
5/16" HEX NUT
5/16" LOCK
WASHER
BOWED
WASHER.
CURVED
RIP
HEIGHT
ADJUSTMENT
HANDLE
FIGURE 6
Position the height adjustment handle side to side so
that the tooth lock washer can fit between the handle
and the height adjustment strap. Tighten the nuts
securing the height adjustment handle. See figure 8.
Insert the 5/16" x 3/4" carriage bolt through the height
adjustment handle. Assemble onto the bolt, in order,
the 5/16" tooth-lock washer, the height adjustment
strap, a 5/16" flat washer and the plastic knob. See
figure 8.
5/16"FLAT
WASHER
PLASTIC 5/16" x 3/4"
KNOB CARRIAGE BOLT
TOOTH LOCK
WASHER
insert a 5/16" x 3/4" hex bolt through the angle
bracket. Assemble onto the bolt (in sequence) the
spacer bushing, the height adjustment strap, a 5/16"
flat washer and a 5/16" hex lock nut. Tighten. See
figure 7.
_16"FLAT
WASHER
_16"HEX
LOCK NUT
FIGURE 7
FIGURE 8
ASSEMBLY OF HOPPER BAG
Hold the (LH) upper hopper tube so that the hole for
the brace rod faces down. Insert the (LH) upper
hopper tube down through the stitched flap on the left
side of the hopper bag. Repeat for the right hand
upper hopper tube. See figure 7.
(LH) UPPER
HOPPER
TUBE
HOPPER
BAG
BOTTOM
FIGURE 9
6

• Slidethetwoupperhoppertubestogetherandline
upthecenterholesasshowninfigure10.
UPPER HOPPER TUBES
FIGURE 10
Fasten the upper hopper tubes together by inserting
a plastic plug into the center holes. See figure 11.
FIGURE 11
PLASTIC PLUG
/
Place the assembled lower hopper tubes into the
bottom of the hopper bag as shown in figure 13.
Attach the ends of the lower hopper tubes to the
inside of the upper hopper tubes using two 3/8" x
1/2" clevis pins inserted from the inside, and two
3/32" hair cotter pins. See figure 13.
LOWER HOPPER TUBE
3/32" HAIR
COTTER PIN
\
t
3/8" x 1/2"
CLEVIS PIN
FIGURE 13
HOPPER BAG
BOTTOM
Turn the rear hopper tube so that the brace holes in
the middle of the tube face up. Assemble the ends of
the rear hopper tube onto the ends of the lower
hopper side tubes. Fasten together using plastic
plugs. See figure 12.
REAR HOPPERTUBE
(brace holes on top)
LOWER
HOPPER
SIDETUBE
FIGURE 12
• Insert the bag frame strap into the stitched sleeve
along the front edge of the bag bottom. See figure
14.
• Assemble the bag frame strap to the holes in the
lower hopper tubes using two 1/4" x 1-1/8" clevis pins
and 3/32" hair cotter pins. See figure 14.
BAG FRAME STRAP
j_
FIGURE 14
7

21.Securethebagcornersaroundthelowerhopper
tubesbysnappingthebagflapstothebagbottom.
Seefigure15.
SNAP
FIGURE 15
•Insert the hopper bag rod through the upper hole in
the upper hopper tubes and the through the stitched
sleeve at the front of the wind screen. See figure 16.
• Assemble two palnuts by lightly tapping them onto
the ends of the pivot rod with a hammer. See figure
16.
HINT: To ease assembly of the palnuts, place the bag
on its side on a hard surface. With the bottom end of
the pivot rod against the surface, tap a palnut onto
the top end of the rod. Repeat for other end of rod.
HOPPER
BAG ROD
PALNUT
FIGURE 16
IMPORTANT: Do not over bend the support rods
during the following step. Over bending will cause the
spring steel rods to loose supporting tension.
• Assemble the two hopper support rods as shown in
figure 17. Place the ends of the rods into the upper
and lower hopper tubes, bending the rod just enough
to fit into the holes in the tubes.
FIGURE 17
• Align two hopper mount clamps with the lower hole
in each upper hopper tube. Insert a 3/8" x 3" clevis
pinthrough the clamps and the upper hopper tube.
Assemble abag arm tube onto the clevis pin and
secure itwith a 3/32" hair cotter pin. See figure 18.
• Assemble a vinyl cap onto each bag arm tube as
shown in figure 18.
FIGURE 18
8

• Fastenthehoppermountclampstogetherusingfour
5/16"x3/4"carriageboltsand5/16"(SEMS)hex
nuts.Tightensecurely.Seefigure19.
• Securetheropetothetopcenterofthehopperbag
frameasshowninfigure21.
5/16" x 3/4" 5/16" SEMS
CARRIAGE HEX NUT
BOLT
MOUNT
CLAMPS
FIGURE 21
FIGURE 19
To assemble the hopper bag to the sweeper, slide
the ends of the bag arm tubes into the ends of the
sweeper's hitch tubes and secure with two 1/4" x
1-3/4" clevis pins and 3/32" hair cotter pins. See
figure 20.
FIGURE 20 9

ATTACHING SWEEPER HITCH TO TRACTOR
1. Place the tractor and sweeper on a flat level
surface.
2. Set the sweeper height adjustment handle to about
the middle of its adjustment range.
3. Attach the sweeper hitch to the tractor hitch,
arranging the 3/4" spacers into one of the six
possible combinations shown in GROUP A and
GROUP B diagrams below.
IMPORTANT: To obtain the best performance from
your sweeper, arrange the spacers so that the
sweeper bag is approximately level with the ground
and approximately 5" to 7" off the ground as shown in
figure 22.
BRUSH HEIGHT ADJUSTED
APPROXIMATELY MID-WAY
APPROXIMATELY LEVEL
(5"to 7" FROM SURFACE)
FIGURE 22
\\
GROUP "A" - For vehicles with hitches
having 8" to 10" ground clearance.
\\\ @
\
GROUP "B" - For vehicles with hitches
having 10" to 13" ground clearance.
HITCHBRACKET MOUNTED
ABOVE HITCHTUBES
I
\\\\
HITCH BRACKET MOUNTED
BELOW HITCH TUBES
BLACK LINE ISTRACTOR HITCH BLACK LINE IS TRACTOR HITCH
10

KNOW YOUR SWEEPER
CLEVIS PIN
BAG ARM TUBE
HEIGHT
ADJUSTMENT
HANDLE
HOPPER
ROPE
HOPPER BAG
HITCH
BRACKETS
Hopper Bag
Hopper Rope
Windscreen
Bag Arm Tubes
Clevis Pins
Height A_ustment Handle
Height A_ustment Strap
Knob
Hitch Bracket
Collects grass clippings, leaves and debris.
Permits dumping of hopper bag from driver's seat.
Helps prevent collected material from being blown out of hopper bag.
Connects the hopper bag to the sweeper housing.
Allows hopper bag to pivot forward to dump material.
Adjusts the operating height of the sweeper.
Holds the height adjustment handle in position when locked.
Locks the height adjustment handle to the height adjustment strap.
Connects the sweeper to the towing vehicle. Adjusts for various height tractor hitches.
HOW TO USE YOUR SWEEPER
BRUSH HEIGHT ADJUSTMENT
•To adjustyour sweeper brushes to the best operating
height, loosen the adjustment knoband pushdown on
the height adjustment lever to raise the brush, or push
up on the lever to lower the brush. See figure 21. Best
adjustment iswhen the brush setting is 1/2" down into
the grass. Always mow the grass to an even height
before sweeping.
SWEEPING SPEED
• Try a starting speed ofapproximately 3 m.p.h. (third
gear on most tractors). Depending on the conditions,it
may be necessary to adjustthe sweeping speed in
order to achieve best results.
DUMPING OF SWEEPER
• Your sweeper can be dumped easily without getting
off of the rider or tractor. Simply pull the rope forward
to dump the hopper. Always empty hopper after each
use.
CAUTION: Never attach the hopper rope to
any part of your body or clothing! Never hold
onto the rope while towing the sweeper!
Attach the rope to the towing vehicle to keep it
away from wheels and rotating parts.
11
CAUTION: Keep sweeper away from fire.
Excessive heat can damage the brushes and
hopper bag and could cause the bag and its
contents to burn.

CUSTOMER RESPONSIBILITIES
Read and follow the maintenance schedule and the
procedures listed in the maintenance section.
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
Check for loose fasteners
Check for worn or dama,qed parts
Lubricate brush shaft beafinqs
Lubricate wheel bearings
Clean Sweeper
Clean/Lubricate gears
/ X XJ
X
X X
XX
X X X
Service Dates
SCHEDULED MAINTENANCE
•Clean the sweeper after each use.
Inspect for worn or damaged parts, such as brushes
and wheels.
• Lubricate the brush shaft bearing twice a year with a
few drops of light weight oil. See figure 23.
OIL BEARINGS HERE
HEIGHT ADJUSTMENT SLOT
/
FLAT WASHER
HEX BOLT
FIGURE 23
Every two years, remove the wheels and clean the
gears found inside the wheel housing. After cleaning,
lubricate with an even coat of light grease. To re-
move the wheel, pop off the hub cap using a screw-
driver and remove the lock nut and flat washer. See
figure 24.
HEX BOLT FLAT WASHER
SPACER
FLAT WASHER
HUB CAP
FIGURE 24
HEXLOCKNUT
CLEANING
• Clean sweeper housing with a soft brush or cloth.
• Clean debris from hopper bag with a brush or broom.
• Remove any material which has wrapped around
brushes or ends of brush shaft.
CAUTION: Before storing the sweeper,
always empty the hopper bag to avoid
spontaneous combustion.
12
• Clean the sweeper and hopper bag thoroughly to
hetp prevent rust and mildew.
• To collapse the hopper bag for storage, remove the
two hopper support rods from the rear of the hopper.
• Store in a dry area.

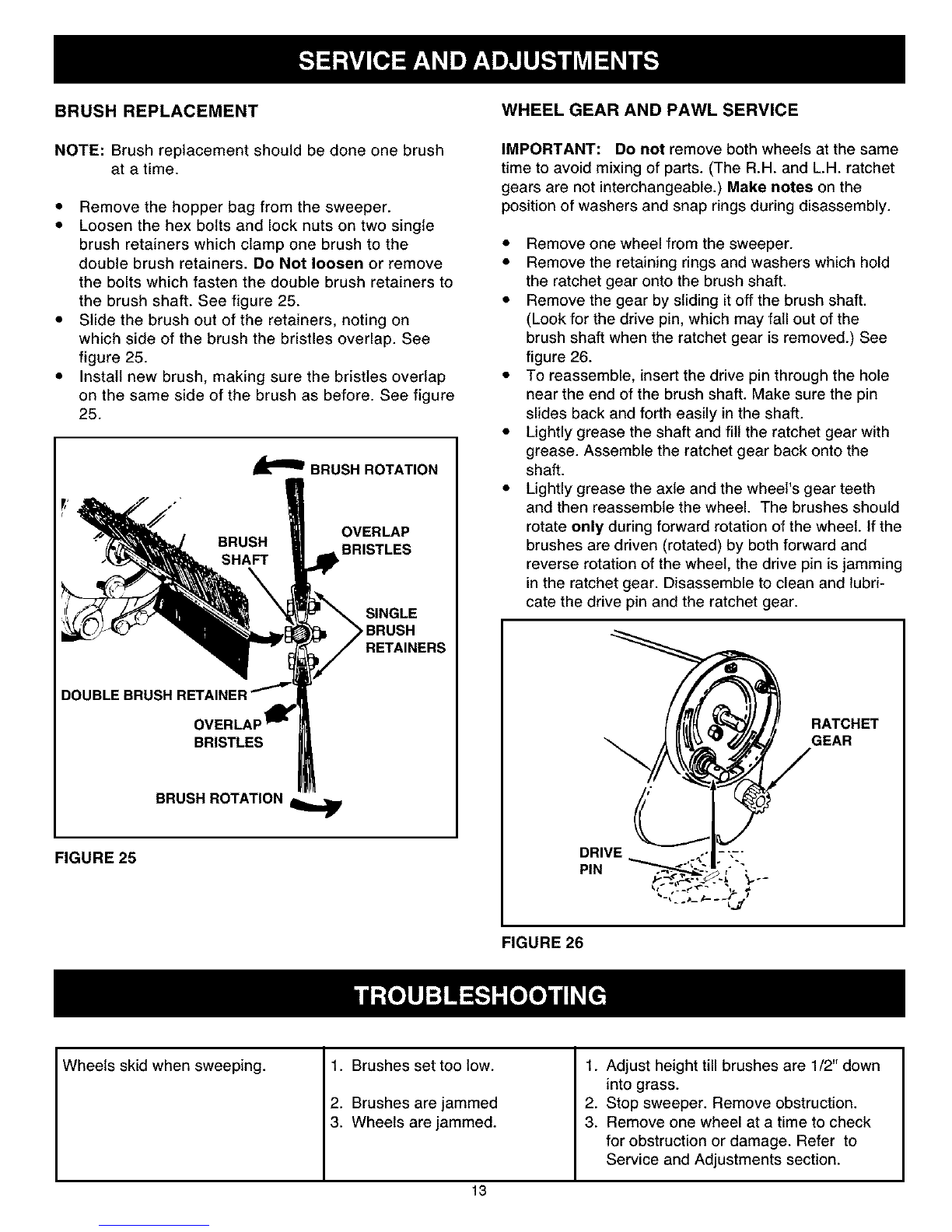

BRUSH REPLACEMENT
NOTE: Brush replacement should be done one brush
at a time.
• Remove the hopper bag from the sweeper.
• Loosen the hex bolts and lock nuts on two single
brush retainers which clamp one brush to the
double brush retainers. Do Not loosen or remove
the bolts which fasten the double brush retainers to
the brush shaft. See figure 25.
• Slide the brush out of the retainers, noting on
which side of the brush the bristles overlap. See
figure 25.
• Install new brush, making sure the bristles overlap
on the same side of the brush as before. See figure
25.
BRUSH ROTATION
OVERLAP
BRUSH BRISTLES
SHAFT
SINGLE
_BRUSH
RETAINERS
DOUBLE
BRISTLES
BRUSH ROTATION
FIGURE 25
WHEEL GEAR AND PAWL SERVICE
IMPORTANT: Do not remove both wheels at the same
time to avoid mixing of parts. (The R.H. and L.H. ratchet
gears are not interchangeable.) Make notes on the
position of washers and snap rings during disassembly.
• Remove one wheel from the sweeper.
• Remove the retaining rings and washers which hold
the ratchet gear onto the brush shaft.
• Remove the gear by sliding it off the brush shaft.
(Look for the drive pin, which may fall out of the
brush shaft when the ratchet gear is removed.) See
figure 26.
• To reassemble, insert the drive pin through the hole
near the end of the brush shaft. Make sure the pin
slides back and forth easily in the shaft.
• Lightly grease the shaft and fill the ratchet gear with
grease. Assemble the ratchet gear back onto the
shaft.
• Lightly grease the axle and the wheel's gear teeth
and then reassemble the wheel. The brushes should
rotate only during forward rotation of the wheel. If the
brushes are driven (rotated) by both forward and
reverse rotation of the wheel, the drive pin is jamming
in the ratchet gear. Disassemble to clean and lubri-
cate the drive pin and the ratchet gear.
RATCHET
GEAR
FIGURE 26
Wheels skid when sweeping. f. Brushes set too low.
2. Brushes are jammed
3. Wheels are jammed.
13
1. Adjust height till brushes are 1/2" down
into grass.
2. Stop sweeper. Remove obstruction.
3. Remove one wheel at a time to check
for obstruction or damage. Refer to
Service and Adjustments section.

REPAIR PARTS FOR MODEL 486.24207
59
77
/81
46,
45
61
72
62
60
61
17 43 3
9
29 15 /
29
29
jo
7
16
5
50/
18
75 39 /
30
76 47
_21
65 23
35
(_. 36
43 /
34
413133
17
48
37
60
14

REPAIR PARTS FOR MODEL 486.24207
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Part
No.
48618
48619
24950
24951
24971
43175
C-9M5732
23854
43182
23826
23336
64546
44947
44695
43086
43083
:_1921211_
1629-56
44910
24085
43905
43012
43013
23580
23581
46867
47046
44692
43064
48702
44006
46219
1650-21
44007
141
1038
2674-32
44961
23400
43886
43885
Qty. Description Ref. Part Qty
No. No. Description
1 Hitch Tube, R.H. 42 43661
1 Hitch Tube, L.H. 43 64578
1 End Plate, R.H. 44 48469
1 End Plate, L.H. 45 48783
1 Wrapper 46 48784
2 Bolt, Hex 1/4-20 x 1/2" Lg. 47 48727
14 Rivet, Pop 48 48782
1 Brace, Rear Support 49 48366
2 Bolt, Hex 5/16-18 x 3/4" 50 23352
1 Bracket, Angle 51 43938
2 Washer, Special 52 43737
1 Height Adjustment Tube Assembly 53 44481
2 Bolt, Cvd. Hd. 5/16-18 x 1-5/8" Lg. 54 24979
2 Washer, Bowed 1" x .32" x .06" 55 23687
8 Lock Washer, 5/16" 56 24192
6 Nut, Hex 5/16-18 Thread 57 23850
6 Washer, 5/8" SAE 58 48323
2 Retainer, Dust Cover 59 43513
2 Bushing, Brush Shaft 60 44930
1 Brush Shaft 61 741-0249
4 Brush 62 44292
8 Bolt, Hex 1/4-20 x 3/4" Lg. 63 44180
14 Nut, Hex Lock 1/4-20 Thread 64 43070
4 Retainer, Brush (Double) 65 43681
8 Retainer, Brush (Single) 66 R19111116
2 Clevis Pin, 1/4" x 1-3/4" Lg. 67 43720
2 Dowel Pin (Drive) 68 43080
4 Bolt, Hex 5/16-18 x 1/2" Lg. 69 43081
10 Nut, Hex Lock 5/16-18 Thread 70 43943
2 Spacer, .39 I.D". x 1-1/4" O.D. x .6" 71 44732
2 Washer, Flat .849" x .598" x .025" 72 23353
2 Spacer, .78 I.D". x 1-1/4" O.D. x .5" 73 23368
4 Ring, Retaining .594" 74 43343
4 Washer, Shim 1-1/8" x .594" x .025" 75 43055
2 Washer, Flat 1-1/2" x .375" x .062" 76 48365
2 Nut, Nylock 3/8-24 Thread 77 44917
2 Hub Cap 78 48402
2 Bolt, Hex 3/8-24 x 3-1/4" Lg. 79 46980
3 Bushing, Spacer 80 23331
1 Gear, Pinion R.H. (not shown) 81 47373
1 Gear, Pinion L.H. 48785
4 Bolt, Hex 1/4-20 x 1" Lg.
2 Ass'y, Dust Cover
1 Tube, Hopper Frame (Rear)
1 Tube, Upper Hopper (LH)
1 Tube, Upper Hopper (RH)
2 Tube, Lower Hopper Side
1 Hopper Bag
2 Clevis Pin, 3/8" x 1/2"
1 Strap, Bag Frame
2 Rod, Hopper Support
1 Hopper Rope
2 Cap, Vinyl
1 Strap, Height Adjustment
1 Bracket, Hitch
1 Bracket, Hitch (Straight)
1 Handle, Height Adjustment
2 Tube, Bag Arm
2 Pin, Clevis 3/8" x 3"
2 Wheel & Tire Ass'y. (with bearings)
4 Wheel Bearing
2 Bolt, Hex 5/16-18 x 2-1/2" Lg.
2 Bolt, Hex 5/16-18 x 2" Lg.
2 Washer, 3/8" Std. Wrt.
4 Bolt, Carriage 5/16-18 x 1-1/2"
2 Washer, Flat (5/16) 11/32" x 11/16"
1 Knob, Wing 5/16-18 Thread
5 Bolt, Carriage 5/16-18 x 3/4" Lg.
2 Washer, Flat 5/16" Std. Wrt.
1 Grip, Height Adjust
1 Washer, Tooth Lock 5/16"
1 Pin, Hitch
2 Tube, Hitch Spacer
1 Hairpin Cotter, 1/8" #4
8 Hairpin Cotter, 3/32" #3
2 Clevis Pin, 1/4" x 1-1/8"
2 Palnut, 3/8"
4 Plastic Plug
4 Nut, Hex (SEMS) 5/16-18
4 Clamp, Hopper Mount
1 Rod, Hopper Bag
1 Owners Manual
15

Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOM EsMAnyt,me, day or n,ght
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anyt,me, day or n,ght
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirect sM!
1-800-366-PART 6 a.m. - 11 p.m. CST,
(1-800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m. - 5 p.m. CST, Mon. - Sat.
Para pedtr servtcto de reparacion a domtc_lio,
y para ordenar plezas con entrega adOmlclhO'
1-888-SU-HOGAR sM
(1-888-784-6427)
Au Canada pour service en fran£ats
1-877-LE-FOYER sM
[ SE IARS }
HomeCentral_'
(1-877-533-6937)
E Registered Trademark /TMTrademark of Sears Roebuck and Co
,_ Sears Roebuck and Co P Marca RegJstrada /"_ Marca de Fabnca de Sears Roebuck and Co
