Craftsman 486.242211 User manual

Owner's Manual
CRRFrSMI:IH
42" LAWNSWEEPER
Model No's. 486.242211
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388
CAUTION:
Before using this product, read this
manual and follow all Safety Rules
and Operating Instructions.
,, Safety
,, Assembly
,, Operation
o Maintenance
,, Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 40637 (06/29/07)

Safety Rules .................................................................... 2
Accessories and Attachments ......................................... 3
Carton Contents .............................................................. 3
Full Size Hardware Chart ................................................ 4
Sweeper Assembly Instructions ...................................... 5
Hopper Assembly Instructions ......................................... 8
Operation ....................................................................... 12
Maintenance Schedule .................................................. 13
Storage .......................................................................... 13
Service and Adjustments ............................................... 14
Troubleshooting ............................................................. 14
Repair Parts Illustration ................................................. 16
Repair Parts List ............................................................ 17
Parts Ordering/Service .................................... Back Cover
ONE YEAR FULL WARRANTY
When assembled, operated and maintained according to the supplied instructions, if this Craftsman Lawnsweeper fails due to a
defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME to arrange for free repair (or
replacement if repair proves impossible).
This warranty is void if this product is ever used for commercial or rental purposes.
This warranty applies only while this product is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Any power equipment can cause injury ifoperated improperly or ifthe user does not understand how to operate the equipment.
Exercise caution at all times, when using power equipment.
1. Read the vehicle and sweeper owners manuals and
know how to operate your vehicle and sweeper before
using this sweeper attachment. Always instruct other
users before they operate the sweeper.
2. Do not permit children to operate sweeper.
3. Do not permit anyone to ride on sweeper.
4. Never attach the hopper rope to any part of your body
or clothing! Never hold onto the rope while towing the
sweeper! Attach the rope to the towing vehicle to keep
it away from wheels and rotating parts.
5. Operate the sweeper at reduced speed on rough
terrain, near ditches and on hillsides to prevent loss of
control.
6. Vehicle braking and stability may be affected with
the attachment of this sweeper. Do not fill sweeper
to maximum capacity without checking the capability
of the towing vehicle to safely pull and stop with the
sweeper attached. Stay off of steep slopes.
7. Stop and inspect vehicle and sweeper for damage
after striking an object. Repair any damage before
continuing operation.
8. Keep sweeper away from fire. Excessive heat can
damage the brushes and hopper bag and could cause
the bag and its contents to burn.
9. Before storing the sweeper, always empty the hopper
bag to avoid spontaneous combustion.
10. Follow maintenance and lubrication instructions as
outlined in the maintenance section of this manual.
Look for this symbol to point out important safety precautions. It means -- Attention!!
Become alert!! Your safety is involved.
The model and serial numbers will be found on a decal
attached to the lawnsweeper.
You should record both the serial number and the date of
purchase and keep in a safe place for future reference.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF PURCHASE:
486.242211

Theseaccessorieswereavailablewhentheunitwaspurchased.TheyarealsoavailableatmostSearsretailoutletsand
servicecenters.MostSearsstorescanorderrepairpartsforyouwhenyouprovidethemodelnumbersofyourtractorand
sweeper
i The Front Mount Dethatcher, Model 486.24219 attaches i
to the lawn sweeper to help loosen and remove dead 1
grass and thatch from the lawn while sweeping.
CARTON CONTENTS (Loose Parts in Carton)
1. Sweeper Housing Assembly
2. Bag Arm Tube (2)
3. Left Hitch Tube
4. Hitch Bracket
5. Hitch Bracket (Straight)
6. Height Adjustment Strap
7. Height Adjustment Handle
8. Right Hitch Tube
9. Rear Support Brace
10. Brush Assembly (2)
11. Upper Hopper Side Tube (2)
12. Rear Hopper Tube (2)
13. Lower Hopper Side Tube (2)
14. Hopper Support Rod (2)
15. Bag Frame Strap
16. Hopper Bag
17. Rope
10
13
16
9
/
6

3
/A
J
J
I
J
f
/
J
J
J
J
SHOWN FULL SiZE
/E F /G H
R
J©
w
NOT SHOWN FULL SIZE
jY
o_
REF QTY DESCRIPTION
A 2 Hex Bolt, 5/16 x 2-1/2" Lg.
B 2 Hex Bolt, 5/16 x 2" Lg.
C 4 Carriage Bolt, 5/18" x 1-1/2"
D 1 Hex Bolt, 5/16 x 1-1/4" Lg.
E 2 Hex Bolt, 5/16" x 1"
F 1 Carriage Bolt, 5/16" x 1"
G 4 Hex Bolt, 1/4" x 1"
H 2 Hex Bolt, 1/4" x 1/2"
I 8 Nylock Nut, 1/4"
J 11 Nylock Nut, 5/16"
K 4 Flat Washer, 5/16"
L 1 Star Washer
M 1 Hair Cotter Pin, 1/8"
REF QTY DESCRIPTION
N 8 Hair Cotter Pin, 3/32"
O 2 Clevis Pin, 3/8" x 1/2"
P 2 Clevis Pin, 1/4" x 1-1/8"
Q 2 Clevis Pin, 1/4" x 1-3/4"
R 2 Clevis Pin, 3/8" x 3"
S 1 Pivot Bushing
T 1 Spacer Bushing
U 2 Hitch Spacer, 3/4"
V 2 Vinyl Cap
W 1 Grip
X 1 Knob, Plastic
Y 1 Hitch Pin
Z 4 Plastic Plug

TOOLS REQUIRED FOR ASSEMBLY
(2) 7/16" Open End or Box End Wrenches
(2) 1/2" Open End or Box End Wrenches
STEP 2: (SEE FIGURE 2)
Each brush assembly has one brush retainer
marked with either red or black ink. Lay out the brush
assemblies as shown so that the brush retainers
marked with ink are in the middle with the red one on
the right and the black one on the left.
REMOVE PARTS FROM CARTON
®
®
To protect painted parts, lay them on cardboard or a
mat.
Remove the sweeper housing, the loose parts and the
hardware package from the carton. Lay out the parts
and hardware as shown on pages 3 and 4.
STEP 1: (SEE FIGURE 1)
• Assemble the rear support brace to the holes
indicated in the sweeper housing. Use two 1/4" x 1/2"
hex bolts (H) and 1/4" nylock nuts (I).
OVERLAP BRISTLES
BRUSH RETAINER
MARKED BLACK
BRUSH RETAINER
MARKED RED
FIGURE 2
IMPORTANT: The overlap bristles at the bottom of each
brush help support the back side of the brush for better
sweeper performance. Be sure the sweeper is turned
as shown in figures 2 and 3 to correctly assemble the
brushes.
STEP 3: (SEE FIGURE 3)
Attach the brush assembly with the red brush retainer
to the right end of the brush shaft using two 1/4" x
1" hex bolts (G) and 1/4" nylock nuts (I). The brush
retainer marked with red ink must be placed to the
middle of the sweeper.
I/4"NYLOCK NUT(I) "----'_
BRUSH RETAINER
MARKED RED /
1/4" x1"
HEX BOLT(G)
FIGURE 1
FIGURE 3
5

STEP 4: (SEE FIGURE 4)
Attach the brush assembly with the black brush
retainer to the left end of the brush shaft using two
1/4" x 1" hex bolts (G) and 1/4" nylock nuts (I). The
brush retainer marked with black ink must be placed
to the middle of the sweeper.
Turn a wheel to rotate the brushes. (The wheels drive
the brushes in one direction only.) The overlap bristles
should be on the back side of the brush as it rotates.
STEP 5: (SEE FIGURE 5)
Cut off the plastic tie that holds the height adjustment
tube in place.
Assemble the R.H. hitch tube to the sweeper housing
using two 5/16" x 1-1/2" carriage bolts (C), and two
5/16" nylock nuts (J). Do not tighten yet. Repeat for
the L.H. hitch tube.
BRUSH RETAINER
MARKED BLACK
FIGURE 4
114"x 1"
HEX BOLT(G)
/
1/4" NYLOCK NUT (I)
5/16" NYLOCK NUT (J)
\
5116" x 1-1/2" /
CARRIAGE BOLT (C)/'
//
FIGURE 5
STEP 6: (SEE FIGURE 6)
Fasten the hitch tubes together using two 5/16" x
2-1/2" hex bolts (A) and 5/16" nylock nuts (J). Do not
tighten yet,
5/16"
NYLOCK NUT (J)
/
/
5116" x 2-1/2"
HEX BOLT (A)
FIGURE 6

STEP 7: (SEE FIGURE 7 AND 8)
if your tractor hitch has 10" to 13" ground clearance
refer to figure 7. if your tractor hitch has 8" to 10"
ground clearance refer to figure 8.
• Assemble the hitch brackets to the hitch tubes using
two 5/16" x 2" hex bolts (B) and 5/16" nylock nuts (J).
The bolts should straddle the front hitch tube bolt. Do
not tighten yet.
At this time tighten the four bolts fastening the hitch
tubes to the sweeper housing. Next, tighten the two bolts
fastening the ends of the hitch tubes together. Finally,
tighten the two bolts fastening the hitch brackets to the
hitch tubes.
Assemble the hitch pin (Y), two 3/4" hitch spacers (U)
and the 1/8" hair cotter pin (M) to the hitch brackets.
5/16" x 2"
HEX BOLT (B)
PiN (Y)
HITCH BRACKET
1
I
I I _:_:===- 3/4" SPACER (U)
_ HITCH BRACKET
5/16" NYLOCK 1/8" HAIR
NUT(J) COTTER PmN(M)
FIGURE 7
STEP 8: (SEE FIGURE 9)
• Assemble the height adjustment handle to the inside
of the bracket on the end of the height adjustment
tube. Use two 5/18" x 1" hex bolts (E), 5/16" flat
washers (K) and 5/16" nylock nuts (J). Tighten.
• Assemble the grip (W) onto the height adjustment
handle.
J
5116"x 1" HEX BOLT(E) "_
5/16" FLATWASHER (K) /
/
HEIGHT
ADJUSTMENT
HANDLE /
5/16" NYLOCK NUT (J)
FIGURE 9
STEP 9: (SEE FIGURE 10)
• Assemble onto a 5/16" x 1-1/4" hex bolt (D) in the
order listed, a 5/16" flat washer (K), the pivot bushing
(S), the height adjustment strap and the spacer
bushing (T). Insert the bolt through the upper part of
the double hole in the end of the sweeper housing
and secure it with a 5/16" nylock nut (J). Tighten.
5/16" x2"
HEX BOLT (B)
[_ HITCH PiN (Y)
HITCH BRACKET
(STRAIGHT)
,,_z:===. 314"SPACER(U)
HITCH BRACKET
5/16" NYLOCK 1/8" HAIR
NUT (J) COTTER PIN (M)
FIGURE 8
5/16" NYLOCK NUT (J)
SPACER BUSHING (T)
HEmGHTADJUSTMENT
STRAP
PIVOT BUSHING (S)
5/16" FLAT WASHER (K)
5/16" x 1-1/4"
HEX BOLT (D)
FIGURE 10

STEP 10: (SEE FIGURE 11)
• Place the star washer (L) between the height
adjustment handle and the height adjustment strap.
Insert the 5/16" x 1" carriage bolt (F) through the
height adjustment handle, the star washer and the
height adjustment strap. Assemble a 5/16" flat washer
(K) and the plastic knob (X) onto the end of the bolt.
ASSEMBLY OF HOPPER BAG
STEP 11: (SEE FIGURE 12 AND 13)
Turn a rear hopper tube so that the brace holes in the
middle of the tube face down. Slide the tube through
the two loops sewn to the top rear seam inside the
hopper bag.
5/16" ×1"
CARRIAGE BOLT (F)
STAR WASHER (L)
(between atrap and handle)
5/16" FLAT
WASHER (K)
PLASTIC KNOB (X)
/
FIGURE 11
INNER BAG LOOPS
REAR HOPPER TUBE
(brace holes on bottom)
FIGURE 12
®
®
Insert the two upper hopper side tubes through the
stitched flaps on each side of the hopper bag.
Assemble the ends of the rear hopper tube onto the
ends of the upper hopper side tubes. Fasten together
using plastic plugs (Z).
_,jPLASTIC PLUG (Z)
UPPER HOPPER
SIDETUBE
FIGURE 13

STEP 12: (SEE FIGURE 14 AND 15)
Turn the second rear hopper tube so that the brace
holes in the middle of the tube face up. Assemble
the ends of the rear hopper tube onto the ends of the
lower hopper side tubes. Fasten together using plastic
plugs (Z).
STEP 13: (SEE FIGURE 16 AND 17)
Insert the bag frame strap into the stitched sleeve
along the front edge of the bag bottom.
Assemble the bag frame strap to the lower hopper
side tubes using two 1/4" x 1-1/8" clevis pins (P) and
3/32" hair cotter pins (N).
LOWER
HOPPER
SIDETUBE
FIGURE 14
HEAH HOPPER TUBE
(brace holes on top)
PLASTIC PLUG (Z)
BAG FRAME STRAP
1/4" × 1-1/8"
CLEVIS PiN (P)
3/32" HAiR
COTTERPiN (N)
FIGURE 16
®
®
Place the assembled lower hopper tubes into the
bottom of the hopper bag
Attach the ends of the lower hopper side tubes to the
inside of the upper hopper side tubes using two 3/8"
x 1/2" clevis pins (O) inserted from the inside, and two
3/32" hair cotter pins (N).
\ UPPER HOPPER
SIDETUBE
3132" HAiR
COTTER PIN (N)
\P
LOWER HOPPER
SIDETUBE 3/8" x 1/2"
CLEVIS PIN (O)
HOPPER BAG
BOTTOM
FIGURE 15
Secure the bag corners around the lower hopper side
tubes by snapping the bag flaps to the bag bottom on
both sides.
SNAP
/
/
I
FLAP
FIGURE 17

STEP 14: (FIGURE 18)
IMPORTANT: Do not over bend the support rods
during the following step. Over bending will cause the
steel rods to loose supporting tension.
Tip the hopper onto it's back to assemble the two
hopper support rods. Place the ends of each rod into
the upper and lower rear hopper tubes, bending the
rod just enough to fit into the holes in the tubes.
SUPPORT j/_ _
RODS ......
FIGURE 18
\
STEP 15: (FIGURE 19)
Insert a 3/8" x 3" clevis pin (R) through the lower hole
in each upper hopper side tube. Next assemble a bag
arm tube onto each clevis pin and secure it with a
3/32" hair cotter pin (N).
Assemble a vinyl cap (V) onto the end of each bag
arm tube.
LOWER HOLE 3/32" HAIR
COTTER PiN (N)
VINYL CAP (V)
\
3/8" x3"
CLEVIS PiN (R)
BAG ARM TUBE
STEP 16: (SEE FIGURE 20 AND 21)
Secure the rope to the top center of the hopper bag
frame.
FIGURE 20
To assemble the hopper bag to the sweeper, slide
the ends of the bag arm tubes into the ends of the
sweeper's hitch tubes and secure with two 1/4" x
1-3/4" clevis pins (Q) and 3/32" hair cotter pins (N).
BAG ARM TUBE
3/32" HAIR 1/4" x 1-3/4"
COTTER PIN (N) .i CLEVIS PIN (Q)
'\\
\\
FIGURE 21
FIGURE 19 10

STEP 16: (SEE FIGURE 22, 23 AND 24)
Place the tractor and sweeper on a flat level surface.
Set the sweeper height adjustment handle to about
the middle of its adjustment range.
Attach the sweeper hitch brackets to the tractor hitch,
arranging the 3/4" spacers so that the bottom of the
sweeper bag is approximately level and 5" to 7" above
the ground. See figure 23 for tractor hitches that are
10" to 13" above the ground. See figure 24 for tractor
hitches that are 8" to 10" above the ground.
IMPORTANT: For best performance, the bottom of the
sweeper bag should be approximately level and 5" to 7"
off the ground as shown in figure 22.
5" Min.
FIGURE 22
Tractor hitches with 10" to 13" ground clearance.
\,\
TRACTOR HITCH
,4 7,
FIGURE 23
Tractor hitches with 8" to 10" ground clearance.
\\
',,
/
TRACTOR HITCH
' i ©
FIGURE 24
11

KNOW YOUR SWEEPER
WINDSCREEN HOPPER BAG ARM
ROPE TUBE HEIGHT
ADJUSTMENT
STRAP
HEIGHT
ADJUSTMENT
HANDLE
KNOB
HOPPER BAG
Hopper Bag
Hopper Rope
Windscreen
Bag Arm Tubes
Height Adjustment Handle
Height Adjustment Strap
Knob
Hitch Bracket
HITCH
BRACKETS
Collects grass clippings, leaves and debris.
Permits dumping of hopper bag from driver's seat.
Helps prevent collected material from being blown out of hopper bag.
Connects the hopper bag to the sweeper housing.
Adjusts the operating height of the sweeper.
Holds the height adjustment handle in position when locked.
Locks the height adjustment handle to the height adjustment strap.
Connects the sweeper to the towing vehicle. Adjusts for various height tractor hitches.
HOW TO USE YOUR SWEEPER
BRUSH HEIGHT ADJUSTMENT
To adjust your sweeper brushes to the best operating
height, loosen the adjustment knob and push down on
the height adjustment lever to raise the brush, or push
up on the lever to lower the brush. See figure 22. Best
adjustment is when the brush setting is 1/2" down into
the grass. Always mow the grass to an even height
before sweeping.
SWEEPING SPEED
Try a starting speed of approximately 3 m.p.h. (third
gear on most tractors). Depending on the conditions,
it may be necessary to adjust the sweeping speed in
order to achieve best results.
DUMPING OF SWEEPER
Your sweeper can be dumped easily without getting
off of the rider or tractor. Simply pull the rope forward
to dump the hopper. Always empty hopper after each
use.
CAUTION: Never attach the hopper rope
to any part of your body or clothing! Never
hold onto the rope while towing the sweeper!
Attach the rope to the towing vehicle to keep
it away from wheels and rotating parts.
12
CAUTION: Keep sweeper away from fire.
Excessive heat can damage the brushes and
hopper bag and could cause the bag and its
contents to burn.

CUSTOMER RESPONSIBILITIES
Read and follow the maintenance schedule and the
procedures listed in the maintenance section.
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
Check for loose fasteners
Check for worn or damaged parts
Lubricate brush shaft bearings
Lubricate wheel bearings
Clean Sweeper
Clean/Lubricate chain and sprockets
X
X X
XX
X X X
Service Dates
SCHEDULED MAINTENANCE
•Clean the sweeper after each use.
•Inspect for worn or damaged parts, such as brushes
and wheels.
•Lubricate the brush shaft bearing twice a year with a
few drops of light weight oil. See figure 25.
J
OIL BEARINGS HERE
FLATWASHER
HEIGHT ADJUSTMENT SLOT
HEX BOLT
HEX BOLT FLAT WASHER
SPACER
FLAT WASHER
HUB CAP
FIGURE 26
HEX LOCK NUT
FIGURE 25
Every two years, remove the wheels and clean the
gears found inside the wheel housing. After cleaning,
lubricate the gears with an even coat of light grease.
To remove the wheel, pop off the hub cap and remove
the lock nut and flat washer. See figure 26.
CLEANING
•Clean sweeper housing with a soft brush or cloth.
•Clean debris from hopper bag with a brush or broom.
•Remove any material which has wrapped around
brushes or ends of brush shaft.
CAUTION: Before storing the sweeper,
always empty the hopper bag to avoid
spontaneous combustion.
•Clean the sweeper and hopper bag thoroughly to help
prevent rust and mildew.
•To collapse the hopper bag for storage, remove the two
hopper support rods from the rear of the hopper.
•Store in a dry area.
13

BRUSH REPLACEMENT WHEEL GEAR AND PAWL SERVICE
NOTE: Brush replacement should be done one brush at
a time.
Remove the hopper bag from the sweeper.
Loosen the hex bolts and lock nuts on two single
brush retainers which clamp one brush to the double
brush retainers. Do Not loosen or remove the bolts
which fasten the double brush retainers to the brush
shaft. See figure 27.
Slide the brush out of the retainers, noting on which
side of the brush the bristles overlap. See figure 27.
Install new brush, making sure the bristles overlap on
the same side of the brush as before. See figure 27.
BRUSH ROTATION
BRUSH
SHAFT
DOUBLEBRUSHRETAINER dP"
OVERLAP
BRISTLES
OVERLAP
BRISTLES
SINGLE
,BRUSH
RETAINERS
FIGURE 27
BRUSH ROTATION _=_
IMPORTANT: Do not remove both wheels at the same
time to avoid mixing of parts. (The R.H. and L.H. ratchet
sprockets are not interchangeable.) Make notes on the
position of washers and snap rings during disassembly.
Remove only one wheel from the sweeper.
Remove the retaining rings and washers which hold
the ratchet gear on the brush shaft.
,, Slide the gear off of the brush shaft. (Look for the
drive pin, which may fall out of the brush shaft when
the ratchet gear is removed.) See figure 28.
To reassemble, insert the drive pin through the hole
near the end of the brush shaft. Make sure the pin
slides back and forth easily in the shaft.
Lightly grease the shaft and fill the ratchet gear with
grease. Assemble the ratchet gear back onto the
shaft.
Lightly grease the axle and the gear teeth on the
wheel, and then reassemble the wheel. The brushes
should rotate only during forward rotation of the
wheel. If the brushes are driven (rotated) by both
forward and reverse rotation of the wheel, the drive
pin is jamming in the ratchet gear. Disassemble to
clean and lubricate the drive pin and the ratchet gear.
Remove the second wheel and repeat the procedure.
RATCHET
GEAR
DRIVE
PIN
FIGURE 28
Wheels skid when sweeping. Brushes set too low.
Brushes are jammed
Wheels are jammed.
14
Adjust height till brushes are 1/2"
down into grass.
Stop sweeper. Remove obstruction.
Remove one wheel ata time to check
for obstruction or damage. Refer to
Service and Adjustments section.

NOTES
15

REPAIR PARTS FOR MODEL 486.242211 - 42" LAWNSWEEPER
53
45 44
47
5O
48
6O
61
61
26
3
62 69
/63 57
43
7O
/16
/
/
54 69
67
/
29
9
12 17
/
29
\/
66 3930
\46
43
26
35
_36
/37
/2741 3133 60
16

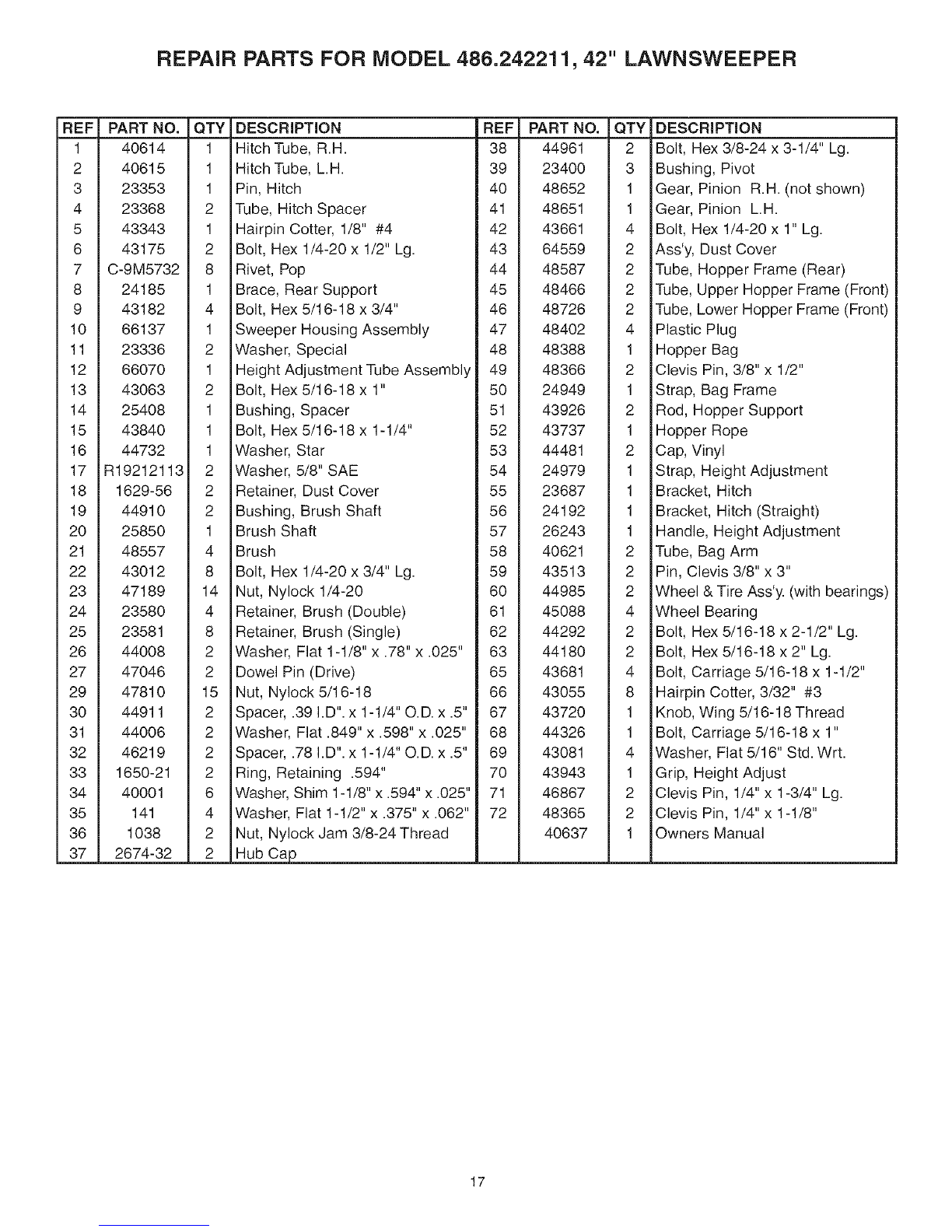

REPAIR PARTS FOR MODEL 486.242211,42" LAWNSWEEPER
REF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
29
30
31
32
33
34
35
36
37
PART NO.
40614
40615
23353
23368
43343
43175
C-9M5732
24185
43182
66137
23336
66070
43063
25408
43840
44732
R19212113
1629-56
44910
25850
48557
43012
47189
23580
23581
44008
47046
47810
44911
44006
46219
1650-21
40001
141
1038
2674-32
QTY DESCRIPTION REF PART NO.
1 Hitch Tube, R.H. 38 44961
1 Hitch Tube, L.H. 39 23400
1 Pin, Hitch 40 48652
2 Tube, Hitch Spacer 41 48651
1 Hairpin Cotter, 1/8" #4 42 43661
2 Bolt, Hex 1/4-20 x 1/2" Lg. 43 64559
8 Rivet, Pop 44 48587
1 Brace, Rear Support 45 48466
4 Bolt, Hex 5/16-18 x 3/4" 46 48726
1 Sweeper Housing Assembly 47 48402
2 Washer, Special 48 48388
1 Height Adjustment Tube Assembly 49 48366
2 Bolt, Hex 5/16-18 x 1" 50 24949
1 Bushing, Spacer 51 43926
1 Bolt, Hex 5/16-18 x 1-1/4" 52 43737
1 Washer, Star 53 44481
2 Washer, 5/8" SAE 54 24979
2 Retainer, Dust Cover 55 23687
2 Bushing, Brush Shaft 56 24192
1 Brush Shaft 57 26243
4 Brush 58 40621
8 Bolt, Hex 1/4-20 x 3/4" Lg. 59 43513
14 Nut, Nylock 1/4-20 60 44985
4 Retainer, Brush (Double) 61 45088
8 Retainer, Brush (Single) 62 44292
2 Washer, Flat 1-1/8" x .78" x .025" 63 44180
2 Dowel Pin (Drive) 65 43681
15 Nut, Nylock 5/16-18 66 43055
2 Spacer, .39 I.D". x 1-1/4" O.D. x .5" 67 43720
2 Washer, Flat .849" x .598" x .025" 68 44326
2 Spacer, .78 I.D". x 1-1/4" O.D. x .5" 69 43081
2 Ring, Retaining .594" 70 43943
6 Washer, Shim 1-1/8" x.594" x.025" 71 46867
4 Washer, Flat 1-1/2" x .375" x .062" 72 48365
2 Nut, Nylock Jam 3/8-24 Thread 40637
2 Hub Cap
QTY DESCRIPTION
2 Bolt, Hex 3/8-24 x 3-1/4" Lg.
3 Bushing, Pivot
1 Gear, Pinion R.H. (not shown)
1 Gear, Pinion L.H.
4 Bolt, Hex 1/4-20 x 1" Lg.
2 Ass'y, Dust Cover
2 Tube, Hopper Frame (Rear)
2 Tube, Upper Hopper Frame (Front)
2 Tube, Lower Hopper Frame (Front)
4 Plastic Plug
1 Hopper Bag
2 Clevis Pin, 3/8" x 1/2"
1 Strap, Bag Frame
2 Rod, Hopper Support
1 Hopper Rope
2 Cap, Vinyl
1 Strap, Height Adjustment
1 Bracket, Hitch
1 Bracket, Hitch (Straight)
1 Handle, Height Adjustment
2 Tube, Bag Arm
2 Pin, Clevis 3/8" x 3"
2 Wheel & Tire Ass'y. (with bearings)
4 Wheel Bearing
2 Bolt, Hex 5/16-18 x 2-1/2" Lg.
2 Bolt, Hex 5/16-18 x 2" Lg.
4 Bolt, Carriage 5/16-18 x 1-1/2"
8 Hairpin Cotter, 3/32" #3
1 Knob, Wing 5/16-18 Thread
1 Bolt, Carriage 5/16-18 x 1"
4 Washer, Flat 5/16" Std. Wrt.
1 Grip, Height Adjust
2 Clevis Pin, 1/4" x 1-3/4" Lg.
2 Clevis Pin, 1/4" x 1-1/8"
1 Owners Manual
17

NOTES
18

NOTES
19

Your Home
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
For expert home solutions advice: www.managemyhome.com
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
Call anytime, day or night
www.sears.com www.sears.ca
To purchase aprotection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n Au Canada pour service en frangais:
a domicilio, y para ordenar piezas: 1-800-LE-FOYER Mc
1-888-SU-HOGAR ® (1-800-533-6937)
(1-888-784-6427) www.sears.ca
,Se-81r
SM
® Registered Trademark /Tm Trademark /' Service Mark of Sears Brands, LLC
TM SM
® Marca Registrada /' Marca de F_brica /Mama de Servicio de Sears Brands, LLC
MD
mc Marque de commerce /Marque d_pos_e de Sears Brands, LLC © Sears Brands, LLC
