Craftsman Nextec 320.61199 User manual

Operator's Manual
CRI:IF MRN°I
X E
12-Volt Lithium-Ion Cordless
Multi-Tool
Model No. 320.61199
c_ius
LISTED
_k WARNING: To reduce the risk of
injury, the user must read and understand
the Operator's manual before using
this product.
• Warranty
• Safety
• Assembly
• Operation
• Maintenance
Charge battery
Before first use
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.craftsman.com

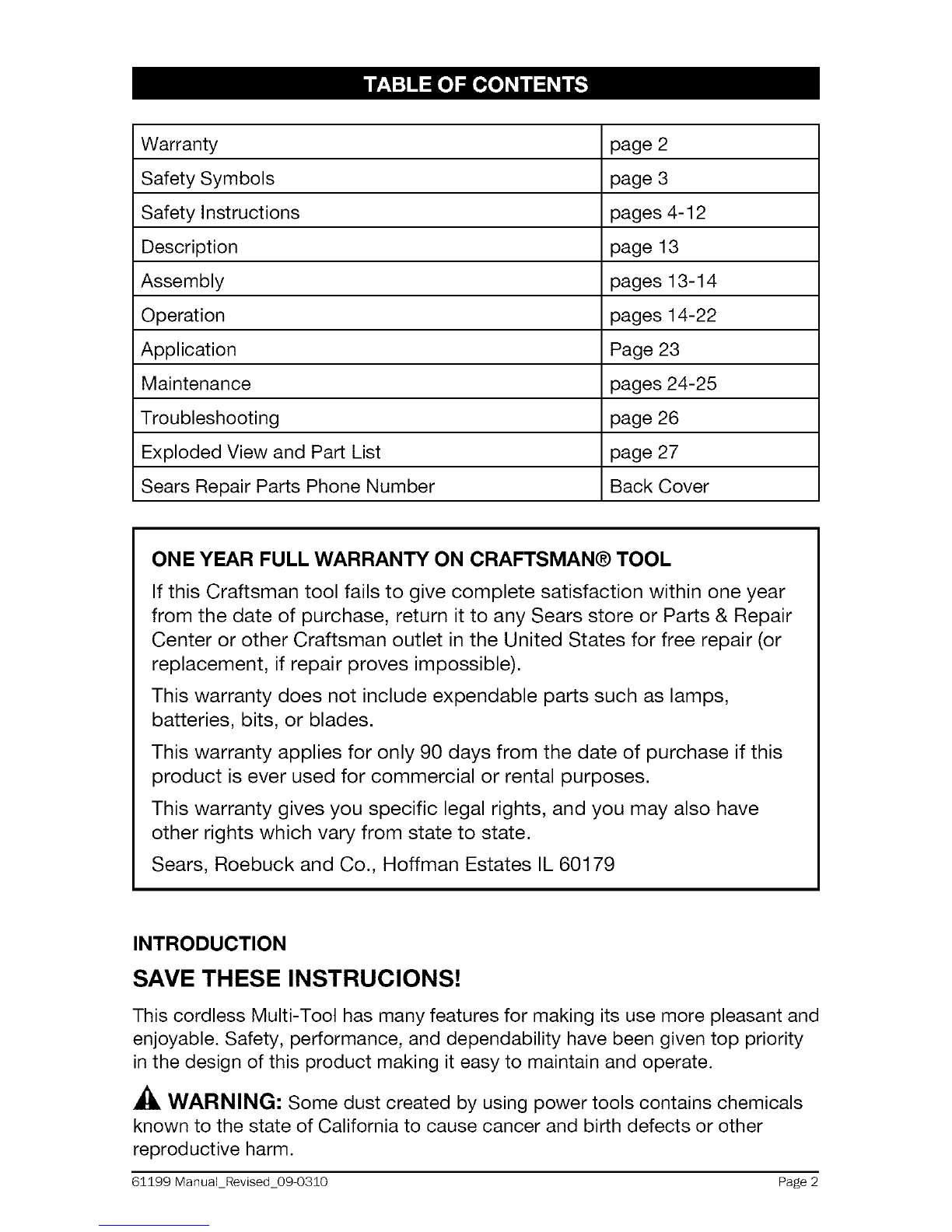

Warranty page 2
Safety Symbols page 3
Safety Instructions pages 4-12
Description page 13
Assembly pages 13-14
Operation pages 14-22
Application Page 23
Maintenance pages 24-25
Troubleshooting page 26
Exploded View and Part List page 27
Sears Repair Parts Phone Number Back Cover
ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL
If this Craftsman tool fails to give complete satisfaction within one year
from the date of purchase, return it to any Sears store or Parts & Repair
Center or other Craftsman outlet in the United States for free repair (or
replacement, if repair proves impossible).
This warranty does not include expendable parts such as lamps,
batteries, bits, or blades.
This warranty applies for only 90 days from the date of purchase if this
product is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates IL 60179
INTRODUCTION
SAVE THESE INSTRUCIONSZ
This cordless Multi-Tool has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product making it easy to maintain and operate.
WARNING: Some dust created by using power tools contains chemicals
known to the state of California to cause cancer and birth defects or other
reproductive harm.
61199 ManuaLRevised_09 0310 Page 2

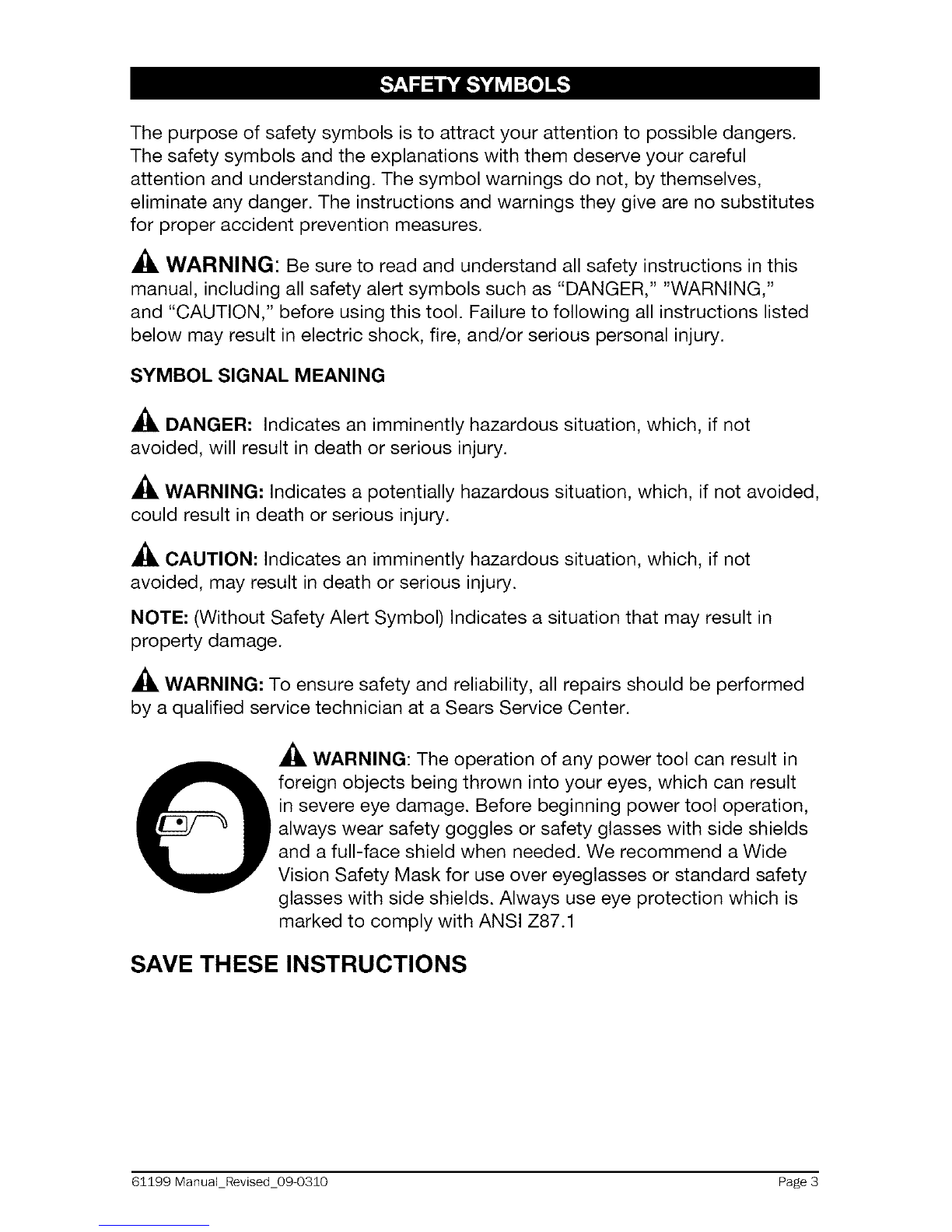

The purpose of safety symbols is to attract your attention to possible dangers.
The safety symbols and the explanations with them deserve your careful
attention and understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they give are no substitutes
for proper accident prevention measures.
,_ WARNING: Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as "DANGER," "WARNING,"
and "CAUTION," before using this tool. Failure to following all instructions listed
below may result in electric shock, fire, and/or serious personal injury.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
_1, WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates an imminently hazardous situation, which, if not
avoided, may result in death or serious injury.
NOTE: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
_, WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at a Sears Service Center.
A_, WARNING: The operation of any power tool can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields
and a full-face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1
SAVE THESE INSTRUCTIONS
61199 ManuaLRevised_09 0310 Page 3

Some of these following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
rain Minutes Time
"k., Alternating Current Type of current
---== Direct Current Type or a characteristic of current
n o No Load Speed Rotational speed, at no load
] Class II Construction Double-insulated construction
.../rain Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damplocations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
shield when operating this product.
_i, Alert Precautions that involve
Safety your safety,
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
t_ Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
No Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
61199 ManuaLRevised_09 0310 Page 4

GENERAL SAFETY RULES
_, WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury. The term "power tool" in all of warnings listed below refers to
corded power tools or battery-operated (cordless) power tools.
READ AND SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
• Keep your work area clean and well lit. Cluttered or dark areas invite accidents
• Do not operate power tools in explosive environments, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks,
which may ignite the dust or fumes.
• Keep children and bystanders away while operating a aower tool.
Distractions may cause you to lose control.
ELECTRICAL SAFETY
Avoid body contact with grounded surfaces, such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adaptor plugs with grounded power tools. Unmodified plugs
and matching outlets will reduce the risk of electric shock.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging
the power tool. Keep the cord away from heat, oil, sharp edge, or moving
parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
• Use the battery only with the charger listed:
BATTERY PACK CHARGER
320.11221 320.10006
61199 Manual_Revised_09 0310 Page 5

PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment, such
as dust mask, non-skid safety shoes, hard hat, and hearing protection, when
used for appropriate conditions, will reduce personal injuries.
Avoid accidental starting. Make sure that the switch is in the "OFF" position
before plugging the tool into an electrical outlet. Carrying power tools with
your finger on the switch or plugging in power tools that have the power
switch "ON" invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, make sure that these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Use clamps or another practical way to support and secure the workpiece
to a stable platform. Holding the work by hand or against your body leaves it
unstable and may lead to loss of control.
Do not use on a ladder or unstable support. Stable footing on a solid surface
enables better control of the power tool in unexpected situations.
Keep handles dry, clean, and free from oil and grease. Slippery hands cannot
safely control the power tool.
Always wear safety glasses with side shields. Everyday glasses may have
impact-resistant lenses, but they are NOT safety glasses. Following this rule
will reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious person injury.
61199 ManuaLRevised_09 0310 Page 6

POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and more safely at the rate for
which it was designated.
Do not use the power tool if the switch does not turn it ON and OFF. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, blades, etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could
result in a hazardous situation.
Hold power tools by the insulated gripping surfaces when performing any
operation in which the cutting tool may contact hidden wiring or its own
cord. Contact with a "live" wire will also make exposed metal parts of the
tool "live" and can shock the operator.
Know your power tool. Read the product manual carefully. Learn the
applications and limitations, as well as the specific, potential hazards related
to this tool. Following this rule will reduce the risk of electric shock, fire or
serious injury.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend
them these instructions.
61199 ManuaLRevised_09 0310 Page 7

BATTERY TOOL USE AND CARE
• Make sure that the switch is in the OFF position before inserting the battery
pack. Inserting the battery pack into power tools that have the switch ON
invites accidents.
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
When the battery pack is not in use, keep it away from other metal objects,
such as paper clips, coins, keys, nails screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Battery tools do not have to be plugged into an electrical outlet; therefore,
they are always in operating condition. Be aware of possible hazards when
not using your battery tool or when changing accessories. Following this rule
will reduce the risk of electric shock, fire, or serious personal injury.
Do not place battery tools or their batteries near fire or heat. This will reduce
the risk of explosion and possible injury.
Do not crush, drop or damage the battery pack. Do not use a battery pack or
charger that has been dropped or received a sharp blow. A damaged battery
is subject to explosion. Properly dispose of a dropped or damaged
battery immediately.
A damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a source of
ignition, such as a pilot light. To reduce the risk of serious personal injury,
never use any cordless product in the presence of open flame. An exploded
battery can propel debris and chemicals. If exposed to such debris or
chemicals, immediately flush the exposed area with water.
Do not charge a battery tool in a damp or wet location. Following this rule will
reduce the risk of electric shock.
• Under extreme usage or temperature conditions, battery leakage may occur.
• If contact accidentally occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may cause irritation or burns.
• If liquid comes in contact with your skin, wash immediately with soap and
water, then neutralize with lemon juice or vinegar.
• If liquid from the battery gets in your eyes, flush them with clean water for at
least 10 minutes, and then seek immediate medical attention. Following this
rule will reduce the risk of serious personal injury.
61199 ManuaLRevised_09 0310 Page 8

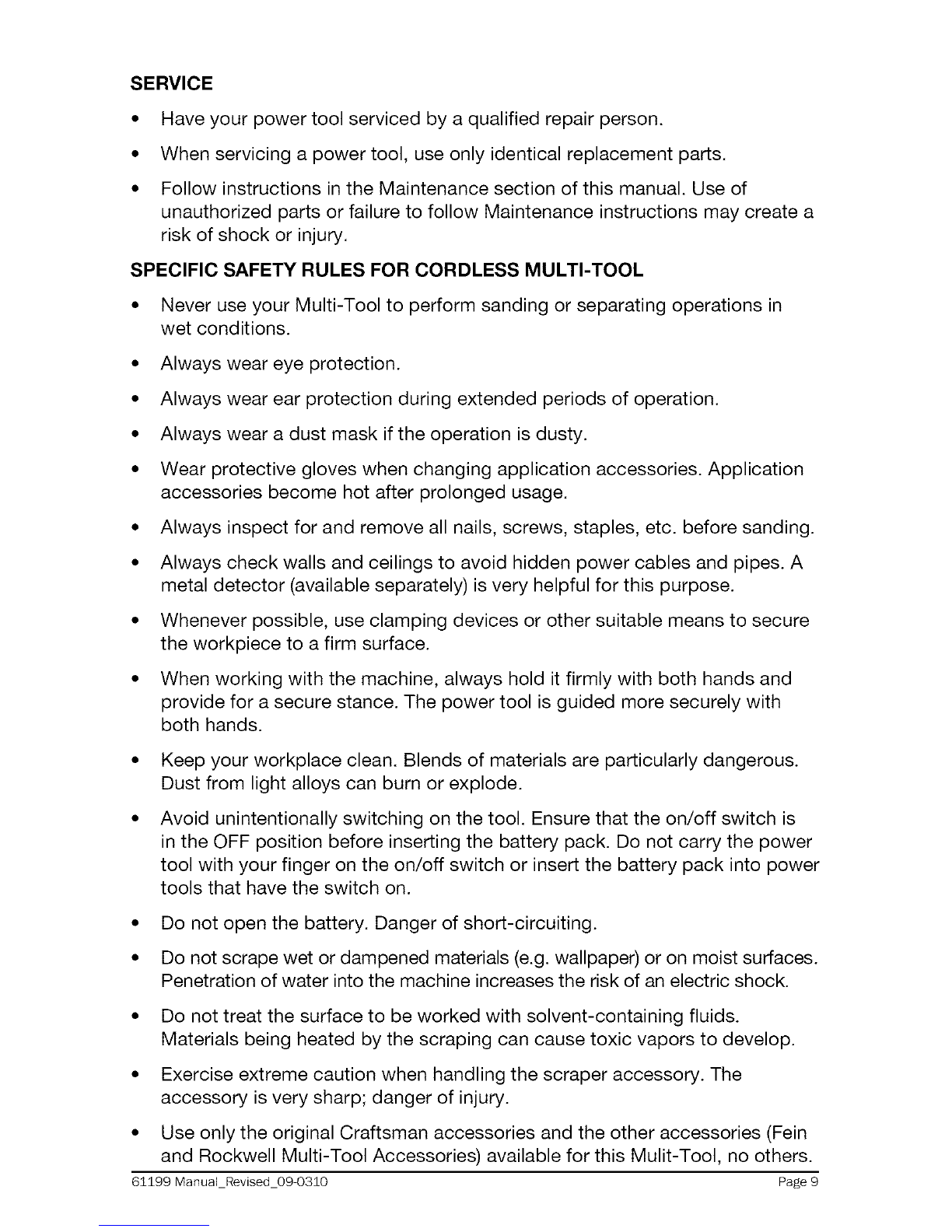

SERVICE
• Have your power tool serviced by a qualified repair person.
• When servicing a power tool, use only identical replacement parts.
• Follow instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance instructions may create a
risk of shock or injury.
SPECIFIC SAFETY RULES FOR CORDLESS MULTI-TOOL
• Never use your Multi-Tool to perform sanding or separating operations in
wet conditions.
• Always wear eye protection.
• Always wear ear protection during extended periods of operation.
• Always wear a dust mask if the operation is dusty.
• Wear protective gloves when changing application accessories. Application
accessories become hot after prolonged usage.
• Always inspect for and remove all nails, screws, staples, etc. before sanding.
• Always check walls and ceilings to avoid hidden power cables and pipes. A
metal detector (available separately) is very helpful for this purpose.
• Whenever possible, use clamping devices or other suitable means to secure
the workpiece to a firm surface.
• When working with the machine, always hold it firmly with both hands and
provide for a secure stance. The power tool is guided more securely with
both hands.
Keep your workplace clean. Blends of materials are particularly dangerous.
Dust from light alloys can burn or explode.
Avoid unintentionally switching on the tool. Ensure that the on/off switch is
in the OFF position before inserting the battery pack. Do not carry the power
tool with your finger on the on/off switch or insert the battery pack into power
tools that have the switch on.
• Do not open the battery. Danger of short-circuiting.
• Do not scrape wet or dampened materials (e.g. wallpaper) or on moist surfaces.
Penetration of water into the machine increases the risk of an electric shock.
• Do not treat the surface to be worked with solvent-containing fluids.
Materials being heated by the scraping can cause toxic vapors to develop.
• Exercise extreme caution when handling the scraper accessory. The
accessory is very sharp; danger of injury.
• Use only the original Craftsman accessories and the other accessories (Fein
and Rockwell Multi-Tool Accessories) available for this Mulit-Tool, no others.
61199 Manual_Revised_09 0310 Page 9

• Only use application accessories in good condition. Do not use them if they
are torn or worn.
• Do not restart a cutting operation in the workpiece. To resume a cutting
operation: while keeping the tool from contacting the workpiece, allow the tool
reach full speed and then carefully guide the cutting accessory into the cut.
• Keep your hands away from the cutting area. Do not reach under the material
being cut.
• Hold power tools by their insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will make exposed metal parts of the tool "live" and
shock the operator.
_lk WARNING: Wear ear protection. Exposure to noise can cause
hearing loss.
SAFETY RULES FOR CHARGER
_L. WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury.
_, WARNING: Before using the battery charger, read all instructions and
cautionary markings in this manual and on the battery charger, the battery, and
the product using the battery to prevent misuse of the products and possible
injury or damage.
_, CAUTION: To reduce the risk of electric shock or damage to the charger
and battery, charge only those lithium-ion rechargeable batteries specifically
designated on your charger's label. Other types of batteries may burst, causing
personal injury or damage.
• Do not use the charger outdoors or expose it to wet or damp conditions.
Water entering the charger will increase the risk of electric shock.
• Use of an attachment not recommended or sold by the battery-charger
manufacturer may result in a risk of fire, electric shock, or injury.
Do not abuse the cord or charger. Never use the cord to carry the charger.
Do not pull the charger cord to disconnect the plug from receptacle. Damage
to the cord or charger could occur and create an electric shock hazard.
Replace damaged cords immediately.
Make sure that the cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts, or otherwise be
subjected to damage or stress. This will reduce the risk of accidental falls,
which could cause injury and damage to the cord and which could then
result in electric shock.
61199 ManuaLRevised_09 0310 Page 10

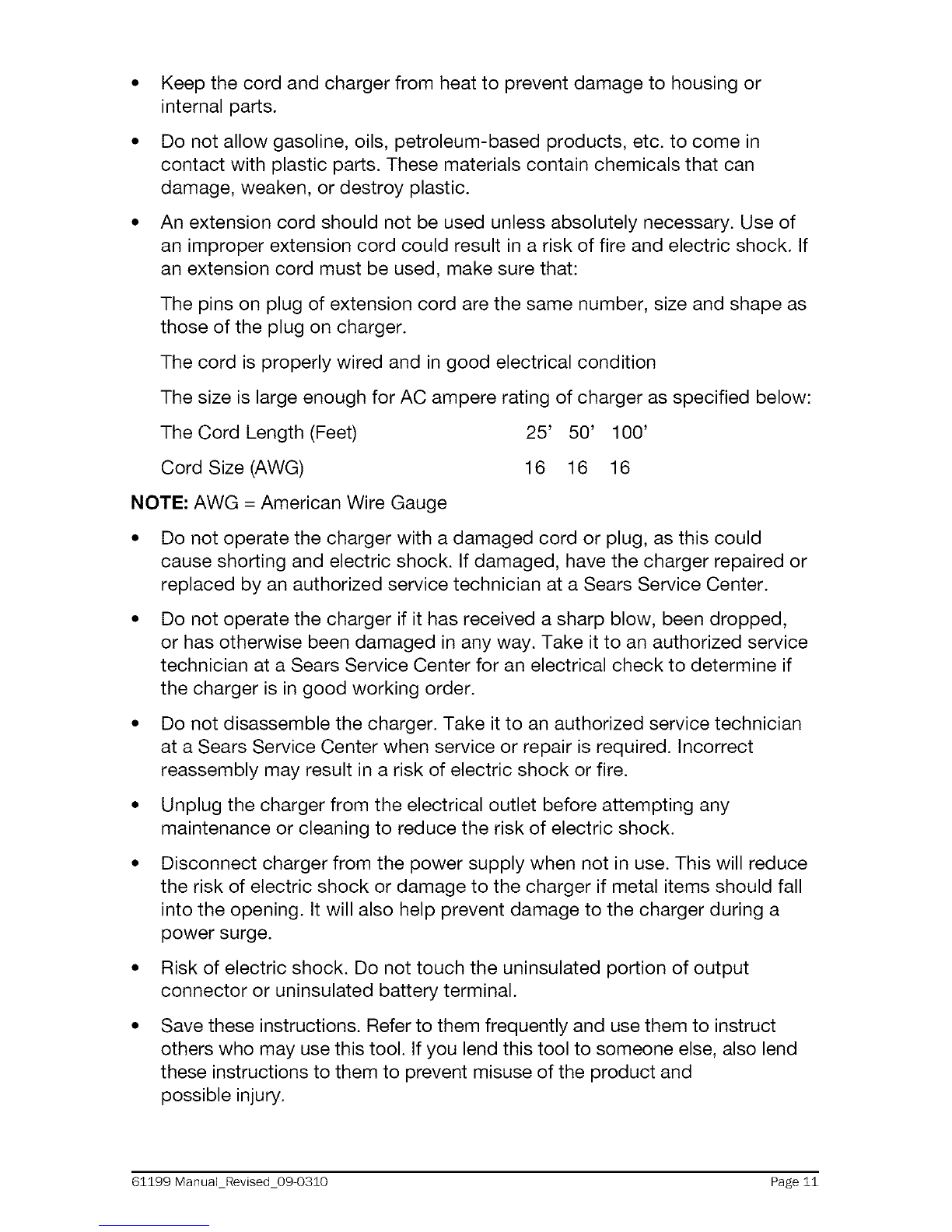

• Keep the cord and charger from heat to prevent damage to housing or
internal parts.
• Do not allow gasoline, oils, petroleum-based products, etc. to come in
contact with plastic parts. These materials contain chemicals that can
damage, weaken, or destroy plastic.
• An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in a risk of fire and electric shock. If
an extension cord must be used, make sure that:
The pins on plug of extension cord are the same number, size and shape as
those of the plug on charger.
The cord is properly wired and in good electrical condition
The size is large enough for AC ampere rating of charger as specified below:
The Cord Length (Feet) 25' 50' 100'
Cord Size(AWG) 16 16 16
NOTE: AWG = American Wire Gauge
• Do not operate the charger with a damaged cord or plug, as this could
cause shorting and electric shock. If damaged, have the charger repaired or
replaced by an authorized service technician at a Sears Service Center.
Do not operate the charger if it has received a sharp blow, been dropped,
or has otherwise been damaged in any way. Take it to an authorized service
technician at a Sears Service Center for an electrical check to determine if
the charger is in good working order.
• Do not disassemble the charger. Take it to an authorized service technician
at a Sears Service Center when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
• Unplug the charger from the electrical outlet before attempting any
maintenance or cleaning to reduce the risk of electric shock.
Disconnect charger from the power supply when not in use. This will reduce
the risk of electric shock or damage to the charger if metal items should fall
into the opening. It will also help prevent damage to the charger during a
power surge.
• Risk of electric shock. Do not touch the uninsulated portion of output
connector or uninsulated battery terminal.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend
these instructions to them to prevent misuse of the product and
possible injury.
61199 Manual_Revised_09 0310 Page 11

IM PORTANT SAFETY INSTRUCTIONS
• Save these instructions. This manual contains important safety and operating
instructions for 12V Multi-Tool 320.61199.
• Before using the ,battery charger, read all instructions and cautionary
markings on battery charger, the battery and the product using battery, as
well as the operator's manuals for these products.
Fig. 1 On/Off Switch Battery Pack
LED Worklight
\
Vents
Battery Release
Button
Drive Shaft
Flange Bolt
_, CAUTION: To reduce the risk of injury, charge only lithium-ion rechargeable
batteries. Other types of batteries may burst, causing personal injury or damage.
_, WARNING: When using electric appliances, basic precautions should
always be followed, including the following.
a) To reduce the risk of injury, close supervision is necessary when an
appliance is used near children.
b) Only use attachments recommended or sold by manufacturer.
c) Do not use outdoors.
d) For a portable appliance - To reduce the risk of electrical shock, do not put
the Multi-Tool and Battery Pack in water or other liquid. Do not place or
store appliance where or can fall or be pulled into a tub or sink.
61199 ManuaLRevised_09 0310 Page 12

ID]=_.'_o_[[o_]

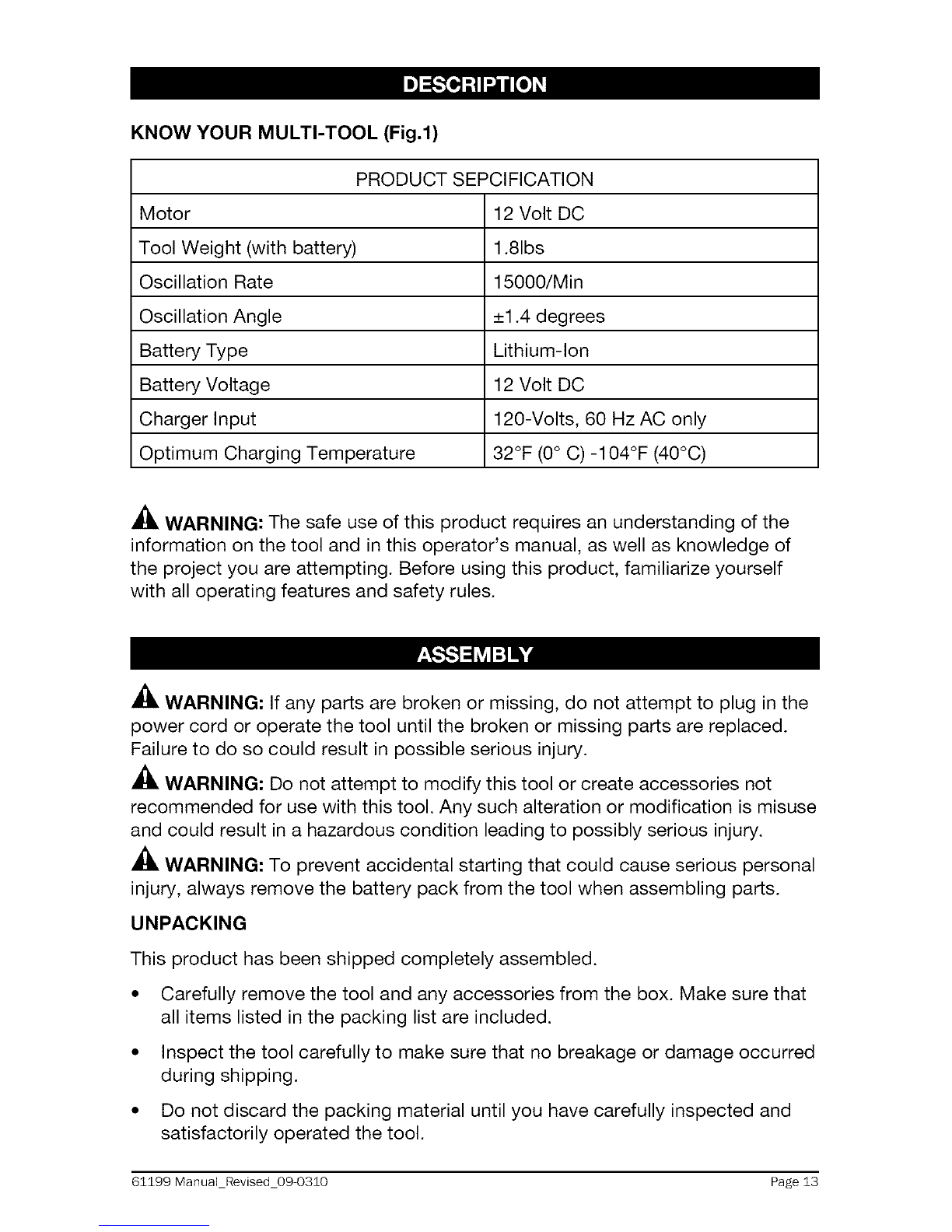

KNOW YOUR MULTI-TOOL (Fig.l)
PRODUCT SEPCIFICATION
Motor 12 Volt DC
Tool Weight (with battery) 1.81bs
Oscillation Rate 15000/Min
Oscillation Angle _+1.4degrees
Battery Type Lithium-Ion
Battery Voltage 12 Volt DC
Charger Input 120-Volts, 60 Hz AC only
Optimum Charging Temperature 32°F (0° C) -104°F (40°C)
_, WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator's manual, as well as knowledge of
the project you are attempting. Before using this product, familiarize yourself
with all operating features and safety rules.
_, WARNING: If any parts are broken or missing, do not attempt to plug in the
power cord or operate the tool until the broken or missing parts are replaced.
Failure to do so could result in possible serious injury.
_, WARNING: Do not attempt to modify this tool or create accessories not
recommended for use with this tool. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possibly serious injury.
_, WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the tool when assembling parts.
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the box. Make sure that
all items listed in the packing list are included.
• Inspect the tool carefully to make sure that no breakage or damage occurred
during shipping.
• Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
61199 ManuaLRevised_09 0310 Page 13

• If any part is damaged or missing, please refer to the numbers listed on the
back page of operator's manual.
PACKING LIST
Multi-Tool, straight edge flush cut blade, circular saw blade, hardened steel scraping
blade, carbide circular adhesive removal blade, carbide triangular rasp, sanding
plate and 24 pcs sandpapers, hex key, vacuum adaptor, operator's manual.

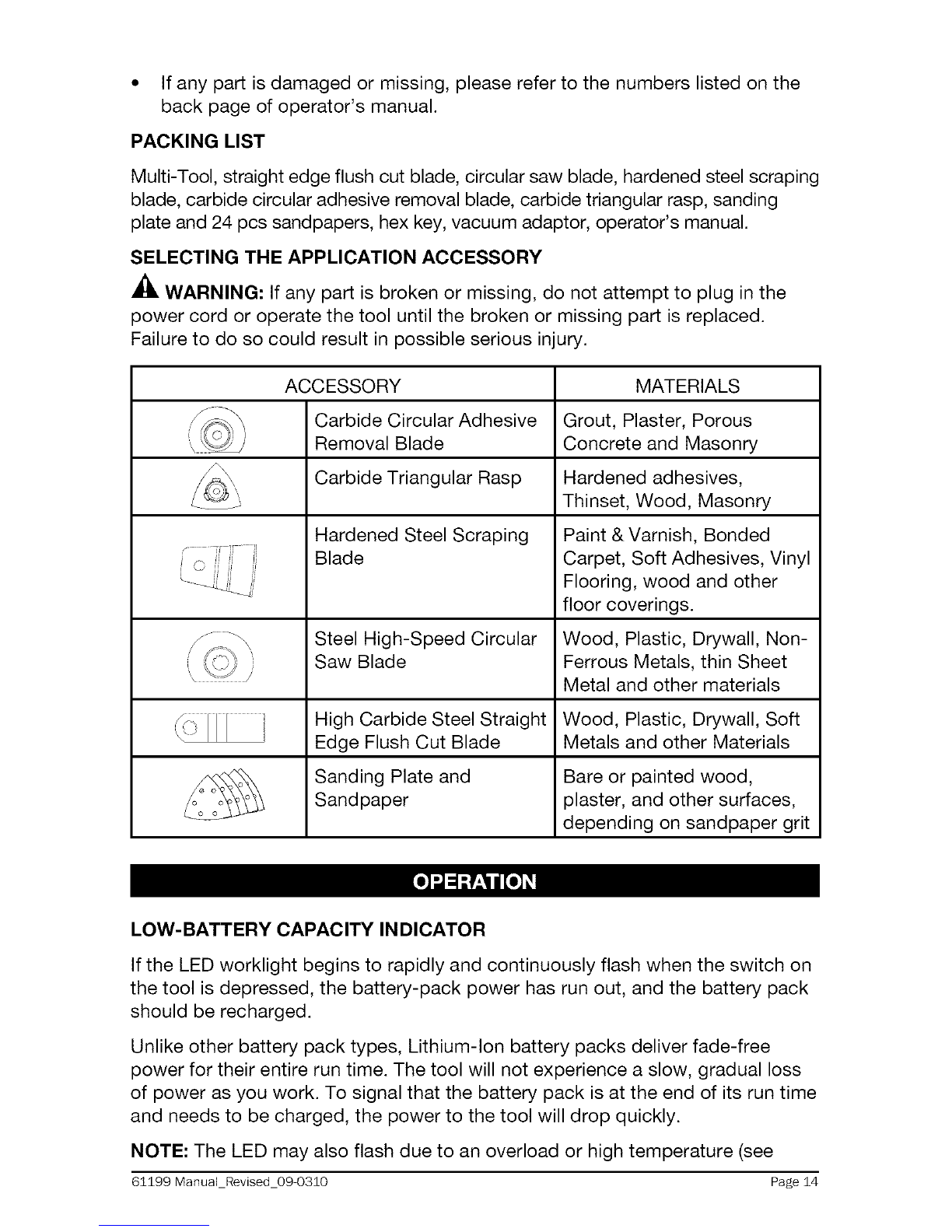

SELECTING THE APPLICATION ACCESSORY
_, WARNING: If any part is broken or missing, do not attempt to plug in the
power cord or operate the tool until the broken or missing part is replaced.
Failure to do so could result in possible serious injury.
ACCESSORY MATERIALS
Carbide Circular Adhesive Grout, Plaster, Porous
Removal Blade Concrete and Masonry
Carbide Triangular Rasp Hardened adhesives,
Thinset, Wood, Masonry
Hardened Steel Scraping Paint & Varnish, Bonded
Blade Carpet, Soft Adhesives, Vinyl
Flooring, wood and other
floor coverings.
Steel High-Speed Circular Wood, Plastic, Drywall, Non-
Saw Blade Ferrous Metals, thin Sheet
Metal and other materials
High Carbide Steel Straight Wood, Plastic, Drywall, Soft
Edge Flush Cut Blade Metals and other Materials
Sanding Plate and Bare or painted wood,
Sandpaper plaster, and other surfaces,
depending on sandpaper grit
LOW-BATTERY CAPACITY INDICATOR
If the LED worklight begins to rapidly and continuously flash when the switch on
the tool is depressed, the battery-pack power has run out, and the battery pack
should be recharged.
Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free
power for their entire run time. The tool will not experience a slow, gradual loss
of power as you work. To signal that the battery pack is at the end of its run time
and needs to be charged, the power to the tool will drop quickly.
NOTE: The LED may also flash due to an overload or high temperature (see
61199 ManuaLRevised_09 0310 Page 14

BATTERY PROTECTION).
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme temperature, over
discharge, and over-charge. To protect the battery from damage and prolong
its life, the battery pack circuitry will turn off the battery pack if it becomes
overloaded or if the temperature becomes too high during use. This may happen
in situations involving extremely high torque, binding, and stalling. This intelligent
system will shut down your battery pack if its operating temperature exceeds
176°F (80°C) and will begin normal operation when it returns to 32°F (0°C) -
122°F (50°C).
The LED worklight light will begin flash slowly if the battery circuitry detects a
momentary overload.
NOTE: The battery can automatically reset. If the LED continues to flash rapidly,
it is indicating that the charge is substantially diminished. Place the battery into
the charger for charging. (See BATTERY CAPACITY INDICATOR, above.)
NOTE: A significantly reduced run time after fully charging the battery pack indi-
cates that the battery is near the end of its usable life and must be replaced.
COLD WEATHER OPERATION
This Lithium-Ion battery pack will provide optimal performance in temperatures
between 32°F (0°C) and 104°F (40°C). When the battery pack is very cold, it may
"pulse" for the first minute of use to warm itself. Put the battery pack on a tool
and use the tool in a light application. After about a minute, the battery pack will
have warmed itself and will operate normally.
WHEN TO CHARGE THE BATTERY PACK
It is not necessary to run down
the battery pack charge before
recharging. The Lithium-Ion
battery can be charged at any
time and will not develop a
"memory" when charged after
only a partial discharge.
Remove the battery pack from
the tool when convenient for
you and your job. "Top off" the
battery pack charge by charging
it for a time before starting a big
job or long period of use.
Fig. 2
Due to Lithium-Ion fade-free
properties, the only time it is necessary to charge the Lithium- Ion battery pack
is when the pack has reached the end of its charge. To signal the end of charge,
power to the tool will drop quickly. Charge the battery pack as needed.
61199 ManuaLRevised_09 0310 Page 15

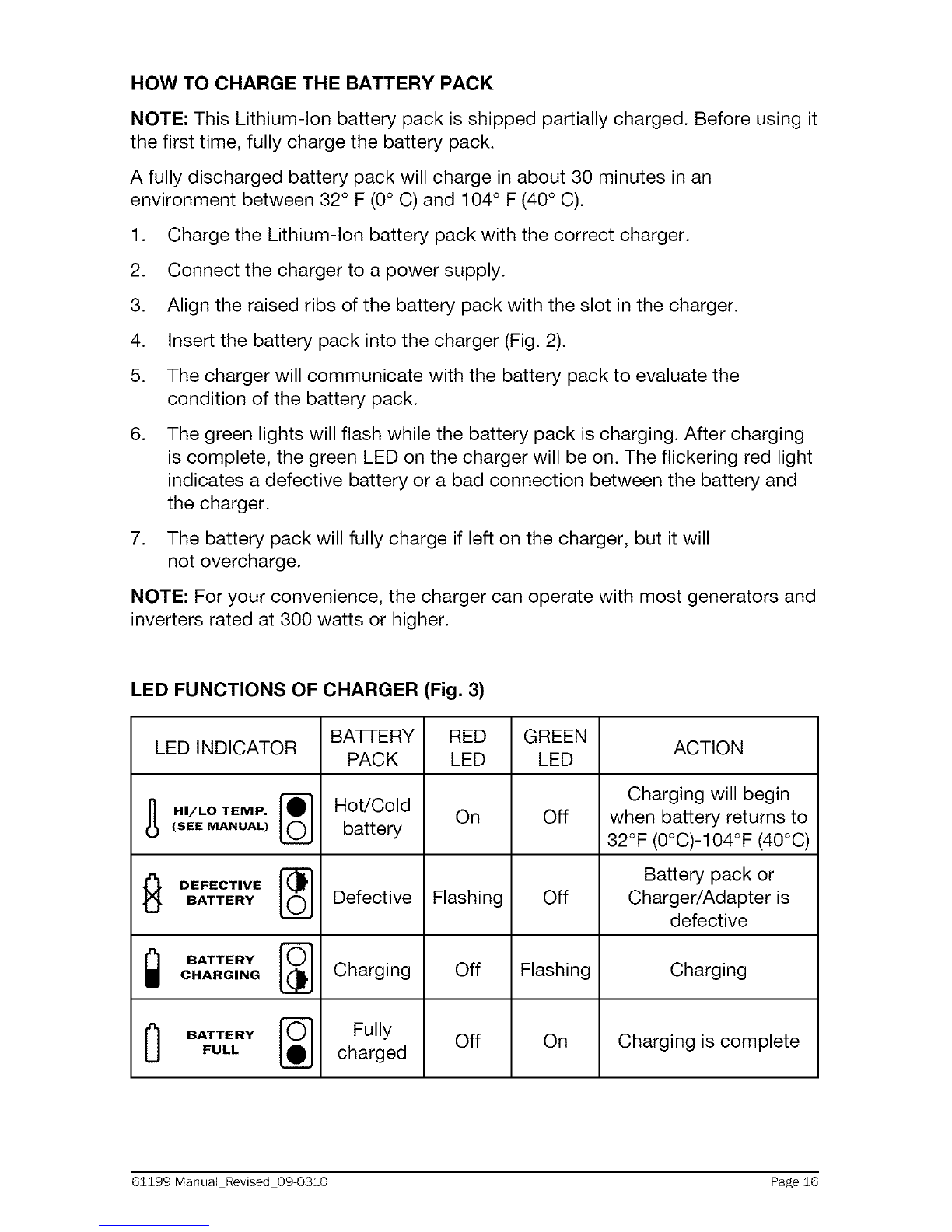

HOW TO CHARGE THE BATTERY PACK
NOTE: This Lithium-ion battery pack is shipped partially charged. Before using it
the first time, fully charge the battery pack.
A fully discharged battery pack will charge in about 30 minutes in an
environment between 32 ° F (0° C) and 104 ° F (40° C).
1. Charge the Lithium-Ion battery pack with the correct charger.
2. Connect the charger to a power supply.
3. Align the raised ribs of the battery pack with the slot in the charger.
4. Insert the battery pack into the charger (Fig. 2).
5. The charger will communicate with the battery pack to evaluate the
condition of the battery pack.
6. The green lights will flash while the battery pack is charging. After charging
is complete, the green LED on the charger will be on. The flickering red light
indicates a defective battery or a bad connection between the battery and
the charger.
7. The battery pack will fully charge if left on the charger, but it will
not overcharge.
NOTE: For your convenience, the charger can operate with most generators and
inverters rated at 300 watts or higher.
LED FUNCTIONS OF CHARGER (Fig. 3)
LED INDICATOR
_) I/LO TEMP. _]
(SEE MANUAL)
DEFECTIVE
BATTERY
BATTERY
CHARGING
BATTERY _
FULL
BATTERY
PACK
Hot/Cold
battery
Defective
Charging
Fully
charged
RED
LED
On
Flashing
Off
Off
GREEN
LED
Off
Off
Flashing
On
ACTION
Charging will begin
when battery returns to
32°F (0°C)-104°F (40°C)
Battery pack or
Charger/Adapter is
defective
Charging
Charging is complete
61199 ManuaLRevised_09 0310 Page 16

CHARGING A HOT BATTERY PACK
If the battery pack is above normal temperature range, the red LED will
illuminate and the green LED will be off. When the battery pack cools down to
approximately 104°F (40°C), the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
If the battery pack is below the normal temperature range, the red LED will
illuminate and the green LED will be off. When the battery warms to a temperature
of more than 32°F (0°C), the charger will automatically begin charging.
DEFECTIVE BATTERY
If the charger detects a problem, the red LED will begin flashing and the green
LED will be off.
1.
2.
3.
If registering as defective, remove and reinsert the battery pack in the
charger. If the LED status reads "defective" a second time, try charging a
different battery pack.
If a different battery pack charges normally, dispose of the defective battery
pack (see Maintenance section).
If a different battery pack also indicates "defective," the charger may
be defective.
BATTERY CHARGING
If the battery pack is being charged within a normal environmental temperature
range (32 °F to 104°F), the green LED will begin flashing and the red LED will be
off. The battery pack will reach a full charge in 30 minutes.
BATTERY FULL
If the battery pack is within normal temperature range, the green LED will
illuminate and the red LED will be off. The battery pack is fully charged and
ready to use. The battery pack will fully charge, but will not overcharge, if left on
the charger.
NOTE: The charger may heat up with several continuous charge cycles. This is
part of the normal operation of the charge. Charge in a well ventilated area.
TO ATTACH BATTERY PACK (Fig. 4)
1. Make sure that the tool is "OFF"
2. Align the raised rib on the battery pack with the grooves in the tool, and then
attach the battery pack.
NOTE: Make sure that the latch on the battery pack snaps into place and that
the battery pack is secured to the tool before beginning operation.
61199 Manual_Revised_09 0310 Page 17

TO DETACH BATTERY
PACK (Fig. 4)
1. Make sure that the tool
is "OFF"
2. Depress the battery release
buttons located on the both
sides of th of the battery
pack to release the
battery pack.
3. Pull the battery pack out
and remove it from the tool.
A_, CAUTION: When placing
the battery pack in the tool,
be sure that the raised rib on
battery pack aligns with the
groove inside the tool and that
the latches snap into place
properly. Improper assembly
of the battery pack can cause
damage to internal components.
_, WARNING: Battery tools are
always in operating condition;
therefore, the direction-of-
rotation selector should always
be locked when not in use or
carrying the tool at your side.
ON/OFF SWITCH (Fig. 5)
To turn the tool ON, push the
on/off switch forward. To turn it
OFF, push the switch backward.
LED WORKLIGHT (Fig. 6)
The LED worklight, located
on the front of the tool, will
illuminate when the on/
off switch is in the forward
(ON) position. This provides
additional light on the surface of
the workpiece for operation in
lower-light conditions. The LED
worklight will turn off when the
switch is slid backwards (OFF).
Fig. 4
Fig. 5
Fig. 6
61199 Manual_Revised_09 0310 Page 18

DETACHABLE VACUUM
ADAPTOR (Fig.7)
Always connect the vacuum
adaptor when sanding.
Remove the application tool
before mounting the vacuum
adaptor. To improve dust
extraction from the working
area, insert the dust-extraction
adaptor into the rear of the tool,
and connect the adaptor to a
dust-extraction system or a
suitable vacuum cleaner.
Fig. 7 I
ATTACHING THE APPLICATION TOOL (FIG. 8, 9, 10, 11)
A_, WARNING: Failure to remove the battery pack from the tool when
assembling parts, making adjustments, or changing accessories could result in
accidental starting causing possibly serious injury.
_, CAUTION: For all work or when changing application tools, always wear
protective gloves. The sharp edges of the application tools will cause personal
injury. Application tools can be very hot while working.
_, WARNING: Check that the application tools are correctly attached. Incorrect
or insecurely fastened application tools can come loose during operation and
cause a hazard.
_, WARNING: Do not attach the circular saw blade or the straight edge cutting
blade facing backwards (Fig. 8), as operation in this position may cause
serious injury.
1. Remove the battery pack from the Multi-Tool.
2. Loosen the flange bolt with the hex key provided. (Fig. 9)
3. Ensure that the inner threads and the drive shaft are clean.
4. Align the grooves on the application tool with the four raised ribs on the
drive shaft; put the application tool onto the drive shaft. (Fig.10)
5. With your gloved hand holding the blade, put on and tighten the flange bolt
using the hex key.
NOTE: Attach the application tool at the desired orientation for the task at hand.
The shaft is configured so that the application tool can be attached every 30°
around the shaft, from 0°to 330 ° (Fig. 11).
61199 ManuaLRevised_09 0310 Page 19

Fig. 8 Fig. 9 Fig. 10 Ribs on shaft
Grooves
Fig. 11
0 30 60
120 150 180'
90 _ 240' 330'
210
270' 300'
MOUNTING/CHANGING THE SANDPAPER (Fig.12)
A_, WARNING: Failure to remove the battery pack from the tool when
assembling parts, making adjustments, or changing accessories could result in
accidental starting causing possibly serious injury.
1.
2.
3.
4.
Follow the directions for
Attaching the Application
Tool to attach the sanding
plate to the Multi-Tool.
Align the sandpaper with
the sanding plate and use
your hand to press it firmly
on the sanding plate.
Press the sandpaper firmly
against a smooth surface
for a short period, then
switch on the tool. The burr
will form a non-slip bond
with the outer edge of the
sandpaper felt. This will
avoid premature wear.
Fig. 12
Sanding Plate
If one point has become worn, pull off the sandpaper, turn it 120 ° and place
it on the sanding plate again.
6±199 ManuaLRevised_09 0310 Page 20
