Craftsman 580.752190 User manual

Operator'sIVlanual
Fr MRN °
iViodelNo. 580.752190
HOURS: IVlon.- Fri. 8 a.m. to5 p.m. (CT)
WARNING
Beforeusing this product, readthis
manualand follow aii Safety Rules
and OperatingInstructions.
ADVERTENCiA
Antes de utiiizar el producto, lea este
manualy siga todas las Reglasde
Seguridad e Instrucciones de Uso.
,, Safety
,, AssernbJy
,, Operation
,, Maintenance
,, Parts
,, EspaNoJ,p. 30
This pressure washer is rated in accordance to the Pressure Washer Manufacture Association
(PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).
Esta limpiadora a presi6n est_ clasificada conforme a la norma PWI01 (comprobaci6n y clasificaci6n de rendimiento de limpiadoras
a presi6n) de laAsociaci6n defabricantes de bombas a presi6n (Pressure Washer Manufacture Association, PWMA).
Sears, Roebuckand Co., HoffrnanEstates,IL 60179 U.S.A.
Visit our Craftsman website: www.craftsman.com
Part No. 205424GS Draft C (08/25/2008) O

WARRANTY.......................................... 2
SAFETYRULES...................................... 2-4
FEATURESANDCONTROLS.............................. 5
ASSEMBLY......................................... 6-9
OPERATION....................................... 10-14
SPECIFICATIONS..................................... 15
MAINTENANCE.................................... 16-19
STORAGE........................................... 20
TROUBLESHOOTING.................................. 21
REPLACEMENTPARTS.............................. 22-26
NOTES............................................. 27
EMISSIONCONTROLWARRANTY..................... 28-29
ESPANOL......................................... 30-51
HOWTO ORDERPARTS........................ BACKPAGE
ONE-YEARFULLWARRAHTYOHCRAFTSiViAHPRESSUREWASHER
If this pressurewasher fails due to a defect in material or workmanship within one yearfrom the date of purchase,return it to
any Searsstore, other Craftsmanoutlet, or SearsParts & RepairCenterin the UnitedStatesor Canadafor free repair (or
replacementif repair proves impossible).
All warranty coverageapplies for only 90 days from date of purchaseif this pressure washer is everused for commercial or
rental purposes.
This warranty givesyou specific legal rights, and you may also haveother rights which vary from stateto state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2B8
Readthis manual carefully and become familiar
with yourpressurewasher. Knowitsapplications,
itslimitations, and any hazardsinvolved.
importantSafetyinformation
Safety Symbolsand Meanings
ToxicFumes Kickback ElectricalShock
Thesafety alertsymbol indicatesa potential personal
injury hazard.A signalword (DANGER,WARNING,or
CAUTION)is usedwith thealert symbol to designatea degree
or levelof hazardseriousness.A safety symbol may be used
to representthetype of hazard.Thesignal word NOTICEis
usedto addresspractices not relatedto personalinjury.
_i, DANGERindicatesa hazardwhich, if not avoided, will
result in deathor serious injury.
_i, WARNINGindicatesa hazardwhich, if not avoided, could
result in deathor serious injury.
_i, CAUTIONindicates a hazardwhich, if not avoided, could
result in minor or moderate injury.
NOT/CEaddress praticesnot relatedto personalinjury.
Slippery Surface Fall Fluid Injection
Fire Explosion Operator'sManual
MovingParts FlyingObjects Hot Surface
© SearsBrands, LLC

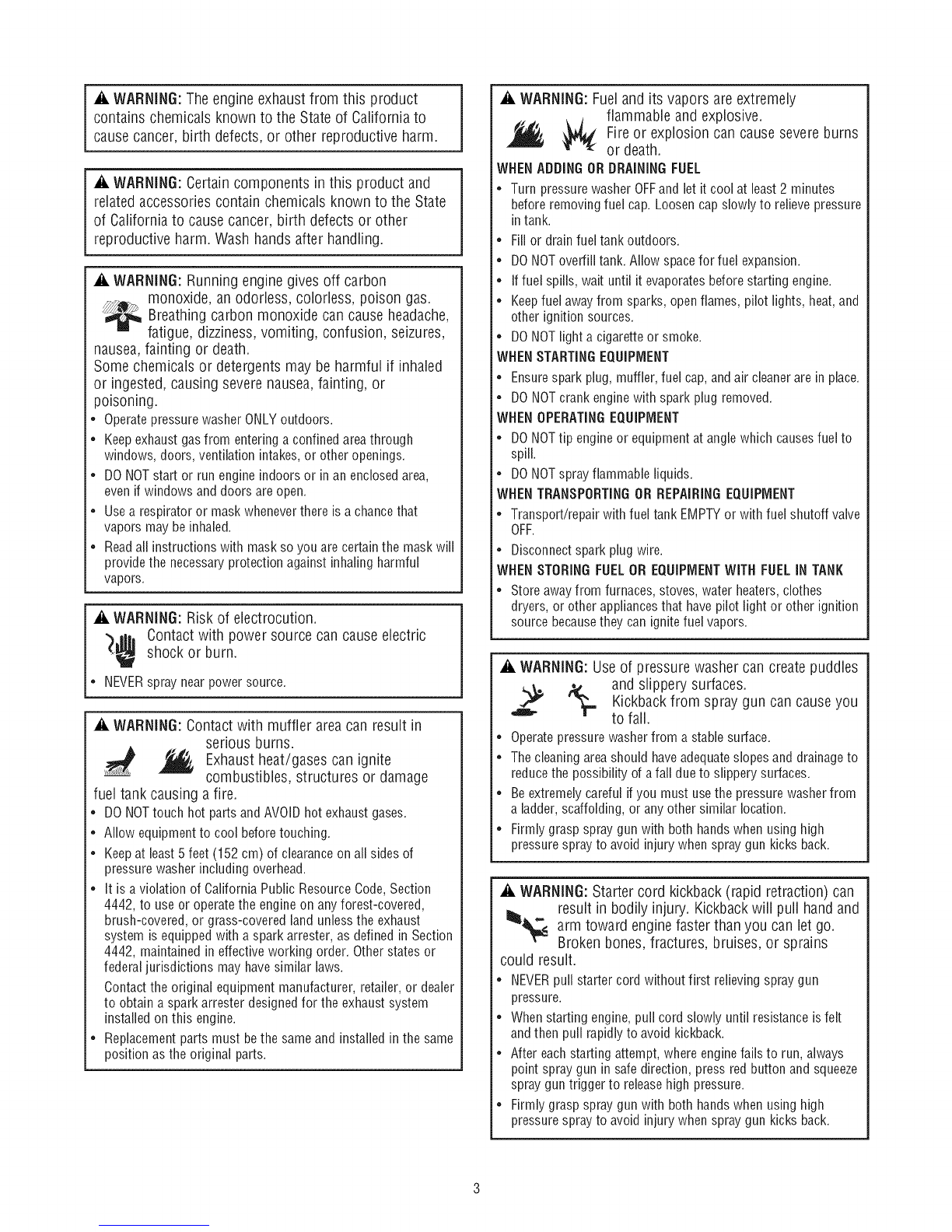

A. WARNING:The engine exhaustfrom this product
contains chemicals known to the State of Californiato
causecancer, birth defects,or other reproductive harm.
A. WARNING: Certaincomponents in this product and
relatedaccessoriescontain chemicals known to the State
of Californiato causecancer, birth defects or other
reproductive harm. Wash hands after handling.
_, WARNING: Running enginegives off carbon
monoxide, an odorless, colorless, poison gas.
_ Breathing cancause headache,
carbon monoxide
fatigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
Somechemicals or detergentsmay be harmful if inhaled
or ingested, causing severenausea,fainting, or
poisoning.
• OperatepressurewasherONLYoutdoors.
• Keepexhaustgasfromenteringa confinedareathrough
windows,doors,ventilationintakes,or otheropenings.
• DONOTstartor runengineindoorsor in anenclosedarea,
evenifwindowsanddoorsareopen.
• Usea respiratoror maskwheneverthereisa chancethat
vaporsmaybeinhaled.
• Readall instructionswith masksoyouarecertainthemaskwill
providethenecessaryprotectionagainstinhalingharmful
vapors.
_i_WARNING: Riskof electrocution.
_.dh Contactwith power source can causeelectric
shock or burn.
• NEVERspraynearpowersource.
A. WARNING: Contact with muffler area can result in
serious burns.
_ _ Exhaust heat/gases can ignite
combustibles, structures or damage
fuel tank causing a fire.
• DO NOTtouch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool beforetouching.
= Keepat least5 feet (152 cm) of clearanceon all sidesof
pressure washer including overhead.
= It is a violation of California Public Resource Code,Section
4442, to use or operate the engineon anyforest-covered,
brush-covered, or grass-covered land unlessthe exhaust
system is equipped with aspark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may havesimilar laws.
Contactthe original equipment manufacturer, retailer, or dealer
to obtain a sparkarrester designedfor the exhaust system
installed on this engine.
= Replacement parts must bethe sameand installed in the same
position asthe original parts.
A. WARNING: Fuel and its vapors are extremely
flammable and explosive.
Fire or explosion can cause severe burns
or death.
WHENADDING OR DRAININGFUEL
• Turn pressurewasher OFFand let it cool at bast 2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
• Fill or drain fuel tank outdoors.
• DONOToverfill tank. Allow spacefor fuel expansion.
• Iffuel spills, wait until it evaporatesbefore starting engine.
• Keepfuel awayfrom sparks, open flames, pilot lights, heat,and
other ignition sources.
• DONOTlight a cigaretteor smoke.
WHENSTARTINGEQUIPMENT
•Ensurespark plug, muffler,fuel cap,and air cleanerarein place.
•DO NOTcrank enginewith spark plug removed.
WHENOPERATINGEQUIPMENT
•DONOTtip engine or equipment at anglewhich causesfuel to
spill.
•DONOTsprayflammabb liquids.
WHENTRANSPORTINGOR REPAiRiNGEQUIPMENT
•Transport/repair with fuel tank EMPTYor with fuel shutoff valve
OFF.
•Disconnectspark plug wire.
WHENSTORINGFUELOR EQUIPMENTWITH FUELiN TANK
•Store awayfrom furnaces, stoves, water heaters,clothes
dryers, or other appliancesthat have pilot lightor other ignition
source becausethey can ignitefuel vapors.
Ak.WARNING: Use of pressure washer can create puddles
,_ and slippery surfaces.
,_ Kickback from spray gun can cause you
to fall.
= Operatepressurewasher from a stablesurface.
• Thecleaning areashould haveadequateslopes and drainage to
reducethe possibility of afall dueto slippery surfaces.
• Beextremely careful if you must use the pressurewasher from
a ladder,scaffolding, or anyother similar location.
• Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.
A. WARNING:Starter cord kickback(rapid retraction) can
result in bodily injury. Kickbackwill puii hand and
,_arm toward enginefasterthan you can let go.
Broken bones,fractures, bruises, or sprains
could result.
• NEVERpull starter cord without first relieving spraygun
pressure.
• When starting engine, pull cord slowly until resistance isfelt
andthen pull rapidlyto avoid kickback.
• After each starting attempt, where enginefails to run, always
point spray gun in safedirection, pressred button andsqueeze
spray guntrigger to releasehigh pressure.
• Firmly grasp spray gun with both handswhen using high
pressure sprayto avoid injury when spraygun kicks back.

_i, WARNING: The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which can cause
injury.
= DONOTallow CHILDRENto operate pressure washer.
= NEVERrepair high pressure hose.Replaceit.
= NEVERrepairleaking connections with sealantof any kind.
Replaceo-ring or seal.
= NEVERconnect high pressure hoseto nozzleextension.
= Keephigh pressure hoseconnectedto pump and spraygun
while system is pressurized.
= ALWAYS point spray gun in safedirection, pressred button
and squeezespray gun trigger to releasehigh pressure, every
time you stop engine.
= NEVERaim spray gun at people,animals, or plants.
= DO NOTsecure spray gun in open position.
= DO NOTleavespray gun unattendedwhile machine is running.
= NEVERusea spray gun which does not haveatrigger lockor
trigger guardin placeand in working order.
= Always be certain spray gun, nozzlesand accessoriesare
correctly attached.
_k WARNING: Unintentionalsparking can result in fire or
_1_ electric shock.
WHENADJUSTINGORMAKINGREPAIRSTOYOURPRESSURE
WASHER
• Disconnectthesparkplugwirefromthesparkplugandplace
thewirewhereit cannotcontactsparkplug.
WHENTESTINGFORENGINESPARK
•Useapprovedsparkplugtester.
•DONOTcheckfor sparkwith sparkplugremoved.
_k WARNING: Starter and other rotating parts can
entangle hands, hair, clothing, or accessories.
•NEVERoperate pressure washerwithout protective housing or
covers.
• DO NOTwear looseclothing, jewelry or anything that may be
caught in the starter or other rotating parts.
• Tie up long hairand removejewelry.
_k WARNING: Riskof eyeinjury.
Spraycan splash backor propel objects.
NOTICE:Highpressure spray may damagefragile items
including glass.
• DONOTpointspraygunatglasswhenusingred(0°) spraytip.
• NEVERaimspraygunatplants.
NOTICE: improper treatment of pressure washer can
damage it and shorten its life.
• If you havequestions about intended use,ask dealer or contact
Sears.
• NEVERoperate units with broken or missing parts, or without
protective housing or covers.
• DO NOTby-pass any safety device on this machine.
• DONOTtamper with governed speed.
• DONOToperate pressure washer above rated pressure.
• DONOTmodify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts
of the equipment to besure ice has not formed there.
• NEVERmove machine by pulling on hoses. Use handle provided
on unit.
• Checkfuel system for leaksor signs of deterioration, such as
chafed or spongy hose,loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure washer.
• This equipment is designed to be used with Searsauthorized
parts ONLY. If equipment is usedwith partsthat DO NOTcomply
with minimum specifications, user assumes all risks and
liabilities.
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
= Beforestarting the pressurewasher, be sure you are wearing
adequatesafety goggles.
= NEVERsubstitute safetyglasses for safety goggles.

KNOWYOURPRESSUREWASHER
Readthe Operator's Manual andsafetyrules beforeoperating yourpressurewasher.
Comparethe illustrations with your pressurewasher to familiarizeyourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
A-Spray Gun-- Controls the application of water onto
cleaningsurfacewith trigger device,includes trigger lock.
B-Spray Tips -- Detergent,0°, 15° and 40°: for various
high pressurecleaning applications.
C-Accessory Tray-- Provides convenientstorage for
accessories, such as gun, spray tips, etc.
D-Recoil Starter -- Usedfor starting the engine manually.
E- FuelTank -- Filltank with regular unleadedfuel. Always
leaveroom for fuel expansion.
F-Air Filter -- Protects engine by filtering dust and debris
out of intake air.
G-Throttle Lever-- Setsengine in starting mode for recoil
starter and stops a running engine.
H-Pump -- Developshigh pressure.
J - Automatic Cool DownSystem -- Cycleswater through
pump when water reaches125°-155°F.Warm water will
dischargefrom pump onto ground. This system prevents
internal pump damage.
I{ - HighPressure Outlet -- Connectionfor high pressure
hose.
L-Water Inlet -- Connectionfor garden hose.
IVl- Bottle Bracket-- Cleaningsolution bottle fits in wire
form brackethere. Concentratebottle not included.
N - Oil Fill/Dipstick -- Check,add and drain engineoil here.
P-Spray tip Extensionwith QuickConnect-- Allows you to
switch betweenfour different spray tips.
Q - HoseWrap and High PressureHose-- Hosewrap
provides easytransport and handling of the high pressure
hose. Connectone end of hoseto water pump and the
other end to spray gun.
R=FoldDownHandle-- Handleand accessorytray fold fiat
atopcold enginefor space-savingstorage.
S- ProjectPro@PerfectlVlWMSiphon -- Mixes concentrate
with pressurewasher spray.
Items Not Shown:
Identification Label(near rear of base plate)-- Provides
model and serial number of pressurewasher. Pleasehave
these readilyavailableif calling for assistance.
Safety Goggles-- Always use the enclosed safety goggles
when running your pressure washer.
Warning/Operating Instructions Tag-- identifies hazards
and proper procedureto start/stop pressurewasher.

Your pressure washer requires some assembly and is ready
for useonly after it has been properly servicedwith the
recommendedoil and fuel.
If you have any problemswith theassembly of your
pressurewasher, please call the pressurewasher helpline
at 1=800-222-3136.
UNPACKTHEPRESSUREWASHER
1. Removeeverythingfrom carton except pressurewasher.
2. Open carton completely by cutting each corner from top
to bottom.
3. Removepressure washer from carton.
CARTONCONTENTS
Checkall contents. If anyparts are missing or damaged,call
the pressure washer helplineat 1-808-222-3136.
* Main Unit
*Handle
* AccessoryTray
* High PressureHose
, Spray Gun
* SprayTip Extensionwith Quick ConnectFitting
* Oil Bottle
* HoseWrap
* DetergentSiphoning Hose/Filter
* Bottle BracketWireform
* Parts Bag(which includes the following):
* Operator's Manual
* Owner's Registration Card
, SafetyGoggles
* PerfectMixTM Siphoning Unit/Hose
* Bag containing 4 multi-colored Spray Tips
* HandleFasteningHardwareKit (whichincludes):
, HandleBolts (2)
, CarriageBolt (1)
, Plastic Knobsfor Handle(2)
, Rope Guide(1)
, Plastic Knob (2)
* TreeClips (4)
Becomefamiliar with eachpiece beforeassemblingthe
pressure washer, identify all contents with the illustration on
page 5. If any parts are missing or damaged, call the
pressure washer helpline at1-888-222-3136.
ASSEMBLINGPRESSUREWASHER
Your Craftsmanpressure washer will needassembly before
operation:
1. Fill out and sendin registration card.
2. Attach handle and accessorytray.
3. Connectdetergent siphon hoseto pump.
4. Add oil to engine crankcase.
5. Add fuel to fuel tank.
6. Connectpressure hoseto spray gun and pump.
7. Connectwater supply to pump.
8. Attach spray tip extension to spray gun.
9. Select/attach quick connect spray tip to spray tip
extension.
Attach Handle and Accessory Tray
1. Placehandle(A) onto handle supports (B) connectedto
main unit. Make sure holes (C) in handlealign with holes
(C) on handlesupports.
,insert handle carriagebolts (B) through holes from
inside of unit and attach a plastic knob (E) from outside
of unit. Tighten by hand. By loosening both knobs to the
middle section of the attachmentbolt, the upper handle
canfold forward to store fiat atop the cold engine.Note:
DONOTfold the handle down while the engine is hot.
3. Placeaccessorytray (F) over holes (6) on handle
(viewing from backof unit). Pushthe tree clips (H) into
the holes until they sit fiat against the accessorytray.
.insert multi-colored Quick Connectspray tips and other
supplied accessoriesin spacesprovided in accessory
tray. SeeHow to UseAccessory Tray.

.
.
Attach rope guide (A) through handlewith plastic knob
(B). Tighten by hand. Route engine recoil rope through
guide.
Align hosewrap (O)to the back side of accessorytray.
Locate notch with "unlock"icon (D) on hosewrap.
Position notch at top with hosewrap in vertical position.
Clips in the back of accessorytray should slide into the
grooves on the inside surface of hosewrap. Slide hose
wrap on back of accessorytray and rotate 1/8 turn until
"locked"icon (E) is in vertical position. Hosewrap is
easily removed from the accessorytray for wrapping and
unwrapping of the high pressure hose. A clip to secure
the hoseon the reel makesit easyto wrap the hose
while it is detachedfrom the accessorytray.
StandardSiphonTube
Cleartube with filter:
When using the clear siphon tube, dilute
1 part PerfectMixTM ExtremeConcentrate
to 16 parts water (4 oz of concentrate
makes1/2 gallon of mix.)
Attach Project Pro® PerfectMix TM Siphon to
Pump
Attach the hose end of the blue PerfectMixTM Siphon (J) to
the barbed hosefitting (K) on the pump.
Attach PerfectMix TM Detergent Siphon to
Concentrate DotUe
PlacePerfectMixTM bottle (not included) in the wire-form
bracketon the handle. Removecap from bottle and insert the
PerfectMixTM Siphon (L). Screwthe siphon unit to the top of
the bottle (IVl).Usethe clip on the cap (L) to snapsiphon to
wire form bracketwhen siphon is not in a concentrate bottle.
®
7. Attach bottle bracket(F) to handle with carriage bolt (6)
and black plastic knob (H). Tighten by hand.
2-iN-1 SoapSystem
The pressurewasher is equippedwith two detergent
siphoning hoses.
Project ProPerfectMix TM Siphon
Blue tube with blue bottle cap:
When usingthe blue PerfectMixTM siphon, use
the PerfectMixTM ExtremeConcentratestraight
from the bottle.
Add Engine Oil
1. Placepressurewasher on a fiat, levelsurface.
2. Cleanareaaround oil fill and removeyellow oil fill
cap/dipstick.
3. Using oil funnel (optional), slowly pour contents of
provided oil bottle into oil fill opening.
NOTICE: improper treatment of pressure washer can
damage it and shorten its life.
•DONOTattemptto crank or startthe engine before it has been
properly servicedwith the recommended oil. This may result inan
enginefailure.
4. Replaceoil fill cap/dipstick and fully tighten.

AddFuel
Fuel mustmeet these requirements:
*Clean,fresh, unleaded gasoline.
*A minimum of 87 octane/87 AKI (91 RON).High altitude
use, see HighAltitude.
*Gasolinewith up to 10% ethanol (gasohol) or up to 15%
MTBE (methyl tertiary butyl ether) is acceptable.
NOTICE:Avoid pressure washer damage.
Failureto follow Operator's Manualfor fuel
recommendations voids warranty.
• DONOTuseunapprovedgasolinesuchasE85.
• DONOTmixoil in gasoline.
•DONOTmodifyengineto runonalternatefuels.
To protect the fuel system from gum formation, mix in a fuel
stabilizerwhen adding fuel. SeeStorage.Aii fuel is not the
same. If you experiencestarting or performanceproblems
after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operateon gasoline. The
emission control system for this engine is EM (Engine
Modifications).
_, WARNING: Fueland its vapors are extremely
flammable and explosive.
Fireor explosion can causesevere burns
or death.
WHENADDINGFUEL
•Turn pressure washerOFFand let it cool at least2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
• Fill fuel tank outdoors.
•DONOToverfill tank. Allow spacefor fuel expansion.
•If fuel spills, wait until it evaporatesbefore starting engine.
•Keepfuel awayfrom sparks, open flames, pilot lights, heat,and
other ignition sources.
•DONOTlight a cigarette or smoke.
.
2. Cleanarea around fuel fill cap, remove cap.
Slowly add regular unleadedfuel (A) to fuel tank (B). Be
careful not to overfill. Allow about 1.5" (4 cm) (C) of tank
spacefor fuel expansion.
F . J/- . •/F -¸ . j F- ¸ J/- . J/- •JF -¸ J/- Jf . J f jf •/f J
//. if° - //. /f -//- . z/ ....... -F- ¸//_ . z/-- J/ ....... //- //..
3. Install fuel capand wait for any spilled fuel to evaporate.
CAUTION!Alcohol-blendedfuels (calledgasohol, ethanol or
methanol) canattract moisture, which leadsto separation and
formation of acids during storage.Acidic gascandamagethe
fuel system of an enginewhile in storage.
To avoid engine problems, the fuel system should be treated
with a fuel preserveror emptied beforestorage of 30 days or
longer. If adding a fuel preserver,fill the fuel tank with fresh
fuel. if only partially tiffed, air in the tank will promote fuel
deterioration during storage. If fuel preserver is not used,
drain the fuel tank, start the engine and let it run until the fuel
lines and carburetor are empty. Usefresh fuel next season.
SeeStoragefor additional information.
NEVERuse engine or carburetor cleaner products in the fuel
tank as permanent damagemay occur.
HighAltitude
At altitudes over 5,000 feet (1524 meters), a minimum
85 octane /85 AKi (89 RON)gasolineis acceptable.To
remainemissions compliant, high altitude adjustment is
required. Operationwithout this adjustment will cause
decreasedperformance, increasedfuel consumption, and
increasedemissions. Seea qualified Searsdealerfor high
altitude adjustment information. Operationof the engine at
altitudes below 2,500 feet (762 meters) with the high altitude
kit is not recommended.
Connect Hoseand Water Supply to Pump
NOTICE:DONOTrun the pump without the water supply
connectedand turned on.
•Damageto equipmentresultingfromfailureto followthis
instructionwill voidwarranty.
NOTE:Removeand discard the shipping caps from the
pump's high pressure outlet and water inlet beforeattaching
hoses.
1. Uncoil high pressure hoseand attach one end of hoseto
baseof spray gun. Tighten by hand.
A. WARNING: The high pressure stream of water that this
_ quipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
•NEVERconnect high pressure hoseto nozzleextension.
•Keephigh pressure hoseconnectedto pump and spraygun
while system is pressurized.
•Alwaysbe certain spray gun, nozzlesand accessoriesare
correctly attached.

2. Attach other end of high pressure hoseto high pressure
outlet on pump. Tighten by hand.
3. Beforeconnectinggarden hose to waterinlet, inspect
inletscreen (A).Cleanscreen ifitcontains debris or have
it replacedif damaged.DONOTrun pressure washer if
inlet screenisdamaged or missing.
4. Run water through garden hosefor 30 seconds to flush
it of debris. Turn off water.
IMPORTANT:DONOTsiphon standing water for the water
supply. UseONLYcold water (less than 100°F).
5. Connectgarden hose (not to exceed50 feet in length) to
water inlet. Tighten by hand.
NOTICE:Using a OneWay Valve(vacuum breakeror check
valve) at pump inlet can causepump or inlet connector
damage.
• ThereMUSTbeatleasttenfeetof unrestrictedgardenhose
betweenthepressurewasherinletandanydevice,suchasa
vacuumbreakeror checkvalve.
• Damageto equipment resulting from failure to follow this
instruction will void warranty.
A, WARNING:Riskof eyeinjury.
Spray cansplash back or propel objects.
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequatesafety goggles.
• NEVERsubstitute safetyglasses for safety goggles.
6. Turn ONthe water, press red button (B) on the gun and
squeezethe trigger to purgethe pump system of air and
impurities.
ChecklistBefore StartingEngine
Reviewthe unit to ensureyou haveperformed all of the
following:
1. Besure to read SafetyRules and Operationsections
before using the pressure washer.
2. Makesure handleis in placeand secure.
3. Checkthat oil has beenadded to proper level in engine
crankcase.
4. Add proper fuel to fuel tank.
5. Checkfor proper hoseconnections (high pressure and
water supply) and that there are no kinks, cuts, or
damageto the high pressure hose.
6. Provide proper water supply (not to exceed100%).

HOWTOUSEYOURPRESSUREWASHER
If you haveanyproblems operating your pressure washer,
pleasecall the pressure washer helpline at 1-888-222-3136.
PressureWasherLocation
Prsssur8 Washsr CJ88ranc8
A. WARNING: Exhaustheat/gases can ignite
combustibles, structures or damagefuel tank
causing a fire.
*Keepat least5 ft. (152 cm) clearanceon all sides of pressure
washer including overhead.
Placepressure washer outdoors in an area that will not
accumulate deadlyexhaustgas. DONOTplacepressure
washer where exhaustgas (A) could accumulate and enter
inside or be drawn into a potentially occupied building.
Ensureexhaustgas is kept awayfrom anywindows, doors,
ventilation intakes, or other openingsthat can allow exhaust
gasto collect in aconfined area. Prevailingwinds and air
currents should be taken into considerationwhen positioning
}ressure washer.
A. WARNIN6: Runningengine gives off carbon monoxide,
an odorless,colorless, poisonous gas.
_ Breathing cancause headache,
carbon monoxide
fatigue, dizziness,vomiting, confusion, seizures,
nausea,fainting or death.
• OperatepressurewasherONLYoutdoors.
• Keepexhaustgasfromenteringa confinedareathrough
windows,doors,ventilationintakes,or otheropenings.
• DONOTstartor runengineindoorsor in anenclosedarea,
evenifwindowsanddoorsareopen.
To StartYourPressureWasher
To start your engine-powered pressurewasher for the first
time, follow these instructions step-by-step. This information
alsoapplies wheneveryou start the engine after you havelet
the pressure washer sit idle for at leasta day.
1. Placepressurewasher outside nearan water source
capableof supplying water at a flow rate greaterthan
3.3 gallons per minute and no less than 20 PSi at
pressurewasher end of garden hose.
2. Checkthat high pressure hose is tightly connectedto
spray gun and pump. SeeAssembly for illustrations.
3. Makesure unit is in a levelposition.
4. Connectgarden hoseto water inlet on pressurewasher
pump.
flOTICE:DONOTrun the pump without the water supply
connectedand turned on.
• Damageto equipmentresultingfromfailureto followthis
instructionwill voidwarranty.
.
.
Turn ONthe water, press red button on the gun and
squeezethe trigger to purgethe pump system of air and
impurities.
Attach spray tip extension to spray gun. Tighten by
hand.
.
.
Choosespray tip you want to use and insert it into spray
tip extension. See How to Use Spray Tips.
Move throttle leverto "Fast" position (B), shown asa
rabbit.
10

IMPORTANT:Beforestartingthepressurewasher,besure
'ouarewearingadequatesafetygoggles.
A. WARNING: Riskof eyeinjury.
Spraycan splash backor propel objects.
*Always wear safetygoggles when using this equipment or in
vicinity of where equipment is in use.
*Beforestarting the pressurewasher, be sure you are wearing
adequatesafety goggles.
*NEVERsubstitute safetyglasses for safety goggles.
NOTE:This unit is equipped with a ReadyStartTM engine.A
ReadyStartTM engine meansthere is no priming or choking
required.
9. Whenstarting engine, position yourself as
recommendedand grasp starter grip handle and pull
slowly until you feel some resistance.Then pull rapidly
to start engine.
_. WARNING: Starter cord kickback (rapid retraction) can
result in bodily injury. Kickback will puii hand and
_,_ arm toward engine faster than you can let go.
Broken bones, fractures, bruises, or sprains
could result.
* NEVERpull starter cord without first relieving spraygun
pressure.
* When starting engine, pull cord slowly until resistance isfelt
andthen pull rapidly to avoid kickback.
* After eachstarting attempt, where enginefails to run, always
point spray gun insafe direction, pressred button andsqueeze
spray guntrigger to releasehigh pressure.
*Firmly grasp spray gun with both hands when using high
pressure sprayto avoid injury when spraygun kicks back.
3. Return recoil starter slowly. DONOT let rope "snap
back" against starter.
NOTE:Always keepthe throttle leverin the "Fast" position
when operating the pressure washer.
A. WARNING: The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spray gun traps high water pressure, even when engine is
stopped and water is disconnected, which can cause
injury.
*DONOTallow CHILDRENto operatepressure washer.
*Keephigh pressure hoseconnectedto pump and spraygun
while system is pressurized.
*NEVERaim spraygun at people,animals, or plants.
*DO NOTsecure spray gun in open position.
*DO NOTleavespray gun unattendedwhile machine is running.
*NEVERuse aspray gun which doesnot haveatrigger lock or
trigger guard in place and in working order.
*Alwaysbe certain spray gun, nozzlesand accessoriesare
correctly attached.
Ak WARNING: Contact with muffler area can result in
serious burns.
_ heat/gases can ignite
Exhaust
combustibles, structures or damage
fuel tank causing a fire.
* DO NOTtouch hot parts and AVOIDhot exhaust gases.
* Allow equipmentto cool beforetouching.
*Keepat least5 feet (152 cm) of clearanceon all sides of
pressure washer including overhead.
*It isa violation of California Public ResourceCode, Section
4442, to use or operate theengine on any forest-covered,
brush-covered, or grass-covered land unlessthe exhaust
system is equippedwith a spark arrester,as defined in Section
4442, maintained in effective working order. Otherstates or
federaljurisdictions may havesimilar laws.
Contactthe original equipment manufacturer, retailer, or dealer
to obtain a sparkarrester designedfor the exhaustsystem
installed onthis engine.
*Replacementparts must bethe same and installed in the same
position asthe original parts.
Howto Stop Your Pressure Washer
1. Release spray gun trigger and let engine idle for two
minutes.
.
3. Movethrottle to SLOWposition, then STOPposition.
ALWAYSpoint spray gun in a safe direction, push red
button and squeezespray gun trigger to releaseretained
high water pressure.
Ak WARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spray gun traps high water pressure,evenwhen engine is
stopped and water is disconnected, which can cause
injury.
*Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
* ALWAYSpointspraygunin safedirection,pressredbutton
andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.
11

IMPORTANT:Sprayguntrapshighwaterpressure,even
whenengineisstoppedandwaterisdisconnected.
How to Use Accessory Tray
The unit is equipped with an accessorytray with places to
store your spray gun, spray tip extension and quick connect
spray tips. Thereis also a detachable hosewrap at the back
of the accessorytray to hold your high pressure hose.
1. Placespray tip extension in clip on back of accessory
tray.
2. Placespray gun through hole on accessorytray on right
side of unit.
3. insert multi-colored spray tips in spacesprovided in
accessorytray.
4. Wrap high pressure hoseon hosewrap then attach hose
wrap to back of accessorytray.
5. Hook providedon back of accessorytray for safely
storing safety goggles.
How to Use Spray Tips
The quick-connect on the spray tip extensionallows you to
switch betweenfour different quick connect spray tips. The
spray tips vary the spray pattern as shown below.
Low Pressure
Black
Useto apply
chemical
40° White
1750 PSi
2.3 GPIVl
High Pressure
i' 'i
15° Yellow
2200 PSi
2.2 GPM
0° Red
2550 PSi
2.0 GPIVl
Foflowtheseinstructionsto changespraytips:
1. Puff back collar on quick-connect and pull current spray
tip off. Store spray tips in holder provided on the
accessorytray.
AWARNINC:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
•NEVERexchangespraytipswithoutthetriggerlockedonthe
spraygun.
•DONOTtwist spraytips whilespraying.
2. Select desiredspray tip:
*For delicate rinse(lower pressure and higher flow),
for gentlecleaning of cars/trucks, boats, RV's, patio
furniture, lawn equipment, etc., select white 40°
spray tip.
*For generalrinsing (medium pressure and medium
flow), ideal for most all purpose cleaningsuch as
home siding, brick patios, wood decks, driveways
and sidewalks, garagefloors, etc., selectyellow
15° spray tip.
*For maximum rinsing (higher pressure and lower
flow), for stubborn or hard to reachsurfacesuch as
second story surfaces, paint removal,oil stains, rust
removal or other stubborn substances(tar, gum,
grease,wax, etc.), select red 0° spray tip.
*To apply detergent,applies project specific cleaners
to help breakdown stubborn dirt and grime on a
variety of surfaces, select black detergentspray tip.
3. Pull backon collar,insert newspraytip and releasecollar.
Tugon spraytip to makesureit is securelyin place.
UsageTips
*For most effective cleaning, keepspray tip from 8 to
24 inches (20 to 61 cm) awayfrom cleaning surface.
*If you get spray tip too close, especiallyusing a high
pressure spray tip, you may damagesurface being
cleaned.
*DONOTget closer than 6 inches (15 cm) when cleaning
tires.
2-1N-1 Soap System
A CAUTION: Chemicals can cause bodily injury, and/or
property damage.
•NEVERusecaustic liquid with pressure washer.
•Use ONLYpressure washer safe detergents/soaps. Follow all
manufacturers instructions.
CleaningandApplyingDetergentwith the
Project Pro® PerfectMixTM Siphon
To apply undiluted detergent using the blue
PerfectMixTM siphon, follow these steps:
1. Reviewuse of spray tips.
2. Attach PerfectIVlixTM siphon hoseto
pump and PerfectMixTM concentrate
bottle.
12

NOTICE: Contact with the hot muffler can damage detergent
siphoning tube.
•When inserting the siphon into a detergent solution bottle, route
the tube so asto keepit from inadvertently contacting the hot
muffler.
3. Make sure black detergent spray tip is installed.
NOTE:Detergentcannot be applied with the high pressure
spray tips (White, Yellow or Red).
4. Make sure garden hose is connectedto water inlet.
Checkthat high pressure hoseis connected to spray gun
and pump. Turn on water.
NOTICE: You must attach all hoses before you start the
engine.
•Starting the engine without all the hosesconnected and without
the water turned ONwill damagethe pump.
•Damageto equipment resulting from failure to follow this
instruction will void warranty.
5. Start enginefollowing instructions How to Start Your
Pressure Washer.
6. Apply detergent to a dry surface, starting at lower
portion of areato be washedand work upward, using
long, even,overlapping strokes.
7. Allow detergent to "soak in"for 3-5 minutes before
washing and rinsing. Reappiyas neededto prevent
surfacefrom drying. DONOTallow detergentto dry on
(prevents streaking).
CleaningandApplyingDetergentwith
the StandardClear Siphon
To applydiluted detergent using the
standard clear siphon tube, follow these
steps:
1. Reviewuse of spray tips.
2. Attach clearsiphon hoseto barbed fitting on pump.
3. Mix detergent solution as required by job.
4. Placesmall filter end of clear siphoning tube into
container with diluted solution asdescribed above.
NOTE:DONOTinsert standard siphon hosein Extreme
Concentrate.Failureto dilute concentrate will cause excessive
application and consumption of solution.
NOTE:Make surethe filter is fully submerged in fluid while
applying solution.
NOTICE: Contact with the hot muffler can damage detergent
siphoning tube.
•When inserting the siphon into a detergent solution bottle, route
the tube so asto keepit from inadvertently contacting the hot
muffler.
6. Makesure garden hoseis connectedto water inlet.
Checkthat high pressure hose is connectedto spray gun
and pump. Turn on water.
NOTICE:You must attachall hoses beforeyou start the
engine.
•Startingtheenginewithoutall thehosesconnectedandwithout
thewaterturnedONwilldamagethe pump.
•Damageto equipmentresultingfrom failureto followthis
instructionwillvoidwarranty.
,
8.
Start engine following instructions How to Start Your
Pressure Washer.
Apply detergentto a dry surface, starting at lower
portion of areato be washed and work upward, using
long, even, overlappingstrokes.
9. Allow detergent to "soakin" for 3-5 minutes before
washing and rinsing. Reapplyas neededto prevent
surfacefrom drying. DONOTallow detergent to dry on
(prevents streaking).
IMPORTANT:You must flush the detergent siphoning system
after eachuse by placing the filter into a bucketof clean
water, then run the pressurewasher in low pressure for 1-2
minutes.
Pressure Washer Rinsin9
ForRinsing:
1. Removeblack detergent spray tip from spray tip
extension.
2. Select and install desiredhigh pressurespray tip
following instructions How to UseSpray Tips.
3. Keepspray gun a safe distancefrom areayou plan to
spray.
A, WARNING: Kickback from spray gun can cause you to
. fall.
• Operatepressure washer from a stable surface.
•Beextremely careful if you must usethe pressure washer from
a ladder,scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
4. Apply a high pressure spray to a small areaand then
checksurfacefor damage. If no damageis found, you
canassume it is okay to continue rinsing.
5. Start at top of areato be rinsed, working down with
sameoverlapping strokes asyou usedfor cleaning.
5. Make sure black detergent spray tip is installed.
NOTE:Detergentcannot be applied with the high pressure
spray tips (White, Yellow or Red).
13

Cleanin9 Detergent Siphoning Tube
If you usedthe clear detergent siphoning tube, you must
flush it with cleanwater before stopping the engine.
1. Placedetergent siphoning tube/filter in a bucket full of
cleanwater.
2. Removehigh pressure spray tip from spray tip
extension.
3. Selectand install black detergent spray tip following
instructions How to UseSpray Tips.
4. Flush for 1-2 minutes.
5. Shut off engine following instructions How to Stop
Pressure Washerand turn off water supply.
6. ALWAYSpoint spray gun in a safe direction push red
button and squeezespray gun trigger to releaseretained
high water pressure.
IMPORTANT:Spray gun traps high water pressure,even
when engine is stopped and water is disconnected.
AWARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spray gun traps high water pressure,evenwhen engine is
stopped and water is disconnected, which can cause
injury.
•Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
• ALWAYSpointspraygunin safedirection,pressredbutton
andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.
Automatic Cool Down System {Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reachtemperatures above
125°F.The systemengagesto cool the pump by discharging
the warm water onto the ground.
14

EN61NETECHNICALiNFORMATiON
This is a single cylinder, L-head,air cooledengine, it is a low
emissions engine.
Jnthe State of CaJJfornia,ModeJ120000 enginesare certified
by the California Air Resources Boardto meet emissions
standardsfor 125 hours. Such certification does not grant
the purchaser, owner or operator of this engine any
additional warranties with respectto the performanceor
operational life of this engine.Theengine is warranted solely
according to the product and emissions warranties stated
elsewherein this manual.
Power RaUn[Is
Thegross power rating for individual gas engine models is
labeled in accordancewith SAE(Society of Automotive
Engineers)code J1940 (Small Engine Power & Torque
Rating Procedure), and rating performance has been
obtained and corrected in accordancewith SAEJ1995
(Revision 2002-05). Torquevalues are derived at 3060 RPM;
horsepower values are derived at 3600 RPM.Actual gross
engine power will be lower and is affected by, among other
things, ambient operating conditions and engine-to-engine
variability. Givenboth the wide arrayof products on which
enginesare placed andthe variety of environmental issues
applicableto operatingthe equipment,the gas engine will not
developthe ratedgross power when used in a given pieceof
power equipment (actual "on-site"or net power). This
difference is due to a variety of factors including, but not
limited to, accessories(air cleaner, exhaust, charging,
cooling, carburetor, fuel pump, etc.), application limitations,
ambient operating conditions (temperature, humidity,
altitude), and engine-to-enginevariability. Dueto
manufacturing and capacity limitations, Briggs & Stratton
may substitute an engine of higher ratedpower for this
Seriesengine.
This pressurewasher is rated in accordanceto the Pressure
Washer Manufacture Association (PWMA) standard PW101
(Testing and Rating Performanceof PressureWashers).
PRODUCTSPECIFICATIOHS
Pressure Washer Specifications
Max Outlet Pressure ....................... 2,550 PSi
Max Flow Rate............................. 2.3 GPM
DetergentMix ........................ Use asdirected
Water SupplyTemperature .......... Not to exceed100%
Engine Specifications
Bore ................................. 2.69 in. (68ram)
Stroke ............................... 2.04 in. (52mm)
Displacement ........................ 11.57in. (190cc)
SparkPlug
Type:............... Briggs & Stratton 802592 or 5095
SetGapTo: ...................... 0.030inch (0.76mm)
ArmatureAir Gap:........... 0.006-0.010in.(0.15-0.25mm)
Valveclearancewith valvesprings installedand piston 1/4 in.
(6 mm) pasttop deadcenter(checkwhenengineiscold).
intake .................... 0.005-0.007in.(0.13-0.18mm)
Exhaust .................. 0.007-0.009in.(0.18-0.23mm)
FuelCapacity............................... 1.6Quarts
0il Capacity........................ 18 Ounces(0.5 liter)
NOTE:Forpractical operation, the engine load should not
exceed85% of ratedpower. Enginepower will decrease
3-1/2% for each1,000 feet (300 meters) above sealeveland
1% for each 10° F(5.6° C) above77° F(25° C). It should
operatesatisfactorily at an angle up to 15°.
15

OWNER'SRESPONSiBiLiTiES
Follow the hourly or calendarintervals, whichever occurs
first. More frequent service is required when operating in
adverseconditions noted below.
*Changeengine oil
* Check/clean water inlet screen'
* Checkhigh pressure hose
* Checkdetergent siphoning hose
* Checkspray gun and assembly for leaks
* Cleandebris
* Checkengine oil level
*Serviceengine air cleaner2
* Changeengine oiF
* Inspect muffler and spark arrester
* Servicespark plug
* Cleancooling systeW
' Cleanif clogged. Replace if perforated or torn.
2Service more often under dirty or dusty conditions.
GeneralRecommendations
Regularmaintenancewill improve the performanceand
extendthe life of the pressurewasher. Seeany Searsor
other qualified service dealerfor service.
Thepressure washer warranty does not cover items that
havebeensubjected to operator abuseor negligence.To
receivefull valuefrom the warranty, the operator must
maintain pressurewasher as instructed in this manual
including proper storage asdetailed in Storage.
Someadjustments will needto be made periodically to
properly maintain your pressurewasher.
All service and adjustments should be madeat least once
eachseason.Follow the requirementsin the Maintenance
Schedulechart above.
NOTE:Oncea yearyou should clean or replacethe spark
plug and replacethe air filter. A new spark plug and clean air
filter assure proper fuel-air mixture and helpyour engine run
better and last longer.
Pump Oil
DONOTattempt any oil maintenanceon this pump. The
pump is pre-lubricated and sealedfrom the factory, requiring
no additional maintenancefor the life of the pump.
Emissions Control
Maintenance, replacement, or repair of the emissions
controldevices and systemsmay be performedbyany non-
road enginerepair establishment or individual. However,
to obtain "no charge" emissions control service, the work
must be performed by a factory authorizeddealer.Seethe
Emissions Warranty.
Before Each Use
1. Checkengine oil level.
2. Cleandebris.
3. Checkwater inlet screenfor damage.
4. Checkhigh pressure hose for leaks.
5. Checkgun and spray tip extension assemblyfor leaks.
6. Purge pump of air and contaminants.
PRESSUREWASHERMAINTENAHCE
Clean Debris
Daily or before use, cleanaccumulateddebris from pressure
washer. Keeplinkage, spring and controls clean. Keeparea
around and behind muffler free from any combustible debris.
inspect cooling air slots and openings on the pressure
washer. Theseopenings must be kept cleanand
unobstructed.
Pressurewasher parts should be kept cleanto reducethe
risk of overheating and ignition of accumulated debris.
Usea damp cloth to wipe exterior surfaces clean.
NOTICE'.improper treatment of pressure washer can
damageit and shorten its life.
• DONOTinsertanyobjectsthroughcoolingslots.
*Usea soft bristle brush to loosencaked on dirt, oil, etc.
Usea vacuum cleanerto pick up loosedirt and debris.
Checkand CleanInlet Screen
Examinegarden hoseinlet screen. Cleanif it is clogged or
replaceif it is torn.
Check High Pressure Hose
High pressure hoses candevelop leaksfrom wear, kinking,
or abuse, inspect hose beforeeachuse. Checkfor cuts,
leaks,abrasions,bulging of cover, or damageor movement
of couplings. If anyof these conditions exist, replacehose
immediately.
_i_WARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
• NEVERrepairhighpressurehose.Replaceit.
• ReplacementhoseratingMUSTexceedmaximumpressure
ratingof unit.
16

Check Gun and Spray Tip Extension
Examinehoseconnectionto spraygun and makesureitis
secure.Testtrigger bypressingit and makingsureit springs
backintoplacewhenyou releaseit.Donotdepressredbutton
andtesttrigger.Youshouldnot beableto presstrigger. Replace
spraygun immediatelyif it fails anyof thesetests.
Spray Tip Maintenance
A pulsing sensationfelt while squeezingthe spray gun trigger
may be causedby excessivepump pressure.Theprincipal
causeof excessivepump pressure is a spray tip clogged or
restricted with foreign materials, such asdirt, etc. To correct
the problem, immediately cleanthe spray tip following these
instructions:
1. Shut off engine and turn off water supply.
2. ALWAYSpoint spray gun in a safe direction, press red
button and and squeezespray gun trigger to release
retainedhigh water pressure.
AWARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spraygun traps high water pressure,evenwhen engine is
stopped and water is disconnected, which can cause
injury.
•Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
•ALWAYSpointspraygunin safedirection,pressredbutton
andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.
3. Removespray tip from end of spray tip extension.
4. Use a small paper clip to free anyforeign material
clogging or restricting spray tip (A).
5. Removespray tip extensionfrom spray gun.
6. Using a garden hose, remove additional debris by back
flushing water through spray tip extension. Backflush
between 30 to 60 seconds.
f
7. Reinstall spray tip into spray tip extension.
8. Reconnectspray tip extensionto spray gun.
9. Make sure garden hose is connectedto water inlet.
Checkthat high pressure hoseis connected to spray gun
and pump. Turn on water.
10. Start enginefollowing instructions How to Start Your
Pressure Washer.
11. Test pressurewasher by operatingwith eachquick
connect spray tip.
O-Ring Maintenance
Purchasean O-Ring RepairKitat your localSearsor bycalling
1-800-4-1VlY-HOME(469-4663) or online atwww.sears.com,it
is notincludedwith thepressurewasher.Thiskit includes
replacemento-rings,rubberwasherandwater inletfilter. Referto
the instructionsheetprovidedin thekit to serviceyour unit's
o-rings.
AWARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
• NEVERrepairleakingconnectionswithsealantofanykind.
Replaceo-ringor seal.
ENGINEMAINTENANCE
AWARNING:Unintentionalsparking can result in fire or
_¢ electric shock.
WHENADJUSTINGORMAKINGREPAIRSTOYOURPRESSURE
WASHER
• Disconnectthesparkplugwirefromthesparkplugandplace
thewirewhereitcannotcontactsparkplug.
WHENTESTINGFORENGINESPARK
•Useapprovedsparkplugtester.
•DONOTcheckfor sparkwith sparkplugremoved.
Oil
Oil Recommendations
We recommendthe use of Briggs & Stratton Warranty
Certifiedoils for best performance. Other high-quality
detergent oils are acceptableif classified for serviceSF,SG,
SH,SJ or higher. DONOTusespecial additives.
Outdoortemperatures determine the proper oil viscosity for
the engine.Usethe chart to selectthe best viscosity for the
outdoor temperature range expected.
oF
104___506886 _°'_'_
32 .o
14
-4
-22 '_
oc
,_ 40
__30
>_20 10
_m m 0
--_C °
-20
-30
* Below40°F(4°C)the useofSAE30will resultin hardstarting.
** Above80°F(27°C)theuseof 10W30maycauseincreasedoil
consumption.Checkoil levelmorefrequently.
O OTE:Synthetic oil meeting iLSACGF-2,API
certification mark and APIservice symbol with
"SJ/CF ENERGYCONSERVING"or higher, is an
acceptableoil at all temperatures. Useof synthetic oil
does not alter required oil changeintervals.
17

CheckingOil Level
Oil level should be checked prior to eachuseor at least every
8 hours of operation. Keepoil levelmaintained.
1. Make sure pressure washer is on a levelsurface.
2. Removeoil dipstick and wipe dipstick with clean cloth.
Replaceand tighten dipstick. Removeand and check oil
level.
3. Verify oil is at "Fulr' mark on dipstick. Replaceand
tighten dipstick.
@
Adding Engine 0il
1. Make sure pressure washer is on a levelsurface.
2. Checkoil levelas described in CheckingOilLevel
3. if needed,slowly pour oil into oil fill opening to the
"Full" mark on dipstick. DONOToverfill.
NOTICE'.Overfilling with oil may cause the engine to not
start, or hard starting.
• DO NOToverfill.
• if overthe FULLmark on dipstick, drain oil to reduceoil level to
FULLmark on dipstick.
4. Tip your pressure washer to drain oil from oil fill into a
suitable container making sureyou tip your unit away
from spark plug. When crankcaseis empty, return
pressurewasher to upright position.
5. Slowly pour recommendedoil (about 18 oz.) into oil fill
opening. Pauseto permit oil to settle. Fill to "Full" mark
on dipstick.
6. Wipe dipstick cleaneachtime oil level is checked. DO
NOToverfill.
7. Replaceand tighten dipstick.
8. Wipe up any remaining oil.
9. Reconnectspark plug wire to spark plug.
ServiceAir Cleaner
Your engine will not run properly and may be damagedif you
run it with a dirty air cleaner. Service more often if operating
under dirty or dusty conditions. Replacementsare available
atyour local Searsservicecenter.
To service the air cleaner, follow these steps:
1. Loosenscrew (A) and tilt cover (B) down.
4. Replaceand tighten dipstick.
ChangingEngineOil
if you are usingyour pressurewasher under extremely dirty
or dusty conditions, or in extremely hot weather, changeoil
more often.
ACAUTION:Avoid prolonged or repeatedskin contact
with usedmotor oil.
•Usedmotoroil hasbeenshownto causeskincancerin certain
laboratoryanimals.
•Thoroughlywashexposedareaswith soapandwater.
KEEPOUTOFREACHOFCHILDREN.DON'T
POLLUTE.CONSERVERESOURCES.RETURN
USEDOILTOCOLLECTIONCENTERS.
Changeoil while engine is stiff warmfrom running,as
follows:
1. Drain fuel tank by running pressure washer until fuel
tank is empty.
2. Disconnect spark plug wire and keepit away from spark
plug.
3. Cleanarea around oil fill, removeoil fill cap/dipstick.
Wipe dipstick clean.
2. Carefullyremove cartridge (6) assembly.
3. To clean cartridge, gently tap pleatedpaperside on a fiat
surface.
4. Reinstallcleanor newcartridge assembly inside cover.
5. insert cover's tabs (B) into slots in bottom of base(E).
6. Tilt cover up and tighten screw securelyto base.
NOTE:You can purchasenew air filter dements by calling
1-800-4-1VlY-NOIVlE(469-4663).
ServiceSparkPlug
Changingthe spark plug will help your engine to start easier
and run better.
1. Cleanareaaround spark plug.
2. Removeand inspect spark plug.
3. Replacespark plug if electrodes are pitted, burned or
porcelain is cracked. Usethe recommendedreplacement
plug. See Specifications.
18

.Checkelectrode gap with wire feeler gaugeand reset
spark plug gap to recommended gap if necessary(see
Specifications).
5. install spark plug and tighten firmly.
NOTE:You can purchase a newspark plug by calling
1-800-4-1VlY-ROIVlE(469-4663).
inspect Muffler and Spark Arrester
inspectthe mufflerfor cracks,corrosion, or otherdamage.
Removethe spark arrester,if equipped,and inspectfor
damageor carbonblockage,if replacementparts are required,
makesureto useonly original equipementreplacementparts.
AWARNING: Contact with muffler area can result in
serious burns.
_ Exhaust heat/gases can ignite
combustibles, structures or damage
fuel tank causing a fire.
•DO NOTtouch hot parts and AVOID hot exhaust gases.
•Allow equipmentto cool beforetouching.
•Keepat least5 feet (152 cm) of clearanceon all sidesof
pressure washer including overhead.
• It isa violation of California PuNic Resource Code,Section
4442, to use or operatethe engine on anyforest-covered,
brush-covered, or grass-covered land unless the exhaust
system is equippedwith aspark arrester,as defined in Section
4442, maintained in effectiveworking order. Otherstates or
federal jurisdictions may havesimilar laws.
Contactthe original equipment manufacturer, retailer, or dealer
to obtain a sparkarrester designedfor the exhaustsystem
installedon this engine.
•Replacementparts must bethe sameand installed in the same
position as the original parts.
Air Coolin9 System
Overtime debris may accumulate in cylinder cooling fins and
cannot be observedwithout partial engine disassembly. For
this reason,we recommendyou havea qualifiedSears
servicedealer cleanthe cooling system per recommended
intervals (see MaintenanceSchedule). Equallyimportant is to
keeptop of engine freefrom debris. See CleanDebris.
Keepareaswithin heavyline clear of debris.
AFTEREACHUSE
Water should not remain in the unit for long periods of time.
Sedimentsor minerals candeposit on pump parts and
"freeze" pump action. Follow these procedures after every
use:
1. Shut off engine,turn off water supply, point gun in a
safedirection, press red button and squeezetrigger to
relievetrapped pressure and let engine cool.
WARNING:The high pressure stream of water that this
equipment produces can cut through skin and
its underlying tissues, leading to serious injury
and possible amputation.
Spray gun traps high water pressure,evenwhen engine is
stopped and water is disconnected, which can cause
injury.
•Keephighpressurehoseconnectedto pumpandspraygun
whilesystemispressurized.
• ALWAYSpointspraygunin safedirection,pressredbutton
andsqueezesprayguntriggerto releasehighpressure,every
timeyoustopengine.
.
.
.
5.
6.
Disconnecthose from spray gun and high pressure
outlet on pump. Drainwater from hose,gun, and spray
tip extension. Usea ragto wipe off the hose.
Empty pump of all pumped liquids by pulling recoil
handleabout 6 times. This should remove most liquid in
pump.
Coilhigh pressure hoseon hosewrap provided on
accessorytray.
Store unit in a clean, dry area.
If storing for more than 30 days see Long Term Storage
on next page.
A WARNING:Fueland its vapors are extremely
flammable and explosive.
Fireor explosion can causesevere burns
or death.
WHENSTORINGFUELOREQUIPMENTWITHFUELINTANK
•Storeawayfrom furnaces,stoves,waterheaters,clothes
dryers,or otherappliancesthathavepilotlightor other
ignitionsourcebecausetheycanignitefuelvapors.
19

WINTERSTORAGE ChangeOil
NOTICE: You must protect your unit from freezing
temperatures.
• Failure to do so will permanently damageyour pump and render
your unit inoperable.
• Freezedamage is not covered underwarranty.
To protectthe unit from freezingtemperatures:
1. Follow steps 1-4 in the previous section AfterEach Use.
2. Use pump saver, availableat Sears retailitem 6039, to
treat pump. This minimizes freeze damageand lubricates
pistons and seals.
3. If pump saver is not available,connect a 3-foot section
of garden hoseto water inlet adapter. Pour
RV-antifreeze (antifreezewithout alcohol) into hose. Pull
recoil handletwice. Disconnect 3-foot hose.
While engine is still warm, drain oil from crankcase.Refill
with recommendedgrade. See ChangingEngine Oil.
Oil Cylinder Bore
* Removespark plug and pour about 1/2 ounce (15 ml) of
cleanengine oil into the cylinder.
*install spark plug and pull starter handleslowly to
distribute oil.
Protect Pump
To protect the pump from damagecaused by mineral
deposits or freezing, use PumpSaver,item 6039, to treat
pump. This preventsfreeze damageand lubricates pistons
and seals.
NOTE:PumpSaveris availableasan optional accessory, it is
not included with the pressure washer.Contact your local
Searsservice center to purchase PumpSaver.
4. Store unit in a clean,dry area.
LOHGTERM STORAGE
If you do not plan to usethe pressure washer for morethan
30 days,you must preparethe engine and pump for long
term storage.
It is important to prevent gum deposits from forming in
essentialfuel system partssuch asthe carburetor, fuel filter,
fuel hoseor tank during storage.Also, experienceindicates
that alcohol-blendedfuels (called gasohol, ethanol or
methanol) canattract moisture, which leadsto separation
and formation of acids during storage. Acidic gascan
damagethefuel system of an enginewhile in storage.
ProtectFuelSystem
FuelAdditive:
Fuelcan becomestale when stored over 30 days.Stalefuel
causesacid and gum deposits to form in the fuel system or
on essentialcarburetor parts. To keepfuel fresh, use Briggs
& Stratton FRESHSTART® fuel stabilizer, availableasa
liquid additive or a drip concentrate cartridge.
Thereis no needto drain gasolinefrom the engine if a fuel
stabilizer is added according to instructions. Runthe engine
for 2 minutes to circulate the stabilizerthroughout the fuel
system. The engine andfuel canthen be stored up to
24 months.
If gasoline in the engine hasnot beentreated with a fuel
stabilizer, it must be drained into an approvedcontainer. Run
the engine until it stops from lack of fuel. The useof a fuel
stabilizer in the storage container is recommendedto
maintain freshness.
flOTICE: You must protect your unit from freezing
temperatures.
• Failureto do so will permanently damage your pump and render
your unit inoperable.
• Freezedamageis not covered under warranty.
To usePumpSaver,make surethe pressurewasher is turned
off and disconnected from supply water. Readand follow all
instructions and warnings given on the PumpSavercontainer.
Other Storage Tips
1. DONOTstore fuel from one seasonto another unless it
hasbeen treated asdescribed in Protect FuelSystem.
2. Replacefuel container if it starts to rust. Rust and/or dirt
in fuel cancause problems if it's usedwith this unit.
3. Coverunit with a suitable protective cover that does not
retain moisture.
A, WARNING:Storage covers canbe flammable.
*DO NOTplacea storage cover over ahot pressure washer.
. Let equipmentcool for a sufficient time before placing the
cover on the equipment.
4. Store unit in a clean and dry area.
2O
