Foreword
Use the user guide to access specific information and familiarize yourself with your caravan’s functions. In addition to
standard equipment, this manual also describes optional equipment or accessories. This user manual helps you to
enjoy your BATU535 as best as possible. It also contains important information that concerns the safety of you and
other users.
Thanks for choosing CRAWLER!
* Certain countries may have legal requirements that affect the level of equipment.
* CRAWLER continues its continuous product development efforts to provide a better experience. Features, designs and illustrations in the user manual are not
binding. CRAWLER reserves the right to make changes without prior notice.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
4
Basic Warnings
Things to consider while traveling;
- For safety reasons, do not exceed 80 km/h, even if the speed limit in some
countries is higher.
- When descending long and steep slopes, the brake is loaded more than
normal. Shift to a lower gear and adjust your speed.
- While traveling, there should be no living creatures inside the BATU535,
(people, pets, etc.)
- Do not keep flammable and explosive materials in BATU535.
- Make sure breakable items are secured inside BATU535.
- Pay attention to the approach angle between the vehicle and the caravan
when reversing.
- Caravans equipped with air suspension (C.D.S.) are recommended to be
used in road mode and with the compressor on.
- Attention should be paid to the height of the caravan (2.50 m) at the
parking garage and garage entrances.
Things to check before setting off;

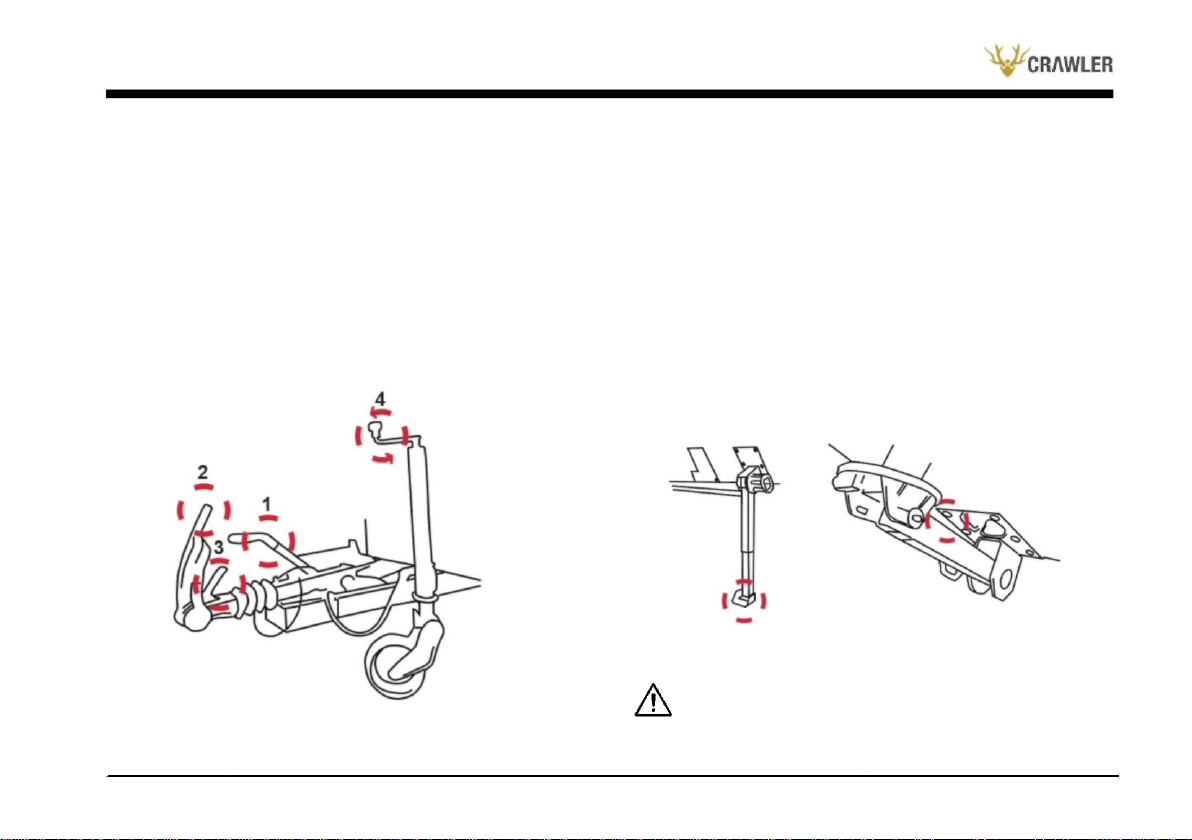

- Be sure to adjust the pilot wheel to the vehicle's drawbar height.
- Make sure the coupling and stabilizer are in the open position.
- Position the coupling to engage the vehicle's drawbar and lower the pilot
wheel in this position.
- Raise the pilot wheel again to check the connection, the rise of the vehicle
and the BATU535 together indicates that the connection is secure and
correct.
- After connecting the caravan to the vehicle, make sure to collect the pilot
wheel and the handbrake is released.
- Check the socket connection. Make sure that the signaling system (tail light,
signal, etc.) is working in your caravan.
- Make sure the gas valve is closed.
- Make sure doors and cabinets are locked.
- Make sure that the step and fixing feet are in the closed position.
- Make sure the awning is closed and locked.
- Place breakable items in cabinets.
- Make sure the battery is full.
- Make sure windows, doors and cabinets are closed and locked.
- Check your tire pressures.
- Check the charge status of the battery.
- Check the lighting system.
- Load the BATU535 by keeping the weight balance in mind.
- Be sure to use the caravan in road mode while driving.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
5
Things to consider while camping;
Things to consider while parked;
- Before separating BATU535 from your vehicle, make sure that the parking
brake is applied.
- Before assembling the pilot wheel, make sure that the fixing feet are in the
open position.
- Make sure the cassette toilet is emptied.
- The fullness of the dirty water tank must be checked and emptied to legally
appropriate places before it reaches 100% fullness.
- It is recommended not to use the awning in strong wind conditions.
- Make sure the gas valves are closed when the stove is not in use.
- It is recommended to use propane-added tubes in order to prevent the tube
from freezing in cold weather and to use the tube-operated devices
effectively.
- Make sure the solar panel surface is clean.
- For clean water use make sure the water tank is full.
- Pay attention to the load balance in the caravan living area when the vehicle
is on the outriggers in the camping position. All users staying in the same
area may destabilize the vehicle.
- Make sure that the gas cylinders are full for boiler use.
- Make sure the handbrake is engaged.
- It is recommended to park the BATU535 on level ground.
- Make sure doors, windows, cabinets and awning are closed and locked.
- In case of long-term parking in winter, empty the dirty water tanks and the
clean water tank so that there is no water in the booster.
- In case of long-term parking, keep the main switch off.
- It is recommended to take a safety precaution by using a coupling lock.
- Do not leave flammable or explosive materials inside BATU535.
- It is recommended that you do not leave products in the refrigerator when
you are not using the BATU535.
- Make sure the gas valve is closed.
- It is recommended to ventilate the inside of BATU535 at regular intervals.
- Provide external cleaning of BATU535 at regular intervals.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
6
Mold
Mold and mildew spores are present in indoor and outdoor environments. In
order to keep all mold and mildew spores under control, check humidity and
ventilate your caravan regularly. A healthy ventilation should be provided to
control humidity.
Chemical Sensitivity
Immediately after the caravan is purchased, and sometimes after a long period
of inactivity, a strong odor and/or chemical sensitivity may be experienced. It's
not a fault of the caravan. As in homes, many different products are used in
the construction of caravans, such as carpet, linoleum, plywood, insulation,
flooring. In the use of different materials, odor sensitivity is more obvious.
Since the caravan has small living spaces, the air exchange inside is
significantly less than the house.
These products can outgas different chemicals, including formaldehyde, when
new or when exposed to high temperatures and/or humidity. This outgassing,
along with minimal air exchange, can cause irritation of the eyes, nose, and
throat, and sometimes headaches, nausea, and various asthma-like
symptoms. The elderly and young children, as well as anyone with asthma,
allergies or lung problems, may be more sensitive to the effects of gassing.
Safety
Passenger Transportation
Since there is no seat belt in the caravan, it should not be traveled in the
caravan while driving in order to balance the weight distribution.
Pull and Weight Distribution
Weight distribution is an important factor when loading your camper before
travelling. An evenly distributed caravan will result in efficient and trouble-free
towing.
In order for the caravan to be able to go out on the road in a healthy way and
not to sway, especially on bends, the center of gravity should be spread inside
the caravan, not on one side.
Swinging Control
Swinging or fishtail is the sideways movement of the caravan caused by
external forces. Excessive rocking of your camper can cause the caravan and
towing vehicle to topple over, resulting in serious injury or death.
Tire Safety
Properly maintained tires improve handling and stopping. The wheel nuts must
be properly tightened.
Tools and Equipment
Appliances (stove, refrigerator, etc.) and equipment (hot water heater, oven,
etc.) typically run on LPG. LPG is flammable and is under high pressure.
Misuse may cause fire and/or explosion. Be sure to follow all instructions and
warnings in the manual, as well as in the device and equipment specific user
manuals.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
7
Low Voltage
The detector's operating voltage is 12 VDC. The voltage supplied to the
detector in the caravan may drop below 8 VDC minimum. The detector gives
the user a low voltage warning before it reaches this level and gives additional
clear warnings and alarms after the 8 VDC level is reached. However, if the
current power supplied to the unit is below the operating voltage of 8 VDC, the
detector will not detect the gas or protect against dangerous LPG levels.
Note
If a low voltage warning sounds, the detector will need to be reset by
disconnecting the battery before normal operation can occur.
Warning
Activation of this detector indicates the possible presence of LPG which could
cause an explosion and/or fire, resulting in serious injury or death. This
normally indicates a leak in the LPG installation or an LPG device. Extinguish
all open flames, open your windows and doors, and evacuate the unit
immediately. Do not use any electrical switches. Turn off the LPG in your gas
tank(s). Do not re-enter your unit until a qualified repair technician has
corrected the problem and confirmed that the system is safe.
Ventilation
It is very important to ventilate the caravan to reduce exposure to chemicals
from outgassing. Ventilation should be done frequently after purchase and
when temperatures and humidity rise. Note that gas output is accelerated by
heat and humidity. Open windows, vents and doors. Use natural ventilation or
a fan to expel stale air and bring in fresh air. Reducing airflow by sealing the
caravan increases the formaldehyde level in the vehicle's interior air.
Do not smoke
Smoking inside the caravan will damage the caravan and also release other
toxic chemicals such as formaldehyde.
Medical Advice
Questions about the effects of formaldehyde on your health should be
addressed to your doctor or local health department.
Alarms and Detectors
LPG/CO Detector
Please read the entire detector manual before operating the unit. The LPG/CO
detector is located in the kitchen area. LPG is a mixture of gases produced
and sold commercially as fuel for heating and cooking appliances. LPG is
highly flammable and as a result can be explosive when ignited under certain
conditions. LPG is heavier than air and will accumulate near the floor if
confined to aconfined space. The LPG/CO detector is designed to alarm when
propane gas exceeds 10% of the lower explosive limit for more than 30
seconds or when CO gas reaches unsafe levels. The horn will beep
continuously and the red LED will illuminate when propane gas is detected. If
CO gas is detected, the horn will sound 4 quick chirps followed by a 4 second
pause and the red LED will flash quickly. Your LPG/CO detector is directly
connected to your caravan battery and includes a fuse. There is no separate
internal battery. In normal standby mode, the LED indicator will be green.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
8
Warning
It is not recommended to power off the detector during storage. There is a
small heater in the sensor of the device that burns the dirt in the air during
normal usage periods. During power-off periods, impurities may accumulate
on the sensor. When power is restored to the detector, the detector alarm can
activate until the impurities are burned. This may take several hours, during
which time the alarm will be on continuously.
Warning
After 5 years of use, the detector should be replaced. If it is not changed, it
may not alarm. CO poisoning is popularly known as stove poisoning and can
cause death.
Warning
The device is for general domestic, domestic and caravan use. It cannot be
used in workplaces. It does not meet the required OHS rules. It needs a more
sensitive detector especially for groups at risk for CO poisoning (pregnant
women, patients, etc.).
Warnings
- Carbon Monoxide is produced as a result of incomplete combustion of fuels
such as wood, coal, heating oil, paraffin, gasoline, natural gas, propane,
butane.
- Ideally, it is recommended to install a Carbon Monoxide detector in or near
every room where fuel-burning appliances such as room heaters, water
heaters, stoves, grills are located.
- Ensure that the alarm horn can be heard by everyone it is intended to hear.
Seek medical attention if the caravan user is suspected of being affected by
Carbon Monoxide poisoning.
- If the alarm goes off, be sure to investigate the problem. Ignoring the alarm
could result in illness, injury or death. (CO may be present even if nothing is
seen or smelled by the user.)
- When household cleaning materials are used, room spaces should be well
ventilated as this may cause false alarms.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
9
Equipment List
Exterior Design
- Windows with Mosquito Nets and Curtains
- Externally Accessible Bathroom
- Was Sliding LED Stops *
- Was Side Track Lights *
- Was Side Horn Lamps *
- License Plate Lighting Lamp
- Outdoor LED Lighting
- External Storage Cabinets
- Exterior Wardrobe Lightings
- Chrome Locked Covers and Doors
- Chrome Cabinet Door Stoppers
- Side Opening Navigation Cover
- Rear Opening Kitchen Service Door
- Height Adjustable Fixing Feet (4 Pieces)
Interior Design
- Electrostatic Powder Coating (Cabinet and Interior Walls)
- Ceramic Based Internal Heat Insulation
- Carpet Application on PVC Floor Covering
- Chrome Locked Storage Cabinets
- In-Door Storage Areas
- USB Charge Inputs
- 12v Cigarette Lighter Input
- LED Indoor Lighting with Dimmer
Living and Sleeping Area
- 6 Person Seating Area
- Seat and Back Cushions
- Convertible Sofa to Bunk Bed (2 180x70 cm Beds)
- Bunk Bed Railing
- Movable Dining Table
Bedroom
- Sliding Door with Mosquito Net and Curtain
- Main Bed (205x165 cm)
- Wardrobe
- Item Drawers
- Storage Cabinets
- LED Lighting
- Valuables Safe
- Bedside Charge Inlets

CRAWLER
Model: BATU 535
Version: EN 1.00.422
10
Kitchen Area
- Fixed Chrome Kitchen Countertops
- Kitchen Ware Drawers
- Under Counter Cabinets
- Counter Top Cabinets and Shelves
- Triple Stove
- Chrome Sink
- Hot & Cold Adjustable Battery
- Thetford 152 L Refrigerator *
Bathroom/ Toilet
- Aluminium Exterior Door
- Aluminium Interior Door
- Compact Laminate Flooring
- Bathroom Steam Evacuation Fan
- Thetford Cassette Toilet System *
- Folding Sink
- Hot & Cold Adjustable Shower Head
Electrical/ Electronic/ Control
Installation
- 13 PIN Socket
- Crawler Smart Panel
- Victron Energy 220 Ah Gel Battery*
- Victron Blue Smart Charger (20 Ampere) *
- 220v Charge Input
- Charging Cable and Bag
Heating / Cooling / Gas Systems
- Truma Combi 6z (Ambient and Water Heater System) *
- Hot Air Outlet from 4 Points
- Truma Duo Control Panel *
- Truma Gas Antifreeze *
- Truma 2 Gas Valve *
- Truma Collision Sensor *
- Gas Filter
- Gas Regulator
- Gas Detector
- Copper Gas Installation
- Ceiling Hex Glass with Internal External Ventilation
- Crawler Smart Panel
Water Pipe System
- Water Pump (19 L/Min.)
- Chrome Water Fill Cap
- Chrome White Water Tank (136 L)
- Chrome Gray Water Tank (45 L)
- Black Water Tank (17 L)
- Water Drain Valves

CRAWLER
Model: BATU 535
Version: EN 1.00.422
11
Optional Features
- Schmid Solar Panel 325w & Regulator *
- Solara Solar Panel 160w & Solara Regulator*
- Leveling Dynamic Air Suspension (C.D.S.)
- Awning Front Tent (Summer, Front, Right, Left)
- Awning Front Tent (Winter, Front, Right, Left)
- Truma Mover XT4 *
- Bicycle holder (15 kg x 1 piece)
- Crawler Chrome Barbecue
- Thule Awning (4 Meters) (Light Gray) *
- Gas Output (BBQ)
- Fishing rod holder
- Weaponry
- Victron Energy 220 Ah Battery (Extra) *
- Neta Portable Satellite *
- Thule Electric Step*
- Truma Aventa Compact Plus Ceiling Air Conditioner * (+20 cm added to
Ceiling Height)
- Water Freeze Protection Unit
- Come Up Crane or Equivalent (12000Lb) *

CRAWLER
Model: BATU 535
Version: EN 1.00.422
12
Schematic Explanation
1. Right and Left Windows with Mosquito Nets and
Curtains
2. Side Entry Door
3. Side WC Entry Door
4. Back Kitchen Cover
5. Side Opening Navigation Cover
6. Height Adjustable Fixing Feet (4 Pieces)
7. Awning
8. Chrome Plated Locks
9. BBQ Area
10. High Angle Chrome Hinge
11. Side Track Lights
12. Outdoor LED Lighting
13. Bicycle holder

CRAWLER
Model: BATU 535
Version: EN 1.00.422
13
Using the Fixing Feet
There are four fixing feet, two at the front and two at the back. Release the
stabilizer foot by pulling the red handle of the stabilizer foot towards you and
move it to the position you want to adjust. Then adjust the height of the fixing
foot by turning the wheel bolt inside the red handle clockwise with the help of
the wheel wrench inside the caravan.
In order to close the fixing feet, first the handle is inserted into the red pin and
rotated. Then the red arm is pulled and the foot is lifted up.
Use of BATU535
Separating the Caravan from the Vehicle
Pull the handbrake. (1)
Lift the stabilizer up to a vertical position. (2) Lift the coupling arm upwards to
the vertical position. (3) Raise the caravan by turning the pilot wheel lever
counter-clockwise and disconnect the coupling from the vehicle's drawbar.
(4)
When the rear fixing legs are not opened, there may be an imbalance
in the rear of the caravan due to the weight.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
14
Opening the Entry Door
Top Lock;
Turn the upper lock entry in the horizontal position (1)
counter-clockwise to the vertical position and remove it.
(2)
Using Kitchen Back Cover and Cabinet
Locks
Kitchen Back Cover
- The Kitchen Back Cover provides the opportunity to use from inside and
outside.
- Thanks to the LED strip on the Kitchen Back Cover, the kitchen section is
illuminated.
Cabinet Locks:
- First, unlock the caravan by turning it counter-clockwise with its own key.
- Then turn the lock lever counter-clockwise to unlock itself.
Bottom Lock;
(3) Turn the vertical lower lock hub clockwise.
(4) After the lock bolt is in, turn the key back to the vertical position and
remove it.
Before and after use, it should be checked that the pistons are intact.
The cabinet door should be opened 30-60 cm behind. Otherwise, it may
cause injury.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
15
Using the Electric Step
To turn on the electric step, press and hold the button located at the
bottom right of the entrance in the downward direction. Press and hold
upwards to turn it off.
Using Windows
There are three locks on the windows. While unlocking, turn the levers inward
while holding down the red pins. After turning the locks, push the window from
the inside out.
TURN OFF
TURN ON
Pay attention to the piston when opening the windows. Window
opens and closes from inside to outside!

CRAWLER
Model: BATU 535
Version: EN 1.00.422
16
Using the Bunk Bed (Turning to Bed)
While turning the seat part into a bunk bed, lift the backrest (1) towards you so
that it is parallel with the seat. Then, fix the railing to the upper bunk section
with the help of the locking system (2) on theright and leftsides of the backrest.
Use of the Barbecue Area
To use the barbecue area, open the lock on the left and pull the barbecue area
towards you. Fix the rail system with the help of the lock.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
17
Using the Awning
To open the awning, turn the awning handle by inserting it into the hole on the
left side of the awning. After opening the awning, open the two upper legs (1)
and fix them to the fixing points on the body of the BATU535.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
18
8. Condenser fan
9. Control module
10. Control housing bracket (2x)
11. Hinge plate top
12. Upper hinge pin
13. Hinge spring
14. Cabin door
15. Hinge plate base
16. Lower hinge pin
17. Bottom panel holder
18. Door handle
19. Door lock plate
20. Freezer door
21. Built-in lamp cover
22. Bin (3x)
23. Lid slide box
24. Slide out
25. Diameter (4x) and Screw (4x)
26. Plate
27. Clip shelf
28. Rack
29. Shelf food holder
30. Drawer divider
31. Drawer guide L + R
32. Drawer
33. Identification tag

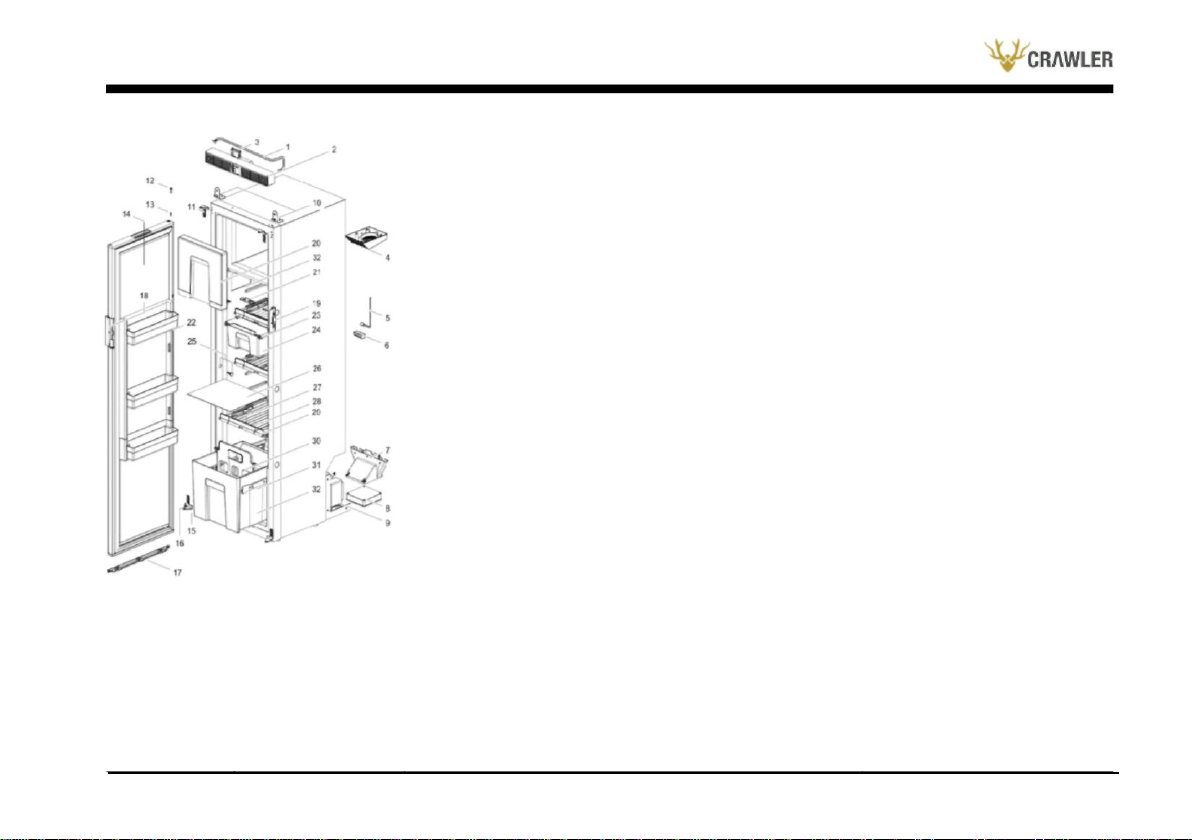

Refrigerator Diagram
1. Power cord
2. Control housing
3. Control PCB
4. Built-in fan
5. Thermistor
6. Thermistor cover
7. Condenser fan cover

CRAWLER
Model: BATU 535
Version: EN 1.00.422
19
Stove Use
Open pit use of BATU535,
1. First of all, the valve of the tube in the front cabinet of the caravan is
opened in order to open it for use. (1)
2. There are two valves inside the cabinet. (2)
3. On the right is the gas valve of the stove. (A) The one on the left is the
boiler system water heating valve. (b)
4. Light the stove with the help of the lighter and adjust the temperature of
the gas coming to the stove with the stove top buttons.
5. There is a ventilation system just below the stove.
6. When using the combi system, you can adjust the settings from the
Truma Panel.
- Thanks to the automatic gas cut-off safety system, the stove turns
itself off in case of emergency.
- Compatible with LPG & Natural Gas.

CRAWLER
Model: BATU 535
Version: EN 1.00.422
20
Use of Dynamic Air Suspension (C.D.S.)
Usage Modes:
Road Mode (On-road)
The caravan must be used continuously while in road mode. Set levers to
middle position for use in road mode. Levers in the highest (off-road) mode
are put into road mode before normal travel. The compressor switch must be
on while traveling.
Off-road Mode
It maximizes the vehicle's traction when driving on difficult terrain and rough
roads. Drive mode provides high ground clearance. It is required for use on
rough terrains when necessary, except for long-term use. The distance
between the rim and the fender is adjusted to 70 cm by moving it up and down
thanks to the air valve rod. When the bar is lowered, the caravan also moves
down.
Camp Mode:
When the caravan leaves the vehicle, it is put into camping mode. Make sure
to turn the levers to the right to lower it into camping mode. Air suspension, in
camping mode, the vehicle can be adjusted to thedesired height, left andright,
according to the slope of the terrain.
Setting:
Make sure that all the equipment of the caravan is placed in their standard
positions. Suspension works separately as right and left.

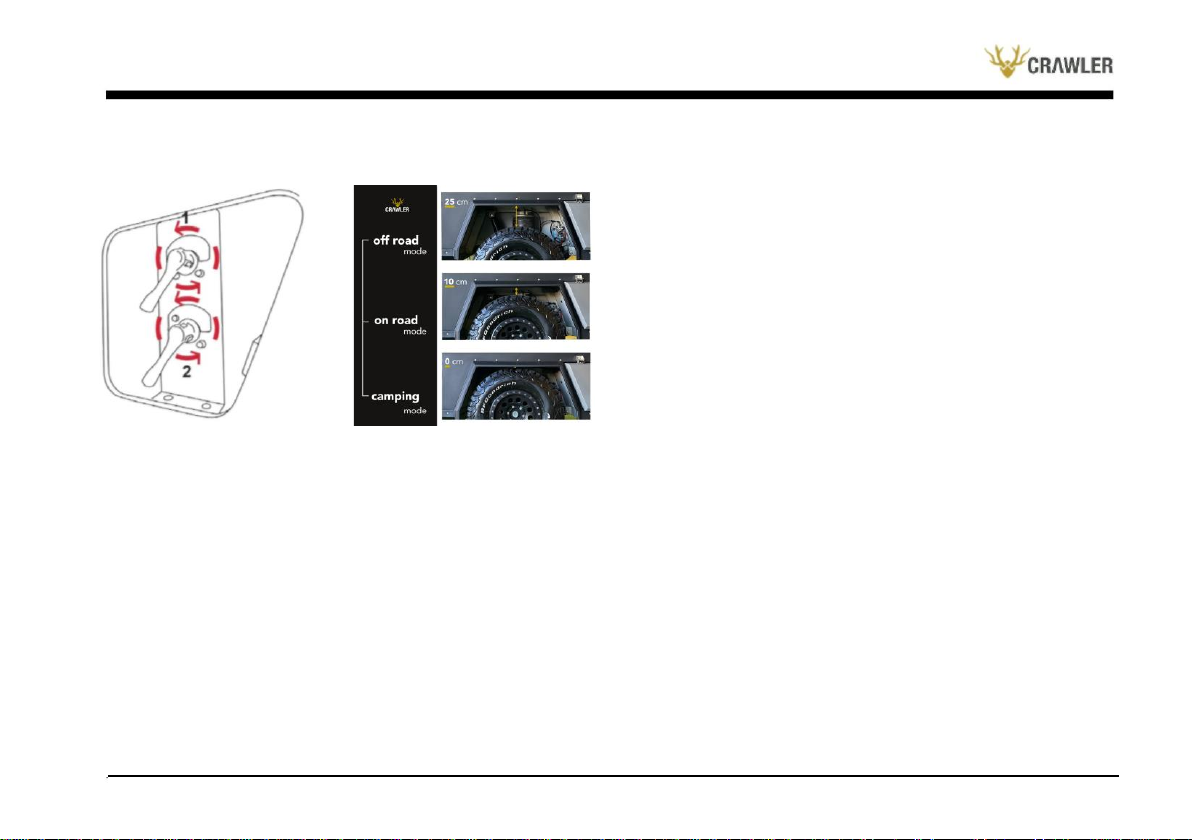

The handles on the left front cabinet of the caravan are turned to the left to
get the highest mode from road mode. (Off-road) (1-2)
When it is turned to the right, it is put into camping mode. It is in road mode
when the levers are in the middle position. (On-road)
Make sure no one is inside the caravan while using the air suspension. Both
bellows should be ideal and in the same position.
Tighten the bellows separately with the help of the clamp to prevent the
setting from changing later. To level the BATU535 on sloping terrain, you can
level it by changing the height of one side.
