Cree CR14 User manual

CR Series with Cree UPOE
CR14™, CR24™, CR22™LED Architectural Troffers
1x4, 2x4, 2x2 Luminaires
1 of 2 LPN00293X0001A0_A
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l’alimentation
avant l’installation.
2. This luminaire must be installed in accordance with
the NEC or your local electrical code. If you are not
familiar with these codes and requirements, consult a
qualied electrician.
Ce produit doit être installé conformément à NEC ou
votre code électrique local. Si vous n’êtes pas familier
avec ces codes et ces exigences, veuillez contacter un
électricien qualié.
3. Suitable for damp locations.
Convient aux emplacements humides.
4. Access above ceiling required. Do not install insulation
within 3" (76mm) of any part of the luminaire.
Accès requis au-dessus du plafond. Ne pas mettre
l’isolant à moins de 76 mm (3 po) de toute partie du
luminaire.
5. Suitable for suspended ceilings.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
TO INSTALL:
LUMINAIRE INSTALLATION
STEP 1:
Unpack the CR troffer from its
shipping container.
STEP 2:

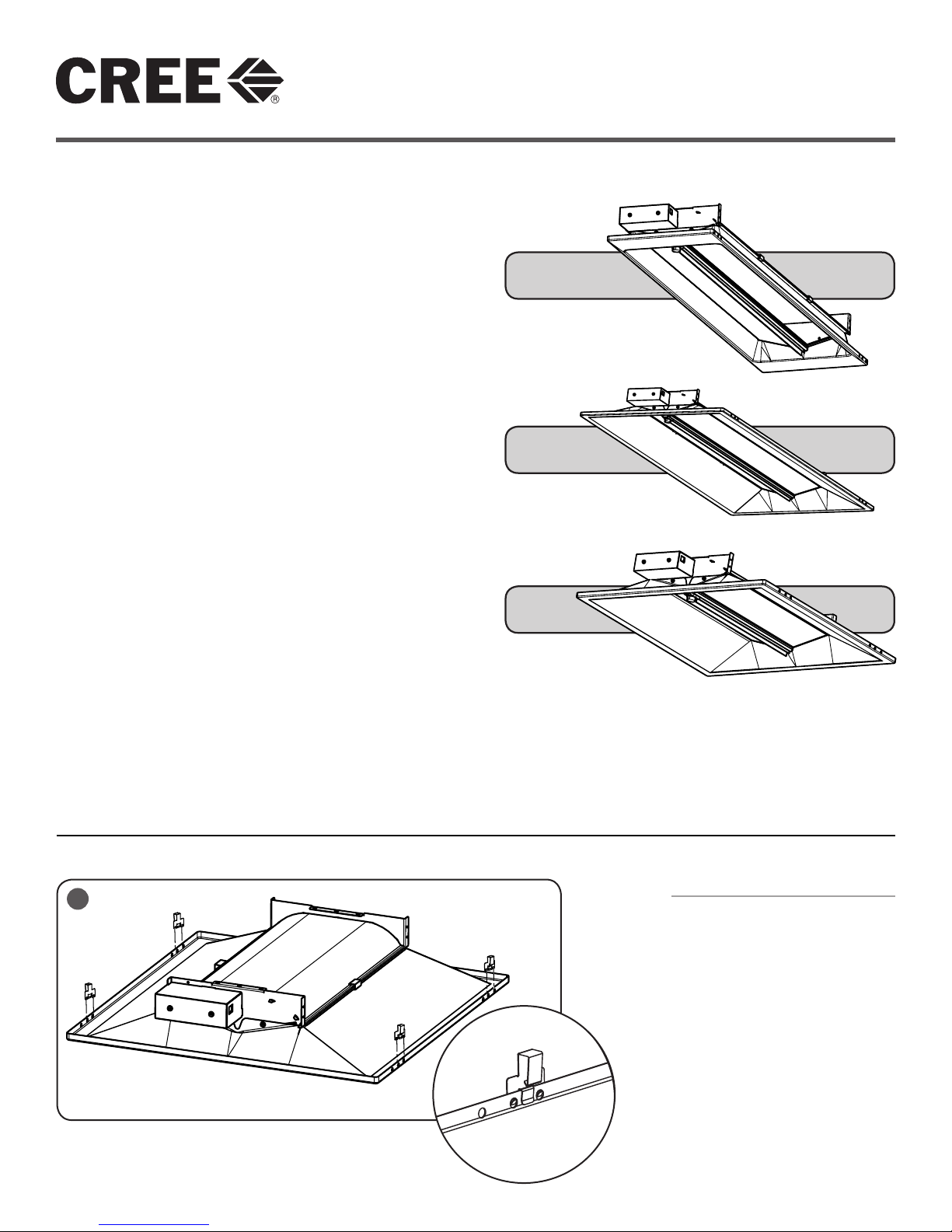

Install the (4) T-Bar clips included
with the luminaire (located in
pre-pack fastened to luminaire
junction box). See Figure 1.
1
• The CR Series of recessed troffers is for non-insulated ceiling applications using T-Bar ceiling grid and drywall grid adaptors.
• Designed for use with UPOE Ethernet switch with output voltage less than 60 Vdc.
CR14
CR24
CR22

2 of 2 LPN00293X0001A0_A
www.cree.com/lighting
© 2015 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See
www.cree.com/lighting/products/warranty for warranty and specifications. Cree®, and the Cree logo are
registered trademarks and CR14 ™, CR22 ™ and CR24 ™ are trademark of Cree, Inc.
STEP 3:
Place the CR troffer into the T-Bar Ceiling
panel. Ensure T-Bar clips are attached to the
T-Bar.
STEP 4:
Plug customer supplied Ethernet RJ45 cable
into the RJ45 cable port located on the
luminaire driver box. See Figure 2.
2
RJ45 Cable Port
