Lightolier Calculite ProSpec PA4P3810 User manual

Calculite®ProSpec®Linear Downlight PA4P3810
Page 1 of 2 Light PAR 38 Series A
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories. Easily installed and removed for lamping with a simple twisting
motion. Constructed of die formed aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Ad ustable Ring: Allows 360° horizontal and min 30°, max. 0° (on length);
0° (on width) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die formed 22 ga. steel. Finish: Black
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC, UL, and CSA requirements.
9. Lampholder: Porcelain medium based; nickel plated screw shell. Prewired
with #18 SF-1 leads to junction box.
10. Junction Box: 1 ga. steel, x 3-1/2 x 2" box. Allows inspection from
below.
11. Lamp and Accessory Support:: .032" steel, flared for easy entry of Media
Cartridge.
12. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
Electrical
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12 AWG,
90°C.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 3/ " dia. series, filters, lenses, screens, and louver (2) max.
Labels
UL/cUL (Suitable for Damp Location), I.B.E.W.
1234
5
6
7
8
9
10
11
12
Flanged Trimless
Top View
13"
8-3/4" Depth
7" OC
51-1/2"L X 10"W
28"L X 7"W Opening
1-3/4"
54-1/4"
8"
5"
Ceiling Cutout: 29 1/16" L x 8 3/16" W
Ordering Information: PAR 38 SERIES A
Cat. No. Lamp Ceiling Trim Aperture Finish
PA4P3810BL ( ) 100W PAR 38 Overlap Black with White Flange
PA4P3810WL ( ) 100W PAR 38 Overlap White with White Flange
PA4P3810BTL ( ) 100W PAR 38 Trimless Black
PA4P3810WTL ( ) 100W PAR 38 Trimless White
Calculite®ProSpec®Linear Downlight PA4P3810
Page 2 of 2 Light PAR 38 Series A
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
Job Information Type:
Lighting Performance Data

Other Lightolier Light Fixture manuals

Lightolier 4SB115 User manual

Lightolier

Lightolier 4SB115 User manual

Lightolier Calculite CS8226 User manual

Lightolier

Lightolier Calculite CS8226 User manual

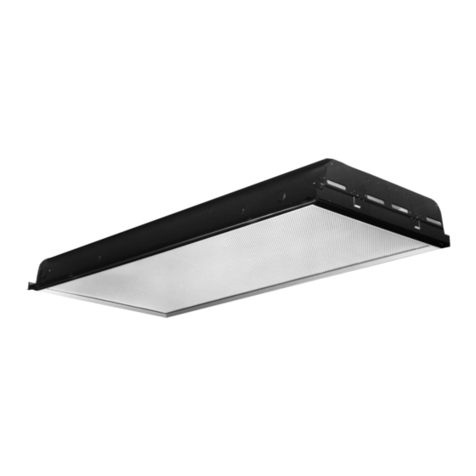

Lightolier Prismalyte Plus PRA1GRFVA232 User manual

Lightolier

Lightolier Prismalyte Plus PRA1GRFVA232 User manual

Lightolier Lytespan 8248 User manual

Lightolier

Lightolier Lytespan 8248 User manual

Lightolier Lytespan LCAWTSX User manual

Lightolier

Lightolier Lytespan LCAWTSX User manual

Lightolier 40S20 Guide

Lightolier

Lightolier 40S20 Guide

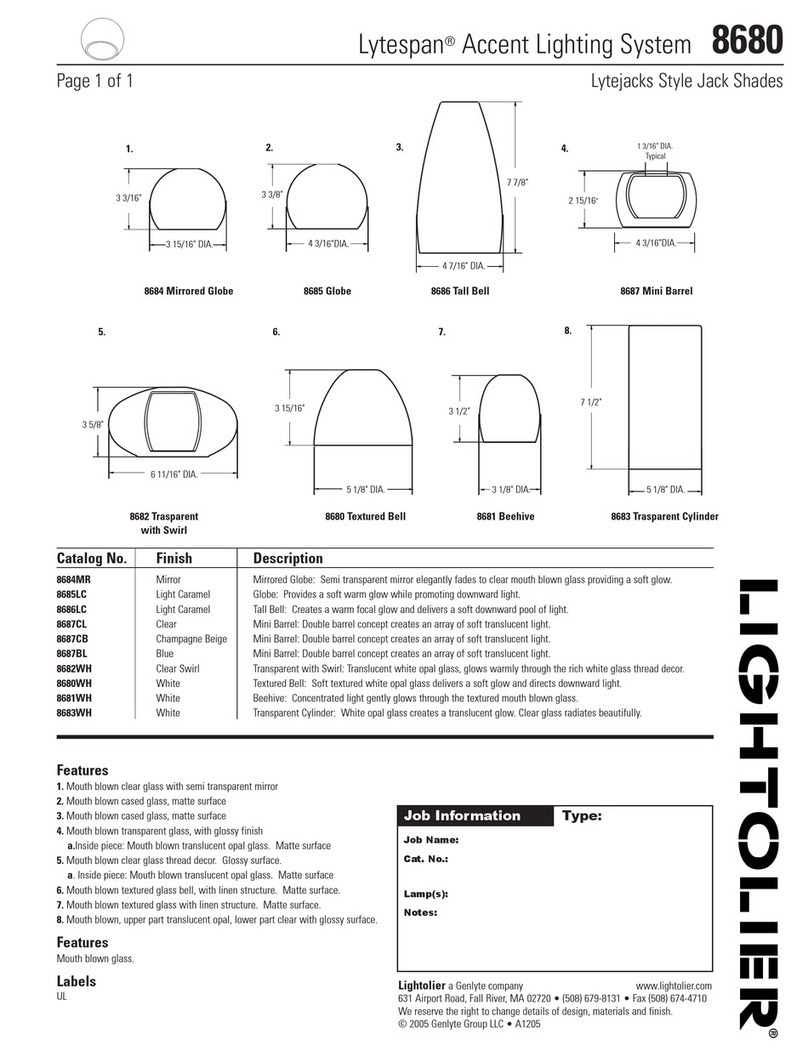

Lightolier Lytespan 8680 User manual

Lightolier

Lightolier Lytespan 8680 User manual

Lightolier Lytespan 7178 User manual

Lightolier

Lightolier Lytespan 7178 User manual

Lightolier Calculite 7790QD User manual

Lightolier

Lightolier Calculite 7790QD User manual

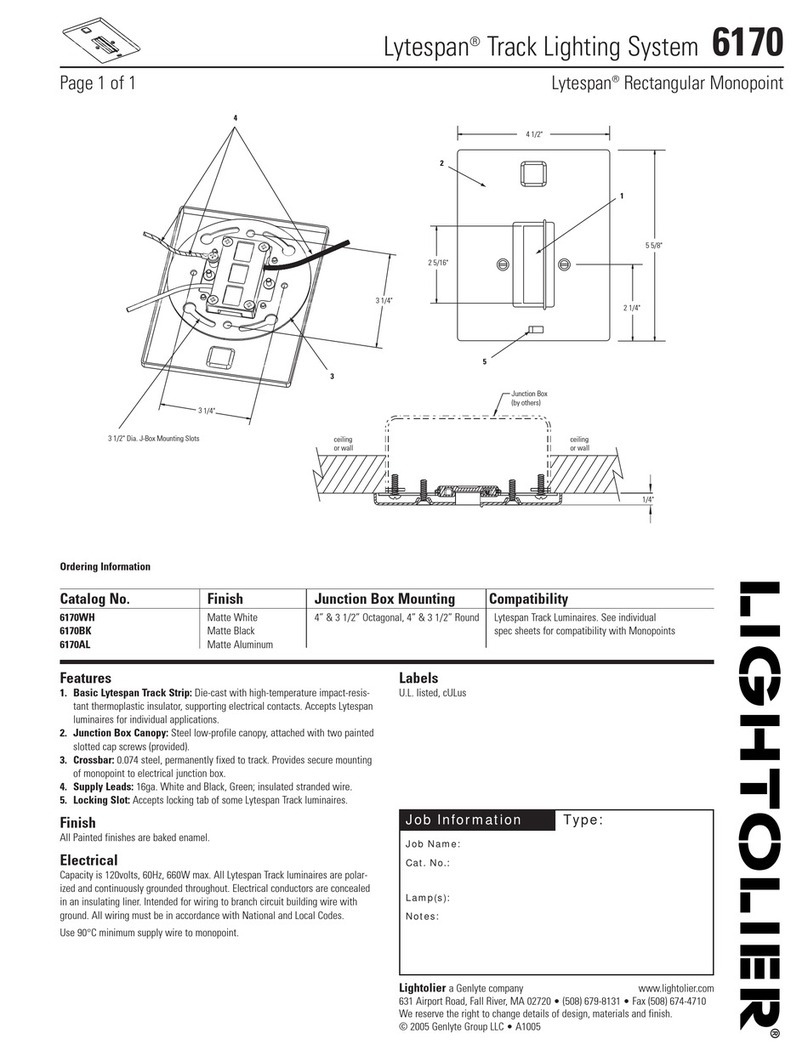

Lightolier Lytespan 6170 User manual

Lightolier

Lightolier Lytespan 6170 User manual

Lightolier LL4MF8LR232 User manual

Lightolier

Lightolier LL4MF8LR232 User manual

Lightolier Calculite C4MRD CCDW User manual

Lightolier

Lightolier Calculite C4MRD CCDW User manual

Lightolier Calculite ProSpec PA1P3075 User manual

Lightolier

Lightolier Calculite ProSpec PA1P3075 User manual

Lightolier WLRK124120SB User manual

Lightolier

Lightolier WLRK124120SB User manual

Lightolier Lytecaster 1195 User manual

Lightolier

Lightolier Lytecaster 1195 User manual

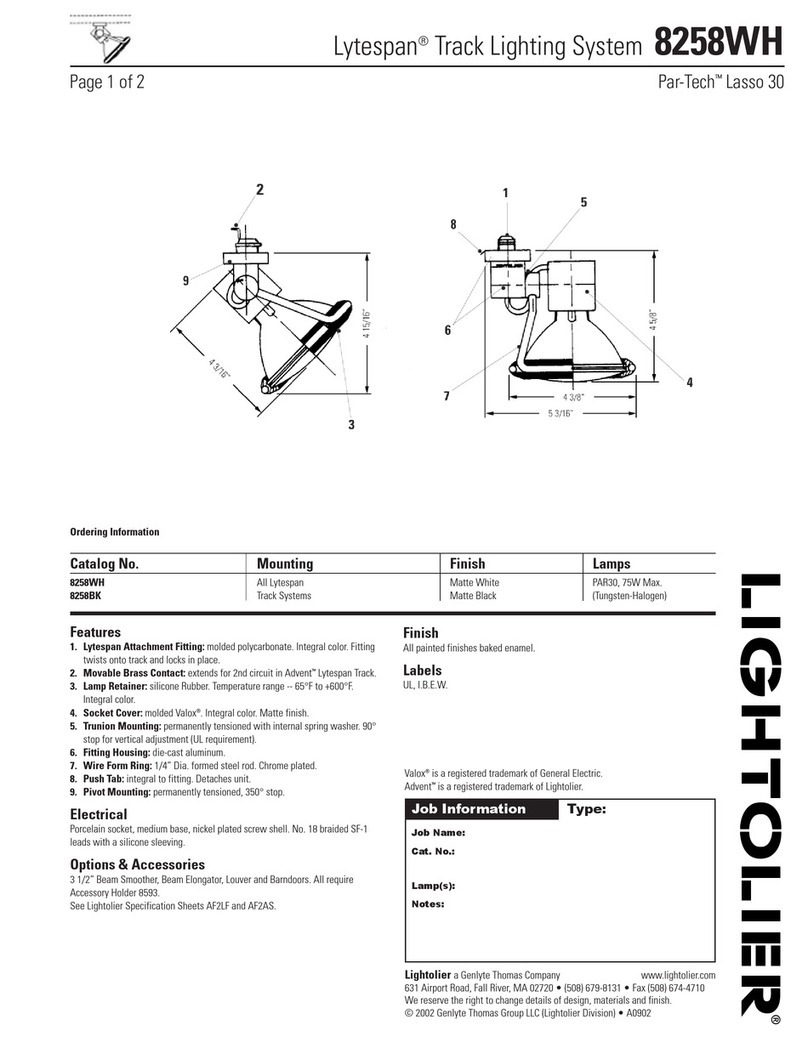

Lightolier Lytespan 8258WH User manual

Lightolier

Lightolier Lytespan 8258WH User manual

Lightolier Pristine Series User manual

Lightolier

Lightolier Pristine Series User manual

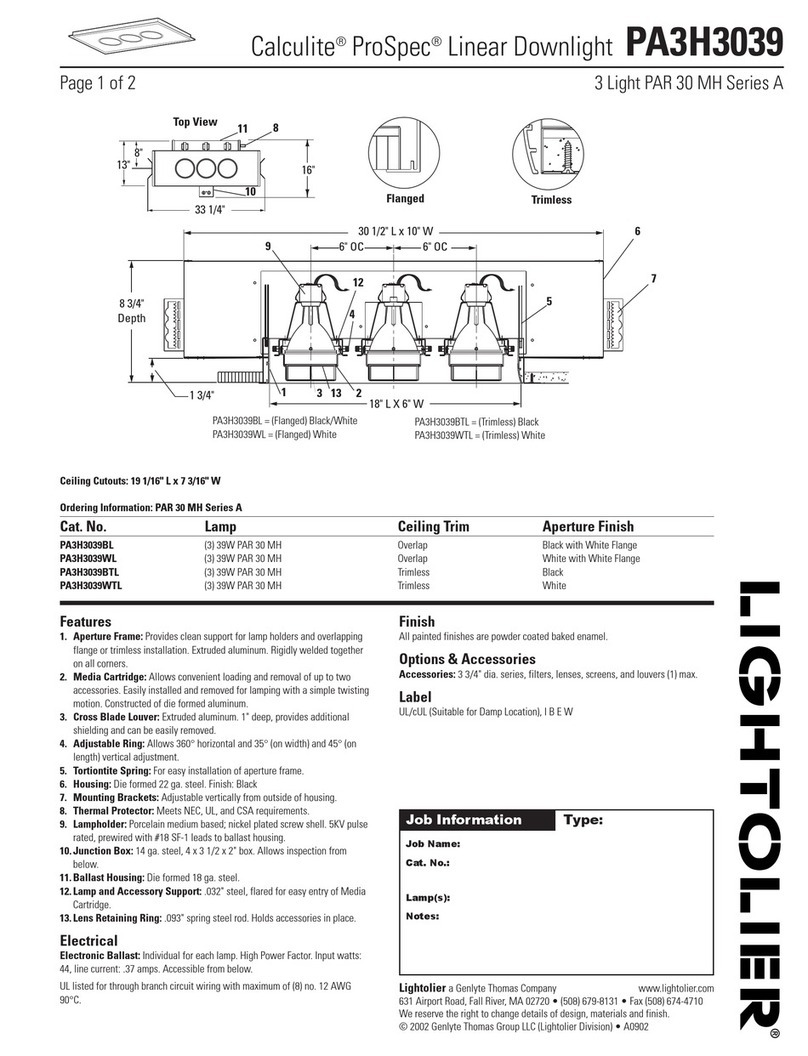

Lightolier Calculite ProSpec PA3H3039 User manual

Lightolier

Lightolier Calculite ProSpec PA3H3039 User manual

Lightolier Soli 48024ALU User manual

Lightolier

Lightolier Soli 48024ALU User manual

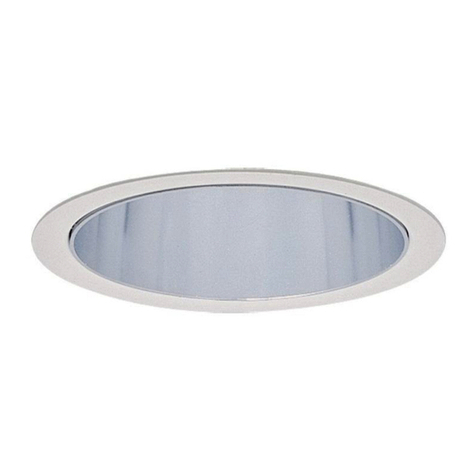

Lightolier Lytecaster 1071 User manual

Lightolier

Lightolier Lytecaster 1071 User manual

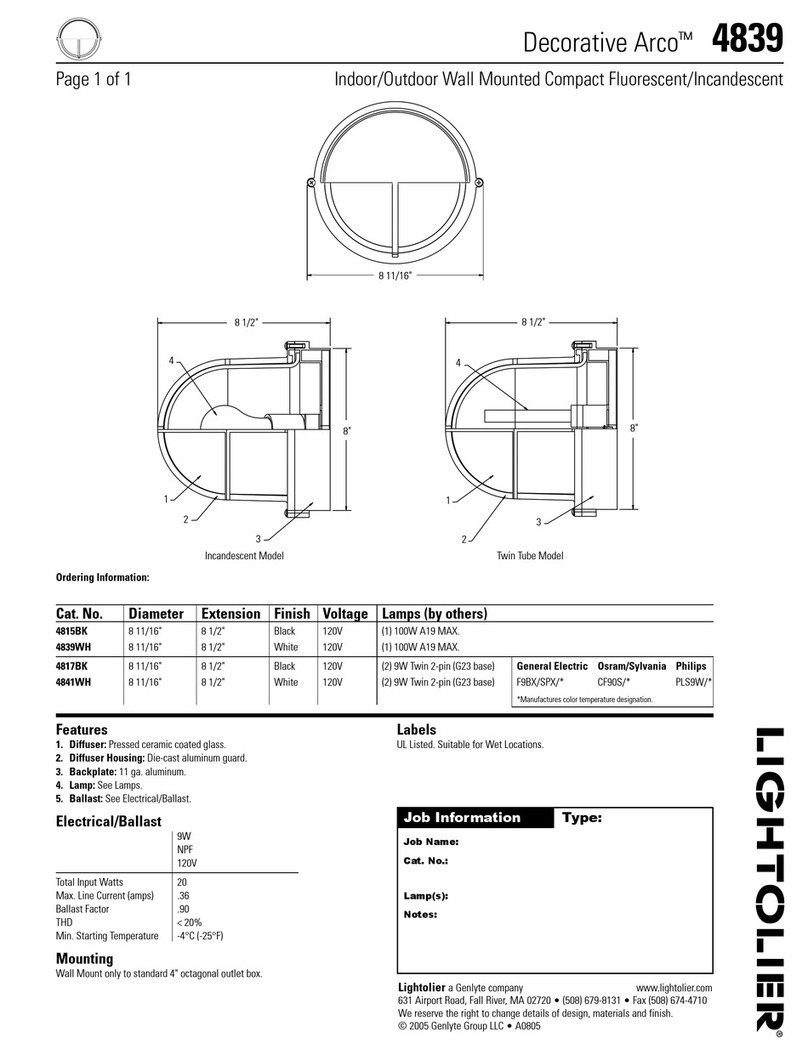

Lightolier Decorative Arco 4839 User manual

Lightolier

Lightolier Decorative Arco 4839 User manual

Lightolier VP Parabolic VPA2G12PP317 User manual

Lightolier

Lightolier VP Parabolic VPA2G12PP317 User manual

Lightolier Calculite CS7142 User manual

Lightolier

Lightolier Calculite CS7142 User manual

Lightolier Lytespan 6355 User manual

Lightolier

Lightolier Lytespan 6355 User manual

Popular Light Fixture manuals by other brands

Gainsborough L105 quick start guide

Gainsborough

Gainsborough L105 quick start guide

Rittal SZ 2500.104 Assembly and operating instructions

Rittal

Rittal SZ 2500.104 Assembly and operating instructions

Anolis arcpower smartwhite 72 user manual

Anolis

Anolis arcpower smartwhite 72 user manual

Griven GoboLED 80 D user manual

Griven

Griven GoboLED 80 D user manual

Ibiza DJLIGHT85LED manual

Ibiza

Ibiza DJLIGHT85LED manual

Thorlux Lighting Canolux LED manual

Thorlux Lighting

Thorlux Lighting Canolux LED manual

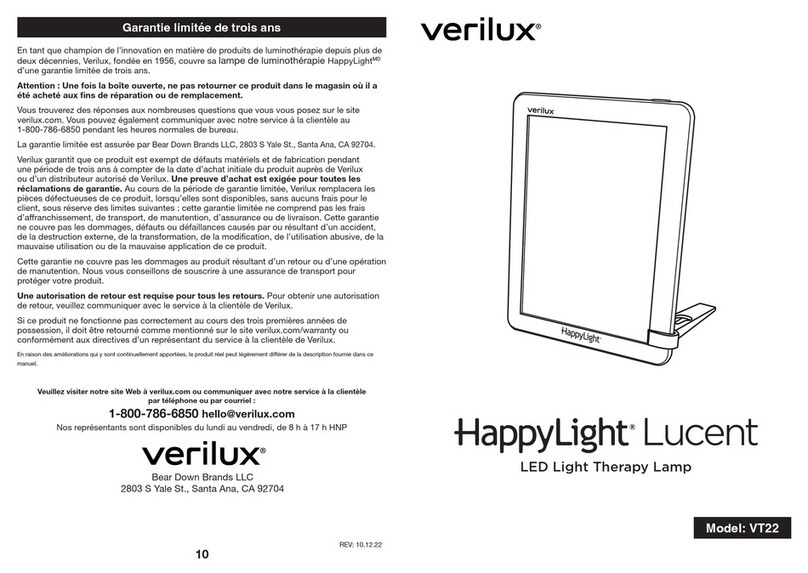

Verilux HappyLight Lucent user manual
