AIRFRAME™ATX HELMET OPERATOR’S MANUAL

THIS MANUAL MUST BE CAREFULLY READ BY ALL PERSONS WHO HAVE OR WILL HAVE
THE RESPONSIBILITY FOR USING OR MAINTAINING THIS PRODUCT. FAILURE TO USE AND
MAINTAIN THE PRODUCT ACCORDING TO ITS INSTRUCTIONS MAY RESULT IN THE PRODUCT
FAILING TO PERFORM AS DESIGNED, AND/OR THE PERSONS RELYING ON THIS HELMET
SUSTAINING SERIOUS PERSONAL INJURY AND/OR DEATH.
Any warranties made by Crye Precision LLC with respect to this product are voided if the product is
not used and maintained in accordance with the instructions in this manual. For any questions relative
to the use or repair of this product, please write Crye Precision LLC or call 1-718-246-3838 during
regular business hours.
WARNINGS
The following are general safety warnings intended to call attention to fundamental performance
limitations and areas of the helmet where proper usage must be followed. Failure to adhere to the below
instructions and warnings could result in serious personal injury or death to the wearer.
This helmet is designed to protect the wearer against a specic range of projectile threats while
benetting from a minimal overall weight. This protection does have its limits and will not protect
the wearer against all threats. Certain threats may exceed the helmets capabilities and cause serious
injury including severe brain damage and death. Refer to helmet specications for performance
related data.
It is important to note that certain regions of the helmet provide less protection than others.
Specically, this helmet shell is not intended to protect against impacts that occur within 1 inch of
any peripheral edges.
Inspect the helmet before and after EACH use. Do not alter the helmet in any way.
This helmet is not to be relied upon to protect the wearer from falls from motor vehicles or bicycles,
or for similar activities.
Fit problems, such as excessive tightness, should be corrected by adjusting helmet pad locations as
instructed in this manual and by ensuring that the appropriate helmet shell size is being used.
All replacement parts should be acquired from Crye Precision or a licensed distributor.
The most current version of this manual may be found at www.cryeprecision.com.

EQUIPMENT INFORMATION
01 INTRODUCTION
02 COMPONENT DESCRIPTIONS
OPERATOR INSTRUCTIONS
05 NVG MOUNTING OPTIONS
06 SHELL SIZING
07 PAD PLACEMENT
08 DONNING
09 FIT ADJUSTMENT
10 CLEANING INSTRUCTIONS
10 PREVENTIVE MAINTENANCE CHECKLIST
11 REASSEMBLY
13 SERIAL NUMBERS
CONTENTS

1AIRFRAME™ATX HELMET
INTRODUCTION
The AirFrame™ ATX is our law enforcement focused ballistic helmet—designed to offer the
same advantages of our original AirFrame™ helmet while meeting IIIA ballistic requirements.
The unique overlapping shell design of the AirFrame™ creates an integrated vent that
provides passive cooling and can reduce the damaging effects of explosive blast waves.
Each AirFrame™ helmet features an Ops-Core®H-Nape Head-Loc™ retention system for
unmatched stability, comfort, and ease of adjustment. Up armoring the AirFrame™ with
ballistic ear or face protection is simple and fast (see our Ears™ and Chops™ for more info).
All helmets and components are compatible with common ear-pro systems like Peltors®and
Sordins®
. Made in the US from US materials.
FEATURES
Meets IIIA ballistic requirements
Revolutionary vented shell design for passive cooling
Covers more of wearer’s nape than traditional designs
Modular ear and face protection available
Modular ARC Rail™ system available (O2compatible)
Contain 3/4” pads
Can be pre-drilled at factory for 3-hole or 4-hole NVG mounts (conguration compatible
with Ops-Core®and Wilcox®3-hole mounts)

2EQUIPMENT INFORMATION
COMPONENT DESCRIPTIONS
HELMET STRAP9
SMALL T-NUT (x4)
5
FRONT SHELL
1
TRAPEZOIDAL PADS (x2)11
HELMET STRAP BOLTS (x4)
7
SHELL SCREW SHORT (x2)3
MD (x6)
LG (x7)
xL (x8)
OBLONG PADS10
NYLON INSERT (x2)
6
REAR SHELL
2
LARGE T-NUT (x4)8
SHELL SCREW LONG (x2)4
(IMAGES NOT TO SCALE)

OPERATOR INSTRUCTIONS

5OPERATOR INSTRUCTIONS

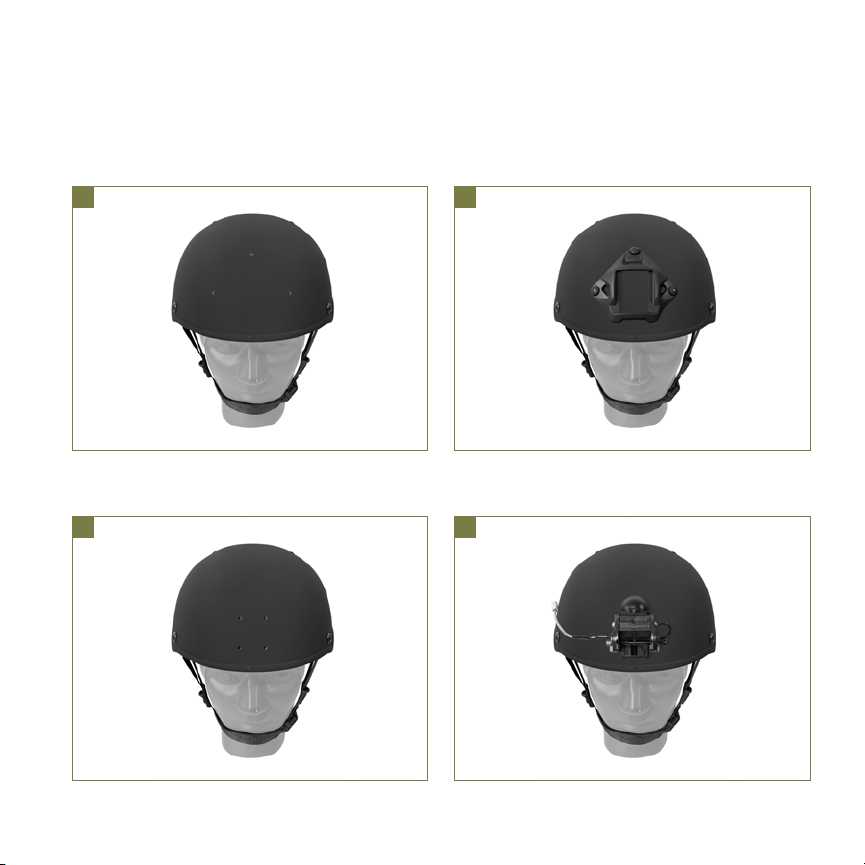

NVG MOUNTING OPTIONS
AirFrame™ATX helmets can be ordered with pre-drilled mounting holes for standard 3-hole or 4-hole night vision mounts. This must be
specied at the time of order.
Standard 3-hole conguration for night vision mounts
Standard 4-hole conguration for night vision mounts
3-hole night vision mount installed
4-hole night vision mount installed
A
D
B
C

6AIRFRAME™ATX HELMET
SHELL SIZING
Follow the instructions below in order to ensure a correct shell size selection. Select the
proper helmet size based on your head circumference. If a measurement falls directly in
between two sizes, select the larger size. See the note at bottom of the page for exceptions.
Whenever possible, try on a helmet and allow the pads to adjust for ve minutes in order to
determine which size has the best t.

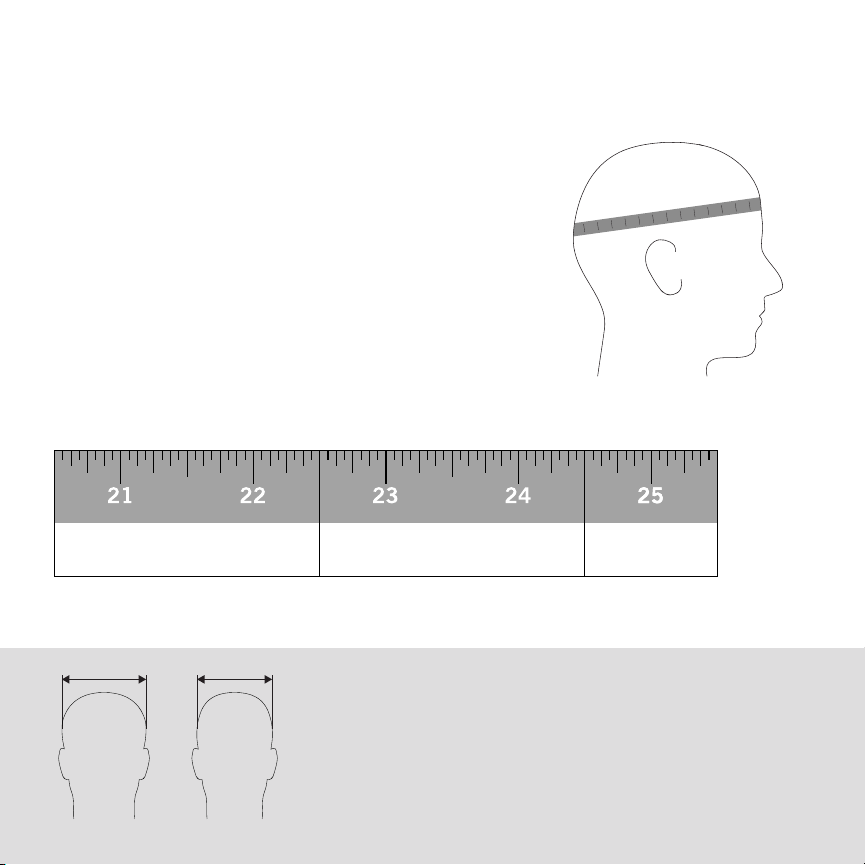

MEASURING HEAD CIRCUMFERENCE
Sit straight with your head level. Wrap a vinyl tape measure around your head. Start just
above eyebrow ridges and wrap around widest part of the head as shown in the diagram.
Pull the tape measure tight and record the measurement. Use the table below to determine
the correct helmet size.
NOTE: HEAD SHAPES DIFFER
Users on the threshold of two sizes, but with a narrower head (6” width and below), may be
able to t into the smaller sized shell, where users with a wider head (over 6” width) should
move to the larger size.
MEDIUM
20½”–22½”
LARGE
22½”–24½”
X-LARGE
>24½”
*Note: Pads affect sizing—if using an alternative pad set, try on the helmet to choose the proper size.

7AIRFRAME™ATX HELMET

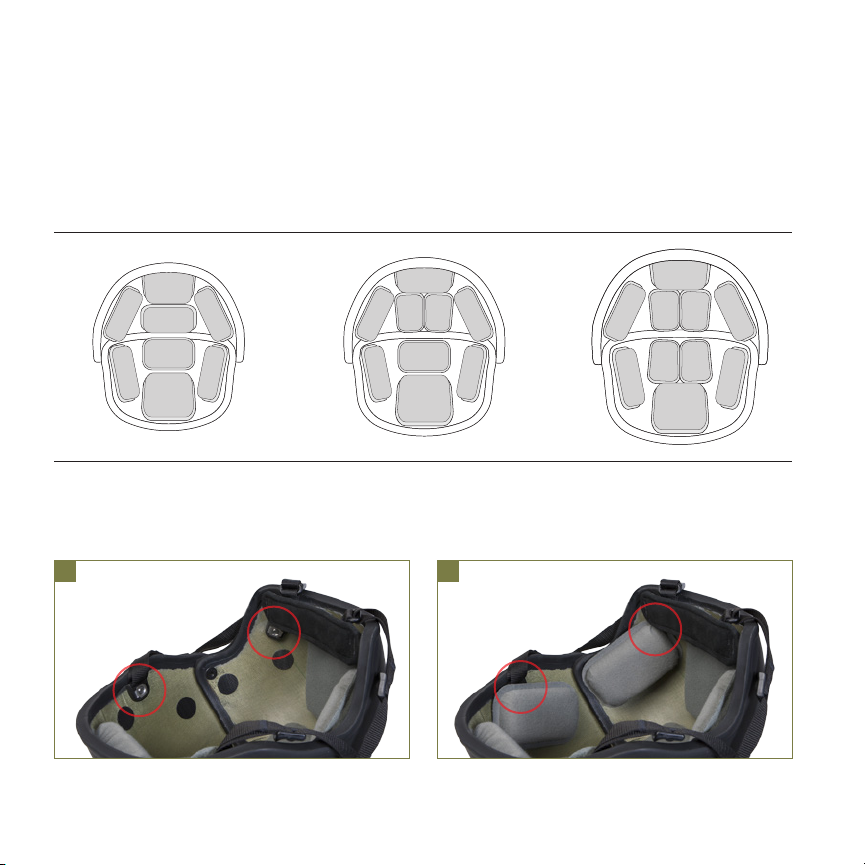

PAD PLACEMENT
Standard AirFrame™pad placement is shown below. The number of oblong pads varies with helmet size. MEDIUM helmets require 6 oblong
pads, LARGE helmets require 7 oblong pads, and EXTRA LARGE helmets require 8 oblong pads. All helmets require two trapezoidal pads.
EXTRA LARGELARGE
FRONT OF HELMET
BACK OF HELMET
MEDIUM
Pad placement is designed to offer optimal protection and comfort. It is critical that pads are placed as shown in the below diagrams and that
the pads nearest chinstrap hardware mounting points are situated to overlap said hardware—failure to do so may result in injury or death.
A B

8OPERATOR INSTRUCTIONS
*Straps may need to be retightened after a few minutes of wear as helmet pads can soften.
Don the helmet and ensure that the nape
pad is positioned correctly.
Buckle the chin strap.
Pull the front and rear strap adjusters
until snug.
Ensure the chinstrap is unbuckled and all
straps are loosened.
The nape pad can be tightened by pulling
on the nape adjuster. The nape pad adds
additional stability to the helmet, which
can be useful when wearing NVGs.
DONNING
1
4
2
5
3

9AIRFRAME™ATX HELMET

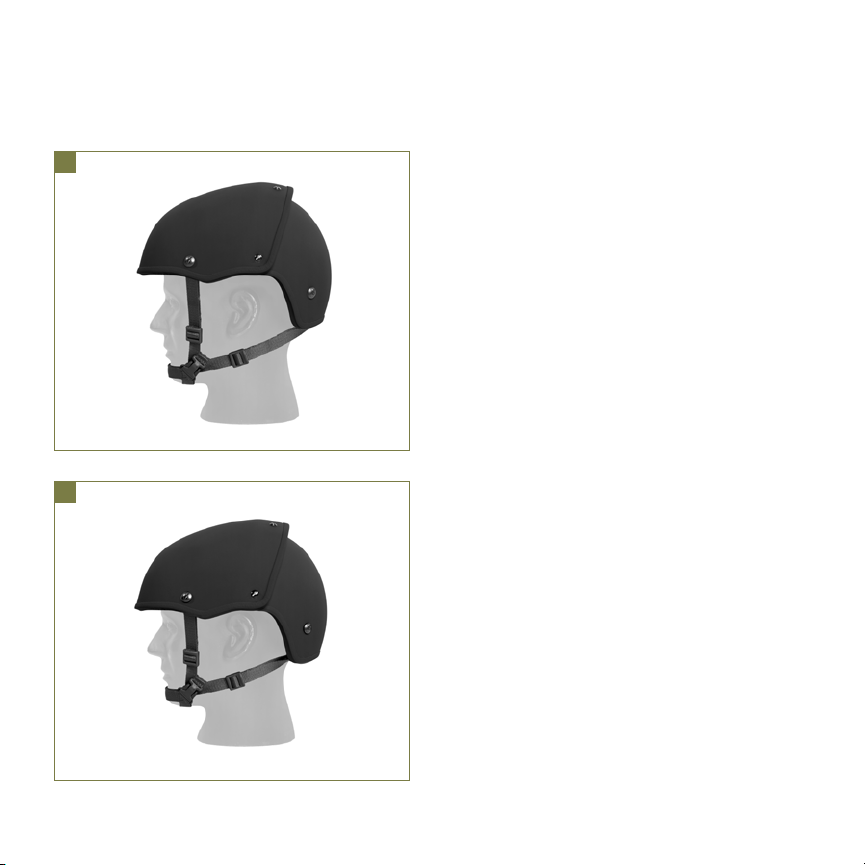

FIT ADJUSTMENT
HELMET IS TOO LOOSE OR TOO LOW
If the helmet is too low on the brow, not compatible with eyewear,
or has other similar compatibility issues, it may be too loose.
Increase the number of pads in shell (additional pads can be
purchased separately)
If additional pads do not correct the fit, a smaller helmet shell
size may be required
HELMET IS TOO TIGHT OR TOO HIGH
It is extremely important that the helmet not be sized and tted to sit
too high on the head. If the crown pads do not hit the head (wearer
cannot feel pads), then the helmet may be too high. When tting,
look upward by moving your eyes, but without moving your head. If
the rim of the helmet cannot be seen, the helmet may be too tight.
Try rearranging the pads
If rearranging the pads does not alleviate the tightness, a larger
helmet shell size may be required
A
B

10OPERATOR INSTRUCTIONS
CLEANING INSTRUCTIONS
HELMET SHELL
Remove helmet pads from helmet shell and clean separately. Helmet shell can be washed
with a mild soap and water using a soft brush or cloth. Towel dry the helmet shell and
allow to air dry completely indoors or in a shaded area.
HELMET PADS
Helmet pads should be washed by hand using a mild soap and cold water. A soft bristled
brush or wash cloth can be used to remove dirt. Allow pads to air dry indoors or in a
shaded area. DO NOT WRING.
PREVENTIVE MAINTENANCE CHECKLIST
In order to ensure optimal performance, the user should routinely inspect the helmet for
damage, wear marks, or missing components. Any damaged components should be replaced
immediately. Any of the following issues should be immediately reported and remedied:
Shell cracks
Bubbles
Signs of ply separation
Fraying webbing
Damaged plastic hardware
Peeling helmet edging
Loose fasteners

11OPERATOR INSTRUCTIONS
Place the REAR SHELL onto the LONG SHELL SCREWS and loosely
thread on SMALL T-NUTS.
Insert two SHORT SHELL SCREWS into the side holes on the helmet.
With the FRONT SHELL held upside down, install the two LONG
SHELL SCREWS and two NYLON SPACERS.
REASSEMBLY
Instructions for reassembly of helmet shell halves.
*If assembling AirFrame™ accessories such as Chops, Ears, or Rails, refer to their instructions for greater detail.
1 2
3A 3B
From the inside of the helmet, loosely thread on SMALL T-NUTS.

12 AIRFRAME™ATX HELMET
Table 1: Torque Values
Helmet Shell Screws 6 in. Lb. (.7 Nm)
Strap Bolts 20 in. Lb. (2.3 Nm)
4Once all helmet SHELL SCREWS are
installed, tighten by hand to torque
values specied in Table 1.
5Insert LARGE T-NUTS through plastic
strap anchors and loosely thread STRAP
BOLTS through the shell.
6Once all STRAP BOLTS are installed,
tighten one at a time to the torque
value specied in Table 1. Ensure the
strap anchors are positioned as shown
in the images to the left.
7Reinstall the helmet PADS, referring to
the pad placement instructions (PG 5).
4
5A
5B

13 AIRFRAME™ATX HELMET

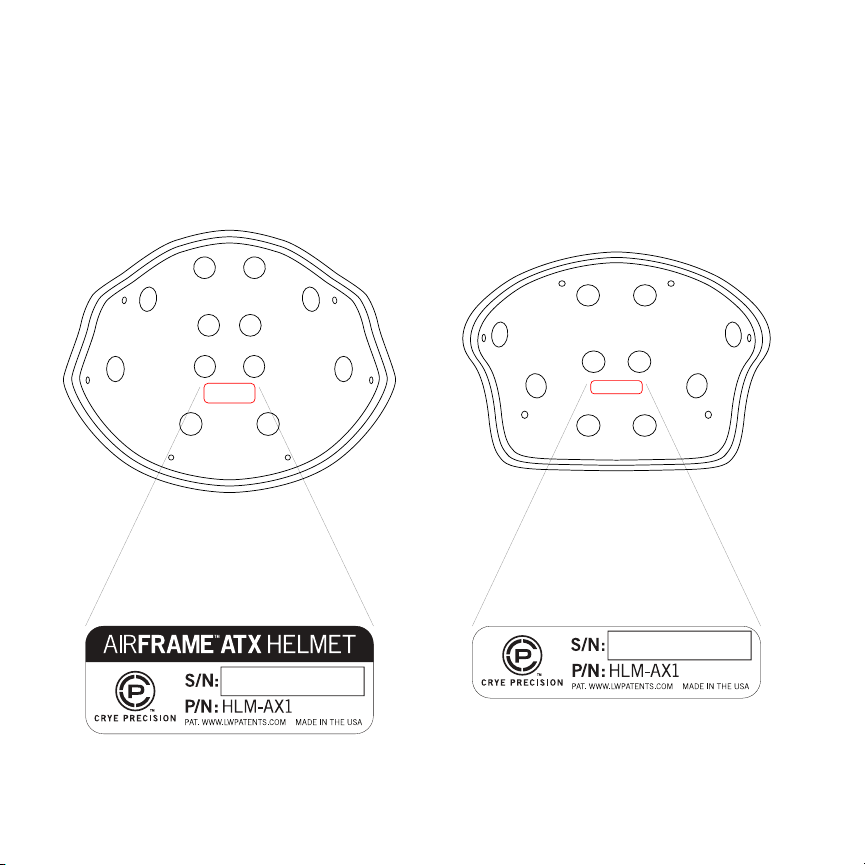

SERIAL NUMBERS
Front and rear helmet shells each have a unique serial number located on the inner shell surface. Write your helmet serial numbers below for
future reference. Serial numbers should be included when contacting Crye Precision about issues with your helmet or for replacement parts.
FRONT SHELL REAR SHELL

14NOTES
NOTES

ABOUT US
Crye Precision designs and manufactures
truly innovative equipment for America’s
ghting forces. We are proud and
honored to serve our customers' needs.
We spend as much time as we can with
users, continuously incorporating their
experience and feedback into the gear.
We give them our full support and are
indebted to them for their service and
their sacrice. We make uncompromising
gear for uncompromising individuals.
We work hard to provide smart, high-
performance, long-wearing gear for people
who demand the best. We make all of our
gear in America from American materials.
Every item is designed to help you
perform better.
WARRANTY
If a defect in materials or workmanship
is found in any of our products, we will
repair or replace it, free of charge, for
the lifetime of the product. This excludes
normal wear and tear. Be aware that
the customer is responsible for any
and all return shipping charges. This
applies to the original purchaser and is
nontransferable.
BODY ARMOR
It is against Federal Law for a person
convicted of a violent felony to purchase
or possess body armor. In addition,
various states also have laws restricting
the purchase or possession of body
armor by persons convicted of certain
felonies, other crimes of violence, or drug
crimes. By purchasing body armor, you
acknowledge and certify that (i) you have
no felony convictions, (ii) you have not
been convicted of any other crime that
would restrict your ability to purchase or
possess body armor under any Federal or
State law, (iii) you do not intend to use
the body armor for any criminal purpose
and (iv) you are over 18 years old. Crye
Precision reserves the right, in its sole
discretion, to refuse to sell body armor
to any person. Additionally, the sale of
body armor to residents of Connecticut is
restricted to in-person sales, unless the
sale is made to certain law enforcement
or military personnel. We require that all
orders of body armor be accompanied by
a government issued photo identication.
CONTACT INFO
Crye Precision LLC
Brooklyn Navy Yard
63 Flushing Ave Unit 252
Brooklyn, NY 11205
Phone: [phone]
Fax: [phone]
[email protected]
www.cryeprecision.com
COPYRIGHT
© 2014 Crye Precision LLC. AirFrame™
and the ‘CP’ logo are trademarks of Crye
Precision LLC.
REV 060614
