CSI CM24 User manual

Cabinet Softener Manual
Installation / Operation Manual

2
Softener Specications................................................................................... Page 3
Softener Installation........................................................................................ Page 5
Start Up Procedure.......................................................................................... Page 10
Master Programming...................................................................................... Page 12
Utilizing Bluetooth.......................................................................................... Page 13
Powerhead Assembly.................................................................................... Page 16
Valve Body Assembly...................................................................................... Page 17
Cabinet Body Assembly................................................................................. Page 19
Bypass Assembly.............................................................................................. Page 20
Additional Information.................................................................................. Page 21
Troubleshooting................................................................................................ Page 23
Error Codes........................................................................................................ Page 25
Warranty.............................................................................................................. Page 26
FCC Compliance Statement:
http://www.chandlersystemsinc.com/files/FCC_Compliance_Statement.pdf
Industry Canada Compliance Statement:
http://www.chandlersystemsinc.com/files/Industry_Canada_Compliance_Statement.pdf
One or more features of this product are covered by U.S. patents, visit http://csih2o.com/patents.php for more
information.
www.csiwater.com
Online at
Register Your Product

3
WARNING
Lubricants
Do NOT use Vaseline, oils, hydrocarbon lubricants or spray silicone anywhere! Petroleum base lubricants will cause
swelling of o-rings and seals. The use of other lubricants may attack plastic Noryl®. It is recommended that Dow
Corning® silicone grease be used as a lubricant for all control valves. Dow Corning® 7 Release Compound is used in
the manufacture of Chandler Systems control valves. (Part # LT-150)
Sealants
Pipe dope and liquid thread sealers may contain a carrier that attacks some plastic materials. It is recommended that
Teon® tape be used to seal plastic Noryl® threaded ttings.
Res-Up
The use of Res-Up or any other resin cleaners is prohibited. These cause deterioration of the control valve and
VOIDS warranty.
Softener Specications
General SpecicationsGeneral Specications CM24 CM32
Grains Capacity - Regeneration / Lbs Salt Used* 20,000 / 7.5 27,000 / 9
Maximum Raw Water Hardness (grains) 50 75
Maximum Clear Iron / Manganese 3 5
Exchange Resin (cu ft per tank) .75 1.0
Mineral Tank Size 9 x 35 9 x 35
Service Flow Rate** (gpm) 10.0 11.0
Backwash Flow Rate (gpm) 2.0 2.0
Gallons Used / Regeneration 86 88
Space Required (D x W x H) 23 x 14 x 45 23 x 14 x 45
Approximate Shipping Weight (lbs) 88 100

4
PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING
OPERATING PRESSURE RANGE : 20 - 125 PSI
OPERATING TEMPERATURE RANGE : 33º F - 120º F
INLET / OUTLET PIPE SIZE : 3/4: FNPT
PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES
PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES
Please read the entire Owner’s Manual and Instruction before installation.
This Owner’s Manual must stay with the unit.
-How A Water Softener Works-
Water hardness is derived from Calcium and Magnesium minerals that have been dissolved into the water under
the earth’s surface. These minerals are found in limestone deposits and are the source of hard water. The amount of
hardness in a given water supply is dependent upon the quantity of Calcium and Magnesium present and the length
of time water has been in contact with them. This can vary dramatically from well-to-well and, for this reason, a wa-
ter analysis is imperative in order to determine the proper treatment method. The degree of hardness increases as
the concentration of Calcium and Magnesium “ions” increase and is measured in Grains Per Gallon (gpg).
The problem of hard water in the home / business comes to light in many facets of daily use. Water spots and scum
left behind on bathtubs, xtures and showers; wear and tear on appliances; calcium build-up in hot water heaters
and piping; and, greater amounts of soap and detergents being used are just a few examples.
The modern water softener is designed to reduce hardness ions and their unpleasant side effects. Special resin beads
in the softener mineral tank are used to change hard water into soft water. The surfaces of these beads are covered
with sodium ions. As hard water enters the mineral tank and comes into contact with the resin, an exchange of ions
takes place as dissolved Calcium and Magnesium ions cling to the resin surface and sodium ions take their place, thus
softening the water. This process is called Ion Exchange. Over time, the sodium ions used for the exchange process
become depleted and must be replenished.
The water softener provides a Regeneration process whereby brine solution enters the mineral tank, driving-off the
collected hardness ions and replenishes the surface of the resin beads with more sodium ions. This process is auto-
matically initiated by the control valve on the mineral tank. The regeneration process has ve basic cycles as follows:
1. Backwash - The control valve directs the water ow in a reverse direction through the mineral tank, separating
the resin beads and ushing any accumulated particles to a waste drain.
2. Brine & Rinse - In the rst part of this cycle, the control valve directs brine solution downward through the miner
al tank, driving-off collected hardness ions and replenishing the resin beads with sodium ions. The second part of
the cycle rinses hardness ions and excess brine from the mineral tank to the waste drain.
3. Rapid Rinse - The control valve directs the water ow downward, settling and recompacting the resin bed.
4. Brine Rell - The control valve directs fresh water into the salt compartment to create new brine solution for the
next scheduled regeneration.
5. Service - This is the normal “operating” cycle where hard water enters the mineral tank, comes into contact with
the resin beads and exchanges hardness ions for sodium ions - the water then becomes “soft” and ready for use.
Softener Specications

5
-Pre-Installation Check List-
A water test should always be performed in order to determine total water hardness (in gpg) and total dissolved
iron (in parts per million - ppm). This is critical for proper equipment selection, sizing and for determining the pro-
gram for regeneration frequency. If heavy concentrations of iron (above 5 ppm), iron coloration, iron bacteria or
sediment are present, ltration prior to the softener will most generally be required. Certain states may require a
licensed plumber for installation.
Note : Flexible water supply connectors and exible drain line tubing may not be allowed in you locale. Please
check with local plumbing code ofcials prior to installation.
Installation Requirements
• A level oor position ahead of piping into water heater.
• Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot
water.
• DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur! (See Installation
Diagrams for proper placement and plumbing connections.)
• A level oor position ahead of piping into water heater.
• Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot
water.
• DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur!
(See Installation Diagrams for proper placement and plumbing connections.)
-Major System Components-
1. Cabinet Tank - This tank holds the salt that is added to the softener. This salt is dissolved with water to form a
brine solution used in the softener regeneration process.
2. Resin Tank - This tank contains the ion exchange resin media. Water ows through the resin tank under pressure
to come into contact with the resin for water softening.
3. Control Valve - The valve directs water through the resin tank for water softening and controls the ow of water /
brine for the regeneration process.

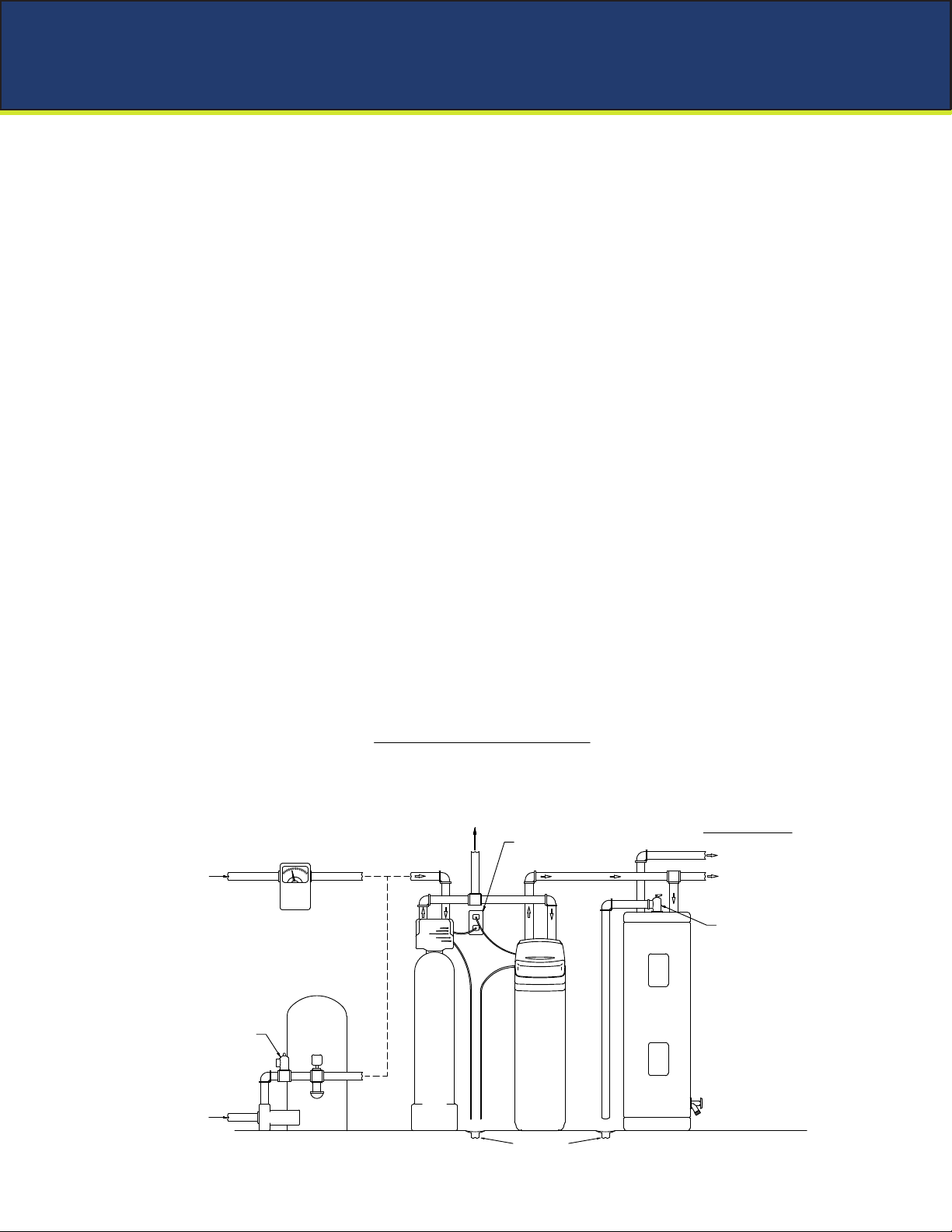

Installation
CITY WATER
INLET
WELL
INLET
RELIEF VALVE
MUST BE
INSTALLED
PRESSURE
TANK
WATER
METER
FILTER
(If req.)
WATER
HEATER
PRESSURE RELIEF VALVE
(To drain)
PUMP
HARD WATER
TO OUTSIDE FAUCETS
HOT SOFT WATER
COLD SOFT WATER
SERVICE
TWO TANK SETUP
(Incoming Water from Left-Side)
GROUNDED & UNSWITCHED
115- VOLT OUTLET
DRAIN LINES
REQUIRED
4" AIR GAP
CABINET
SOFTENER

6
Installation
-Softener Location / Other Requirements-
• Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet.
• Check for distance and proper drain installation (e.g. oor drain, washing machine standpipe).
• Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic).
Note
• If household plumbing is galvanized and you intend to make the installation with copper (or vise versa), obtain
di-electric unions to prevent dissimilar metal corrosion.
• Where the drain line is elevated above the control valve or exceeds 20 feet in length to reach the drain, use 3/4"
I.D. drain line tubing instead of 1/2" I.D. Drain line tubing is not included.
• All plumbing lines not requiring “soft” water should be connected “upstream” of the softener.
• The cabinet brine tank drain line is gravity ow and must discharge below the overow tting.
• The cabinet brine overow is provided as a back-up in the event the safety oat shut-off should fail, allowing the
brine tank to overll. This drain connection would then carry the excess water to the drain and prevent ooding of
the oor. Therefore, no liability will or can be assumed by the manufacturer of the softener should this occur.
Caution
• If sweat soldering copper pipe (remember to always use lead free solder and ux), cover bypass valve with wet
rags to prevent heat damage to connections and control valve! If using PVC or plastic pipe primers and solvent
cements specically recommended for use with potable water are required.
-Installation Procedure-
- Water Supply Connections and Bypass Valve -
To allow for softener servicing, swimming pool lling or lawn sprinkling, a manual bypass valve has been installed
at the factory. The bypass allows hard water to be manually routed around the softener.
1. Position softener at desired location for installation. (See Installation Diagrams.)
2.Turn OFF main water supply and OPEN nearest faucet to relieve pressure.
3. Cut main line and install appropriate elbows and extensions. Inlet and outlet connections on the control valve are
3/4” FNPT.
Caution: Raised arrows located on the sides of control valve body and bypass valve indicate proper direction of wa
ter ow. Install inlet and outlet piping in direction of arrows. It is recommended that a vacuum breaker be
installed on the inlet plumbing.
4. Rotate bypass valve to the bypass position (position of lever is at right angle to inlet / outlet piping).
5. Turn the main supply line on to restore water service to the home.
6. OPEN nearest faucet to evacuate air and repressurize plumbing lines.
7. Check for leaks!

7
-Drain Line Connection-
1. The drain line ow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the
drain line, please remove the barb tting. The ow control housing can be removed by removing the clip and pull
ing straight out on housing.
Note: When re-installing the drain line ow control housing, be sure you hear and feel the O-Ring pop into place
before inserting the clip.
2. Install 1/2” I.D. drain line tubing (not included) from hose barb to an open drain. A 4” gap between end of the drain
line and the open drain is required to prevent waste water backow. Keep the drain line as short as possible. An
overhead drain line can be used if necessary, but should discharge below the control valve. A syphon trap (taped
loop) at the outlet of the drain line is advisable to keep the drain line full and assure correct ow during backwash.
Elbows or other ttings must be kept at a bare minimum.
Note: Where the drain line is elevated above the control valve or exceeds 20 feet in length, 3/4” I.D. drain line tubing
should be used.
-Brine Line and Overow Connection-
1. The brine line tubing is already installed for you.
2. Install 1/2” I.D. drain line tubing (not included) to the overow tting on brine tank located just below the brine
line.
3. Run the opposite end of brine tank drain line to a suitable drain.
Installation
- Electrical Connection and Battery Back Up-
1. Connect one end of power supply into a power cord and the other end into a 115 volt / 60 Hz receptacle.
Note : Do not plug into an outlet controlled by a wall switch or pull chain that could inadvertently be turned off
Battery Backup
1. Remove cabinet lid and insert 9 volt battery in valve as shown.
9 Volt Battery

8
Installation
- Pressurizing The System -
1. Make certain the Control Valve is in SERVICE position.
2. Slowly rotate bypass valve to the SERVICE position. (Position of bypass lever is parallel to inlet / outlet piping.)
3. Open the nearest faucet to evacuate air from plumbing lines.
4. Check for leaks! If water is observed leaking from bottom of bypass, close and open bypass lever several times to
seat o-rings. Exercise bypass valve.
5. After air is evacuated from plumbing lines, close bypass (position of bypass lever is perpendicular to the direction
of inlet pipe) on bypass valve.
- Programming The Control Valve -
Main Menu
12:00
1. To enter Main Menu, press the Menu/Enter button.
(Time of Day will ash)
2. To set the Time of Day, press the Set/Change button.
(First digit will ash) Example [12-00]
- To change digit value, press the Set/Change button.
- To accept the digit value, press the Menu/Enter button.
- Next digit will ash to begin setting.
- Once the last digit display is accepted, all digits will ash.
3. To set A.M. or P. M ., press the Menu/Enter button.
- To change digit value, press the Set/Change button. Example [ A ]
- To accept the digit value, press the Menu/Enter button.
- Once A.M. or P.M. is accepted, the next menu item will ash.
4. To set Hardness an “H” will appear to enter Compensated Hardness in grains per gallon (gpg)
Default setting is 25 gpg. Example [ H - 25]
5. To Exit Main Menu, press the Menu/Enter button.
Note: If no buttons are pressed for 60 seconds, the Main Menu will be exited automatically.
MENU / ENTER
BUTTON
SET / CHANGE
BUTTON

9
1. Set time of day.
2. Set a.m. or p.m.
3. Set water hardness in grains per gallon (gpg).
Note: If the water contains iron and / or manganese, multiply the total parts per million (ppm) by “four” (4) and then
add to the grains per gallon (gpg) of hardness. Use this COMPENSATED HARDNESS level when programming
the regeneration frequency.
1. Set regeneration day override if other than (7) days is desired. (This is particularly useful when iron is being treat
ed to prevent fouling of the resin.)
2. Set regeneration time, if other than 2:00 a.m. is desired.
-Start Up Procedure-
1. Put unit in bypass using the handles behind the control valve.
2. Start a regeneration by pressing and holding the set change button for 3 seconds.
a. The display may show zeros or a 1, repeat holding the set change button.
3. Display on unit should read 1-10 (Step 1-10 min). Very slowly open the inlet bypass to remove any remaining
air.
4. After the inlet bypass has been fully opened slowly, open the outlet bypass and let unit backwash for 2 min
utes or until water is clear. Verify water is going to drain.
5. Fill the brine tank with a 5-gallon bucket of water and add the provided Sani pack.
a. If you have already added salt, then pour the water and Sani pack down the white 4in brine well
cylinder.
6. Advance unit to next regeneration cycle (Step 2-Brine draw) by holding the set change button for 3 seconds.
7. Stay in (step 2- Brine draw) for an additional 10 minutes and verify all water has been drawn out of the brine
tank.
8. Advance unit to next regeneration cycle (Step 3-Rapid Rinse) by holding the set change button for 3 seconds.
Stay in this step for 2 minutes. Verify water is going to drain.
9. Advance unit to next regeneration cycle (Step 4- Brine ll) by holding the set change button for 3 seconds.
Let this step continue until minutes remaining are zero and the time of day appears on display.
a. When nished the brine tank should have water above the salt grid.
10. Lastly add salt to the brine tank. Do not ll salt higher than the brine well.
- Filling The Brine Tank With Salt -
To expect a high level of performance and reliability, a salt manufactured specically for water softeners must be
used. Salt of this grade is virtually free from dirt and other particulates that would eventually cause the softener to
malfunction. A pellet type salt is recommended, although any high quality water softener salt (such as solar salt) will
sufce. If iron is present in raw water, use of iron inhibiting salt is recommended. The salt level will decrease after
each regeneration cycle. Consequently, the salt compartment will need to be checked and replenished periodically.
1. Fill the salt compartment with water softener salt as described above. This will be approximately 150 pounds of
salt.
Warning : Do not ll salt above level of the brine well.
2. Close cabinet brine tank lid.
Start Up Procedure

10
- Final Check -
1. Be certain the bypass valve is in the SERVICE position.
2. Make sure the power supply is connected to an uninterrupted 115-volt outlet.
3. Check that the time of day is set
4. Double check regeneration schedule.
5. Make nal check for leaks!
6. Fill out warranty card online at www.csiwater.com
7. Leave all manuals with unit.
- Operation, Care and Cleaning -
When the bypass valve is in the SERVICE position (position of bypass lever is parallel to the inlet / outlet piping),
water is directed through the water softener. Water may be bypassed by turning the lever to the bypass position
(position of bypass lever is at right angles to inlet / outlet piping). Water to the home will bypass the softener and be
untreated.
You should manually bypass the softener if :
1. The outside lines do not bypass the water softener and water is to be used for lawn sprinkling or other similar uses.
2. Servicing the water softener.
3. A water leak from the water softener is evident.
4. Shock treating water well and piping with chlorine or other disinfectant.
Start Up Procedure
- General Care and Cleaning -
1. Do not place heavy or sharp objects on water softener or cabinet.
2. Use only mild soap and warm water to clean exterior of the unit. Never use harsh, abrasive cleaners.
3. Protect the water softener and drain line from freezing.
4. Reset time for daylight saving time periods.
5. Inspect and clean the brine tank when sediment appears in the bottom of the salt compartment.
6. Always keep the brine tank supplied with good quality salt, a type designed for use in water softeners.

11
Starting Extra Regeneration Cycle
1. To Start Delayed Extra Cycle
- Press and hold the Set/Change button for 3 seconds until the display reads ‘0000’
- Regeneration cycle will initiate at the next designated regeneration time.
2. To start Immediate Extra Cycle First complete above step.
- With Gallons Remaining Until Next Regeneration at ‘0000’,
- Press and hold the Set/Change button.
- After 3 seconds, the regeneration cycle will begin.
3. To Fast Cycle thru regeneration First complete above 2 steps.
Note:Press and hold the Set/Change button for 3 seconds to advance to the next cycle step.
Fast Cycle is not necessary unless desired to manually step through each cycle step.
(Repeat until valve returns to the home display)
Start Up Procedure
Normal Operation
1. Home Display
The RS1 model will alternate the Time of Day and Gallons left until the next regeneration. The meter will
count down to zero (0000) and then regenerate at the scheduled time set.
Softeners Default (Min)
Step 1 Backwash 10
Step 2 Brine & Rinse 60
Step 3 Rapid Rinse 10
Step 4 Brine Rell 9 lbs/ cu ft

12
Master Programming Mode
Master Programming Mode
To enter Master Programming Mode, press and hold both buttons for 5 seconds.
Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT
necessary to enter Master Programming Mode.
1. Regeneration Time ( r ) Example [ r 2A ]
- The time of day at which regeneration may take place is designated by the letter “r”.
- Default regeneration time setting for SOFTENERS is 2a
- The rst display digit indicates A.M. or P.M. To change the value, press the Set/Change button.
- Press Menu/Enter button to accept the value and move to the next digit.
- The second and third display digits indicate the hour at which the regeneration will occur.
- Change the digits with the Set/Change button and accept with the Menu/Enter button.
- After the entire display ashes, press the Menu/Enter button to move to the next menu item.
2. Regeneration Day Override (A)
- Press Menu/Enter button. This display is used to set the maximum amount of time (in days) the unit can be
in service without regeneration. This setting is identied by the letter “A” in the left digit. Regeneration will
begin at the scheduled time. A setting of zero will cancel this feature.
- Example: Override every 7 days (A-07), default setting, or cancel setting (A-00). Maximum is 29.
3. Regeneration Cycle Step Times (Steps 1, 2, 3, 4)
Example [ 3 - 10 ]
- The next 4 displays set the duration of time in minutes for each regeneration cycle step.
- The step number which is currently modiable is indicated on the far left of the display screen.
- The number of minutes allotted for the selected backwash step is displayed on the far right.
- Change the digit values using the Set/Change and Menu/Enter buttons as described above.
Warning : Do not reduce salt settings below 9 lbs. as the water level in the brine tank will not reach the grid plate.
4. System Capacity in Grains ( c )
- Press the Menu/Enter button. This display is used to set the system capacity in grains and is used in
conjunction with the hardness setting to calculate total gallons of treated water available between regen
erations. This option is identied by the letter “c” in the left digit.
The maximum value for this item is 399. Example: 32,000 grain capacity ( c 032 ).
5. Reserve Capacity Setting % Example (p - 25)
6. Bluetooth Enabled BE - 1 (ON)
BE - 0 (OFF)
7. Bluetooth Password BBPP is displayed for one second, then password is displayed.
8. To Exit the Master Programming Mode, press the Menu/Enter button until time of day returns.
Note: If no buttons are pressed for 60 seconds, the Master Programming Mode will be exited automatically.

13
For simplied set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart
phone or tablet.
1. Download and install the Legacy View app from the Google Play Store, Apple App Store
2. Open the Legacy View app
• Choose a valve device at any time from the list of available devices to connect to by clicking on it.
• If the valve you want to connect to doesn’t show up, or there is a problem connecting to a device you can
press the “Scan for Devices” button or the Legacy View logo at any time to refresh the list and start the
process over.
• If the valve device is a BTLE valve and it has a password other than the default password, the rst time you
connect to it the app will ask you to enter the password. After entering it the rst time you should not
need to enter it again unless it changes.
3. BTLE Valve devices can be updated by the App. When the app is updated from the Google Play Store or the Apple
App Store, it may contain an updated rmware program for the valve devices. These updates could contain new
features or operational improvements. It is up to the user to allow these updates to be sent to the valve device.
Uploading a new program takes approximately 1 minute.
Dashboard
NOTE: Consult your dealer before making any changes
From the Dashboard, all items in ORANGE can be changed, while blue fields are informational only.
If you are unsure about the function of the eld click the for more information.
Utilizing Bluetooth Control

14
Set Up Utilizing Bluetooth App
Advanced Settings
NOTE: Consult your dealer before making any changes. We do not recommend changing Advanced Settings unless
you have a good understanding of the system operation.
From the Advanced Settings, all items in ORANGE with a “set” button can be changed.
For Filters:
Set Backwash Frequency
This sets the amount of day between backwash cycles
Change Time of Day (Press “SET” to set time automatically based on device).
Set Regeneration Time
Example: For 2a.m., just type 2, choose a.m., and press ‘OK’
Note: If you have a lter and a softener the valves should be set to regenerate
at different times. Factory default times are 12a.m. for lters, and 2 a.m.
for softeners.

15

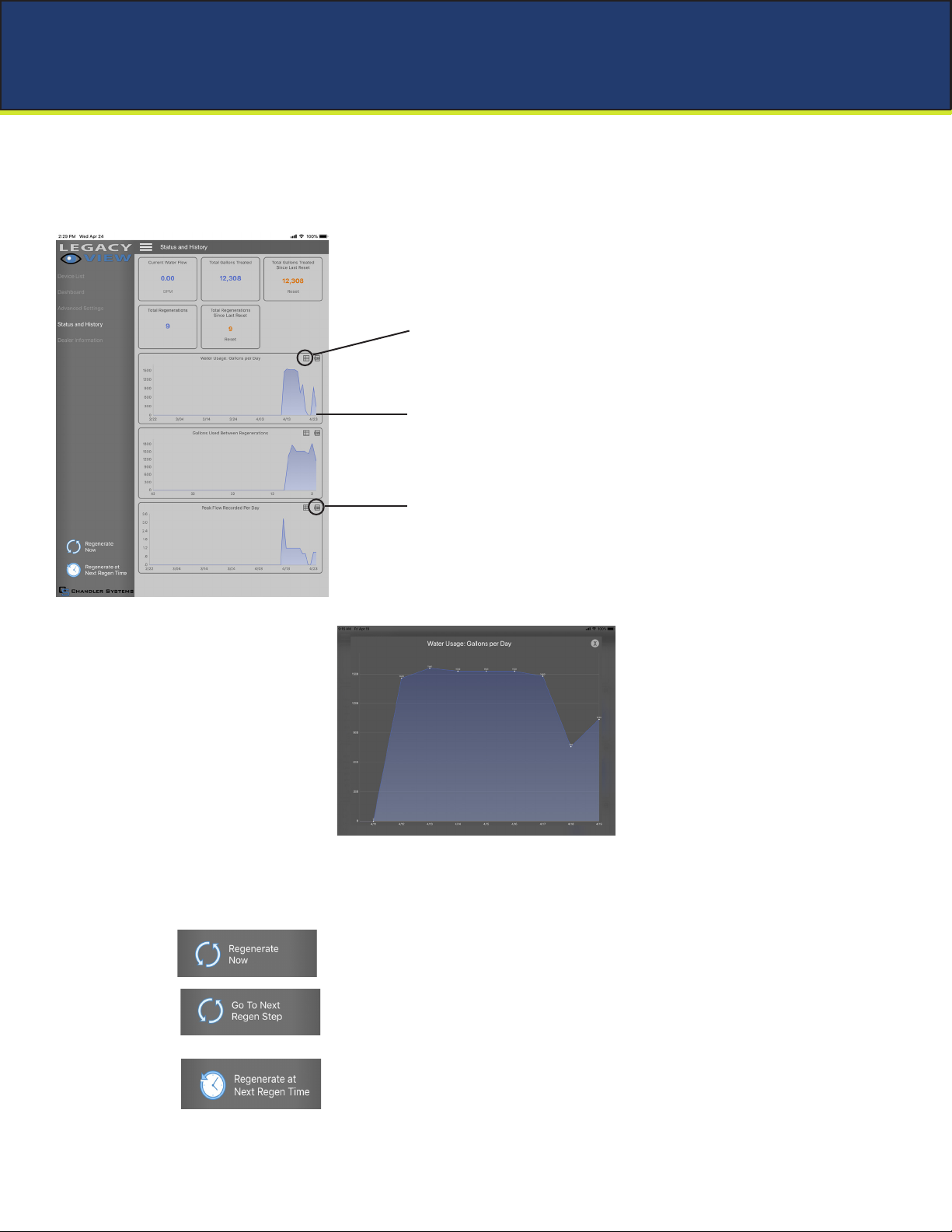

Status and History
From the Status and History, all items in ORANGE can be reset.
1. Start a regeneration or backwash cycle
Option 1: Click the “Regenerate Unit Now.”
Once a regeneration has been started, if you would like to force the unit into the
next cycle step click “Go to Next Regeneration Step”.
Option 2:
Touch any graph to enlarge and see
details. Enlarged graphs are able to be
zoomed in by pinching with two
ngers.
(Enlarged graph shown below)
“Regenerate Unit at Next Regen Time” button
This will take the system into a backwash cycle at the next regeneration time.
Set Up Utilizing Bluetooth App
Pressing the .csv logo in the corner
will allow the graph data to be
exported and shared.
Enlarged graph showing water usage
Pressing this icon will show a list of
the data that is in the graph.

16
Power Head Assembly
REF DESCRIPTION PART NO. QTY
0Metered Power Head Assy. 21003X100 1
1 Softener Circuit Boad Assy. 22003X102 1
2 Encoder 20001X124 1
3Front Plate 20001X004 1
4 Encoder Wheel 20001X007 1
5 Main Gear 21001X120 1
6 Power Supply 20001X125 1
7Back Plate 20001X005 1
8Lower Front Base For Cover 20111X002 1
9Legacy View Motor Assy. 20016X006 1
10 Lower Back Base for Cover 20111X003 1
12 6 X 1/2” Slotted, Hex Head 20001X003 1
13 6 X 1/2” Phillips, Pan Head SC10 3
14 6 X 1/2” Slotted, Hex Head Blk SC9 2
15 6 X 1/2 Fenderwasher SST 20001X002 1
16 Washer Circuit Board 20111X014 1
17 6-32 X 5/16” Phillips, Pan Head SC2 1
21 10-24 X 3/4” Screw SST 20001X001 2

17
Cabinet Valve Body Assembly
2
8
1
3
11 12
10
14
15 16
17
9
4
5
13
18
7
6
6
6
6A

18
Valve Body Assembly
REF DESCRIPTION PART NO. QTY
1 Piston Assembly 20001X231 1
2 10-24 X 3/4” Screw SST 20001X001 3
3Seal and Spacer Kit 20561X253 1
4 End Spacer 20001X234 1
5
Flow Control Button 1.5 GPM 20251X266 1
Flow Control Button 2.0 GPM 20251X267 1
Flow Control Button 2.4 GPM 20251X268 1
6A DLFC Assy. 20017X251 1
790 Degree Hose Barb Elbow 20017X266 1
8 Brine Valve 20561X225 1
9Brine Line Connection 20561X006 1
10 10-24 X 3/4” Screw SST 20001X001 2
11 Injector Cap 20001X223 1
12 Injector Cap Seal 20001X224 1
13 Injector, White 20017x219 1
Injector, Blue 20017x220 1
14 Injection Screen 20001X222 1
15 Plug 20001X217 1
16 Tank. O-Ring 20015X043 1
17 Dist. O-Ring 20561X204 1
18 Meter Assembly 20017X203 1

19
Cabinet Body Assembly
40470X001
(Top Cap Cabinet)
40470X000
(Bottom Cabinet includes brine well)
• To remove top cap of cabinet, pull bottom back of
base outwards and lift up gently.
• To add top cap back on cabinet line up to bottom
and gently push down snapping back into place.

20
Bypass Assembly
REF DESCRIPTION PART NO. QTY
1 D15 Bypass 20017X283 1
2 1” NPT 90 ° Elbow Set 20017X284 1
1
2
120017X283 D15 Bypass
220017X284 1" NPT 90° Elbow Set
