CTM LYNG MICROSAFE mKomfy Hybrid 400R User manual

Installation Instructions
mKomfy Hybrid 400R
(mKomfy Hybrid 400R Plug & Play)
Part No. 6251635 (P&P 6251636)

2
Facts
The mKomfy Cooker Guard is a safety product for use in private homes that
has been developed to prevent fires when cooking.
These instructions apply to Hybrid sensors from SN: 2044 -010000
The mKomfy Hybrid is a Class B cooker guard and does not react to flames
or smoke. It relies on a clear view from the sensor to the hob in order to
detect heat.
The cooker guard will therefore be unable to prevent a fire if the hob is
covered with flammable materials (e.g. cardboard, newspaper), or if such
materials catch fire near the hob.
In order to avoid false alarms, the cooker guard spends a short amount of
time analysing the information from the hob. Hobs powerful enough to
start a fire in under 120 seconds work so quickly that the cooker guard may
find it hard to react before a fire is ignited, depending on the cookware and
the substances in it on the hob.
The product assumes normal care in the use of the cooker and associated
cookware. In normal use the cooker should be kept under frequent
observation, even if safety equipment such as mKomfy is installed.
Lots of smoke will be produced before the device is triggered, so optional
extras such as Power Break could help to make the kitchen a safer place.
The product must be installed and maintained correctly as described,
andmay only be fitted by an authorised electrician.
For more information, visit us at
www.ctmlyng.no
If you have further questions or require
assistance, please contact our support on
Tel: [phone]
Email: [email protected]

3
Accessories
Safety functions
Overheating
The cooker guard monitors the temperature of the cooker and sounds the
alarm if it exceeds the upper limit.
The temperature alarm beeps 3 times every 5 seconds for 20 seconds and
a red light comes on in the sensor. Reduce the temperature of the cooker
immediately to prevent it being turned off, or press the control button on
the sensor to approve the higher temperature for a set time.
Anti-tamper function
The cooker guard has an integral safety function which detects if the
sensor is not correctly mounted in the fixing bracket. If the cooker is in
use and the sensor is incorrectly mounted, the security function will be
activated and beep 5 times in 5 seconds before turning the cooker off.
Replace the sensor in the bracket and press the control button to continue
using the cooker.
Optional timer function (see page 12 for activation)
When the cooker guard detects that the cooker has been turned on, it can
start a built-in timer (countdown clock). When the timer reaches zero, the
cooker is turned off. To restart the timer, press the control button on the
sensor once.
Optional extras for the mKomfy Hybrid cover
additional needs and safety. Compatible with
newer wireless accessories labelled “v2”.
External
reset button*
External
master switch
mTouch®
HUB
Power Break
* Recommended for ceiling mounting – performs the same function as a control button

4
Installation – Socket
Fitting the socket (may only be carried out by authorised personnel)
1. Connect and fit the socket (does not apply to P&P version).
2. Connect the cooker plug to the cooker guard’s socket.
3. Check that power is connected to the socket.
NB: The sensor and socket are factory-paired
and ready to install
See page 15 if re-pairing is necessary
Figure 1

5
Installation – Socket
Status LEDs
Green lights up when relay is ON
Blue flashes when data is received from paired units (e.g. sensor)
Blue +
Green
flash
alter-
nately
1 minute after emergency mode is activated and
continue to flash while the product is in emergency
mode (12 hours).
Red flashes if relay overheats – relay is turned OFF
Red flashes +
beeping
if there is an error, e.g. external switch paired before
sensor
Yellow lights up when cooker’s electricity consumption exceeds 1.2 A**
Yellow flashes in pairing mode
* emergency mode = all safety functions deactivated. See page 15.
** 1.2 A is the factory default. After calibration, the LED lights up when
thenew setting is exceeded (page 12)
If there is no radio communication from the sensor, the relay will shut off after
5minutes.

6
Installation – Sensor
NB: The sensor and socket are factory-paired and ready to install
See page 15 if re-pairing is necessary
Fitting the sensor
• The sensor must be fitted at least 70 cm above the hob, either in the
hood or on the ceiling.
• Take note of the coverage (page 7) when fitting the sensor at different
heights.
• The mounting hole is suitable for mounting on a standard wall box.
1. Find a suitable location, see drawings on page 8-10.
2. Mount the bracket.

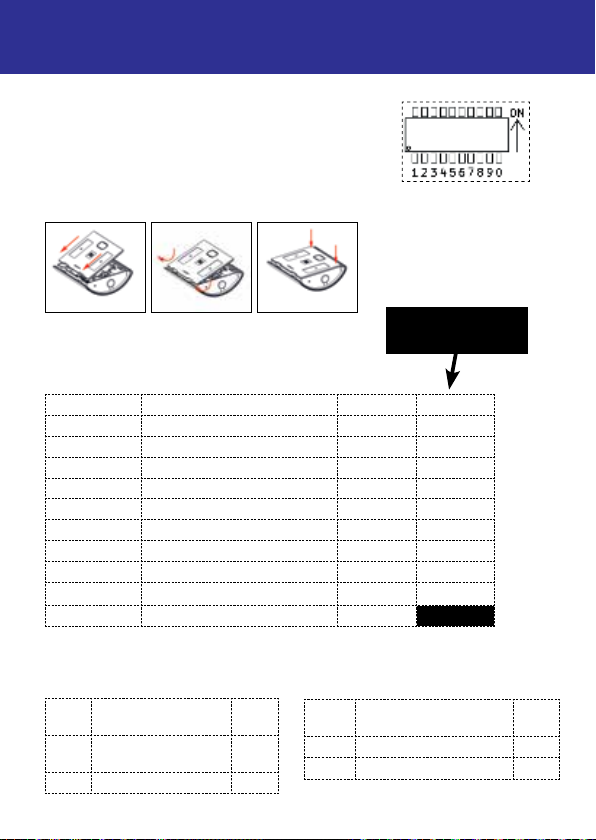

3. Set the DIP switches to the chosen height and angle (page 12).
4. Insert the batteries (2 beeps = OK), or connect an external power
supply.
5. Put the sensor in the bracket and press the control button on
the sensor once. A short beep confirms that the sensor is in
communication with the socket and working.
6. Make sure that only the green LED on the socket lights up when the
cooker is connected and turned off. If the yellow LED lights up, the
cooker’s standby electricity consumption is higher than the default
setting. In this case the level in the mKomfy can be calibrated to the
cooker’s actual electricity consumption, see page 12.
Power supply
The sensor can be used with batteries (3 x AA, supplied) or an external
power supply.
NB: It is not possible to use batteries and a power supply at the same time.
The batteries must be removed if an external power supply is used.
Skins for the front panel
On our website, you can find dimensioned sketches for making
your own skins, which you can cut to size and position under
the sensor’s front panel.
See www.ctmlyng.no/hybrid

7
Installation – Sensor
Coverage
Orientation
Arrow points towards hob
DISTANCE
HOB
2
SENSOR
MAX.
WIDTH
HOB
MAX. DEPTH
HOB
70 73 44
75 78 47
85 88 54
95 99 60
105 109 66
110 115 69
115 120 73
120 125 76
125 130 79
130 135 82
135 141 85
140 146 88
145 151 91
150 156 95
155 161 98
160 167 101
165 172 104
170 177 107
175 182 110
180 187 114
185 193 117
190 198 120
195 203 123
200 208 126
205 213 129
210 219 132
Dimensions in cm

8
Installation – Sensor

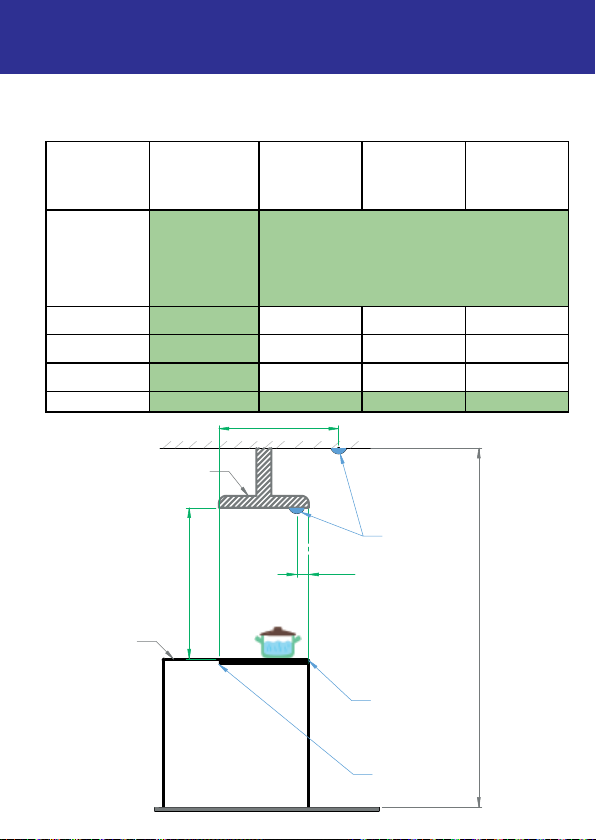

Kitchen island with suspended extractor
Extractor Sensor
mounted on
extractor
Sensor
mounted
on ceiling,
height = 2.4 m
Sensor
mounted
on ceiling,
height = 2.7 m
Sensor
mounted
on ceiling,
height = 3.0 m
A
Mounting
height above
hob
B
Distance
measured from
front edge
(a) of hob
C
Distance measured from back edge (b)
of hob
70 cm - 80 cm 8.5 cm not recom-
mended not recom- mended not recom- mended
80 cm - 99 cm 5.5 cm - 8.5 cm not recom-
mended not recom- mended not recom- mended
100 cm - 115 cm 0 cm - 4 cm not recom-
mended not recom- mended not recom- mended
≥ 115 cm 0 cm 80 cm 95 cm 110 cm
B
ceiling height
C
ceiling height
D
A
sensor
kitchen
island
a - front edge
of hob
b - back edge
of hob
b - back edge of hob
kitchen
island
sensor
worktop extractor
ceiling-mounted extract
Sensor installasjonsinstruks til kjøkkenøy med fritthengende ventilator over platetopp. Tegning fig.1-1
Sensor installasjonsinstruks til kjøkkenøy med benkventilator eller takintegrert ventilator. Tegning fig. 1-2
suspended extractor
figur 1-1
figur 1-2
Kjøkkenøy med :
Fritthengende
ventilator,
benkventilator eller
takintegrert ventilator
Ventilator
monteringshøyde fra
platetopp
Sensor plassering på
ventilator - avstand
målt fra framkanten
(a) av platetopp
Sensor plassering på
tak, høyde = 2,4 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 2,7 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 3,0 m
- avstand målt fra
bakkanten (b) av
platetopp
A B CCC
Fritthengende
ventilator
70 cm - 80 cm 8,5 cm
ikke anbefalt ikke anbefalt ikke anbefalt
80 cm - 99 cm 5,5 cm - 8,5 cm
ikke anbefalt ikke anbefalt ikke anbefalt
100 cm - 115cm
0 cm - 4 cm
ikke anbefalt ikke anbefalt ikke anbefalt
≥
115 cm
0 cm 80 cm 95 cm 110 cm
Kjøkkenøy med:
benkventilator eller
takintegrert ventilator
Sensor plassering på
tak, høyde = 2,4 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 2,7 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 3,0 m
- avstand målt fra
bakkanten (b) av
platetopp
D
D
D
Benkventilator eller
takintegrert ventilator
70 cm - 80 cm 70 cm- 95 cm 70 cm - 110 cm
kjøkkenøy
PART NUMBER:
edit
DATE: DRAWN BY:
editedit
TOLERANCES:
edit
kjøkkenøy
edit
SHEET 1 OF 2 SCALE:1:20 (A3)
DRAWING NAME:
PART NAME:
REVISION:
DO NOT SCALE DRAWING
MATERIAL:
DEBURR AND BREAK SHARP EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MILLIMETERS
Figure 1-1
Table for figure 1-1

9
Installation – Sensor
Kitchen island with worktop/ceiling-mounted extractor
Sensor mounted
on ceiling,
height = 2.4 m
Sensor mounted
on ceiling,
height = 2.7 m
Sensor mounted
on ceiling,
height = 3.0 m
D
Distance measured from back edge (b)
of hob
70 cm - 80 cm 70 cm - 95 cm 70 cm - 110 cm
B
ceiling height
C
ceiling height
D
A
sensor
kitchen
island
a - front edge
of hob
b - back edge
of hob
b - back edge of hob
kitchen
island
sensor
worktop extractor
ceiling-mounted extract
Sensor installasjonsinstruks til kjøkkenøy med fritthengende ventilator over platetopp. Tegning fig.1-1
Sensor installasjonsinstruks til kjøkkenøy med benkventilator eller takintegrert ventilator. Tegning fig. 1-2
suspended extractor
figur 1-1
figur 1-2
Kjøkkenøy med :
Fritthengende
ventilator,
benkventilator eller
takintegrert ventilator
Ventilator
monteringshøyde fra
platetopp
Sensor plassering på
ventilator - avstand
målt fra framkanten
(a) av platetopp
Sensor plassering på
tak, høyde = 2,4 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 2,7 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 3,0 m
- avstand målt fra
bakkanten (b) av
platetopp
A B C
C
C
Fritthengende
ventilator
70 cm - 80 cm 8,5 cm
ikke anbefalt ikke anbefalt ikke anbefalt
80 cm - 99 cm 5,5 cm - 8,5 cm
ikke anbefalt ikke anbefalt ikke anbefalt
100 cm - 115cm
0 cm - 4 cm
ikke anbefalt ikke anbefalt ikke anbefalt
≥
115 cm
0 cm 80 cm 95 cm 110 cm
Kjøkkenøy med:
benkventilator eller
takintegrert ventilator
Sensor plassering på
tak, høyde = 2,4 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 2,7 m
- avstand målt fra
bakkanten (b) av
platetopp
Sensor plassering på
tak, høyde = 3,0 m
- avstand målt fra
bakkanten (b) av
platetopp
D
D
D
Benkventilator eller
takintegrert ventilator
70 cm - 80 cm 70 cm- 95 cm 70 cm - 110 cm
kjøkkenøy
PART NUMBER:
edit
DATE: DRAWN BY:
editedit
TOLERANCES:
edit
kjøkkenøy
edit
SHEET 1 OF 2 SCALE:1:20 (A3)
DRAWING NAME:
PART NAME:
REVISION:
DO NOT SCALE DRAWING
MATERIAL:
DEBURR AND BREAK SHARP EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MILLIMETERS
Table for figure 1-2
Figure 1-2

10
Installation – Sensor
Wall-mounted hob/extractor
Extractor Extractor
Sensor mounted
on ceiling,
height H = 2.4 m (3.0 m)
A
depth
B
mounting height
above hob
C
distance
from wall
< 50 cm min. 50 cm 88 cm( 119 cm)
≥ 50cm min. 70 cm 88 cm( 119 cm)
Table for figure 1-3
Figure 1-3
10 cm
B
H = ceiling height
A
C
approx. 10 cm from wall
sensor
ved vegg
Veggplassert platetopp med vegg/skap montert ventilator. Tegning fig.1-3
figur 1-3
Sensor Installasjonsinstruks til
vegg/skap montert ventilator
Ventilator
monteringshøyde fra
platetopp
Plassering av sensoren-
avstand fra vegg for tak
høyde H = 2,4 m (3,0 m)
A B C
Ventilator dybde
<
50cm
min. 50 cm 88 cm (119 cm)
Ventilator dybde
≥
50cm
min. 70 cm 88 cm (119 cm)
ved veggen
PART NUMBER:
edit
DATE: DRAWN BY:
editedit
TOLERANCES:
edit
ved veggen
edit
SHEET 1 OF 1 SCALE:1:20 (A3)
DRAWING NAME:
PART NAME:
REVISION:
DO NOT SCALE DRAWING
MATERIAL:
DEBURR AND BREAK SHARP EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MILLIMETERS

11
Installation – Settings
DIP Function Default Set to
DIP 1 Sound ON
DIP 2 Light ON
DIP 3 Installation angle ON
DIP 4 Installation height ON
DIP 5 Installation height ON
DIP 6 Timer ON
DIP 7 Timer ON
DIP 8 Current measurement* ON
DIP 9 Autoconnect ON
DIP 0 Test mode OFF
Settings
All settings are made with DIP switches, which are
mounted on the PCB in the sensor.
The switch marked 0 activates test mode.
Taking the sensor off/putting the sensor on the
sensor bracket (back cover)
List of DIP switch functions
You will find more information on each function
and setting on the next few pages.
To be completed
by installer
Fylls i av
* Should only be deactivated if an external power supply is used
DIP 1 Audible alarm De-
fault
OFF Deactivates all
sound
ON 
DIP 1: Audible alarm
DIP 2 Visual alarm De-
fault
OFF Deactivates all lights
ON 
DIP 2: Visual alarm

12
Installation – Settings
DIP 3 Installation angle De-
fault
OFF 0 - 45 (sloping
ceiling)
ON 0 (flat ceiling) 
DIP 4 DIP 5
Installation
height
above hob
De-
fault
OFF OFF 70 - 104 cm
ON OFF 105 - 149 cm
ON ON 150 - 194 cm 
OFF ON 195 - 210 cm
DIP 3: Installation angle DIP 4 and 5: Installation height
DIP 6 and 7: Timer function
The countdown starts when
the cooker is turned on. When 5
minutes of the set time are left,
the cooker guard beeps once
every 15 seconds for 5 minutes.
Pressing the control button
restarts the countdown.
DIP 6 DIP 7 Minutes De-
fault
ON ON Off 
OFF ON 45 min.
ON OFF 120 min.
OFF OFF 240 min.
DIP 8: Current measurement
NB! Turning current
measurementOFF will reduce
battery life considerably. Should
only be deactivated if an external
power supply is used.
Calibrating electricity consumption
If the yellow LED on the SOCKET comes on continuously while the hob
is OFF and does not disappear when the control button on the sensor
is pressed, the standby current to the cooker is higher than the cooker
guard’s preprogrammed standby level.
In this case the level can be recalibrated to actual electricity consumption by:
1. Holding the SOCKET’s control button in until the red and green LEDs
flash – then releasing the button within two seconds.
2. The green LED flashes three times to acknowledge the change.
NB: We strongly recommend measuring the hob’s electricity consumption
in standby BEFORE doing this calibration. High electricity consumption
could be caused by a fault in the hob. Incorrect calibration in the case of
high electricity consumption can result in the cooker guard never starting
or not working as intended.
NB! May only be carried out
byanauthorised electrician.
DIP 8 Current measurement De-
fault
OFF Current measurement
off
ON 

13
Installation – Settings
DIP 9: Autoconnect
Fifteen minutes after turning the
cooker off, the cooker guard will
automatically be reset and turn
the power back on. On a cooker
with rotary switches, all the rings
and oven must be turned off before the cooker guard will reset itself
automatically.
If this function is deactivated or to reset the cooker guard manually, press
the control button on the sensor (or external switch panel, optional extra).
There are three different function tests:
1 = On/Off test 2 = Current test
3 = Temp. test
To activate the function test:
1. Remove the SENSOR cover and set DIP switch 0 to ON
2. Put the cover back on temporarily to stop the batteries falling out.
To change between the three function tests, hold the control button on the
sensor in for 5 seconds. The sensor acknowledges with one, two or three
beeps to indicate the test type.
1 beep On/Off test
The sensor acts as an ON/OFF switch.
Pressing the control button switches between turning the power to
the cooker ON/OFF. The light on the sensor comes on when the cooker
socket is on (sending power to the cooker).
2 beeps Current test
Indicates electricity consumption
for the hob.
Following activation turn the hob
on. A few seconds later the LED
on the SENSOR should come on
continuously and the green and
yellow LEDs on the SOCKET should
light up.
Now turn the hob OFF. The LED on
the SENSOR goes out and only the
GREEN LED on the SOCKET should
be on.
DIP 0 Test mode De-
fault
OFF 
ON Test mode on
DIP 0: Test mode / Function test
When you have performed the function test(s), remember to set
DIP switch 0 to OFF.
3 beeps Temperature test
Turns the cooker on/off based on
temperature.
• Point the sensor at a hot
surface/object. The cooker
turns off if the temperature
is over 35°C.
• Point the temperature at
a cold surface (at normal
room temperature). The
cooker comes back on if the
temperature is below 35°C.
DIP 9 Autoconnect De-
fault
OFF Autoconnect off
ON 

14
Alarm signals
Alarm signal: One (1) light and sound signal every 15 seconds
for5minutes.
Cause: Cooker guard warning that timer is in
last 5 minutes.
Action: Press control button to restart timer.
Alarm signal: Five (5) light and sound signals in the course
of5seconds.
Cause: Anti-tamper function detects that sensor has been
removed from bracket.
Action: Replace sensor in bracket and press control button.
Alarm signal: Two (2) light and sound signals every 5 minutes.
Cause: Battery change necessary.
Action: Change batteries. NB: Make sure you have new
batteries to hand first (3 x AA).
Alarm signal: Three (3) light and sound signals every 5 seconds
andasteady red light between signals.
Cause: Overheating.
Action: Reduce temperature, or press control button to
temporarily approve high temperature.
Alarm signal: Two (2) light and sound signals and the cooker shuts off
10 min. after use.
Cause: Battery change necessary.
Action: Change batteries. NB: Make sure you have new
batteries to hand first (3 x AA).
Alarm signal: Three (3) light and sound signals every 30 seconds.
Cause: High temperature continuing after shut-off.
Action: Reduce temperature, or press control button.

15
Pairing
The sensor and socket are factory-paired and ready to install. If re-pairing
isnecessary:
Remove at least once battery from the sensor (you can get batteries ready
for the sensor, but DO NOT fit them).
1. Give the Socket control button a quick press. Yellow LED flashes.
2. Hold the control button on the sensor in and fit batteries in
thesensor.
3. There are 2+2 beeps, the blue LED on the socket flashes and the
socket turns off.
4. Release the control button on the sensor.
The sensor and socket are now paired.
NB: The sensor and socket are factory paired
and ready to install
EMERGENCY MODE
In the event of problems with the cooker guard that cannot be resolved
there and then, you can activate emergency mode, which connects power
to the cooker for 12 hours (can be repeated for a further 12 hours).
NB: All safety functions are deactivated in this period.
To activate emergency mode:
Turn the cooker fuse off and on three times at intervals of at least 1 second
for a period of 10 seconds.
Emergency mode

Manufacturer: CTM Lyng AS, www.ctmlyng.no, Tel. [phone]
Thank you for choosing...
1721 Art. No.: 14226
Technical data
Cooker Guard
mKomfy Hybrid 400R
Operating voltage:
400 VAC 3-phase
Max. load:
3x16 A
Batteries*:
3 x AA/LR06
Battery life:
Up to 3 years
RF:
868.100 MHz
+5dBm
Cooker guard type:
Class B
Power supply*:
USB 2.0 micro B, 5 VDC, min. 1 A
*Batteries and power supply
cannot be used at the same time
