CTS CVT-3002-PLUS-DR Series User manual

Trademarks
CTS is a registered trademark of Connection Technology
Systems Inc.. Contents subject to revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright Connection Technology Systems Inc..
This publication may not bereproducedas awholeor in part, in
any way whatsoever unless prior consent has been obtained
from Connection Technology Systems Inc..
FCC Warning
The CVT-3002-PLUS-DR Series converters have been tested
and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These standards are
designed to provide reasonable protection against harmful
interference when these devices are operated in a commercial
environment. These devices generate, use, and can radiate
radio frequency energy and may cause harmful interference to
radio communications unless installed in accordance with this
User’s Guide. Operation of these devices in a residential area
is likely to cause harmful interference which will make the user
responsible for the appropriate remedial action at his / her own
expense.
CE Mark Warning
These are Class A products. In a domestic environment these
products may cause radio interference in which case the user
will need to consider adequate preventative methods.
1. Checklist
The package should contain the following items:
-
CVT-3002-PLUS-DR Media Converter
-
AC-DC Power Adapter
-
User’s Guide
Please notify your sales representative immediately if any item
is missing or damaged.
2. Overview
CVT-3002-PLUS-DR is designed to meet the massive needs
for Gigabit network deployment and able to extend a copper
based Gigabit network via fiber cable. It is fully compliant with
IEEE 802.3, 802.3u, 802.3ab, 802.3z, and 802.3x standards.
It can beinstalled into a CVT Converter RACK. The installation
and operation procedures are simple and straightforward.
Operation status can be locally monitored through a set of
Diagnostic LED indicators located in the front panel.
Major Features:
-
TP and Fiber Auto-Negotiation
-
MDI/MDIX Auto-Crossover
-
Flow Control and Back Pressure
-
9K bytes Jumbo Frame
-
Store and Forward switching mechanism
-
2K MAC address
-
Link Alarm
-
100/1000Mbps dual rate fiber uplink
3. Installation

Attach fiber cable from the CVT-3002-PLUS-DR to the fiber
network. The fiber connections must be matched –transmit
socket to receive socket.

Attach a UTP cable from the 10/100/1000Base-T network
to the RJ-45 port on the CVT-3002-PLUS-DR.

Connect the power adapter to the CVT-3002-PLUS-DR and
check that the Power LED lights up. The TX Link/Act and
F/O Link/Act LEDs will light up when all the cable
connections are satisfactory.

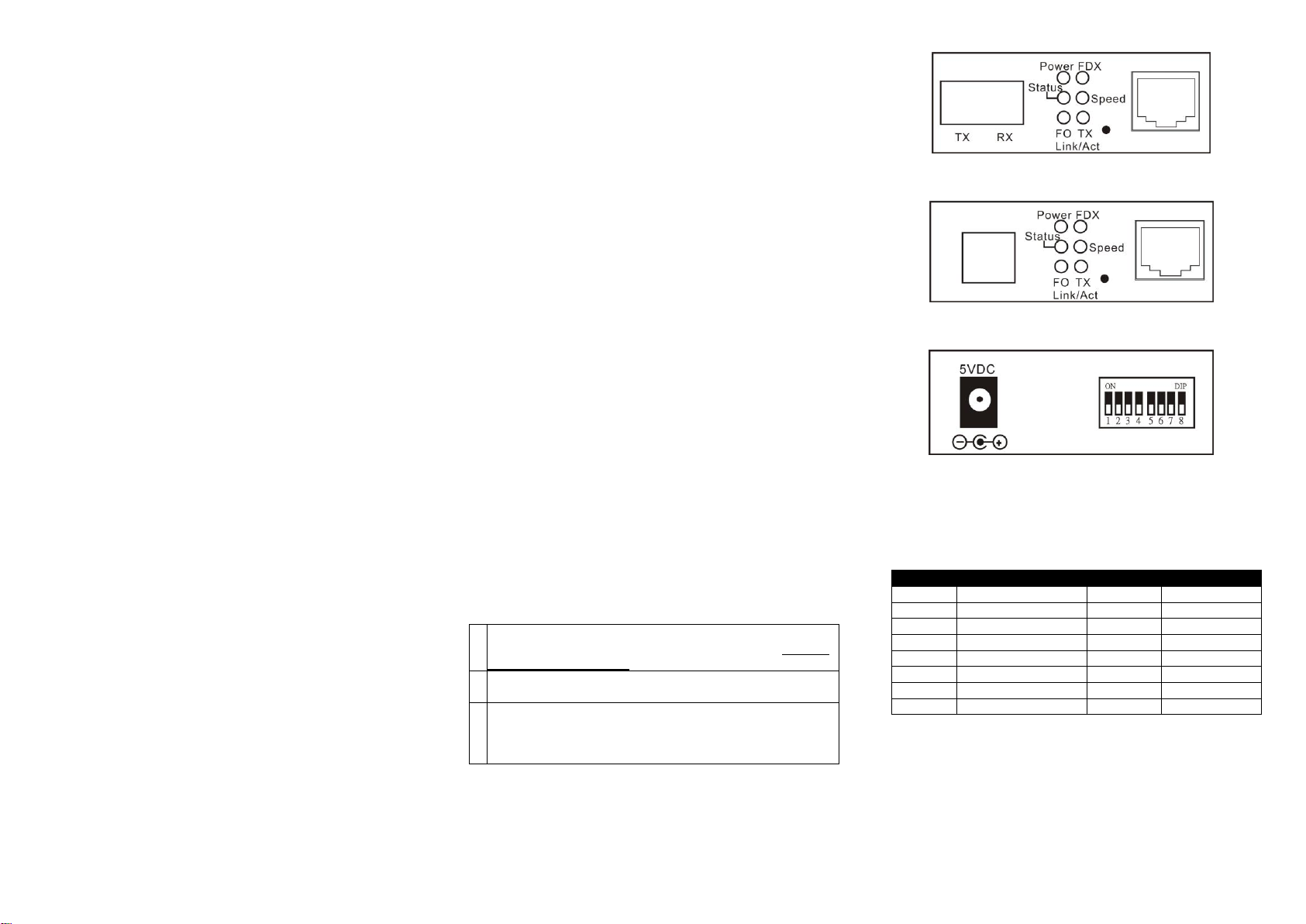

Figure 1. CVT-3002-PLUS-DR Dual Fiber Front Panel
Figure 2. CVT-3002-PLUS-DR WDM & SFP Front Panel
Figure 3. CVT-3002-PLUS-DR Converter Rear Panel
4. DIP SWITCH Setting
The default setting for PIN 1 and 6 is ON. The rest pins are
OFF.
Pin NO.
Function
OFF
ON
1
TP Auto-Negotiation
Disable
Enable
2
Manual TP speed
10M
100M
3
Manual TP speed
N/A
1000M
4
Duplex mode
Half
Full
5
Flow Control
Disable
Enable
6
F/O mode
Force
Auto
7
Link Alarm
Disable
Enable
8
Reserved
-
-
NOTE:
Before adjusting the configuration of the DIP Switch, the
power should be unplugged.
Before changing TP speed, duplex mode and flow
control setting, please make sure PIN 1 is set to OFF.
When TP speed is set to 10M or 100M manually, PIN 3 needs
to be turned OFF.
Under 1000Mbps, it supports full-duplex mode only.

5. LED Description
6. Technical Specifications
Standards
IEEE 802.3, 802.3u, 802.3ab,
802.3z, 802.3x
Interface
1 X 10/100/1000 RJ-45 connector
1 X 100/1000 F/O port or SFP Slot
LED
Power, FDX, Status, Speed,
FO Link/ACT, TX Link/ACT
Power
I/P AC 100-240V
O/P DC 5V
Power Consumption
1.5W
Weight
0.2kg
Dimensions
71mm(W)X94mm(D)X26mm(H)
Temperature
Operating: 0o~50oC
Storage: -20o~60oC
Humidity
5%~90% RH non-condensing
Certification
FCC/CE Class A
Media
TP:
EIA/TIA-568 CAT 5e,
1000M
Fiber:
50/125 or 62.5/125  m
multi-mode
9/125 or 10/125  m
single-mode
* Please contact us for further reports and updates.
NOTE: Specifications may change without prior notice.
7. Fiber Transceiver Information
Dual Rate
2 Wave-Length WDM
TYPE
W2A(SM-10)
W2B(SM-10)
Connector Type
SC
SC
Wavelength
1310/1550nm
1550/1310nm
Typical Distance
10 Km
10 Km
Min TX PWR
-10.0dBm
-10.0dBm
Max TX PWR
-3.0dBm
-3.0dBm
Sensitivity
-20.0dBm
-20.0dBm
Link Budget
10.0dB
10.0dB
1000M
Single-Mode
TYPE
BTFC(SM-10)
Connector Type
SC
Wavelength
1310nm
Typical Distance
10 Km
Min TX PWR
-9.5dBm
Max TX PWR
-3.0dBm
Sensitivity
-20.0dBm
Link Budget
10.5dB
NOTE: Specifications may be changed without prior notice.
Contact Information
Connection Technology Systems INC (CTS)
18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist.,
New Taipei City 221, TAIWAN, R.O.C.
TEL: [phone] FAX: [phone]
E-Mail: [e-mail]
CVT-3002-PLUS-DR
SERIES
10/100/1000Base-T to
100/1000Base-X Standalone
Gigabit Media Converter
User’s Guide
Version 2.1
LED
Color
Function
Power
Green
Power is available.
TX
Link/Act
Green
TX cable connection with remote
device is good.
Blinking
TX traffic is present.
FO
Link/Act
Green
F/O works in 100M.
Orange
F/O works in 1000M.
Blinking
F/O traffic is present.
FDX
OFF
TX works in Half-Duplex.
Green
TX works in Full-Duplex.
Speed
OFF
TX works in 10M.
Green
TX works in 100M.
Orange
TX works in 1000M.
Status
Green
TX and F/O link is up.
Orange
TX or F/O link is down.
