CTS MCT-RACK-12-MGM User manual

MCT-RACK-12-MGM
12 SLOTS COMPACT MEDIA
CONVERTER CENTER
User’s Guide
Version 0.90

2
Trademarks
CTS is a registered trademark of Connection Technology Systems Inc..
Contents are subject to revise without prior notice.
All other trademarks remain the property of their respective owners.
Copyright Statement
Copyright Connection Technology Systems Inc..
This publication may not be reproduced as a whole or in part, in any way whatsoever
unless prior consent has been obtained from Connection Technology Systems Inc..
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A
digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy.
If this equipment is not installed properly and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into a different outlet from that the receiver is connected.
Consult your local distributors or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications to the equipment, which are not approved by the party
responsible for compliance, could affect the user’s authority to operate the equipment.
Copyright © 2016 CONNECTION TECHNOLOGY SYSTEMS INC.,
All Rights Reserved.
Company has an on-going policy of upgrading its products and it may be possible
that information in this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.

3
Revision History
Version
Release Date
Description
0.90
20160314
First release

4
Table of Contents
1. INTRODUCTION .........................................................................................5
1.1 The MCT-RACK-12-MGM...................................................................5
1.2 Connectors, Indicators, and Switches.................................................6
2. INSTALLATION...........................................................................................7
2.1 Requirement.......................................................................................7
2.2 Unpack MCT-RACK-12-MGM.............................................................7
2.3 Install MCT Series Media Converters .................................................8
2.4 Install MCT-RACK-12-MGM................................................................9
2.4.1 Standard 19-Inch Rack Installation...........................................9
2.4.2 Desk Top Installation...............................................................10
2.5 Connect MCT Series Media Converters to network..........................10
2.6 Connect Power Supply .....................................................................10
2.7 Power On the MCT-RACK-12-MGM.................................................11
2.8 DI/DO Configuration .........................................................................12
3. OPERATION..............................................................................................13
3.1 LED Status........................................................................................13
4. MAINTENANCE ........................................................................................15
4.1 Fault Identification.............................................................................15
4.2 Hardware Replacement Procedures.................................................16
4.3 Firmware and Configuration Upgrade...............................................16

5
1. INTRODUCTION
Thank you for choosing MCT-RACK-12-MGM. This CHASSIS is specifically
designed to the managed media converter which required monitoring point-to-
point connection for the deployment of FTTX applications. By selecting and
installing from among of various MCT series media converters, MCT-RACK-
12-MGM allows users to upgrade and integrate their existing network.
1.1 The MCT-RACK-12-MGM

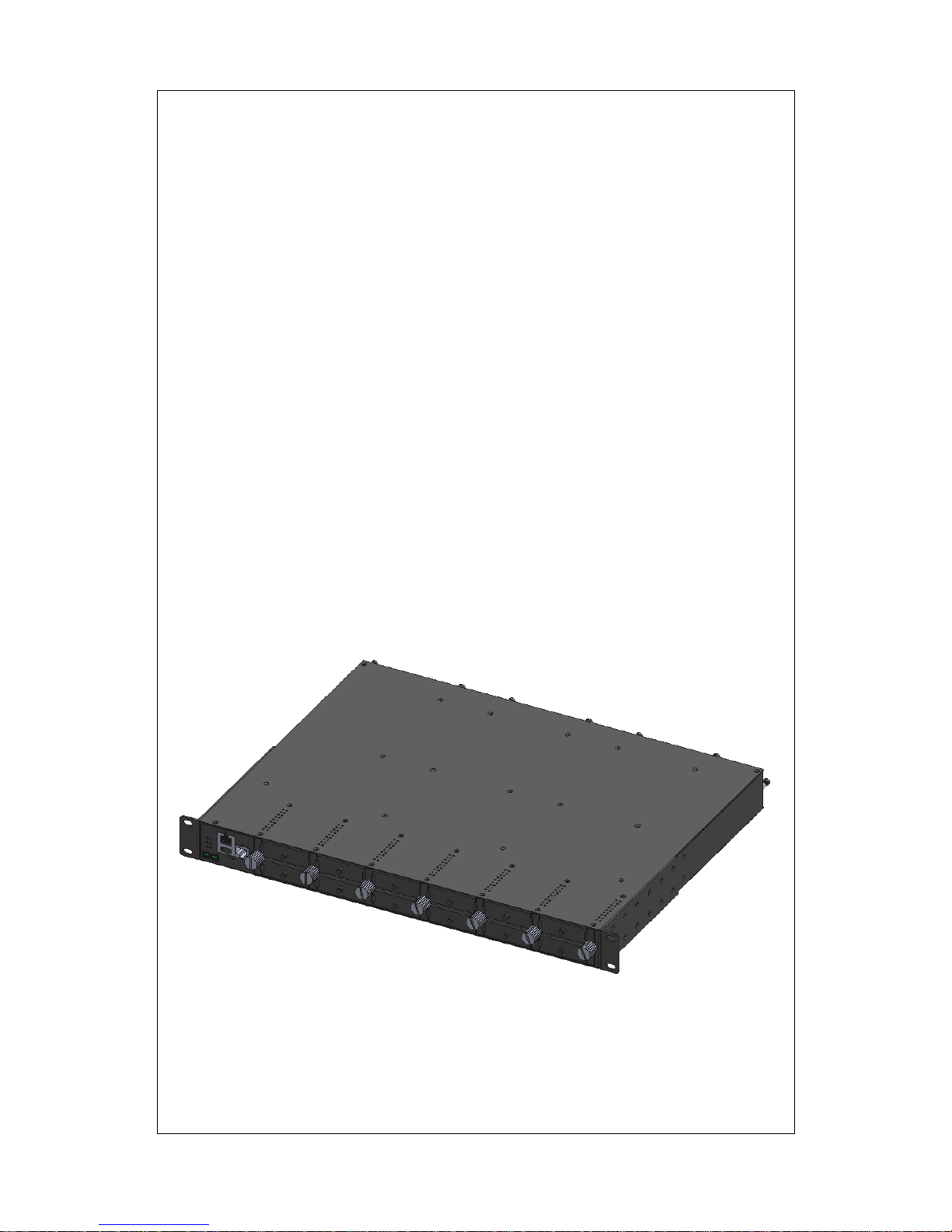

Connection Technology Systems (CTS) MCT-RACK-12-MGM, the universal
media converter chassis, provides 12 slots for mixed installation of MCT
series media converters. Up to 12 media converters can be powered by the
MCT-RACK-12-MGM without the external power supply required. The MCT-
RACK-12-MGM features a redundant power supply system to ensure reliably
system operation even in case of one of power supply module failed.
Moreover, its miniature size allows MCT-RACK-12-MGM to be installed in a
narrow space. All above user friendly designs make MCT-RACK-12-MGM be
in a shape of high performance and reliability.
MCT-RACK-12-MGM can be used as a table top unit or mounted on a 19
inches standard rack by using 19 inches bracket accessories shipped
together with the unit.

6
Hardware Features
Hot-Swappable Converter Modules
Hot-Swappable Power Modules
Power Redundancy
Commercial Operation Temperature 0°C~50°C
Plug & Play Design
Redundant Power Supply
Redundant power supply is provided for non-stop running.
1.2 Connectors, Indicators, and Switches
Front Panel
10/100Mbps RJ-45 LAN port
USB host
Console RS232 port (RJ-45)
LED Indicators
Reset Button
Rear Panel
DC Power Connector
AC Power Connector





➑




7
➑Digital Input Terminal Block
Digital Output (Alarm) Terminal Block
Power Requirement:
AC power: 100-240V, 50-60Hz,
DC power: 48VDC
2. INSTALLATION
The procedures for installing the MCT-RACK-12-MGM are as follows,
2.1 Requirement
2.2 Unpack MCT-RACK-12-MGM
2.3 Install MCT Series Media Converters
2.4 Install MCT-RACK-12-MGM
2.5 Connect MCT Series Media Converters to network
2.6 Connect Power Supply
2.7 Power on the MCT-RACK-12-MGM
2.1 Requirement
MCT-RACK-12-MGM basic requirements for installation are as follow,
Environmental conditions.
-One power outlet for MCT-RACK-12-MGM internal power
supply
-One power outlet for Redundant Power Supply
-Proper ventilation
-Away from electrical noise, radio, etc.
-UTP cables should not run in the same duct with power and
phone line cables
Required MCT series media converters
Required Fiber and UTP cables
Redundant Power Supply
Rack mounting tools
2.2 Unpack MCT-RACK-12-MGM
Following items should be checked after opening the shipping package.

8
1. MCT-RACK-12-MGM x 1
2. Power Cord(For AC Power Module Only)
3. Screw x 4
4. Rubber Foot x 4
5. Pulling Cable x 1
6. Console Cable x 1(For Management Model Only)
7. Cover Plate for Power Slot x 2
2.3 Install MCT Series Media Converters
CAUTION
To prevent any damage or failure of the MCT series media converters,
please wear a grounding device and observe electrostatic discharge
precautions before install into the MCT-RACK-12-MGM.
Procedures:
1. Plan the MCT Series Media Converters slot positions
-All slots are identical
-MCT Series Media Converters can be installed into any slots

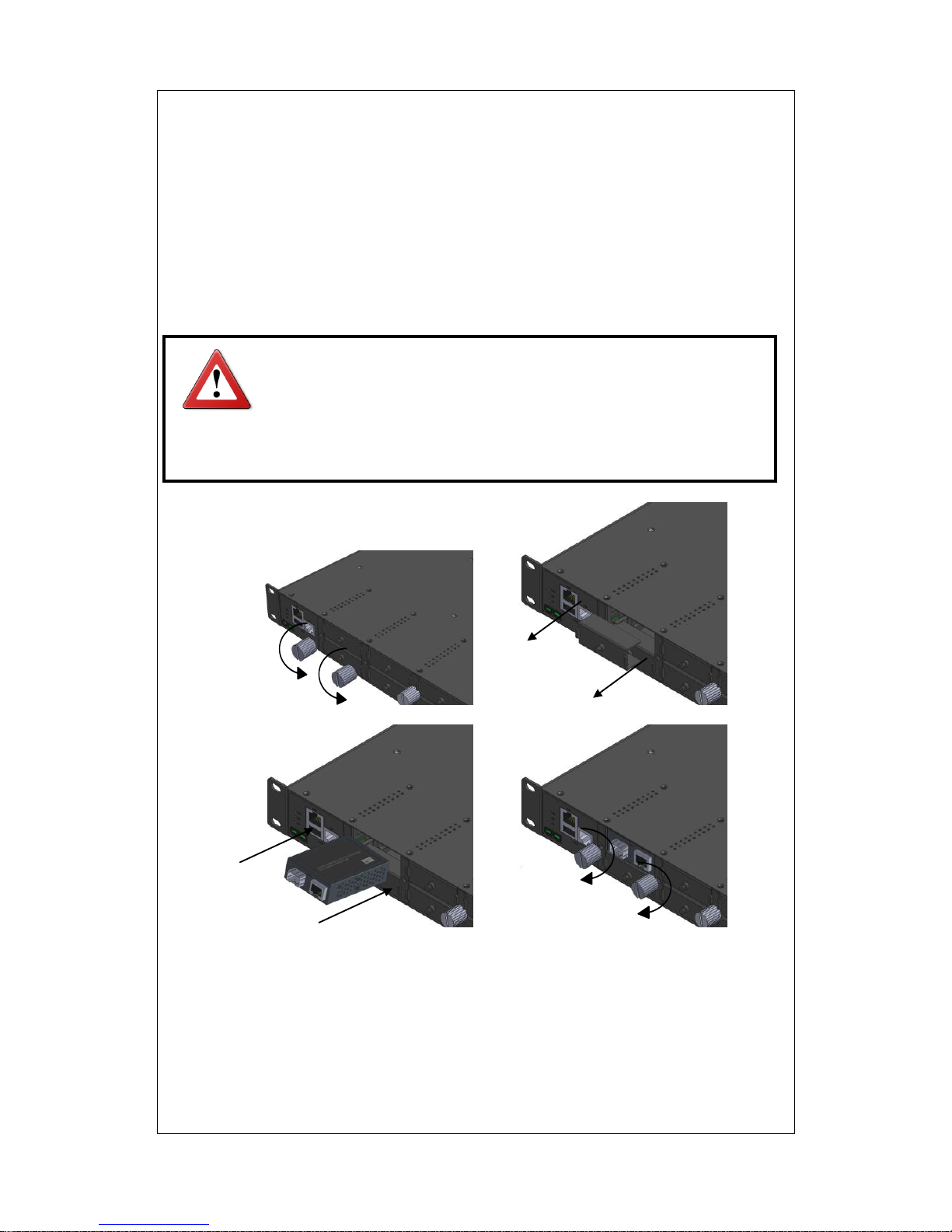

2. Loosen the fastening knobs counterclockwise and remove the cover
plate from selected installation slot
3. Attach fasteners on converter’s both side and fix the fastener screw.

9
4. Insert MCT Series Media Converters fully and swiftly into the selected
slot at one go.
-Make sure that the MCT Series Media Converters is firmly
connected with the middle plane connector.
5. Fix the fastening knob on MCT-RACK-12-MGM.
6. Repeat steps 2 to 5 for all the MCT Series Media Converters.
7. You may connect the supplied pulling cable with a media converter to
pull it out more easily.
2.4 Install MCT-RACK-12-MGM
CAUTION
To prevent any damage or failure of the MCT-RACK-12-MGM and MCT
Series Media Converters, do not block the bottom of the MCT-RACK-
12-MGM.
2.4.1 Standard 19-Inch Rack Installation
WARNING
Please mount the MCT-RACK-12-MGM firmly in rack otherwise the
MCT-RACK-12-MGM may fall and cause the system damage and
possible injury to personnel.

10
Procedure:
1. Plan the MCT-RACK-12-MGM rack position
2. Fix both mounting brackets into the MCT-RACK-12-MGM
3. Align the MCT-RACK-12-MGM with mounting bracket into the selected
mounting rail position
4. Fix the MCT-RACK-12-MGM with mounting brackets into the selected
mounting rails position carefully and firmly.
2.4.2 Desk Top Installation
1. Plan the MCT-RACK-12-MGM desk top position.
2. Place the MCT-RACK-12-MGM on a well ventilated, flat and firmly desk.
2.5 Connect MCT Series Media Converters to
network
Please refer to the User’s Manual that comes with the MCT Series Media
Converters for cabling specifications and direction.
2.6 Connect Power Supply
WARNING
Do NOT turn on power source switch before connecting with MCT-
RACK-12-MGM. Inappropriate operation may cause system damage,
possible injury or casualty.

11

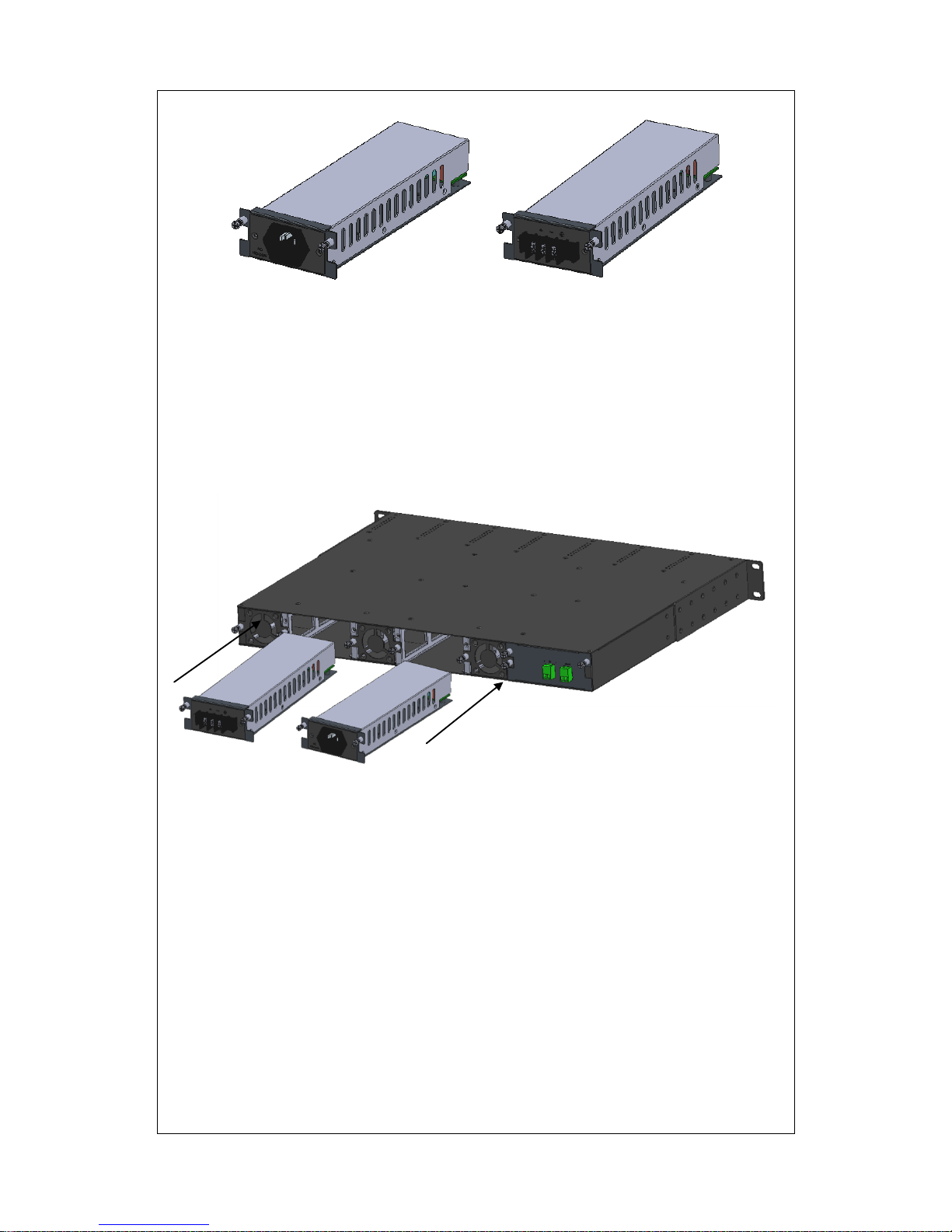

AC Power Module DC Power Module
Procedure:
1. Insert new power supply carefully into the slot. Make sure that the
power supply is firmly connected with the middle plane connector.
2. Fix the fastener screw.
NOTE:
1. Power Supply is hot swappable.
2. Power supply is active and concurrent with internal power supply
2.7 Power On the MCT-RACK-12-MGM
Procedure:
1. Check the power outlet
2. Connect the power cord to the power outlet
3. Turn on the MCT-RACK-12-MGM power source
4. Verify the MCT-RACK-12-MGM status
5. Power LED is on

12
2.8 DI/DO Configuration
Digital Output (Alarm) is a port connection on the terminal blocks used to
connect alarm devices such as Buzzer, LED or Flash Lamp to alert operator
when the abnormality is detected.
Alarm Wiring Configuration
Digital Input is a digital input connection on the terminal blocks used to
detects if a voltage is above/below a specific threshold.
Digital Input Configuration
Insert the positive and negative (signal ground) wires into the “+” and “-”
contact on the terminal blocks.
MCT-RACK-12MGM
External
Power
Buzzer /
LED / Flash
Lamp
+24VDC
Alarm

13
3. OPERATION
MCT-RACK-12-MGM is easy to operate; no special training is required.
However, customers may perform local or remote status monitor through,
1. LED status
2. Console
3. SNMP Manager
3.1 LED Status
CHASSIS LED
LED
Definiation
Color
Operation
Power A
Power B
Power
Status
Green
Primary power is on
Off
Primary power is down or fail
STA
System
Status
Orange
System is booting up.
System is undergoing upgrading
procedure.
Press the Reset button for 5~10
seconds (LED will turn to orange) and
then release to restart the system.
Orange
Blinking
Press the Reset button for more than
10 seconds (LED will blink in orange
for 3 times) and then release to reset
(back to factory settings) and restart
the system.
LAN
LAN Port
Status
Green
The link is up and the speed is 10/100
Mbps
Green
Blinking
The port is in traffic
Off
No connection
COM
Console
Port
Status
Green
Console port is connected
Off
No connection
+
-
DI

14
MCT Series Media Converter LED
Please refer to the User’s Manual that comes with the MCT Series Media
Converters for LED indications.

15
4. MAINTENANCE
MCT-RACK-12-MGM is easy to maintain, we suggest the following
procedures when problem occurring.
4.1 Fault Identification
-Local check
4.2 Hardware Replacement Procedures
-Replace MCT Series Media Converter
-Replace Power Supply
4.1 Fault Identification
Fault identification can help users quickly locate the problem and take proper
actions to solve the problems.
Local Check
Check all MCT-RACK-12-MGM LED status and cable connections.
Whole System no Function
1. Check Power LED status
2. Check Power connection
3. Reset MCT-RACK-12-MGM power
Certain Network Link no Function
1. Locate related MCT Series Media Converter
2. Check MCT Series Media Converter connection with middle
plane
3. Check MCT Series Media Converter Power LED status
4. Check MCT Series Media Converter Link LED status
5. Check UTP connection between the MCT Series Media
Converter and related device
6. Check Fiber connection between the MCT Series Media
Converters and related device
7. Reset MCT Series Media Converter

16
4.2 Hardware Replacement Procedures
WARNING
The MCT-RACK-12-MGM contains no user-serviceable parts. DO NOT,
UNDER ANY CIRCUMSTANCES, open and attempt to repair it. Failure
to observe this warning could result in personal injury or death from
electrical shock.
Failure to observe the above warning will immediately void any
Warranty.
Replace MCT Series Media Converter
Procedure:
1. Remove the existing MCT Series Media Converter
2. Insert new MCT Series Media Converter carefully into the slot
Make sure that the MCT Series Media Converter is firmly
connected with the middle plane connector.
3. Fix the fastener screw.
Replace Power Supply
Procedure:
1. Remove the existing power supply
2. Insert new power supply carefully into the slot
Make sure that the power supply is firmly connected with the
middle plane connector.
3. Fix the fastener screw.
4.3 Firmware and Configuration Upgrade
This MCT-RACK-12-MGM may perform firmware and configuration upgrading
when required. New firmware can be obtained from your sales representative.
For detailed upgrading procedures, please refer to the Network Management
User’s Manual.
Automatic Firmware and Configuration Upgrade via USB host
The MCT-RACK-12-MGM’s firmware and configuration can also be upgraded
automatically via USB host.

17
Allows the network administrator for provisioning
a device by just powering on and inserting disk
Automatically upgrade firmware and/or
configuration when plug in an USB flash disk or
hard disk
USB support
Flash disk or hard disk (USB mass storage)
with partition (Logic unit number, LUN)
File system : FAT12, FAT16, FAT32,
NTFS3.1(read-only) and before
Automatic Firmware and Configuration Upgrade Process
Preparation steps before inserting the USB disk
Rename the firmware name as:
cts-fw-<model_name>.<admin_user>.<password>
Rename the configuration file name as:
cts-cfg-<model_name>.<admin_user>.<password>

18
Plug in USB disk
Firmware upgrade
and reboot* automatically
Configuration upgrade
and reboot** automatically
*Firmware upgrade process would be skipped if:
The firmware file is not authorized (wrong admin/password or
unauthorized)
File too big (>16MB)
Firmware version = current firmware version
**Configuration upgrade process would be skipped if:
1.The configuration file is not authorized (wrong admin/password or
unauthorized)
2.Configuration = current configuration
Firmware
Upgrade
Configuration
Upgrade
Upgrade Complete
