Cub Cadet FT 24 User manual

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Form No. 769-07278
(August 31, 2011)
Front Tine & Rear Tine Tillers
Model FT24, RT 45 & RT 65

Thank you for purchasing a Cub Cadet Tiller. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Thank You
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
To The Owner
2
Briggs Engine 12T102-0937-F8............................. 62
Engine Honda GC190LA ....................................... 22
Engine Model-170-T0B .......................................... 36
Engine Model-170-TU............................................ 72
Engine Model-170-V0B.......................................... 44
Engine Model-170-VU ........................................... 82
Engine Model-270-V0............................................ 52
Model Series 300 ..................................................... 4
Model Series 400 ....................................................10
Model Series 450 ....................................................16
Table of Contents
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:

33
Page Left Blank Intentionally

44
Model Series 300
1
2
4
5
7
2
8
6
3
10
11 9
10
6
14
15
16
36
47
17
19
18
27
28 29
32 30 31
26 25 45 24
23
20
22 21
34
33
35
37
40
28
35
38
39
28 41
21
25
42
43
44
13
12
46

55
Model Series 300
Ref. Part Number Description
1. 912-04 42 Acorn Lock Nut, ⁄-20
2. 936-3020 Flat Washer, .271” x.630”
3. 720-0270A† Reverse Handle Grip
4. 731-1600 Handle Cover w/o throttle (390)
—731-06253A Handle Cover (340)
5. 710-0779A Truss Machine Screw, #10 x ⁄”
6. 720-0274 Handle Grip
7. 712-3006 Hex Nut, ⁄-20 (390)
—912-0298 Jam Nut, 1/4-20 (340)
8. 726-0135† Cap Speed Nut
9. 686-0083 Clutch Handle Assembly
10. 720-0269 Clutch Grip
11. 710- 0641 Hex Bolt, ⁄-20 x 2.25”
12. 931-1645B Clutch Handle Holder
13. 936-0140 Flat Washer, .385” x .62”
14. 686-0014C† Reverse Handle Assembly
15. 936-0264† Flat Washer, .344” x .62”
16. 649-04040 Handle Assembly Complete
17. 749-1401A Handle Brace
18. 936-0921 Lock Washer, ⁄
19. 710 -3194 Hex Bolt, ⁄-20
20. 786-0005 Depth Bar
21. 714-04043 Cotter Pin, Bow Tie
22. 712-04063 Hex Flange L-Nut, ⁄-18
23. 786-0003 Tail Piece Bracket, Left
Ref. Part Number Description
24. 786-0004 Tail Piece Bracket, Right
25. 911- 0 415 Clevis Pin
26. 710-0805 Hex Bolt, ⁄-18 x 1.5”
27. 710-0189 Hex Bolt, ⁄-18 x 3”
28. 736-0242 Bell Washer, .340” x .872”
29. 711-1036A Hex Nut
30. 936 - 0119 L-Washer, ⁄”
31. 710-3008 Hex Bolt, ⁄-18
32. 786 -0129 Cable Guide Bracket
33. 710-0604A Hex Washer Screw, ⁄-18 x .62”
34. 710-0602 Hex Washer TT-Tap Screw
35. 738-0934 Shoulder Bolt, ⁄-18
36. 720-0195 Hand Knob
37. 750-0470 Spacer
38. 936 -0171 Lock Washer, ⁄
39. 912-0240 Jam Nut, ⁄-20
40. 710-0176 Hex Bolt, ⁄-18 x 2.75”
41. 912-0429 Nylon Hex Nut, ⁄-18
42. 686-0081A Wheel Hanger Bracket Assembly
43. 734-04623 Wheel, 8 x 1.75
44. 738-0929 Shoulder Screw, .496 x 1.445
45. 750-0890 Spacer
46. 710-1236 Carriage Bolt, ⁄-18 x 1
47. 736-0242 Bell Washer, .34”
† If Equipped

66
Model Series 390
23
24
22
42
43
25
26
21
20
36
7
6
44
35
10
34
33
32
31
30
29
28
27
10
3
12
13
539
37
37
38
14
40
41
4
46
9
10 45
8
6
7
11
2
1
3
17
18
15
16
19
22

77
Ref. Part Number Description
1. 712-0392 Hex L-Stop Nut, ⁄-28
2. 936-3020 Flat Washer, 266” x .625”
3. 710-0599 Hex Washer TT-Tap Screw, ⁄-20 x .5”
4. 711- 0 920 Belt Cover Bolt
5. 712-04063 Hex Flange Top L-Nut, ⁄-18
6. 710-3005 Hex Head Screw, ⁄-16 x 1.25”
7. 756- 0313 Flat Idler Pulley, 2.12”
8. 786-0149 Idler Belt Keeper
9. 786-0144 Idler Bracket
10. 712-0266A Hex Center Jam Nut, ⁄-16
11. 786-0057 Belt Cover w/ rev.
12. 786-0043A Tine Shield
13. 710-3008 Hex Head Cap Screw, ⁄-18 x .75”
14. 986-0091 Chain Case Assembly Complete
15. 686-0106 Outer Disc Plate Assembly
16. 714-04043 Cotter Pin, Bow Tie
17. 911- 0 415 Clevis Pin
18. 642-0023 Outer Tine Assembly, LH,
—642-0024 Outer Tine Assembly, RH
19. 642-0003 Inner Tine Assembly, Left
—642-0002 Inner Tine Assembly, Right
20. 946-0918 Forward Clutch Cable
21. 946-0953 Reverse Clutch Cable
22. 756-0585 Flat Pulley, 6”
Ref. Part Number Description
23. 950-0892 Spacer, .64” x 2.4”
24. 948-0350 Pulley Mounting Adapter
25. 73 6 - 0112 Bell Washer, 525” x 1.5”
26. 712-3029 Hex Jam Nut, ⁄-20
27. 732-0697 Return Spring
28. 786-0040B Reverse Bracket
29. 93 6 - 0119 Lock Washer, ⁄
30. 710-0237 Hex Bolt, ⁄-24 x .625”
31. 756-0971 Engine Inner Pulley
32. 756-0600 Reverse Engine Pulley
33. 936-0452 Bell Washer, .396” x ⁄”
34. 710-1039 Hex Bolt, ⁄-24 x 1.00”
35. 686- 0013 Reverse Arm Assembly
36. 786 -0041 Reverse Belt Keeper
37. 710-0502A Hex L-Washer TT-Tap, ⁄-16 x 1.25”
38. 786-0145A Engine Plate
39. 786-0053 Tine Shield Bracket
40. 936 - 0171 L-Washer, ⁄”
41. 912-0240 Hex Nut, ⁄-20
42. 954-0428 Forward Drive Belt, ⁄ x 41.9”
43. 954-0429 Reverse Drive Belt, ⁄ x 45.68”
44. 938-0102 Shoulder Screw, .498 x 1.445
45. 738-0930 Shoulder Screw, .560 x.165
46. 712-3004A Flangelock Nut, 5/16 - 18
Model Series 390

88
Model Series 340
17
20
29
29 24 41 28 15
34
28 13 35
33
43
42
25 36
23
19
32
19
21
38
7
39 31 22 9
14
88
40
37
6
5
3
2
4
30
27 26
12
10
18
8
1
16
15
11

99
Model Series 340
Ref. Part Number Description
1. 986-0091 Chain Case Assembly
2. 642-0002 Inner Tine Assembly, RH
3. 642-0003 Inner Tine Assembly, LH
4. 642-0004 Outer Tine Assembly, RH
5. 642-0005 Outer Tine Assembly, LH
6. 911- 0 415 Clevis Pin, .375 x 1.75
7. 714-04043 Bow Tie Cotter Pin
8. 710-0599 Screw, 1⁄4-20 x 0.500
9. 711- 0 919 Bolt, Belt Cover
10. 712-0392 Nut, 1/4-28, Lock
11. 712-3004A Nut, 5/16-18, Flange Lock
12. 936-3020 Flat Washer, .271 x .630 x .065
13. 738-0930 Shoulder Screw, .560 x .165 5/16-18
14. 786-0056 Belt Cover
15. 710-3008 Hex Head Screw, 5/16-18 x .75
16. 712-04063 Nut, 5/16-18, Flange Lock
17. 786-0043A Tine Shield
18. 786-0053 Bracket, Tine Shield
19. 686-0088 Idler Bracket Assembly
20. 710-0189 Hex Head Screw, 5/16-18 x 3.00
21. 710-0237 Hex Head Screw, 5/16-24 x .625
22. 710-1039 Hex Head Screw, 3/8-24 x 1.00
Ref. Part Number Description
23. 710-3005 Hex Head Screw, 3/8-16 x 1.25
24. 711-1036A Hex Nut, 5/16-18
25. 712-0266A Jamlock Nut, 3/8-16
26. 712-3029 Nut, 1/2-20, Jam
27. 7 36 - 0112 Washer, .531 x 1.62 x .045
28. 93 6 - 0119 Lock Washer, 5/16
29. 736-0242 Bell Washer, .340 x .872 x .060
30. 736- 0312 Flat Washer, 1.26 x 1.87 x .150
31. 936-0452 Bell Washer, .396 x 1.140 x .095
32. 946-0918 Forward Clutch Cable
33. 948-0350 Pulley Adaptor
34. 950-0892 Spacer, .64 ID x 2.4
35. 954-0428 Belt, 4L x 41.9 LG
36. 756-0313 Pulley 1.88 OD
37. 756-0585 Pulley 6.00 OD
38. 756-0971 Inner Engine Pulley
39. 756-0972 Outer Engine Pulley
40. 786-0039B Belt Keeper Bracket
41. 786 -0129 Cable Guide Bracket
42. 786- 0144 Idler Bracket
43. 786-0149 Belt Keeper

1010

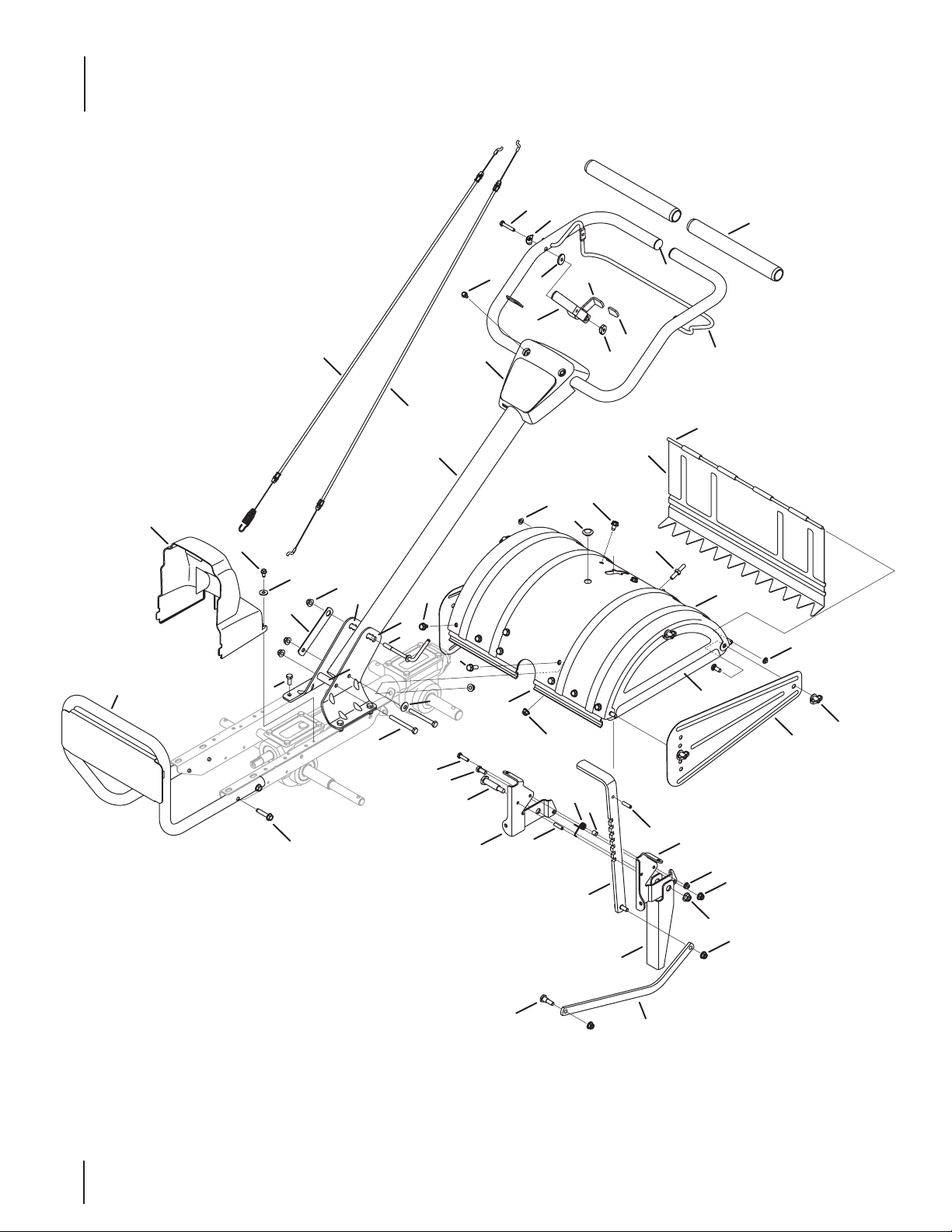

Model Series 400
50
11
6
3
20
28
38
39 35
31 29
16
12
24
11
17
33
32
34
7
6
8
10
13
36
40
22
18
10
14
21
25
26
27
15
30
41
42
44
43
45
48
37
4
23
9
47
31
19
6
6
1
25
4
3
53
52
49
51
46

1111
Model Series 400
Ref. Part Number Description
1. 686-0044B End Cover Assembly
2. 710-0597 Hex Head Screw, ⁄-20 x 1
3. 710-0604A Hex Head Screw, ⁄-18 x .625
4. 710 -1238 Hex Head Screw, ⁄-18 x .875
5. 710-3008 Hex Head Screw, ⁄-18 x .75
6. 712-04063 Nylon Hex Lock Nut, ⁄-18
7. 712-04064 Nylon Hex Lock Nut, ⁄-20
8. 712-04065 Flange Lock Nut, ⁄-16
9. 712-0421 Wing Nut, ⁄-18
10. 715- 0108 Spirol Pin
11. 926-0106 Cap Nut, ⁄ Rod
12. 731- 05512 Hole Plug
13. 732-04320 Torsion Spring
14. 738-04320 Shoulder Screw, .405 x .435 ⁄-18
15. 938-0533 Shoulder Screw, .498 x 1.635
16. 938-0849 Stop Screw
17. 747- 0432 Tiller Flap Rod
18. 750-05349 Spacer
19.. 786-0090A Side Shield
20. 78 6 - 0113A Rear Tine Shield
21. 786-04092 Reverse Stop Arm
22. 786-04104 Drag Bar
23. 786-04352A Tine Shield Mounting Bracket
24. 786-04355A Tine Shield
25. 786-04356 Adjustable Depth Bar
26. 786-04363 Tail Bracket, LH
27. 786-04364 Tail Bracket, RH
Ref. Part Number Description
28. 649-04098 Upper Handle Assembly
29. 686-04135 Reverse Handle Assembly
30. 710-0189 Hex Head Screw, ⁄-18 x 3.00
31. 710-0599 Self-Tapping Screw, ⁄-20 x ⁄
32. 731-04735 Handle Select
33. 720-0278A Foam Handle Grip
34. 710-3288 Hex Head Screw, ⁄-20 x 1.62
35. 731-06253A Handle Cover
36. 735-04105 Plug End
37. 736-0242 Bell Washer, .340 x .872 x .060
38. 946-04504 Reverse Cable
39. 946-04506 Forward Cable
40. 747-04789 Clutch Bail
41. 750-0885A Spacer, .322 x .625 x 2.00
42. 786-0340B Handle Crank
43. 786-04344 Handle Bracket, RH
44. 786-04345 Handle Bracket, LH
45. 786-04358 Retainer Nut Bracket
46. 686 -04144 Front Bumper
47. 731-06529 Belt Cover
48. 736-0173 Flat Washer, .28 x .74 x .063
49. 738-0440 Spacer, .375 x .165
50. 710-04605 Hex Head Screw, ⁄-18 x 1.50
51. 720-04173 Reverse Handle Grip
52. 936 -0176 Flat Washer, .265 x .938 x .120
53. 936-0451 Saddle Washer, .320 x .930 x .060

1212
Model Series 400
39
37
12
15
25
24
3
7
2
1
4
5
3
6
6
7
8
9
11
11
13 9
14
16
17
19
20
21
21
22
22
23
24
26
27
28
29
30
31
3
2
33
34
35
36
18
38
40
10

1313
Model Series 400
Ref. Part Number Description
1. 634-04736 Complete Whl. Ass., 13 x 5 x 6
634-04735 Rim, 6.0 X 3.25
734-04163A Tire, 13 x 5 x 6
2. 714-0143A Klik Pin
3. 684-04168 Idler Pulley Assembly
4. 710- 0331 Hex Head Screw, ⁄-24 x 2.25
5. 710- 0170 Hex Head Screw, ⁄-24 x .625
6. 710-0599 Self Tapping Screw, ⁄-20 x .500
7. 710-0606 Hex Head Screw, ⁄-20 x 1.50
8. 710-0672 Hex Head Screw, ⁄-18 x 1.25
9. 710-1880 Hex Head Screw, ⁄-18 x .75, Patch
10. 736-0315 Washer, Flat, .760 x 1.50 x .120
11. 712-04064 Nylon Hex Lock Nut, ⁄-20
12. 712-0700 Nut, 9/16-18, Flange Lock
13. 718-04407 Hub, ⁄ Spline
14. 732-04085 Extension Spring, .480 OD X 5.00 LG
15. 732-04276A Extension Spring, LT5 PTO
16. 936 - 0119 Lock Washer, ⁄
17. 736-0173 Washer, .28 x .74 x .063
18. 714-04043 Cotter Pin, Bow Tie
19. 736-0343 Flat Washer, .330 X 1.25 X .120
Ref. Part Number Description
20. 936-0452 Bell Washer, .396 x 1.140 x .095
21. 736-3092 Flat Washer, .265 x 1.0 x .030
22. 738-04425 Shoulder Screw, .342 x .335 ⁄-28
23. 748- 04087A Pivot Idler Spacer
24. 750-04571 Shoulder Spacer, .260 x .785 x .538
25. 750-04907 Pivot Idler Spacer
26. 1916657 V-Belt, 4L x 25.375 Long
27. 1916658 V-Belt, 3L x 29.125 Long
28. 756- 04198A Engine Pulley
29. 756-04355 Transmission Pulley
30. 756-0625 Cable Roller
31. 786-04312 Idler Bracket, Forward
32. 786-04343 Cover Plate
33. 786-04346 Idler Bracket, Reverse
34. 786 -04416A Mounting Frame, RH
35. 786- 04415B Mounting Frame, LH
36. 786-04357 Pulley Bracket
37. 786-04371 Pulley Shield
38. 642-04071 Tine Assembly, LH
39. 642-04072 Tine Assembly, RH
40. 911- 0 415 Clevis Pin, .375 x 1.75

1414
Model Series 400
1
2
2
2
2
2
3
4
5
6
6
7
7
7
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
18
18
18
18
19
19
20
20
21
21
21
21
22
23

1515
Model Series 400
Ref. Part Number Description

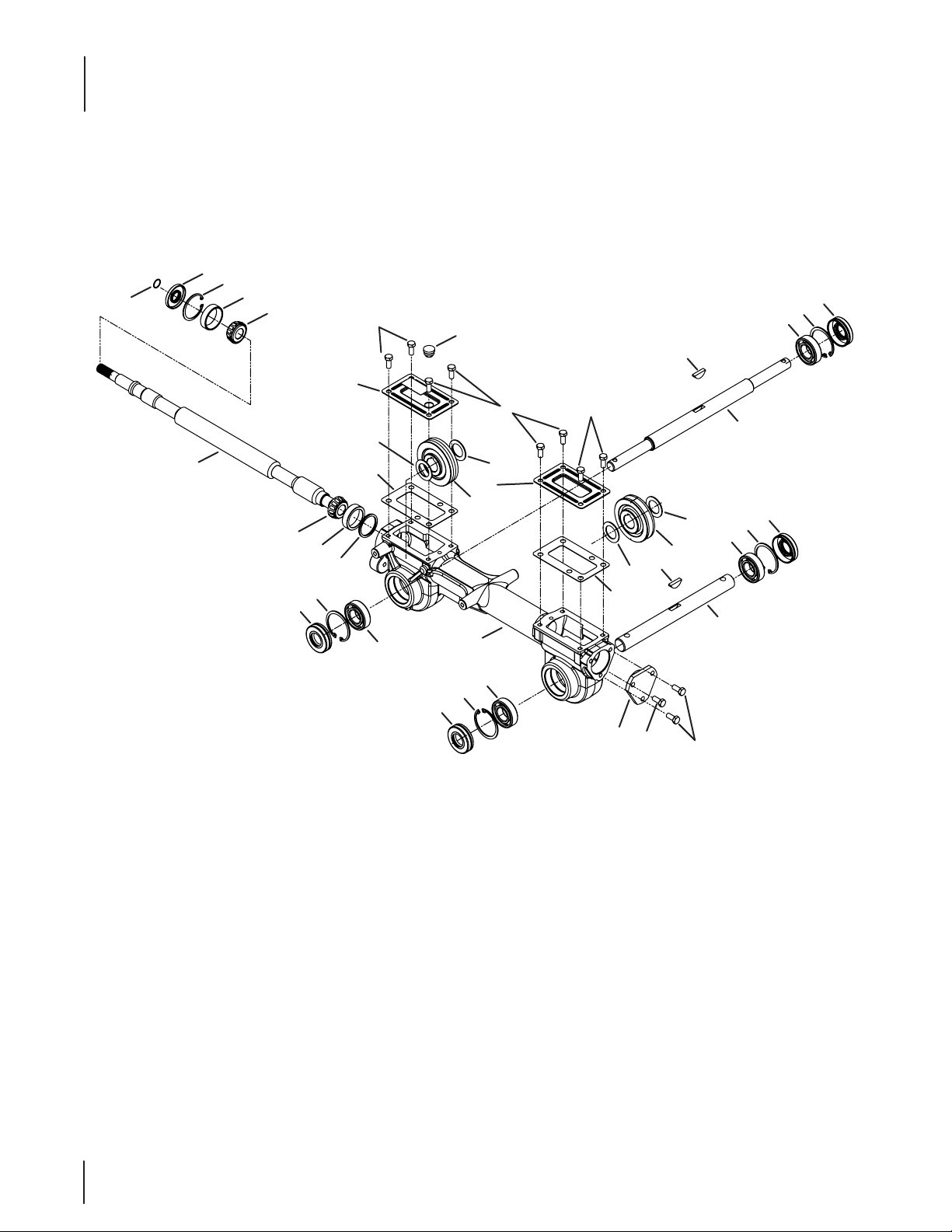

918-04815A Transmission Assembly
1. 919 -04184A Housing, Transmission
2. 710-3008 Hex Screw, 5/16-18, .75, Gr5
3. 911- 0 4 8 4 4 Shaft, Tiller
4. 911- 0 485 4 Shaft, Wheel
5. 911-05028 Shaft, Worm
6. 714-04059 Key, Hi Pro .25 x 1.062
7. 716-0204 Retaining Ring
8. 716-04102 Retaining Ring, Int
9. 917-04380 Worm Gear, 61t, RH
10. 917-04381 Worm Gear, 30t, LH
11. 918-04435 Bearing Cover
12. 921-04030 Seal, Oil, .750 Shaft x 1.783 Bore
13. 921-04229 Gasket, Gear Housing
14. 721-04232 Seal, Oil, 1.00 Shaft x 2.00 Bore
15. 721-04271 Rubber Plug, Oil
16. 732-0614 Wire Ring
17. 736-04305 Washer, Flat, 1.50 x 1.75 x .062
—736-04306 Washer, Flat, 1.50 x 1.75 x .005
—736-04307 Washer, Flat, 1.50 x 1.75 x .03
—736-04308 Washer, Flat, 1.50 x 1.75 x .010
18. 736-0745 Washer, Flat, 1.010 x 1.56 x .060
19. 941-04298 Cone Bearing
20. 941- 04299 Bearing Cup
21. 741-3114 Ball Bearing
22. 786-04366 Cover, Transmission
23. 786-04392 Cover, Transmission
* — The at washers listed are used as required to obtain .005 to
.015 in allowable end play on the drive shaft.

1616
Model Series 450
13
1
38
2
3
32
46
34
31
30
42
29
45
20
8
17
28
16
14
30
41
33
35
34 40
37
31 47
18
5
60
25
34
36
31
38 39
34
34
10
6
19
22 4
20
15
23
9
21
43
44
12 7
35
48
11
26
52
49
51
50
55
56
64
59
57 58
61
54
62
60
53
24
27
63

1717
Model Series 450
Ref. Part Number Description
1. 747-1152 Shaft Rod
2. 649-0034 Lower Handle Tube Assembly
3. 649-0041 Upper Handle Assembly
4. 710-0946 Screw, 1/4-20 x 0.625
5. 710-3005 Hex Head Screw, 3/8-16:1.25
6. 710-3056 Hex Head Screw, 5/16-18 x 3.25
7. 911- 0 415 Clevis Pin, .375 X 1.75
8. 712-0324 Hexlock Nut, 1/4-20
9. 712-0379 Flangelock Nut, 3/8-24
10. 912-0429 Hexlock Nut, 5/16-18
11. 710 -1307 Stud, 5/16-18 x .75
12. 720-0210A Small Tee Knob
13. 720-0278A Foam Grip, .970 x 11.0
14. 720 -0313 Grip, .1875 x 1.00
15. 726-0273 Battery Clamp, 5/16
16. 726-0317 Cable Tie, 8.5 LG
17. 735-0246A End Plug
18. 936 - 0117 Washer, Flat, .385 x .620 x .033
19. 736-0242 Washer, Bell, .340 x .872 x .060
20. 736-3090 Washer, Flat, .260 x .720 x .060
21. 938-0958 Spacer, Shoulder, .50 x .190 x .360
22. 747-1219 Clutch Bail
23. 784-0190 Handle Adjustment Crank
24. 784-0191 Hex Nut Retainer Bracket
25. 786 -0120 Tiller Depth Control
26. 786-0181 Shaft Rod Lever
27. 735-0127 Washer, Rubber, .33 ID x .125
28. 914-0104 Cotter Pin, .072 x 1.12 LG
29. 686-0044B End Cover Assembly
30. 710- 0176 Hex Head Screw, 5/16-18 x 2.75
31. 710-3008 Hex Head Screw, 5/16-18 x .75
32. 710-3022 Hex Head Screw, 3/8-16 x 2.75
Ref. Part Number Description
33. 710-04482 Hex Head Flange, 3/8-16 x .875
34. 712-04063 Flangelock Nut, 5/16-18
35. 712- 04065 Flangelock Nut, 3/8-16
36. 712-0421 Wing Nut, 5/16-18 W/ Bell Washer
37. 926-0106 Speed Nut Cap, 1/4 ROD
38. 736-0204 Washer, Flat, .344 x .62 x .033
39. 938-0849 Screw, Hex, 5/16-18 x .75
40. 747- 0432 Tiller Flap Rod
41. 750-0885A Spacer, .322 x .625 x 2.00
42. 786-0090A Side Shield
43. 78 6 - 0113A Rear Tine Shield
44. 786 -0176 RH Handle Mount Bracket
45. 786 - 0177 LH Handle Mount Bracket
46. 786-0178A Tine Shield
47. 786-0179 FRT Tine Shield Bracket
48. 786-0180 FRT Tine Shield Spacer Bracket
49. 686-0109A Shift Crank Assembly
50. 710-1652 Screw, ⁄-20 x .625
51. 715-0120 Spiral Pin, ⁄ x 1.0
52. 784-0208D Shift Cover
53. 911- 0 415 Clevis Pin
54. 712-3054 Hex Nut, ⁄-24
55. 742-0305A 13” Articulating Tine
56. 938-0689 Shoulder Bolt
57. 936-0253 Bell Washer, .515” ID x 1.14” OD
58. 938-0688 Shoulder Bolt
59. 784-0160 Tine Adapter Assembly, 18”
60. 714-04043 Internal Cotter Pin
61. 936-0169 Lock Washer
62. 784-0161 Tine Adapter Plate
63. 731-07556 Cap
64. 936-0208 Washer, Flat, .51 x 1.5 x .07

1818
Model Series 450
27
9
26
4
35
36
37
34
32
33
33
29
32
3
30
41
6
39
31
24
13
7
21
20
5
16
22
23
2
14
8
25
28
10
17
1
18
Wheel shaft shown
for reference only.
40
38
42
12 11
15
6
19

1919
Model Series 450
Ref. Part Number Description
1. 6 86 - 0111 Belt Cover Bracket Assembly
2. 710- 0170 Hex Bolt, ⁄-24 x .625
3. 710-0513 Hex Bolt, ⁄-28 x .75”
4. 710-0520 Hex Washer Screw, ⁄-16 x 1.50”
5. 710-1039 Hex Bolt, ⁄-24 x 1.0
6. 710-1652 Hex Washer Screw
7. 710-3005 Hex Cap Screw, ⁄-16 x 1.25
8. 712-0266A Lock Jam Nut, ⁄-16
9. 712-04063 Flangelock Nut, 5/16-18
10. 914-0104 Internal Cotter Pin
11. 912-3066 Hex Nut, 1/2-20
12. 936-0921 Washer, Lock, 1/2
13. 936 -0176 Flat Washer, .25 ID x .93 OD
14. 936-0271 Spring Washer, .317 ID x .625 OD
15. 750-0194 Hub, .636 ID x 1.00 OD x .94
16. 936-0452 Bell Washer, .396 ID x 1.14 OD
17. 738-0876A Shoulder Nut, ⁄-20
18. 9 46 -1117 Clutch Cable
19. 747-1159 Idler Pulley Rod
20. 954-0434 V-Belt
21. 756-0405 Flat Idler w/ Flange, 3.75 OD
Ref. Part Number Description
22. 756-0971 Outer Engine Pulley Half
23. 756-0972 Inner Engine Pulley Half
24. 756 -1162 Input Pulley
25. 786-0064A Idler Bracket
26. 786-0185A Belt Keeper Bracket
27. 786-0187 Shift Cover Bracket
28. 786-0193 Idler Belt Keeper
29. 934-04365A Wheel Assembly, 16.0 x 4.6 x 8
30. 936-3020 Flat Washer, .271 ID x .630 OD
31. 784-0158A Belt Cover
32. 710-0606 Hex Head Screw, ⁄-20
33. 712- 04064 Flange Lock Nut, ⁄-20
34. 710-0382 Hex Bolt, ⁄-13 x 5.0
35. 712- 04150 Flange Lock Nut, ⁄-13
36. 723- 0381† Counterweight, 40 lbs.
37. 936-0326 Flat Washer
38. 936 -0179 Washer, Flat, 1/2 x 1.25 x .100
39. 710-0653 Hex Screw, ⁄-20 x .375
40. 731-1595† Counterweight
41. 712- 0392 Lock Nut
42. 710-0506 Hex Head Screw, 1/2-13 x 5.50
† If Equipped

2020
Model Series 450
20
3
28
19
46
16
3435
1637
16 37
29
10
11
11
50
38
24 38
2
3351
45
27
15
48
42
12
28
31
41
47
18
38
5
38
21
36
36
4
43
8
26
9
25 39
22 7
23 44
37
40
30 37 16
16
38
46
33
1
38
6
14
47
49
32
17
13
29
12
