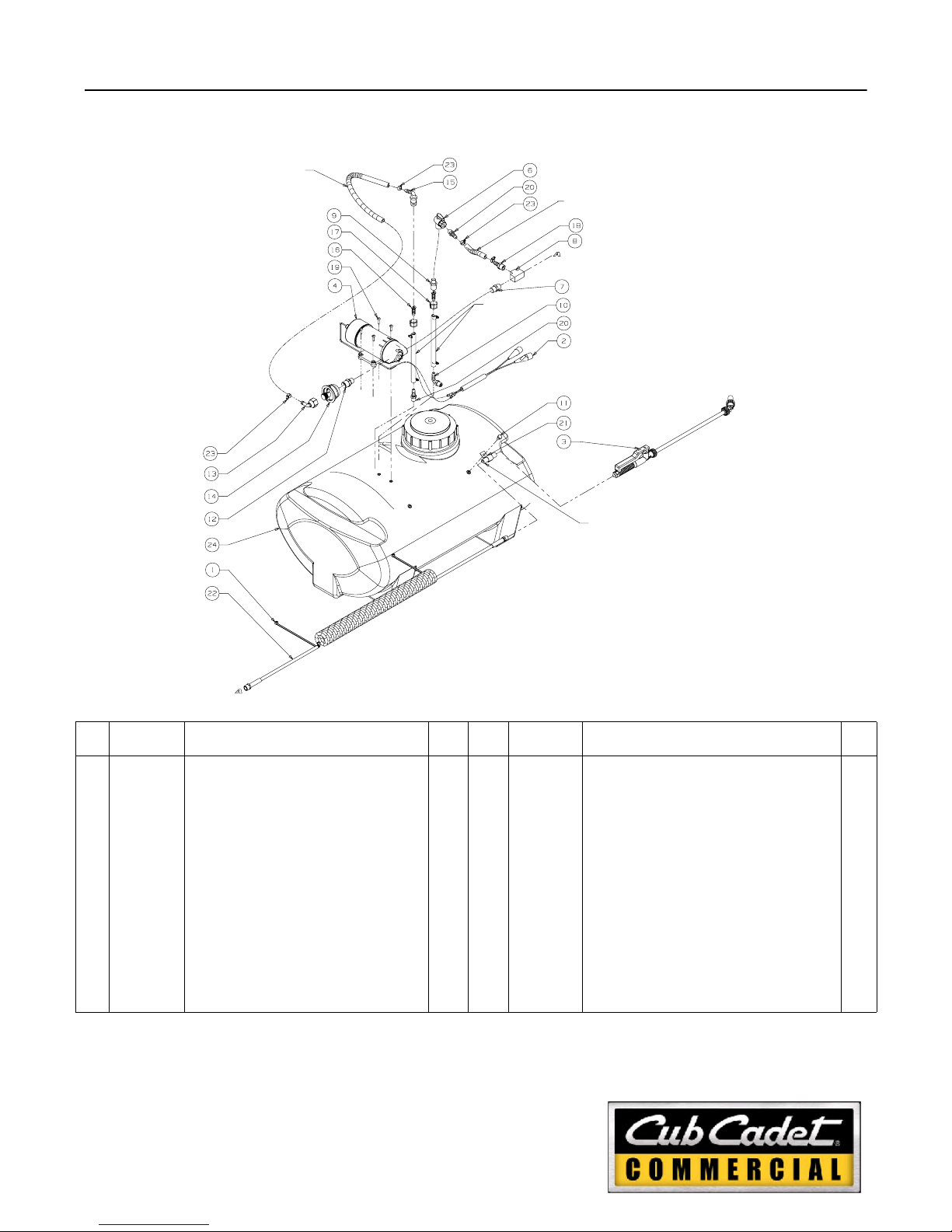

Electric, Spot-Sprayer Parts List
02004701 25-Gallon, 1/4" x 25' FlexCoil Hose
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
100012470 Cable Tie 113 00035600 Hose Barb, 3/8 x 90° Swivel Elbow 1
200018283 Electric Wire Harness includes: 114 00035601 Filter, 30 Mesh S.S. Screen 1
00032615 Wire, 16-3 10ft. 15 00035626 Hose Barb, 3/8" x 90° Male Elbow 1
00032630 Shrink Tube, 3/8" 4in. 16 00035627 Hose Barb, 3/8 Nylon 2
300018334 Wand Assembly includes: 117 00035628 Swivel Nut, Nylon 2
00005173 Strainer 118 00035631 Hose Barb, 3/8 x 3/8 MPT 1
400020851 Diaphragm Pump, Flojet 119 00035678 Mach. Screw, # 10-24 x 3/4 Pan Hd. 4
5-- Hose, 3/8” 320 00035781 Hose Barb, 3/8 x 1/4 MPT 2
600031247 Valve, 90°, 1/4 FPT 121 00035790 Conduit Strap, 1/2 1
700032078 Nipple, 3/8 MPT Close 122 00035816 Hose, 1/4" x 25', FlexCoil 1
800032081 Tee, 3/8 FPT Brass 100034896 3/8 Hose, Reinforced PVC-25 ft. 1
900032086 Fitting, Adapter, 1/4 MPT x 11/1 61 123 01000215 Hose Clamp 8
10 00032113 Elbow, 90°, 1/4 MPT x 3/8 Hose Barb 124 01006835 Tank, 25 Gallon, Polyethylene includes: 1
11 00034947 Cap Screw, 5/16-18 x 1/2 Hex Hd. 101007969 Tank Lid 1
12 00035599 Fitting, Adapter 1
3/8 hose
18.0" LG.
3/8 hose
5.0" LG.
3/8 hose each
14.0" LG.
3/8 hose: 2.0" LG.
Run Blue Hose through
this piece and mount
to tank along with harness
using 1/2" conduit strap
Starting Date: 8/2007 –

Electric, Spot-Sprayers
Operating Instructions
After Filling Tank: (Note: We recommend the use of liquid products only.)
1. Connect power cord red cable to positive and black cable to negative 12 volt DC power
source.
2. Turn pump power switch to "on".
3. Remove tank lid. Hold TriggerJet™ wand with nozzle pointing into fillwell. Squeeze wand
trigger allowing spray liquid to recirculate back into tank until air is purged from hoses.
Release pressure on trigger, remove wand from fillwell and replace lid. You are now ready
to spray.
4. Closing the 1/4" Bypass Valve stops tank agitation. Opening the valve allows tank agitation
through the bypass hose. The wand output can be regulated by adjusting the Bypass
Valve.
Adjusting Wand Tip:
1. The knurled body of the tip rotates a half turn to provide spray selection from a wide angle,
finely atomized cone spray to a straight stream spray.
Should Pump Fail to Run:
1. Check pump switch and power source connections.
2. Check 10 amp fuse in power cord.
3. Check internal pump parts for needed repairs.
Pump Runs - No Fluid:
1. Remove tank lid. Hold TiggerJet™ wand with nozzle pointing into fillwell. Squeeze wand
trigger and hold until pump primes. Allow spray liquid to recirculate into tank until air is
purged from hoses.
2. Check suction line inside tank and make certain it is not pinched or plugged.
3. Turn pump switch to "off" and check for clogged suction strainer at pump inlet. Remove
swivel hose fitting from strainer cap and remove strainer cap (one-quarter turn counter-
clockwise). Remove screen and clean.
Form No. 02004720 Rev. 08-0 7/26/2007
TriggerJet is a trademark of Spraying Systems Co.
