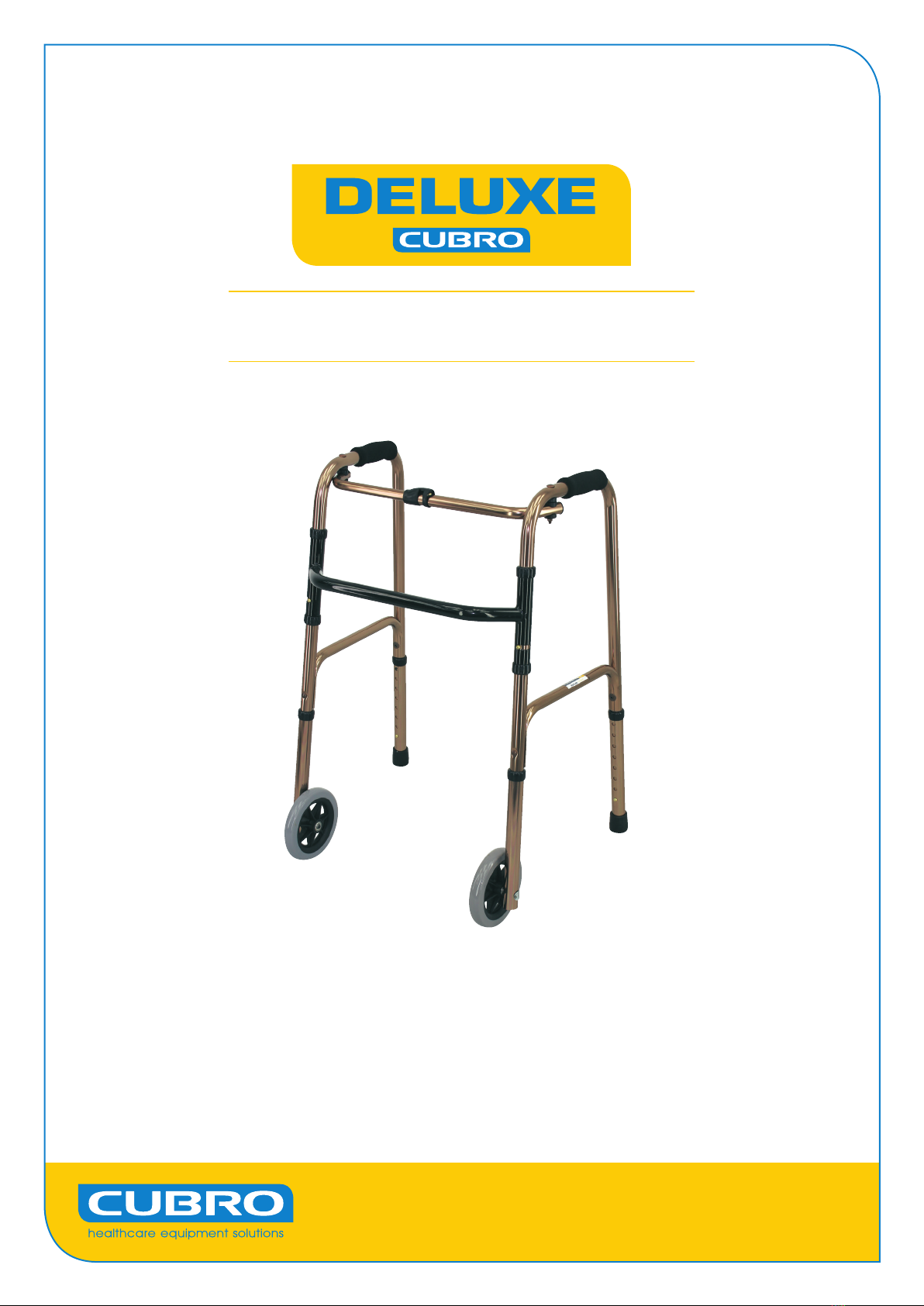

Cubro DELUXE 1800 User manual

Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
USER GUIDE
FOR DELUXE ® FOLDING WALKING FRAME
MAX USER WEIGHT: 120KG
ORDERING CODE: 1800, 1801, 1802, 1803, 1804, 1805, 1806

Deluxe Folding Walking Frame
USER GUIDE
ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
2
1. INTENDED USE
The Deluxe folding walking frame is designed for individuals who, due to a wide variety of reasons,
require additional support while walking. It should be used as a tool to assist people who have
mobility diculties with standing, walking or sitting independently.
2. PRODUCT DESCRIPTION
Manufactured from high quality materials these lightweight aluminium walking frames are height
adjustable and fold away for easy storage. The hoop design gives maximum strength, stability and
long life.
3. DEFINITIONS
Symbols used in this user manual and their meanings.
WARNING! Failure to heed this warning may result in damage to the product or serious
injury to the operator/user.
CAUTION! Beware of pinch points.
ATTENTION! Read and understand the instructions in the user guide before using the
product.
CONTENTS
1. Intended Use 2
2. Product Description 2
3. Denitions 2
4. Warnings 3
5. Product Specications 4
6. List of Components 4
7. Instructions for Use 5
8. Care and Maintenance 5
9. Limited Warranty 7

ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
3
Deluxe Folding Walking Frame
USER GUIDE
4. WARNINGS
ATTENTION! This user manual must be read before using the walking frame. Severe injury
or death may result if user instructions, maintenance instructions and product warnings are
not followed.
WARNING! The decision to use this walking frame should always be guided by a qualied
Health Care Professional, who can also advise and assist with the correct height adjustment
and usage instruction.
CAUTION! Fingers or other body parts can be trapped between the walking frame’s folding
mechanism during operation. Be extremely careful when adjusting the walking frame.
Observe the dimensions of gaps between the walking frame’s elements to avoid trapping
your ngers or other body parts.
LIMITATIONS FOR USE
• Maximum user weight is 120kg
• Instruction and practice are necessary for successful use of the walking frame.
• The walking frame is to be used indoors on at surfaces.
• Use the walking frame only for the purpose it is intended for.
• DO NOT stand on the walking frame.
• DO NOT hang anything from the frame of your unit.
• Ensure legs, wheels, stops, skis are level to avoid instability problems.
• DO NOT use to pull-up on. This is not a transfer aid.

Deluxe Folding Walking Frame
USER GUIDE
ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
4
485mm
790 - 970mm
615mm
610 - 790mm
400mm
Maximum user weight 120kg
Adjustable height 790mm - 970mm
Width between handles 440mm
Overall width 615mm
Inside width 560mm
Tip size 28mm
Ski size 25mm
Description 4 rubber feet Front wheels,
rear stops 4 fixed wheels Front castors, rear stops
Front wheels,
rear skis
Front castors,
rear wheels
Front castors,
rear skis
Code 1800 1801 1802 1803 1804 1805 1806
Front
Rear
Frame Weight 2.5kg 3.3kg 4.1kg 3.6kg 3.3kg 4.2kg 3.5kg
6. LIST OF COMPONENTS
The Deluxe Folding Walking Frames are supplied in
boxes and come folded, for easy transportation. The
contents include one complete Deluxe Folding Walking
Frame and one user manual.

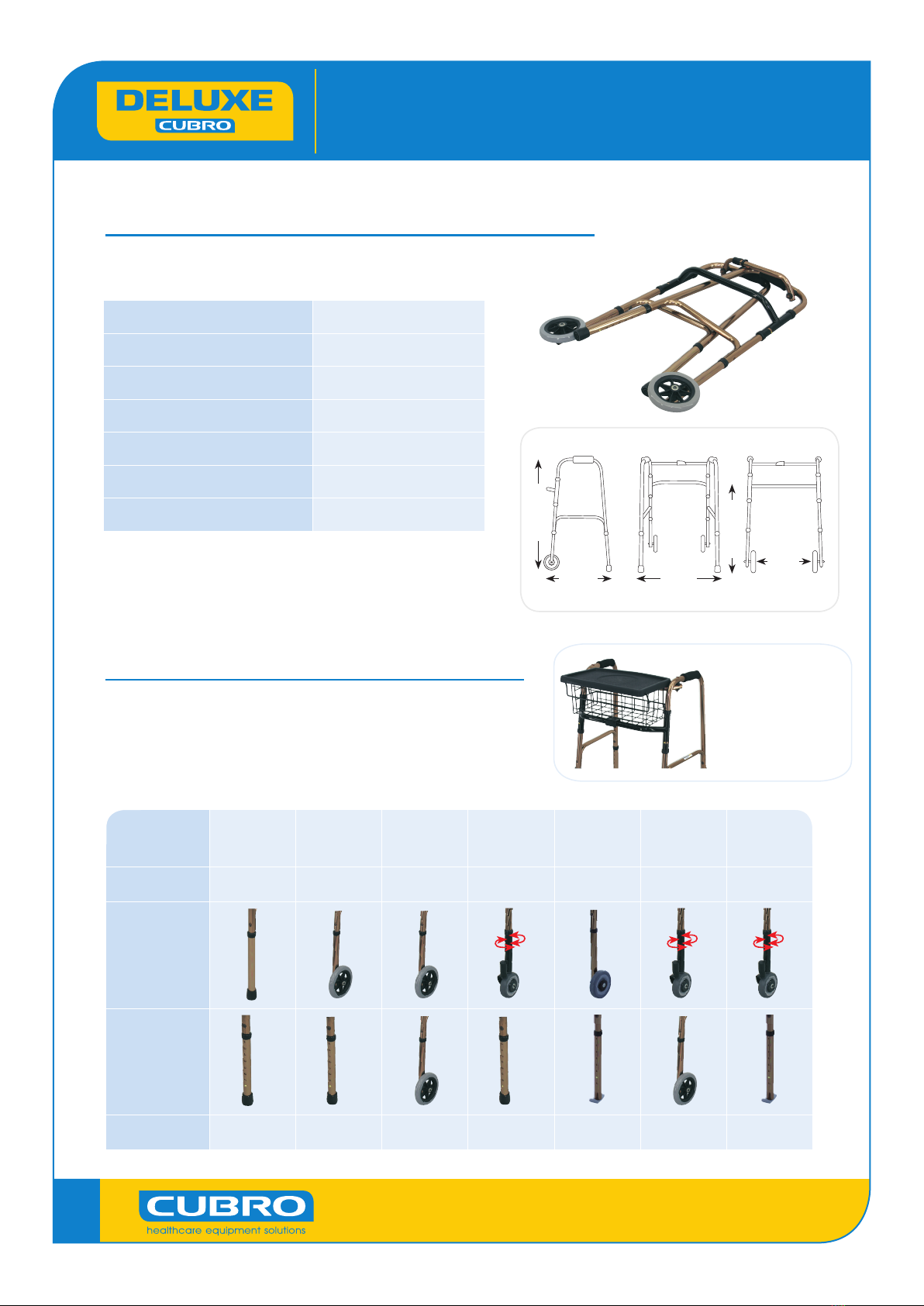

5. PRODUCT SPECIFICATIONS
SPECIFIC DIMENSIONS
OPTIONAL
Basket and Tray
Ordering Code: 1860

ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
5
Deluxe Folding Walking Frame
USER GUIDE
7. INSTRUCTIONS FOR USE
TO UNFOLD
• Swing side frames outwards until you hear the spring button“click” into place.
• Check frame is locked and rigid before use.
WARNING! Ensure the frame is fully open before use.
TO FOLD
• Depress button (under black plastic cover) in centre of top folding tube.
• Swing side frames inwards.
CAUTION! Beware of pinch points
HEIGHT ADJUSTMENT
• Ensure left and right legs are located in the same holes and
spring buttons protrude through adjustment holes in stems.
WARNING! Seek advice from a qualied health professional
for the appropriate height level to suit your needs.
Note:
When“clicking’into
position button
must protrude by
2.5 to 3mm.
8. CARE AND MAINTENANCE
CLEANING
• Clean the walking frame regularly with a damp cloth
• Use a mild washing agent and warm water for excess dirt build up.
• Do not use harsh abrasives or bleach based agents which may cause damage or discolouration.
WHEELS
• Clean wheels, castors, stops and skis with a mild washing agent and warm water.
• Lubricate wheels with multi-purpose oil periodically or if wheels begin to squeak.

Deluxe Folding Walking Frame
USER GUIDE
ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
6
MAINTENANCE
• Ensure that every part of the walking frame is secure at all times.
• Check all screws for tightness. If not, tighten if necessary.
• Replace any broken, damaged of worn items immediately.
DISPOSAL
Products that can no longer be used are to be disposed of separately from household rubbish. This
must be done according to the local and national regulations for environmental protection and raw
material recycling. Please look at your local council’s website for further information on the correct
disposal
MAINTENANCE SCHEDULE
Weekly Periodically Yearly Serviceable
Components
• Check all
wheels, nuts
and bolts are
secure
• Check handgrips for wear
• Check folding hinge bolts are secure
• Check front and rear axle bolts are secure
• Check frame for wear or cracks
• Check wheels for damage or splitting
• Take your
walking frame
to an authorised
dealer for a full
check, clean and
service.
• Hand grips
• Wheels
• Bearings
• Nuts and
bolts
WARNING! If faults found during any inspection remove from use immediately.
WARNING! Do not make any changes or modications to this product without consultation
from your Cubro agent.
For Any Servicing, Maintenance and Troubleshooting Queries,
Please Contact The Cubro Service Dept;
Ph. 0800 656 527
Ph. [phone]
E: [e-mail]
cubro.co.nz
Address: 149 Taurikura Dr, Tauriko, Tauranga, New Zealand

ug_1800_DeluxeFoldingWalkingFrame_1217
Freephone 0800 656 527 Email [e-mail] www.cubro.co.nz
7
Deluxe Folding Walking Frame
USER GUIDE
9. LIMITED WARRANTY
