Cuisinart DLC-10C - Classic Original Food Processor User manual

Cuisinart
STEP-BY-STEP GETTING STARTED
Your Cuisinarf DLC-10S or DLC-10C will look like this after
you follow the easy step-by-step assembly instructions inside.
PUSHER FOR SMALL FEED TUBE
PUSHER FOR LARGE FEED TUBE
• Move up to ON position lo start motor
• Move down to OFF position to slop motor
• Press down to PULSE position and release for pulse/chopping

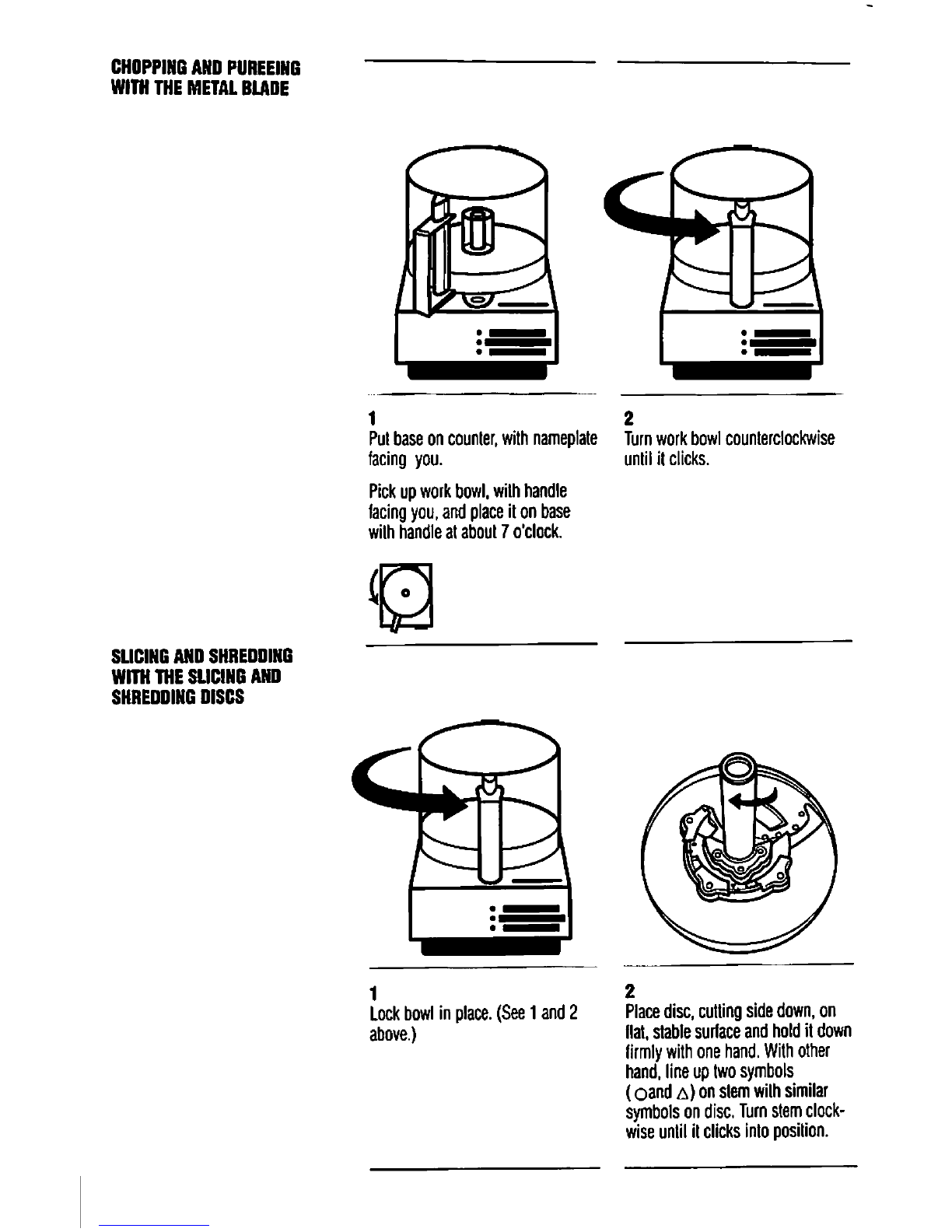

CHOPPING AND PUREEING
WITH THE METAL BLADE
1
Put base on counter, with nameplate
facing you.
Pick up work bowl, with handle
facing you, and place it on base
with handle at about 7 o'clock.
Turn work bowl counterclockwise
until it clicks.
SLICING AND SHREDDING
WITH THE SLICING AND
SHREDDING DISCS
1
Lock bowl in place. (See 1 and 2
above.)
Place disc, cutting side down, on
flat, stable surface and hold it down
firmly with one hand. With other
hand, line up two symbols
(oand a) on stem with similar
symbols on disc. Turn stem clock
wise until it clicks into position.

Place metal blade over shall,
matching outline O on top of
hub to shape of shaft. Lower blade
will almost touch bottom of bowl.
Put cover on work bowl, with feed
tube at about 7 o'clock.
Turn cover counterclockwise until
it fits into position.
3
Place disc over shaft, matching
outline Q on its top to shape
of shaft.
Without touching blade edge, push
disc down as far as it will go.
Put cover on bowl, feed tube
at 7 o'clock, and turn until it clicks.
Insert food in feed tube.
The pusher assembly slides over
the large feed tube. It has a large
pusher and a small pusher.
Push the small white pusher all
the way down and twist it to lock.
Push the large pusher all the way
down and push white Slide Lock
right to lock.
Twist small pusher to lock it and
push Slide Lock to left to unlock
■pusher sleeve.
Slide large pusher sleeve over feed
tube and push all the way down
until tabs click into place.

Cuisinart
Cuisina1®is a registered Irademark of Cuisinart
ISO Milford Road
East Windsor. NJ 08520
1-800-726-0190
Printed in China
CUI 9228.94

Locking
Tab
6
Hold pusher with white Slide Lock
toward you. Slide pusher over feed
tube on cover and push locking tab
down until locking tab clicks.
CAUTION: Machine must be unplugged
wnen you practice locking and unlocking
pusher. Repeated locking and unlocking
with machine plugged in is never neces
sary in normal use and will make
machine inoperable.
6
Apply even pressure to large
pusher while holding lever down
at PULSE position, and push food
through.
Plug in machine. Move control
switch up to ON position to start
motor. Move control switch down to
OFF position to stop motor. Move
control switch down to PULSE
position and release it for
pulse/chopping. If machine doesn't
start, make sure it is plugged in and
work bowl, cover and pusher
assembly are locked in position.
8
To remove cover, hold pusher
assembly with thumb away from
two locking tabs. Turn and lift.
The work bowl won't come off
until the cover is unlocked.
To remove pusher assembly, hold
it with thumb on large tab. Press
firmly on tab and lilt straight up.
Cover will stay in place, allowing
you to reload feed tube.
8
To remove disc from stem, slide
button up as far as it will go and
turn stem counterclockwise.

IMPORTANT
SAFEGUARDS
Always follow these safety
precautions when using this
appliance.
Getting Ready
1. Read all instructions.
2. Blades are sharp. Handle
them carefully.
3. Unplug from outlet when not
in use, before putting on or
taking off parts, and before
cleaning, to unplug, grasp plug
and pull from electrical outlet.
Never pull cord.
4. Do not use outdoors.
5. Do not let cord hang over
edge of table or counter, or
touch hot surfaces.
6. Do not operate any appliance
with damaged cord or plug,
or after appliance has been
dropped or damaged in any way.
Operation
1. Do not use pusher assembly
if sleeve becomes detached
from pusher.
2. Keep hands as well as
spatulas and other utensils
away from moving blades or
discs while processing food,
to prevent possibility of severe
personal injury or damage to
food processor. A plastic
scraper may be used but must
be used only when food proces
sor motor is stopped.
3. Avoid contact with moving
parts. Never push food down by
hand when slicing or shredding.
Always use pusher.
4. Make sure motor has
been completely stopped
before removing cover.
(If machine does not stop
within 2 seconds when
you turn cover, call
1-800-726-0190 for
assistance. Do not use
machine.)
5. Never store any blade or disc
on motor shaft. No blade or disc
should be placed on the shaft
except when the bowl is proper
ly locked in place and the
processor is in use. Store
blades and discs, as you would
sharp knives, out of reach of
children.
6. Be sure cover is securely
locked
in place before operating
food processor.
7. Do not try to override cover
interlock mechanism.
Cleaning
To protect against risk of
electrical shock, do not put
base in water or other liquid.
General
1. Close supervision is neces
sary when any appliance is used
by or near children.
2. Do not operate this, or any
other motor-driven appliance,
while under the influence of
alcohol or other substances
that affect your reaction time
or perception.
3. This food processor is UL
listed for household use.
Use it only for food preparation
as described in the accompany
ing recipe and technique book.
4. The use of attachments not
recommended or sold by
Cuisinart may cause fire,
electrical shock, personal
injury or damage to your
food processor.
5. To avoid possible malfunction
of work-bowl switch, never store
processor with pusher assembly
in locked position.
6. Maximum rating of 5.1
amperes is based on attachment
that draws greatest current.
Other recommended attach
ments may draw significantly
less current.
SAVE THESE
INSTRUCTIONS
NOTICE
This appliance has a polarized
plug (one blade is wider than
the other). As a safety feature,
this plug will fit in a polarized
outlet only one way. if the plug
does not fit fully in the outlet,
reverse the plug. If it still does
not fit, contact a qualified
electrician. Do not attempt to
defeat this safety feature.

Cuisinart
PRO CLASSIC" Food Processor 7-cup Bowl

IMPORTANT
SAFEGUARDS
Always follow these safety
precautions when using this
appliance.
Getting Ready
1. Read all instructions.
2. Blades are sharp. Handle
them carefully.
3. Unplug from outlet when not
in use, before putting on or tak
ing off parts and before cleaning.
To unplug, grasp plug and pull
from electrical outlet. Never pull
cord.
4. Do not use outdoors.
5. Do not let cord hang over edge
of table or counter, or touch hot
surfaces.
6. Do not operate any appliance
with damaged cord or plug, or
after appliance has been dropped
or damaged in any way. Return
appliance to the nearest autho
rized service facility for examina
tion, repair or electrical or
mechanical adjustment.
Operation
1. Do not use pusher assembly if
sleeve becomes detached from
pusher.
2. Keep.hands as well as spatulas
and other utensils away from
moving blades or discs while
processing food, to prevent pos
sibility of severe personal injury
or damage to food processor. A
plastic scraper may be used but
must be used only when food
processor motor is stopped.
3. Avoid contact with moving
parts. Never push food down by
hand when slicing or shredding.
Always use pusher.
4. Make sure motor has com
pletely stopped before removing
cover, (machine does not stop
within 4 seconds when you turn
cover, call 1-800-762-0190 for
assistance. Do not use
machine).
5 Never store any blade or disc
on motor shaft. To reduce the
risk of injury, no blade or disc
should be placed on the shaft
except when the bowl is properly
locked in place and the processor
is in use. Store blades and discs,
as you would sharp knives, out of
reach of children.
6. Be sure cover is securely
locked in place before operating
food processor.
7. Do not try to override cover
interlock mechanism.
Cleaning
To protect against risk of electri
cal shock, do not put base in
water or other liquid.
General
1. Close supervision is necessary
when any appliance is used by or
near children.
2. Do not operate this, or any
other motor-driven appliance,
while under the intluence of
alcohol or other substances that
affect your reaction time or per
ception.
3. The food processor is UL list
ed for household use. Use it only
for food preparation as described
in the accompanying recipe and
technique book.
4. The use of attachments not
recommended or sold by
Cuisinart. may cause fire, electri
cal shock, personal injury or
damage to your food processor.
5. To avoid possible malfunction
of work-bowl switch, never store
processor with pusher assembly
in locked position.
6. Maximum rating of 5
amperes is based on attachment
that draws greatest current.
Other recommended attachments
may draw significantly less cur
rent.
SAVE THESE
INSTRUCTIONS
NOTICE
This appliance has a polarized
plug (one blade is wider than the
other). As a safety feature, this
plug will fit in a polarized outlet
only one way. If the plug does
not fit fully in the outlet, reverse
the plug. If it still does not fit.
contact a qualified electrician. Do
not attempt to defeat this safety
feature.
Compact Cover
1. Do not use the Compact Cover
when mixing hot, thin liquids
such as soups or sauces. If you
do, it is possible that hot liquid
may splash and injure you.
2. DO NOT use any slicing,
shredding, julienne. French fry-
cut or fine grater discs with the
Compact Cover. Doing so may
expose the user to injury.
3. Although the Cuisinart
Compact Cover may seem com
patible with machines from other
manufacturers, using the cover
with other machines may be dan
gerous and may expose the user
to injury. We specifically caution
you not to use the Compact
Cover with other brand machines.
FOR HOUSEHOLD
USE ONLY

CONTENTS
IMPORTANT SAFEGUARDS
THE PARTS 2
PRACTICING WITH FOOD 4

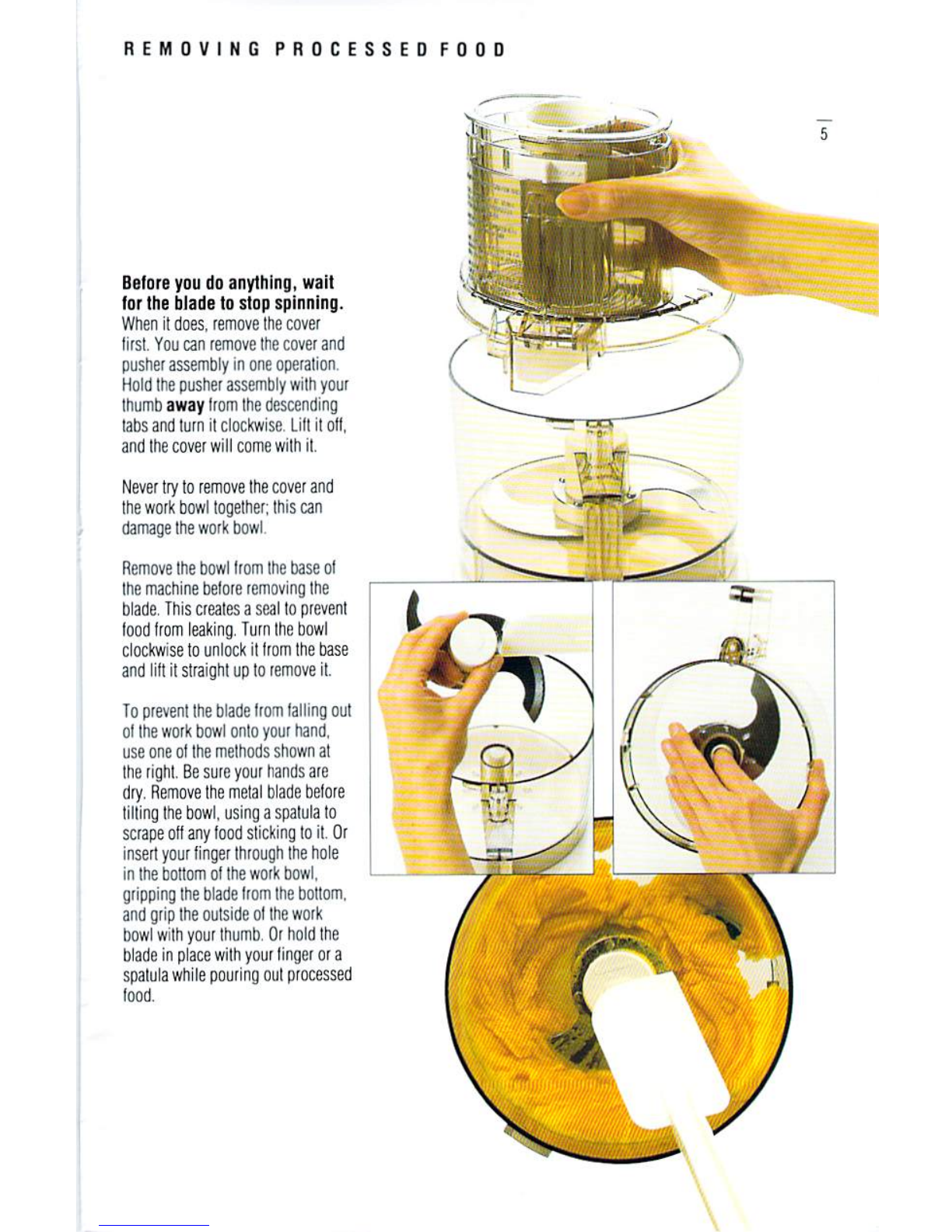

REMOVING PROCESSED FOOD 5
CHOPPING, PUREHNG& MIXING WITH MEWL BLADE 6

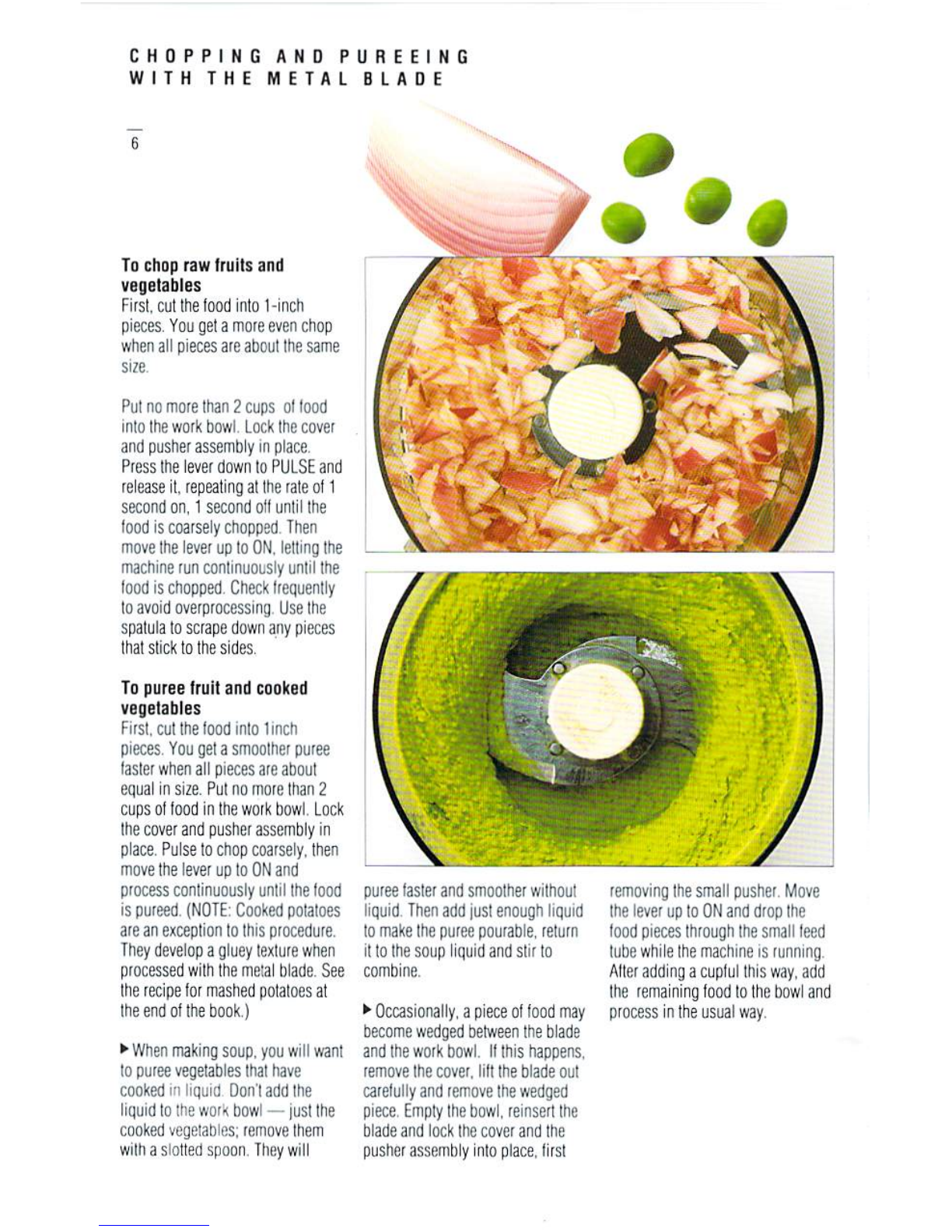

TO CHOP RAW FRUITS AND VEGETABLES 6
TO PUREE FRUIT AND COOKED VEGETABLES 6

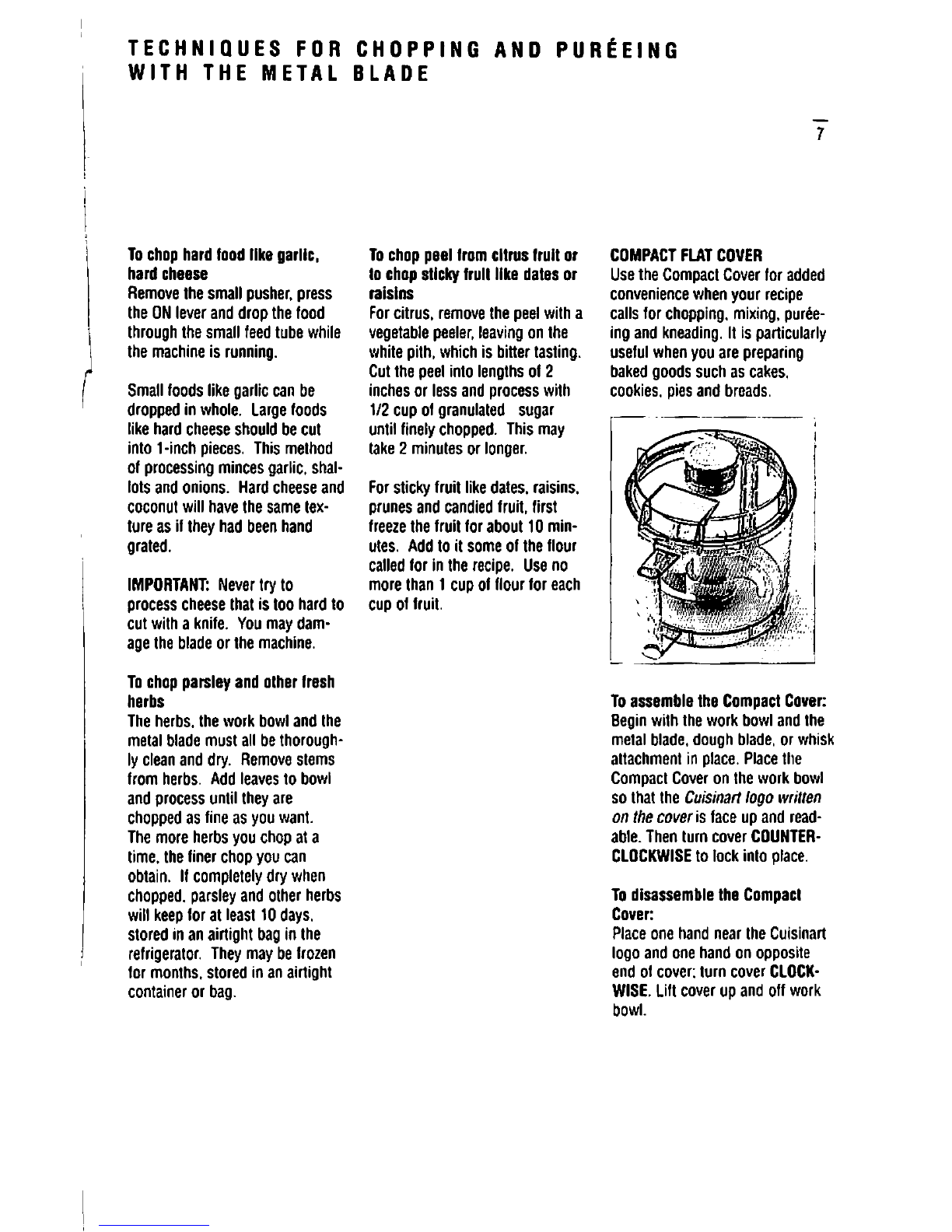

TO CHOP HARD FOOD LIKE GARLIC 7
TO CHOP PARSLEY, OTHER FRESH HERBS 7
TO CHOP PEEL FROM CITRUS FRUIT 7
TO CHOP STICKY FRUIT LIKE DATES 7

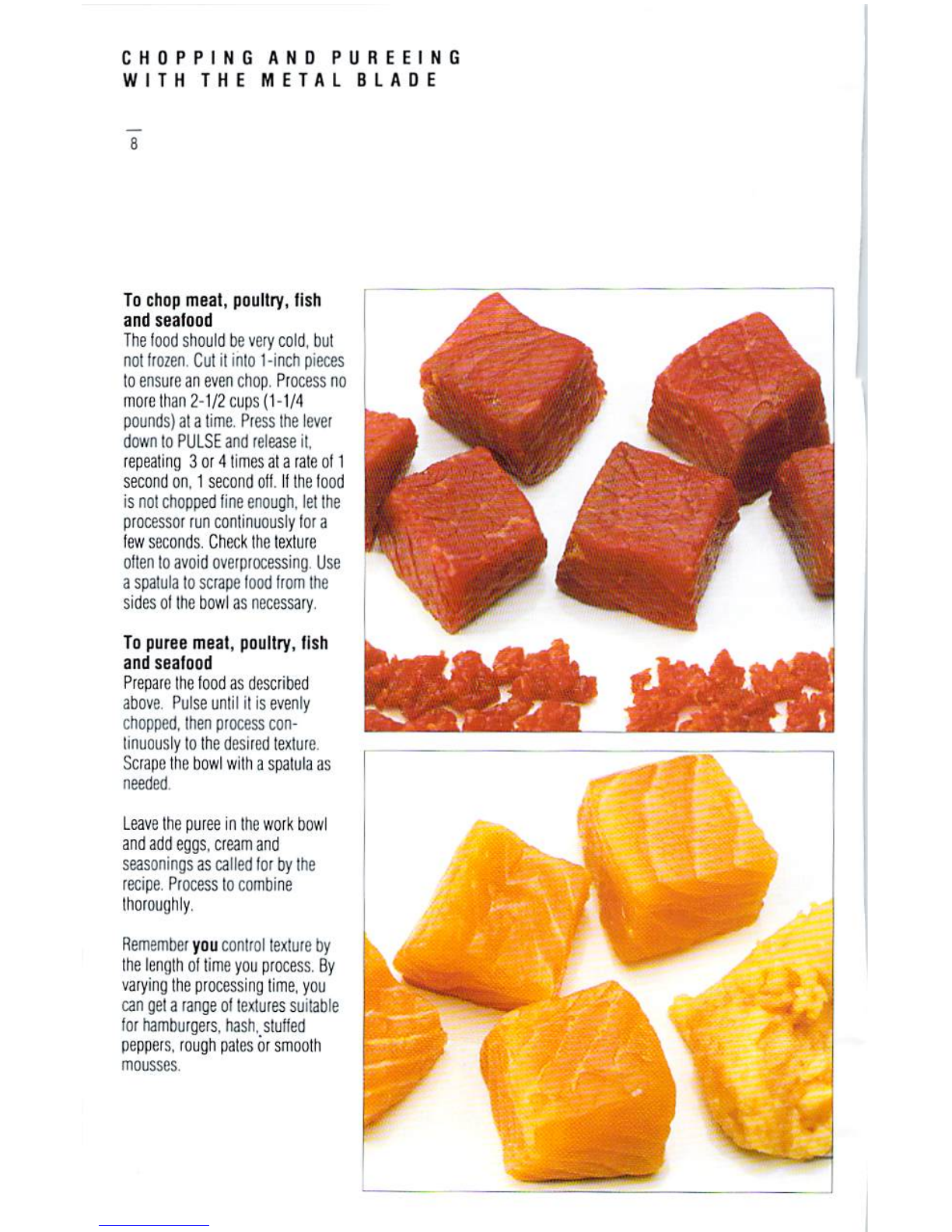

TO CHOP MEAT. POULTRY AND FISH 8
TO PUREE MEAT. POULTRY AND FISH 8
TO CHOP NUTS 9
TO MAKE PEANUT BUTTER 9
TO MAKE FLAVORED BUTTERS. SPREADS AND DIPS 9
TO MAKE MAYONNAISE 10
TO BEAT EGG WHITES 10
TO WHIP CREAM 10
TO MAKE CRUMBS AND CRUMB CRUSTS 11
TO MAKE PASTRY 11
TO MAKE QUICK BREADS AND CAKES 11
KNEADING YEAST DOUGH WITH DOUGH BLADE 12
KNEADING BREAD DOUGH
KNEADING SWEET DOUGH
RISING
SHAPING. FINISHING AND BAKING
MAKING CONSECUTIVE BATCHES
13
13
13
13
13
TYPICAL BREAD DOUGH
TYPICAL SWEET DOUGH
MACHINE CAPACITY
USING THE RIGHT BLADE
MEASURING THE FLOUR
PROOFING THE YEAST
PROCESSING DRY INGREDIENTS
ADDING LIQUIDS
12
12
12
12
12
12
12
13
SLICING AND SHREDDING
IF YOU HAVE A PROBLEM
CLEANING AND STORING
FOR YOUR SAFETY
SOME TECHNICAL DATA
RECIPES
PROBLEMS & SOLUTIONS FOR MAKING DOUGH 14
PREPARING FOOD FOR SLICING AND SHREDDING 16
ROUND FRUITS AND VEGETABLES 16
WHOLE PEPPERS 16
LARGE FRUITS LIKE PINEAPPLE 16
CABBAGE AND ICEBERG LETTUCE 16
IFTHEFOODDOESNTFIT 17
PACKING FEED TUBE FOR DESIRED RESULTS 17
PRACTICING SLICING AND SHREODING 18
REMOVING SLICED OR SHREDDED FOODS 19
SLICING AND SHREDDING TECHNIQUES 20
SMALL, ROUND FRUITS AND VEGETABLES 20
LONG FRUITS AND VEGETABLES 20
SMALL AMOUNTS OF FOOD 20
FRENCH-CUT GREEN BEANS 21
MATCHSTICKS OR JULIENNE STRIPS 21
SLICING COOKED MEAT AND POULTRY 22
SLICING FRANKFURTERS AND OTHER SAUSAGES 22
ESE 23
24
24
25
25
26
WARRANTY 49

PRACTICING WITH FOOD
Try chopping some practice foods
before you process food lo eat. A
zucchini or potalo is a good choice
Fifslcul it into 1 -inch pieces.
Insert Ihe metal blade and pul trie
pieces in the work bowl. Pul on Ihe
cover and Ihe pusher assembly;
press Ihe pusher assembly down to
lock il into olace. Press the lever
down lo PULSE and release it.
Repeat two or Ihree times ard see
what happens. Each time the blade
slops, lei Ihe pieces drop lo the
bottom ol the bowl belore you
pulse again. That puts them in Ihe
path of the blade each time the
motor slarts.
Using the pulse/chopping
technique, you can get an even
chop without danger of over-
processing Check the texture
irequenlly by looking through Ihe
cover ol the work bowl. II you want
a finer chop, keep pressing Ihe
lever down lo PULSE and releasing
it until you achieve the desired
texture. Onions and other food with
a high water content will quickly
end up as a puree unless examined
alter each pulse to make sure it is
not overprccessed.
Try chopping other food, like meat
for hamburger or sausage. Then
make mayonnaise, pastry or bread,
as described in the recipes in this
book.To obtain consistent results:
> Be sure all Ihe pieces you add to
the bowl are about the same size
► Be sure the amount of food is
no larger than recommended.
