Culligan HE 1.25 Series User manual

01024584_RevE
DCO 190528 11/19 ©2019 Culligan International Company
High
Efficiency
1.25 Water
Softener
Owners
Guide

2
Attention
Culligan
Customer
The installation, service and maintenance of this equipment should be rendered by a qualified and
trained service technician. Your local independently operated Culligan dealer employs trained service
and maintenance personnel who are experienced in the installation, function and repair of Culligan
equipment. This publication is written specifically for these individuals and is intended for their use.
We encourage Culligan users to learn about Culligan products, but we believe that product knowledge
is best obtained by consulting with your Culligan dealer. Untrained individuals who use this manual
assume the risk of any resulting property damage or personal injury.
WARNING! Electrical shock hazard! Prior to servicing equipment,
disconnect power supply to prevent electrical shock.
NOTICE This system is not intended for use where water is microbiologically
unsafe or with water of unknown quality.
WARNING! If incorrectly installed, operated or maintained, this product can cause
severe injury. Those who install, operate, or maintain this product should be
trained in its proper use, warned of its dangers, and should read the entire
manual before attempting to install, operate, or maintain this product.
WARNING! This device complies with part 15 of the FCC rules subject to the
two following conditions: 1) This device may not cause harmful
interference, and 2) This device must accept all interference received
including interference that may cause undesired operation.
This equipment complies with Part 15 of the FCC rules. Any changes or modifications not expressly
approved by the manufacturer could void the user’s authority to operate the equipment. Changes or
modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
CAUTION! To reduce the risk of fire, use only No. 26 AWG
or larger telecommunications line cord.
CAUTION! This product is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, unless they have been given supervision or instruction.
CAUTION! Children should be instructed not to play with this appliance.
CAUTION! If the power cord from the transformer to the unit looks or becomes
damaged, the cord and transformer should be replaced by a Culligan
Service Agent or similarly qualified person in order to avoid a hazard.
Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are
protected by patents issued or pending in the United States and other countries. Culligan reserves the
right to change the specifications referred to in this literature at any time, without prior notice. Culligan,
AquaSensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.
Culligan International Company
9399 West Higgins Road, Suite 1100
Rosemont, Illinois 60018
1-847-430-2800
www.culligan.com
01024584 E 11/19

3
Contents
01024584 E 11/19
About this Manual........................................................................................................................................4
Thank You....................................................................................................................................................5
Specications ..............................................................................................................................................6
Introduction..................................................................................................................................................7
How Your Water Conditioner Works ............................................................................................................8
The Culligan Process ..................................................................................................................................9
Modes of Operation...................................................................................................................................10

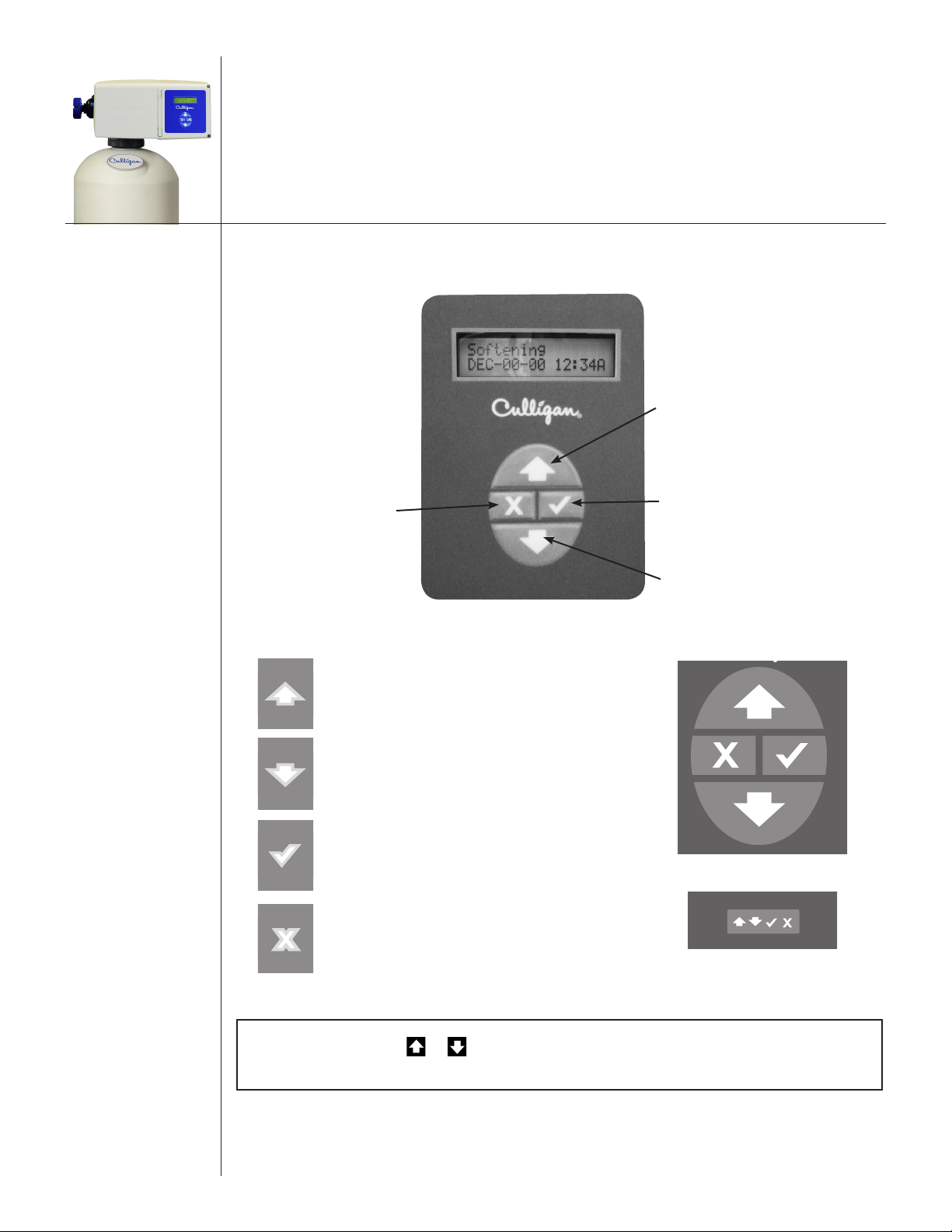

Navigating the Menus and Keypad............................................................................................................12
Set Date and Time.....................................................................................................................................13
Information.................................................................................................................................................15
Regeneration.............................................................................................................................................17
Salt Supply, Usage and Service ...............................................................................................................19
Things to Check Before You Call for Service.............................................................................................20
Error Codes ...............................................................................................................................................21
When and How to Bypass Your Water Conditioner ...................................................................................23
Performance Data Sheet...........................................................................................................................24
Important Data on Your Water Softener ....................................................................................................32
Parts List....................................................................................................................................................33
Culligan Limited Warranty .........................................................................................................................40

401024584 E 11/19
This manual:
• Familiarizes the operator with the equipment
• Explains installation and setup procedures
• Provides basic programming information
• Explains the various modes of operation
• Gives specifications and troubleshooting information
Read this Manual First
Before you operate the Culligan High Efficiency 1.25 Automatic Water Softener,
read this manual to become familiar with the device and its capabilities.
Installation or maintenance done on this system by an untrained service person can cause major
damage to equipment or property damage. Not adhering to the recommended service/maintenance
can cause damage to equipment or property damage.
Safe Practices
Throughout this manual there are paragraphs set off by special headings.
Notice (or Note) is used to emphasize installation, operation or maintenance information
which is important, but does not present any hazard. For example,
NOTE: The nipple must extend no more than 1 inch above the cover plate.
Caution is used when failure to follow directions could result in damage to equipment or property.
CAUTION! Disassembly while under water pressure can result in flooding.
Warning is used to indicate a hazard which could cause injury or death if ignored.
WARNING! Electrical shock hazard! Unplug the unit before removing the timer
mechanism or cover plates!
The CAUTION and WARNING paragraphs are not meant to cover all possible conditions and
situations that may occur. Understand that common sense, caution, and careful attention are
conditions which cannot be built into the equipment. These MUST be supplied by the personnel
installing, operating, or maintaining the system.
Be sure to check and follow the applicable plumbing codes and ordinances when installing this
equipment. Local codes may prohibit the discharge of sanitizing or descaling solutions to drain.
Use protective clothing and proper face or eye protection equipment when handling chemicals or tools.
NOTE: The Culligan High Efficiency 1.25 Softener is not intended for use with water that
is microbiologically unsafe or of unknown quality without adequate disinfection
either before or after the system.
NOTE: Check with your public works department for applicable local plumbing and
sanitation codes. Follow local codes if they differ from the standards used in this
manual. To ensure proper and efficient operation of the Culligan High Efficiency 1.25
Softener to your full satisfaction, carefully follow the instructions in this manual.
About this
Manual

5
01024584 E 11/19
Thank You
Welcome To Your New World of Better Living with Culligan Water.
The HE 1.25 water conditioners with Soft-Minder® meter and Aqua-Sensor®
sensing device are tested and certified by WQA against NSF/ANSI Standard 372,
CSA B483.1, and NSF/ANSI Standard 44 for the effective reduction of hardness
(calcium and magnesium), barium, and radium 226/228 as verified and
substantiated by test data.
The HE 1.25 water conditioners with Soft-Minder® meter and Aqua-Sensor®
sensing device are certified by IAPMO R&T against NSF/ANSI Standard 372,
CSA B483.1, and NSF/ANSI Standard 44 for the effective reduction of hardness
(calcium and magnesium), barium, and radium 226/228 as verified and
substantiated by test data.
The Culligan HE 1.25 Water Softener Controller Enclosure complies
with the UL 50/50E for an IP46 Rating.
The following models are registered for sale with the State of California and the State of Iowa.
For installations in Massachusetts, the Massachusetts Plumbing Code 248 CMR
shall be adhered to. Consult your licensed plumber for installation of this system.
This system and its installation must comply with state and local regulations.
The use of saddle valves is not permitted.
If this is your first experience having soft, conditioned water in your home, you’ll be amazed
at the marvelous difference it makes. We promise that you’ll never want to be without it again.
Congratulations, too, on selecting one of the “first family” of water conditioners in the prestigious
Culligan High Efficiency Water Softeners. With Culligan’s many years of knowledge and experience
in water treatment, you can be confident that the model you selected has been designed and
engineered to provide years of service with a minimum of care and attention.
Some localities have corrosive water. A water softener cannot correct this problem and
so its written warranty disclaims liability for corrosion of plumbing lines, fixtures or appliances.
If you suspect corrosion, your Culligan Dealer has equipment to control the problem.
Licensed plumbers know that standard industry procedures include only to hand tighten or use strap
wrenches on plastic parts. Plastic piping systems must be installed, operated and maintained in
accordance with accepted standards and procedures. Not adhering to the recommended service/
maintenance can cause damage to equipment or property damage.
NOTICE Sodium Information: Water softeners using sodium chloride for regeneration add
sodium to the water. Persons who are on sodium restricted diets should consider
the added sodium as part of their overall sodium intake.
Serial Numbers
The control valve serial number is located on the back of the electrical enclosure.
The media tank serial number is located on the top surface of the tank.
NOTE: DO NOT remove or destroy the serial number.
It must be referenced on request for warranty repair or replacement.

601024584 E 11/19
Specifications
Culligan
High Efficiency
1.25 Water
Conditioners
with Aqua-
Sensor®
Device or Soft-
Minder® Meter—
Downflow
Regeneration
Model 10" 12" 14" 16"
Control Valve 1¼” Reinforced Thermoplastic with GBE Circuit Board
Overall
Conditioner Height 62 in 60 in 73 in 73 in
Media Tank Design Quadra-Hull™ Quadra-Hull™ Quadra-Hull™ Quadra-Hull™
Media Tank
Dimensions (Dia x Ht) 10 x 54 in 12 x 52 in 14 x 65 in 16 x 65 in
Salt Storage Tank
Dimensions (Dia x Ht) 18 x 43 in 18 x 43 in 24 x 40 in 24 x 40 in
Exchange Media,
Type and Quantity
Cullex®Media,
1.5 ft3
Cullex®Media,
2.0 ft3
Cullex®Media,
3.0 ft3
Cullex®Media,
4.0 ft3
Underbedding,
Type and Quantity
Cullsan®
Underbedding, 15 lb
Cullsan®
Underbedding, 20 lb
Cullsan®
Underbedding, 25 lb
Cullsan®
Underbedding, 30 lb
Exchange Capacity
@ Salt Dosage Per
Recharge
28,109 gr @ 6.0 lb
41,587 gr @ 12.0 lb
45,831 gr @ 18.0 lb
35,247 gr @ 8.0 lb
54,191 gr @ 16.0 lb
64,053 gr @ 24.0 lb
56,218 gr @ 12.0 lb
83,174 gr @ 24.0 lb
91,662 gr @ 36.0 lb
70,494 gr @ 16.0 lb
108,382 gr @ 32.0 lb
128,106 gr @ 48.0 lb
Efficiency
Rated Dosage1
4,685 gr/lb @
6 lb salt dosage
4,406 gr/lb @
8 lb salt dosage
4,685 gr/lb @
12 lb salt dosage
4,406 gr/lb @
16 lb salt dosage
Freeboard to Media214.5 in 16 in 25 in 25 in
Freeboard to
Underbedding347.5 in 46 in 59 in 59 in
Salt Storage Capacity 375 lb 375 lb 600 lb 600 lb
Rated Service Flow
@ Pressure Drop 14.9 gpm @ 15 psi 18.4 gpm @ 15 psi 20.4 gpm @ 15 psi 22.0 gpm @ 15 psi
Total Hardness,
Maximum 99 gpg
Total Iron, Maximum 5 ppm
Hardness to
Iron Ratio, Minimum 8 gpg to 1 ppm
Operating Pressure 20-125 psi
Operating Pressure
(Canada) 20-90 psi
Operating Temp. 33-120°F
Electrical
Requirements 24V/60 Hz
Electrical Power
Consumption, Min/Max 8.4 Watts/21.6 Watts
Drain Flow, Max.42.0 gpm 3.5 gpm 4.5 gpm 6.0 gpm
Recharge
Time, Average585 min 84 min 82 min 96 min
Average Recharge
Water Consumption582 gal 109 gal 164 gal 203 gal
1 The efficiency rated dosage is only valid at the stated salt dosage and is efficiency rated according to NSF/ANSI 44.
2Measured from top of media to top surface of tank threads. (backwashed and drained).
3Measured from top of underbedding to top surface of tank threads.
4 Backwash at 120 psi (830 kPa).
5 10 minute backwash, 6 lb 10” model, 8 lb. 12” model, 12 lb. 14” model or 16 lb. 16” model salt dosage.

7
01024584 E 11/19
It’s All So Easy, So Economical, So Efficient, So Enjoyable!
Kind To Skin And Complexion
Soft water will help prevent red, itchy or dry skin because there are no hardness impurities to cause
soreness, no soap curd to coat the skin. Shaving is easier, smoother—either with a blade or electric shaver.
Bathing And Showering
You’ll use far less soap with conditioned water. Use your soap very sparingly—not as you did before soft
water. Just a quick rinse removes all lather, leaving your skin pleasantly smooth and silky because now
it’s free of sticky soap curd and film.
Saves Washing Costs. Helps Control Environmental Pollution
Soft water washes whiter and cleaner with less soap or detergent. Because the hardness impurities are
removed, your soap can concentrate solely on washing. People usually find that they can reduce the
amount of soap they use substantially. If you normally use a cup per wash load with hard water, try using
1/3 cup depending on the size of your wash load and the degree of soil. Different amounts are required, but
you can use less with softened water. An added bonus is the fact that your washable fabrics will last longer.
Super Hair Conditioning
Soft water is great for scalp and hair care. No insoluble deposits are formed.
Hair is shinier, softer, more manageable. Reduce the amount of shampoo you have normally used.
Dishes Are A Delight
Washed by hand or in a dishwasher, glassware, dishes, and silver wash cleaner and easier.
Follow your dishwasher manufacturer’s instructions. Soft water promotes sanitation because
no greasy hard water film can form to collect or harbor bacteria.
Easier Housekeeping, Gleaming Fixtures
You’ll be amazed at the marvelous difference. Just a swish of the cloth and the bathtub or shower and fixtures
are clean and sparkling. Imagine, no scouring! No hard water scum to cause rings, streaks, spots, and stains.
To keep their gleaming luster, simply wipe fixtures with a towel after use. Formica, tile, walls, floors, and
woodwork surfaces clean easier and stay clean longer. You’ll save on cleaning aids and save on time.
Saves Water-Heating Energy, Helps Water-Using Appliances
Soft water reduces the formation of rock-like hard water scale that encrusts water heaters, hot water pipes,
shower heads, and water-using appliances. This scale can cause premature maintenance and failure.
Elimination of hard water also provides substantial energy savings because scale acts
as an insulator, wasting electricity or gas used to heat water.
Water For Lawns And Household Plants
If possible, lawn sprinkling faucets should be supplied with hard water primarily because
it is not economical to soften so much water.
Household plants are much more sensitive than lawns with respect to which kind of water is
best. First, because they receive no rainfall and, second, there is little or no drainage of the soil.
Preferably they should be watered with rainwater or water which is low in mineral content such
as distilled or demineralized water. Softened water is not recommended for house plants because
a build-up of sodium in the soil may interfere with efficient absorption of water by the plant root
system. Additional information may be obtained from your independently operated Culligan dealer.
Introduction

801024584 E 11/19
How Your Water
Conditioner
Works
Why Water Gets Hard And How It Is Softened
All of the fresh water in the world originally falls as rain, snow, or sleet. Surface water is drawn upward
by the sun, forming clouds. Then, nearly pure and soft as it starts to fall, it begins to collect impurities
as it passes through smog and dust-laden atmosphere. And as it seeps through soil and rocks it gathers
hardness, rust, acid, unpleasant tastes and odors.
Water hardness is caused primarily by limestone dissolved from the earth by rainwater. Because of this,
in earlier times people who wanted soft water collected rainwater from roofs in rain barrels and cisterns
before it picked up hardness from the earth.
Some localities have corrosive water. A softener cannot correct this problem and so its written warranty
disclaims liability for corrosion of plumbing lines, fixtures or appliances. If you suspect corrosion, your
Culligan dealer has equipment to control the problem.
Iron is a common water problem.
The chemical/physical nature of iron found in natural water supplies is exhibited in four general types:
1. Dissolved Iron—Also called ferrous or “clear water” iron. This type of iron can
be removed from the water by the same ion exchange principle that removes the
hardness elements, calcium and magnesium. Dissolved iron is soluble in water and
is detected by taking a sample of the water to be treated in a clear glass. The water
in the glass is initially clear, but on standing exposed to the air, it may gradually turn
cloudy or colored as it oxidizes.
2. Particulate Iron—Also called ferric or colloidal iron. This type of iron is an undissolved
particle of iron. A softener will remove larger particles, but they may not be washed out
in regeneration effectively and will eventually foul the ion exchange resin. A filtering
treatment will be required to remove this type of iron.
3. Organic Bound Iron—This type of iron is strongly attached to an organic compound
in the water. The ion exchange process alone cannot break this attachment and the
softener will not remove this type of iron.
4. Bacterial Iron—This type of iron is protected inside a bacteria cell.
Like the organic bound iron, it is not removed by a water softener.
When using a softener to remove both hardness and dissolved iron it is important that it regenerates more
frequently than ordinarily would be calculated for hardness removal alone. Although many factors and
formulas have been used to determine this frequency, it is recommended that the softener be regenerated
when it has reached 50–75% of the calculated hardness alone capacity. This will minimize the potential for
bed fouling. (Iron removal claims have not been verified by the Water Quality Association and IAPMO R&T.)
If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep
the bed from coating with iron. Even when operating a softener on water with less than the maximum
of dissolved iron, regular cleanings should be performed. Clean every six months or more often if iron
appears in your conditioned water supply. Use resin bed cleaning compounds carefully following the
directions on the container.
NOTICE Do not use where the water is microbiologically
unsafe or with water of unknown quality without
adequate disinfection before or after the unit.

9
01024584 E 11/19
Your Culligan water conditioner consists of three basic components,
(A) the Control Valve, (B) the Mineral Tank, and (C) the Brine System.
A. Control Valve
The exclusive Culligan control valve automatically
performs a variety of tasks that are necessary for the
proper operation of your water conditioner. These tasks,
commonly referred to as cycles or operating positions,
are Service, Regeneration, and Brine Refill.
1. Service: While the control valve is in
the service cycle, hard water is directed
down through the column of Cullex®resin
where hardness minerals are removed
from the water. The softened water is then
directed into your household plumbing lines.
The ability of the Cullex resin to remove
hardness minerals needs to be periodically
replenished; this is referred to as …
2. Regeneration: While the control valve
is in the regeneration cycle, water is first
directed up through the column of Cullex
resin to flush accumulated sediment out of the
resin and down the drain. Then, the regenerant
brine solution is slowly drawn
from the bottom of the salt storage tank
of the Brine System and is directed down
through the column of Cullex resin, restoring the
ability of the resin to remove hardness minerals
from your water supply. Once completed, the
regeneration cycle is followed by …
3. Brine Refill: While the control valve is in the brine refill cycle, a predetermined amount of
water is directed to the salt storage tank of the Brine System so that additional salt can be
dissolved to provide the brine solution that will be needed for the next regeneration cycle.
B. The Mineral Tank
The Mineral Tank contains the Cullex resin column, Cullsan®underbedding, and an outlet manifold.
The number of gallons of hard water that can be softened by the Cullex resin column before it needs
regeneration is called the “capacity” of the resin column, and depends upon the amount of hardness
minerals in each gallon of water (expressed as grains per gallon) and upon the amount of regenerant
brine solution (expressed as pounds of salt) passed through the resin column during regeneration.
Your Culligan service person, taking into account the hardness of your water and the amount of
softened water your household may reasonably expect to use each day, has carefully established
how often the softener will regenerate and how much salt will be used for each regeneration. This
will ensure that all of your soft water needs will be fulfilled without using an excessive amount of salt.
C. The Brine System
The Brine System consists of a salt storage container and hydraulic Dubl-Safe™valve. The salt storage
container holds the salt that is used to make the regenerant brine solution. The hydraulic Dubl-Safe
valve limits the amount of water that is returned to the salt storage tank during the brine refill cycle.
Because a predetermined amount of salt is dissolved with each brine refill cycle, the salt must
be periodically replenished in order to maintain efficient operation. Your Culligan service person
will be able to tell you about how often salt must be added to the salt storage container.
A
BC
The Culligan
Process

10 01024584 E 11/19
Modes of
Operation
Water Meter Mode
In water meter mode, the controller keeps track of the quantity of water that has flowed through the
resin bed. Based on the influent water hardness and the hardness capacity of the resin bed, a service
life expectancy in the quantity of softened water is calculated and programmed into the control. When
the set point is reached, regeneration is triggered. If the predict mode is not selected the regeneration
will start at time of regeneration. In immediate mode the regeneration starts as soon as the regeneration
signal is provided. If time clock backup is set and the capacity has not been exhausted but the days
since last regen is greater than time clock backup, setting the softener will immediately regenerate.
Aqua-Sensor®Mode
The Aqua-Sensor is a conductivity probe that senses when the hardness front passes through
the resin bed. It functions independently of the influent water hardness so therefore, is useful in
conditions when the influent water hardness varies throughout the year. It provides for the most
efficient mode of operation. In addition to sensing when a resin bed is exhausted, it can also be
used to determine when the brine solution is rinsed from the resin bed during the Brine Draw/Slow
Rinse cycle triggering the control to move to fast rinse. This patented feature provides water
savings by optimizing the amount of rinse water required to completely rinse out the resin bed.
Smart Brine Tank Probe
The smart brine tank probe monitors conditions inside the brine tank. It predicts when
salt needs to be added to the brine tank, detects the presence of salt-bridging, eductor
line plugging and brine tank overfilling.
Wireless Remote Control
The wireless remote control displays the current status of the water softener or filters and
allows for remote control. It can be located up to 200 feet away from the softener (depending
upon building construction materials). The wireless remote displays information about softener
performance, problems, days of salt remaining and allows remote control for regeneration.
The wireless remote control is designed to communicate at 915 MHz and to work without
interference with other 915 MHz devices such as cordless telephones and baby monitors.
Modem
The modem allows for the system to be remotely monitored detecting problems before they
occur, to schedule salt delivery when it is needed and to keep the system software up to date
with the latest advances.
Culligan ConnectTM
The Culligan Connect™ interface is an intuitive mobile app and is available on both iOS and Android.
Users will see their daily and weekly usage patterns graphically represented and instantly updated
each time they open the app. In addition, low salt alerts and the ability to put the unit in bypass mode
or regeneration from anywhere offer an all new level of control and convenience.
Manual Regeneration
Manual regeneration can be initiated via the softener control valve or wireless remote display.
Manual regeneration can be initiated to begin regeneration immediately or that night.
To immediately initiate regeneration, press and hold for at least ten (10) seconds.
To cancel a delayed regeneration, press and hold for at least five (5) seconds.

11
01024584 E 11/19
Predict Mode
The Predict Mode is used with the flow meter to determine the optimum regeneration point.
Before the regeneration starts, the control will compare the remaining capacity value with the
average daily water use. If the average daily water usage is less than the reserve capacity, the
controller will wait 24 more hours before regeneration. If the reserve capacity is less than the
average daily water usage, the control will initiate regeneration. This works in delay mode only.
At any time, if the total capacity value is reached, the control will initiate an immediate regeneration.
Pre-Rinse Mode
The Pre-rinse mode is used to pre-rinse the softener resin bed or filter media. The pre-rinse in flow
meter mode will occur after the control has sensed that no water has flowed through the control for a
period of X hours (can be set through the programming menu). When the control is in this mode, once
the X amount of hours have elapsed the control will cycle to the fast rinse position for the pre-set length
of minutes and then return to the home or service position.
Down Flow Regeneration
Water and regenerate flow downward through the media tank.
Dial-A-Softness®
Dial-A-Softness is a manual adjustment built into the control valve that allows for variable
hardness bypass into the softened water. The hard water bypass can be adjusted from
0% to 30%. The Dial-A-Softness also increases the softener capacity in proportion to
the percent hard water bypass (less salt used).

12 01024584 E 11/19
Navigating
the Menus
and Keypad
DOWN button
CHECK MARK
or OK button
UP button
CANCEL (X) button
UP ARROW button: scrolls up the menu
Controller
Remote
DOWN ARROW button: scrolls down the menu
CHECK MARK button: selects
the highlighted option, opens a new
screen, or accepts a changed setting
CANCEL or Xbutton: returns to the
previous screen or cancels a changed setting
NOTE: Hold down or to quickly scroll through
the setting without repeatedly pressing the button.

13
01024584 E 11/19
Set Date
and Time
Follow this procedure to update the date or time.
NOTE: The control must be returned to the HOME screen if settings are changed.
Screen Display Range Setting Description
SOFTENING
JAN-01-17 12:01P
N/A 1. From the HOME screen, press to view the main menu.
>1)INFORMATION
2)MANUAL MODE
1–6 2. The screen displays the main menu.
Press to select 3)SET DATE/TIME.
Set Month
SET MONTH
>JAN
Jan–
Dec
3. The screen displays the month setting.
Press or and then to change the setting.
Set Day
SET DAY
>1
1–31 4. The screen displays the day setting.
Press or and then to change the setting.
Set Year
SET YEAR
>2017
2009–
2030
5. The screen displays the year setting.
Press or and then to change the setting.
Set Clock Type
CLOCK TYPE
> 12 HR
12 HR,
24 HR
6. The screen displays the clock type setting.
Press or and then to change the setting.
Set Hour
SET HOUR
> 12PM
12PM–
11AM,
0–23
7. The screen displays the hour setting.
Press or and then to change the setting.
Set Minutes
SET MINUTES
>01
0–59 8. The screen displays the minutes setting.
Press or and then to change the setting.

14 01024584 E 11/19
Screen Display Range Setting Description
Set Daylight Savings Time
DAYLIGHT SAVING
YES
Yes,
No
9. The screen displays the Daylight Savings Time setting.
Press or and then to change the setting.
2)MANUAL MODE
>3)SET DATE/TIME
10. The screen displays the main menu.
Press to save the changes and initialize the system.
SOFTENING
JAN-01-17 12:01P
11. The screen displays the home screen.

15
01024584 E 11/19
Information
The following information can be displayed at the control valve or remote display. These settings
are read-only. Press or to scroll through the settings. Press to view the previous setting.
Screen Display Range Setting Description
SOFTENING
JAN-01-17 12:01P
N/A 1. From the HOME screen, press to view the main menu.
>1)INFORMATION
2)MANUAL MODE
1–6 2. The screen displays the main menu.
Press to select 1)INFORMATION.
SALT TANK LEVEL
OK
OK,
Low
3. If a Salt Brine Tank is installed, this screen displays
the salt level. The status is OK unless the SBT probe
detects and overfilled brine tank or low salt level.
If the screen displays LOW a subsequent screen
displays APPROX DAYS OF SALT REMAINING.
Press to select the next information screen.
REMAIN CAPACITY
100%
0–100 4. The screen displays the softening capacity
remaining, displayed as a percentage of the total
capacity. During manually initiated regeneration,
assume 0 percent remaining capacity.
Press to select the next information screen.
REMAIN CAPACITY
740 GAL
0–no
limit
5. The screen displays the softening capacity
remaining, measured in gallons (liters).
Press to see the next information screen.
CURRENT FLOWRATE
0.0 GPM
0–no
limit
6. The screen displays the current flow rate,
measured in gallons (liters) per minute.
Press to see the next information screen.
TODAY’s USAGE
0 GAL
0–no
limit
7. The screen displays today’s water
usage, measured in gallons (liters).
Press to see the next information screen.
AVERAGE DAILY
300 GAL
0–no
limit
8. The screen displays average water usage for this
configuration. Press to see the next information screen.

16 01024584 E 11/19
Screen Display Range Setting Description
NEXT REGEN ON
JAN-03
N/A 9. The screen displays the date of the next
regeneration, based on average daily water usage.
Press to see the next information screen.
DEALER ID N/A 10. This is the local dealer’s eight-digit identification
number as entered during the First Time Setup.
TOTAL WATER USED
1000 GAL
0–no
limit
11. The screen the total water used for this configuration.
Whole numbers are displayed above 100 gallons.
Press to see the next information screen.
EXT FILT CAP REM
20000 GAL
0–no
limit
12. If an external filter is used, the screen displays the
remaining capacity of the filter. When the remaining
capacity reaches zero, the system triggers the External
Filter Alarm. Press to return to the main menu.
>1)INFORMATION
2)MANUAL MODE
13. The screen displays the main menu.
Press to exit to the home screen.
SOFTENING
JAN-01-17 12:01P
14. The screen displays the home screen.

17
01024584 E 11/19
Regeneration
There are several conditions that will cause the control to trip a regeneration. The screen displays
REGEN Tonite when the control has signaled for a regeneration. Regenerating is displayed while
the control is in regeneration. The following are conditions that will call for regeneration:
1. When the Soft-Minder®meter has recorded the passage of a predetermined number of gallons.
2. When the Aqua-Sensor®Probe senses the hardness in the Cullex Media.
3. At the preset time, when the number of days without a regeneration is equal
to the regeneration interval (timeclock backup) setting.
4. At the preset time, when Regen Tonite is selected. The screen displays Regen Tonite.
5. Immediately, when the Regen Now is selected. The screen displays Regenerating.
6. Immediately, if power to the unit has been off for more than three hours and the time
of day has been restored.
7. At the preset time based on “Day-of-Week” Regeneration setting.
Follow either procedure to bypass the softener or to initiate a manual regeneration
or automatically bypass the softener at the control valve or the remote display.
Delayed Regeneration
Screen Display Range Setting Description
SOFTENING
JAN-01-17 12:01P
N/A 1. From the HOME screen, press and hold for at
least three (3)seconds and then release the button.
REGEN TONITE
JAN-01-17 12:01P
Regen
Tonite
2. The screen displays the regeneration status
on the first line of the display. The system will
regenerate at a scheduled time.
REGEN OFF
JAN-01-17 12:01P
Regen
Off
3. To cancel a delayed regeneration, press and
hold for at least three (3) seconds and then release
the button. The screen displays the new status.
Immediate Regeneration
Screen Display Range Setting Description
SOFTENING
JAN-01-17 12:01P
N/A 1. From the HOME screen, press
and hold for at least ten (10) seconds.
REGEN NOW
JAN-01-17 12:01P
Regen
Now
2. The screen displays the regeneration status
on the first line of the display. The softener
will initiate an immediate regeneration.
REGENERATING
JAN-01-17 12:01P
N/A 3. The first line of the screen displays REGENERATING.

18 01024584 E 11/19
Standard Manual Regeneration
Screen Display Range Setting Description
SOFTENING
JAN-01-17 12:01P
N/A 1. From the HOME screen, press to view the main menu.
1)INFORMATION
>2)MANUAL MODE
1–6 2. The screen displays the main menu.
Press to select 2)MANUAL MODE.
MANUAL MODE
>REGEN NOW
Regen
Off
Regen
Now
Regen
Tonite
Bypass
3. The screen displays the manual regeneration menu.
Press or and then to change the setting.
REGEN NOW is the default.
REGEN OFF specifies the softener will not regenerate.
REGEN TONITE specifies that the softener will
regenerate that night at 2:00 a.m. (or at the preset
regeneration time). The screen displays two status
messages: SOFTENING and REGEN TONITE.
BYPASS specifies a preset softener bypass time.
Press to select the total time the softener is in the
bypass state.
MANUAL BYPASS
OFF
Off, 30,
60, 90,
120,
180,
Manual
Bypass
4. The screen displays the manual bypass duration, in
minutes. This specifies the total time the softener is to
be in the bypass state. Press or and then
to change the setting.
SOFTENING
JAN-01-17 12:01P
N/A 5. Press to display the home screen.

19
01024584 E 11/19
Salt is the mineral used to “recharge” your water conditioner. A brine solution is automatically
made up in the bottom of the salt storage container, the Cullex® resin beads in the mineral tank
are flushed with the brine solution as a step in the recharging process.
Your Culligan Water Conditioner has been carefully designed to get the greatest amount of softening
capacity from the salt it uses. Here is some pertinent information about salt usage, types and service.
Salt Economizer
This control is set at the time of installation, and determines salt usage according
to the water hardness, number of persons in the household, and water usage.
What Kind of Salt is Best
All Culligan Water Conditioners are designed to use any water conditioner
salt of good quality, including rock, pellet, solar, or “evaporated” types.
All rock salt, regardless of source, contains insoluble material which collects
at the bottom of the salt storage tank and requires periodic clean-out.
If purified salt products are used, the salt storage compartment will require
less frequent clean-out, but you must check more frequently for “bridging.”
Regardless of what type of salt is used, we recommend Culligan Brand Salt as
suggested by your Culligan Dealer. He or she is the expert and can provide you
with the best product for your Culligan Water Conditioner.
Automatic Salt Delivery Service
Ask your Culligan Dealer for details about salt delivery service. You can have your salt supply replenished
on a regular basis. Whether you have automatic delivery service or pick up salt from your Culligan Dealer,
you will be getting quality salt packaged according to rigid Culligan specifications. Using Culligan Brand
Salt will help assure continued efficiency and trouble-free operation of your water conditioner.
The modem allows for the system to be remotely monitored, detecting problems before they occur, to
schedule salt delivery when it is needed and to keep the system software up to date with the latest advances.
NOTICE Sodium Information: Water softeners using sodium chloride for regeneration
add sodium to the water. Persons who are on sodium restricted diets should
consider the added sodium as part of their overall sodium intake.
Salt Supply,
Usage and
Service

20 01024584 E 11/19
Things to
Check Before
You Call for
Service
If you unexpectedly experience changes in your water, make these simple checks before calling your
Culligan dealer. One of the following conditions may be the reason for your interruption of service.
Important
If any of the following conditions is found, the water softener should be manually regenerated
according to instructions on page 17 after you have corrected the problem.
Power Supply
Check your power supply cord. Is it plugged fully into the electric outlet? Be certain that the outlet
is not controlled by a wall switch which has been turned off. Plug in the transformer then reset
conditioner to the correct time of day.
Blown Fuse
Check the house fuse or circuit breaker panel. Replace a blown-out fuse or reset an open circuit breaker.
Power Failure
Any interruption in your power supply or time change—such as daylight savings—will disrupt your
softener’s regeneration schedule by causing the timer to run off-schedule. Reset the timer to the
correct time of day.
Bypass Valves
Check to see if they are in the proper position. Cul-Flo-Valv®Bypass, if used, should be in the
“Service” position (see page 23). If hand valves are used, see that inlet and outlet valve are
opened and that the bypass valve is closed.
No Water
If you aren’t getting any water flow at all, make sure your water supply is working. Open a tap
ahead of the conditioner (outside tap) to see if you have any water pressure. If you have water
pressure, check the bypass valve. If it is in the Service position, put it into the bypass and call
your Culligan dealer for service.
Increased Usage
Guests, family additions, new water-using appliances, etc., will result in more water usage
and will require more capacity from your softener. You can reprogram your regeneration
schedule by following the directions beginning on page 17. Call your Culligan dealer for
advice and save a service call.
