Cumberland PNEG-1756 User manual

PNEG-1756
18" and 24" Panel Pit Fan
(78° and 90°)
Installation and Operation Manual
PNEG-1756
Version: 5.0
Date: 01-31-20

2 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)

Table of Contents
PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 3
Contents
Chapter 1 Safety .....................................................................................................................................................4
Safety Guidelines ...................................................................................................................................4
Cautionary Symbols Definitions .............................................................................................................5
Safety Cautions ......................................................................................................................................6
User Manual ...........................................................................................................................................9
Correct Use of the Panel Pit Fan ...........................................................................................................9
Unpacking ..............................................................................................................................................9
Electrical Safety ...................................................................................................................................10
Safety Guards ......................................................................................................................................10
Safety in Handling the Panel Pit Fan ...................................................................................................10
Safety in Maintenance ..........................................................................................................................10
General Safety Information ..................................................................................................................10
Safety Sign-Off Sheet ..........................................................................................................................11

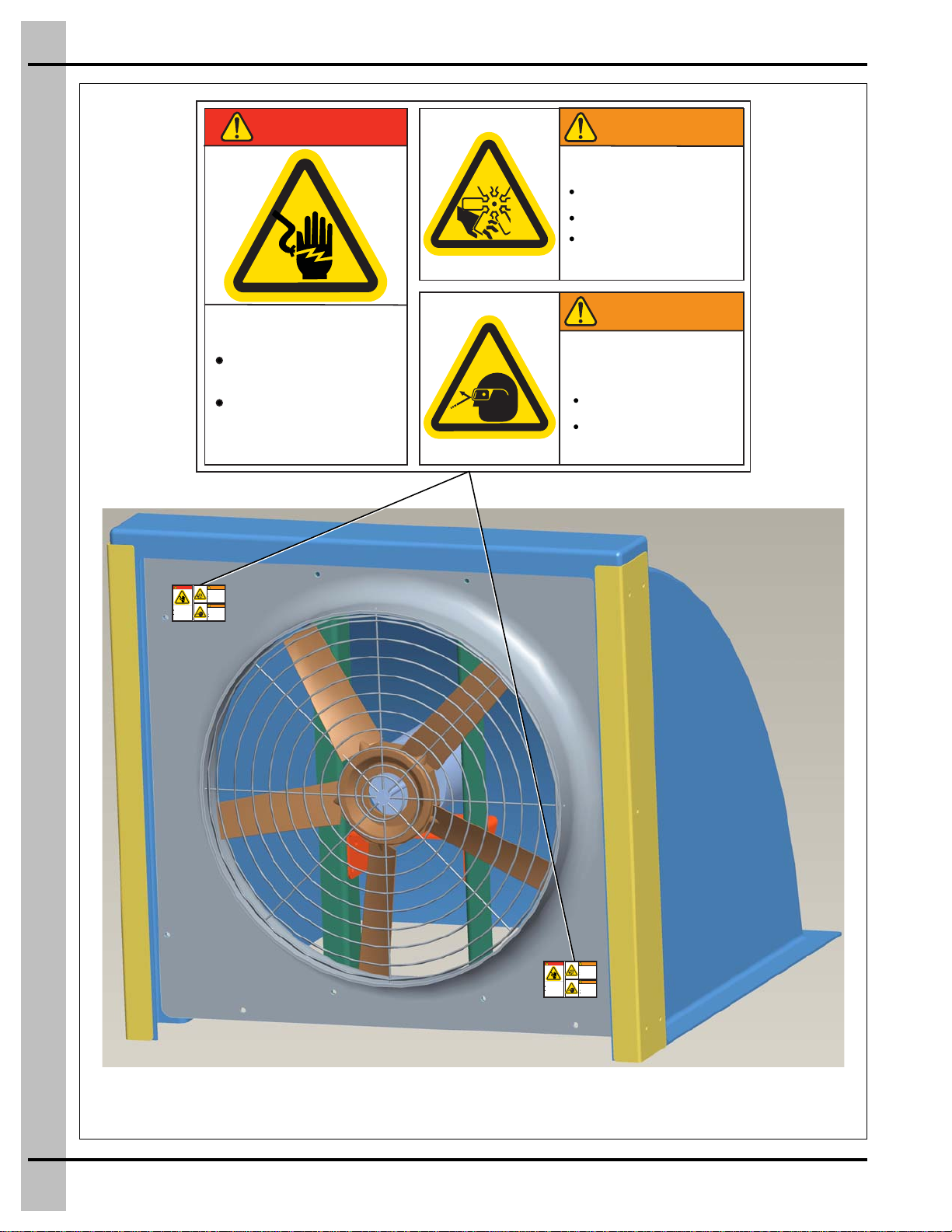

Chapter 2 Safety Decals ......................................................................................................................................12
Chapter 3 Specifications and Dimensions ........................................................................................................13

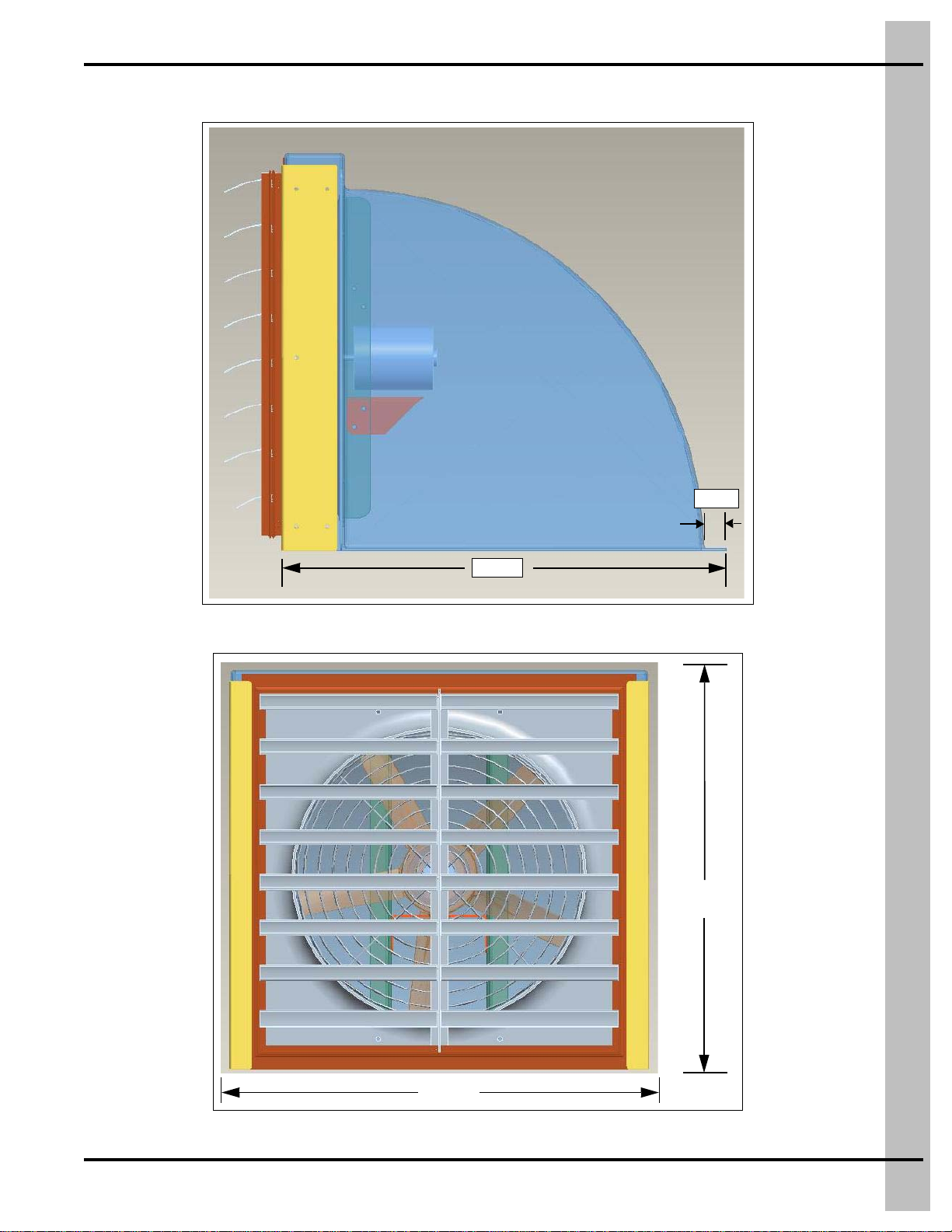

18" and 24" Panel Pit Fan Dimensions ................................................................................................13
Chapter 4 Installation ..........................................................................................................................................14
Chapter 5 Electrical Wiring .................................................................................................................................15
Chapter 6 Operations ..........................................................................................................................................16
Initial Start-Up ......................................................................................................................................16
Adjustments .........................................................................................................................................16
Chapter 7 Parts List .............................................................................................................................................17

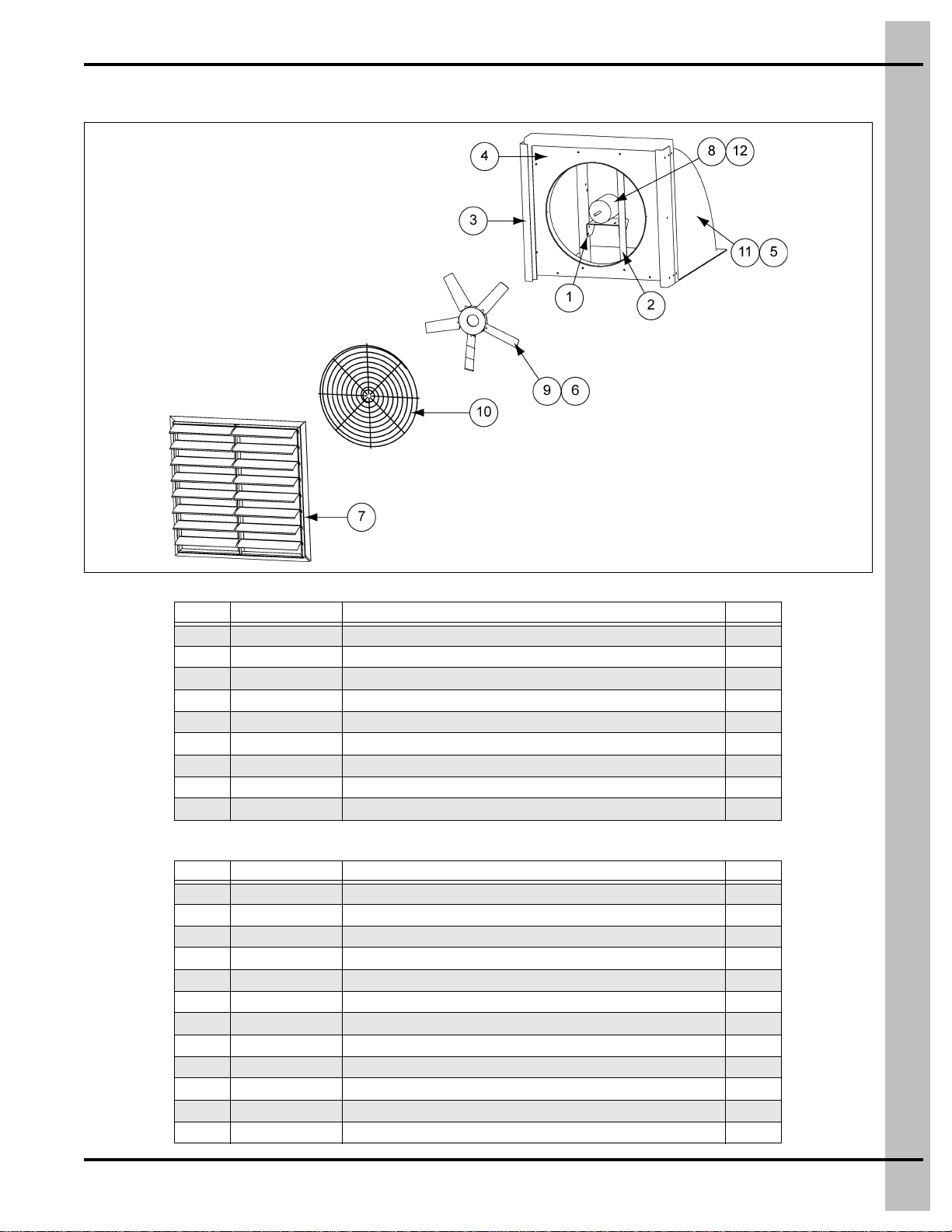

18" and 24" Panel Pit Fan Parts ...........................................................................................................17
Chapter 8 Maintenance ........................................................................................................................................18
Chapter 9 Troubleshooting .................................................................................................................................19
Chapter 10 Warranty ............................................................................................................................................21

4 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
1. Safety
Safety Guidelines
Safety guidelines are general-to-specific safety rules that must be followed at all times. This manual is
written to help you understand safe operating procedures and problems that can be encountered by the
operator and other personnel when using this equipment. Read and save these instructions.
As owner or operator, you are responsible for understanding the requirements, hazards, and precautions
that exist and to inform others as required. Unqualified persons must stay out of the work area at all times.
Alterations must not be made to the equipment. Alterations can produce dangerous situations resulting in
SERIOUS INJURY or DEATH.
This equipment must be installed in accordance with the current installation codes and applicable
regulations,whichmustbecarefully followed inall cases. Authoritieshavingjurisdiction mustbe consulted
before installations are made.
When necessary, you must consider the installation location relative to electrical, fuel and water utilities.
Personnel operating or working around equipment must read this manual. This manual must be delivered
with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the
equipment. ST-0001-4

1. Safety
PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 5
Cautionary Symbols Definitions
Cautionary symbols appear in this manual and on product decals. The symbols alert the user of potential
safety hazards, prohibited activities and mandatory actions. To help you recognize this information, we
use the symbols that are defined below.
DANGER
WARNING
CAUTION
NOTICE
This symbol indicates an imminently hazardous situation
which, if not avoided, will result in serious injury or death.
This symbol indicates a potentially hazardous situation
which, if not avoided, can result in serious injury or death.
This symbol indicates a potentially hazardous situation which,
if not avoided, can result in minor or moderate injury.
This symbol is used to address practices not related to
personal injury.
This symbol indicates a general hazard.
This symbol indicates a prohibited activity.
This symbol indicates a mandatory action.
ST-0005-2

1. Safety
6 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
Safety Cautions
Use Personal Protective Equipment
Eye
Protection
Hearing
Protection
Hand
Protection
Head
Protection
Respiratory
Protection Foot
Protection
Fall
Protection
• Use appropriate personal protective equipment:
• Wear clothing appropriate to the job.
• Remove all jewelry.
• Tie long hair up and back.
ST-0004-1
Follow Safety Instructions
• Carefully read all safety messages in this manual and
safety signs on your machine. Keep signs in good condition.
Replace missing or damaged safety signs. Be sure new
equipment components and repair parts include the current
safety signs. Replacement safety signs are available from
the manufacturer.
• Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
• If you do not understand any part of this manual or need
assistance, contact your dealer.
ST-0002-1

1. Safety
PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 7
Lifting Hazard
• Single person lift can cause injury.
• Use a mechanical lifting device to lift or move the equipment
during installation.
ST-0021-2
Explosion Hazard
• The fan is not designed for use in atmospheres where the risk
of explosion is present.
• Do not use the fan in enclosed areas of high dust
concentrations, flammable gas, vapors or fumes.
ST-0022-1
Keep Hands Away from Moving Parts
• Do not operate the fan with electrical or mechanical guards
removed. Serious injury or death can result.
• Do not put hand or arm in fan. Rotating parts can crush and
dismember.
• Do not put any kind of tool inside the fan to clear debris while
the fan is operating. Damage to the equipment will result.
• Lock-out power source before making adjustments, cleaning,
or maintaining equipment.
ST-0020-2
Install and Operate Equipment Properly
• The fan described in this manual is designed solely for the
purpose of ventilating agricultural buildings. Use of the fan
in any other way is a misuse of the equipment and may
endanger health and safety.
ST-0023-1

1. Safety
8 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
Install and Operate Fan Properly
• Electrical controls and wiring must be installed by a qualified
electrician and must meet the standards set by the National
Electric Code, Canadian Electrical Code, and all local and
state codes. The fan must be installed and maintained by a
qualified person familiar with the use and function of
ventilation fans.
• Lock-out power source before making adjustments, cleaning,
or maintaining equipment.
• Do not operate fan unless the motor is properly grounded.
Grounding can be achieved by wiring with a grounded
conduit or a separate ground wire attached to the motor
ground lug.
• Do not operate the fan by bypassing any safety device on
the unit.
• Do not kink power cables and do not allow cables to come
into contact with oil, grease, hot surfaces or chemicals.

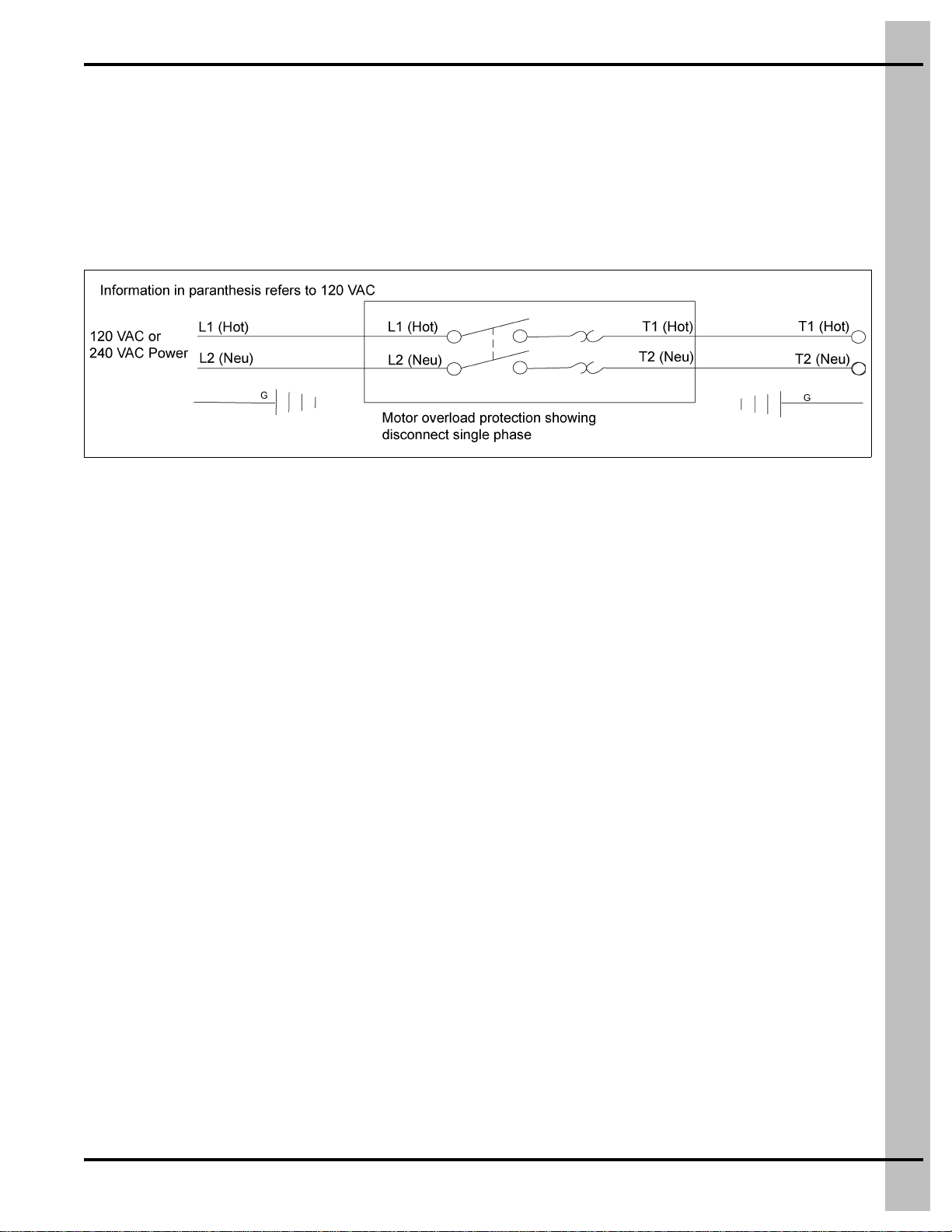

• Motor overload protection must be provided with each single
phase fan. A circuit breaker or slow blow motor type fuse
must be used. A safety cut-off switch must be located
adjacent to each fan.
• Fans used to ventilate livestock buildings and other rooms
where continuous air movement is essential must be
connected to individual electrical circuits with a minimum of
two (2) circuits per room.
• Installation of supplementary natural ventilation, back-up
thermostat and an alarm system on at least one cooling
stage is recommended. See diagram on motor nameplate
and information provided with fan control (if used) for
connection requirements.
ST-0018-2
Sharp Edge Hazard
• This product has sharp edges, which can cause serious
injury.
• To avoid injury, handle sharp edges with caution and always
use proper protective clothing and equipment.
ST-0036-2

1. Safety
PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 9
User Manual
This manual contains information and instructions essential to the safe installation and use of the
Panel Pit Fan. Read this manual thoroughly before attempting any installationor use of the Panel Pit Fan.
Keep this manual with the Panel Pit Fan or in a location where it can be readily accessed. Failure to read
this manual and its safety instructions is a misuse of the equipment.
Correct Use of the Panel Pit Fan
The Panel Pit Fan is designed solely for the purpose of ventilating agricultural buildings. Use of the system
in any other way is a misuse of the system and may endanger safety and health.
Only genuine AP/Cumberland parts are to be used in the installation and use of the Panel Pit Fan. Use of
other non-genuine parts is a misuse of the system and may lead to dangerous situations imperilling the
safety and health of you and others.
This machine is not designed for use in atmospheres where there is a risk of explosion. Such
environments may include enclosed areas of high dusts concentrations, gas vapors and fumes. Use of
the Panel Pit Fan in such an environment is prohibited. If in doubt, contact AP/Cumberland or your dealer.
Unpacking
When receiving the unit,inspect carefully for any damage that may have occurred during transit. Shipping
damage claim must be filed with carrier.
Maintain Equipment and Work Area
• Do not attempt maintenance or repairs on the fan unless you
are competent to do so. Understand service procedures
before doing work.
• Use only genuine Cumberland parts when maintaining the
fan. Use of other non-genuine parts is a misuse and can lead
to dangerous situations.
• Be aware that the fan may operate under automatic control
and may start without warning.
• Lock-out power source before making adjustments, cleaning,
or maintaining equipment.
• Keep area clean and dry.
• Keep hands, feet, and clothing away from moving parts.
• Keep the fan in proper working condition. Replace worn or
broken parts immediately.
• Keep the fan clean. Do not allow debris to collect around
motors, belts, pulleys or bearings.
• Make sure that all electrical enclosures and guards are closed
and locked before re-starting the fan.
ST-0019-2

1. Safety
10 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
Electrical Safety
An adequate and safe power supply to the Panel Pit Fan unit is essential for safety. A competent and
qualified electrician must undertake all electrical wiring. All wiring is to be installed according to the
National Standards and Regulations relevant to your Country and Region.
Safety Guards
The Panel Pit Fan contains many moving and electrical parts, which will cause serious injury or death if
touched. Guards are placed on the machine for your protection. Operating the machine at any time with
guards removed or incorrectly fitted is a serious misuse of the machine and endangers safety.
Safety in Handling the Panel Pit Fan
Manual handling of the fans can be a cause of serious injury. Wherever possible, use mechanical lifting
equipment when lifting or moving fans during installation. Where manual handling is required, seek
assistance from other people.
To prevent injury, use suitable hand protection.
Safety in Maintenance
While the Panel Pit Fan is designed to keep maintenance to a minimum, some repairs will be necessary
in the course of the life of the machine. Do not attempt any repairs on the machine unless you are
competent to do so. Remember that the Panel Pit Fan may in cases operate under automatic control and
start without warning. Never attempt any work on the Panel Pit Fan without first isolating the machine from
the mains power, and locking the isolator so that only you can turn the power back ON.
Follow all the guidelines given in the maintenance section on Page 18 of this manual.
Before restarting the Panel Pit Fan, ensure that all electrical enclosures are locked closed and all guards
and other safety measures are correctly fitted.
If in any doubt, contact your dealer or AP/Cumberland for assistance.
General Safety Information
This unit should be assembled and installed by a qualified technician.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
Motor must be securely and adequately grounded. This can be accomplished by wiring with a grounded,
metal-clad raceway system by using a separate ground wire connected to the motor’s ground lug or other
suitable means.
Protect power cable from coming in contact with sharp objects.
Do not kink power cable and never allow cable to come in contact with oil, grease, hot surfaces
or chemicals.
Make certain that the power source conforms to requirements of the equipment.

1. Safety
PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 11
Safety Sign-Off Sheet
Below is a sign-off sheet that canbe used to verify that all personnel have read and understood the safety
instructions. This sign-off sheet is provided for your convenience and personal record keeping.
Date Employee Name Supervisor Name
ST-0007

12 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
2. Safety Decals
Lockout power
before servicing.
HIGH VOLTAGE
Will cause serious
injury or death.
STAY CLEAR OF
ROTATING BLADE
May cause serious injury.
Blade may start
automatically.
Disconnect and
lockout power sources
before servicing.
FLYING OBJECTS
HAZARD
Danger of eye injury.
Wear eye protection.
DANGERDANGER WARNING
WARNING
DC-1540The GSI Group 217-226-4421
DC-1540
DC-1540
This decal is located on the front of the fiberglass orifice panel.
Lockout power
before servicing.
HIGH VOLTAGE
Will cause serious
injury or death.
STAY CLEAR OF
ROTATING BLADE
Maycause serious injury.
Blademay start
automatically.
Disconnectand
lockoutpower sources
beforeservicing.
FLYING OBJECTS
HAZARD
Danger of eye injury.
Weareye protection.
DANGERDANGER WARNING
WARNING
DC-1540TheGSI Group 217-226-4421
Lockout power
before servicing.
HIGH VOLTAGE
Will cause serious
injury or death.
STAY CLEAR OF
ROTATING BLADE
Maycause serious injury.
Blademay start
automatically.
Disconnectand
lockoutpower sources
beforeservicing.
FLYING OBJECTS
HAZARD
Danger of eye injury.
Weareye protection.
DANGER
DANGER
WARNING
WARNING
DC-1540TheGSI Group 217-226-4421

PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 13
3. Specifications and Dimensions
18" and 24" Panel Pit Fan Dimensions
Figure 3A
Figure 3B
2-1/4"
39-5/8"
37-1/4"
35.313"

14 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
4. Installation
1. Construct a 24" x 32" opening in either the pump-out lid, the horizontal opening or the opening in the
12° sloped top. (Pump-out lid dimensions are the same for 18" and 24" Panel Pit Fans.)
2. If the pump-out lid is concrete, a frame can be constructed around the opening.
3. Caulk around the base of the pit transition flange and secure to the frame, if needed.

PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 15
5. Electrical Wiring
All wiring should be installed in accordance with National, State and Local Electrical Codes. A certified
electrician should complete this portion of the installation to ensure safety and that the wiring is correct for
the application.
Fans for use as livestock facility ventilation should be connected to individual electrical circuits, with a
minimum of two (2) circuits per room.
For single phase fans: The motor overload protection should be provided for each fan. A circuit breaker
switch or slow blow motor type fuse must be used.
Figure 5A

16 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
6. Operations
Initial Start-Up
First, shut off power to the equipment, then verify that the fan propeller turns freely and that all fasteners
are securely in place.
Turn power ON and verify that the fan is operating correctly.
Adjustments
Set the fan control to the desired temperature. When variable speed controls are used, the fan idle speed
will need to be set to the recommended minimum airflow rate. Refer to the procedure included with
each control.

PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 17
7. Parts List
18" and 24" Panel Pit Fan Parts
18" Panel Pit Fan Parts List
Ref # Part # Description Qty
111-0410 Motor Mounting Plate 1
2 11-0457 Vertical Motor Mounting Channel 2
311-0414 Shutter Mounting Channel 2
4 12-0434 Fiberglass Orifice Panel - 18" 1
512-0433 Transition 78° 1
7 PS-32C Shutter 1
815-0110 Motor, 1/3 HP, 1725 RPM, 1 PH, 115V/230V 1
10 11-0461-WH Grill Guard - 18" 1
11 12-0432 Transition 90° 1
24" Panel Pit Fan Parts List
Ref # Part # Description Qty
111-0410 Motor Mounting Plate 1
2 11-0457 Vertical Motor Mounting Channel 2
311-0414 Shutter Mounting Channel 2
4 12-0431 Fiberglass Orifice Panel 1
512-0433 Transition 78° 1
6 13-0209 24" Fiberglass Prop 1
7PS-32C Shutter 1
8 15-0083 Motor, 1/3 HP, 1100 RPM, 1 PH, 115V/230V 1
913-0147 24" Plastic Prop 1
10 11-0419-WH Grill Guard 1
11 12-0432 Transition 90° 1
12 15-0105 Motor, 1/3 HP, 1100 RPM, 1 PH, 115V/230V for APP-24 1

18 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
8. Maintenance
For best results from the equipment, proper inspection and cleaning procedures should be
performed monthly:
1. Inspect the propeller and verify that it is securely located on the motor shaft and that there are no
signs of damage. The blades are self-cleaning and should not require additional maintenance.
2. Clean the following components regularly:
a. Fan motor - Dust with a brush or cloth (DO NOT USE A PRESSURE WASHER). Also, verify that
it is mounted securely.
b. Shutter - Dust the blades and frame with a brush or cloth so that it can open and close freely.
c. Guard - Using a brush, clean dust and debris from the fan guards.
3. Inspect fasteners and tighten loose connections.
4. Check the fan control when the power is disconnected and inspect all electrical connections. Dust
with a brush or cloth. NEVER CLEAN ELECTRICAL EQUIPMENT WITH A POWER WASHER.
Always disconnect and lock out all power sources before performing maintenance.

PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°) 19
9. Troubleshooting
Symptom Probable Cause(s) Corrective Action(s)
Excessive noise.
Defective motor bearing.
Defective pillow block bearing.
Parts are not securely anchored.
Damaged fan blade.
Replace.
Replace.
Check all bolts, screws and fasteners.
De-energize fan. Turn prop and check tip
clearance. Do they appear to be approximately the
same? (NOTE: They can be a little different without
any problems.) If they are significantly different,
contact your distributor for more information.
Fan inoperative.
Electricity is turned OFF.
Belt is broken.
Defective motor.
Open power supply circuit.
Contact local utility supplier.
Replace.
Replace.
Replace fuse or reset circuit breaker. Check for
disconnected, cut or damaged power cord.
Insufficient airflow.
Intake/exhaust shutter is jammed/clogged.
Inlet/outlet guards clogged by dirt/debris.
Voltage supplied is not correct (must be
within ±10% of the nominal voltage).
Repair/replace/clean as necessary.
Repair/replace/clean as necessary.
Check line voltage at motor, verify wiring. Check with
local utility supplier for possible line problems.
Excessive vibration.
Fan blade has excessive dirt build-up.
Motor/drive shaft is bent.
Fan blade is bent or otherwise damaged.
Clean unit.
Replace.
Replace blade. Recoat shaft with anti-seize lubricant.
Motor overheats and
nuisance trips.
Intake/exhaust shutter is jammed/clogged.
Inlet/outlet guards clogged by dirt/debris.
Motor has excessive dirt build-up.
Fan blade has excessive dirt build-up.
Building operating static pressure too high.
Power supply voltage is too low.
Repair/replace/clean as necessary.
Repair/replace/clean as necessary.
Clean unit.
Clean unit.
Adjust air inlets to lower static pressure.
Check line voltage at motor; verify wiring is of
sufficient gauge for load and length of conductor.
Check with local utility supplier for possible
line problems.

20 PNEG-1756 18" and 24" Panel Pit Fan (78° and 90°)
NOTES
