CyberPower CPS1500PIE User manual

User’s Manual
CPS1500PIE
K01-0000133-03
EN
CyberPower Systems, Inc.
Website: www.cpsww.com

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
1
SAFETY AND EMC INSTRUCTIONS
Safety and EMC instructions
This manual contains important safety instructions. Please read and follow all instructions carefully during
installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or
operate your Emergency Power System (EPS).
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity
controlled indoor area free of conductive contaminants. (Please see specifications for acceptable
temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover.
CAUTION! EPS must be connected to an AC power outlet with circuit breaker protection. Do not
plug into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the
unit.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before
servicing EPS, replacing the external battery or installing equipment.
CAUTION! To reduce the risk of fire, only connect the EPS to a circuit with 16 amperes
(CPS1500PIE Series) maximum branch circuit over-current protection in accordance with the CE
requirement.
CPS1500PIE Series include CPS1500PIE, CPS1500PIE-FR, CPS1500PIE-UK and other versions.
CAUTION! The building wiring socket outlet (shockproof socket outlet) must be easily accessible
and close to the EPS.
CAUTION! Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your
equipment) to connect the EPS to the building wiring socket outlet (shockproof socket outlet).
CAUTION! Please use only VDE-tested, CE-marked power cables to connect the loads to the EPS.
CAUTION! When installing the equipment, ensure that the sum of the leakage current of the EPS
and the connected equipment does not exceed 3.5mA.
CAUTION! This is permanently connected equipment and only qualified maintenance personnel
may carry out installations.
CAUTION! Do not disconnect the mains cable on the EPS or the building wiring socket outlet
(shockproof socket outlet) during operations since this would remove the protective ground of the EPS
and of all connected loads.
CAUTION! The EPS shall be connected to the emergency switching device.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
2
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! DO NOT use in
any circumstance that would affect operation or safety of any life support equipment or with any medical
applications or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock,
do not use with or near an aquarium. Condensation from the aquarium can cause the unit to short out.
DO NOT USE WITH LASER PRINTERS! The power demands of these devices will
overload and possibly damage the unit.
DO NOT INSTALL THE EPS WHERE IT WOULD BE EXPOSED TO DIRECT
SUNLIGHT OR NEAR HEAT!
DO NOT BLOCK OFF VENTILATION OPENINGS IN THE EPS’S HOUSING!
DO NOT CONNECT DOMESTIC APPLIANCES SUCH AS HAIR DRYERS TO
EPS OUTPUT SOCKETS.
SAFETY:
EN62040-1-1
EMI:
Conducted Emission: IEC/EN 62040-2…Category C2
Radiated Emission: IEC/EN 62040-2……Category C2
Harmonic Current: IEC/EN61000-3-2
Voltage Fluctuations and Flicker: IEC/EN61000-3-3
EMS:
IEC/EN61000-4-2(ESD)
IEC/EN61000-4-3(RS)
IEC/EN61000-4-4(EFT)
IEC/EN61000-4-5(lightning surge)
IEC/EN61000-4-6(CS)
IEC/EN61000-4-8(Magnetic)
IEC/EN61000-2-2 (Immunity to low frequency signals)

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
3
INSTALLING YOUR EPS
Installing your EPS
UNPACKING
Inspect the EPS upon receipt. The box should contain the following:
EPS unit x 1; Installation Guide x 1; User manual x 1
AUTOMATIC VOLTAGE REGULATOR
When utility power is inconsistent, the EPS would increases low voltage or decrease high voltage to safe
220 volts. The EPS automatically provides battery backup (External battery connection required) if the
voltage drops below 140 volts or exceeds 300 volts.
HARDWARE INSTALLATION GUIDE
1.Your new EPS may be used immediately upon receipt. However, recharging the external battery for at
least 12 hours is recommended to ensure that the battery’s maximum charge capacity is achieved
(Charging time varies with capacity and a 100AH or greater battery is recommended). To recharge the
external battery, simply leave the unit plugged into an AC outlet. Your EPS is equipped with an
auto-charge feature. When the EPS is plugged into an AC outlet, the external battery will automatically
recharge. The unit will charge in both the ON and OFF positions.
2. DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum or other large
electrical device into the EPS. The power demand of these devices may overload and damage
the unit. DO NOT use with medical or life support equipment. DO NOT use with or near
aquariums as condensation may cause the unit to short.
3. After connecting the hard wires, plug the EPS into a 2 pole, 3 wires grounded receptacle (wall outlet).
Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service
equipment with large electrical demands (e.g. refrigerator, copier, etc…). The warranty prohibits the
use of extension cords, outlet strips, and surge strips.
4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will
beep once.
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct
this, turn the EPS off and unplug at least one piece of equipment from the battery power supplied
outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the EPS on.
6. To maintain optimum battery charge performance, make the EPS plugged into an AC outlet at all times.
Enabling the switch provides the bypass for charge only.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
4
BASIC OPERATION
B
DESCRIPTION
1. AC Outlets
EPS PIE Series have one general plug-in outlet (UK/Schuko/France) and one IEC (C13 x 4) outlet for
connected equipment which ensures temporary uninterrupted operation of the equipment during a power
failure.
Max. Output of 1a is 16A for terminal block or 10A for IEC C13; Max. Output of 1b is 12A for UK socket,
16A for Schuko/France socket.
Max. Output wattage of (1a+1b) is 1050W.
*Note: Maximum cord length is 10 meters and the cable O.D. must be 14AWG.
2. AC Inlet
AC input terminals
*Note：The O.D. of the distribution cables must be 14AWG or greater.
3. DC Inlet
Battery input terminals
*Note：Maximum battery wiring cable length is 2 meters and the cable O.D. must be 6AWG or greater.
4. DC Circuit Breaker
Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.
*Note: It is used as INPUT BATTERY SW as well.
CPS1500PIE

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
5
5. AC Output Circuit Breaker
Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.
*Note: Circuit breaker 5a provides 1a socket max 16A protection for CPS1500 Series.
*Note: Circuit breaker 5b provides max 12A protection for UK socket or 16A for Schuko and France socket.
6. AC Input Circuit Breaker
Located on the side of the EPS, the circuit breaker serves to provide overload and fault protection.
7. Battery Input Wiring Fault LED
Battery input wiring fault LED will illuminate and make an audible alarm to indicate the wiring polarity is
reversed only when the DC circuit breaker is off.
*Note: Please make sure the DC circuit breaker is off before connecting the battery to the machine.
8. Output Selector
The unit has specific Bypass function.
Bypass: The switch provides the bypass for charge only and shutdown the unit when the utility power exceeds 300Vac or
below 140Vac. In charger only mode, AVR and battery backup will not work. However, no matter under what situations, the
charger would keep charging external batteriesif utility power is still alive.
9. Power Switch
Used as the master on/off switch for equipment connected to the battery power supplied outlets.
10. Power ON Indicator
This LED is above the power switch. It illuminates when the utility condition is normal and the EPS outlets
are providing power, free of surges and spikes.
11. Multifunction LCD Readout
High resolution and intelligent LCD display shows all the EPS information with icons and messages. For
more information please check the DEFINITIONS FOR ILLUMINATED LCD INDICATORS section.
12. LCD Display Toggle / Selected Switch
Users can monitor EPS status and set up functions by using the toggle.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
6

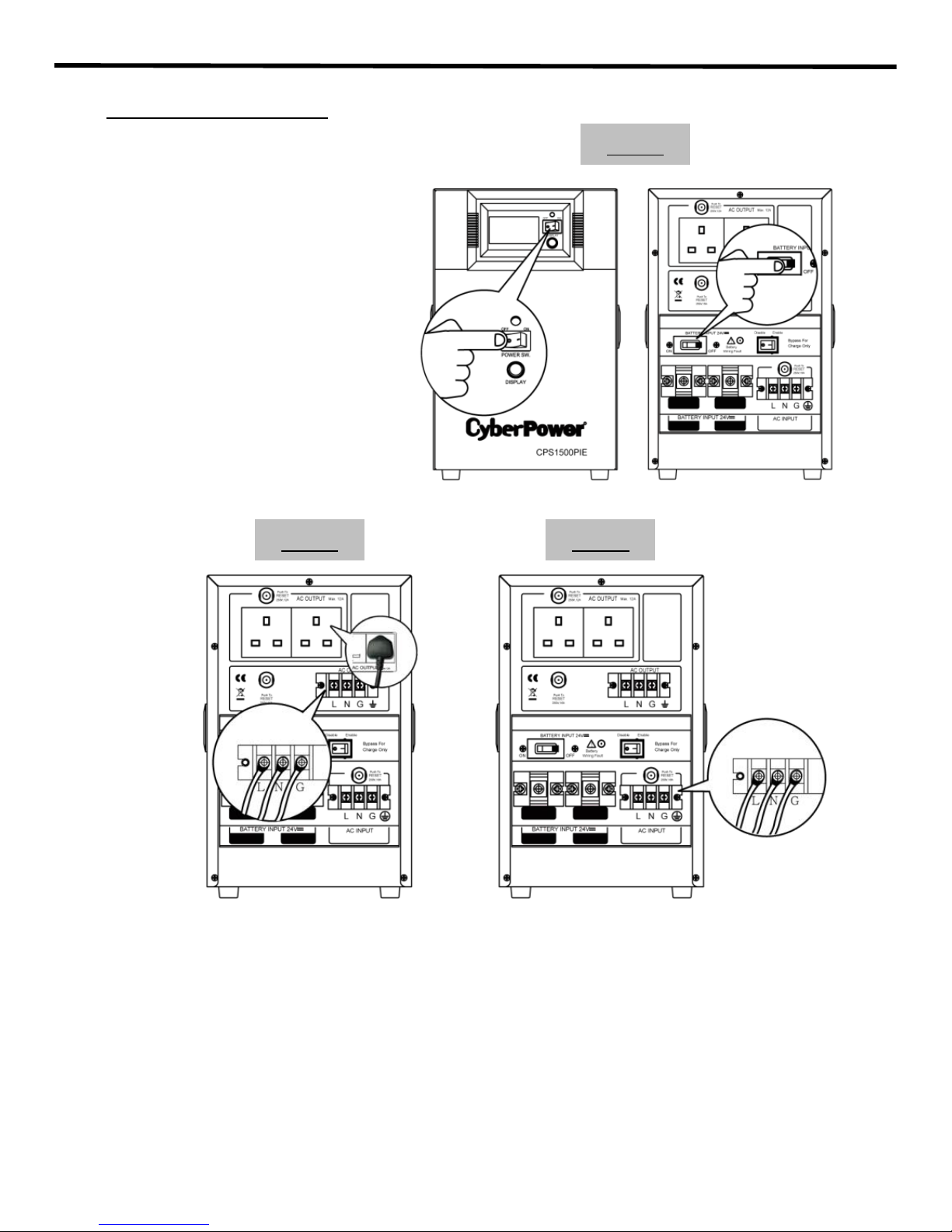

INSTALLATION GUIDE
Note: The installation must be done by professionals.
1. Remove the cover from the back of
the machine.
2. Make sure the POWER SW, Output
Selector, and the BATTERY SW.
are turned off. (Step1)
3. Connect the AC OUTPUT connections (AC plugs or terminal connections). (Step2)
4. Connect the AC power source to AC INPUT (Make sure AC power is off first). (Step3)
Step 1
Step 2
Step 3

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
7
5. Connect the batteries to the BATTERY INPUT. (Step4)
WIRING FAULT LED will illuminate and make an audible alarm to indicate the wiring polarity is
reversed only when the DC circuit breaker is off.
*Note: Please make sure the DC circuit breaker is off before connecting the battery to the machine.
6. If the battery box or the battery connection has a switch, please turn it on first.
7. Turn on the BATTERY SW. on the back of the machine (Step 5)
8. Turn on the Power Switch and switch the Output Selector to
Normal on the front panel. The Power On Indicator and the LCD
Module Display will blink 4 times. Press the Display toggle
(Selected Switch) once. The output voltage showing on the LCD
Module Display should be 220V. This completes the start-up
process. (Step 6)
9. Press and hold the Display toggle switch for 4 seconds then
release. The machine will begin a self test and enter Battery Mode
for 6 seconds before returning to Line Mode. Make sure the self
test is ready, or see the Definitions for illuminated LCD on page 13
for a list of alarm code definitions.
10. After ensuring the machine works normally, reassemble the back
cover. The installation is now complete.
11. When the external battery needs to be maintained or replaced, remember to turn the machine off.
Once off, remove the AC power source and switch off the BATTERY SW. before maintenance or
replacing the batteries. When the work is complete, please start from Step 1 to re-install the machine.
Step 4
Step 5
Step 6

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
8
DEFINITIONS FOR ILLUMINATED LCD
Definitions for illuminated LCD
The LCD Display indicates a variety of EPS operational conditions. All descriptions apply when the EPS
is plugged into an AC outlet and turned on or when the EPS is on battery.
1. INPUT VOLTAGE Meter: This meter measures the AC
voltage that the EPS is receiving from the utility wall outlet.
The EPS is designed, through the use of automatic
voltage regulation, to continuously supply connected
equipment with stable 220 output voltage. In the event of a
complete power loss, severe brownout or over-voltage,
the EPS will rely on its external battery to supply consistent 220 output voltage. The Input Voltage Meter
can be used as a diagnostic tool to identify poor quality input power.
2. OUTPUT VOLTAGE Meter: This meter measures, the AC voltage that the EPS is providing to the
connected equipment. It displays normal line mode, AVR mode, and battery backup mode.
3. NORMAL MODE Icon: This icon will illuminate when the EPS is working under normal conditions.
4. ON BAT (On Battery) Icon: When a severe brownout or blackout occurs, this icon illuminates and an
alarm sounds (2 short beeps followed by a pause) to indicate the EPS is operating from its external
batteries. During a prolonged brownout or blackout, the alarm will sound continuously. When the
BATTERY CAPACITY Meter shows one 25% capacity segment remaining it indicates the EPS's external
batteries are nearly out of power. You should save files and shut down your equipment immediately.
5. SILENT MODE Icon: This icon illuminates whenever the EPS is in silent mode. The buzzer will not
beep during the battery mode until the battery reaches low capacity.
6. OVER LOAD Icon: This icon will illuminate and an alarm will sound to indicate the battery supplied
outlets are overloaded. To clear the overload, unplug some of your equipment from the battery supplied
outlets until the icon is no longer illuminated and the alarm stops.
7. LOAD CAPACITY Meter: This meter displays the approximate output load level (in 25% increments) of
the EPS's battery outlets.
8. BATTERY CAPACITY Meter: This meter displays the approximate charge level (in 25% increments) of
the EPS's external battery. During a blackout or severe brownout, the EPS will switch to battery power,
the ON BAT icon will be illuminated and the charge level will decrease.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
9
EPS Status Inquiry and Functions Setup
p
1. General Mode
a. Press the LCD Display Toggle (Selected Switch) to check the status of the EPS.
Item
Unit
Input Voltage
V
Output Voltage
V
Load Capacity
%
Battery Capacity
%
b. Press and hold the Display Toggle for 4 seconds.
–If the machine is in the Battery Mode, it enters/leaves Silent Mode.
–If the machine is in the Line Mode, it proceeds to Self Test.
c. If the Display Toggle remains untouched for over 30 seconds, the LCD backlight will turn off
automatically.
2. Set-up Mode
Step 1: The machine enters Set-up Mode after the Display Toggle is pressed and held for 10 seconds.
When icons 1, 2 (see page 8) all illuminate, the EPS is in the Set-up mode.
Step 2: By pressing the Display Toggle, users can switch setup functions:
Items
Unit
Delay Time
Min
Battery Capacity
None
Charging Current
A
Nominal Output Voltage
V
Static Frequency Tolerance
%
Slew Rate
%
Battery Shutdown Voltage
V
Mode Select
None
Firmware Version
None
Error Code
None
a. Delay Time: The time delays for switching from Battery Mode to Line Mode. The machine will
switch from Battery Mode to Line Mode within the preset delay time after the AC power
transmission reaches stability.
Default 0.0 minutes
Choice 0.0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 minutes

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
10
b. Battery Capacity: The function adjusts the battery capacity of the used batteries.
Default 100AH
Choice 50, 75, 100AH, others (0H)
Note: The default value would be 100AH unless the capacity of the EPS bundling battery is not 100AH. In this
case, the default value changes according to the capacity of the bundling battery. For more information, please
see page 11 BATTERY CHARGING SETTING ARRANGEMENT.
c. Charging Current: The function adjusts the current for battery charging.
Default Medium level
Choice Lowest, Low, Medium, High level
Note: Check the setting of battery capacity before setting the charging current as the default value varies
according to the battery capacity. For more details, please see page 11 BATTERY CHARGING SETTING
ARRANGEMENT.
d. Nominal Output Voltage: AVR Dynamic Voltage Compensation works automatically based on
the system voltage settings. Please configure the correct electricity/voltage supplied in the
area/country where the EPS will be used.
Default 220V
Choice 220, 230, 240V
e. Static Frequency Tolerance: The settings may be adjusted to the quality of the electricity in use.
Default +/-10%
Choice 1, 2, 4, 6, 8, 10%
f. Slew Rate (Dynamic Frequency Tolerance): Slew Rate indicates the tolerance of a device in
accepting frequency variances. The lower Slew Rate results in less tolerance but better
protection for the connected loads.
Default 4 Hz/sec
Choice 0.25, 0.5, 1, 2, 4 Hz/Sec
g. Battery Shutdown Voltage: This function adjusts the EPS shutdown point according to the
battery voltage.
Default 22V
Choice 19, 20, 21, 22V
Note: In order to extend the lifespan of the battery, the function is applicable only when load ≥75%.
h. Mode Select: Using the generators as ESP input is suggested to select the Robust Mode (1);
using the computers as EPS output is suggested to select the Standard Mode (2).
Default Robust (1)
Choice Robust (1), Standard (2)
i. Firmware Version: This function shows the version of the used firmware.
j. Error Code: This function shows the latest record of error codes, if any.
Note: For more information about error codes, please see the table on page 14.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
11
Step 3: Press and hold the toggle for 4 seconds. When the icons blink, the value of each item can be
changed by slightly pressing the toggle.
Step 4: To save the value and return to general mode, press and hold the toggle for 4 seconds.
Note: If the machine is left idle for over 30 seconds during setup, it will turn off the backlight
and return to general mode automatically.
Note: If user wants to return to general mode without saving changes, there are two methods:
1. Wait for the backlight to turn off
2. Press and hold the Display Toggle for 10 seconds
BATTERY CHARGING SETTING ARRANGEMENT
Please read the following instructions and cautions carefully before charging the battery.
Step 1:Press the LCD Display Toggle (Selected Switch) on the front panel for 10 seconds and let the
EPS enter Set-up Mode.
Step 2:By pressing the Display Toggle, switch setup function to Battery Capacity / Charging Current.
Step 3:Press and hold the toggle for 4 seconds. When the icons blink, slightly press the toggle to
choose the value of the battery capacity / charging current. Please refer to the following table
for suitable setting.
LOWEST
LOW
MEDIUM (default)
HIGH
current
time*
current
time
current
time
current
time
50 AH
3A
30hr
6A
11hr
8A
9hr
75 AH
4A
30hr
10A
11hr
13A
9hr
100 AH
5A
30hr
10A
15hr
14A
11hr
17A
9hr
Others (0H)**
5A (default), 10A, 15A, 20A
* Time here indicates charging hours needed for the battery.
** Due to the fact that the inappropriate charging current will seriously cause the decrease of the lifespan of the battery,
please DO NOT use the 0H setting without the assistance from local agent. Improper use is not incorporated in the
warranty.
Step 4:Press and hold the toggle for 4 seconds to save the setting value and return to general mode.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
12

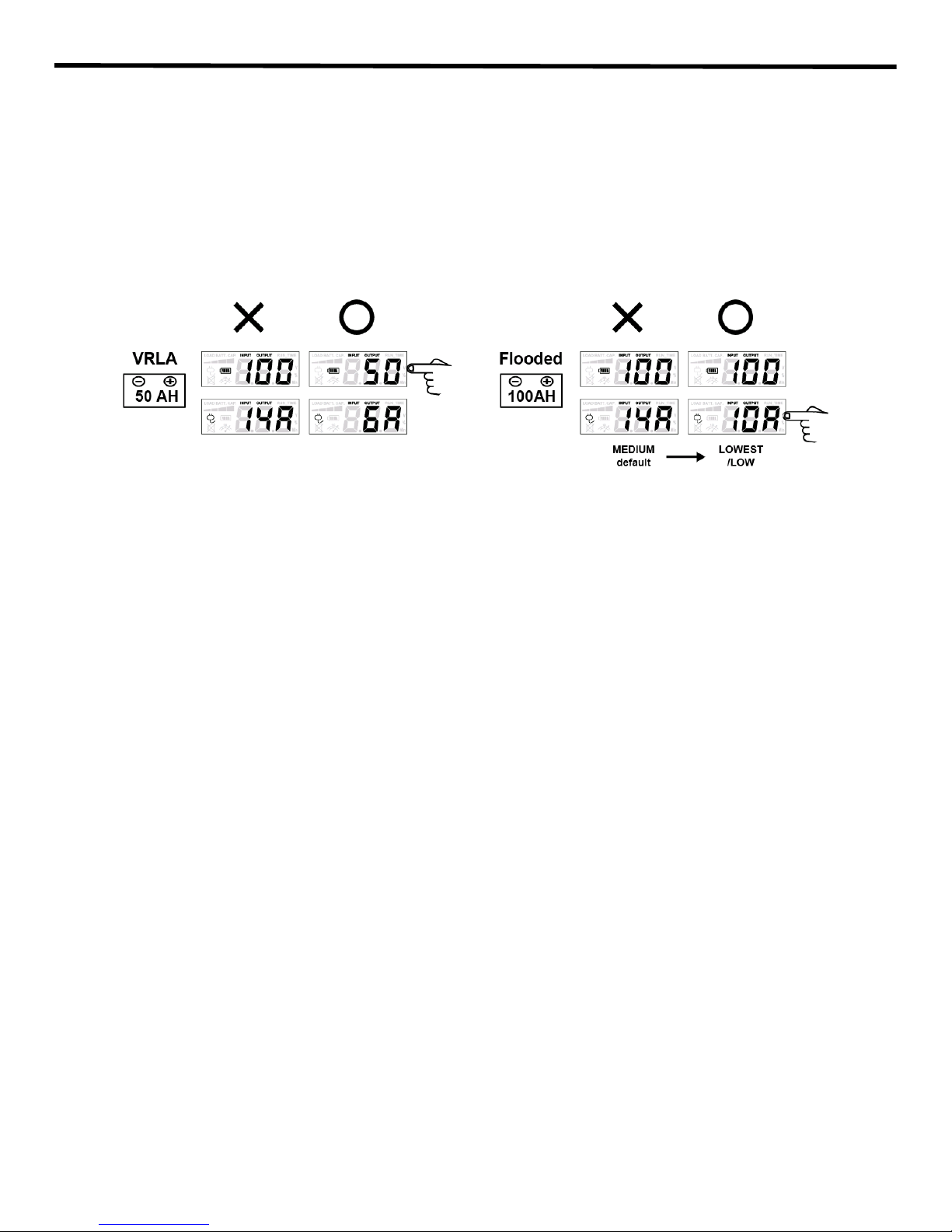

CAUTION! The following statements related to the battery warranty are highly important. Please
read and abide by them carefully.
Do not set the inappropriate battery capacity. Incorrect charging current will seriously affect the
cycle use of the battery.
Use LOWEST/LOW current level for setting if the flooded battery is used.
Assess if the battery can withstand the charging current before you adjust the original current
level to a larger one. Unsuitable use will seriously impact on the battery lifespan.
The battery warranty becomes not applicable when one of the rules is violated. For more information,
please contact the local agent.
Please set the correct battery capacity. Please set the correct charging current, especially for
FLOODED BATTERY.
CAUTION! Too large charging current, overcharge and that the battery is not fully charged for a long
time all have impact on the lifespan of the battery. Please carefully assess the battery type, capacity,
charging current and discharging and charging time needed. For more information, please contact the
local agent.
CAUTION! BATTERY LIFESPAN will be influenced by several factors, such as the number of
discharging and recharging cycles and the ambient temperature. It is recommended to follow the
suggestions below to increase the lifespan of the battery.
Setting too large charging current will decrease the battery lifespan. Please choose the suitable
setting from the table on page 11 to meet your needs.
Keep the battery fully charged, even when it is not in use.
Do not expose the battery to high temperature environment, such as direct sunlight. It will
seriously decrease the efficiency of the battery.
The lifespan of the battery gets a drop-off when the ambient temperature is getting higher above
77℉/25℃, which is the optimum temperature for the battery. Keep the ambient temperature at
the optimum temperature.
Do not deploy batteries with different manufacturing batch (different production date). Mix usage
of batteries with different remaining power (voltage) will cause unbalanced charge voltage and
will shorten the lifespan of batteries.
The voltage differences of one set of batteries shall be within 0.3V. If not, change the unsuitable
batteries in order not to cause unbalanced charge. It will shorten the lifespan of batteries.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
13
FAULT WARNING DISPLAY AND ALARM
Fault warning display and alarm
1. The following table shows each corresponding warning message on the LCD display and the alarm
reacts during the machine shutdown:
LCD Warning
Display
Alarm
Condition
Solution
Long Beep
Overload
Check total load to
confirm the rating of
EPS.
(Flashing)
Rapid Beep
(30s)
Battery missing in Line Mode
Turn the EPS off. Check
battery wiring and the
presence of the battery.
NO IMAGE
Rapid Beep
Overheat (Over 70℃/158℉)
Check fans function and
air vent clearances.
Rapid Beep
Low Battery. Battery Capacity
shows 0% in General Mode.
Recharge the battery.
Rapid Beep
Overcharge in Line Mode
Inform service agents.
After warning, all above except “Battery missing in Line Mode”will all shut down. For “Battery
missing in Line Mode”, the On Battery icon will keep flashing.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
14
2. The following table shows the information about the error codes on the LCD display AFTER the
machine shutdown. The LCD will show the message till the EPS runs out of battery.
Error Type
Error Code
Possible cause
Line Mode Error
E0
AVR Fail
AVR broke down
E1
Battery Overcharge
Charger broke down
Battery Mode
Error
E10
Output Overvoltage
Output voltage detector broke down
E11
Battery Overvoltage
Unexpected battery module
System Error
E20
Battery Mode No Output
Voltage
EPS/connected devices short circuit
Output voltage detector broke down
Inverter broke down
E21
Utility Mode No Output
Voltage
EPS/connected devices short circuit
Output voltage detector broke down
Input relay broke down
E22
Output Overload
Too many connected devices
Output voltage detector broke down
E23
Transformer Overheat
Over temperature of Transformer
E24
Inverter Overheat
Over temperature of Heat Sink
E25*
Turned Off By EPO
Shutdown by EPO
E26
AC Input Over Current
Low AC input voltage
E27
Abnormal Input Current
Feedback
Input current sensor broke down
E28
Abnormal Output Current
Feedback
Output current sensor broke down
*It is only for the products equipped with EPO.
After the EPS shutdown, the Fault Mode icon will also illuminate on the LCD display together
with the error code, indicating there is a problem with the machine. Please contact CyberPower
Systems or local agent for further help and support.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
15
REPLACING THE BATTERY
CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the
battery. Battery service should only be done by qualified professionals.
CAUTION! Use only the specified type and number of external batteries. Please see the technical
specifications for replacement batteries. Mix usage of different brands, capacity and type of battery will
cause damage to batteries because the suitable charging current of each battery may be different.
CAUTION! Deploying batteries with different manufacturing batch (different production date) is not
recommended. Mix usage of batteries with different remaining power (voltage) will cause unbalanced
charge voltage and will shorten the lifespan of batteries.
CAUTION! The voltage differences of one set of batteries shall be within 0.3V. If not, change the
unsuitable batteries in order not to cause unbalanced charge. It will shorten the lifespan of batteries.
CAUTION! The battery may present a risk of electrical shock. Do not dispose of battery in a fire as it
may explode. Follow all local ordinances regarding proper disposal of batteries. Lead-acid batteries
should be recycled.
CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to skin and eyes
and may be toxic.
CAUTION! The external battery cabinet must be provided with 80V / 100A for model CPS1500PIE.
CPS1500PIE Series include CPS1500PIE, CPS1500PIE-FR, CPS1500PIE-UK and other versions.
CAUTION! A battery can present a risk of electrical shock and high short-circuit current. The
following precautions should be observed when working on batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.
6. Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from
ground. CONTACT WITH ANY PART OF A GROUNDED BATTERY CAN RESULT IN
ELECTRICAL SHOCK. The likelihood of such shock can be reduced if such grounds are removed
during installation and maintenance (applicable to equipment and remote battery supplies not
having a grounded supply circuit).

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
16
TROUBLESHOOTING
Trouble shooting
Problem
Possible Cause
Solution
Outlet does not provide
power to equipment.
Circuit breaker has
tripped due to an
overload.
First, turn the EPS off and unplug at
least one piece of equipment. Wait
10 seconds, reset the circuit breaker
by pressing the button, and then turn
the EPS on.
Batteries are discharged.
Recharge the unit for at least 4
hours.
Unit has been damaged
by a surge or spike.
Contact CyberPower Systems or
local agent about replacement
batteries.
The EPS cannot be
turned on.
The on/off switch is
designed to prevent the
damage that rapidly turns
it off and on.
Turn the EPS off. Wait 10 seconds
and then turn the EPS on.
The unit is not connected
to an AC outlet.
The unit must be connected to a
220/230/240V outlet.
The battery is worn out.
Contact CyberPower Systems or
local agent about replacement
batteries.
Mechanical problem.
Contact CyberPower Systems or
local agent via phone or visit our
website.
Input and output wiring
error
Check the input/output connection.
The battery voltage is too
high during cold start.
Check the reason for battery
over-voltage.

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
17
TECHNICAL SPECIFICATIONS
Technical specifications
Model
CPS1500PIE
Capacity (VA)
1500VA
Capacity (Watts)
1050W
Operation Technology
AVR (Double Boost & Single Buck)
AC Input
Input Voltage Range
140Vac –300Vac
Input Frequency Range
50/60 Hz +/- 5 Hz (auto sensing)
AC Output
Phase
Single Phase
Output Voltage
Pure Sine Wave at 220Vac +/- 10%
Nominal Output Voltage
Configurable for 220 / 230 / 240Vac
Battery Output Frequency
50/60 Hz +/- 1%
Overload Protection
On Utility: Circuit Breaker
On Battery: Internal Current Limiter
Transfer Time
< 10 ms (Typical)
Output Receptacles
UK(Schuko/France) Type*2 + Terminal Block
External Battery
Voltage x Recommended
Rating X Quantity
12V x 100AH X 2
External Battery Voltage
24V
External Battery Type
Sealed Maintenance Free Lead Acid Battery
External Battery Protection
DC Circuit Breaker
Hot Swappable
Yes
Extended Runtime
Yes
Status Indication
Indicators
Power On, LCD Display
Audible Alarms
On Battery, Low Battery, Overload, Overheat, Overcharge
Environmental
Temperature
32℉to 104℉(0℃to 40℃)
Relative Humidity
0 to 95% Non-Condensing
Physical
Dimensions (LxWxH) (mm)
261 x 206 x 325
Weight (Kg)
18.6 Kg
Safety
Certificated
CE/SONCAP

CPS1500PIE
Copyright © 2014 CyberPower Systems, Inc.
For more information, contact us at:
CyberPower Systems, Inc.
Website: www.cpsww.com
Entire contents copyright © 2014 CyberPower Systems, Inc.
All rights reserved. Reproduction in whole or in part without permission is prohibited.
