User Manual 1 Hybrid CPSHB300ETR
1 Information on this Manual
1.1 Validity
This installation guide contains installation, commissioning, basic troubleshooting and tech-support contact
information regarding CyberPower’s CPS Hybrid PV inverter CPSHB300ETR
Using this guide, users will be able to install and operate the inverter rather easily. This manual does not
cover any details regarding equipment connected to the inverter.
1.2 Target Group
This manual is most suitable for users who have basic knowledge around electricity and electrical devices.
Note: CyberPower Systems, Inc. will not inform users for any changes taken place within this guide.
1.3 Symbols Used
The following types of safety instructions and general information appear within this document:
Symbol Description
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, can
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, can
result in minor or moderate injury.
NOTICE indicates a situation which, if not avoided, could result in
property damage.
Information that you must read and know to ensure optimal
operation of the system.

User Manual 2 Hybrid CPSHB300ETR
2Safety
2.1 Intended Use
The CPS Hybrid PV inverter can be used to converter photovoltaic energy to battery and/or to balance the
attached load power. Please note, that charging the batteries takes presidency over all other functions!
It can supply power to appliances when public grid is not available. The unit contains 2 x 12V/9Ah Sealed
Lead Acid batteries in 24VDC configuration that can be expanded through the use of an external battery
array. It also has a built-in USB charger that provides 2ports with 2A totally maximum, able to charge
connected 5VDC USB devices, such as Smart Phones, Tablets, Cameras, etc.

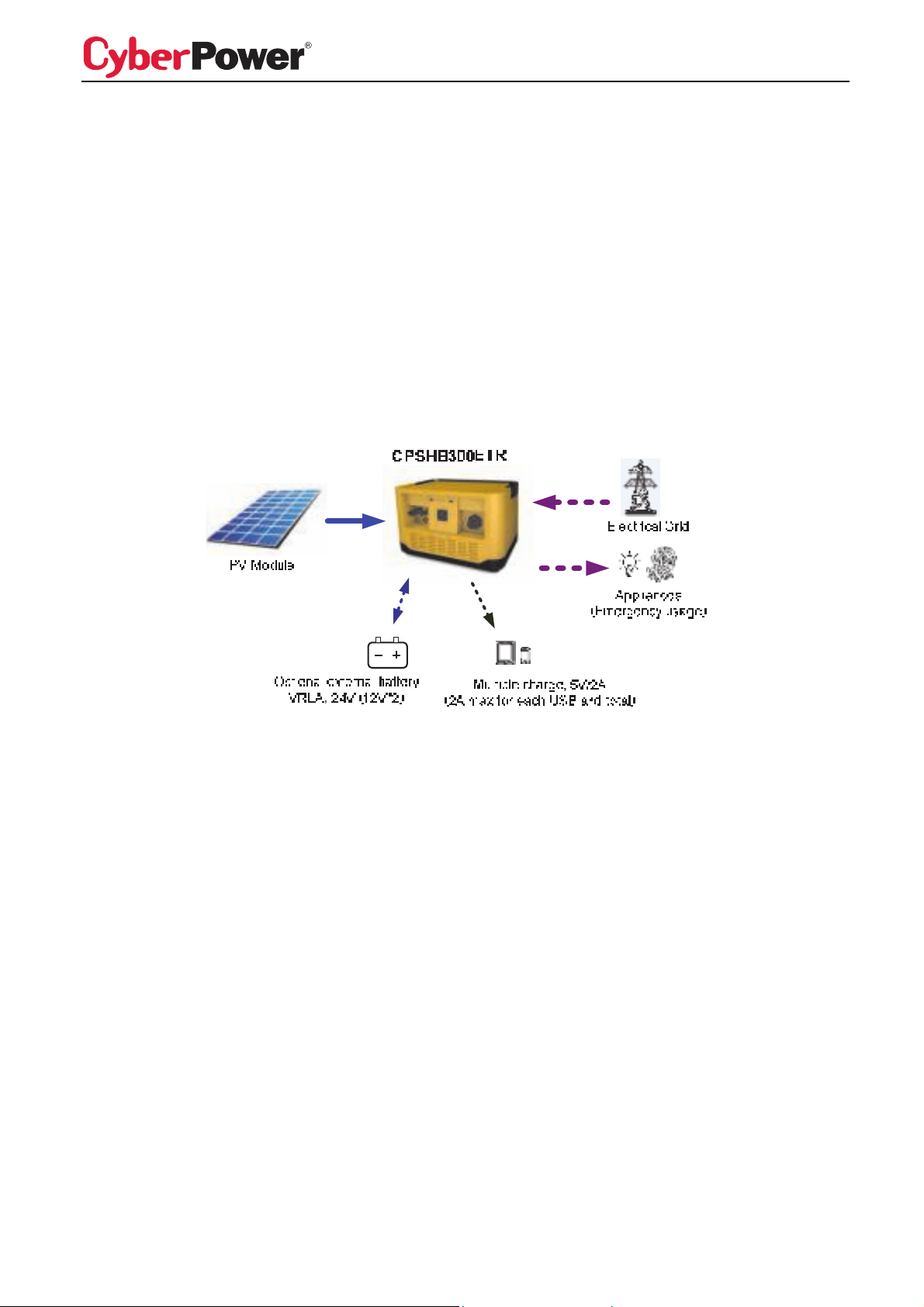

Hybrid Energy Storage System Overview:
Fig. 2-1 Energy storage system
Like the above drawing indicates, a complete energy storage system consists of PV module, CPS hybrid PV
inverter, public grid and other components.
2.2 Safety Precautions
The CPS hybrid series is designed and tested according to international safety requirements; however,
certain safety precautions must be observed when installing and operating this inverter. Read and follow all
instructions, cautions and warnings in this installation manual.

User Manual 3 Hybrid CPSHB300ETR
2.3 Assembly Warnings
Prior to installation, inspect the unit to ensure absence of any
transport or handling damage, which could affect insulation
integrity or safety clearances; failure to do so could result in
safety hazards.
Unauthorized removal of necessary protections, improper use,
incorrect installation and operation may lead to serious safety,
shock hazards or equipment damage.
In order to minimize the potential of a shock hazard due to
hazardous voltages, cover the entire solar array with dark
material prior to connecting the array to any equipment.
Grounding the PV modules: Comply with the local requirements for
grounding the PV modules and the PV generator.
CyberPower recommends connecting the generator frame and other
electrically conductive surfaces in a manner which ensures continuous
conduction and ground these in order to have optimal protection of
the system and personnel.

User Manual 4 Hybrid CPSHB300ETR
2.4 Electrical Connection Warnings
2.5 Operation Warnings
Make all electrical connections (e.g. conductor termination, fuses, PE
connection, etc.) in accordance with prevailing regulations. When
working with the inverter powered on, adhere to all prevailing safety
regulations to minimize risk of accidents.
The unit may only be operated with PV generators (modules and
cabling) with protective insulation. Do not connect any source of energy
other than PV modules to the CPS hybrid inverter.
Systems with inverters typically require additional control (e.g.,
switches, disconnects) or protective devices (e.g., fusing circuit breakers)
depending upon the prevailing safety rules.
Please read this manual carefully, the manufacturer or supplier is not
responsible for damage caused by incorrect operation, installation,
wiring, transport, etc.
When energy flows into the house grid through the inverter, household
devices or lighting consume that energy. Leftover energy may be fed into the
public grid. If you choose this function and indeed there is left-over power
fed into the public grid, depending on your connection, the energy
consumption meter might be spinning backwards!
Ensure all covers and doors are closed and secure during operation.
Although designed to meet all safety requirements, some parts and
surfaces of Inverter are still hot during operation. To reduce the risk of
injury, do not touch the surfaces while Inverter is operating.
Incorrect sizing of the PV plant may result in voltages being present
which could destroy the inverter.
Anytime the inverter has been disconnected from the power network,
use extreme caution as some components can retain charge sufficient
to create a shock hazard; to minimize occurrence of such conditions,
comply with all corresponding safety symbols and markings present on
the unit and in this manual.
In special cases, there may still be interference for the specified
application area despite maintaining standardized emission limit values
(e.g. when sensitive equipment is located at the setup location or when
the setup location is near radio or television receivers).In this case, the
operator is obliged to take proper action to rectify the situation.
