CYMEDICA Orthopedics QB1 Go User manual

NOTE: It is common to have different desired
intensity levels for the electrodes.
Once the intensity levels are set, select the
“START” button. If you don’t start the program,
the treatment will start automatically after 5
minutes. NMES treatment programs are 20
minutes long.
Once the treatment is completed, squeeze both
sides of UI cable connector to disconnect from
the NMES socket.
Emergo Europe
Prinsessegracht 20
2514 AP The Hague
The Netherlands
CYMEDICA ORTHOPEDICS
19120 N. Pima Rd., Ste. 135
Scottsdale, AZ 85255 USA
QB1 Go System
User’s Manual
Read this manual carefully before
operating the QB1 NMES treatments.
Customer Service 1-844-CYM-2014
www.cymedicaortho.com
QB-0090-018 Rev. B

Introduction
CyMedica Orthopedics®QB1 Go System includes
NMES Therapy components. The NMES System is
intended for retardation or prevention of disuse
atrophy. Refer to the QB1 User’s Manual for all
the Intended Uses, Contraindications, Warnings,
Precautions, and Adverse Reactions before
operating this system.
Powered muscle stimulators should not be used
on patients with cardiac demand pacemakers.
Electrodes should not be applied over the neck
or mouth. See your health care professional for
electrode placement.

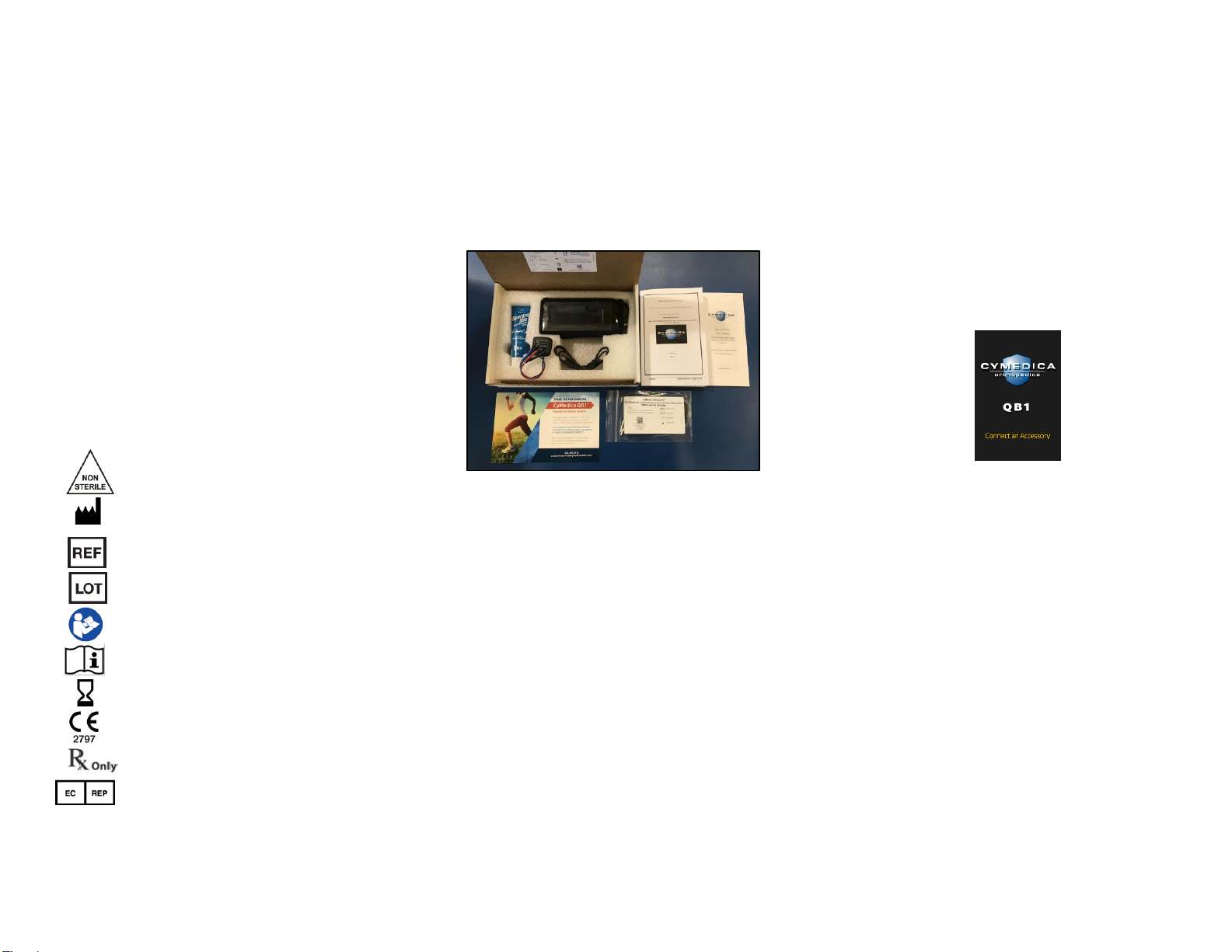

Explanation of Symbols
The system is provided Non Sterile
Legal Manufacturer name and address
Reference number; part number
Lot number
Follow instructions for use
Consult instructions for use
Expiration date
CE Marking
Prescription only (USA)
Authorized Representative
The QB1 Go System consists
of the following:
User Interface
NMES Pod
NMES Electrodes Set
Electrode Gel
Universal USB charging cord
Electrodes Placement for
NMES Treatment
For best results: Wash and dry skin. Apply
electrode gel to electrode area of skin.
The physician will determine the proper
anatomical location for electrodes placement.
See Physician for further instructions on the
location of the NMES electrodes.
Obtain the NMES pod. Remove plastic pin covers
from each electrode lead pin. Connect the RF
(Blue lead wire) and the COM (red lead wire) to
the 2” x 3.5” electrodes. Connect the VMO (Black
lead wire) to the 2” x 2” electrode. Alternatively,
various combinations of 2” x 2” and/or 2”x 3.5”
electrodes may be used according to comfort and
anatomical location.
Plug in the electrode all of the way so that the
metal pin is completely covered.
Operating the QB1 Device-
NMES Treatment
All electrodes should be in direct contact with the
patient skin. Turn on power to the UI by sliding
the ON / OFF Switch to the ON position (I). The
initial UI screen should appear briefly.
The UI screen will notify you to connect the UI to
the NMES Pod by plugging it into the socket.
The UI will display the available treatments:
NMES POST-OP and STRENGTH.
Select the treatment prescribed by your medical
professional.
On the Stimulation Level screen, you set the
intensity levels. Each level begins with a setting
of 0 and has a maximum setting of 100.
The UI display will show “knee or thigh”;
however, the electrodes may be placed on the
muscle your healthcare professional chooses.
The knee area controls black and red wires. The
thigh area controls the blue and red wires.
Press “+” to increase treatment intensity
Press “-” to decrease treatment intensity
