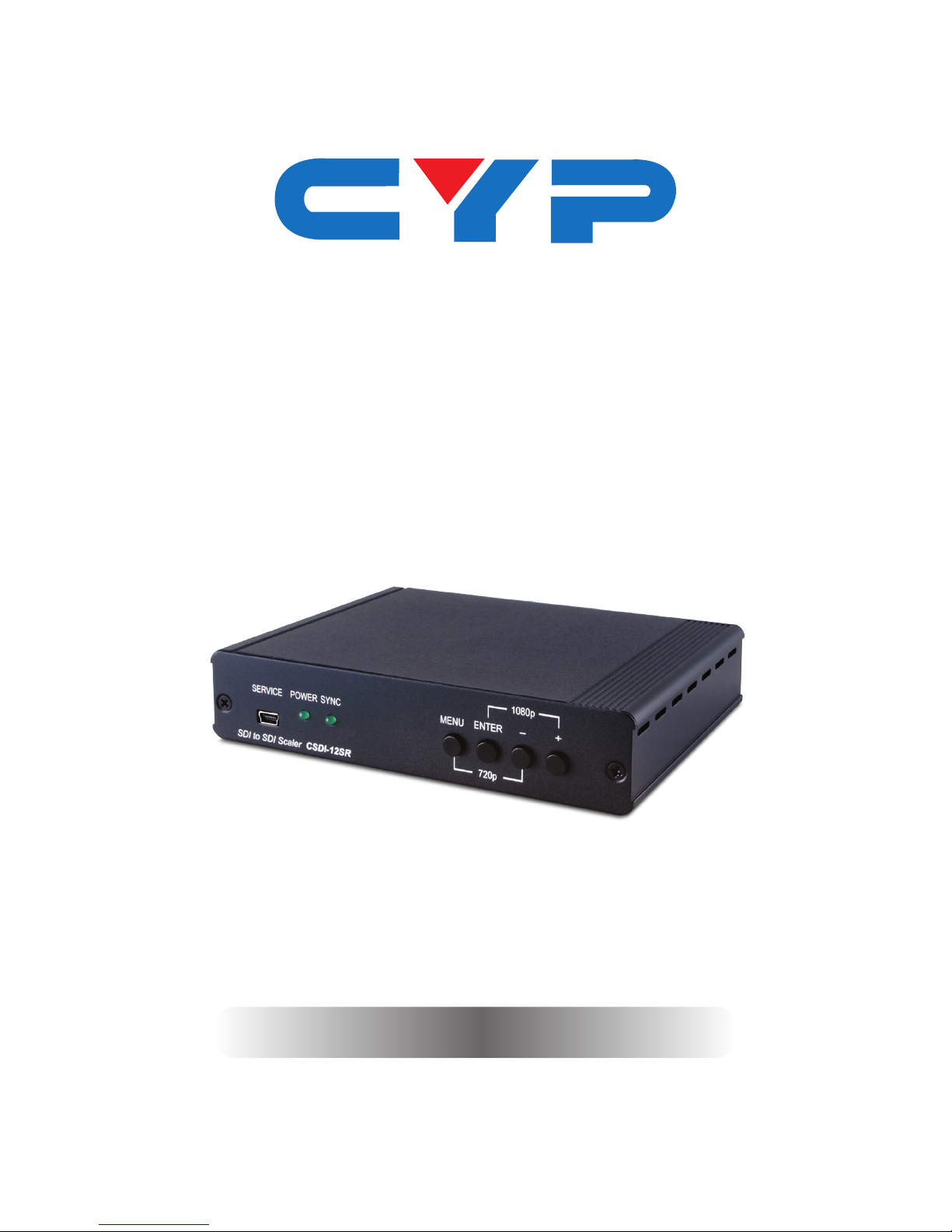

CYP CSDI-12SR User manual

CSDI-12SR
1 by 2 3G-SDI Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
V1 11/12/13 Preliminary Release
VS1 23/12/14 Updated text/Diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 OSD Menu.........................................5
7. Connection Diagram ............................ 9
8. Specications ...................................... 10
8.1 Technical Specication.................10
8.2 Supported Input Resolutions .........11
8.3 Supported Output Resolutions......11
9. Acronyms ............................................. 12

1
1. INTRODUCTION
The 1 by 2 3G-SDI Scaler allows an SD-SDI, HD-SDI and 3G-SDI signal
to be scaled and split to two simultaneous SDI outputs, providing
bandwidth up to 2.970Gbps for 3G-SDI video support allowing the user
to distribute and extend their SDI signal. The On-screen Display (OSD)
menu can be controlled from the front panel, allowing quick and easy
adjustment of all settings.
2. APPLICATIONS
• Distribute and extend a single SDI signal to 2 SDI displays
• Scale any SDI input resolution to any SDI output resolution to SDI
standards
3. PACKAGE CONTENTS
• 1 by 2 3G-SDI Scaler
• 5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
SDI source equipment such as an SDI camera or any SDI signal with
SDI connection cable and output to the SDI monitors or recorders with
SDI connection cables.

2
5. FEATURES
• Splits an SDI input to two SDI outputs with scaler function
• Supports scaling of any SDI input to any SDI output to SDI standards
• Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with auto-
detection
• SDI interface operates at bitrates of 2.970 Gbps, 2.970/1.001 Gbps,
1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps
• Supports SDI input/output modes/standards:
- SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbps
- HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbps and 1.485/1.001 Gbps
- 3G-SDI: SMPTE 424M/425M-A & B, at bitrates of 2.970Gbps and
2.970/1.001Gbps
• Supports up to 8 audio channels at 48 kHz
• Supports SDI input/output distances up to 100 meters (3G-SDI), 200
meters (HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A Cable. Operating distances may vary
if used with cables of different specications.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
720p
1080p
MENUSYNCPOWERSERVICE ENTER
-
+
1 2 3 4 5 6
1SERVICE: Connect to a PC or Laptop with a mini USB B cable for
rmware update only.
2POWER LED: The LED will illuminate when the unit is connected to
an active power supply.
3SYNC LED: The LED will illuminate when the SDI input is connected
to and detects an SDI source.
4MENU: Press to bring up the OSD menu. When in OSD menu mode,
the 'MENU' button will function as the 'EXIT' button.
Press the 'MENU' and 'MINUS (-)' buttons simultaneously will
immediately switch the output resolution to 720p@60 Hz.
5ENTER: Press to conrm the selection in the OSD menu.
Press the 'ENTER' and 'PLUS (+)' buttons will immediately switch the
output resolution to 1080p@60 Hz.
6MINUS (-)/PLUS (+): Press these buttons to navigate up or down the
OSD menu.
When in normal display mode (not in OSD menu), press the 'PLUS (+)'
button to 'FREEZE' (pause) the video (Please refer to the section 6.3).

4
6.2 Rear Panel
DC 5VSDI OUT
SDI IN
1 2
1 2 3
1SDI IN: Connect to the SDI output of the SDI source device.
2SDI OUT 1/2: Connect to the SDI devices such as TV/displays or
recorders.
3DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC outlet.

5
6.3 OSD Menu
MAIN MENU SUB MENU ADJUSTMENTS DEFAULT
OUTPUT 480I59, 576I50,
720P50, 720P59,
720P60, 1080P23,
1080P24, 1080P25,
1080P29, 1080P30,
1080I50, 1080P50,
1080I59, 1080P59,
1080I60, 1080P60
720P60
EXIT
PICTURE CONTRAST 0 ~ 100 64
BRIGHTNESS 0 ~ 100 64
SATURATION 0 ~ 100 64
HUE 0 ~ 100 64
SHARPNESS 0 ~ 100 32
PICTURE RESET
EXIT
ASPECT RATIO*1 FULL FULL
16:9 TV
16:10 TV
4:3 TV
KEEP RATIO
EXIT
OVERSCAN ENABLE YES, NO NO
H SIZE% 0% ~ 50% 0%
V SIZE% 0% ~ 50% 0%
EXIT

6
MAIN MENU SUB MENU ADJUSTMENTS DEFAULT
AUDIO ENABLE YES, NO YES
SOURCE GROUP 1+2, 3+4,
AUTO*2
AUTO
EXIT
OSD SETTINGS POSITION LEFT-TOP,
RIGHT-TOP,
RIGHT-BTM,
LEFT-BTM,
CENTER
LEFT-TOP
TRANSPARENCY 0~15 12
MENU TIMEOUT 5~50, OFF*3 20
INFO. TIMEOUT 5~50, OFF*3 10
INFO. DISPLAY ON, OFF,
INFO
INFO
EXIT
ADVANCED AUTO SYNC-OFF*4 ON, OFF OFF
MIRROR-V ON, OFF OFF
FREEZE*5 FREEZE ONLY,
FREEZE+MUTE,
MUTE ONLY
FREEZE+MUTE
EXIT
PATTERN OFF OFF
COLOR BAR
GRAY SCALE
CROSS HATCH
CROSS
WHITE WINDOW
RAMP

7
MAIN MENU SUB MENU ADJUSTMENTS DEFAULT
EXIT
FACTORY
DEFAULT
NO NO
YES
EXIT
INFORMATION IN*6
OUT*6
AUDIO GROUP
DETECTION REPORT
FIRMWARE VERSION
EXIT
EXIT
Note: The OSD IN/OUT displays the current input/output resolution. If
the source did not correctly connect to the input, the OSD will display
'No Signal'.
1. ASPECT RATIO
-FULL: Fills the screen (Fullscreen).
-16:9 TV, 16:10 TV, 4:3 TV: Adjusts the aspect ratio to match the
display.
-KEEP RATIO: The ratio will depend on the output resolution. For
example, if the output resolution is 1080p@60 Hz (16:9) and the
display is 4:3, then the image will output as Letterboxed (black
bars top and bottom).
2. SOURCE GROUP
Selection of the audio source groups can be made from the OSD
menu (Group 1+2/3+4 or Auto detection), the maximum audio
output is 8 channels.
-1+2: Group 1 is Primary, Group 2 is Secondary.
-3+4: Group 3 is Primary, Group 4 is Secondary.
-AUTO: Primary > Secondary, Group 1 > 2 > 3 > 4.

8
3. MENU TIMEOUT
The menu/info display will remain on-screen when 'MENU TIMEOUT'
is OFF.
4. AUTO SYNC-OFF
The system will automatically switch off the SYNC output when the
output displays have been disconnected for 2 minutes.
5. FREEZE
Once activated, the unit will remain in 'FREEZE' mode even if
the source changes resolution or there is no source input unless
the output resolution is changed. The unit does not support last
memory function, when the unit is rebooted will remain in 'FREEZE'
mode.
-FREEZE ONLY: Video freeze and Audio is on.
-FREEZE+MUTE: Video freeze and Audio mute.
-MUTE ONLY: Video is on and Audio mute.

9
7. CONNECTION DIAGRAM
DC 5VSDI OUT
SDI IN
1 2
SDI Display/Monitor SDI Recorder
SDI Camera
SDI Input
SDI Output
Power
Supply
SDI Output

10
8. SPECIFICATIONS
8.1 Technical Specication
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps,
1.485/1.001 Gbps & 270 Mbps
Video Bandwidth 148.5 MHz/link
Input Port 1×BNC (SD-SDI/HD-SDI/3G-SDI)
Output Ports 2×BNC (SD-SDI/HD-SDI/3G-SDI)
SD-SDI Timing SMPTE 259M-C, 270 Mbps
HD-SDI Timing SMPTE 292M, 1.485 & 1.485/1.001 Gbps
3G-SDI Timing SMPTE 424M/425M-A & B, 2.970 &
2.970/1.001 Gbps
SDI Cable Distance Up to 300 m/200 m/100 m (SD/HD/3G)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 145 mm(W)×112.5 mm(D)×30 mm(H)/Exc.
Connectors
145 mm(W)×131 mm(D)×30 mm(H)/Inc.
Connectors
Weight 354 g
Chassis Material Aluminum
Color Black
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F ~ 104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 3.1 W (Max)

11
8.2 Supported Input Resolutions
SDI STANDARD INPUT TIMING
SD-SDI 480i@59 Hz
576i@50 Hz
HD-SDI 720p@50/59.94/60 Hz
1080i@50/59.94/60 Hz
[email protected]/24/25/29.97/30 Hz
[email protected]/24/25/29.97/30 Hz
3G-SDI 1080p@50/59.94/60 Hz
Note:
1. When the input source resolution is [email protected]/24 Hz, 480i/576i
output resolutions are not supported and will not be available for
selection in the OSD menu.
2. When the input source is 1080sF@25/29.97/30 Hz, the option in the
OSD IN/OUT menu will show 1080i@50/59.94/60 Hz.
8.3 Supported Output Resolutions
SDI STANDARD OUTPUT TIMING
SD-SDI 480i@59 Hz
576i@50 Hz
HD-SDI 720p@50/59.94/60 Hz
1080i@50/59.94/60 Hz
[email protected]/24/25/29.97/30 Hz
3G-SDI 1080p@50/59.94/60 Hz

12
9. ACRONYMS
ACRONYM COMPLETE TERM
HD High-denition
SDI Serial Digital Interface

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
MPM-CSDI12SR
