CYP AU-1 User manual

AU-1 Coaxial/
Toslink Audio
Converter
Operation Manual
AU-1

Introduction
Ambery AU-1 is a Coaxial / Toslink audio converter, compact and convenient.
It accepts S/PDIF audio signal input through either Coaxial cable or Toslink cable,
Switcher Panel Upper Cover
Coaxial
and passes the signal (as is) to both its coaxial and Toslink output ports. With its
built-in amplification feature, AU-1 can also serve as a repeater of audio signal
and extend (double) the transferring distance.
Features
1. Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.
2. Supports input audio signal from 2 channels up to 5.1 channels, output signal
follows input.
3. Supports amplification of S/PDIF audio and extends the transferring distance,
through coaxial and/or Toslink cables.
4. Select one input from Coaxial or Toslink input ports, and send S/PDIF audio
signal to both Coaxial and Toslink output ports simultaneously.
To s
1 2
Switcher Panel:
1. Input Selection:
DC 7.5V
Coa x t o T oslink
2 way Conve rt e r
& Repea t e r
1
5. Compact size and easy to install.

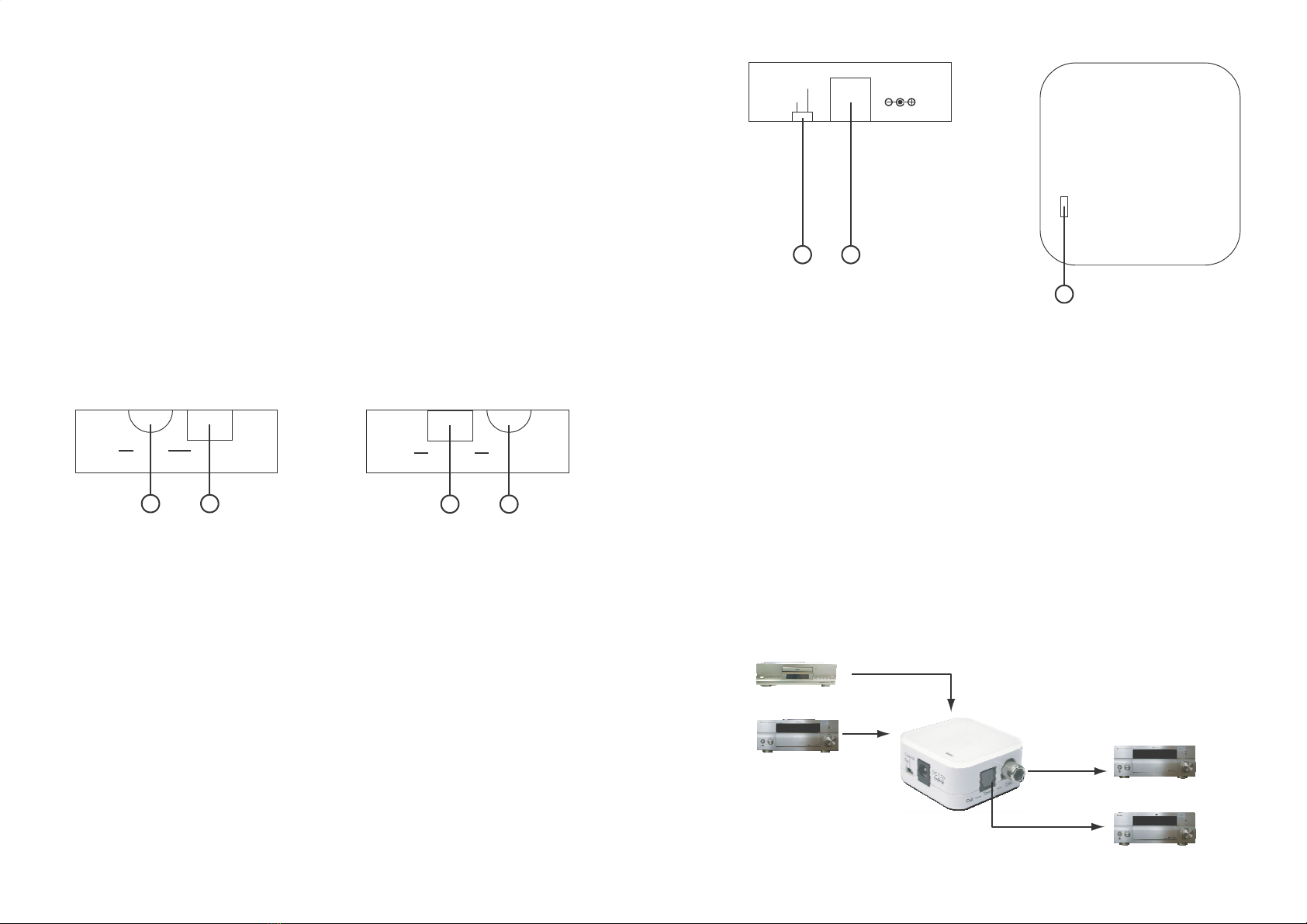

Operation Controls and Functions
Input Panel Output Panel
Use this mini switcher to select input from Coaxial or Toslink input ports.
2. Power:
Plug the power supply into AU-1 unit and connect the adaptor to AC wall
outlet.
In
Coax
Toslink
Out
Toslink
Coax
Upper Cover:
1. Power LED:
The LED will illuminate when the power supply is connected.
1 2
Input Panel:
1 2 Specifications
* Input: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port
* Output: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port
* Power: DC 7.5V / 500 mA, center positive
1. Coaxial Input:
Connect to the output port of your S/PDIF audio source such as DVD player
or amplifier, using Coaxial cable.
2. Toslink Input:
Connect to the output port of your S/PDIF audio source such as DVD player or
amplifier, using Toslink (optical fiber) cable.
* Dimension: 42(W) x 40.5(D) x 22(H) mm
* Weight: 25g (adaptor not included)
Connection and Installation
Output Panel:
1. Toslink Output:
Connect to the input port of your S/PDIF audio equipment such as amplifier,
using Toslink (optical fiber) cable.
2. Coaxial Output:
Connect to the output port of your S/PDIF audio equipment such as amplifier,
using Coaxial cable.
DVD Player
Amplifier
AU-1
Amplifier
Amplifier
1 2
