CYP PRO-H2-3GSDI User manual

PRO-H2-3GSDI
HDMI to 3G-SDI Dual Output
Converter
OPERATION MANUAL

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
VR0 20110104 Preliminary Release
VR1 20110704 Add Support Timing

Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. Package Contents ......................................................................1
4. System Requirements..................................................................1
5. Features........................................................................................1
6. Specifications ..............................................................................2
7. Operation Controls and Functions............................................. 3
7.1 Front Panel.................................................................... 3
7.2 Rear Panel .................................................................... 5
8. LED Signal Chart........................................................................... 6
9. Connection and Installation ......................................................8
10. Acronyms.....................................................................................9

1
1. Introduction
The HDMI™ to 3G SDI converter allows HDMI signals to be shown on SDI displays
while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal
without any loss. For professionals this means that it is now easier to convert your
high def HDMI signal with audio to 3G SDI for long distance transmission and
display your work on two 3G SDI display. Also, a 2CH L/R audio input allows
DVI signal with 2CH audio to be converted to SDI in order to be shown on SDI
displays. Furthermore, the device has a built-in default EDID and a recordable
EDID that guaranty image display compatibility with source equipment.
2. Applications
• HDMI signal display on SDI display(s)
• Extending HDMI signal over 100M away to two SDI display
• DVI signal with audio display on SDI display(s)
• Cascade HDMI signal over SDI cable
3. Package Contents
• HDMI™ to 3G SDI converter
• 5V/2.6A Power Adaptor
• Operation Manual
4. System Requirements
• Input HDMI/DVI (with audio signal) source equipment with connection
cable(s).
• Output SDI display(s) or SDI to HDMI converter(s) with connection cable(s).
5. Features
• Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60,
1080p 50/60
• Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s
and 270Mbits/s
• Simultaneous display HDMI source on two SDI displays
• When a DVI signal goes through HDMI, the R/L audio can be sent with it to
the 3G SDI output
• Integrated audio embedded up to 8CH PCM 48kHz for HDMI or 2CH
(external L/R) for DVI audio
• Auto video mode detection (3G/SD/HD)

2
• Audio selection switch allows external L/R audio or HDMI audio
• Connect with other units (SDI to HDMI) to extend your signal over long
distances
• Choose between a selectable EDID and recordable EDID
• Supports signal transmission distances of up to 300M for SD signals, 200M
for HD signals and 100M for 3G signals
Note: A. Cable tested with Belden 1694A. Operating distances may vary if
used with another type of cable.
B.This product does not process HDCP input. When receiving
content that has HDCP encryption there will be no video output.
6. Specications
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
Frequency Bandwidth 225MHz/link
Input 1 x HDMI, 1 x R/L
Output 2 x BNC (SD-SDI/HD-SDI/3G-SDI)
In/Output Support Timing 480i, 576i, 720p@50/59.94/60,1080i@50/59.94/60,
[email protected]/24/25/29.97/30/50/60,
SDI Cable Distance 3G up to 100M (BELDEN 1694A)
HD up to 200M (BELDEN 1694A)
SD up to 300M (BELDEN 1694A)
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
: ± 4kV (contact discharge)
Dimension (mm) 125 (W) x 115 (D) x 30 (H)
Weight (g) 275
Chassis Material Metal
Silkscreen Color Black
Power Supply 5V DC/2.6A (US/EU standards,
CE/FCC/UL certied)
Operating Temperature 0°C ~ 40°C/ 32°F ~104°F
Storage Temperature -20°C ~ 60°C/ -4°F ~140°F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 5.5W

3
7. Operation Controls and Functions
7.1 Front Panel
1 952
3 4 6 7
8
①
. EDID Switch: Switching this switch to use the built-in or to update the
EDID. Default EDID as below:
3G EDIDNative Mode 1080p@60
HD EDIDNative Mode 1080i@60
EDID updateNative Mode720p@60
A. Please make sure the DVD is set on “auto mode” in output timing's setting.
If the image display properly, stop using this function but if no image
display after the connection. go to step B.
EDID Update procedures as below.
CLUX-H2SDI SDI Monitor
DVD Player
HDMI SDI
PRO-H2-3GSDI

4
B. Connect HDMI source directly (without connecting to CLUX-H2SDI )
to HDMI monitor or TV to see if the image display and make sure the
source's output timing is supporting SDI or CLUXH2SDI's timing. If yes, go
to step C. If no, please change a different monitor or TV and adjust the
timing until the image display.
DVD Player HDMI
TV/Monitor
Adjust to SDI accept Timing
(HDMI Cable)
C. Connect the HDMI monitor or TV to the input port of CLUX-H2SDI and then
set the dip switch to EDID update position. Press the EDID update button
consistently until the Video Lock LED illuminate. In this step the device will
updating the monitor/TV’s EDID to replace the default setting.
HDMI
TV/Monitor
1.Switch the dip switch to EDID update postion
2.Pressed on the EDID update button
consistently
(HDMI Cable)
CLUX-H2SDI
D. Finally, connect the HDMI source to the input port of CLUX-H2SDI and
output connect to SDI monitor which should allow image display.
CLUX-H2SDI SDI Monitor
DVD Player
HDMI SDI
②. EDID Update button: Use this function only when the image does not
display after trying to switch the EDID Update/HD/3G EDID swtich.
e. EDID Update LED: This red LED will illuminate when EDID is being updating.
Detail in Section “EDID Update”.
r. Video Lock LED: This yellow LED will illuminate when the input HDMI has
received the signal and locked it.
t. HDMI/DVI LED: This green LED will illuminate when the input source is HDMI
signal and will not illuminate when the input is DVI signal.
y. 3G LED: This red LED illuminate when the input HDMI signal is 1080p@50/60.
u. HD LED: This yellow LED illuminate when the input HDMI signal is
1080p@24/25/30, 1080i@50/60 or 720p@50/60.

5
i. SD LED: This green LED illuminate when the input HDMI signal is 480i/576i.
o. 3G SDI Out 1 & 2: Connect output SDI display up to 2 for mirror displays or
with SDI to HDMI converter to cascade the signal as long as desired.
7.2 Rear Panel
1 2 3 4 5
q. HDMI In: This slot is to connect with the input source equipment such as
DVD or Blue-Ray player with connection cable for input video and audio
signal transmitting. Or it can also be connect with DVI source equipment
for video signal transmitting.
w. Audio Switch: Switch this switch to allow the audio to be send from
HDMI or R/L.
③. Audio In R/L: These slots are to connect with audio source equipment
such as DVD or Blue-Ray player with output R/L RCA jack.
④. Power LED: This LED will illuminate in RED when the power is connected
the AC supply.
⑤. DC 5V: Plug the 5V DC power supply into this unit and connect the
adaptor to AC wall outlet.

6
8. LED Signal Chart
System Operation LED Signal Status
No.
EDID EDID Singal LED EDID Video HDMI
Description
Switch key 3G HD SD Update /Lock /DVI
1 3G Not Pressed ● ● ●   Input timing is 3G, HDMI mode
2 3G Not Pressed ●● ●   Input timing is HD, HDMI mode
3 3G Not Pressed ● ● ●  Input timing is SD, HDMI mode
4 3G Not Pressed ● ● ● ●   Input timing no support , HDMI mode
5 3G Not Pressed ● ● ● ●Input timing is 3G, DVI mode
6 3G Not Pressed ●● ● ●Input timing is HD, DVI mode
7 3G Not Pressed ● ● ●●Input timing is SD, DVI mode
8 3G Not Pressed ● ● ● ● ●Input timing no support , DVI mode
9 HD Not Pressed ● ● ●   Input timing is 3G, HDMI mode
10 HD Not Pressed ●● ●   Input timing is HD, HDMI mode
11 HD Not Pressed ● ● ●  Input timing is SD, HDMI mode
12 HD Not Pressed ● ● ● ●   Input timing no support , HDMI mode
13 HD Not Pressed ● ● ● ●Input timing is 3G, DVI mode
14 HD Not Pressed ●● ● ●Input timing is HD, DVI mode
15 HD Not Pressed ● ● ●●Input timing is SD, DVI mode
16 HD Not Pressed ● ● ● ● ●Input timing no support , DVI mode
17 Update Not Pressed ● ● ●   Input timing is 3G, HDMI mode
18 Update Not Pressed ●● ●   Input timing is HD, HDMI mode
19 Update Not Pressed ● ● ●  Input timing is SD, HDMI mode
20 Update Not Pressed ● ● ● ●   Input timing no support , HDMI mode
21 Update Not Pressed ● ● ● ●Input timing is 3G, DVI mode
22 Update Not Pressed ●● ● ●Input timing is HD, DVI mode
23 Update Not Pressed ● ● ●●Input timing is SD, DVI mode
24 Update Not Pressed ● ● ● ● ●Input timing no support , DVI mode
25 Update Not Pressed ● ● ● ● ● ● No input signal or No connect
26 3G Not Pressed ● ● ●   ●Input with HDCP Encryption
27 HD Not Pressed ● ● ●   ●Input with HDCP Encryption
28 Update Not Pressed ● ● ●   ●Input with HDCP Encryption

7
Note: 1. "" signal represent LED illuminate whereas "●" signal represent not
and "" is blinking light.
2. Only a part of HDMI timing may be convert into SDI signal and
therefore, default EDID setting selection provides source player with
reference and propriety output timing.
3. EDID switch mode / Default EDID setting:
3G
1080p@60
HD
1080i@60
Update
720p@60
4. Due to HDMI’s default timing are mainly set on 480p but SDI does not
support such timing therefore, it is possible that the image will not dis
play. To avoid such event, it is suggested to set the source input
equipment’s output timing on the “AUTO mode” for the source
equipment to send the EDID native timing of the display.
5. Only No. 4,8,12,16,20 & 24 needs to do EDID update. Detail informa
tion please refers to “EDID Update button”in section 7.1①.
6. When the input source signal is with HDCP encryption the EDID Update
and Video Lock LEDs will blink mutually, others LEDs will not illuminate
and the output display will have no image.

8
EDID Update LED Conrm Status
No.
EDID EDID Singal LED EDID Video HDMI
Description
Switch key 3G HD SD Update /Lock /DVI
1 Update Pressed On ● ●    3G Native, HDMI mode, Read OK
2 Update Pressed On ●●   HD Native, HDMI mode, Read OK
3 Update Pressed On ● ●     SD Native, HDMI mode, Read OK
4 Update Pressed On ● ● ●    No support timing, HDMI mode, Read OK
5 Update Pressed On ● ●   ●3G Native, DVI mode, Read OK (Note4)
6 Update Pressed On ●●  ●HD Native, DVI mode, Read OK (Note4)
7 Update Pressed On ● ●    ●SD Native, DVI mode, Read OK (Note4)
8 Update Pressed On ● ● ●   ●EDID format error (Note5)
9 Update Pressed On ● ● ● ● ● No connection or connection error
Note: 1. "" signal represent LED illuminate whereas "●" signal represent not
and "" is blinking light.
2. Only when the EDID button is being pressed on consistently the EDID
update will progress and when the update is complete the Video
Lock LED will illuminate. If the button is not pressed the LED will
illuminate according to “System Operation LED Signal Status”.
3. HDMI source sending output resolution is base on receiver side’s
display monitor/TV’s EDID but different sources may have different
handling progress. The EDID update function is made to solve
compatibility issue.
4. When EDID read DVI mode the system will check if the EDID’s native
mode support SDI timing. If yes, the display will show according to
No. 5,6 & 7. If not, the system will automatically
copy default DVI’s EDID (Native 3G) mode and show as No.5 Format
5. EDID format error includes: Header error, Checksum error and EDID
error under this condition the default EDID or the updated will not be
change.

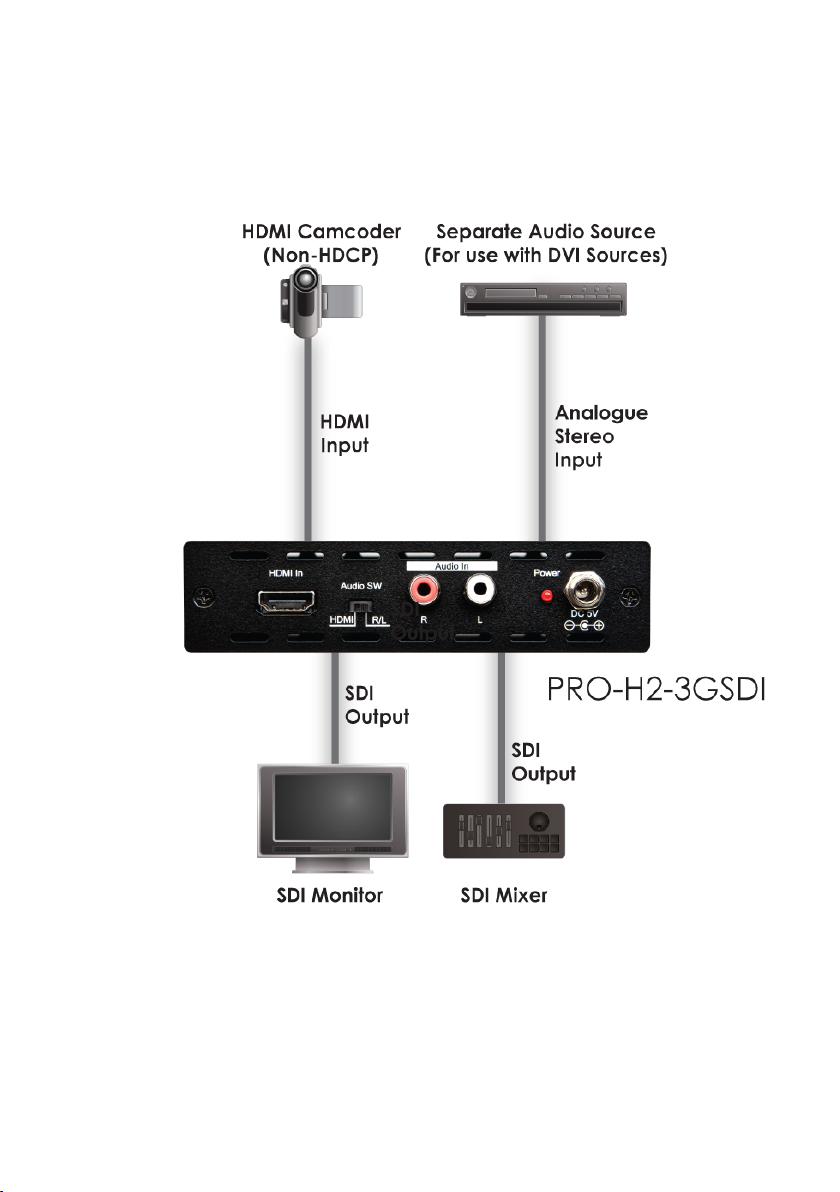

9. Connection and Installation

10
Acronyms A
Acronym Complete Term
3G Bandwidth 2.97Gbit/s ≈ 3G
SDI Serial Digital Interface

A

www.cypeurope.com
