D-Link DWM-652 User manual

Manual
Version 1.00
DWM-652
3.5G
Express Card
D-Link

2
Contents
Package Contents ................................................................................ 3
System Requirements .......................................................................... 3
Introduction........................................................................................... 4
Features and Benets .......................................................................... 5
Hardware Overview (LEDs).................................................................. 5
Wireless Basics .................................................................................... 6
Getting Started ..................................................................................... 8
Using the Conguration Utility .............................................................. 9
Logging into Utility........................................................................... 9
Wireless Settings .......................................................................... 10
WEP Encryption .............................................................................11
WPA Authentication....................................................................... 12
WPA-PSK/WPA2-PSK Encryption ................................................ 13
LAN Settings ................................................................................. 14
DHCP Conguration...................................................................... 15
Performance Settings.................................................................... 16
MAC Address Filtering .................................................................. 17
Change Password......................................................................... 18
System Backup/Restore................................................................ 18
Firmware Upgrade ........................................................................ 19
Device Information ........................................................................ 19
System Log ................................................................................... 20
Trafc and Wireless Statistics ....................................................... 21
Networking Basics.............................................................................. 22
Troubleshooting.................................................................................. 35

3

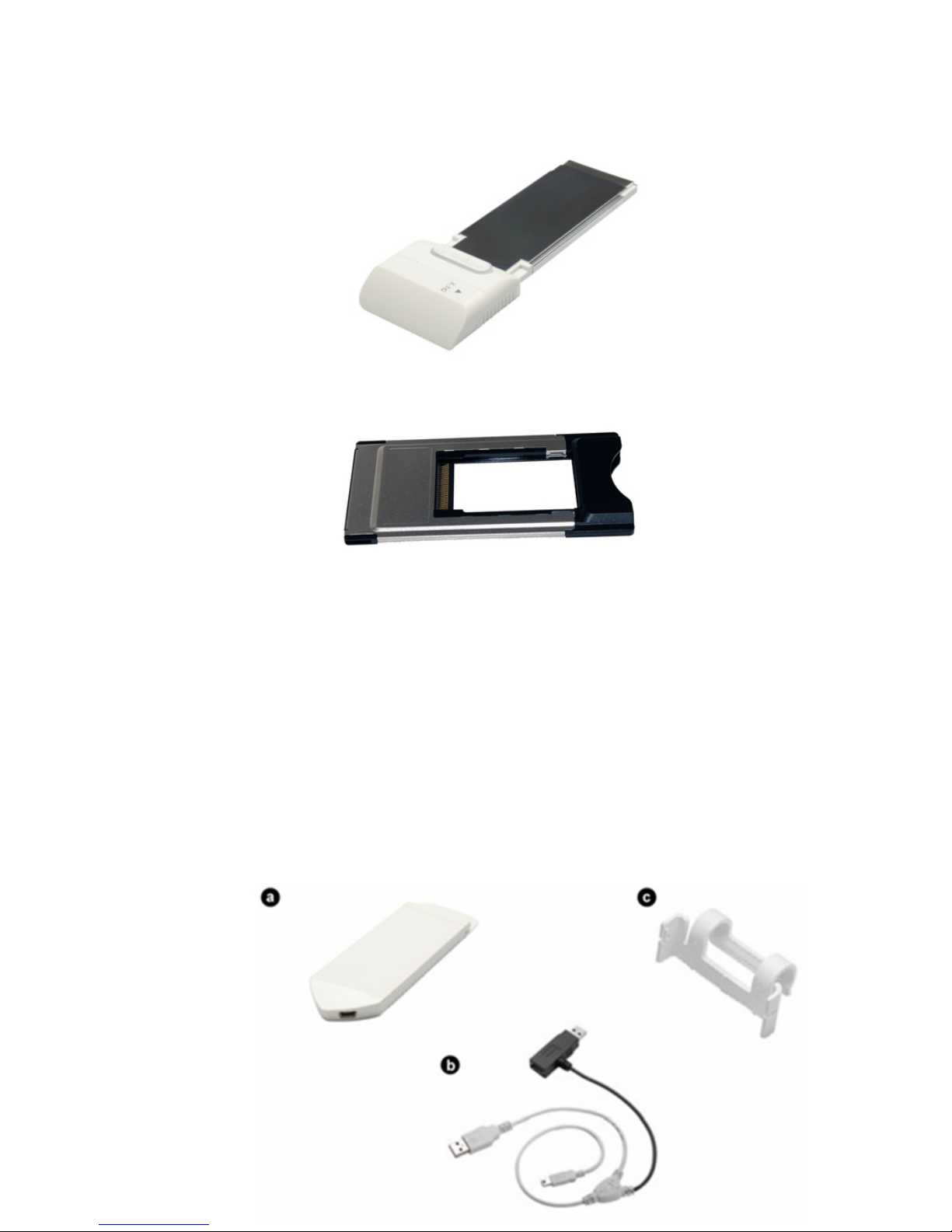

USB Accessories
a.DWM-652 USB Adaptor Casing (optional): Insert the DWM-652
(1) into this case if no PCMCIA/ExpressCard slot is available and
connect it to the PC with the USB Cable (3b).
b. USB Cable (optional): Insert the small end into the Adaptor
Casing (3a) and the two large ends into the PC. Two free USB
ports are required for maximum signal strength. The gray port can
be shared with a mouse or keyboard.
c. Notebook Screen Hook (optional): Secures the DWM-652 to a
laptop computer screen.
What’s in the box



DWM-652: Insert this into an ExpressCard Slot if available.
PCMCIA Adaptor Casing (optional): Slide the DWM-652 in this
casing if a PCMCIA slot is available.

4
Features
Worldwide Roaming
Supports 2G, 3G and 3.5G standards
SMS Messaging
USB, ExpressCard or PCMCIA Interface
Windows Vista, XP and 2000 compatibility
Does not interfere with other USB peripherals
Six language interface (English, French, German, Italian, Spanish and Traditional
Chinese)
Plug & Play functionality
Dual Antennas
Before You Install
Information
Before installing the DWM-652, we recommend obtaining the following information
from the SIM Card Mobile network operator:
Access Point Name (APN) - For many carriers, the APN may simply be Internet.
Phone Number - The Phone Number to dial to establish a network connection.
D-Link software helps input this number correctly.
Password (Optional) - Some (but not many) carriers require a password. Insert
SIM Card

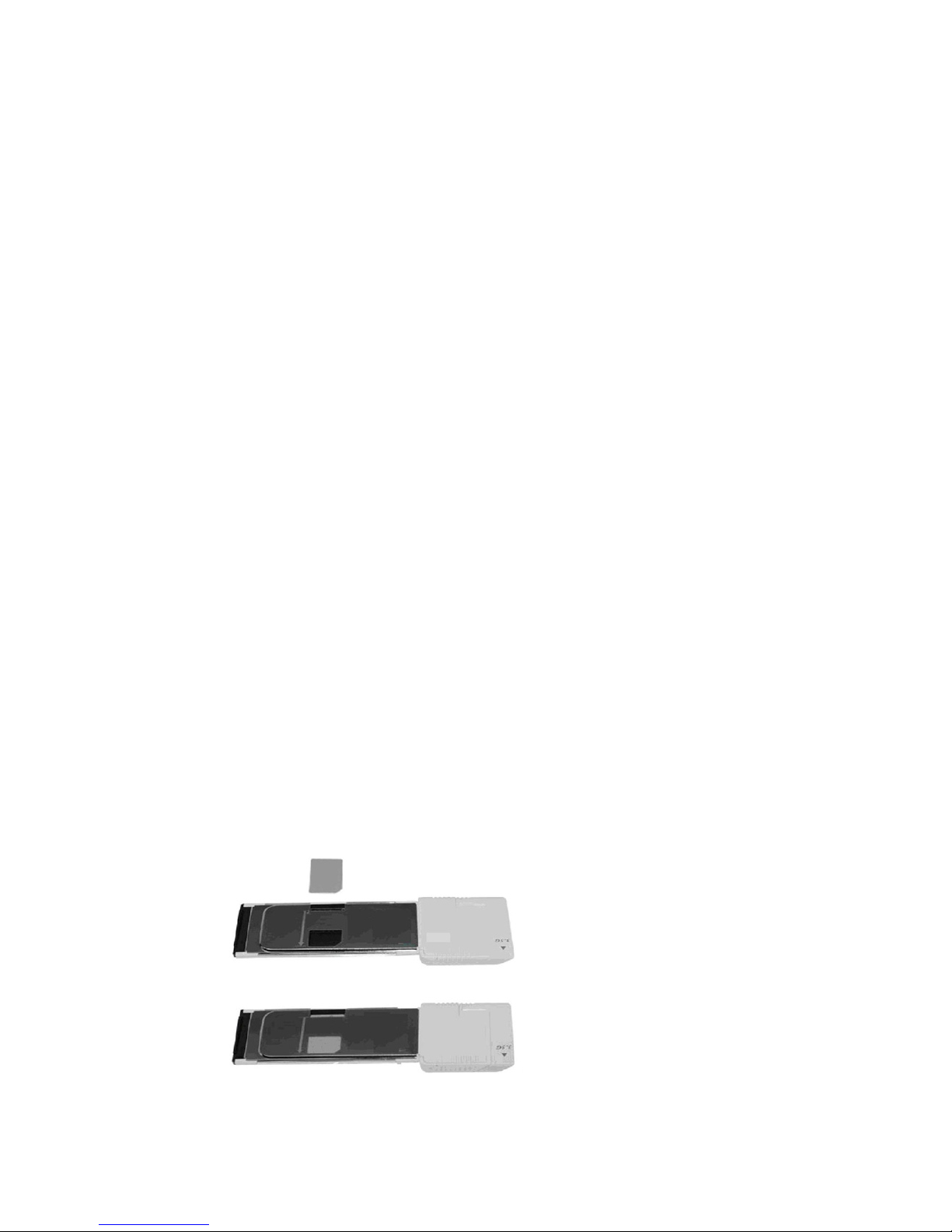

Insert SIM Card
Face the gold contact points toward each other.
Insert the SIM card into the slot.
Push the card in until it reaches the end of the arrow next to the slot.
2
3
1

5
With the SIM card properly inserted, the DWM-652 may now be installed into the
computer, which may be done via PCMCIA/ExpressCard Slot or USB port.
Hardware Installation
ExpressCard Slot
Slide the DWM-652 into the slot (SIM card side down, LED side up).
The LED should light up when connection is established.
1
2

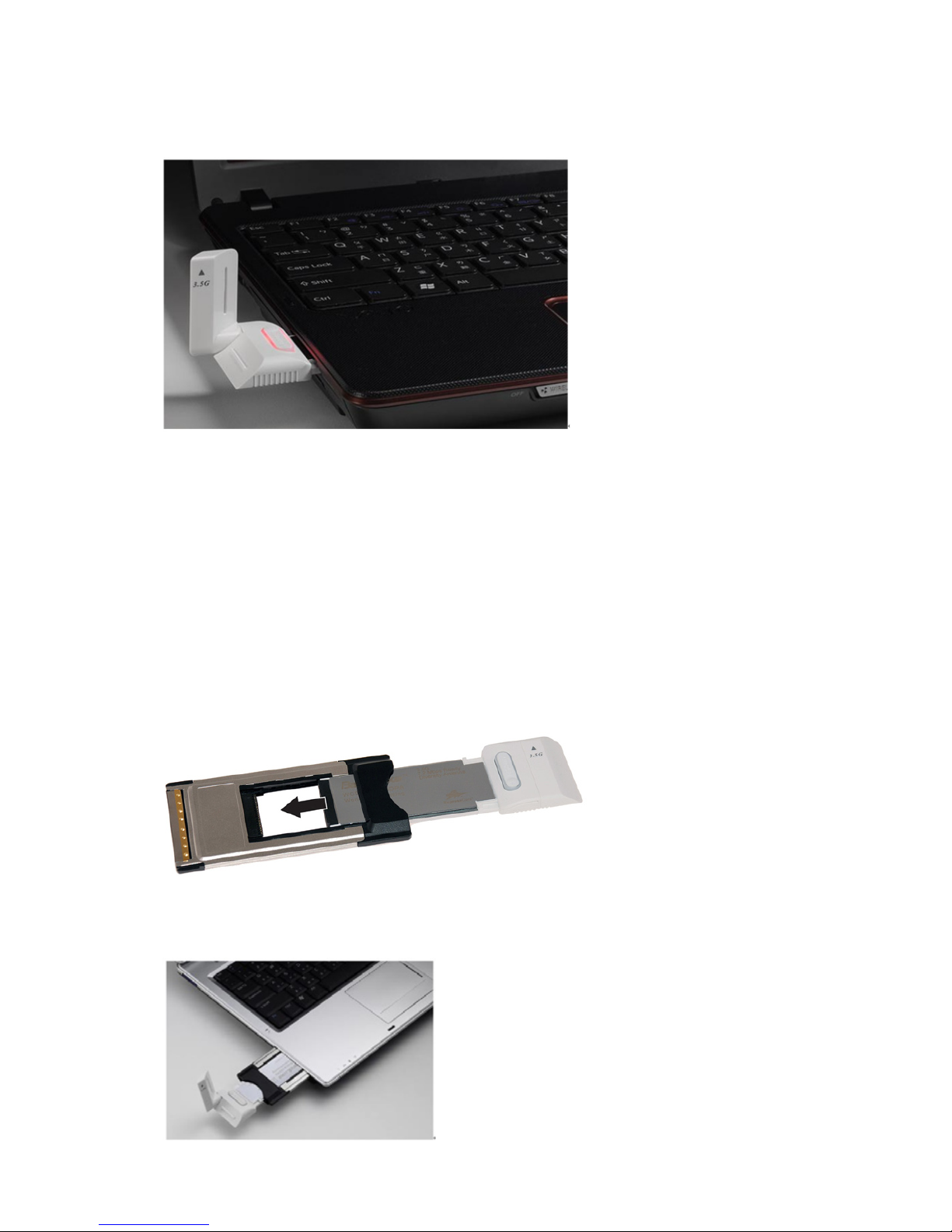

PCMCIA Adaptor
Slide the DWM-652 into the PCMCIA Adaptor (LED & Gold Strip Up, SIM Card
Side Down) as far as possible.
1
With the same orientation (antenna side up), slide the DWM-652 - Adaptor unit
into the PCMCIA slot.
2
The LED should light up when connection is established.
3

6

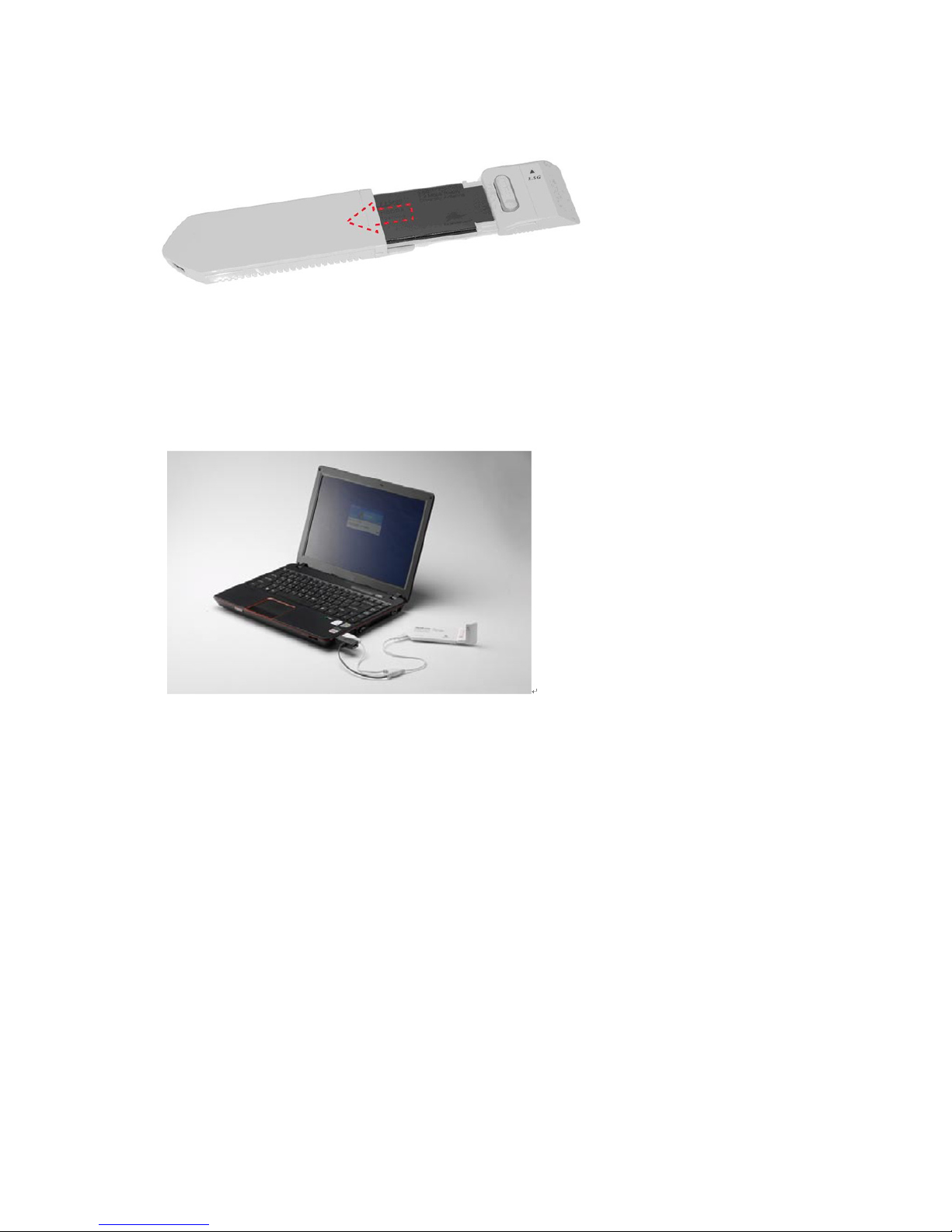

USB
Slide the DWM-652 into the USB adaptor casing (USB adaptor label & DWM-
652 LED side up).
1
Insert the small USB plug into the adaptor casing. Insert the two large USB
plugs into the computer.
2
The LED should light up when connection is established, though it may be
obscured.
3

7
Software Installation
The process and appearance of certain software elements in Windows Vista will be
somewhat different than in 2000/XP. These differences are minor and should not limit
the functionality of the DWM-652 in any way.
New Hardware Detection
Windows 2000/XP
Once the DWM-652 is connected, a dialog box should pop-up from the Toolbar
Hardware Connection Icon. The device will be identied as the D-Link DWM-652
3.5G HSDPA Utility.
Windows Vista
In Vista, a pop-up window may appear. Click
Allow to proceed.
After the rst pop-up, all other aspects for
software installation will be identical in all
compatible versions of Windows.

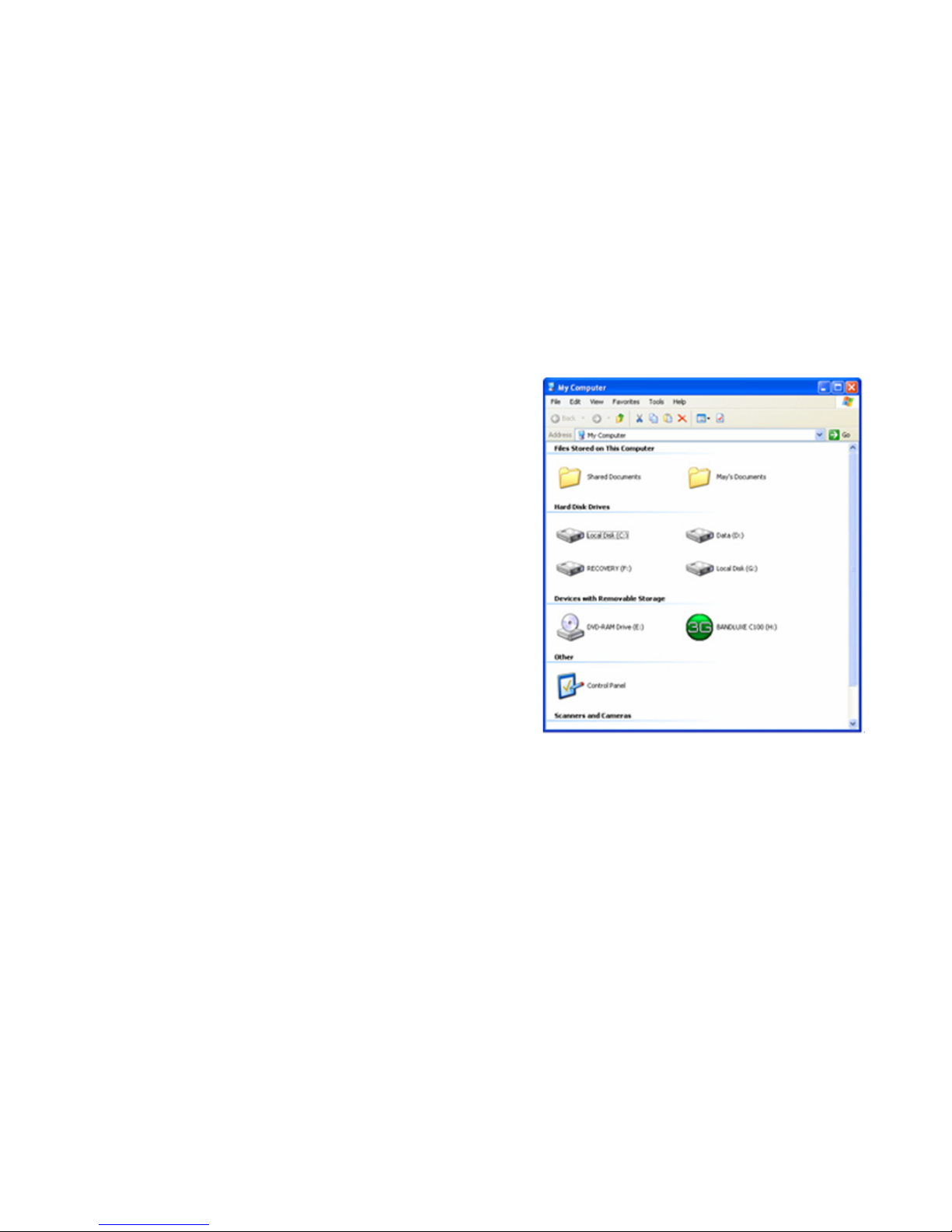

Software installation should proceed automatically. If it does not, it may be initiated
from My Computer, where the DWM-652 will be identied as a CD-ROM device.
Sometimes a restart will occur during installation. If it does, reinitiate installation from
My Computer.

8

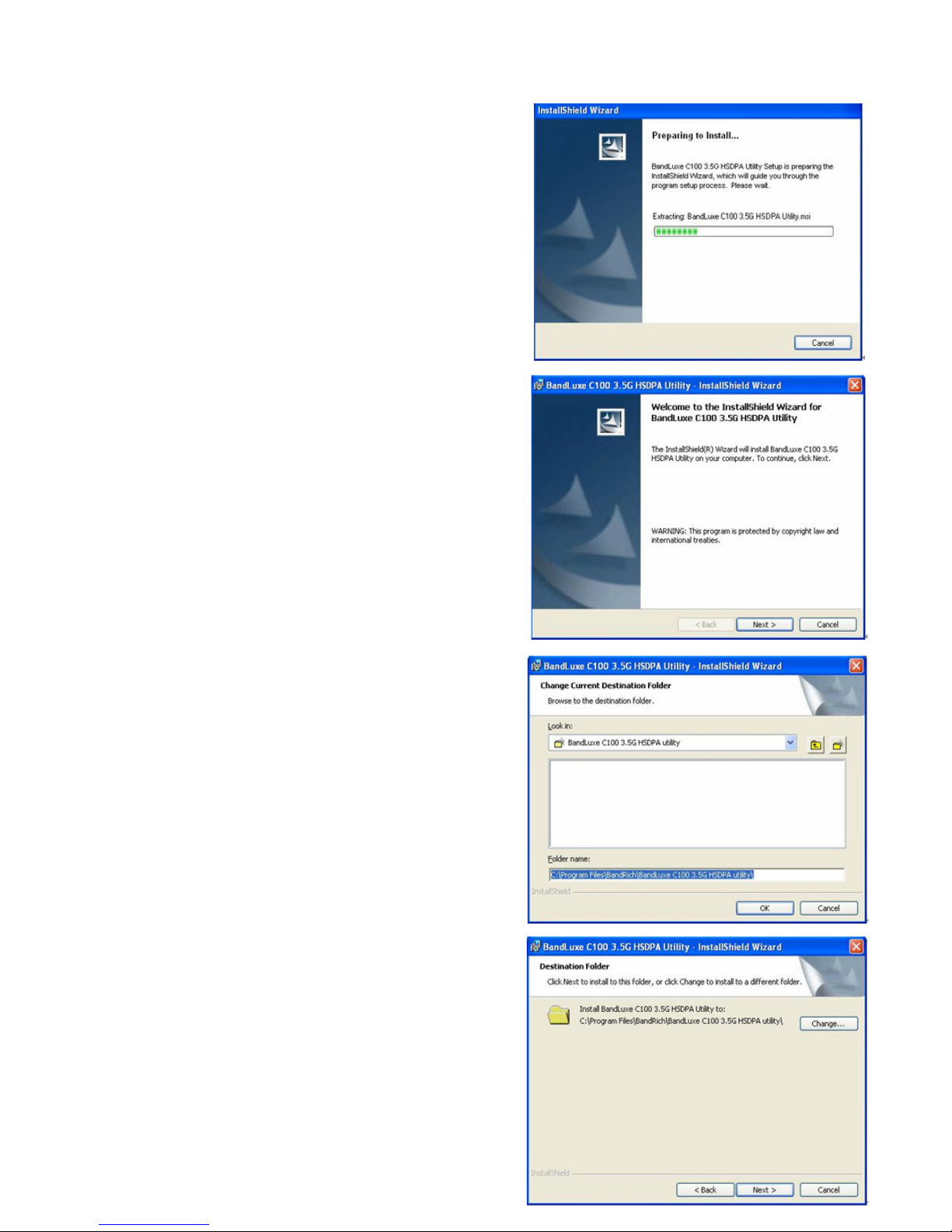

Preparation
InstallShield Wizard
The DWM-652 will automatically
use the appropriate language
for your OS, if available.
Welcome
The Setup Wizard window
opens automatically. The rst
page contains OS compatibility
and legal disclaimers. Click Next
to continue.
License Agreement
Click I accept the terms in the
license agreement > Next to
continue.
Select Installation Folder
Click Change to manually select
a folder.

9
Change Current Destination Folder
Highlight the folder and click OK
to select it. Click Cancel to close
the Browse window.
Conrm Installation
Click Back to change any
preceding information or
settings. Click Install to begin
installation.
Installation
Installation time will vary,
depending on the computer.

10
Using the Conguration Utility (continued)

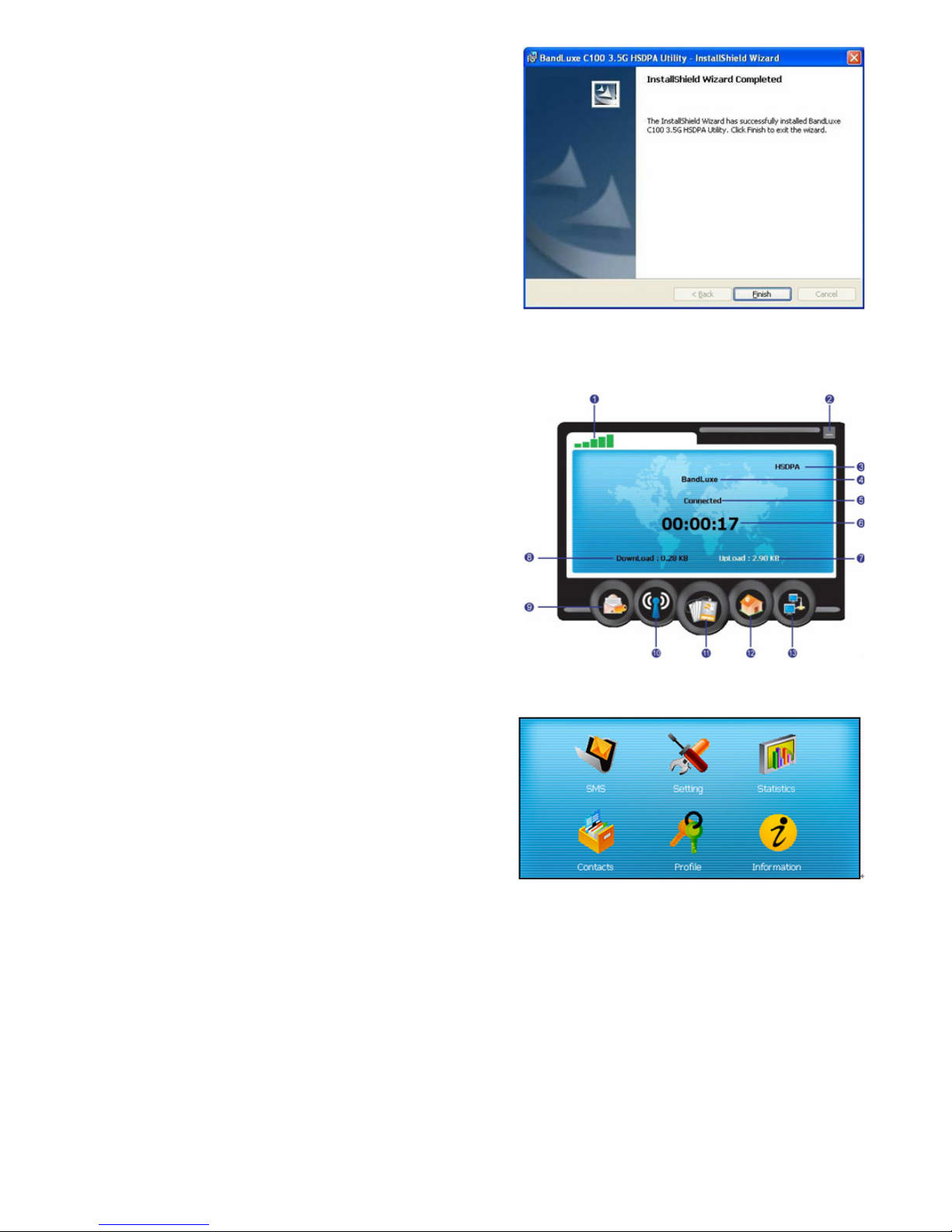

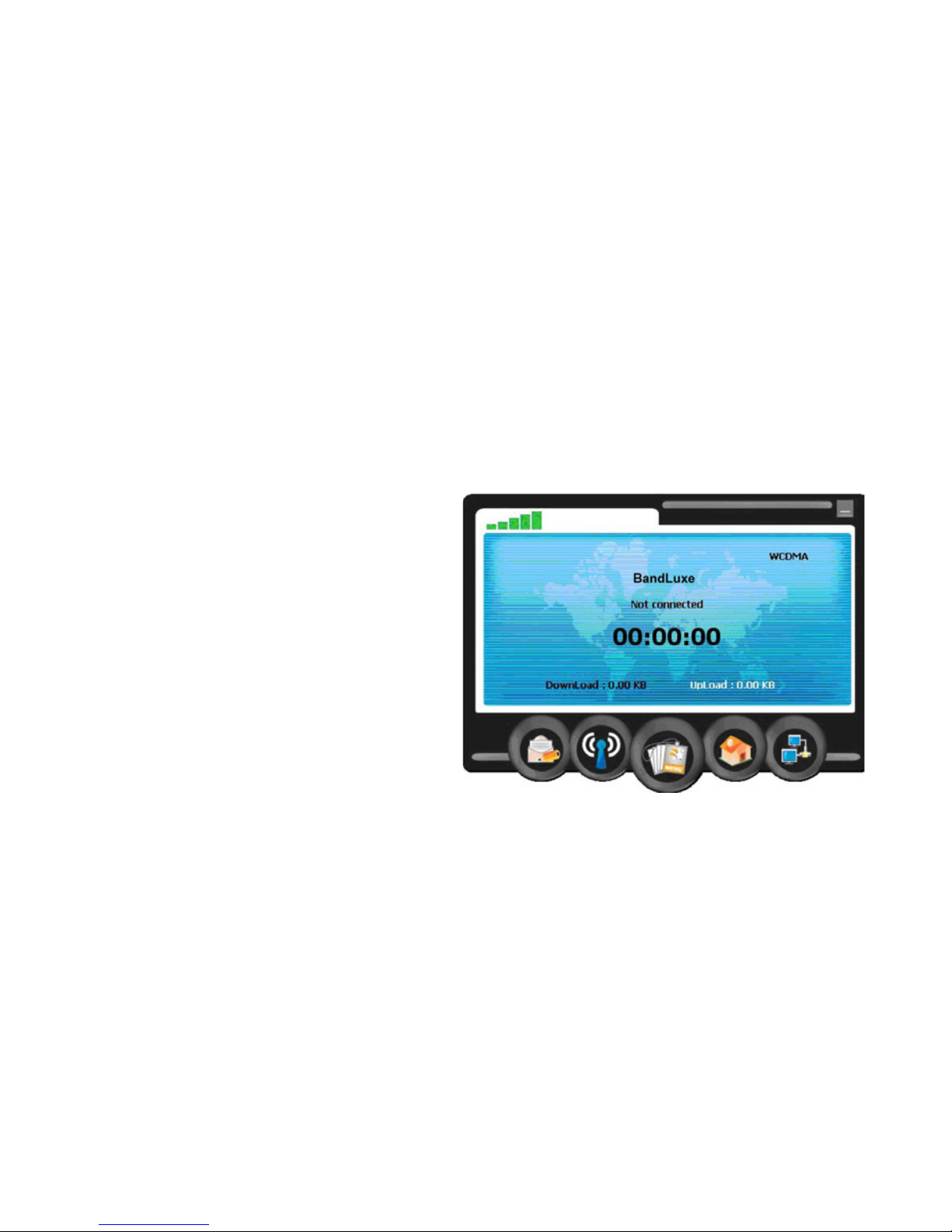

Home Screen
1. Signal Strength
2. Minimize
3. Radio Technology
4. Mobile Network Operator
5. Connection Status
6. Connection Time Elapse
7. Total Data Uploaded
8. Total Data Downloaded
9. Compose Message
10. Radio On/Off
11. Menu
12. Home Screen
13. Connect/Disconnect
Note: The Home screen only indicates 3G (internet) connection status. After installation, the DWM-652
automatically initiates 2G (SMS) functions upon successful connection to the computer. Text mes¬sages
can be sent or received, even if the Home screen indicates no connection.
Menu Screen
SMS: Text message folders such as Inbox, Draft, etc.
Setting: General, SMS, SIM, Radio and Network preferences.
Statistics: Upload, Download graphs and totals.
Contacts: DWM-652, SIM Card and Outlook Contact lists.
Prole: Connection prole setup/options.
Information: Device, Version and Signal specics.

11
Installation Complete
When installation is complete,
click Finish to exit. The
Connection Manager will open
automatically and bring up the
Home Screen. The Quick Start
Guide will also automatically
open, but only if you have Adobe
Acrobat 6.0+.

12
Connecting
Establishing a Connection
W i t h t h e D W M - 6 5 2 f u l l y
installed, an online connection
can now be made. The
DWM-652 will automatically
scan your system and create
a default profile, which should
work in the vast majority of
cases. To test it, simply click the
Connect button.

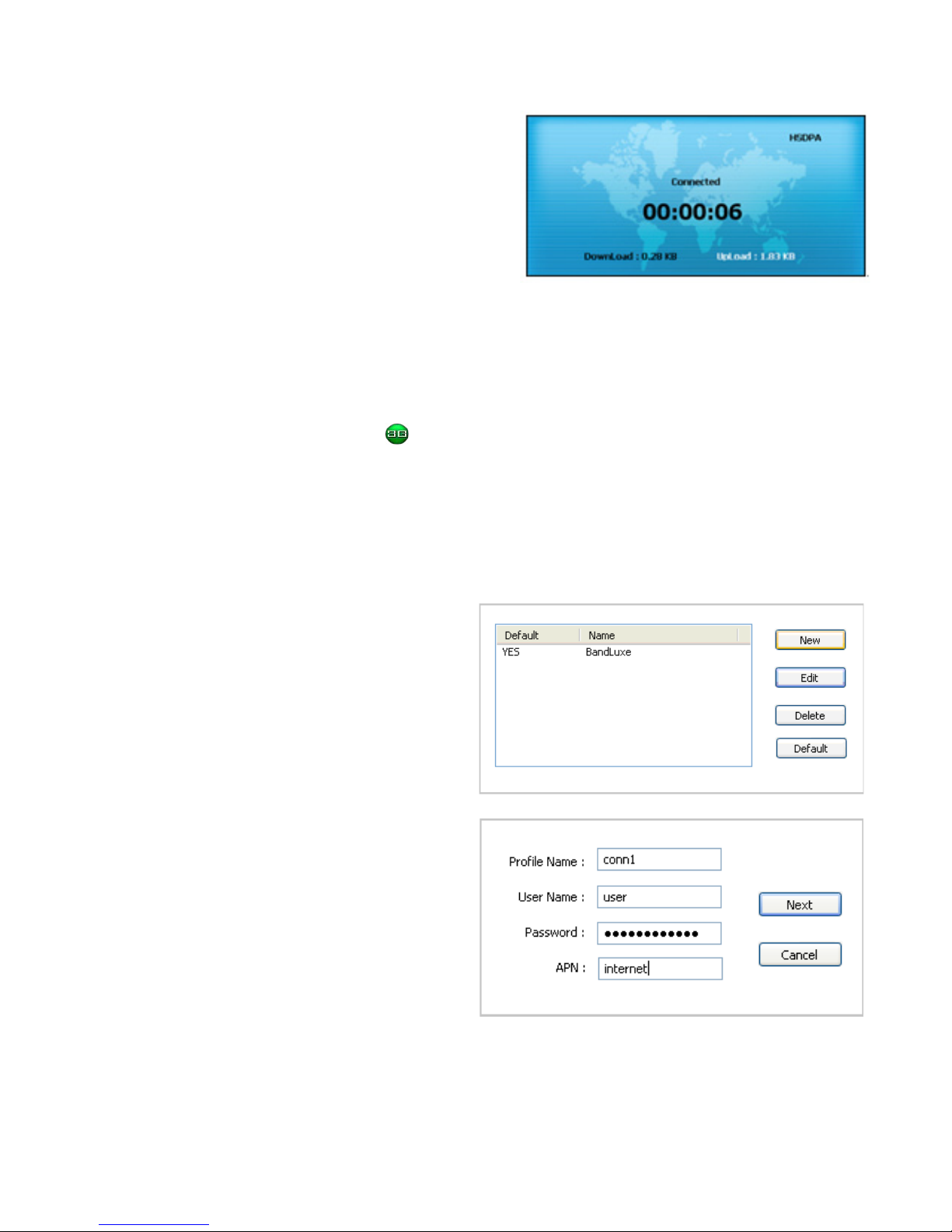

Connection should take about 5 seconds. When established, the Home screen
should say Connected, with the onscreen clock running and the Download/Upload
tallies running. The toolbar icon will also change color to indicate the connection
protocol (same as LED indicator). See Specications for details.
If connection is unsuccessful, check that the device and SIM card are properly
connected and inserted. If they are, a new internet prole may need to be created.
Create a Prole
Click Menu > Profile. The
prole menu will contain the
DWM-652 default profile,
named D-Link.
1
Click New to create a new
profile. Depending on the
carrier, all 4 spaces may not
need to be lled to proceed.
2
Choose a Profile Name. The name is arbitrary and is helpful when different
connection methods are available.
Inquire with the Mobile network operator (SIM carrier) as to whether the User
Name and Password are required.
3
4

13
The Password can be any combination of letters, numbers or symbols and is
case sensitive.
5
6

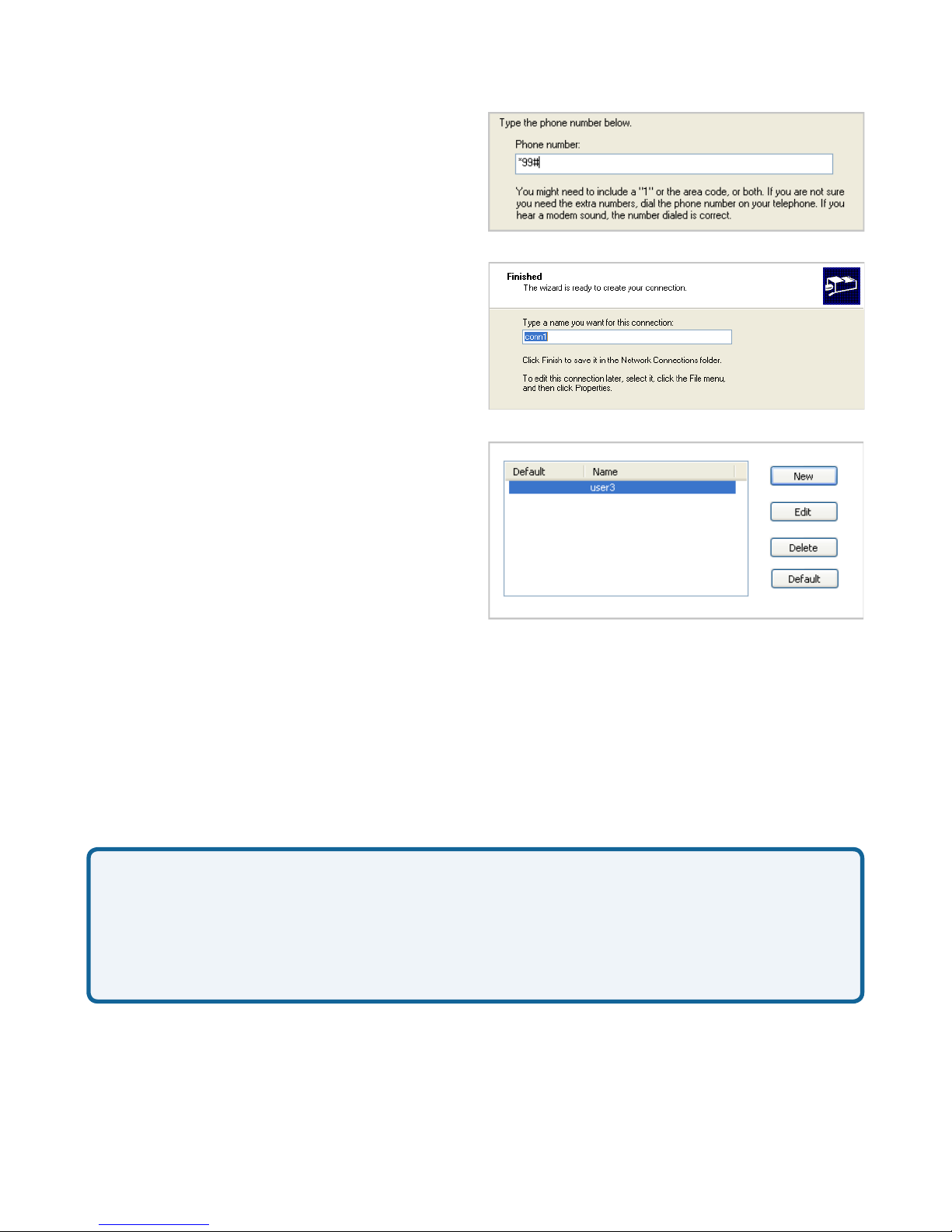

Enter the phone number for
establishing the wireless
connection, supplied by the
SIM card carrier; click Next.
8
Enter the Access Point
Name (APN), supplied by
the SIM card carrier. With
all required slots lled, click
Next.
The Finished window is
a double check of the
Profile Name, which
can be modified here. If
profile settings need to
be changed, click Back.
If everything is fine, click
Finish.
On the Profile window, click the newly created profile and then click Default. Click
OK to set this profile as the default (only the default can be connected).
The D-Link DWM-652 is now ready for a wireless connection. Click the Connect
icon to establish it. Connection should take about 5 seconds. When established,
the Home screen should say Connected, with the onscreen clock running and the
Download/ Upload tallies counting.
9
10
7
Note: If you switch to a different SIM card, the default prole will no longer be
valid. You will have to create a new prole in the manner just described. If you
do not have access to all the information necessary to create a new profile,
uninstall and reinstall the D-Link software. The new default prole should work
for the new SIM card.

14

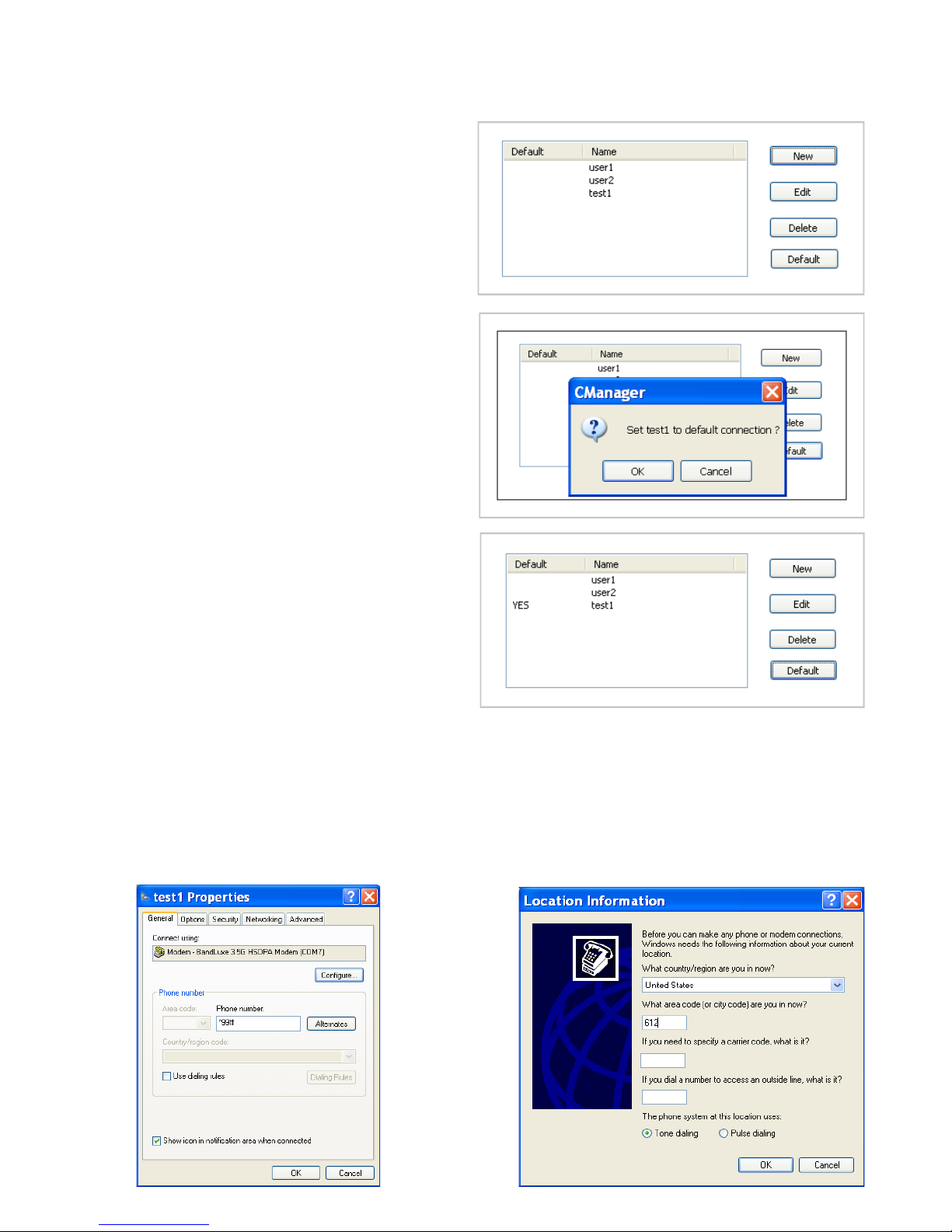

Choose a Prole
Different profiles may be needed, depending on current location.
1Click Menu > Profile.
2Highlight the desired profile
and click Default.
Click OK on the confirmation
window if this is the desired
profile.
3
The word YES will appear next to the default profile.
4
Prole Properties
Profiles can be fine tuned after creation. In the Profile window, simply click Edit to
adjust the default profile. To adjust a non-default profile, highlight it and then click
Edit. Click Next on the Edit window to view the Properties menu, General Tab.

15

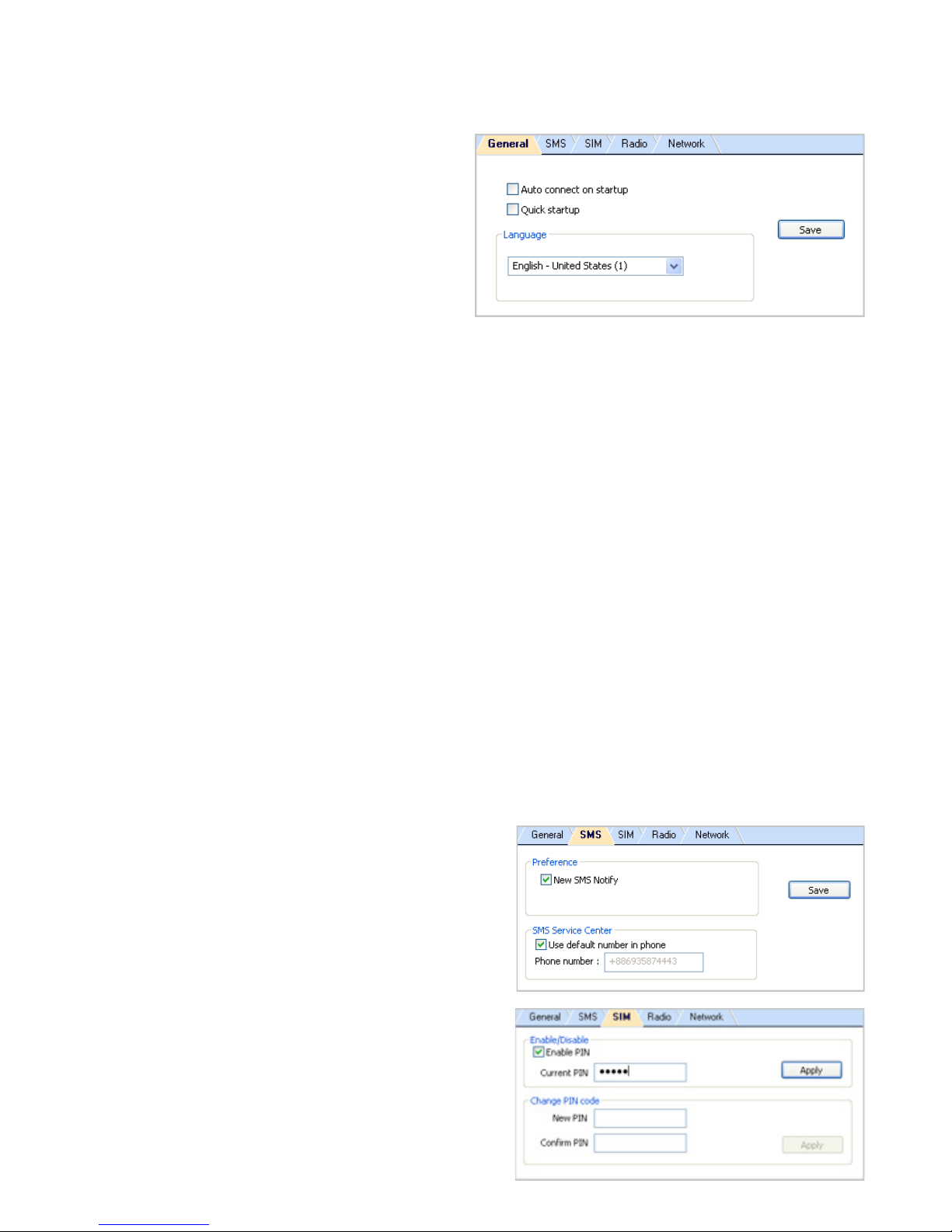

General
Connect using
If other modems are available, they will be listed here. Click Configure to adjust the
D-Link modem settings.
Phone number
Check Use dialing rules to access the Location Information window to add more
specific dialing information such as tone/pulse dialing, current region, area & carrier
code, and outside line access number.
Click OK when completed.
This and other Properties menu tabs are generic to the Windows OS and will not be
discussed further.
Connecting & Disconnecting
If a default profile has been
selected, a connection can
b e m a d e o r e n d e d a t a n y
time by clicking the Connect
button on the Menu screen.
However, connection status
will not be obvious unless the
Home screen is displayed. The
Statistics or Signal Information
windows also clearly display
connection status.

16

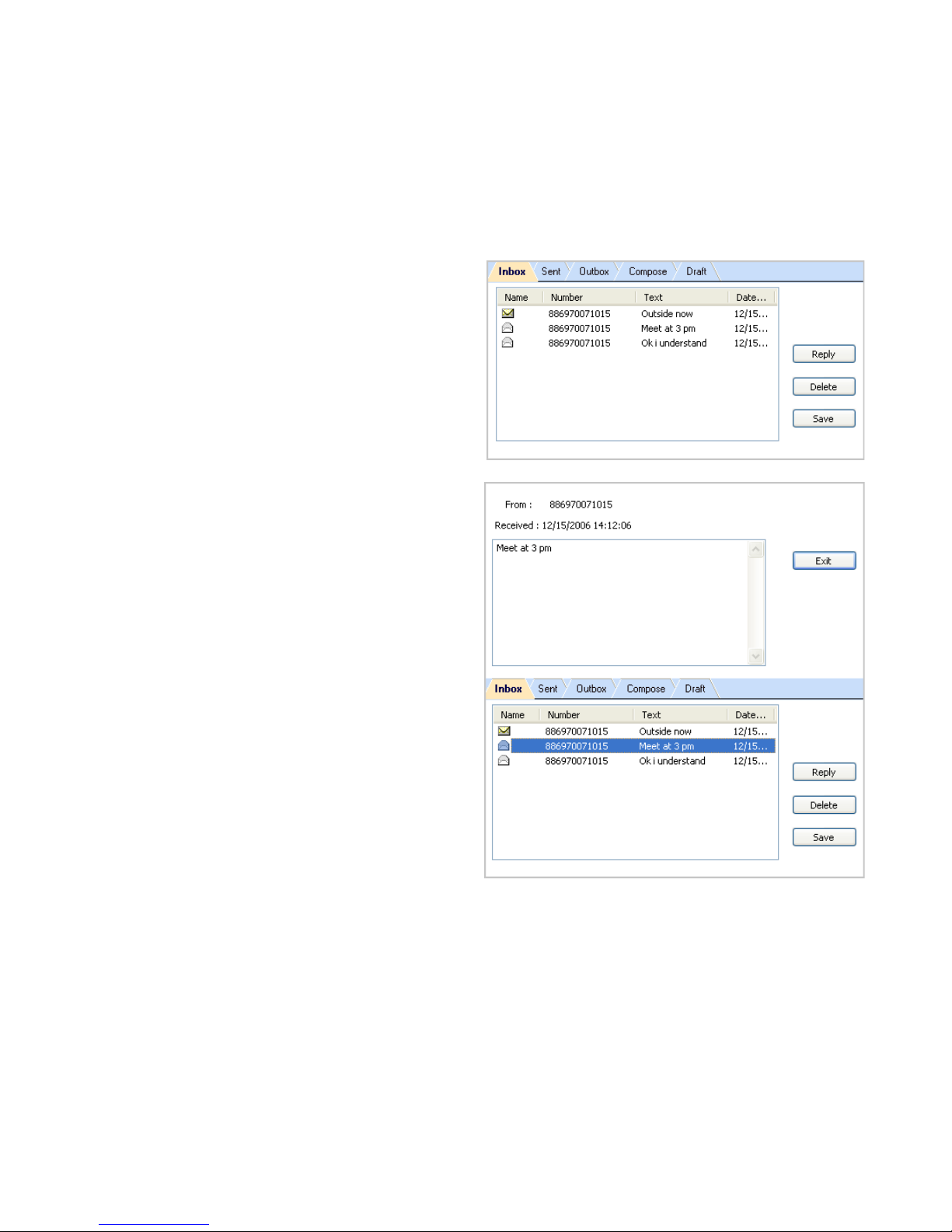

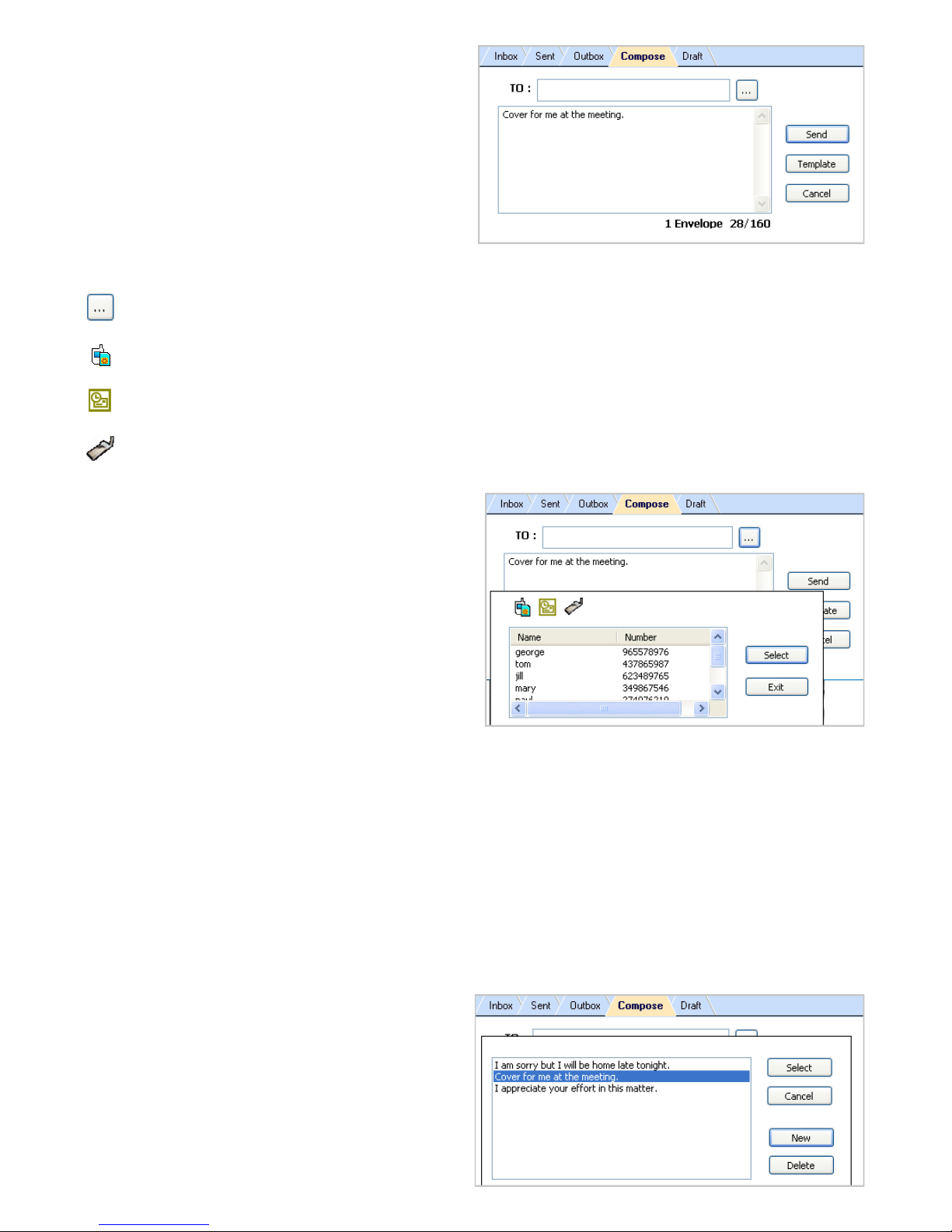

SMS
The Connection Manager allows the same standard SMS options as any other
mobile device. Each message stored in the Inbox, Outbox, Sent and Draft folders
displays the Name and Number of the contact, the body text of the message and the
date it was stored in the folder.
Choose a Prole
Contains received messages.
Save, Delete or Reply to Inbox
messages by highlighting them
and pressing the appropriate
button. Highlight a message
to make it scroll open above.
Unread messages are closed
envelopes while read messages
are open.
Sent
Contains all successfully sent messages. Highlight a message and press Delete to
erase it.
Outbox
Contains completed but unsent messages. Send or Delete messages by highlighting
them and pressing the appropriate button.

17
Compose
Contains all tools for creating
messages.
To : C o n t a i n s t h e P h o n e
Number of the recipient.
Message Body: Up to 160
characters.
Contains completed but unsent messages. Send or Delete messages by highlighting
them and pressing the appropriate button.
Press to see contact lists.
SIM Card Contacts
Outlook Contacts
DWM-652 Contacts
Highlight a Contact and click
Select to choose it. Click Exit to
return to the Compose screen.
Click Template to view all stored
templates, or create/delete one.
Highlight a template and click
Sel ect to i n ser t i t int o the
message.
Click New to create a new
template. Click Save to add
the new template to the list of
existing ones. Click Cancel
to return to the Template list
window.
Highlight a template and click
Delete to erase it.
Draft
Contains saved but unnished
messages. Highlight a draft and
click Edit to send the message
back to the Compose window.

18
Settings
General
Check Auto connect on startup
to have the DWM-652 connect to
the internet automatically during
startup. If speed is essential,
clicking Quick startup will cause
the auto startup to proceed even
faster. However, if you plan
to install the DWM-652 onto
multiple computers, disable the
Quick startup function. Do not
have the DWM-652 connected to
the computer when you turn it on
when Quick startup is enabled.
Language
The Connection Manager offers English, French, German, Spanish, Italian and
Traditional Chinese. To choose a language, click the menu and highlight & select a
language. Click Save to implement the chosen language. The Connection Manager
will then return to the Home Screen with the chosen language.
SMS
Preference
New SMS Notify: Check to be notied when a new text message arrives. If enabled,
the Toolbar Connection Manager Icon will change to an Envelope Icon. An envelope
icon will also appear in the upper left corner of the Home screen when a new
message arrives.
SMS Service Center
Use default number in phone:
Uncheck to manually input
service center number.
Click Save after making any
changes.
SIM
Enable/Disable or change the
SIM card Personal Identication
Number (PIN). Press Apply after
making any changes. A SIM card
must be inserted for this function
to be active.

19

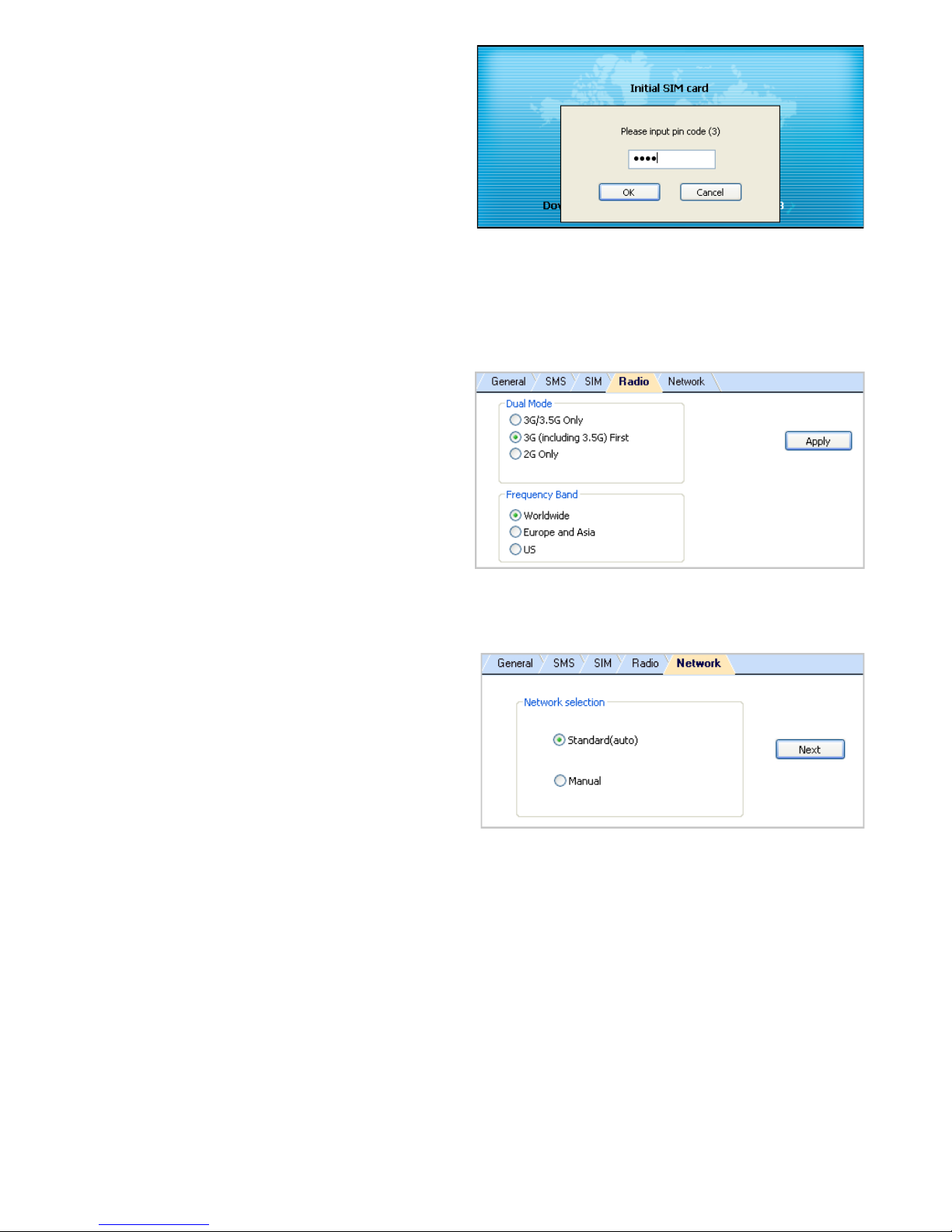

If a PIN code is enabled, it will
be asked for during SIM card
initialization. After 3 incorrect PIN
code entries, the SIM card will be
locked. Contact your operator to
unlock it.
Radio
Dual Mode- Features various network search options. Note that 3G (including 3.5G)
First is the default setting.
Frequency Band
Save network scanning time
by eliminating unnecessary
frequencies or choose Worldwide
if local standards are uncertain.
After making changes to either,
click Apply.
Network
Network Selection
Standard ( a u to) Search for
networks in the order specied
in the Prefer list. Click Standard
(auto) > Next to view and adjust
the Prefer list.

20

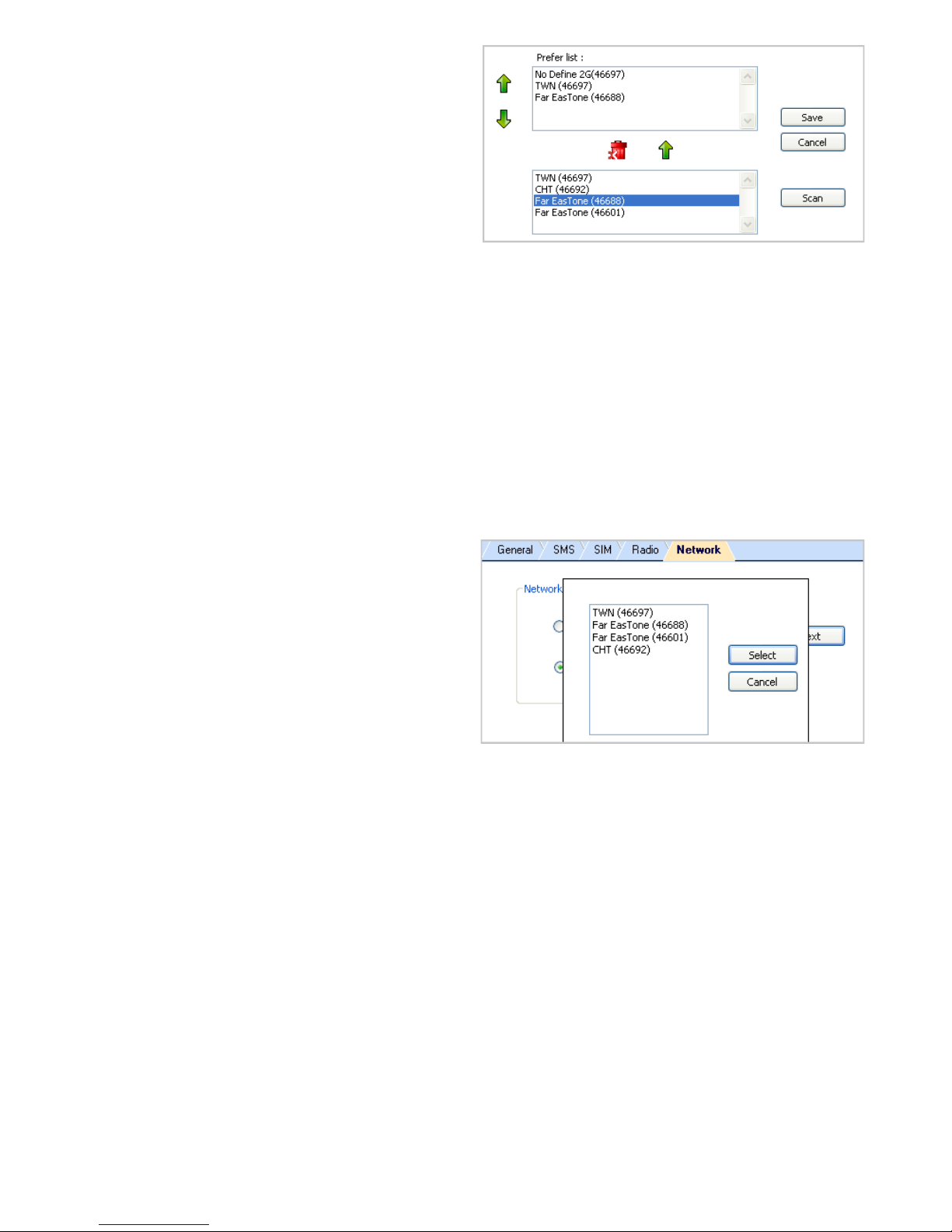

The top list is the Prefer list;
the bottom lists all available
networks. Click Scan to bring up
the list of all available networks.
In the Prefer list, highlight a
network and click the up arrow
to the left to move it up the
list (increase its preference);
clicking the down arrow does the
opposite. Clicking the red icon
removes the highlighted network
from the Prefer list.
In the bottom list, highlight a
network and click the up arrow
above to move that network to
the Prefer list.
If changes are made, click Save.
Manual
Choose a network from all
available. Click Manual > Next to
see the list. Highlight a network
and click Select. If no change is
needed, click Cancel.
Note that Network can only be
accessed when the DWM-652 is
not connected to a network.
